Dacor DTT36M974AM User manual

Installation Instructions
Modernist Rangetop
DTT36M974L*/DTT48M976L*

English2
Contents
Contents
Before you begin 5
Important 5
About this manual 5
Important note to the installer 5
Important note to the consumer 6
Important note to the servicer 6
Customer-service information 7
Important safety instructions 8
Read all instructions before using this appliance 8
Symbols used in this manual 8
State of California Proposition 65 warning (US only) 8
Commonwealth of Massachusetts 8
Safety and warning information 9
General safety 9
Fire safety 10
Gas safety 11
Electrical and grounding safety 12
Installation safety 13
Location safety 14
Rangetop safety 15
Product specifications 17

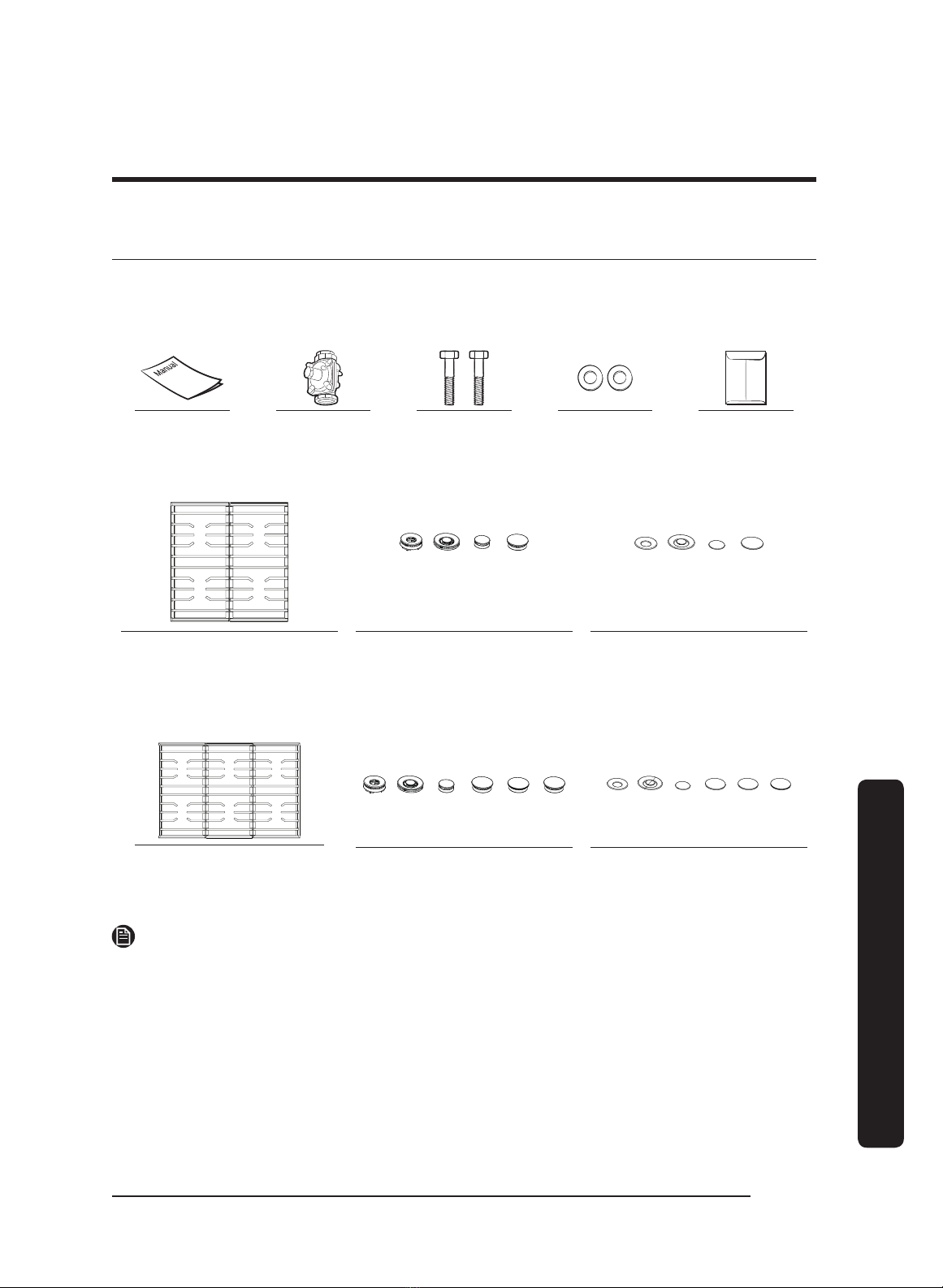

What’s in the box 17
Installation requirements 19
Pre-installation checklist 19
Location requirements 19
Gas supply requirements 28
Special gas requirements (gas models sold in Massachusetts) 29
Electrical requirements 29
Installation instructions 31
Installing your rangetop 31

English 3
To Our Valued Customer:
Congratulations on your purchase of the very latest in Dacor® products! Our unique
combination of features, style and performance make us The Life of the Kitchen™, and a
great addition to your home.
In order to familiarize yourself with the controls, functions and full potential of your new
Dacor Appliance, read this use and care manual thoroughly, beginning with the Before you
begin section.
All Dacor appliances are designed and manufactured with quality and pride, while working
within the framework of our company value. Should you ever experience a problem with
your product, please first check the Troubleshooting section of this manual for guidance. It
provides useful suggestions and remedies prior to calling for service.
Valuable customer input helps us to continuously improve our products and services, so
please feel free to contact our Customer Service Team for assistance with any of your
product support needs.
Dacor Customer Service Team
14425 Clark Avenue
City of Industry, CA 91745
Telephone: [phone]
Fax: [phone]
Hours of Operation: Monday through Friday 6:00 A.M. to 5:00 P.M. Pacific Time
Website: www.Dacor.com
Thank you for choosing Dacor for your home. We are a company built by families for
families, and we are dedicated to serving yours. We are confident that your new Dacor
product will deliver a high level of performance and enjoyment for many years to come.
Sincerely,

English4
WARNING: Failure to follow the instructions in this manual exactly
may cause a fire or explosion, and, consequently, property damage,
personal injury, or death.
•DO NOT keep or use gasoline or other flammable products near
this appliance.
•IF YOU SMELL GAS:
-DO NOT light any appliances.
-DO NOT touch any electrical switches.
-DO NOT use any phone in your building.
-Immediately call your gas supplier from a neighbor's phone,
and follow the supplier's instructions. (If you cannot reach
your gas supplier, call the fire department.)
•Installation and service must be performed by a qualified
installer, service agency, or the gas supplier.

English 5
Before you begin
Before you begin
Important
•The overall design and/or accessories may
differ with the model.
Installer
•To promote safety and minimize
problems, read this manual thoroughly
before starting the installation. Leave
this manual with the user.
•Write the appliance’s model/serial
numbers in this manual for service/
maintenance reference.
User
•Keep this manual for personal reference
and for that of inspectors, service
personnel, etc.
About this manual
READ THESE INSTRUCTIONS COMPLETELY AND CAREFULLY.
Important note to the installer
•Read all instructions contained in these installation instructions before installing the
appliance.
•Remove all packing materials from the appliance compartments before connecting the
electric and gas supply to the appliance.
•Observe all governing codes and ordinances.
•Be sure to leave these instructions with the consumer.
•Installation of this appliance requires basic mechanical skills.
•Proper installation is the responsibility of the installer.
•Product failure due to improper installation is not covered under the Warranty.

English6
Before you begin
Before you begin
Important note to the consumer
Keep these instructions with your user manual for future reference.
•As when using any appliance generating heat, there are certain safety precautions you
should follow.
•Be sure your appliance is installed and grounded properly by a qualified installer or
service technician.
•Make sure the wall coverings around the cooktop can withstand the heat generated by
the appliance.
•Cabinet storage space above the rangetop burners should be a minimum of 30 in
(76.2 cm).
Important note to the servicer
The electrical diagram is attached inside the burner box.

English 7

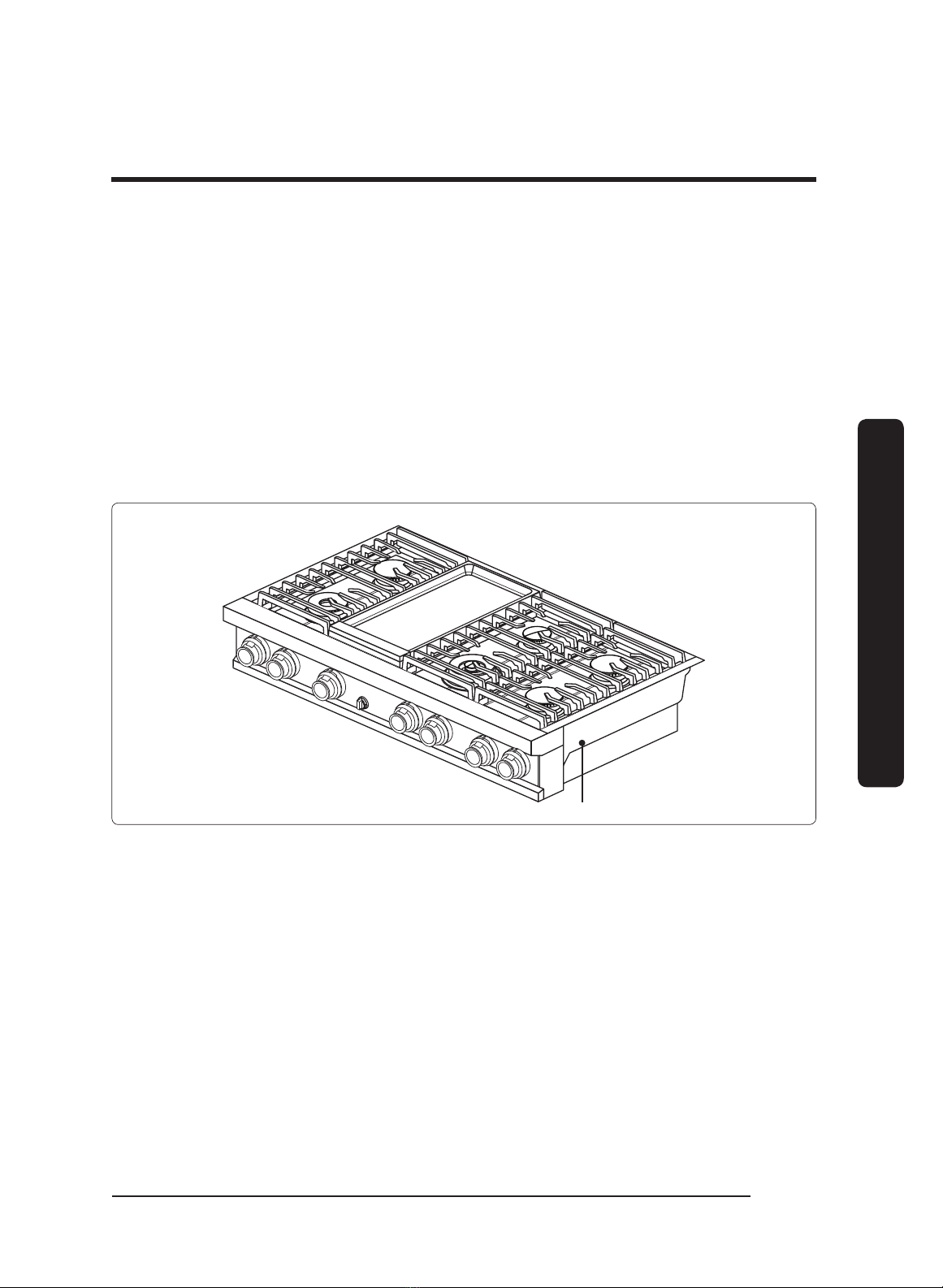

Customer-service information
Customer-service information
If you have questions or problems with installation, contact your Dacor dealer or the
Dacor Customer Service Team. For repairs to Dacor appliances under warranty call the
Dacor Distinctive Service line. Whenever you call, have the model and serial number of
the appliance ready. The model and serial number are printed on a label.
Dacor Customer Service
Phone: [phone] ex. 2813 (U.S.A. and Canada)
Monday — Friday 6:00 a.m. to 5:00 p.m. Pacific Time
Web site: www.dacor.com
Dacor Distinctive Service (for repairs under warranty only) Phone: [phone]
ex.2822 (U.S.A. and Canada) Monday — Friday 6:00 a.m. to 5:00 p.m. Pacific Time
Label

English8
Important safety instructions
Important safety instructions
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
•Electrical and gas equipment with moving parts can be dangerous. The important
safety instructions in this manual are intended to minimize the risk of property
damage, personal injury, and death. Be sure to read them.
•Keep this manual in a handy place so you can refer to it as needed.
Symbols used in this manual
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in electric shock, personal injury, or property
damage.
NOTE
Useful tips and instructions.
These warning icons and symbols are intended to prevent property damage and personal
injury. Follow them explicitly.
State of California Proposition 65 warning (US only)
WARNING : This product contains chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
Gas appliances can cause low-level exposure to Proposition 65 listed substances (including
benzene, carbon monoxide, formaldehyde, and soot) resulting from the incomplete
combustion of LP or natural gas.
Commonwealth of Massachusetts
This product must be installed by a licensed plumber or gas fitter qualified or licensed by
the State of Massachusetts. When using ball-type gas shut-off valves, you must use the
T-handle type. Multiple flexible gas lines must not be connected in series.

English 9
Safety and warning information
Safety and warning information
General safety
WARNING
To reduce the risk of fire, electric shock, personal injury, or death, observe these
precautions:
•Do not touch any surface, component,
or mechanism of the appliance during
or immediately after cooking.
•Learn where and how to shut off the
valve that feeds gas to the appliance.
•Make sure the rangetop's hold-down brackets are properly installed. (See the
Installation Instructions for details.)
•Do not let children sit/stand on the appliance or play with any of its parts. Do not leave
children unattended in the kitchen when the appliance is in use.
•Remove all packaging before operating the appliance to keep this material from
catching fire. Keep all packaging away from children. Properly dispose of packaging as
soon as the appliance is unpacked.
•Do not keep objects of interest to children on or around the appliance.
•Do not operate the appliance if it is damaged in any way, if it malfunctions, or is
missing parts.
•Do not use the appliance as a space heater. This appliance is to be used for cooking
purposes only.
•Use only dry pot holders.
•Do not use the appliance to heat sealed food containers.
•Unplug the appliance before service/maintenance.
•An air curtain or other overhead range hood, which operates by blowing a downward
airflow onto a range, shall not be used in conjunction with a gas range unless the
hood and range have been designed and tested in accordance with the Standard
for Domestic Gas Ranges, ANSI Z21.1 • CSA1.1, and listed by an independent testing
laboratory for combination use.
WARNING
NEVER use this appliance as a space heater to heat or warm the room. Doing so may
result in carbon monoxide poisoning and overheating of the oven.

English10
Safety and warning information
Safety and warning information
Fire safety
WARNING
To reduce the risk of fire, electric shock, personal injury, or death, observe these
precautions:
•Do not store/place/use combustible
materials (e.g., paper, plastic, pot
holders, linens, gasoline, alcohol) near
the appliance.
•Do not wear loose fitting or hanging
garments while using the appliance.
•To avoid grease buildup, regularly clean the vents.
•Do not let pot holders or other flammable material touch a heating element. Do not use
a towel or other bulky cloth item as a pot holder.
•Do not douse a grease fire with water. Instead, turn off the heat source, and smother
the fire with a tight-fitting lid, or use a multi-purpose, dry-chemical or foam
extinguisher.
•Do not heat unopened food containers - buildup of pressure may cause container to
burst and result in injury.

English 11
Safety and warning information
Gas safety
WARNING
To reduce the risk of fire, electric shock, personal injury, or death, observe these
precautions:
If you smell gas:
•Close the valve and do not use the appliance.
•Do not light a match, candle, or cigarette.
•Do not turn on any gas or electric appliances.
•Do not touch an electrical switch or
plug in a power cord.
•Do not use any phone in your building.
•Evacuate everyone from the building.
•Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
•If you cannot reach your gas supplier,
call the fire department.
Checking for gas leaks
•Leak-testing the appliance must be done according to the manufacturer’s instructions.
Do not use a flame to check for gas leaks. Use a brush to spread a soap-and-water
solution around the area you are checking. If there is a gas leak, small bubbles will
appear in the solution.

English12
Safety and warning information
Safety and warning information
Electrical and grounding safety
WARNING
To reduce the risk of fire, electric shock, personal injury, or death, observe these
precautions:
•Plug into a grounded 3-prong outlet.
•Do not remove the ground prong.
•Do not use an adapter or an extension
cord.
•Do not use a damaged power plug,
power cord, or loose power outlet.
•Do not modify the power plug, cord, or
outlet.
•Do not put a fuse in a neutral or ground circuit.
•Use a dedicated 120-volt, 60-Hz, 15-amp, AC, fused electrical circuit for this appliance.
A time-delay fuse or circuit breaker is recommended. Do not plug more than one
appliance into this circuit.
•Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
•This appliance must be grounded. If the appliance malfunctions or breaks down,
grounding reduces the risk of electric shock by providing a safe path for the current.
This appliance's power cord has a grounding plug, which must be firmly plugged into
an outlet that is properly installed and grounded according to local regulations. If you
are not sure your electrical outlet is properly grounded, have it checked by a licensed
electrician.
•If codes allow for a separate ground wire, you should have a qualified electrician
determine this wire's proper path.
•Electrical service to the appliance must conform to local codes, or in the absence of
local codes, to the National Electrical code/NFPA No. 70 – Latest Revision (for the U.S.)
or the Canadian Electrical Code CSA C22.1 or Latest Revisions.
•The appliance owner shall ensure that the proper electrical service is provided for the
cooktop.

English 13
Safety and warning information
Installation safety
WARNING
To reduce the risk of fire, electric shock, personal injury, or death, observe these
precautions:
•The appliance should be installed and properly grounded by a qualified installer, as
specified in the Installation Instructions. Adjustments and service should be performed
only by qualified gas appliance installer or service technician.
•Do not try to service/modify/replace the appliance or any part of it unless specifically
recommended in this manual. All other service should be performed by a qualified
technician.
•Use only new, flexible connectors when installing the appliance.
•Make sure the rangetop's hold-down brackets are properly installed. (See the
Installation Instructions for details.)
•Remove all tape and packaging materials.
•After unpacking the appliance, remove all accessories from inside and around it.
(Cautiously handle the heavy grates.)
•Make sure no parts came loose during shipping.
•Make sure the appliance is correctly installed/adjusted by a qualified service technician
or installer for the type of gas (natural or LP) you will use.
•Installation of this appliance must conform with local codes or, in the absence of local
codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest edition. In Canada,
installation must conform with the current Natural Gas and Propane Installation Code,
CAN/CGA-B149.1, or the current Propane Installation Code, CAN/CGA-B149.2, and with
local codes where applicable. This cooktop has been design-certified by UL according
to ANSI Z21.1/CSA 1.1, latest edition.

English14
Safety and warning information
Safety and warning information
Location safety
WARNING
To reduce the risk of fire, electric shock, personal injury, or death, observe these
precautions:
•This appliance is for indoor household
use only. Do not install the appliance
outdoors or anywhere that it will be
exposed to weather/water or wind/
strong drafts.
•The appliance must be installed within easy reach of a grounded, 3-prong outlet.
•Do not hang paper blinds on a window near the cooktop; do not hand long curtains that
could be blown over/onto the appliance.
•For proper ventilation, the appliance needs sufficient space below and all around the
chassis. Vents in the chassis exhaust heat and fumes so the appliance can operate
properly.
•Make sure the wall coverings around the appliance can withstand heat up to 194 °F
(90 °C) generated by the appliance.
•Do not store items above the appliance. If cabinet storage above the appliance is
necessary, allow a minimum clearance of 30 in. (76.2 cm) between the cooking surface
and the bottom of the cabinets.

English 15
Safety and warning information
Rangetop safety
WARNING
To reduce the risk of fire, electric shock, personal injury, or death, observe these
precautions:
•Make sure all burners are off when not
in use.
•Do not use aluminium foil to line the
grates or any part of the rangetop.
•Do not leave burners unattended on
medium or high heat settings.
•Before igniting, make sure all burner
caps are properly in place and all
burners are level.
•Always use the LITE position to ignite a burner, then make sure the burner has ignited.
If ignition fails, turn the knob to OFF, and wait a few minutes for the gas to dissipate.
•When you set a burner to simmer, do not turn the knob quickly. Make sure the flame
stays on.
•Do not place any objects other than cookware on the rangetop.
•Before removing or changing cookware, turn off the burners.
•Remove food and cookware immediately after cooking.
•Make sure all rangetop burners are off and all surfaces have completely cooled before
removing the grates and disassembling the burners.
•After cleaning the burner head, make sure it is completely dry before reassembling it.
•To avoid carbon monoxide poisoning, do not pour water or other liquids into the
rangetop during cleaning.
•Select cookware that is designed for rangetops and that is large enough to cover the
grates. Burner flames should not extend beyond the bottom of the cookware.
•To avoid cookware discoloration, deformity, and/or carbon monoxide poisoning, do not
use cookware that is exceedingly larger than the grate.
•Turn cookware handles to the side or rear of the rangetop and not over active burners
or the front edge of the rangetop.
•Stand at a safe distance while frying to avoid hot spatter.
•When frying, always heat the oil slowly, and monitor the oil as it heats. When frying
foods at high heat, monitor the oil throughout the cooking process. If combining fats or
oils for frying, mix them together before heating.
•Use a deep-fry thermometer when possible to avoid heating the oil beyond its smoke
point. (Know the smoke point of the oil you are using.)

English16
Safety and warning information
Safety and warning information
•Always use a minimum amount of oil for any type of frying. Always thaw food before
frying, and do not frying food that is overly cold or that has clumps of ice attached to it.
•Always let the oil/fat in the cookware to cool to room temperature before moving the
cookware.
•To avoid delayed-eruptive boiling, let hot oil/fat stand at least 20 seconds after turning
off the burner so the temperature can stabilize. In the event of scalding, follow these
first-aid instructions:
1. Immerse the scaled area in cool or lukewarm water for at least 10 minutes.
2. Do not apply any creams, oils, or lotions.
3. Cover the scalded area with a clean, dry cloth.

English 17
Product specifications
Product specifications
What’s in the box
Parts supplied
Common
Manual Regulator (1) * Bolt (2) Washer (2) Envelope (1)
36" : DTT36M974L*
Cooktop burner grates (2) Burner heads (4) and Brass
caps (5)
Porcelain caps (4)
48" : DTT48M976L*
Cooktop burner grates (3) Burner heads (6) and Brass
caps (7)
Porcelain caps (6)
NOTE
•Make sure you have received all of the supplied parts shown above.
•If your cooktop was damaged during shipping or some specified parts are missing,
contact your local retailer. Do not install a damaged or incomplete cooktop.
•If you need an accessory marked with an asterisk (*), contact the DACOR Call Center
using the phone number on the last page of this manual, or visit our online parts
website: www.dacor.com.

English18
Product specifications
Product specifications
Parts needed
Gas line shut-off
valve
Flexible metal
appliance connector
½ in (ID) x 5 ft
Flare union adapter ¾
in (NPT) x ½ in (ID)
Flare union adapter ½
in (NPT) x ½ in (ID)
135-degree elbow
(optional)
90-degree elbow
(optional)
Tools needed
Flat-blade
screwdriver
Phillips screwdriver Open-end or
adjustable wrench
Pipe wrench (2)
¼" Nut driver Pencil and ruler Level Pipe joint compound
Utility knife Soapy water solution Pliers Saber saw

English 19
Installation requirements
Installation requirements
Pre-installation checklist
1. Before preparing the opening in the countertop, verify that there will be no conflict
between the rangetop chassis and anything in the cabinet below.
2. Remove packing materials, grate boxes, regulator with literature, and literature
package from the appliance, verify that all items are present before beginning the
installation.
Location requirements
BEFORE YOU BEGIN installing the appliance, see the information, dimensions, and
clearances below. These dimensions must be met for safe operation. The location of the
electrical outlet and gas piping may be adjusted to meet the specified parameters.
CAUTION
This appliance complies with the maximum allowable wood-cabinet temperature of 194 °F
(90 °C). Make sure the wall covering, countertops, and surrounding cabinets can also
withstand this temperature. If not, discoloration, delamination, or melting may occur.

Installation requirements
English20
Installation requirements
Maintain the following minimum clearance dimensions
B
A
30” (762 mm)
min.1
13”
(33.0 mm)
max.3
Grate level
Cutout for
utilitty access
Top of
finishied
counter
Note 2
18”
(457 mm)
min.1, 3
1 Vertical to combustible surface from
rangetop grate level; if installing an
overhead vent hood, also check the
hood specifications for minimum
required clearances.
2 See Cabinet/Countertop Dimensions -
Top View.
3 This specification not applicable
for cabinets more than a horizontal
distance of 10” (25.4 cm) from the
edge of the rangetop.
Rangetop DTT36M974L* DTT48M976L*
A36" (91.41 cm) 48" (121.9 cm)
B36" (91.41 cm)*
42" (106.7 cm)**
48" (121.9 cm)*
54" (137.2 cm)**
* Minimum
** Recommended
A: Rangetop cutout
B: Range hood cutout
NOTE
All vertical clearances must be maintained for a minimum of 18” (457 mm) above the
cooking surface.
