Dacor DOB30M977 Series User manual

Installation Instructions
Modernist Built-In Electric Wall Oven
DOB30M977**
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 1 10/16/2019 12:50:47 PM

English2
Contents
Contents
Before you begin... 3
Important 3
Customer-service information 4
If You Need Help... 4
Important safety instructions 5
Related equipment safety 5
Transport 5
Installation requirements 8
Checklist 8
Prepare to install the oven 9
Location requirements 10
Single ovens 11
Double ovens 14
Installation instructions 20
Prepare built-in oven 20
Remove and replace oven door(s) 21
Electrical connection 25
Install oven 29
Self-diagnosis 31
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 2 10/16/2019 12:50:47 PM

English 3
Before you begin...
Before you begin...
Important
• The overall design and/or accessories may
differ with model type.
Installer
• To promote safety and minimize
problems, read this manual thoroughly
before starting the installation. Leave
this manual with the user.
• Write the appliance’s model/serial
numbers in this manual for service/
maintenance reference.
User
• Keep this manual for personal reference
and for that of inspectors, service
personnel, etc.
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 3 10/16/2019 12:50:47 PM

English4
Customer-service information
Customer-service information
If You Need Help...
If you have questions or problems with installation, contact your Dacor® dealer or the
Dacor Customer-Service team. If your Dacor appliance is under warranty, call Dacor
Distinctive Service. Have the appliance’s model/serial numbers available when you call.
Dacor Modernist Service (repairs under warranty only)
Phone: [phone] ex. 2822 (U.S.A. and Canada)
Monday — Friday 6:00 a.m. to 5:00 p.m. Pacific Time
Dacor Customer Service
Phone: [phone] ex. 2813 (U.S.A. and Canada)
Monday — Friday 6:00 a.m. to 5:00 p.m. Pacific Time
Web site: www.dacor.com
All specifications are subject to change without notice. Dacor assumes no liability for
changes to specifications.
© 2017 Dacor, all rights reserved.
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 4 10/16/2019 12:50:48 PM

English 5
Important safety instructions
Important safety instructions
Related equipment safety
Remove all tape and packaging before using the appliance. Dispose of the packaging after
unpacking the appliance. Never allow children to play with packaging material.
Never modify or alter the construction of the appliance. For example, do not remove
panels, wire covers or screws.
Transport
To avoid damage to the oven vent, use the transport method shown in the picture below.
A
B
A. Front
B. Pallet
Support the bottom of the oven from
either side when moving it into the
installation location. Leave the unit
attached to the shipping pallet until it is in
front of the cabinet opening and is ready
to be lifted into place.
DANGER
ELECTRICAL SHOCK HAZARD
To avoid risk of electrical shock, personal injury or death; verify your appliance has
been properly grounded in accordance with local codes or in absence of codes, with the
National Electrical Code (NEC). ANSI/NFPA 70-latest edition.
WARNING
MOVING HAZARD
To avoid risk of severe personal injury; this appliance requires two or more people while
handling and moving. Use of appliance moving devices is recommended.
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 5 10/16/2019 12:50:48 PM

Important safety instructions
English6
Important safety instructions
WARNING
• The information in this manual should be followed exactly.
- A fire or electrical shock may result causing property damage, personal injury or
death.
• Important - Save this installation manual for local electrical inspector’s use.
• Proper Installation - Be sure your appliance is properly installed and grounded by a
qualified technician.
• New branch-circuit installations (1996 NEC), mobile homes, recreational vehicles,
or installations where local codes prohibit grounding through the neutral conductor
require 4-wire branch-circuit connection.
• Improper connection of aluminum house wiring to copper leads can result in an
electrical hazard or fire. Use only connectors designed for joining copper to aluminum
and follow the manufacturer’s recommended procedure closely.
• Mounting screws must be used.
- Failure to do so can result in the oven falling out of the cabinet causing serious
injury.
CAUTION
• Make sure the cabinets and wall coverings around the oven can withstand the
temperature (up to 194 °F [90 °C]) generated by the oven.
- Discoloration, delamination or melting may occur.
• DO NOT remove spacers on the side walls of the built-in oven.
- These spacers center the oven in the space provided. The oven must be centered to
prevent excess heat buildup that may result in heat damage or fire.
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 6 10/16/2019 12:50:48 PM

English 7
Important safety instructions
WARNING
• The information in this manual should be followed exactly.
- A fire or electrical shock may result causing property damage, personal injury or
death.
IMPORTANT NOTE
Proper installation is the responsibility of the installer and product failure due to improper
installation is NOT covered under warranty.
WARNING
• DO NOT put any weight on the oven door. Never allow anyone to climb, sit, stand or
hang on the oven door.
- The oven could tip and injury might result from food or the oven itself.
WARNING
• The electrical power must be shut off while the electrical connections are being made.
- Failure to do so can result in severe personal injury, death or electrical shock.
IMPORTANT NOTE
• Observe all governing codes and ordinances. This appliance must be properly
grounded.
• Keep oven vent ducts unobstructed. The oven vent is located at the bottom of the
oven. This area could become hot during oven use. Never block this vent or place
plastic or heat-sensitive items in front of it.
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 7 10/16/2019 12:50:48 PM

English8
Installation requirements
Installation requirements
Checklist
Use this checklist to verify that you have completed each step of the installation process.
This can help you avoid mistakes.
1. Before installing the oven, be sure to verify the cabinet dimensions are correct for
your unit and the required electrical connections are present.
2. Refer to the installation manual for content regarding Safety, Cabinet Dimensions,
Removing Packaging, Electrical Installation, Testing the Installation and Customer
Service.
3. To lift up the oven, hang the install handle onto the side hook of the unit.
4. Move the oven unit into place in front of the cabinet opening, leaving the bottom
packaging on the unit to avoid damaging flooring.
5. Team lift the unit directly into the cabinet cutout taking care not to pinch fingers or
scratch hands or arms. Make sure the electrical conduit reaches to the connection
point properly.
6. Slide the unit all the way into place, making sure to route the electrical conduit
correctly.
7. Fasten the oven unit to the cabinetry opening with screws supplied (using Philips
screwdriver).
8. Consult the complete installation instructions and follow the remainder of the
procedures listed, including performing an operation test.
9. All product literature and accessories are supplied (may be wrapped or boxed) with
the oven.
10. INSTALLER - Leave the literature pack and the accessories with the customer.
11. Keep the install handle for possible future use.
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 8 10/16/2019 12:50:48 PM

English 9
Installation requirements
Prepare to install the oven
Phillips Screwdriver Drill
Prepare to install the oven
6 screws (M4 L16)
6 Wood Screws For Mounting (4 needed
for installation and 2 extra’s)
Materials needed
Junction Box Wire Nuts
3/4” Conduit Connector Install Handle (only for double oven)
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 9 10/16/2019 12:50:48 PM

English10
Installation requirements
Installation requirements
Location requirements
IMPORTANT: Observe all governing codes and ordinances.
• Cabinet opening dimensions that are shown must be used.
Given dimensions provide minimum clearance with oven.
• Recessed installation area must provide complete enclosure around the recessed
portion of the oven.
• Grounded electrical supply is required. See “Electrical Requirements” section.
• Electrical supply junction box should be located 3” (7.6 cm) maximum below the
support surface when the oven is installed in a wall cabinet. A 1” (2.5 cm) minimum
diameter hole should have been drilled in the right rear or left rear corner of the
support surface to pass the appliance cable through to the junction box.
NOTE
For under counter installation, it is recommended that the junction box be located in the
adjacent right or left cabinet. If you are installing the junction box on rear wall behind
oven, it is recommended that the junction box be recessed and located in the upper Right
of the cabinet.
• Oven support surface must be solid, level and flush with bottom of cabinet cutout.
• Floor must be able to support a single oven weight of 221 lb (100 Kg).
• Floor must be able to support a double oven weight of 375 lb (170 Kg).
• Install Oven at least 12” (30 cm) away from other appliances.
IMPORTANT: To avoid damage to your cabinets, check with your builder or cabinet
supplier to make sure that the materials used will not discolor, delaminate or sustain other
damage. This oven has been designed in accordance with the requirements of UL and CSA
International and complies with the maximum allowable wood cabinet temperatures of
194 °F (90 °C).
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 10 10/16/2019 12:50:49 PM

English 11
Installation requirements
Single ovens
Product dimensions
297⁄8”
(757 mm)
Front view Side view
231⁄8”
(587 mm)
287⁄8”
(731 mm)
271⁄4”
(691 mm)
13⁄8” (33 mm)
31⁄2”
(89 mm)
281/2”
(724 mm)
471⁄4” (1200 mm)
Conduit length
Top view
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 11 10/16/2019 12:50:49 PM

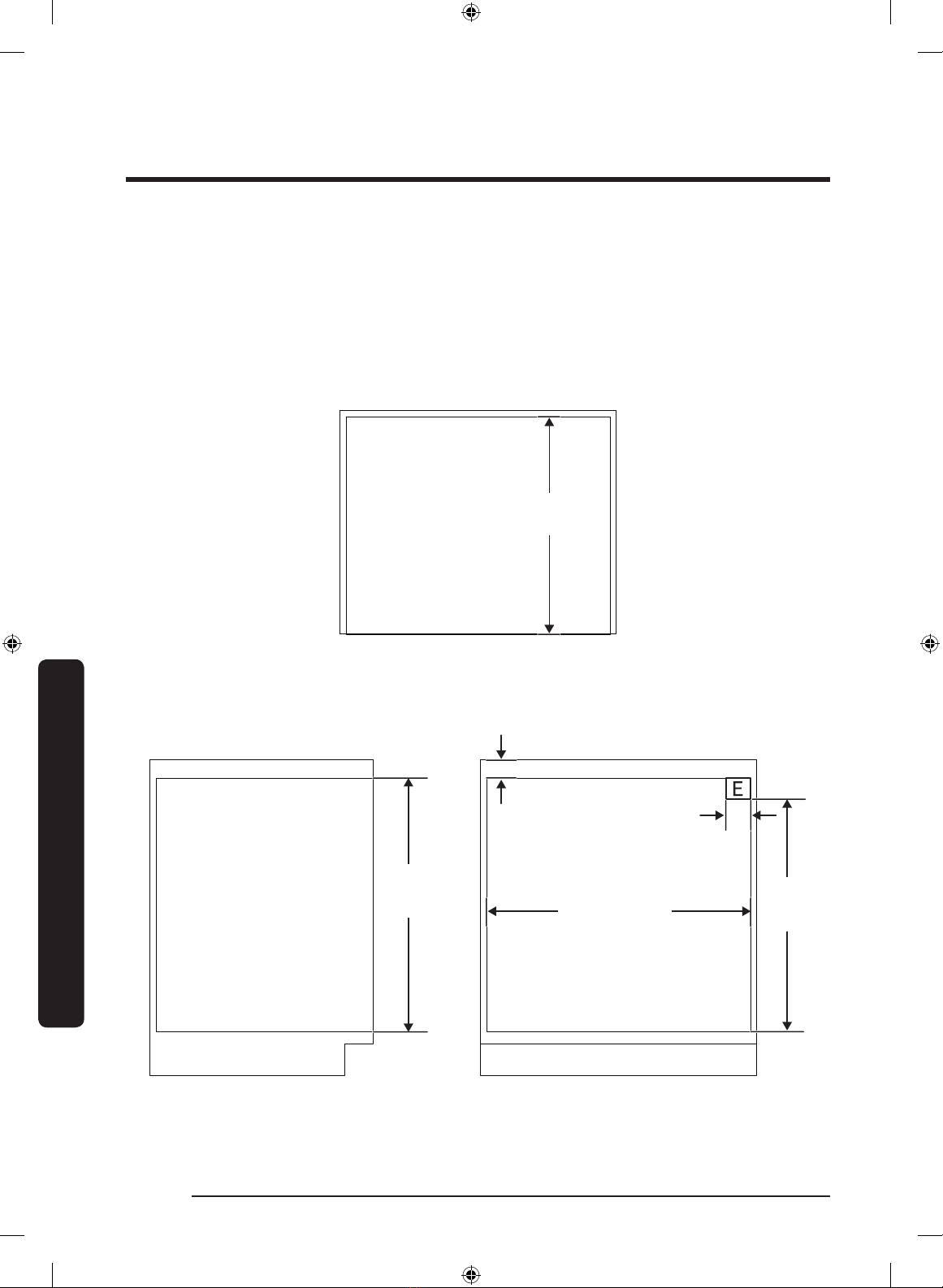

English12
Installation requirements
Installation requirements
Standard cabinet dimensions
01 Dimensions provide minimum reveals. (except electrical supply location ‘E’)
02 Allow a minimum of 22” for clearance to adjacent corners, drawers, walls, etc. when
door is open.
03 Need a minimum of 1” for clearance below oven and top of cabinet or drawer.
04 Make sure there is no obstruction with minimum 2.5” clearance below ovens.
231⁄2”
(597 mm)
Top view
Front viewSide view
Min. 22”
(559 mm)
283/4”
(730.25 mm)
13/8” (34.9 mm)
Max. 91⁄2" (241 mm )
273/4”
(704.85 mm)
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 12 10/16/2019 12:50:49 PM

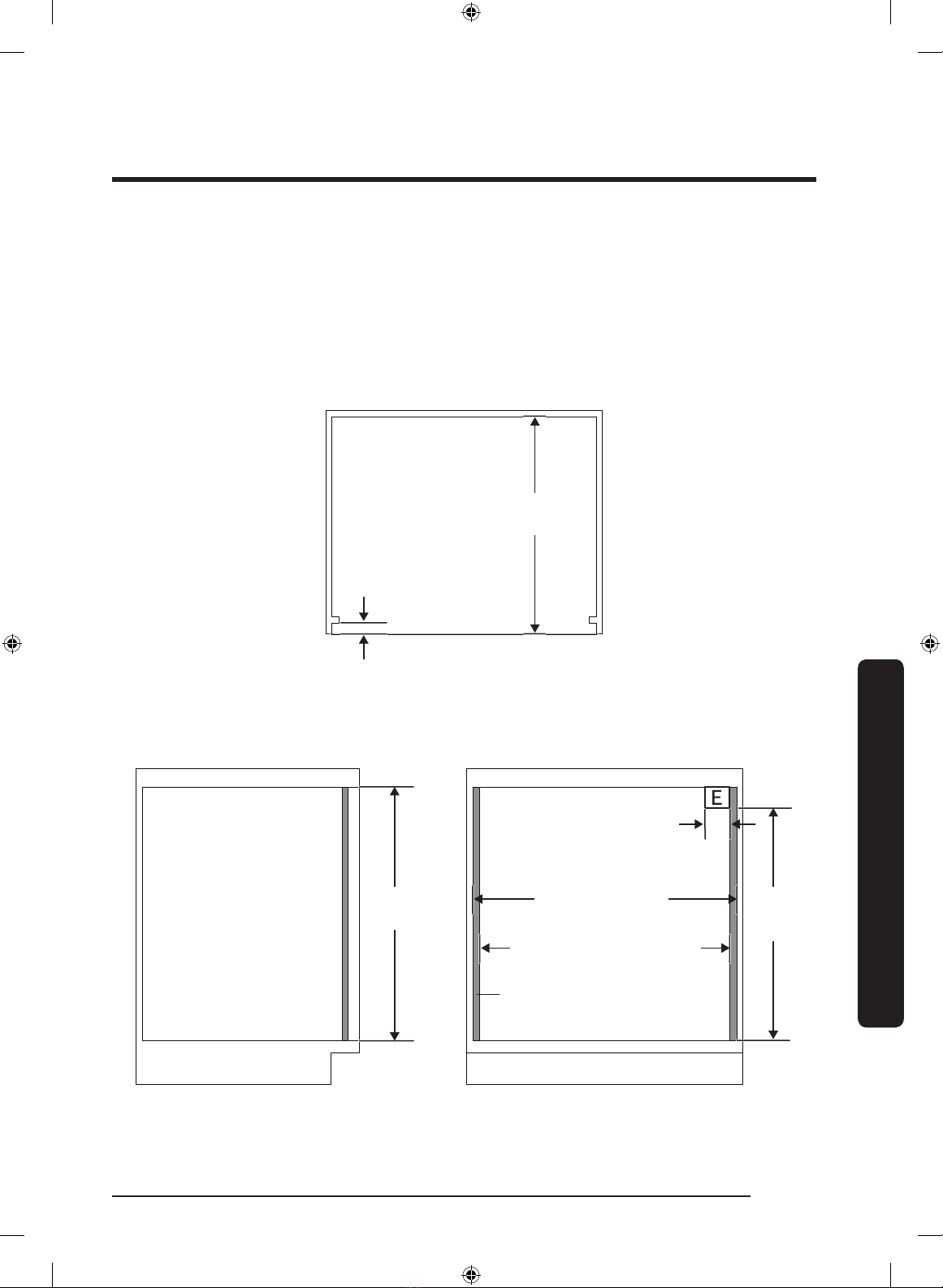

English 13
Installation requirements
Flush cabinet dimensions
01 Dimensions provide minimum reveals. (except electrical supply location ‘E’)
02 Allow a minimum of 22” for clearance to adjacent corners, drawers, walls, etc. when
door is open.
03 Need a minimum of 1” for clearance below oven and top of cabinet or drawer.
04 Make sure there is no obstruction with minimum 2.5” clearance below ovens.
Top view
247⁄8”
(630 mm)
13⁄8” (33 mm)
Front viewSide view
Min. 22”
(559 mm)
301⁄4” (767 mm)
283/4” (730.25 mm)
Inside cleats dimension
3/4” (19.05 mm)
Max. 91⁄2”
(241 mm)
291/8”
(739.77 mm)
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 13 10/16/2019 12:50:49 PM

English14
Installation requirements
Installation requirements
Double ovens
Product dimensions
Front view Side view
297⁄8” (757 mm) 231⁄8” (587 mm)
511⁄2”
(1307 mm)
50”
(1267 mm)
13⁄8” (33 mm)
31⁄2”
(89 mm)
Top view
281/2”
(724 mm)
67” (1700 mm)
Conduit length
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 14 10/16/2019 12:50:49 PM

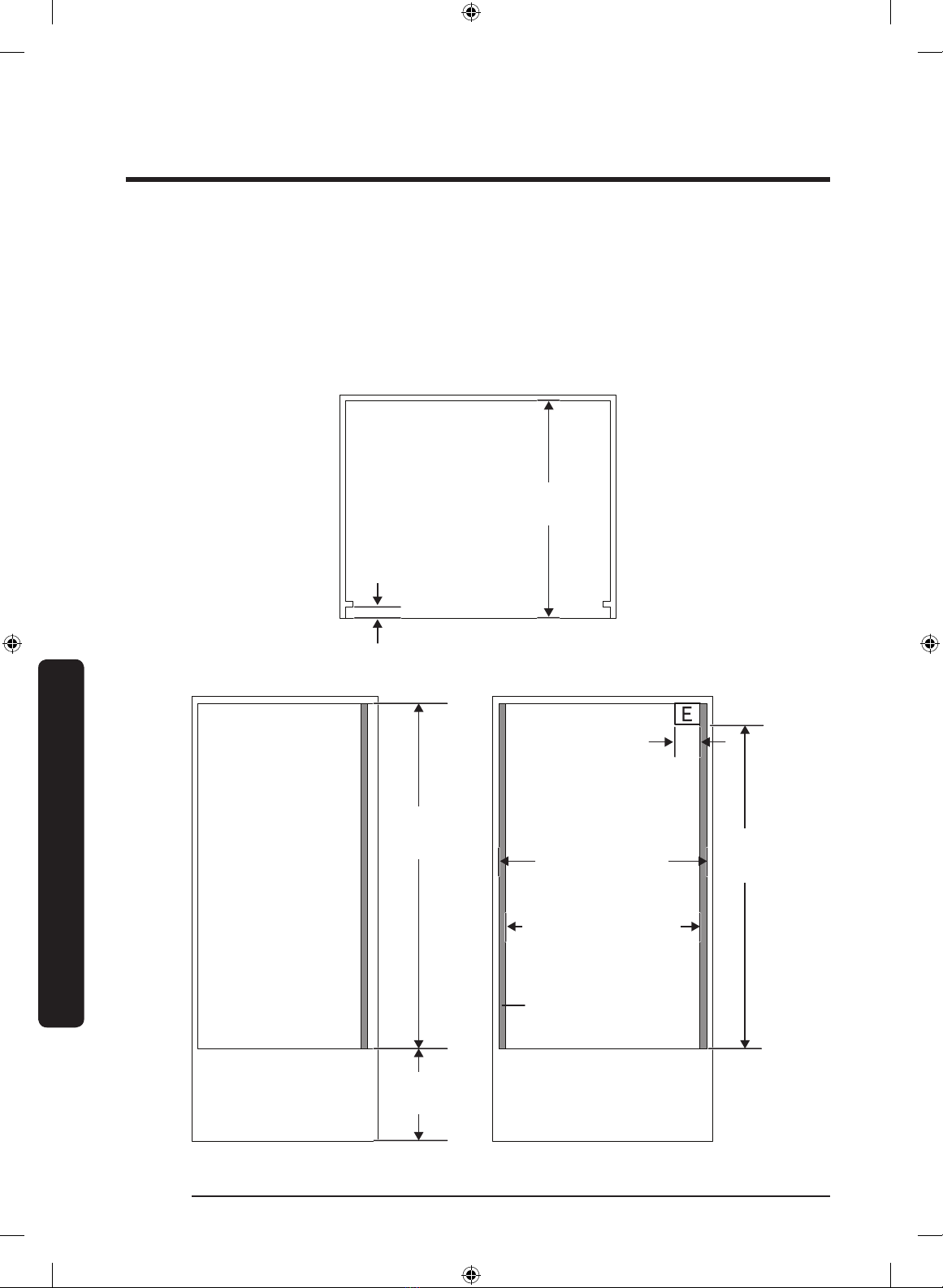

English 15
Installation requirements
Standard cabinet dimensions
01 Dimensions provide minimum reveals. (except electrical supply location ‘E’)
02 Allow a minimum of 22” for clearance to adjacent corners, drawers, walls, etc. when
door is open.
03 Need a minimum of 1” for clearance below oven and top of cabinet or drawer.
04 Make sure there is no obstruction with minimum 2.5” clearance below ovens.
Top view
231⁄2”
(597 mm)
Front viewSide view
Min. 47”
(1194 mm)
283/4”
(730.25 mm)
Max. 91⁄2”
(241 mm)
11/4” (31.75 mm)
501/2”
(1282.7 mm)
12”
(305 mm)
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 15 10/16/2019 12:50:50 PM

English16
Installation requirements
Installation requirements
Flush cabinet dimensions
01 Dimensions provide minimum reveals. (except electrical supply location ‘E’)
02 Allow a minimum of 22” for clearance to adjacent corners, drawers, walls, etc. when
door is open.
03 Need a minimum of 1” for clearance below oven and top of cabinet or drawer.
04 Make sure there is no obstruction with minimum 2.5” clearance below ovens.
Top view
247⁄8”
(630 mm)
13⁄8” (33 mm)
Side view Front view
Min. 47”
(1194 mm)
301⁄4” (767 mm)
283/4” (730.25 mm)
Inside cleats dimension
3/4” (19.05 mm)
Max. 91⁄2”
(241 mm)
513/4”
(1314.45 mm)
12”
(305 mm)
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 16 10/16/2019 12:50:50 PM

English 17
Installation requirements
If codes permit and a separate ground wire is used, it is recommended that a qualified
electrical installer determine that the ground path and the wire gauge are in accordance
with local codes.
Check with a qualified electrician if you are not sure the oven is properly grounded.
This oven must be connected to a grounded-metal permanent wiring system.
Be sure that the electrical connection and wire size are adequate and in
conformance with the National Electrical Code, ANSI/NFPA 70-latest edition or CSA
Standards C22.
1-94, Canadian Electrical Code, Part 1 and C22.2 No. O-M91-latest edition, and all
local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 17 10/16/2019 12:50:50 PM

English18
Installation requirements
Installation requirements
Electrical Connection
To properly install your oven, you must determine the type of electrical connection you
will be using and follow the instructions provided in this manual.
• Oven must be connected to the proper electrical voltage and frequency as specified on
the model/serial/rating plate. The model/serial/rating plate is located on the bottom
left side of the trim. See the following illustrations.
A
A
Single Oven
A. Model/serial/rating plate
Double Oven
A. Model/serial/rating plate
• A circuit breaker is recommended.
• Connect directly to the circuit breaker box (or fused disconnect) through flexible,
armored or nonmetallic sheathed, copper cable (with grounding wire). See “Electrical
Connection” section.
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 18 10/16/2019 12:50:50 PM

English 19
Installation requirements
• Flexible conduit from the oven should be connected directly to the junction box.
• Fuse both sides of the line.
• Do not cut the conduit. The length of conduit provided is for serviceability of the oven.
• A UL listed or CSA approved conduit connector must be provided.
• If the house has aluminum wiring, follow the procedure below:
1. Connect a section of solid copper wire to the ends of the flexible conduit leads.
2. Connect the aluminum wiring to the added section of copper wire using special
connectors and/or tools designed and UL listed for joining copper to aluminum.
Follow the electrical connector manufacturer’s recommended procedure. Aluminum/
copper connection must conform with local codes and industry accepted wiring
practices.
For power requirements for models DOB30M977D*, and DOB30M977S*, refer to the
following table.
Model 240 VAC 208 VAC
Power Circuit size Power Circuit size
DOB30M977S* 5.6 kW 30 Amp 4.2 kW 30 Amp
DOB30M977D* 11.2 kW 50 Amp 8.4 kW 50 Amp
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 19 10/16/2019 12:50:50 PM

English20
Installation instructions
Installation instructions
Prepare built-in oven
WARNING
Excessive Weight Hazard
Use two or more people to move and install an oven.
Failure to do so can result in back or other injury.
1. Decide on the final location for the oven. Avoid drilling or cutting into house wiring
during installation.
2. To avoid floor damage, set the oven on the cardboard packing prior to installation. Do
not use handle or any portion of the front frame for lifting.
3. Remove the shipping materials and tape from the oven.
4. Remember to keep the packing materials that may be needed for installation.
5. Remove the hardware package from inside of the bag containing literature.
6. Remove racks and other parts from inside the oven.
7. Move the oven with the cardboard packing under it to close proximity to the oven's
final install position.
NW9000K_MOD_DOB30M977DS_DG68-00923A-01_EN+MES+CFR.indb 20 10/16/2019 12:50:50 PM
