Dacor Renaissance RR30NS User manual

Renaissance ® Electric
with induction cooktop
Installation
Range
Models: RR30NS[-C], RR30NFS[-C], RR30NIS[-C] and RR30NIFS[-C]
instructions
Pa_ No. 105910 Rev. C

Important Safety Instructions ..................................................... 1
Important Information About Safety Instructions ......................... 1
Safety Symbols in this Manual ................................................... 1
General Safety Precautions ........................................................ 2
Product Specifications ................................................................ 3
Electrical Requirements (Except models ending with -C) .......... 3
Electrical Requirements (Models ending with -C) ...................... 3
Product Dimensions .................................................................... 4
Installation Specifications ........................................................... 5
Cabinet Layout............................................................................ 5
Installation Instructions ............................................................... 8
Verify the Package Contents ...................................................... 8

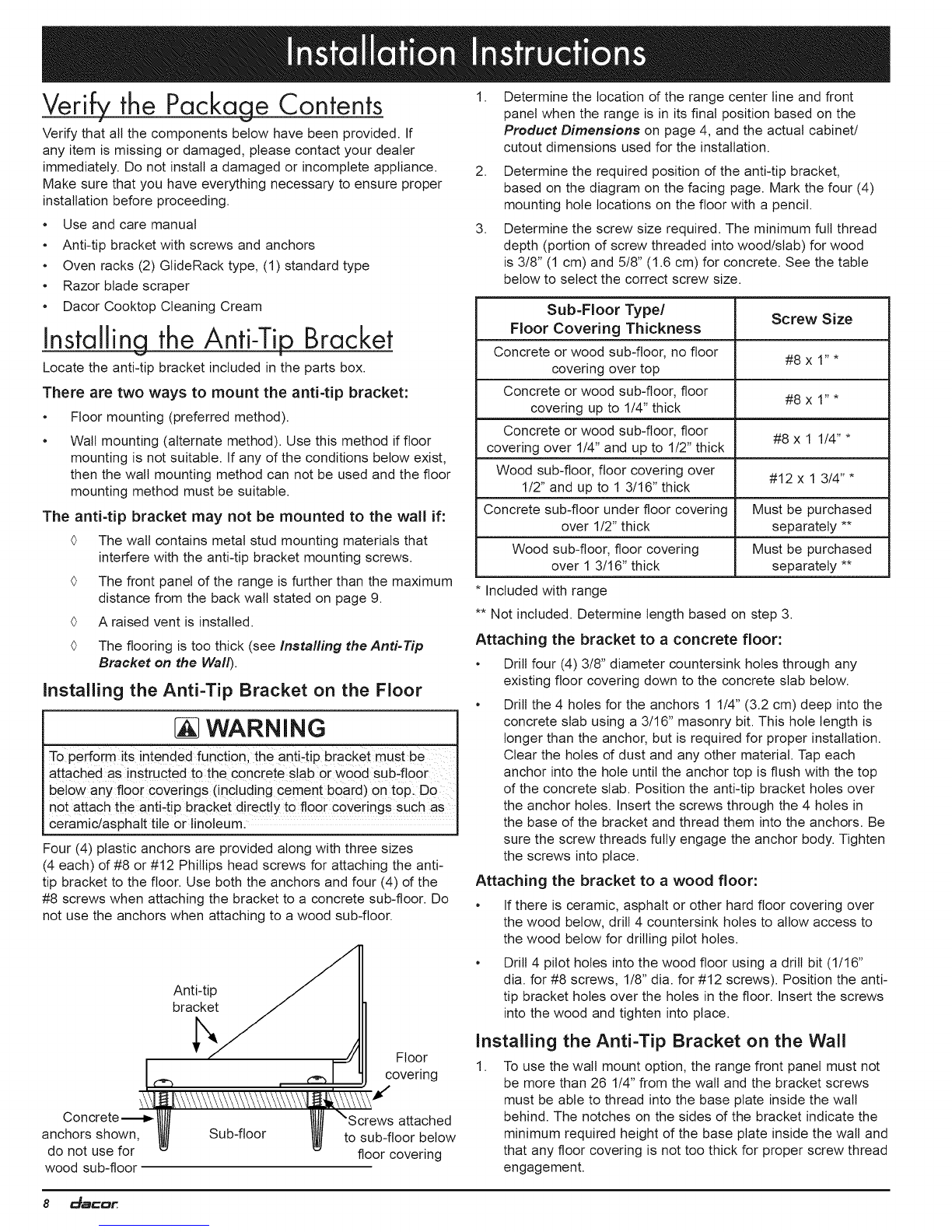

Installing the Anti-Tip Bracket ..................................................... 8
Backguard Installation .............................................................. 10
Raised Vent Installation ............................................................ 10
Removing the Oven Door ......................................................... 10
Electrical Connection ................................................................ 10
Installing the Range .................................................................. 16
Re-installing the Oven Door ..................................................... 16
Verifying Proper Operation ....................................................... 17
IMPORTANT:
•Installer: In the interest of safety and to minimize problems, read these installation instructions completely and carefully before you
begin the installation process. Leave these installation instructions with the customer.
•Customer: Keep these installation instructions for future reference and the local building inspector's use.
If You Need Help...
If you have questions or problems with installation, contact your
Dacor dealer or the Dacor Customer Service Team. For repairs
to Dacor appliances under warranty call the Dacor Distinctive
Service line. Whenever you call, have the model and serial
number of the appliance ready. The model and serial number are
printed on the product data label.
Dacor Customer Service
Phone: [phone], extension 2813 (U.S.A. and Canada)
Monday -- Friday 6:00 A.M.to 5:00 P.M.Pacific Time
Web site: www.dacor.com
Dacor Distinctive Service (for repairs under warranty only)
Phone: [phone], extension 2822 (U.S.A. and Canada)
Monday -- Friday 6:00 A.M.to 5:00 P.M.Pacific Time
Product Data Label Location
The product data label can be seen through the grill below the
control panel, on the right side.
Product data label
(view through right side
of grate with flashlight)
\
Model Identification
Model Configuration* Handle Type Electrical Connection**
RR30NS Freestanding, (full size side panels), Mounted on Power cord not included. Not for
6-inch backguard standard outside of door installation in Canada.
RR30NS-C Freestanding, (full size side panels), Mounted on Cord connected, for installation in Canada
6-inch backguard standard outside of door and U.S.A., where local codes permit.
RR30NFS Freestanding, (full size side panels), Flush handle, Power cord not included. Not for
6-inch backguard standard integrated in door installation in Canada.
RR30NFS-C Freestanding, (full size side panels), Flush handle, Cord connected, for installation in Canada
6-inch backguard standard integrated in door and U.S.A., where local codes permit.
Built-in/Slide-in (3" removable side Mounted on Power cord not included. May be installed
RR30NIS panels), backguard optional outside of door in Canada and U.S.A.
Built-in/Slide-in (3" removable side Mounted on Cord connected, for installation in Canada
RR30NIS-C panels), backguard optional outside of door and U.S.A., where local codes permit.
Built-in/Slide-in (3" removable side Flush handle, Power cord not included. May be installed
RR30NIFS panels), backguard optional integrated in door in Canada and U.S.A.
Built-in/Slide-in (3" removable side Flush handle, Cord connected, for installation in Canada
RR30NIFS-C panels), backguard optional integrated in door and U.S.A., where local codes permit.
See page 4 for further details.
**See page 3 for further details.
All specifications subject to change without notice. Dacor ® assumes no liability for changes to specifications.
© 2013 Dacor,all rights reserved.

_ortant Information About
Safe Instructions
The Important Safety Instructions and warnings in this manual
are not meant to cover all possible problems and conditions
that can occur. Use common sense and caution when installing,
maintaining or operating this or any other appliance.
Always contact the Dacor Customer Service Team about problems
and conditions that you do not understand.
SafetySySmbols in this Manual
[ i_ DANGER
immediate hazaids thai WiLL iesu!t inJu_ 0i
death
I_ WARNING i
Hazards 0[ Unsafe practices that COULD result in severe
personal injury or deathl J
[_ CAUTION
[_ DANGER
[_ WARNING
Persons with a pacemaker or other medica! device should use
caution when standing near an induction cooktop when it is
in use. The electromagnetic field generated by an induction
cooktop may affect operation of a pacemaker or other medical
device, Consult your doctor or medical device manufacturer
about your particular situation.
[_ WARNING !
!f the infoimat!on in th!s manual is n0t fol!0Wed exact!yl a fire oi
explosion may result causing property damage; personal injury I
or death: !
EVE use t, a _h_ancWsAas_c_h_eGerto eat or I
N R his PP a h iwarm I
the room l Do ng so may resu t noverheat ng of the app ance. [
NEVER cover an sln_t._WsAor_a_slaaesGintheovenbo om I
; il
or cover an entire rack with materials such as aluminum foil.
Doing so blocks air floW thiough the ove n and maY cause a fire
hazard: Aluminum foil linings may also trap heat, causing afire
hazard.
[_ WARNING
Tip-over hazard:
A child or adult can tip the range and be killed.
-Attach the anti-tip bracket to the floor or walt as directed
in these installation instructions. Engage the floor or walt
mounted anti-tip bracket by sliding the rear leg on the range
into it according to these installation instructions. Using
a flashlight, be sure that the anti-tip bracket engages the
range's rear leg as shown below.
After moving the range, be sure to re-engage the rear leg
into the anti-tip bracket as shown below.
•See the anti-tip bracket installation instructions in this guide
for further details.
• Failure to follow these instructions can result in death or
serious burns to children or adults.
Anti-tip
bracket
\Rear leg
READ AND SAVE THESE INSTRUCTIONS

General Safe Precautions
To reduce the risk of fire, explosion, electric shock, serious injury or death when installing or using this appliance, follow basic safety
precautions, including the following:
WARNING
• Read all instructions before using the appliance.
• Keep packaging materials away from children. Plastic
sheets and bags can cause suffocation
• If you receive a damaged product, immediately contact
your dealer or builder. Do not install or use a damaged
appliance.
• improper installation, adjustment, alteration, service
or maintenance can cause personal injury or property
damage. Refer to these instructions and the accompanying
use and care manual. For assistance or additional
information, consult a qualified installer, service agency or
dealer.
• This appliance must be properly installed and grounded by
a qualified installer or service agency according to these
installation instructions prior to use. The installer must
show the customer the location of the circuit breaker panel
or fuse box so that they know where and how to turn off
electric power to the appliance. Decor is not responsible for
service required to correct a faulty installation. The owner
is responsible to make sure this appliance is properly
installed.
• This appliance is not approved for installation in a mobile
home or recreational vehicle.
• This appliance must not be used in combination with
surface (countertop) ventilation systems. The use of an
overhead hood. or Decor raised vent is recommended for
ventilation.
• Disconnect the electrical supply before installing or
servicing the appliance.
WARNING
install or locate this appliance only in accordance with these
installation instructionsl
i Th s appiiance must be grounded connect it oniyto a
properly grounded electrical supplyl Refer to Electrical
Requirements.
'Before performing any type of service orinstailati0n, make
Sure that the e!ectric P0wer tO the appliance iS turned Off
the circuit breaker panet or fuse box.
use this appliance only for itSintended use as described
this manual. DOnot Use corrosive chemicals or vaPors With
this appliance, This type of appliance is not designed for
, As with any app!iancel close supervision is necessary when
used by childrenl
D0 not operate this aPpliance if it has damaged electrical
wiresl if it is not working properly or if it has been damaged
or dropped:
, This app!iance should be serviced only by qua!ified service
personnel, Contact the nearest DACO R auth0rized servicer
at (800) 793@093, or at _.dacor.com for examination;
repair or adjustment
• Some productsl such aswho!e eggs; and sea!ed containers,
such as Closed glass jars, may exp!ode and shou!d not be
heated on this cooktop.
2_DF

i O : W g nng d d d nCes I
during planning and insta!!ation: Contact your local building I
department for further informationl !
Electrical Requirements (All models
numbers except those ending with
It is the owner's responsibility to ensure that a licensed electrician
performs the installation of the electrical supply for this appliance.
The electrical installation, including minimum supply wire size,
must comply with the National Electric Code ANSI/NFPA 70 (latest
revision) and local codes and ordinances. A copy dthis standard
may be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, Massachusetts 02269-9101
The correct voltage, frequency and amperage must be supplied
to the appliance from a dedicated, grounded, single phase circuit
that is protected by a properly sized circuit breaker or time-delay
fuse. If a time-delay fuse is utilized, fuse both sides of the line (L1
and L2).
Electrical Specifications
Circuit Requirements Total Connected Load
240 Vac60 Hz, 4-wire*, 50 Amp. 11.5kW (48.0Amp.)
Two 120 Vac hot (L1 and L2), one neutral (N1) and one ground.
The above electrical specifications are for reference only. See
the range data label for exact specifications. See inside cover for
location.
• The wiring needs to be long enough to allow the range to be
pulled out for service, while remaining connected.
Electrical Requirements
.{Models Ending with-C)
Range models RR30NS-C, RR30NFS-C, RR30NIS-C and
RR30NIFS-C come with a factory installed 4-wire appliance cord
with NEMA 14-50P plug.
• For freestanding ranges installed in Canada, a factory
installed 4-wire appliance cord with NEMA 14-50P plug is
required, without modification. For slide-in ranges installed in
Canada and all ranges installed outside of Canada, the 4-wire
appliance cord configuration (-C type) is optional and may be
utilized where local codes permit.
• The NEMA 14-50P plug is designed to plug directly into
a NEMA 14-50R electrical receptacle. It is the owner's
responsibility to ensure that the required 4-wire electrical
outlet compatible with the power cord is installed by a
licensed electrician as specified below prior to range
installation. The electrical outlet installation, including
minimum supply wire size and grounding, must be in
accordance with all governing codes and ordinances.
• The correct voltage, frequency and amperage must be
supplied to the appliance from a separate, grounded, circuit
that is protected by a properly sized circuit breaker or time
delay fuse. If a fuse is utilized, fuse both sides of the line (L1
and L2). Refer to the ratings on the product data label.
Electrical Specifications
Circuit Requirements Total Connected Load
240 Vac 60 Hz, 4-wire*, 50 Amp. 11.5 kW (48.0 Amp.)
Two 120 Vac hot (L1 and L2), one neutral (NI) and one ground.
The ratings above are for reference only - refer to the product
data label (see inside cover).
The wiring connected to the range must:
¢ Meet NEMA standards and have a minimum rating of
250 Volts @ 50 Amp.
¢ Include a strain relief.
¢ Be terminated by tinned leads, closed loop terminals or
open ended spade lugs with upturned ends.
¢ Connect to a junction box or receptacle installed by a
licensed electrician. NEMA 14-50P Plug NEMA 10-50P Plug
The appliance may be connected one of the following ways:
•Using conduit:
¢ A 4-wire conduit connected to a 4-wire junction box, or
¢ A 3-wire conduit (where local code permits) connected to
a 3-wire junction box.
Suggested conduit wiring color code: black, white, red and
green.
Using an appliance cord:
¢ A 4-wire appliance cord equipped with a NEMA 14-50P
plug connected to a NEMA 14-50R receptacle, or
¢ A 3-wire appliance cord (where local code permits)
equipped with a NEMA 10-50P plug connected to a
NEMA 10-50R receptacle.
NEMA 14=50R Receptacle NEMA 10=50R Receptacle
Appliance cord plug must be UL listed type SRD or SRDT.
_ac_r 3

Product Dimensions
Product tolerances: +1/16" (+1.6 mm), unless otherwise stated
(23
External handle _"
shown, some models
have integral handle
(see inside cover)
Product width:
29 15/16" (76.0 cm)
A
B
,q C
D
[
Ii,
Ii
Ii
I,
1" (2.5 cm)---_
' E
9" (22.9 cm)
backguard*
RNg0NI[F]S:
3/8" (9.5 mm)
thick top trim
RR30N[F]S:
<- full stainless ___
steel side panels
i_-- RR30NI[F]S:
3" (7.6 cm)
partial stainless
steel side panels
(removable)
Front of open door
Front of handle
Front panel
Rear of front panel
-_-- Backguard thickness
6" (15.2 cm)
3" (7.6 cm) backguard*
backguard* _,
35 _
(88.9 cm)
to
37"
(94.0 cm)
*See table for compatibility
RR30NS RR30NIS
Dimension RR30NFS RR30NIFS
46 1/4" 46 1/16"
A(117.5 cm) (117.0 cm)
25 1/2" 25 5/16"
C(64.8 cm) (64.3 cm)
23 3/8" 23 3/16"
D(59.4 cm) (58.9 cm)
Dimension RR30NS RR30NIS
27 7/8" 27 11/16"
B(70.8 cm) (70.3 cm)
Available Backguards**
Part Number Description Compatibility
ADRB30E03 3 Inch Optional on all models
Standard on models RR30NS, RR30NFS
ADRB30E06 6 Inch Optional on models RR30NIS, RR30NIFS
ADRB30E09 9 Inch Optional on all models
**Models RR30NIS and RR30NIFS come equipped from the factory with a flat
stainless steel trim piece in place of a backguard. A backguard may be purchased
as an optional accessory. Add an additional 1/16 inch to the depth dimensions
above when installing a backguard on models RR30NIS and RR30NIFS.
The trim on models RR30NS and RR30NFS are not compatible with a raised vent.
Models RR30NIS and RR30NIFS are compatible with Dacor raised vent models
ERV30 and ERV3015. Use only these specified raised vent models.

Cabinet Layout
WARNING
•Observe all governing codes and ordinances during
planning and installation. Contact your local building
department for further information.
• All minimum cabinet/countertop clearances shown on the
following pages must be met or exceeded.
, To eliminate the risk of burns or fire by reaching over heated
surface units, cabinet storage space located above surface
units should be avoided.
•The shaded areas shown below denote the location of the
electrical junction box/receptacle. This is the suggested
location. For replacement purposes, the location of the
existing electrical supply may be utilized provided that it does
not interfere with the sides or rear of the range. Verify that the
electrical service meets local building codes.
•Access to the remote circuit breaker panel/fuse box, with the
range in place and operating, must also be allowed for in the
installation.
The electrical junction box/receptacle must be located so
that it does not interfere with the range when it is installed
and under operation. In addition, the junction box/receptacle
must be located so the range can be removed for service and
remain connected to power.
Cabinet and Countertop Preparation
•To reduce the risk of personal injury and to reduce
accumulated smoke in the room, Dacor strongly recommends
installing a range hood. A range hood should project
horizontally a minimum of five (5) inches beyond the face of
the cabinets. If installing a range hood, see the range hood
specifications for minimum clearances. If cabinet storage
space is to be provided directly above the range, the risk of
personal injury may be reduced by installing a range hood.
•The range may be installed flush to the rear walt. Dacor
recommends installing a non-combustible material on the rear
wall above the range and up to the range hood or cabinet,
whichever is lower.
•Any openings in the wall behind the appliance and in the floor
under the appliance must be sealed.
Cutout tolerances: +1/16" (+1.6 mm), -0,
unless otherwise stated.
13" (33.0
18" (45.7
min. 4
Note 2
Note 1
Non-combustible
surface along
back wall
recommended
Suggested
location of
utilities 3
Note
Cabinet Dimensions
.
A* B C*
36" (91.4 cm) 37"
30 1/16" min. recommended
(76.3 cm) 30" (76.2 cm) (94.0 cm)
max.
min.
*For self rimming installations, see required dimensions
for "A" and "C" on the following pages.
130,, (76.2 cm) min. vertical clearance from top of the
cooking surface to bottom of uncovered wood or metal
cabinet. 24" (61 cm) min. clearance if bottom of wood
or metal cabinets are protected by not less than 1/4"
(0.6 cm) flame retardant mittboard covered with no tess
than No. 28 MSG sheet steel 0.015" (0.04 cm) stainless
steel, or 0.024" (0.06 cm) aluminum or 0.020" (0.05 cm)
copper. If installing range hood, also check the hood
specifications for minimum required clearances.
2Cabinet/countertop depth is at discretion of customer
but cabinet face SHALL NOT protrude further than rear d
front panel. See Product Dimensions.
3Consult local code for requirements.
4This specification not applicable for cabinets more than
a horizontal distance of 1" (2.6 cm) from edge of range.
51" (2.6 cm) min. to combustible sidewalls above range
(both sides).
L:_mci::Jr 5

Cabinet Cutouts for Self-Rimming Installation (Models RR30NIS and RR30NIFS Only)
Countertop
1 5/8 (41.1 cm)
max. thickness
Cut 3" dia. (7.6 cm) holes
at back bottom of cabinet
for ventilation.
ventilation through
cabient both sides,
7 square inches min.
Location may vary.
1" min. (2.6 cm)
to any combustibles
above counter both sides
Rear wall or
countertop e_ge
I
.t ._ I
24 5/8" 29 1/4" (74.3 cm)------_
(62.5 cm) countertop opening
max. ,30 1/16" (76.:2 cm)-_,,
;-_-_ cabinet opening
below countertop
_ _ _ Notch countertop-_,-
to width of cabinets
" Cabinet face
Countertop front below countertop
3/8" min. (9.5 mm)
countertop overhang
[ T
20"
20" (50.8 cm)
(50.8 cm) to
(58.4 cm)
J
Top View -Slide=In, Self-Rimming Installation,
3" Side Panels installed
• The self-rimming installation of the RR30NI[F]S range
creates a "built-in" look where the range trim overlaps
and rests on the countertop on both sides and in back.
• IMPORTANT: When installing the range in this
configuration, ventilation must be provided to allow
for cooling of the ranges internal components. See
diagram, left.
Observe all vertical cabinet clearances on page 5.
On self-rimming installations when sliding the range into
position, it will stop when the rear of the control panel or
side panels contact the notches toward the front of the
countertop.
1" min. (2.6 cm) Rear wall or
to any combustibles countertop e_ge
above counter both sides
--
24 5/8" _ 29 1/4" (74.3 cm)-_,-
(62.5 cm) countertop opening
max. ,*_30 1/16" (76.2.cm)*-_
_\ cabinet opening
below countertop
Notch countertop
to width of cabinets-_ -_- - - -
" Cabinet face J
Countertop front below countertop
3/8" min. (9.5 mm)
countertop overhang
1
23"
(58.4 cm)
Top View - Slide=in, Self=Rimming Installation,
3" Side Panels Removed
* To create a "built-in look" on the front of the cabinet,
this dimension may be changed to 29 1/4" (74.3 cm),
with the width at the notches remaining 30 1/16".
This configuration is only for models RR30NIS and
RR30NIFS with the side panels behind the door
removed.

Cabinet Cutouts for Self-Rimming Installation with Raised Vent (Models RR3ONIS and RR3ONIFS Only)
Countertop
1 5/8 (41.1 cm)
max. thickness
1" min. (2.6 cm)
to any combustibles
above counter both sides
25" _
(63.5 cm)l
max.
Trim kit PN ATKR30SR is required for proper
installation of a raised vent with this range.
The self-rimming installation of the RR30NI[F]
S range and ERV30115] raised vent create a
"built-in" look where the range trim overlaps and
rests on the countertop on both sides and the
raised vent trim overlaps the countertop in back.
The ATKR30SR trim kit, installed on the back of
the range, will cover the front of the raised vent
chassis.
Cut 3" dia. (7.6 cm) holes
at back bottom of cabinet
for ventilation.
ventilation through
cabient both sides,
7 square inches min.
Location may vary.
Rear wall or
countertop e_ge
_J_ 27 1/2" (69.9 cm)---,-L_
raised vent opening
,_ 29 1/4" (74.3 cm)-_--
countertop opening
_30 1/16" (76.2 cm)-_,
cabinet opening
below countertop
-_ Notch countertop-_,-
to width of cabinets
t
Countertop front Cabinet face below countertop
T
20 3/8"
(51.8 cm)
!
/
3/8" min. (1.0 cm)
countertop overhang
25/8" (6.7 cm)
20 3/8"
(51.8 cm)
to
23 318"
(59.4 cm)
• IMPORTANT: When installing the range in this
configuration, ventilation must be provided to allow
for cooling of the ranges internal components. See
diagram, left.
• Observe all vertical cabinet clearances on
page 5.
• A self-rimming countertop configuration is required
for raised vent installation. On installations with a
raised vent, when sliding the range into position, it
will stop when the rear of the control panel or side
panels contact the notches toward the front of the
countertop.
Top View -Downdraft ERV30115] with Slide-In, Self-Rimming Installation,
3" Side Panels Installed
1" min. (2.6 cm) Rear wall or 3/8" min. (1.0 cm)
to any combustibles countertop edge countertop overhang
above counter both sides _
L 27 1/2" (69.9 cm)-_,.-L_ (6.7 cm)
2 5/8"
raised vent opening l
/
23 3/8"
(59.4 cm)
25"
(63.5 cm)
max.
Countertop front
29 1/4" (74.3 cm)-_,-
countertop opening
30 1/16" (76.2 cm)* -_,
cabinet opening
below countertop
Notch countertop-_
to width of cabinets
\ Cabinet face
below countertop
_m
/
Top View -Downdraft ERV30115] with Slide-In, Self-Rimming Installation,
3" Side Panels Removed
* To create a "built-in look" on the front of the
cabinet, this dimension may be changed to 29 1/4"
(74.3 cm), with the width at the notches remaining
30 1/16". This configuration is only for models
RR30NIS and RR30NIFS with the side panels
behind the door removed.
dac_ 7

Verify the Package Contents
Verify that all the components below have been provided. If
any item is missing or damaged, please contact your dealer
immediately. Do not install a damaged or incomplete appliance.
Make sure that you have everything necessary to ensure proper
installation before proceeding.
• Use and care manual
• Anti-tip bracket with screws and anchors
• Oven racks (2) GlideRack type, (1) standard type
• Razor blade scraper
• Dacor Cooktop Cleaning Cream
Installing the Anti-Tip Bracket
Locate the anti-tip bracket included in the parts box.
There are two ways to mount the anti=tip bracket:
•Floor mounting (preferred method).
• Walt mounting (alternate method). Use this method if floor
mounting is not suitable. If any of the conditions below exist,
then the walt mounting method can not be used and the floor
mounting method must be suitable.
The anti-tip bracket may not be mounted to the wall if:
¢ The wall contains metal stud mounting materials that
interfere with the anti-tip bracket mounting screws.
¢ The front panel of the range is further than the maximum
distance from the back walt stated on page 9.
¢ A raised vent is installed.
¢The flooring is too thick (see Installing the Anti-Tip
Bracket on the Wall).
Installing the Anti=Tip Bracket on the Floor
WARNING
To Perform its intended function, the anti-tip bracket must be
ttached as instructed tothe concrete slab Or WOod sub'floor
be!ow any floor coverings (including cement beard)on t0pl Do
not attach the anti4ip bracket directly to floor coverings such as
ceramic/asphalt tile or linoleum.
Four (4) plastic anchors are provided along with three sizes
(4 each) of #8 or #12 Phillips head screws for attaching the anti-
tip bracket to the floor. Use both the anchors and four (4) dthe
#8 screws when attaching the bracket to a concrete sub-floor. Do
not use the anchors when attaching to a wood sub-floor.
Anti-tip
bracket
1, Determine the location of the range center line and front
panel when the range is in its final position based on the
Product Dimensions on page 4, and the actual cabinet/
cutout dimensions used for the installation.
2. Determine the required position of the anti-tip bracket,
based on the diagram on the facing page. Mark the four (4)
mounting hole locations on the floor with a pencil.
3. Determine the screw size required. The minimum full thread
depth (portion of screw threaded into wood/slab) for wood
is 3/8" (1 cm) and 5/8" (1.6 cm) for concrete. See the table
below to select the correct screw size.
Sub-Floor Type/ Screw Size
Floor Covering Thickness
Concrete or wood sub-floor, no floor #8 x 1"*
covering over top
Concrete or wood sub-floor, floor #8 x 1"*
covering up to 114" thick
Concrete or wood sub-floor, floor #8xl 1/4" *
covering over 114" and up to 1/2" thick
Wood sub-floor, floor covering over #12 x 1 3/4" *
1/2" and up to 1 3/16" thick
Concrete sub-floor under floor covering Must be purchased
over 1/2" thick separately **
Wood sub-floor, floor covering Must be purchased
over 1 3/16" thick separately **
Included with range
** Not included. Determine length based on step 3.
Attaching the bracket to a concrete floor:
•Drill four (4) 3/8" diameter countersink holes through any
existing floor covering down to the concrete slab below.
• Drill the 4 holes for the anchors 1 1/4" (3.2 cm) deep into the
concrete slab using a 3/16" masonry bit. This hole length is
longer than the anchor, but is required for proper installation.
Clear the holes ddust and any other material. Tap each
anchor into the hole until the anchor top is flush with the top
of the concrete slab. Position the anti-tip bracket holes over
the anchor holes. Insert the screws through the 4 holes in
the base of the bracket and thread them into the anchors. Be
sure the screw threads fully engage the anchor body. Tighten
the screws into place.
Attaching the bracket to a wood floor:
•If there is ceramic, asphalt or other hard floor covering over
the wood below, drill 4 countersink holes to allow access to
the wood below for drilling pilot holes.
•Drill 4 pilot holes into the wood floor using a drill bit (1/16"
dia. for #8 screws, 1/8" dia. for #12 screws). Position the anti-
tip bracket holes over the holes in the floor. Insert the screws
into the wood and tighten into place.
Floor
covering
Concrete._ attached
anchors shown, Sub-floor to sub-floor below
do not use for floor covering
wood sub-floor
Installing the Anti=Tip Bracket on the Wall
1. To use the wall mount option, the range front panel must not
be more than 26 1/4" from the wall and the bracket screws
must be able to thread into the base plate inside the wall
behind. The notches on the sides of the bracket indicate the
minimum required height of the base plate inside the wall and
that any floor covering is not too thick for proper screw thread
engagement.
8_D_

To determine if the base plate is high enough:
a. Determine the location of the range center line and front
panel when the range is in its final position based on
the Product Dimensions on page 4 and the actual
cabinet/cutout dimensions used for the installation•
4,
b. Determine and mark the required position of the anti-tip
bracket, based on the diagram below. Push the bracket
up against the wall in the mounting location.
c. Using a pencil, make a dot next to the notches on both
sides of the bracket. Determine if the base plate is as
high at the notches by drilling test holes into the wall at
both dots with a 1/16" drill bit. Drill just deep enough to
see if the bit contacts the base plate. If the bit contacts
the base plate the location will support watt installation
of the anti-tip bracket. If you do not contact the base
plate, or you contact metal stud mounting materials, the
wall mounting method may not be used and the floor
mounting method must be suitable, or the walt must be
modified so that the base plate is above the notches.
To install the bracket, place it against the wall in the mounting
location shown below. Using a drill with 1/8" diameter drill bit,
drill four 1 5/8" deep pilot holes perpendicular to the screw
seating surfaces shown. Attach the bracket to the wall as
shown with the four (4) included #12 x 1 3/4 screws.
Wall
Base
plate
Cabiie t
face below
countertop
Range front '2aT
panel
l
,8xl,,,8xl1/4,,---,. i
/I
or #12 x 1 3/4 screw, ,
4 places (see text) i. _. "
" ,,
N
Anchor, 4 places: ._ _,
use for concrete
floor only o
I
Anti-tip bracket _ +
front hole locations +
F
Range -_ /
center line /
21 3/8"
(54.3 cm)
I
N
4-
4-
Front
hole
I
I1- -
I
i_-10 1/2"--_J L_--2 3/16"
I (26.3 cm) I I (5.6 cm)
1
Back wall
#12 x 1 3/4" screw, Top hole, indicates
4 places bracket center line
N
I
I
I
Range ---_1
center line :ii
Rangepanetfront_ __
\, II
_ 11 1/2"----_r,_-Bracket
(29.2 cm) center line
Top View =Location of Floor Mounted Anti=Tip Bracket Top View =Location of Wall Mounted Anti=Tip Bracket

Backguard Installation
If installing a backguard or changing the factory installed
backguard, install it before moving the range into position. Do not
install a backguard if installing a raised vent.
RaisedVent Installation
If installing a raised vent, install it before moving the range into
position. Install trim kit PN ATKR30SR to cover the front of the
raised vent chassis.
Removing the Oven Door
To make the range easier to move, remove the door to reduce
weight.
WARNING
'Donot attempt to disengage the hinge Catches With the
door removed from the oven: The hinge springs could
release; causing personal Jnjuryl
' Be not lift 0r Carry the oven door by the d0or handiel
1. Open the door to its fully opened position.
2. Using a flat blade screwdriver, rotate the catch over the
retaining arm on each hinge.
Electrical Connection
WARNING
• Before proceeding, turn off power to the circuit to which the
appliance will be connected at the circuit breaker panel or
fuse box.
If the electric service provided does not meet the product
specifications, do not proceed with the installation. Call
the appliance dealer or a licensed electrician. Improper
connection of the electrical wiring can cause an electric
shock hazard and damage the appliance. Dacor is not
responsible for damages resulting from improper installation.
• This range must be connected to a grounded metallic,
permanent wiring system. Alternatively, a grounding
conductor should be connected to the grounding terminal or
lead on the appliance.
• Do not use a 3-wire connection unless local building codes
permit.
Do not turn on power to the appliance until the range is
permanently grounded.
• Do not use an extension cord with this appliance. Such use
may result in fire. electrical shock or other personal injury.
Do not install a fuse in the neutral or ground circuit. A fuse
in the neutral or ground circuit may result in an electrical
shock hazard.
3. Lift the oven door to about a 15° angle from the vertical
position.
4. Hold the door with both hands just below the handle and pull
it away from the oven while continuing to lift.
NOTE: If the appliance is connected to a 208 volt power supply,
preheat times and cavity temperature recovery times wilt be
increased slightly.
NOTE: Model numbers ending with a -C come from the factory
pre-wired. If installing a pre-wired range, skip to installing the
Range on page 16.
IMPORTANT: When connecting the range wiring, do not
disconnect any of the wires inside the range electrical box unless
instructed to do so.
Before proceeding:
1. Position the range directly in front of the cabinet cutout.
2. Remove the electrical access cover on the back of the range.
There are four possible ways to wire the range:
• 4-wire conduit
• 3-wire conduit (where local codes permit)
• 4-wire appliance cord where local codes permit)
• 3-wire appliance cord where local codes permit)
The sections on the following pages give directions for connecting
each type of wiring harness.
10 _car.

Connecting Conduit to the Range
NOTE: See page 14 for instructions to connect an appliance
cord to the range.
1. Remove the range electrical access cover from the back of
the range.
2. If using a 4-wire connection, loosen the grounding screw and
remove the neutral to ground jumper link.
3. Remove the nut from the conduit strain relief (not included).
4. Slide the wires and the end of the strain relief into the hole on
the bottom of the range electrical box.
5. Before connecting the wires, slide the strain relief nut over
the wires and thread it onto the conduit strain relief inside the
box. Tighten into place.
6. Connect the white wire to the neutral terminal inside the box.
7. Connect the black wire to the L1 power supply terminal.
8. Connect the red wire to the L2 power supply terminal.
9. If using a 4-wire connection, connect the green wire to the
grounding screw inside the box.
L1 terminal
Neutral terminal
Jumper link
L2 terminal
Back wire
White wire
Red wire
Conduit strain
relief nut
o
t t
3=Wire Conduit Connection -
Where Local Codes Permit
L1 terminal
Neutral terminal
Bare wire f
connections
Loop and
spade terminal
connections
10. Replace the range electrical access cover.
L2 terminal
Link removed
Grounding screw
Red wire
Green wire
White wire
Back wire
Conduit strain
relief nut
t
4=Wire Conduit Connection
l:::fac_t:, 11

Electrical Connection (cont.).
Connecting the Conduit to the House
Electrical Junction Box
WARNING
• Do not connect the green appliance wire to the neutral
(white) supply wire unless local building codes permit.
- Do not ground the appliance to a gas supply pipe or hot
water pipe.
•A grounded cold water pipe must have metal continuity to
electrical ground and must not be interrupted by insulating
materials. Any insulating materials must ae jumped with a
length of No. 4 copper wire securely clamped to bare metal
at both ends. See below. Connection to house power supply
No. 4
copper wire
Meter or other
insulating device
Metal
water pipe
.......Clamps
Bare metal
Insulated Pipe Jumper
Junction box
RED
_[] RED
GREEN
[_]GREEN
WHITE /
WHITE [_
BLACK
BLACK [_
Wire nut
4 places
1, With the range positioned directly in front of the cabinet
cutout, feed the appliance wires into the junction box.
Depending upon local codes, utilize one of the three (3)
methods shown to connect the appliance inside the junction
box.
2. Connect the white wire from the appliance to the neutral
(white) supply wire inside the junction box.
3. Connect the black wire from the appliance to the black (L1)
power supply wire inside the junction box.
4. Connect the red wire from the appliance to the red (L2) power
supply wire inside the junction box.
5. If using a 4-wire connection, connect the green wire to a
grounded supply wire in the junction box or to a grounded
cold water pipe. If connecting to a grounded cold water pipe,
use a separate copper grounding wire (No. 10 minimum) to
connect to the cold water pipe by means of a clamp and an
external grounding connector screw.
6. Replace the junction box cover.
Conduit to
appliance
4=Wire Conduit=Junction Box Connection
12 _CaF

Connection to house
power supply
Junction box
RED
_RED
m
m
i--i
Conduit to
appliance
/
WHITE
WHITE F_)
BLACK
BLACK [_
/Wire nut
3 places
3=Wire Conduit-Junction Box Connection
Separate No. 10 (minimum)
copper grounding wire
Connection to house
power supply [L
Junction bOXRED /
_RED
GREEN
[_GREEN
Fasten clamp
tightly on pipe
WHITE [_/
WHITE
BLACK
BLACK [_]
Wire nut
4 places
Conduit to
appliance
3=Wire Conduit-Junction Box
Connection with External Ground
dater 13

Electrical Connection (cont.).
Appliance Cord Connections -Where Local
Code Permits
Do tco nectt e r_eena_A_n_c_,_lr_e o_the nei_z_m iutra (white) J
Supplywreunessocabudng€OdeSpermt. j
1. Remove the range electrical access cover from the back of
the range.
2. If using a4-wire connection, loosen the grounding screw and
remove the neutral to ground jumper link.
3. Remove the conduit bracket from the bottom of the range
electrical box.
i
)Remove link on
4-wire installations
I
tl t
I, I
Remove conduit i I I
bracket before strain _
relief installation
5,
6.
7.
8.
9.
Slide the end of the appliance cord into the strain relief from
the bottom of the box. See facing page.
Connect the white (neutral) wire to the neutral terminal in the
box.
Connect the L1 wire to the L1 power supply terminal inside
the box.
Connect the L2 wire to the L2 power supply terminal inside
the box.
If using a 4-wire connection, connect the ground wire to
the grounding screw inside the box using a loop or spade
terminal.
Bare wire
connections
Loop and t
spade terminal
connections
10. Tighten the strain relief so that the appliance cord is held
snuggty in place.
11. Replace the range electrical access cover.
12. With power turned off at the circuit breaker panel or fuse
box, connect the plug on the end of the appliance cord to the
power receptacle.
4, Disassemble and remove the strain relief from the appliance
cord (not included), Insert the tabs on the two parts of
the strain relief into the hole on the bottom of the box and
reassemble it so that the tabs are below the box and the
strain relief itself is inside the box.
Strain relief
/
Bottom of range
electrical box
/
Reassemble with tabs
below and clamp above
14 l::_ca_

L1
Neutral
L2
Neutral
L2
3-Wire Appliance Cord Plug
Ground
L1
4-Wire Appliance Cord Plug
L1 terminal
Neutral terminal
L2 terminal
Jumper link
LI wire
White wire
L2 wire
Strain relief
0 0 0 0
000
L1 terminal
Neutral terminal
L2 terminal
Link removed
Ground screw
L2 wire
Green wire
White wire
Strain relief
O O O O
_Q 0 0 0
ire
3-Wire Appliance Cord Connection -
Where Local Codes Permit 4-Wire Appliance Cord Connection - Where Local Codes Permit
dater 15

Installing the Range Re-installingthe Oven Door
Peel off the protective layer of plastic that covers the stainless
steel surfaces.
Freestanding Installation
1. Measure from the floor to the countertop and adjust the
leveling legs as required to position the top frame at the
desired height, based on the cabinet and countertop
installation.
2. Carefully slide the range into position in the cutout. As you
slide the unit into place the rear leg should engage the anti-
tip bracket.
3. Using a flashlight look underneath the range and verify that
the anti-tip bracket covers the rear leg. See diagram below.
4. Use a level to make sure that the range does not tilt front to
back or side to side. Re-adjust the legs to level and change
the height if necessary.
Self=Rimming installation
Installation of the range in the self-rimming configuration is
slightly different from freestanding installation since the range top
overhangs the countertop cutout.
1. Measure from the floor to the countertop.
2. Adjust the leveling legs to position the bottom edge of the
range top trim at countertop height.
3. Carefully slide the range into position in the cutout. As you
slide the unit into place the rear leg should engage the anti-
tip bracket.
4. Using a flashlight look underneath the range and verify that
the anti-tip bracket covers the rear leg. See diagram below.
5. Use a level to make sure that the range does not tilt front to
back or side to side. Re-adjust the legs to level and change
the height if necessary.
Anti-tip
bracket
WARNING
To avoid personal injury or damage to the door from it
falling off its hinges:
•Make sure that the notch on the bottom of each hinge rests
on top of the lower lip of each hinge receptacle before
attempting to open the oven door.
- Rotate the hinge locks toward the front of the range
immediately after installation of the door.
Grasp the oven door on opposite sides and hold it at a 15°
angle from the front of the range. Slide the hinges into the
hinge openings, resting the bottom of the hinge arms on the
hinge receptacles. Continue to hold the door at a 15° angle
with one hand while pushing in on each of the bottom corners
of the door. Push until the notch on the bottom of each hinge
slips over the lower lip of each hinge receptacle.
\Rear leg
2. Lower the door to the fully opened position.
3. Rotate the two hinge locks toward the range.
4. Slowly and carefully open and close the door completely to
ensure that it is properly installed.
16 _acar.

Verifying Proper Operation
1. Remove any packaging from inside the oven.
2. Slide the oven racks onto the supports inside the oven
chamber according to the use and care manual.
3. Prior to operating the range, please read the accompanying
use and care manual carefully. Important safety, service and
warranty information are contained within.
4. Turn on power to the range at the circuit breaker panel or
fuse box.
5. Set the clock according to the use and care manual.
6. Press the BAKE key on the control panel. The default bake
temperature should appear on the display.
7. Press START. After approximately three (3) minutes, check to
make sure the oven is heating.
Installation Checklist
WARNING
To ensure a safe and p[oper installation; the installer must
rform the following checklist to ensure that no part of the
installation has been overlookedl Proper installation isthe
responsibility of the homeowner.
1. Has the plastic coating been peeled off of the outside of the
range? Have all packaging materials been removed from
inside the oven?
2. Are all of the legs extended down to make contact with the
floor? Is the unit level? See page 16.
3. Is the range secured in place with the provided anti-tip
bracket according to these instructions? See page 8 and
16.
8. P_ssCANCELSECURE.
9. Place a pot 1/4 full with water on one of the cooking
elements. Match the size of the pot to the size of the cooking
element. NOTE: You must use a pot that attracts a magnet
on the pan bottom to test operation.
10. Hold your finger on the ON/OFF key for one second to
activate the control (the diagram next to the ON/OFF key
determines the correct control). "0" will flash on the display.
f _ _mm]
\/I I
L m m ttt
4. Is the range wired and grounded according to these
instructions and in accordance with all applicable electrical
codes? Has the electrical access cover been replaced? See
pages 3 and 10.
5. Is the oven door properly installed according to these
instructions? See page 16.
6. Has proper operation been verified?
7. Has the warranty been activated on-line or the warranty card
been filled out completely and mailed?
Cooktop Controls
11. Touch the HiGH key.
12. Once the pot begins to heat, touch LOW, then MED. Verify
that the power level changes.
13. Touch the power level up key (A). Verify that the power level
goes up.
14. Touch down (T). Verify that the power level goes down.
15. Touch ON/OFF to turn off the cooktop.
16. If either the oven or cooktop does not operate properly, follow
these troubleshooting steps:
¢ Verify that power is being supplied to the range.
¢ Check the electrical connections to ensure that the
installation has been completed correctly.
¢ Repeat the above tests.
¢ If the appliance still does not work, contact Dacor
Distinctive Service at [phone], extension 2822.
Do not attempt to repair the appliance yourself. If you
need service, be sure to have the model and serial
numbers available when you call. See the inside cover
for location. Dacor is not responsible for the cost of
correcting problems caused by a faulty installation.
_ac_ 17

The Life of the Kitchen?
Dacor • 14425 Clark Avenue, City of Industry, CA91745 • Phone: [phone] • Fax: [phone] • www.dacor.com
