Installation Instructions
Modernist Pro Range
DOP48M86D*/DOP36M86D*
Part No. 115116 Rev A
2English
Table of Contents
Before You Begin 3
Important 3
Customer-Assurance Information 3
Important Safety Instructions 4
Read All Instructions Before Using This Manual 4
Appliance Symbols Used In This Manual 4
About the Anti-tip Device 4
Installation-Related Safety Instructions 5
Product Specications 10
What is Included (DOP48M86D*) 10
What is Included (DOP36M86D*) 11
Needed Tools and Parts 12
Installation Requirements 13
Pre-Installation Checklist 13
General Requirements 13
Location Requirements 16
Gas Requirements 18
Special Gas Requirements (gas models sold in Massachusetts) 18
Electrical Requirements 19
Installation Instructions 20
Preparing for Installation 20
Installing the Burner-Control Knobs 29
Rangetop Assembly 30
Verifying Proper Operation 34
Removing and Reinstalling the Range 34
Installation Checklist 35
3English
Before You Begin
Important Notes to the Owner
• As with any heat-generating appliance, certain safety precautions must be followed.
•
• Ensure the wall coverings near the range can withstand the heat generated by it.
• Cabinet storage space above the range surface should be at least 30 in. (76.2 cm).
• Keep this manual handy for personal and professional reference.
Customer-Assurance Information
Installer
• Read this manual before installing the range.
• Remove all packing material before connecting the elec-
tric and gas supply.
• Observe all governing codes and ordinances.
• Leave this manual with the owner, and write the unit's
model/serial #s inside for easy reference. Installation of
this appliance requires basic mechanical skills.
• The owner shall see to the range's proper installation.
(The warranty does not cover product failure due to im-
proper installation.)
Owner
To resolve questions and installation issues, contact your Dacor dealer or the Dacor CustomerAssurance Team.
Before calling, have the range's model/serial numbers available. (See the range's data label: Double oven –
left door trim of small oven; single oven – left door trim.)
Dacor Customer Assurance:
Phone: (833) 35-ELITE (35483) (USA, Canada)
Hours of Operation:
Time
Website: www.dacor.com/support/contact-dacor
Service Technician
The electrical diagram is attached inside the burner box.
4English
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
• To avoid property damage/personal injury/death, follow the directions in this manual.
• Electrical and gas equipment with moving parts can be dangerous. The Important safety instructions in
this manual are intended to minimize the risk of property damage, personal injury, and death. Read these
instructions.
• Keep this manual in a handy place for reference.
Important Safety Instructions
Symbols In This Manual
Follow these warning icons and symbols explicitly to prevent property damage and personal injury.
Hazards or unsafe practices that may result in severe personal injury or death.
Hazards or unsafe practices that may result in electric shock, personal injury, or property damage.
Useful tips and instructions.
State of California Proposition 65 Warning (US only)
• This product contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm.
• Gas appliances can cause low-level exposure to Proposition 65-listed substances (e.g., carbon monoxide,
formaldehyde, soot) caused by the incomplete combustion of LP or natural gas.
Commonwealth of Massachusetts
-
must not be connected in series.
About Anti-Tip Device
• After installing the anti-tip device (see Installing the Anti-Tip Device), verify proper installation by carefully
tipping the range forward. The anti-tip device should keep the range safely in place.
• When the range is put back in place after maintenance, be sure to re-engage the anti-tip device.
• To avoid personal/property damage, do not step/sit/lean on the range.
All ranges can tip and cause personal injury and death. Install and check the
anti- tip bracket per the instructions and template supplied with the bracket.
5English
Important Safety Instructions
General Safety
• Do not touch the range during or immediately after cooking.
• Know where and how to shut off/on the range's gas-supply valve.
• Use only dry pot holders.
• Do not let children sit/stand on the range or play with any of its parts. Do not leave children unattended
near the range when it is in use.
• Remove all packaging before operating the range, and properly and immediately dispose of the packaging.
• Keep all packaging away from children.
• Do not keep objects of interest to children on or around the range.
• Do not operate the range if it is damaged or malfunctioning, or is missing parts.
• Do not use oven cleaners/liners anywhere on the oven.
• Do not heat sealed food containers.
• Do not strike the oven glass.
• When disposing of the range, cut off the power cord, and remove the door.
• Shut off the gas, and unplug the range before service/maintenance.
• Cook meat to an internal temperature of 160 °F (71 °C) and poultry to 180 °F (82 °C).
• Air curtains or hoods that blow on the gas range shall be used only if the hood and range are designed and
tested perthe Standard for Domestic Gas Ranges, ANSI Z21.1 • CSA1.1, and listed by an independent testing
lab for combination use.
• Never use the range as a space heater.
Fire Safety
• Do not store/place/use combustible items (e.g., paper, plastic, fabrics, gasoline) nearthe range.
•
•
bulky cloth as a pot holder.
•
use a multi-purpose, dry-chemical, or foam extinguisher.
•
use a multipurpose, dry-chemical, or foam extinguisher.
• Do not heat sealed containers; pressure may burst the container and cause injury.
Installation-Related Safety Instructions
ensure proper installation.
6English
Important Safety Instructions
Gas Safety
If you smell gas:
• do not use the range, and close the gas valve.
• do not light a match, candle, or cigarette.
• do not turn on any gas or electric appliances.
• do not plug in a power cord or touch an electrical switch.
• do not use any phone in your building.
• evacuate the building.
• immediately call your gas supplier from a neighbor’s phone; follow the supplier’s directions.
•
Checking For Gas Leaks
a soap-and-water solution around the area in question. If there is a gas leak, small bubbles will appear in the
solution. If unsure, call for professional help.
Electrical and Grounding Safety
• Do not remove the ground prong.
• Do not use an adapter or extension cord.
• Do not use a damaged plug, cord, or loose power outlet, and do not alter the plug, cord, or outlet.
• Do not put a fuse in a neutral or ground circuit.
• Use a dedicated 240 Vac, 60 Hz, 50 Amp breaker forthe 48" Range and a 40 Amp breaker for the 36" Range.
A time-delay fuse or circuit breaker should be used. Plug only the range into this circuit.
• Do not connect the ground wire to plastic plumbing/gas lines, or hot water pipes.
• The range must be grounded. Grounding lowers the risk of electric shock by giving the current a safe path.
If unsure that your outlet is properly grounded, have a licensed electrician check it.
• The range has a grounded, 4-prong, plug that must be inserted in a grounded, 4-prong outlet that meets
• Electrical service to the range must conform to local codes, or in their absence, to the National Electrical
code/NFPA No. 70 – Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 or Latest Revi-
sions.
• The owner shall ensure the range receives the proper electrical service.
Installation-Related Safety Instructions, cont.
ensure proper installation.
7English
Installation Safety
•
• Do not service/alter/replace the range or any part of it unless as instructed in this manual. All other service
• Remove all tape and packing material.
•
• Ensure the anti-tip device is properly installed (Pg. 20).
• Due to the size and weight of the range, have two or more people move the range.
• After unpacking the product, remove all accessories, taking care with heavy pieces.
• Verify that no parts came loose during shipping.
•
gas (natural or LP) you will use. For the range to use LP gas, the installer must replace all surface burner
responsible for the gas conversion.
• Installation of this range must conform with local codes or, in their absence , with the National Fuel Gas
Code, ANSI Z223.1/NFPA.54, latest edition. In Canada, installation must conform with the current Natu-
ral Gas and Propane Installation Code, CAN/CGA-B149.1, or the current Propane Installation Code, CAN/
ANSI Z21.1/CSA1.1, latest edition.
Location Safety
• Install the range indoors away from weather/water/strong drafts.
• If the range is near a window, do not hang paper blinds or long curtains that could be blown over/onto the
range.
• The range must be installed within easy reach of a grounded, 4-prong outlet.
• Wall and cabinet coverings around the range must withstand heat up to 194 °F (90 °C).
• -
leum) must withstand 180°F (82°C) without shrinking, warping, or discoloring. The range must be separat-
ed from carpeting by a sheet of ¼" plywood or similar insulator.
•
thus ensuring safe operation.
• Avoid cabinet storage above the range; otherwise, allow at least 30 in. (76.2 cm) from cooking surface to
cabinet bottom; or install a range hood that projects outward at least 5 in. (12.7 cm) beyond the cabinetry.
Important Safety Instructions
Installation-Related Safety Instructions, cont.
ensure proper installation.
8English
Important Safety Instructions
Cooktop Safety
• Turn all burners off if not using the range.
• Do not line the grates or any part of the cooktop with foil.
• Do not leave burners unattended on medium or high settings.
• Before igniting, ensure burners and caps are properly seated.
•
minutes for the gas to dissipate, then retry.
• When setting a burner to simmer, turn the knob slowly; ensure the burner stays lit.
• Place only cookware on the cooktop.
• The cooktop is designed to cook with a wok orwok-ring attachment.
• Food should only be cooked under an active ventilation hood.
• Before removing cookware, turn off the burner, and remove food/cookware when done cooking.
• Burners should be off and all surfaces cool before removing grates and burner parts. After cleaning the
burner head, dry it completely before re-assembly.
• Assemble the dual-burner spreader so its spark mark is next to the electrode.
• Do not pourwater or other liquids into the cooktop.
•
under the cookware.
• Do not use cookware that is much larger than the grate.
• Turn cookware handles away from active burners and the cooktop front edge.
• Heat frying-oil slowly, and watch as it heats. When frying at high heat, stand at a safe distance, and monitor
the oil constantly. If combining fats/oils, mix them together before heating.
• Use a deep-fry thermometer if possible to avoid heating the oil beyond its smoke point.
• Fry with minimal oil. Thaw food fully before frying; do not fry icy or overly cold food. Let oil/fat cool to room
temperature before moving the cookware.
• To avoid delayed-eruptive boiling, let oil/fat stand at least 20 seconds after turning off the burner to stabi-
lize the temperature.
Installation-Related Safety Instructions, cont.
ensure proper installation.
9English
Important Safety Instructions
Oven Safety
• Do not use the oven for non-cooking purposes such as drying clothes or storage. Use the oven for cooking
purposes only.
• Ensure the oven racks are placed on the same level on each side.
• Do not spray water on the oven glass while the oven is on or just after you turn it off.
• Do not clean the door gasket.
• Do not use cover/line any part of the oven with aluminium foil or like material.
• When using the oven, stand to one side when opening the door.
• Keep the oven free from grease buildup.
• Ensure the oven is completely cool before adjusting the oven racks.
• Do not leave plastic items in the oven.
• To avoid damaging the burner control knobs or oven control, always bake/broil with the oven door closed.
• Do not put meat too close to the broil element; trim excess fat before cooking meat.
• Use cooking bags as directed by the bag manufacturer.
• Do not use abrasive cleaners or metal scrapers to clean the oven-door glass.
• Do not try to operate the oven during a power failure.
• If powerfails, turn the oven off. If the oven is not turned off and power returns, the oven may begin to oper-
Self-Cleaning Safety
• During self-cleaning, the oven operates at about 800 °F (427 °C). Do not touch any surfaces of the range
during a self-cleaning cycle, and keep children away from the oven.
• Before operating the self-clean cycle, wipe excess food residue from the oven. (Excess grease may ignite,
causing smoke damage.
• Before self-cleaning, remove all racks, cookware, and utensils from the oven. Only porcelain- coated oven
racks may be left in the oven.
• Stand aside when opening the oven door after self-cleaning.
•
technician.
• Fumes released during self-cleaning can be harmful/fatal to pet birds. Move birds to a distant, well-venti-
lated room.
• Do not use commercial oven cleaner or protective coating on the oven interior/exterior.
Installation-Related Safety Instructions, cont.
ensure proper installation.
10 English
Product Specications
What Is Included (DOP48M86D*)
The range comes with brass and porcelain burner caps to suit customer preference.
Grates (3) Burner heads (6) and Burner
caps (7)
Glide racks (2)
Temp. Probe (1) Wire rack (1)
Steam tray (2)* Anti-tip bracket (1)Small rack (1)*
WOK ring (1) Half steam tray (2)*
*Steam ovens only
11English
Product Specications
What Is Included (DOP36M86D*)
The range comes with brass and porcelain burner caps to suit customer preference.
Grates (3) Burner heads (6) and Burner
caps (7)
Glide racks (2)
Temp. Probe (2) Wire rack (1)
Anti-tip bracket (1)WOK ring (1)
12 English
Product Specications
Needed Tools and Parts
Parts Needed
Tools Needed
Gas line shut-off valve Flexible metal appliance
135-degree elbow (op-
tional)
Lag bolt or1/2-in (OD)
sleeve anchor
Flare union adapter1/2 in (NPT x 1/2
in (ID)
Flat-blade screwdriver Phillips screwdriver Open-end or adjustable
wrench
Pipe wrench (2)
Nut driver Pencil and ruler Level Pipe joint compound
Utility knife Soapy water solution
13English
Installation Requirements
Pre-Installation Checklist
1. Before installing the range, read this manual thoroughly.
2. Plan for a location where the range will not be subject to strong drafts.
3. Remove packaging, grate boxes, regulatorwith literature, and literature package from the range, verify
that all items are present before beginning the installation.
General Requirements
Clearances and Dimensions
• For over-the-range (OTR) over gas stove, follow the local gas code.
• For safe operation, provide adequate space between the range and combustible surfaces. Location of the
electrical outlet and gas piping may be adjusted to meet the dimensions and clearances in this manual.
•
wall between the range and hood. It is not necessary to install non- combustible material directly behind
• Canada only: A free-standing range shall be installed at least 4.7 in. (12 cm) from all adjacent surfaces.
The range complies with the maximum allowable wood-cabinet temperature of 194 °F (90 °C).
Ensure the adjacent wall covering, countertops, and cabinets can withstand such heat to avoid discoloration,
delamination, or melting.
Minimum Dimensions
Regarding overhead cabinets, a hood should be installed that projects at least 5" (12.7 cm) beyond the cabin-
etry face to dissipate heat in those cabinets. The hood must consist of sheet metal at least .0122" thick. Install
the hood with at least 1/4" clearance between it and the bottom of the combustible material or metal cabinet.
The hood must be at least as wide as the range and centered over it. Clearance between the cook surface and
hood bottom must be at least 24". (For above-range cooking appliances, follow that appliance's installation
criteria.)
• 30" (76.2 cm) minimum clearance between the cook surface and bottom of an unprotected wood/ metal
cabinet; or if no 30" (76.2 cm) min. clearance, 24" (61 cm) min. when the bottom of the wood/metal cabinet
steel, .015" (.038 cm) stainless steel, .024" (.061 cm) aluminum, or .02" (.051 cm) copper.
• 18 in. (45.7 cm) minimum between the countertop and adjacent cabinet bottom.
14 English
Installation Requirements
Product Dimensions—Product tolerances: ±1/16” (±1.6 mm)
DOP36M86D*: 35 7/8” (91.1 cm) wide ; DOP48M86D*: 47 7/8” (121.6
cm)
Range Installed Range Installed with Downdraft Vent
15English
Installation Requirements
Cabinet Dimensions
Maintain all max/min dimensions and clearances in the diagrams below for safe use.
CUTOUT DIMENSIONS
Range Model A B C
DOP36M86D* 42” (106.7 cm)*; 36” (91.4 cm)** 36” (91.4 cm)**; 36 1/8” (91.7 cm)*** 33 1/2” (84.8 cm)
DOP48M86D* 54” (137.2 cm)*; 48” (121.9 cm)** 48” (121.9 cm)**; 48 1/8” (122.2 cm)*** 43 1/2” (110.5 cm)
*Recommended, **Minimum, ***Maximum
1. Vertical from range grate level to combustible overhead surface; if installing an overhead hood, see hood
2. Cabinet/countertop depth is at the customer's discretion, but cabinet face must not protrude beyond the
rear of the front panel. (See Product Dimensions, Pg. 14.)
3. Consult local codes for exact location requirements.
4. Vertical from grate level to combustible surface.
5. Does not apply to cabinets more than a horizontal distance of 10" (25.4 cm) from the range edge.
16 English
Installation Requirements
Location Requirements
DOP36M86D* (rear)
DOP36M86D* (rear)
1. Measurement with appli-
ance legs adjusted to lowest
height.
2. The hole size forthe electri-
cal wiring may be increased
to 1 1/8” (2.9 cm) by removing
the conduit bracket in the
bottom of the range electri-
cal box.
17English
Installation Requirements
Gas and Electrical Service
• See below forthe recommended location of the gas inlet and electrical junction box/receptacle. Existing
utilities may be used if they are compatible with this range. Check local building codes for allowed gas-
valve locations.
• An external manual shut-off valve must be installed between the gas inlet and range so the range's gas
supply can be turned on/off. Installation must allow access to the gas shut-off valve when the unit is in-
stalled and access to the remote circuit-breaker panel/fuse box without moving the range.
• The gas-supply piping and shut-off valve, and the electrical junction box/receptacle must be located so as
not to interfere with the range when it is installed.
• The junction box and gas-shut off valve must be located so the range can be pulled out for service without
being disconnected.
Model D E F G
DOP36M86D* 8 7/8" (22.5 cm) 6 5/8" (16.8 cm) 11 3/16" (28.4 cm) 24 1/4" (61.6 cm)
DOP48M86D* 5 1/2" (13.9 cm) 6 5/8" (16.8 cm) 8 1/8" (20.6 cm) 26 5/8" (67.6 cm)
18 English
Installation Requirements
Gas Requirements
Provide Adequate Gas Supply
This oven's installation must conform to local codes or, in their absence, with the National Fuel Gas Code, ANSI
Z223.1/NFPA 54.
This range's cooktop is designed to operate at a manifold pressure of 5 in. (13 cm) of water column for natural
gas/natural gas at high altitude (NG-H) or10 in. (25.4 cm) of water column for LP (propane)/LP at high altitude
(LP-H).
Verify that the oven is right for the provided gas service.
When verifying regulator function, inlet pressure must be at least1 in. (2.5 cm) greater than the operating
(manifold) pressure as given.
• The pressure regulator at the inlet of the cooktop manifold must stay in the supply line whether or not
natural or LP gas is used.
• Use only the range's regulator, which must be installed in the gas line that runs from the cooktop gas inlet
to the gas shut-off valve.
• An external manual shut-off valve must be installed between the gas inlet and range forturning on/off gas
to the appliance.
•
•
connectors.
GAS SUPPLY PRESSURE REQUIREMENTS*
Gas Type Minimum Manifold Pressure Minimum Gas Supply Pressure**
Natural Gas 5” Water Column 6” Water Column
LP (propane) Gas 10” Water Column 11” Water Column
*The gas supply pressure fortesting the regulator setting shall be at least 1" water column (249 Pa) above the
Special Gas Requirements (gas models sold in Massachusetts)
• Gas leaks may occur in your system, creating a hazardous condition. Such leaks may not be detected by
smell alone; thus, gas suppliers recommend installing a UL-approved gas detector per manufacturer speci-
•
• A T-handle manual gas valve MUST be installed in the gas-supply line to your range.
•
19English
Installation Requirements
Electrical Requirements
Follow these directions to reduce risk of property damage, personal injury, or death.
The owner shall ensure that the electrical service meets requirements and that the electrical outlet is installed
by a licensed electrician.
All Ranges
• Do not use an extension cord or adapter plug with this range.
•
doubt that the outlet is properly grounded.)
•
• All wiring/grounding must comply with local codes or, in their absence, with the National Electrical Code,
ANSI/NFPA No. 70 – Latest Revision (US), or the Canadian Electrical Code CSA C22.1 – Latest Revisions and
local codes.
• The wiring diagram is on the back of the range.
• A dedicated circuit breaker is required.
• Use this chart to identify the minimum recommended dedicated circuit protection.
Range Model KW Rating (240 V) Recommended Circuit Size (Dedicated)
DOP36M86D* 7.3 KW - 9.6 KW 40 Amp
DOP48M86D* 9.7 KW - 12.0 KW 50 Amp
20 English
Installation Instructions
•
installation. Call the dealer, the gas supplier or a licensed electrician.
•
Unpacking the Range
Unpack the parts box and verify that all required components have been provided. If any item is missing or
damaged, please contact your dealer immediately. Do not install a damaged or incomplete appliance.
Installing the Anti-tip Bracket and Foot
There are two ways to mount the anti-tip bracket: Floor mounting (preferred), and wall mounting (Pg. 22). Use
Preparing for Installation
Floor-Mounting the Anti-Tip Bracket
-
ings such as ceramic/asphalt tile or linoleum.
• Four plastic anchors are provided with three
sizes (4 each) of #8 or #12 Phillips head screws
both anchors and four of the screws to attach the
• Determine the location of the range center line
on the Product Dimensions (Pg. 14) and the actual
cabinet/cutout dimensions used for the installa-
tion.
This manual suits for next models
2
Table of contents
Other Dacor Range manuals
Dacor
Dacor Epicure ERD30 Technical manual
Dacor
Dacor DR30DH User manual
Dacor
Dacor Renaissance RNRP36GS User manual
Dacor

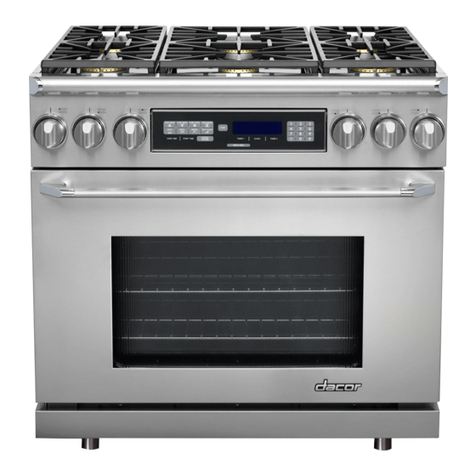

Dacor Epicure ER36DSCH User manual
Dacor

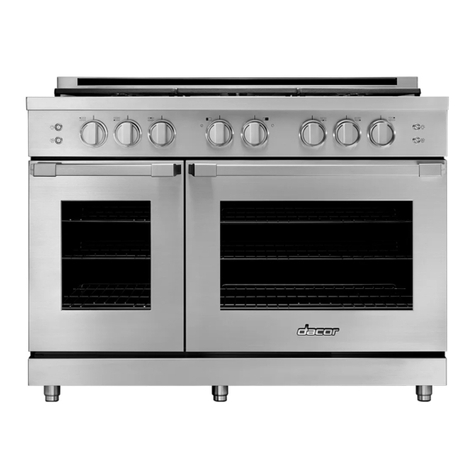

Dacor HGPR48S User manual
Dacor

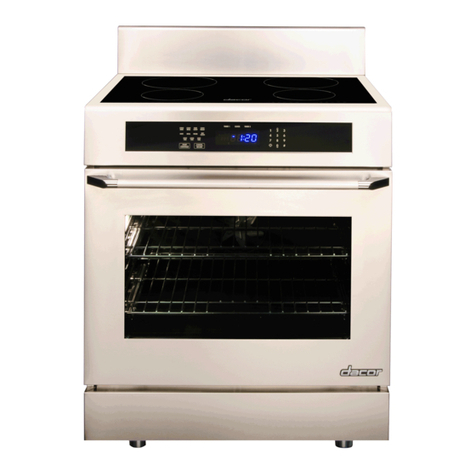

Dacor RNR30NC User manual
Dacor

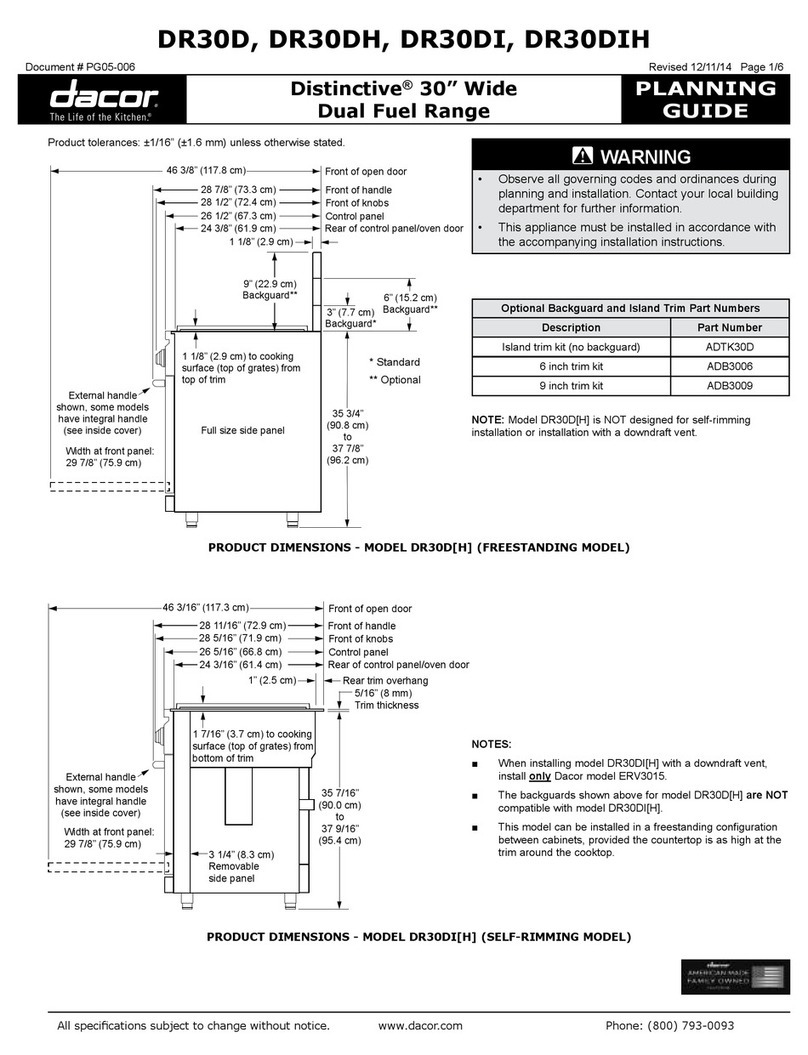

Dacor DR30DH Technical manual
Dacor
Dacor Epicure ERD36 Technical manual
Dacor

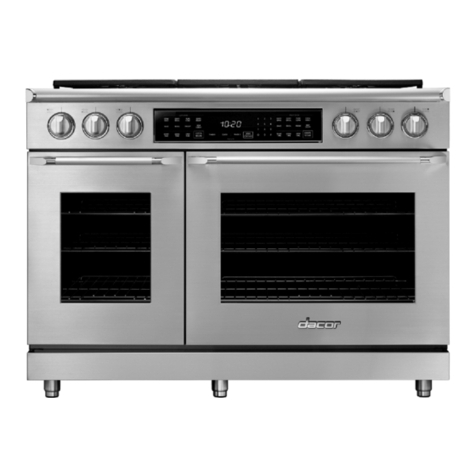

Dacor Epicure Range User manual
Dacor

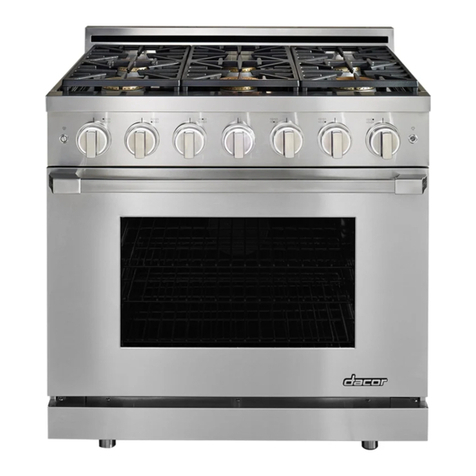

Dacor HGPR36S User manual
Dacor

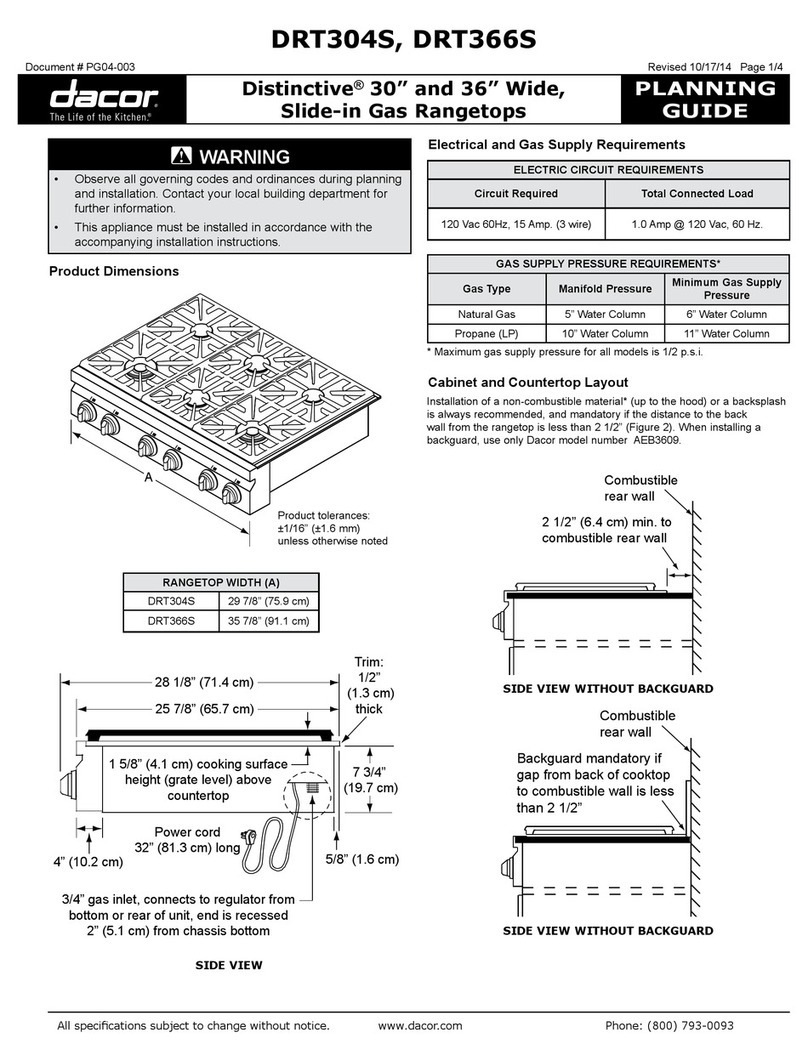

Dacor DISTINCTIVE DRT304S Technical manual
Dacor
Dacor Epicure Range Use and care manual
Dacor
Dacor Discovery DYRP36DC User manual
Dacor

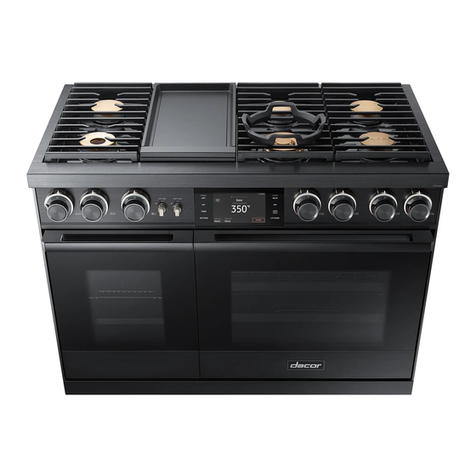

Dacor DOP48M96DL Series User manual
Dacor

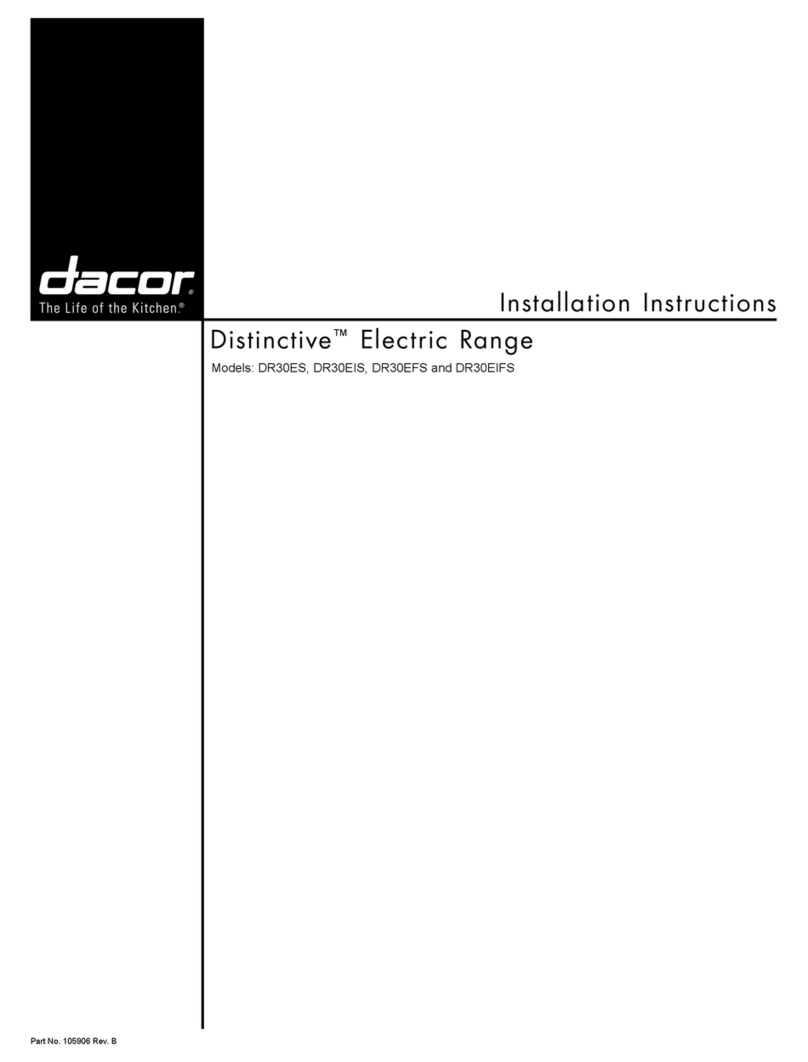

Dacor Distinctive DR30E User manual
Dacor
Dacor Epicure ER30G User manual
Dacor
Dacor Heritage HGER30SNGH User manual
Dacor

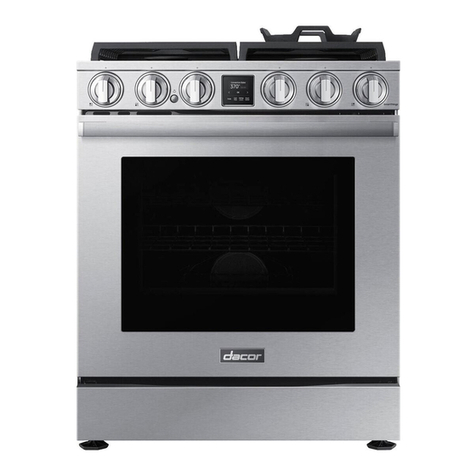

Dacor DOP30 40G Series User manual
Dacor

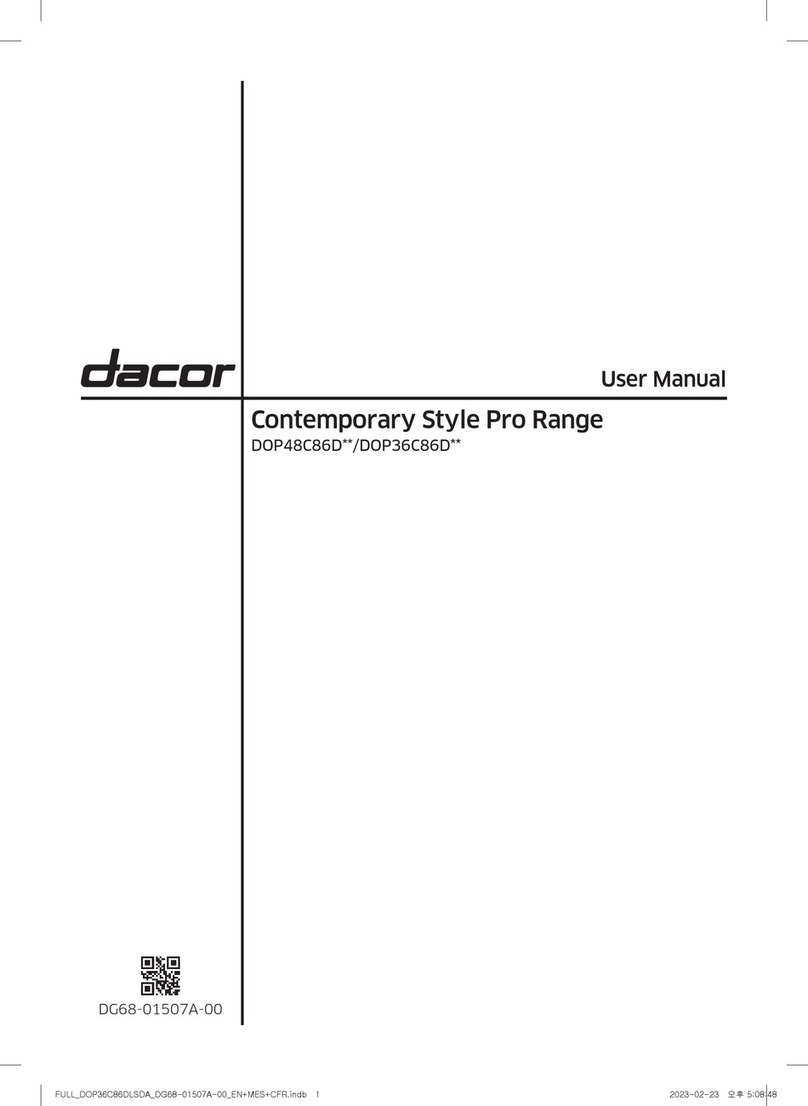

Dacor Contemporary DOP48C86D Series User manual
Dacor
Dacor Epicure ER36D User manual
Popular Range manuals by other brands
Cooking Performance Group

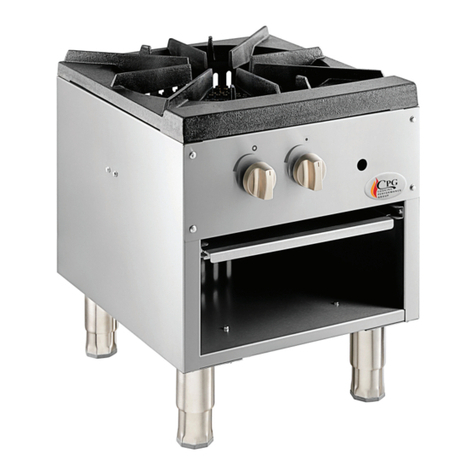

Cooking Performance Group 351CPGDSPRN user manual
AGA

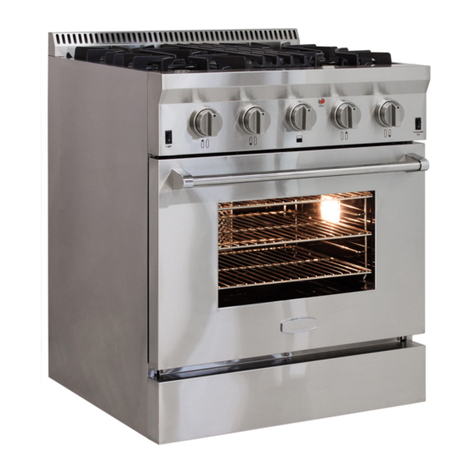

AGA PRO+ APRO36DFSS User guide & installation & service instructions
Frigidaire
Frigidaire FGF355GWC Use & care manual
Kenmore
Kenmore GLGF386DBB Use & care guide
GE

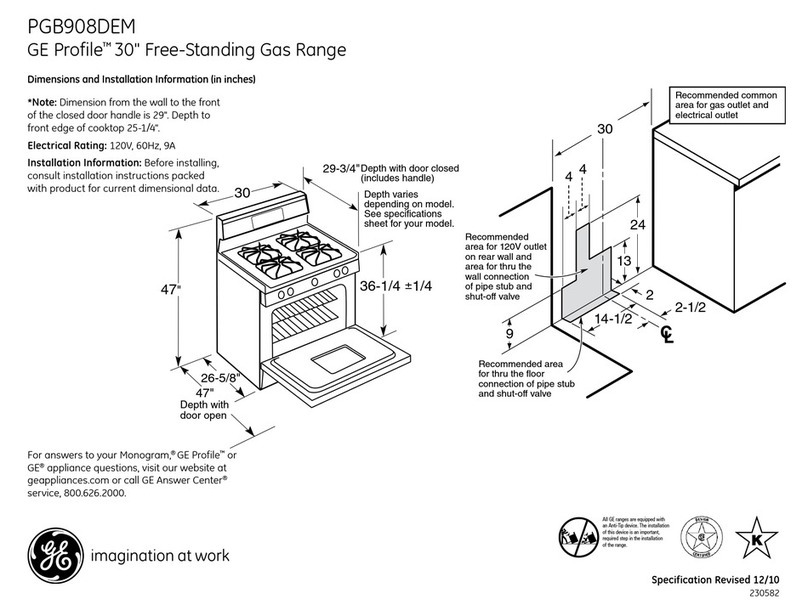

GE PGB908DEMBB - Profile Series 30" Gas Ran Dimensions and installation information
Frigidaire

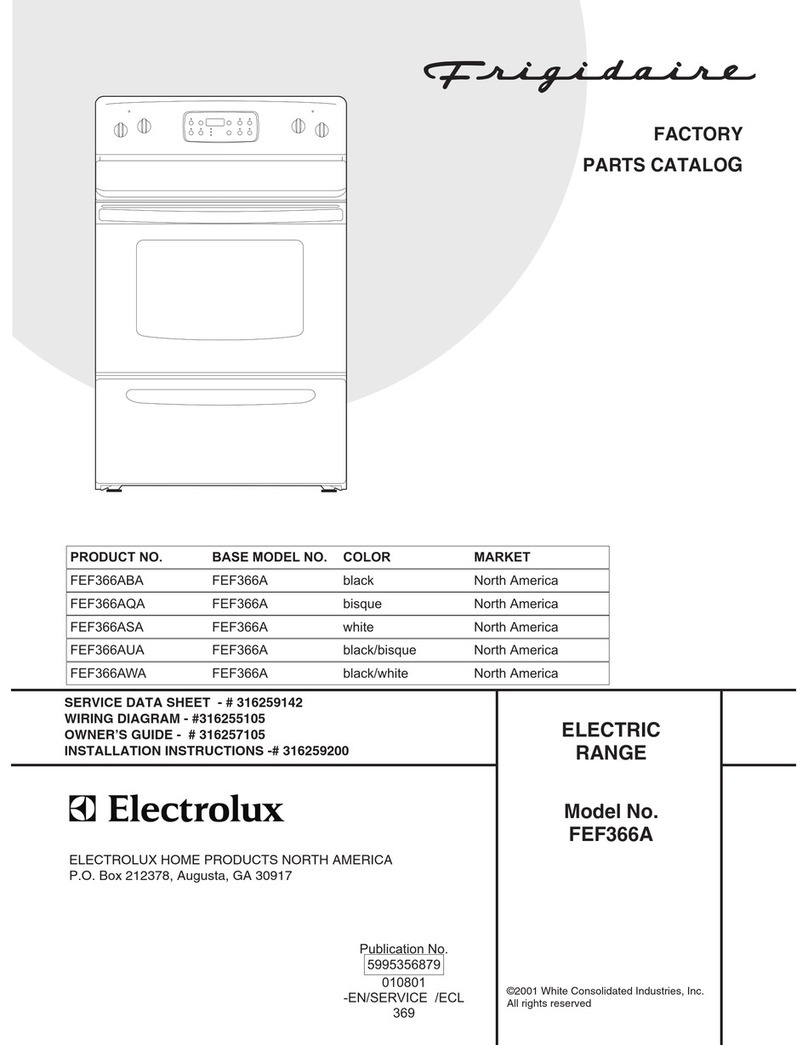

Frigidaire FEF366A Factory parts catalog
Frigidaire
Frigidaire FGFB68C Factory parts catalog
GE
GE JSP50GN Use and care guide
Maytag

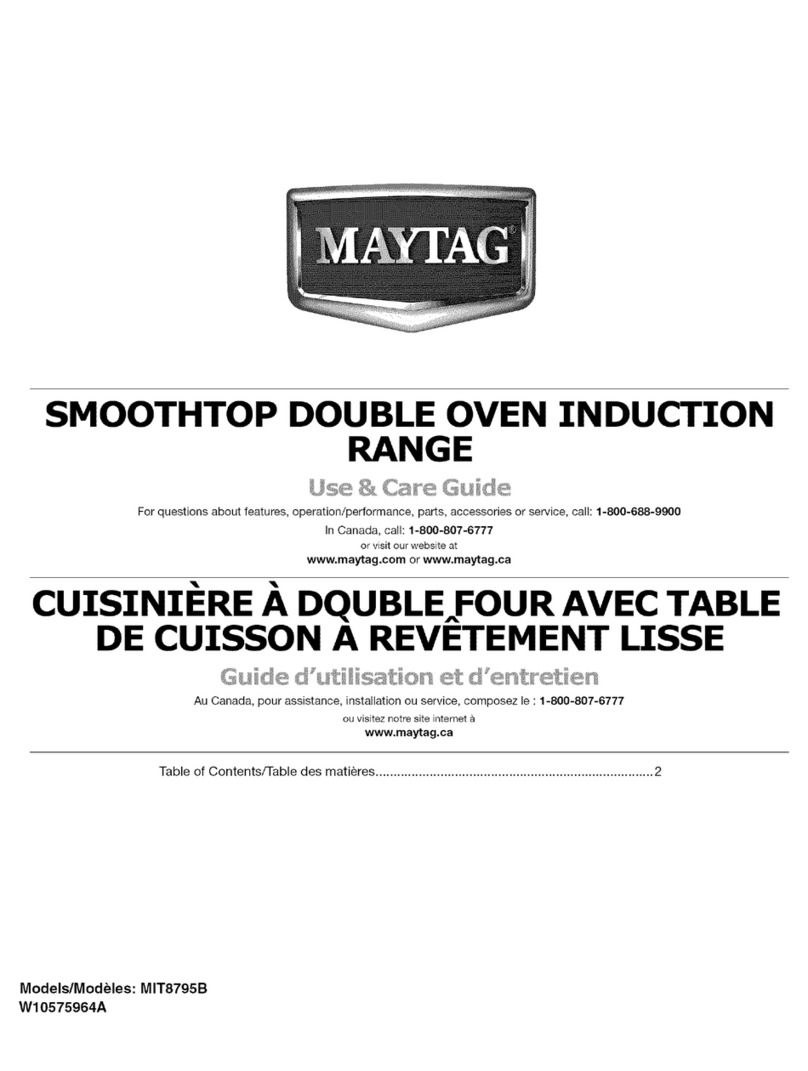

Maytag MIT8795B Use & care guide
Whirlpool
Whirlpool SF360BEE W/N Use & care guide
Whirlpool
Whirlpool SF114PXSQ1 installation instructions
MVP

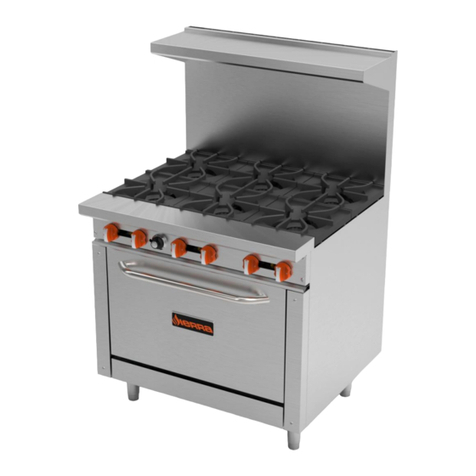

MVP Sierra SR-4-24 OWNER'S MANUAL INSTRUCTIONS- INSTALLATION-OPERATION-MAINTENANCE
