Dacor Renaissance Series MRES30S User manual

Installation Instructions
Renaissance®Electric Range
Part No. 65166 Rev. N
Model: MRES30S

Table of Contents
IMPORTANT:
• Installer: In the interest of safety and to minimize problems, read these installation instructions completely and carefully before you
begin the installation process. Leave these installation instructions with the customer.
• Customer: Keep these installation instructions for future reference and the local building inspector’s use.
All specifications subject to change without notice. Dacor®assumes no liability for changes to specifications.
© 2012 Dacor, all rights reserved.
Important Safety Instructions .....................................................1
Important Information About Safety Instructions.........................1
Safety Symbols in this Manual ...................................................1
General Safety Precautions........................................................2
Product Specifications ................................................................3
Product Dimensions.................................................................... 3
Electrical Requirements..............................................................3
Installation Specifications ...........................................................4
Cabinet Layout............................................................................4
Installation Instructions...............................................................6
Verify the Package Contents ......................................................6
Installing the Anti-Tip Bracket .....................................................6
Removing the Oven Door ...........................................................8
Remove the Kick Panel ..............................................................8
Electrical Connection ..................................................................8
Installing the Range..................................................................10
Re-installing the Oven Door and Kick Panel ............................ 10
Verifying Proper Operation .......................................................10
Customer Service Information
If You Need Help...
If you have questions or problems with installation, contact your
Dacor dealer or the Dacor Customer Service Team. For repairs
to Dacor appliances under warranty call the Dacor Distinctive
Service line. Whenever you call, have the model and serial
number of the appliance ready. The model and serial number are
printed on the appliance data plate.
Dacor Customer Service
Phone: [phone] ex. 2813 (U.S.A. and Canada)
Monday — Friday 6:00 a.m.to 5:00 p.m.Pacific Time
Web site: www.dacor.com
Dacor Distinctive Service (for repairs under warranty only)
Phone: [phone] ex. 2822 (U.S.A. and Canada)
Monday — Friday 6:00 a.m.to 5:00 p.m.Pacific Time
Range Data Plate Location
The range data plate specifies the model number, serial
number and electrical supply requirements. It is located on the
left side wall inside the range storage compartment.

1
Important Information About
Safety Instructions
The Important Safety Instructions and warnings in this manual
are not meant to cover all possible problems and conditions
that can occur. Use common sense and caution when installing,
maintaining or operating this or any other appliance.
Always contact the Dacor Customer Service Team about problems
and conditions that you do not understand.
Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
DANGER
For your safety:
• Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
• Do not obstruct the flow of ventilation air to the unit.
• Keep appliance area clear and free from combustible
material.
WARNING
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury,
or death.
WARNING
NEVER use this appliance as a space heater to heat or warm
the room. Doing so may result in overheating of the appliance.
WARNING
NEVER cover any slots, holes or passages in the oven bottom
or cover an entire rack with materials such as aluminum foil.
Doing so blocks air flow through the oven and may cause a fire
hazard. Aluminum foil linings may also trap heat, causing a fire
hazard.
WARNING
Tip-over hazard:
• A child or adult can tip the range and be killed.
• Attach the anti-tip bracket to the floor or wall as directed in
these installation instructions.
• Engage the floor or wall mounted anti-tip bracket by
sliding the rear leg of the range into it according to these
installation instructions. Using a flashlight, be sure that the
anti-tip bracket engages the range’s rear leg as shown
below.
• After moving the range, be sure to re-engage the rear leg
into the anti-tip bracket as shown below.
• See the anti-tip bracket installation instructions in this guide
for further details.
• Failure to follow these instructions can result in death or
serious burns to children or adults.
Anti-tip
bracket
Rear leg
Safety Symbols in this Manual
DANGER
Immediate hazards that WILL result in severe personal injury or
death.
WARNING
Hazards or unsafe practices that COULD result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that COULD result in minor
personal injury or property damage.

2
Important Safety Instructions
General Safety Precautions
To reduce the risk of fire, explosion, electric shock, serious injury or death when installing or using this appliance, follow basic safety
precautions, including the following:
• Read all instructions before using the appliance.
• Keep packaging materials away from children. Plastic
sheets and bags can cause suffocation.
• If you receive a damaged product, immediately contact
your dealer or builder. Do not install or use a damaged
appliance. Do not install or use the appliance if the conduit
is damaged.
• Improper installation, adjustment, alteration, service
or maintenance can cause personal injury or property
damage. Refer to these instructions and the accompanying
use and care manual. For assistance or additional
information, consult a qualified installer, service agency or
dealer.
• This oven must be properly installed and grounded by a
qualified installer according to these installation instructions
prior to use. The installer must show the customer the
location of the circuit breaker panel or fuse box so that they
know where and how to turn off electric power to the oven.
Dacor is not responsible for service required to correct a
faulty installation. The owner is responsible to make sure
this appliance is properly installed.
• This appliance must not be used in combination with
surface (countertop) ventilation systems. The use of an
overhead hood, or Dacor raised vent is recommended for
ventilation.
• Disconnect the electrical supply before installing or
servicing the appliance.
• Install or locate this appliance only in accordance with
these installation instructions.
• This appliance must be grounded. Connect only to a
properly grounded electrical supply. Refer to Electrical
Requirements.
WARNING WARNING
• Before performing any type of service or installation, make
sure that the electric power to the oven is turned off at the
circuit breaker or fuse box.
• Use this appliance only for its intended use as described
in this manual. Do not use corrosive chemicals or vapors
in this appliance. This type of appliance is not designed for
industrial or laboratory use.
• As with any appliance, close supervision is necessary when
used by children.
• Do not operate this appliance if it has a damaged electrical
conduit or wires, if it is not working properly or if it has been
damaged or dropped.
• Installation of this appliance must be performed by a
qualified installer or service agency.
• This appliance should be serviced only by qualified service
personnel. Contact the nearest DACOR authorized servicer
at [phone], or at www. dacor.com for examination,
repair or adjustment.
• To prevent injury due to the unit tipping forward, secure the
oven to the cabinet using the supplied mounting screws.
• Some products, such as whole eggs, and sealed containers,
such as closed glass jars, may explode and should not be
heated on this cooktop.

3
Product Specifications
Electrical Requirements
• It is the owner’s responsibility to ensure that a licensed
electrician performs the installation of the electrical supply for
this appliance. The electrical installation, including minimum
supply wire size, must comply with the National Electric
Code ANSI/NFPA 70 (latest revision) and local codes and
ordinances.
A copy of this standard may be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, Massachusetts 02269-9101
• The correct voltage, frequency and amperage must be
supplied to the appliance from a dedicated, grounded, single
phase circuit that is protected by a properly sized circuit
breaker or time-delay fuse. If a time-delay fuse is utilized,
fuse both sides of the line (L1 and L2).
35”
(88.9 cm)
5/16”
(8 mm)
11/16” - 1 13/16”
(1.7 cm - 4.6 cm)
Removable (factory installed)
3” (7.6 cm) side panels
Optional full size side panels
(ARSL30S, ARSR30S)
56” (142 cm) long
240 Vac 4 wire
conduit location
Door opened
Range top
23 1/2”
(59.7 cm)
25 5/16”
(64.3 cm)
Rear of control
Panel/oven door
Max. depth
to front of
control panel
with door closed
29 15/16”
(76.0 cm)
45 5/16”
(115.1 cm)
Product tolerances: ±1/16” (±1.6 mm), unless otherwise stated
Product Dimensions
Dimensions - Top View
Dimensions - Isometric View
WARNING
If the electric service provided does not meet the product
specifications, do not proceed with the installation. Call the
selling dealer or a licensed electrician.
Electrical Specifications
Dedicated Circuit
Requirements Total Connected Load
240 Vac 60 Hz,
4 wire*, 50 Amp. 10.3kW (48.2 Amp.)
* Two 120 Vac hot (L1 and L2), one neutral (N1) and one ground.
The above electrical specifications are for reference only. See
the range data plate for exact specifications. See inside cover for
location.
NOTE: If the appliance is connected to a 208 volt power supply,
preheat times and cavity temperature recovery times will be
increased slightly.

4
Installation Specifications
Cabinet Layout
WARNING
Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• The shaded areas shown below denote the location of the
electrical junction box/ receptacle. This is the suggested
location. For replacement purposes, the location of the
existing electrical supply may be utilized provided that it does
not interfere with the sides or rear of the range. Verify that the
electrical service meets local building codes.
Utilities may be located:
1. In the lower left corner of the adjacent right cabinet
(recommended).
2. Alternate location, in the lower right corner behind the range.
Carefully note the requirements stated below for clearances
to walls and cabinets.
• Access to the remote circuit breaker panel/fuse box, with the
range in place and operating, must also be allowed for in the
installation. Any openings in the wall behind the appliance
and in the floor under the appliance must be sealed.
• The electrical junction box/receptacle must be located so that
it does not interfere with the range when it is installed and
under operation. In addition, the junction box must be located
so the range can be removed for service when the conduit
supplied with the unit is attached to the junction box. Do not
lengthen the conduit or wiring provided with the range.
• All dimensions shown are based on standard American
cabinets 36 inches (91.4 cm) high at the finished countertop
by 24 inches (61.0 cm) deep, with a 25 inch (63.5 cm) overall
countertop depth. When installing the range into nonstandard
cabinets, minimum clearances shown in the diagrams must
be maintained.
Cabinet and Countertop Preparation
• To eliminate the risk of burns or fire by reaching over heated
surface units, cabinet storage space locate above surface
units should be avoided. If cabinet storage space is to be
provided directly above the range, the risk of personal injury
may be reduced by installing a ventilating hood that projects
horizontally a minimum of 5 inches (12.7 cm) beyond the face
of the cabinets.
• The range may be installed flush to the rear wall. Dacor
recommends installing a noncombustible material on the
rear wall above the range and up to the vent hood. It is not
necessary to install non-combustible materials behind the
range below the countertop height.
2
36” (91.4 cm) recommended
30” (76.2 cm) Min.
30 1/16”
4
(76.4 cm)
25”
(63.5 cm)
Hood
30” (76.2 cm)
Min.110” (25.4 cm)
Min. to
combustibles
side wall
(both sides)
Vertical to combustible surface from cooktop surface.
Non-combustible rear
wall recommended
Electrical locations3
1) Recommeded
2) Alternate
1
2
1
Top of
finished
counter
18” (45.7 cm)
Min.1, 2
13" (33.0 cm)
Max.
This specification does not apply for cabinets located
greater than a horizontal distance of 10” (25.4 cm) from
edge of range.
Consult local code for exact location requirements.
3
4
14” H (35.6 cm) x 10” W (25.4 cm)
536 13/16” (93.5 cm) Max. for freestanding units, 36 1/2”
(92.7 cm) Max. for self- rimming units.
For self-rimming installations see the self-rimming
cutouts on the following page.
Note 5
Cutout tolerances: +1/16” (+1.6 mm), -0, unless otherwise stated.
• The minimum distance from the sides
of the range above the countertop to
combustible side walls must be at least
10 inches (25.4 cm).
Cabinet Dimensions
2
36” (91.4 cm) recommended
30” (76.2 cm) Min.
30 1/16”
4
(76.4 cm)
25”
(63.5 cm)
Hood
30” (76.2 cm)
Min.
1
10” (25.4 cm)
Min. to
combustibles
side wall
(both sides)
Vertical to combustible surface from cooktop surface.
Non-combustible rear
wall recommended
Electrical locations
3
1) Recommeded
2) Alternate
1
2
1
Top of
finished
counter
18” (45.7 cm)
Min.
1, 2
13" (33.0 cm)
Max.
This specification does not apply for cabinets located
greater than a horizontal distance of 10” (25.4 cm) from
edge of range.
Consult local code for exact location requirements.
3
4
14” H (35.6 cm) x 10” W (25.4 cm)
5
36 13/16” (93.5 cm) Max. for freestanding units, 36 1/2”
(92.7 cm) Max. for self- rimming units.
For self-rimming installations see the self-rimming
cutouts on the following page.
Note 5

5
Installation Specifications
1/4" (6.4 mm)*
Min. flat ledge
29 1/4” (74.3 cm)**
* Trim on back of range overhangs countertop 1/4”. When increasing
flat edge depth, increase 20 1/2” dimension by same amount.
** Countertop overhang, range trim rests on top.
13/32”
(1.0 cm) 30 1/16” (76.4 cm)
20 1/2”
(52.1 cm)*
4 13/16”
(12.2 cm)
Max.
3” (7.6 cm) Max.
Cabinet face,
below countertop
Backsplash
Front of
countertop
Vertical
non-combustible
rear wall surface
10" (25.4 cm) min.
to combustible side
walls above the range
(both sides)
Top View - Downdraft ERV30[15] with Slide-In, Self-Rimming Installation using
3” Side Panels with Backguard Removed
Top View - Slide-In, Self-Rimming Installation using 3” Side Panels
with Backguard Removed
29 1/4” (74.3 cm)**
13/32” (1.0 cm)
30 1/16” (76.4 cm)
27 5/8” (70.2 cm) Backsplash
3/8” (1.0 cm)*
Min. flat ledge
Vertical non-combustible
rear wall surface 2 9/16”
(6.5 cm)
Notches for mounting
raised vent
* Trim on back of raised vent overhangs countertop
** Countertop overhang, range trim rests on top
20 1/8”
(51.1 cm) 4 13/16”
(12.2 cm)
Max.
3” (7.6 cm) Max.
Cabinet face,
below countertop
Front of
countertop
10" (25.4 cm) min.
to combustible side
walls above the range
(both sides)

6
Installation Instructions
Verify the Package Contents
Verify that all the components below have been provided. If
any item is missing or damaged, please contact your dealer
immediately. Do not install a damaged or incomplete appliance.
Make sure that you have everything necessary to ensure proper
installation before proceeding.
• Use and care manual
• Anti-tip bracket with fasteners and anchors:
• Oven racks
• Razor blade scraper
• Dacor Cooktop Cleaning Cream
Installing the Anti-Tip Bracket
Locate the anti-tip bracket included in the parts box.
There are two ways to mount the anti-tip bracket:
• Floor mounting (preferred method)
• Wall mounting (alternate method). Use this method if floor
mounting is not suitable. If the front panel of range is further
than 26 1/4” (66.7 cm) from the back wall or if the floor
covering is over 1/2” thick (see Installing the Anti-Tip
Bracket on the Wall), the wall mounting method may not be
used and the floor mounting method must be suitable.
Installing the Anti-Tip Bracket on the Floor
WARNING
To perform its intended function, the anti-tip bracket must be
attached as instructed to the concrete slab or wood sub-floor
below any floor coverings (including cement board) on top. Do
not attach the anti-tip bracket directly to floor coverings such as
ceramic/asphalt tile or linoleum.
Four (4) plastic anchors are provided along with three sizes (4
each) of #8 or #12 Phillips head screws for attaching the anti-
tip bracket to the floor. Use both the anchors and four (4) of the
screws when attaching the bracket to a concrete sub-floor. Do not
use the anchors when attaching to a wood sub-floor.
1. Determine the location of the range center line and front
panel for the range’s final position based on the Product
Dimensions on page 3 and the actual cabinet/cutout
dimensions used for the installation.
2. Determine the required position of the anti-tip bracket, based
on the diagram below. Mark the four (4) mounting hole
locations on the floor with a pencil.
3. Determine the screw size required. The minimum full thread
depth (portion of screw threaded into wood/slab) for wood
is 3/8” (1 cm) and 5/8” (1.6 cm) for concrete. See the table
below to select the correct screw size.
Sub-Floor Type/
Floor Covering Thickness Screw Size
Concrete or wood sub-floor, no floor
covering over top #8 x 1 *
Concrete or wood sub-floor, floor
covering up to 1/4” thick #8 x 1 *
Concrete or wood sub-floor, floor
covering over 1/4” and up to 1/2” thick #8 x 1 1/4 *
Wood sub-floor, floor covering over
1/2” and up to 1 3/16” thick #12 x 1 3/4 *
Concrete sub-floor under floor covering
over 1/2” thick
Must be purchased
separately **
Wood sub-floor, floor covering
over 1 3/16” thick
Must be purchased
separately **
* Included with range
** Determine required depth based on information in step 3 and
purchase from local hardware store.
Screws attached to sub-
floor below floor covering
Floor
covering
Anti-tip
bracket
Sub-floor
Concrete anchors shown, do
not use for wood sub-floor
C
L
#8 x 1”
#8 x 1 1/4” or
#12 x 1 3/4
screw,
4 places
(see text)
Range front
panel
Range
center line
1 1/2” (3.8 cm)
2 3/16”
(5.6 cm)
20”
(50.8 cm)
11 1/8”
(28.3 cm)
Anchor, 4 places:
use for concrete
floor only
Cabinet
face below
countertop
Top View - Location of Floor Mounted Anti-Tip Bracket

7
Attaching the bracket to a concrete floor:
• Drill four (4) 3/8” diameter countersink holes through any
existing floor covering down to the concrete slab below.
• Drill the 4 holes for the anchors 1 1/4” (3.2 cm) deep into the
concrete slab using a 3/16” masonry bit. This hole length is
longer than the anchor, but is required for proper installation.
Clear the holes of dust and any other material. Tap each
anchor into the hole until the anchor top is flush with the top
of the concrete slab. Position the anti-tip bracket holes over
the anchor holes. Insert the screws through the 4 holes in
the base of the bracket and thread them into the anchors. Be
sure the screw threads fully engage the anchor body. Tighten
the screws into place.
Attaching the bracket to a wood floor:
• If there is ceramic, asphalt or other hard floor covering over
the wood below, drill (4) countersink holes to allow access to
the wood below for drilling pilot holes.
• Drill four (4) pilot holes into the wood floor using a drill bit
(1/16” dia. for #8 screws, 1/8” dia. for #12 screws). Position
the anti-tip bracket holes over the holes in the floor. Insert the
screws into the wood and tighten into place.
Installing the Anti-Tip Bracket on the Wall
1. Determine the suitability of wall mounting the anti-tip bracket.
To use the wall mount option, the range front panel must not
be more than 26 1/4” from the wall and the bracket screws
must be able to thread into the base plate inside the wall
behind. The notches on the sides of the bracket indicated the
minimum required height of the base plate inside the wall and
that any floor covering is not too thick for proper screw thread
engagement.
To determine if the base plate is high enough:
a. Determine the location of the range center line and front
panel when the range is in its final position based on
the product dimensions on page 3 and the actual
cabinet/cutout dimensions used for the installation.
b. Determine and mark the required position of the anti-tip
bracket, based on the diagram above. Push the bracket
up against the wall in the mounting location.
c. Using a pencil, make a dot next to the notches on both
sides of the bracket.
d. Determine if the base plate is as high at the notches
by drilling test holes into the wall at both dots with a
1/16” drill bit. Drill just deep enough to see if the bit
contacts the base plate. If the bit contacts the base
plate the location will support wall installation of the
anti-tip bracket. If you do not contact the base plate, the
wall mounting method may not be used and the floor
mounting method must be suitable, or the wall must be
modified so that the base plate is above the notches.
• To install the bracket, place it against the wall in the mounting
location. Using a drill with 1/8” diameter drill bit, drill four (4)
1 5/8” deep pilot holes perpendicular to the screw seating
surfaces shown below. Attach the bracket to the wall as
shown with the four (4) included #12 x 1 3/4 screws.
Installation Instructions
Wall
Anti-tip
bracket
Drywall
Notch
Base plate
2.
C
L
#12 x 1 3/4” screw,
4 places
Range front
panel
Bracket
center line
Range
center line
Back wall
12 1/4”
(31.1 cm)
Cabinet
face below
countertop
This hole lines up with
bracket center line
Top View - Location of Wall Mounted Anti-Tip Bracket
25 1/4”
(64.1 cm)
to 26 1/4”
(66.7 cm)

8
Installation Instructions
Removing the Oven Door
To make the range easier to move, remove the door to reduce
weight.
WARNING
• Do not attempt to disengage the hinge catches with the
door removed from the oven. The hinge springs could
release causing personal injury.
• Do not lift or carry the oven door by the handle.
1. Open the door to its fully opened position.
2. Rotate the catch over the retaining arm on both hinges.
3. Lift the oven door to about a 30 degree angle from the
horizontal position.
4. Pull the door away from the oven while continuing to lift.
Remove the Kick Panel
Remove the screw at each top corner of the kick panel. Lift up
slightly on the panel and pull forward to remove..
30º
2) Lift door up to 30º angle, then
pull door away from the oven
1) To remove door, rotate catch up
Catch
Electrical Connection
WARNING
• This range must be connected to a grounded, metallic,
permanent wiring system. Alternatively, a grounding
conductor should be connected to the grounding terminal or
lead on the appliance.
• Do not use an extension cord with this appliance. Such use
may result in fire, electrical shock, or other personal injury.
• Do not install a fuse in the neutral or ground circuit. A fuse
in the neutral or ground circuit may result in an electrical
shock hazard.
• Do not ground the appliance to a gas supply pipe or hot
water pipe.
• A grounded cold water pipe must have metal continuity to
electrical ground and must not be interrupted by insulating
materials. Any insulating materials must be jumped with a
length of No. 4 copper wire securely clamped to bare metal
at both ends. See below.
1. Before proceeding, turn off power to the circuit to which the
oven will be connected at the circuit breaker or fuse box.
2. Position the range directly in front of the cabinet cut out.
3. Feed the appliance conduit into the electrical junction box and
attach it using a UL approved strain relief.
4. Depending upon local codes, utilize one of three methods to
connect the appliance to the electrical power:
◊ Connect to a four-wire electrical system
◊ Connect to a three-wire electrical system, where local
codes permit
◊ Connect to a three-wire electrical system with external
ground, according to local codes.
Meter or other
insulating device
Bare metal
Metal
water pipe
Clamps
Insulated Pipe Jumper
No. 4
copper wire

9
Installation Instructions
Option 1 - Connecting to a Four-Wire
Electrical System. (Recommended)
1. Separate the wires coming out of the appliance conduit.
2. Connect the white appliance wire to the neutral (white) supply
wire in the junction box.
3. Connect the black appliance wire to the black (L1) power
supply wire in the junction box.
4. Connect the red appliance wire to the red (L2) power supply
wire in the junction box.
5. Connect the green appliance wire to the green house
grounding wire in the junction box.
Option 2 - Connecting the Green Appliance
Wire to the Neutral (White) Supply Wire –
Where Local Codes Permit
WARNING
Do not connect the green appliance wire to the neutral (white)
supply wire unless local building codes permit..
1. Connect the green and white wires from the appliance
conduit to the white (neutral) supply wire in the junction box.
2. Connect the black wire from the appliance conduit to the
black (L1) supply wire in the junction box.
3. Connect the red wire from the appliance conduit to the red
(L2) supply wire in the junction box.
Option 3 - Connecting the Green Appliance
Wire to a Grounded Supply Wire or a
Grounded Cold Water Pipe – Where Local
Codes Permit
1. Separate the wires coming out of the appliance conduit.
2. Connect the white appliance wire to the neutral (white) supply
wire in the junction box.
3. Connect the black appliance wire to the black (L1) power
supply wire in the junction box.
4. Connect the red appliance wire to the red (L2) power supply
wire in the junction box.
5. Connect the green appliance wire to a grounded supply wire
in the junction box or to a grounded cold water pipe.
6. If connecting to a grounded cold water pipe, a separate
copper grounding wire (No. 10 minimum) must be connected
to a grounded cold water pipe by means of a clamp and then
to an external grounding connector screw.
7. A grounded cold water pipe must have metal continuity to
electrical ground and must not be interrupted by insulating
materials. Any insulating materials must be jumped with a
length of No. 4 copper wire securely clamped to bare metal at
both ends.
RED
RED
GREEN
WHITE
WHITE
BLACK
BLACK
GREEN
Fasten clamp
tightly on pipe
3-Wire Conduit-Junction Box
Connection with External Ground
Separate No. 10 (minimum)
copper grounding wire
RED
RED
GREEN
WHITE
WHITE
BLACK
BLACK
GREEN
Connection to
power supply
Connection to
power supply
Connection to
power supply
Wire nut
4 places
Junction box
4-Wire Conduit-Junction
Box Connection
Connection to
appliance
Connection to
appliance
Connection to
appliance
Wire nut
3 places
Junction box
Junction box
3-Wire Conduit-Junction
Box Connection

10
Installation Instructions
Installing the Range
1. Peel off the protective layer of plastic that covers the range
and the door panel.
Freestanding Installation
2. Measure from the floor to the countertop and adjust the
leveling legs as required to position the top frame at the
desired height, based on the cabinet and countertop
installation.
3. Carefully slide the range into position in the cutout. As you
slide the unit into place the appropriate rear leg should
engage the anti-tip bracket.
4. Using a flashlight look underneath the range and verify that
the anti-tip bracket covers the rear leg.
Self-Rimming Installation
Installation of the range in the self-rimming configuration is
slightly different from freestanding installation since the range top
overhangs the countertop cutout.
1. Measure from the floor to the countertop.
2. Adjust the leveling legs to position the bottom edge of the
range top trim at countertop height.
3. Carefully slide the range into position in the cutout. As you
slide the unit into place the rear leg should engage the anti-
tip bracket.
4. Using a flashlight look underneath the range and verify that
the anti-tip bracket covers the rear leg.

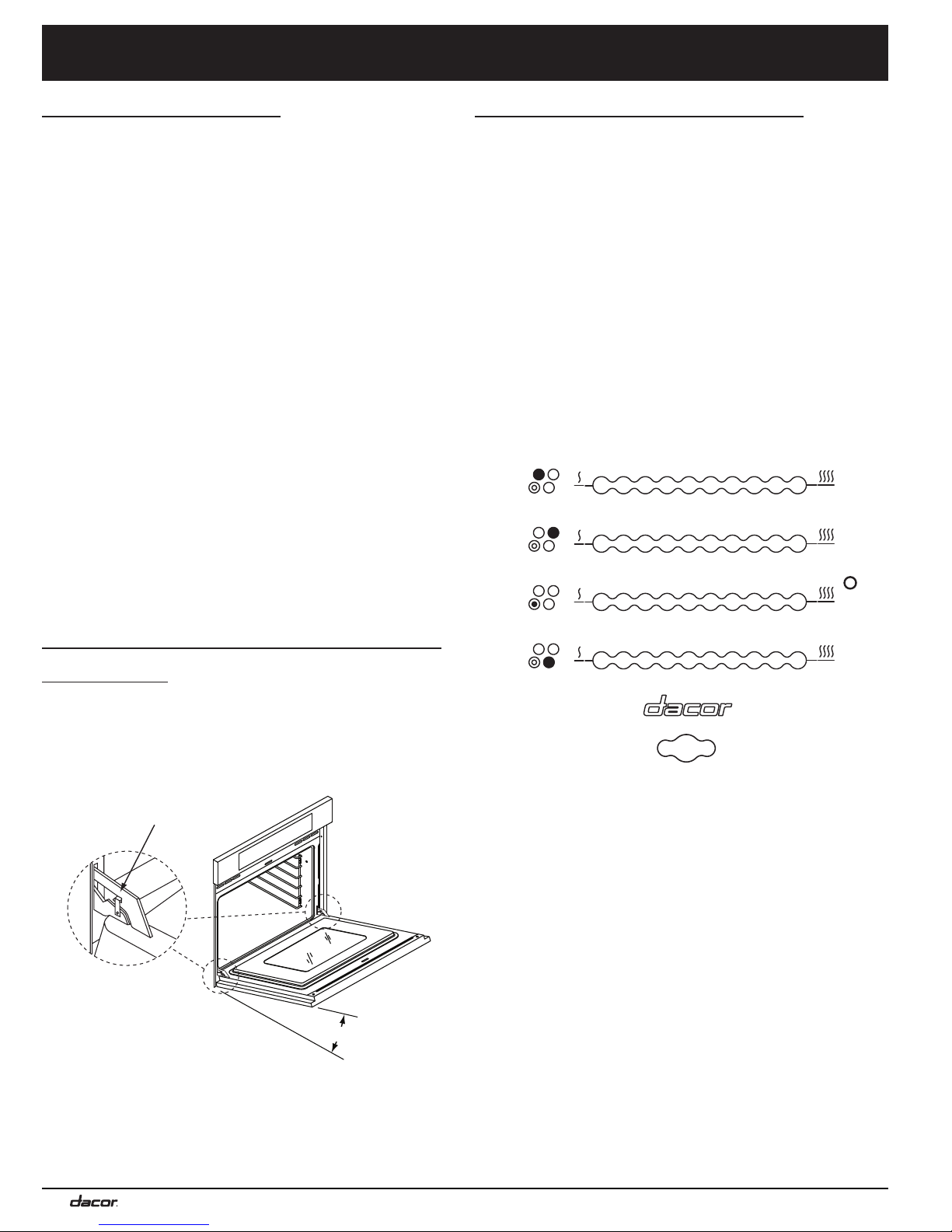

Re-installing the Oven Door and
Kick Panel
1. Grasp the oven door on opposite sides and lift it until the door
hinges are aligned with the openings in the oven frame.
2. Holdingthedooratabouta30˚anglefromthehorizontal,
slide the hinges into the openings until the bottom hinge arms
drop fully into the hinge receptacles.
3. Lower the door to the fully opened position, and then rotate
the two hinge catches toward the oven.
4. Open and close the door completely to ensure that it is
properly installed.
5. Reinstall the kick panel.
Verifying Proper Operation
• Prior to operating the range, please read the accompanying
use and care manual carefully. Important safety, service and
warranty information are contained within.
• When the unit is powered on for the first time, the cooktop
control will go through a self-check routine. When the self-
check is complete, the cooktop control will go into secure
mode. See the use and care manual for secure mode
instructions.
1. Turn on the power supply to the range.
2. Set the time of day by pressing the CLOCK key and then
pressing either of the TIME • TEMP keys ( “ +” or “ -” keys)
to advance or reduce the time in the display in the desired
setting.
3. Turn on an element by tapping the ON/OFF key with your
finger, then set the heat level by tapping the number area
of the desired element control. The element will come on at
a setting of the number touched and may be adjusted up or
down by sliding your finger left and right across the numbers.
4. Activate the dual outer element by tapping the circle key at
the end of the number area (third row), then slide your finger
left to right finger up or down on the third row of numbers.
The outer ring element will come on at a setting of the
number touched last.
5. To turn the element off, tap the ON/OFF key. You may turn off
all active elements at the same time by tapping CANCEL •
SECURE twice.
6. If either the oven or cooktop does not operate properly, follow
these troubleshooting steps:
◊ Verify that power is being supplied to the range.
◊ Check the electrical connections to ensure that the
installation has been completed correctly.
◊ Repeat the above tests.
◊ If the appliance still does not work, contact Dacor
Distinctive Service at [phone]. Do not attempt
to repair the appliance yourself. If you need service, be
sure to have the model and serial numbers available
when you call. See inside cover for location.
Dacor is not responsible for the cost of correcting problems
caused by a faulty installation.
CANCEL • SECURE
ON/OFF
ON/OFF
ON/OFF
ON/OFF
12 3 4 5 6 7 8 9 10
12 3 4 5 6 7 8 9 10
12 3 4 5 6 7 8 9 10
12 3 4 5 6 7 8 9 10
30º
Catch

11
Notes

12
Notes

Dacor ●14425 Clark Avenue, City of Industry, CA 91745 ●Phone: [phone] ●Fax: [phone] ●www.dacor.com
