Dacor PF36BNDFAGPA User manual

CABINET PARTS
1
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)
12−07 Litho In U.S.A. (PAL) Part No. W10179674 Rev.A
REFRIGERATOR

CABINET PARTS
2W10179674
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
67006616 Tech Sheet
W10171467 Owners Manual
W10180419 Guide, Energy
2
W10137519 Elbow, Fill Tube
3 67003405 Block, Pivot
4 B5759649 Gasket
5 67005127 Roller
6 67006642 Pin, Center Hinge
7 67006118 Roller Assy.(Rear)
8 67006287 Screw
9 67006521 Screw
10 12456801 Bracket, Roller
(Rear)
11 67006380 Screw (6)
12 Bracket, Roller
(Front)
W10137532 Left
W10137533 Right
13 Cover, Left Hinge
67006726 Black
14 67006303 Screw (6)
15 Hinge, Center (RT)
67002960 Black
16 67004092 Block, Fill Tube
17 Cover, Corner (2)
67003485 Black
18
12626908ED Hinge, Top Left
19 Roller Assy.
(Front)
W10130459 Right
W10130460 Left
20 67006564 Screw (8)
21 12579702 Shim, Hinge
22 Grille, Toe
W10131134 Black
23 M1205302 Pin
24 Hinge, Center (LT)
67002960 Black
25 67006425 Screw (10)
26 67003331 Cover, Water Line
27 67004098 Cover, Water Valve
28 67006669 Screw (2)
29 67004101 Sweep, Dual Tube
30 67006101 Cover, Unit
31 M0286708 Nut, Speed
32 A3076901 Plug, Button
33 67003796 Insulation, Sound
34
W10141622 Brake, Foot
35 67006697 Bolt, Adjusting
(Rear)
36 M0104106 Clip (2)
37 67001066 Tube, Drain
38 67001067 Clip, Drain Tube
39 M0108105 Clamp, Tube
40 Cabinet (Not a
Servicable Part)
41
12626907ED Hinge, Top Right
42 Cover, Right Hinge
12629801B Black
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

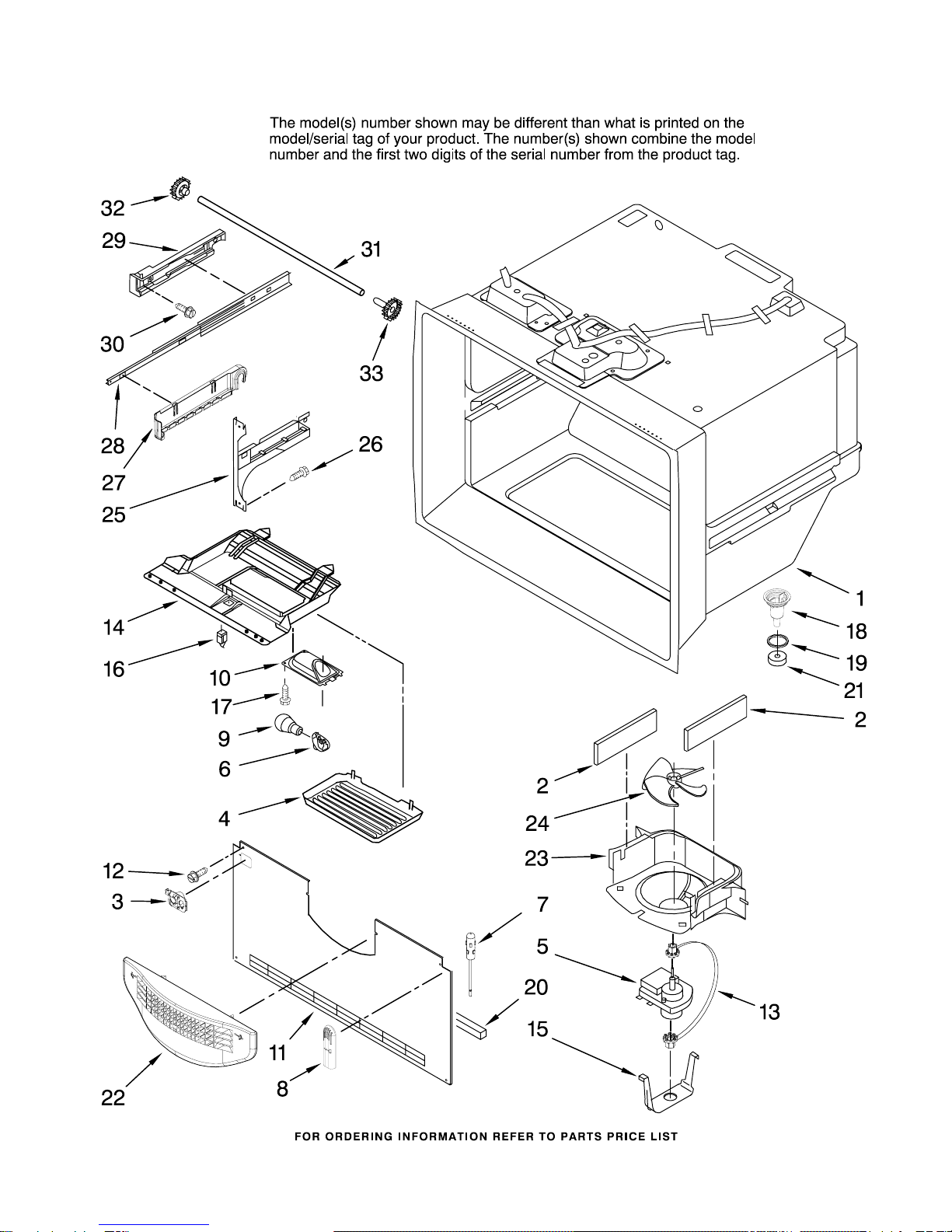

FREEZER LINER PARTS
3
W10179674
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

FREEZER LINER PARTS
4W10179674
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 67001291 Gasket, Foam
3 67005874 Guide, Fill Tube
4 67003905 Cover, Light
5 67003636 Motor, Evaporator
6
Y12570701 Socket, Light
7 12002355 Thermistor
8 67003924 Cover, Thermistor
9 A0282812 Bulb, Light
10 67001035 Housing, Light
11 67005873 Cover, Evaporator
12 67006425 Screw (4)
13
W10121318 Grommet
14 67003906 Housing, Light
15
W10167028 Clip, Evap Motor
16 67005653 Switch, Light
17 67006530 Screw
18 D7753903 Funnel, Drain
19 M0500703 Seal
20 67002492 Gasket, Bottom
21 B8381501 Gasket
22
W10175909 Grille, Fz Air
23
W10167023 Shroud, Evap Fan
24 2169142 Blade, Fan
(Evaporator)
25 Bracket, Door
W10119064 Left
W10119295 Right
26 67006473 Screw (8)
27 Cradle, Basket
67004728 Left
67004729 Right
28
W10180420 Slide, Drawer (2)
29 Adapter, Slide
67004971 Left
67004972 Right
30 67006406 Screw (6)
31 67004017 Shaft
32 12002497 Gear (Left)
(Includes Item 33)
33 12002497 Gear (Right)
(Includes Item 32)
Following Parts Not Illustrated
67006095 Harness, Fz Module
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

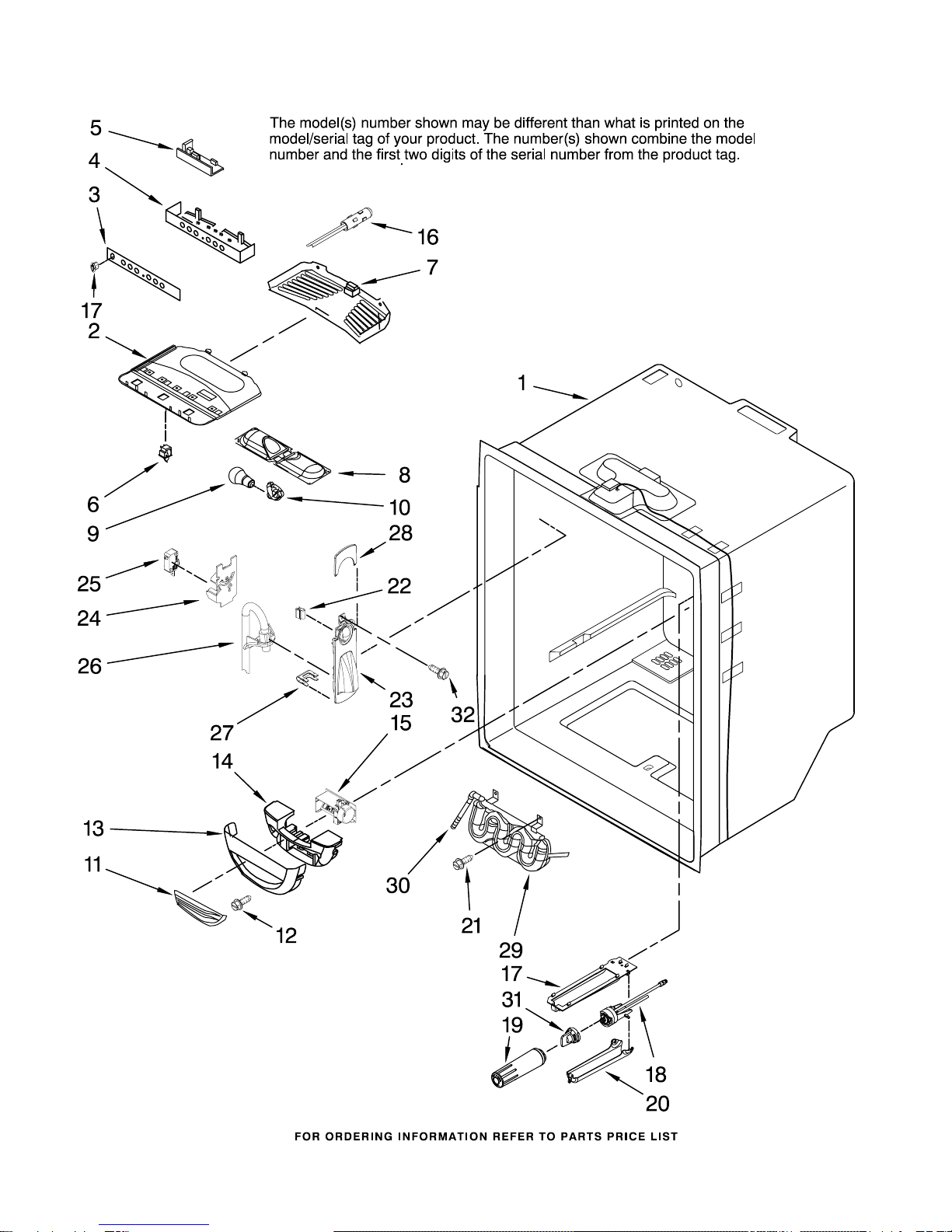

REFRIGERATOR LINER PARTS
5
W10179674
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

REFRIGERATOR LINER PARTS
6W10179674
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 67004078 Module, Light
3 67006910 Keyboard
4 67005444 Module, Control
5 67005397 Board, Control
6 C3680310 Switch, Light (2)
7 67003897 Cover, Light
8 67003901 Housing, Light
9 A0282812 Bulb, Light (2)
10
Y12570701 Socket, Light (2)
11 67003900 Insert,
Damper Cover
12 67006602 Screw
13 67003899 Cover, Damper
14 67006604 Insulation
15
W10127429 Control, Damper
16 12002355 Thermistor
17 67001668 Plate
18 67006524 Head, Water Filter
19 67006470 Filter, Water
20 12568001 Cover, Filter
21 67006287 Screw (2)
22 B8390302 Clip, Facade (2)
23
W10158503 Facade, Disp.
24 67002742 Plate, Switch
25 12575501 Switch, Limit
26 67003728 Guide, Waterline
27 67002816 Clip, Waterline
28 67006909 Facade, Disp (Top)
29
W10153959 Tank, Water
30 61006182 Union
31 61003146 Plug, Bypass
32 67006400 Screw
Following Parts Not Illustrated
67005417 Harness, Control
(Refrigerator)
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

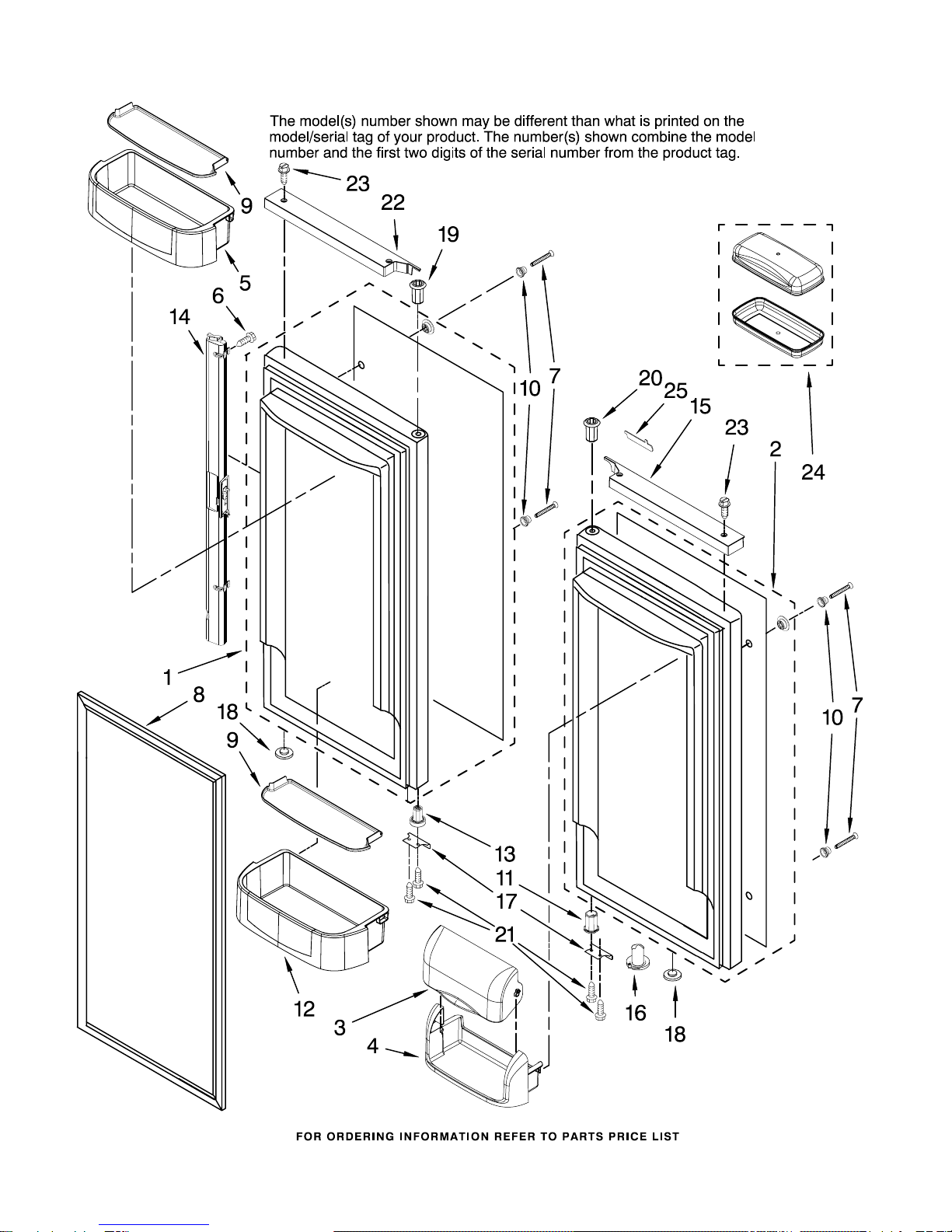

REFRIGERATOR DOOR PARTS
7
W10179674
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

REFRIGERATOR DOOR PARTS
8W10179674
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Door, Left
W10179342 Anthracite Gray
W10179490 Black
W10179335 Blue Water
W10179337 Slate Green
W10179339 Sterling Gray
W10179341 Titanium Silver
2 Door, Right
W10179343 Anthracite Gray
W10179489 Black
W10179333 Blue Water
W10179336 Slate Green
W10179338 Sterling Gray
W10179340 Titanium Silver
3 67003637 Door, Dairy
4 67001279 Tray, Dairy
5 67003775 Bin, Shelf (3)
(Medium)
6 67006783 Screw
7
W10133608 Screw
8 Gasket, Door (2)
12723206B Black
9 Gripper
67009606 Medium Bucket
67006907 Gallon Bucket
10 67006113 Mount, Handle
11 67002731 Bushing, Door
(Bottom Right)
12 67005258 Bin, Shelf (2)
(Gallon)
13 67002721 Bushing, Door
(Bottom Left)
14 Mullion, Door
67003264 Black
15 67005569 Extension, Door
(Right−Black)
16 Closure, Door
67003639 Black
17 Stop, Door
67003780 Black
18 Plug, Button
67004838 Black
19 Bushing, Door
(Upper Left)
12395501B Black
20 Bushing, Door
(Upper Right)
67004978 Black
21 67006287 Screw
22 67005567 Extension, Door
(Left−Black)
23 67006679 Screw, Extension
24 67006229 Dish Assy., Butter
25 67006172 Nameplate
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

UNIT PARTS
9
W10179674
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

UNIT PARTS
10 W10179674
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 67006433 Screw
2
W10162928 Blade, Fan
3 67005889 Basepan
4 67006425 Screw (2)
5 67004954 Screw (3)
6 12002634 Compressor Kit
(Includes items
11,12,17,27, &
30)
7
W10119857 Harness, Evap
Heater
8 67007175 Pan, Drain
9 61004743 Grommet (3)
10 67002493 Heater, Defrost
11 67005491 Block, Condenser
12 67005560 Relay Assy.
(Incl. Capacitor)
13 61003210 Gasket
14
W10165425 Thermostat, Def.
15 67005680 Grommet (2)
16
W10158508 Shroud
17 67007052 Clip, Capacitor
18 67006131 Condenser
19 67004700 Tube, Discharge
20 67002490 Tray, Drip
21 10623002 Clip, Evaporator
22 12002041 Evaporator Kit
(Incl. Evap., Heat
Shield, & Instr.
Sheet)
23 Dam
67001084 Right Side
67001083 Left Side
24 67004432 Motor, Fan
25 10428101 Clip, Heater
26 13060201 Harness, Unit
with Power Cord
27 2317845 Drier
28 10547003 Clip, Drier
29 67004953 Bracket, Fan Motor
30 67003493 Grommet (4)
31 67006432 Screw (3)
32 67006573 Screw (4)
33 67005421 Cover, HV Box
34
W10173398 Board, HV Control
(Inc. Inst. Sheet)
35 67005418 Spacer, HV Box
36 67004969 Box, HV
37 67006550 Screw (2)
38 67005419 Harness, HV
39 67006615 Screw, Cover
40
W10137529 Grommet, Cond. (4)
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 Ozs.
(R−134A)
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

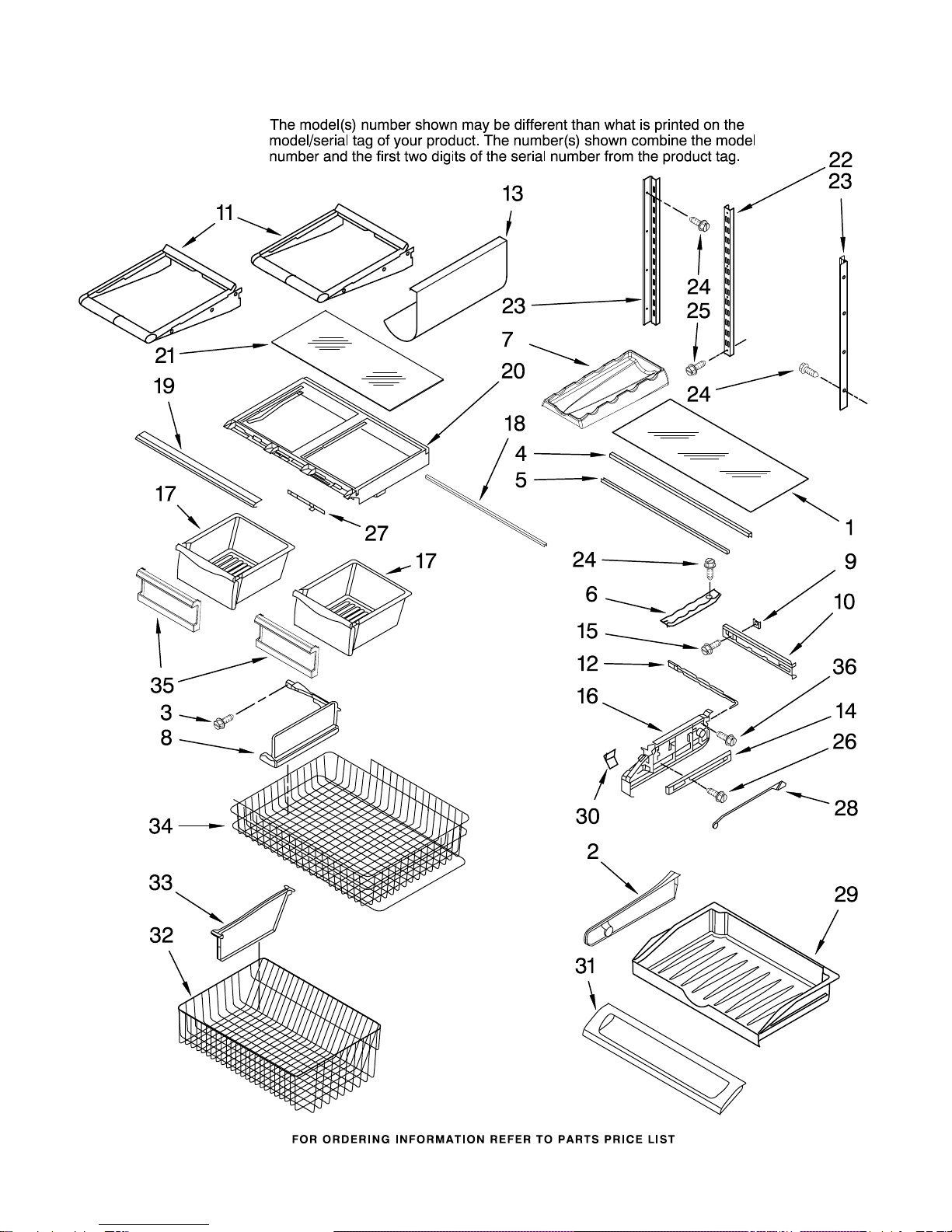

SHELF PARTS
11
W10179674
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

SHELF PARTS
12 W10179674
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 67002332 Glass, Pantry
2 67002321 Divider,
Pantry Drawer
3 67006608 Screw
4 67006010 Extr, Glass
Support (2)
5 67002330 Brace, Pantry (2)
6 67001719 Track, Pantry
7 67001656 Trivet, Wine
8 67004127 Divider,
Upper Basket
9 67002329 Gasket, Pantry
10 67005625 Housing, Control
11 67003169 Shelf, Glide (4)
12 67003793 Slide, Temperature
13 10448903 Rack, Bottle
14 67007026 Glide, Drawer(2)
15 67006400 Screw
16 Endcap, Pantry
67005862 Left
67006912 Right
17 67002659 Pan, Crisper (2)
18 67002488 Brace, Crisper
19 67006911 Trim, Crisper
20 67006185 Frame, Crisper
21 67006655 Glass, Crisper
Cover
22 67001073 Ladder, Center
23 67002489 Ladder, Side
24 67006400 Screw (6)
25 67006360 Screw (2)
26 67006287 Screw (4)
27 67005864 Slide, Humidity
Control
28 67003794 Rod, Temperature
Control
29 67003530 Drawer, Pantry
30 67003791 Knob, Temperature
Control
31 67005899 Door,
Pantry Drawer
32 67006026 Basket, Freezer
(Lower)
33 67004812 Divider,
Lower Basket
34 67004988 Basket, Freezer
(Upper)
35 67005909 Front, Crisper
Pan
36 67006415 Screw (4)
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

FREEZER DOOR PARTS
13
W10179674
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Door, Freezer
W10179331 Anthracite Gray
W10179491 Black
W10179191 Blue Water
W10179327 Slate Green
W10179329 Sterling Gray
W10179330 Titanium Silver
2 67006113 Mount, Handle
3 67006408 Screw (8)
4 Gasket, Door
W10131754 Black
5
W10133608 Screw
6 Extension, Door
67005571 Black
7 Plug, Button (2)
67004838 Black
8 67007042 Screw (3)
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

ICEMAKER PARTS
14 W10179674
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 W10122527 Mold & Heater
Assembly (Also
Order 542638
Grease)
2 67004028 Arm, Shutoff
3 628515 Cup, Fill
4 627843 Ejector
5 2182124 Ice Stripper
6 2194712 Support, Housing
7 2315522 Retainer,
Thermostat
8 627985 Thermostat
(Also Order 542369
Cement)
9 489464 Screw (3)
10 67001255 Pan, Ice
11 8533917 Screw (2)
12 67006531 Valve, Water
Inlet
13 A3223101 Insert, Tube
14 67003729 Tubing, Plastic
15
W10153408 Harness, Ice Maker
16 2256086 Bracket, Icemaker
17 67006662 Screw
18 67004710 Cover
19 626678 Module Assembly
20 489276 Screw (3)
21 628379 Clip
22 67005603 Funnel, Fill Tube
100
W10122519 Icemaker Assembly
Following Parts Not Illustrated
10244904 Coupling
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

OPTIONAL PARTS (NOT INCLUDED)
15
W10179674
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA
(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)
Parts Not Illustrated and
Optional Parts (Not Included)
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
4392901 Biscuit
PAINT, PRESSURIZED SPRAY
(12 oz.)
350942 Primer, White
350930 White
350939 Black
4392901 Biscuit
Miscellaneous
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
876370 Kit, Insulation
(2 Pcs. x 3" x 24"
X 48")
876305 Kit, Insulation
(14 Pcs. x 3"
x 24" x 48")
978941 Insulation,
Fiberglass
(63−1/2" x 35−1/2"
X 2−5/8)
876029 Kit, Foam Slab
(30" x 32−1/2"
x 1−1/2")
505587 Sealer, Mastic
(1 Qt.)
503695 Cork, Sealer
(1/4 Pound)
31462 Cleaner, 10 oz.
Stainless Steel
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
833938 Kit, Terminal
Connector
TORX SCREW WRENCH
1117510 Torx Key
