Daewoo DPC-8100P User manual

S er v ice M a nua l
Portable DVD Player
Model: DPC-8100P
DPC-8500P
S/ M No. : OSPC8100P1
May. 2005
C aution
: In this Manual, s ome parts can be changed for improving,
their performance without notice in the parts list.

【Revision Record】
Date Rev No Section Description
25/ Oct./ 2005 1.0New edition
01/ Nov./ 2005 1.1 1. Change Musteklogo to Daewoo DC
2. P1：Modify “Portable DVD PL408 series”to
“DPC-8100P & DPC-8500P”
3. P1：Delete
OEM Model Name: DPC-8100 series
4. P6：Modify “For PL400, PL400H Series” to
“For DPC-8100P, DPC-8500P”
nDesign and specifications are subject to change without notice.
nAll trademarks used in the specifications are the property of their respective owners.

1
1
1 G
G
Ge
e
en
n
ne
e
er
r
ra
a
al
l
l D
D
De
e
es
s
sc
c
cr
r
ri
i
ip
p
pt
t
ti
i
io
o
on
n
ns
s
s.
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
.1
1
1
1.1 Model Features....................................................................................1
1.2 Information.........................................................................................2
2
2
2 E
E
El
l
le
e
ec
c
ct
t
tr
r
ri
i
ic
c
ca
a
al
l
l C
C
Ch
h
ha
a
ar
r
ra
a
ac
c
ct
t
te
e
er
r
ri
i
is
s
st
t
ti
i
ic
c
cs
s
s.
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
.3
3
3
2.1 Optical Characteristics........................................................................3
2.2 Electrical Characteristics....................................................................3
2.3 System Block Diagram........................................................................4
3
3
3 P
P
Po
o
ow
w
we
e
er
r
r.
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
.5
5
5
3.1 Power Supply.......................................................................................5
3.2 Rechargeable Battery..........................................................................5
4
4
4 D
D
Di
i
im
m
me
e
en
n
ns
s
si
i
io
o
on
n
n &
&
& P
P
Ph
h
hy
y
ys
s
si
i
ic
c
ca
a
al
l
l C
C
Ch
h
ha
a
ar
r
ra
a
ac
c
ct
t
te
e
er
r
ri
i
is
s
st
t
ti
i
ic
c
cs
s
s.
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
.7
7
7
4.1 Outline Dimension...............................................................................7
4.2 Physical Characteristics.......................................................................7
4.3 IM Drawing.........................................................................................8
5
5
5 S
S
Sp
p
pa
a
ar
r
re
e
e P
P
Pa
a
ar
r
rt
t
ts
s
s.
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
.1
1
12
2
2
5.1 Key Parts List....................................................................................12
6
6
6 R
R
Re
e
eg
g
gu
u
ul
l
la
a
at
t
to
o
or
r
ry
y
y S
S
St
t
ta
a
an
n
nd
d
da
a
ar
r
rd
d
ds
s
s.
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
..
.
.1
1
13
3
3
6.1 Safety.................................................................................................13
6.2 EMI....................................................................................................13
6.3 Ergonomics........................................................................................13
7 Trouble Shooting......................................................................14
7.1 Error Code Table...............................................................................14
7.2 Debug & Trouble Shooting................................................................15

-1-
1 General Descriptions
1.1 Model Features
lVideo: DVD Playback, Kodak picture CD compatible & JPEG readable
lAudio: CD, CD-R, CD-RW, MP3, DVD Audio (option), WMA (option) Playback
lSlim Optical Pickup System for Disc Stability & Compatibility
lDolby Digital & DTS (option) Decode
l8.4" active-matrix TFT screen,16:9 wide aspect ratio
lProgressive Scan video output (option)
lUltra slim dimension & light weight: 212mm(L) x 158mm(W) x 29.8mm(H)/ 850g (around)
lSlim size wireless remote control
lRechargeable battery pack
l12-volt car cigarette lighter cable
lUniversal AC/DC power adapter
lAudio/video cable for TV connection
lBuilt-in stereo speakers
lTwo Stereo headphone jack
lExternal NTSC or PAL TV-tuner module
lAnti Shock Protection

-2-
1.2 Information
Disk Format DVD, VCD, CD, MP3, CD-R, CD-RW, DVD-AUDIO (OPTION),
WMA (OPTION)
Video System NTSC /PAL
Video Decompression MPEG-2 (ISO/IEC-13818), MPEG-1
Video Output 1.0Vpp/75 ohm Sync, minus
Audio Characteristic 2-Channel Analog, 5.1-Channel Digital Output
Analog Output 2.0V/10k ohm
Frequency Response DVD: 48kHz Sampling: 4Hz-22kHz; 96kHz Sampling: 4Hz-44kHz
CD: 4Hz-20kHz
S/N Ratio <= -65dB
Dynamic Range <= -85dB
Distortion <= 0.01%
Digital Output SPDIF
Headphone Jack 32ohm (30Mw) > 8ohm
LCD Display 8.4”active-matrix TFT type
Audio / Video Section Audio input/output x1
Video input/output x1
S-Video / P-scan output x1 (option)
TV-tuner input x1 (option)
Audio Section Digital Output: Coaxial x1
Headphone Jack Headphone Jack x2
Line Voltage AC 100-240 VAC ±10%(50/60Hz), (Adapter)
Power Consumption 15W (12V, 1.25A)
Remote Control DC 3V Infra-red
Dimensions 212mm(L) x 158mm(W) x 29.8mm(H)
Weight 930 g (around)
Accessories Slim Size Remote Controller with 3V Battery
12-volt Car Cigarette Lighter Cable
Universal AC/DC Power Adapter
Audio Cable / Video Cable
Rechargeable Battery Pack
S-video / P-scan cable (option)

-3-
2 Electrical Characteristics
2.1 Optical Characteristics
Parameter Specifications Unit
Screen Size 8.4 (16:9 diagonal) inch
Display Format 1440 (H) ×234 (V) dot
Active Area 185.76 (H) ×104.60 (V) mm
Dot Pitch 0.129 (H) ×0.447 (V) mm
Pixel Configuration Stripe
Outline Dimension 199.5 (W) ×118.9 (H) ×7.4 (D)(typ.) mm
Surface Treatment Anti-Glare and Hard Coating
Weight 258 ±5 g
2.2 Electrical Characteristics
lDVD/ SVCD/ VCD/ CD system decoding, packeted element streams and audio, video element
streams.
lFully digital servo processing (focusing, tracking, sledge and spindle servo control)
lFully digital calibration (focusing/ tracking offset and balance)
lDigital phase lock loop with phase equalizer
lSupport Audio/ Video/ Photograph decoding and programming
lTV signal encoding, interlace and progressive scan operation
lProgrammable Y/C delay relationship
lEmbedded micro-controller, up to 50MHz operating frequency
lBuilt in PLL to allow a single 27 MHz clock source input
l1.8V and 3.3V dual power supply, 208 pin PQFP

- 4 -

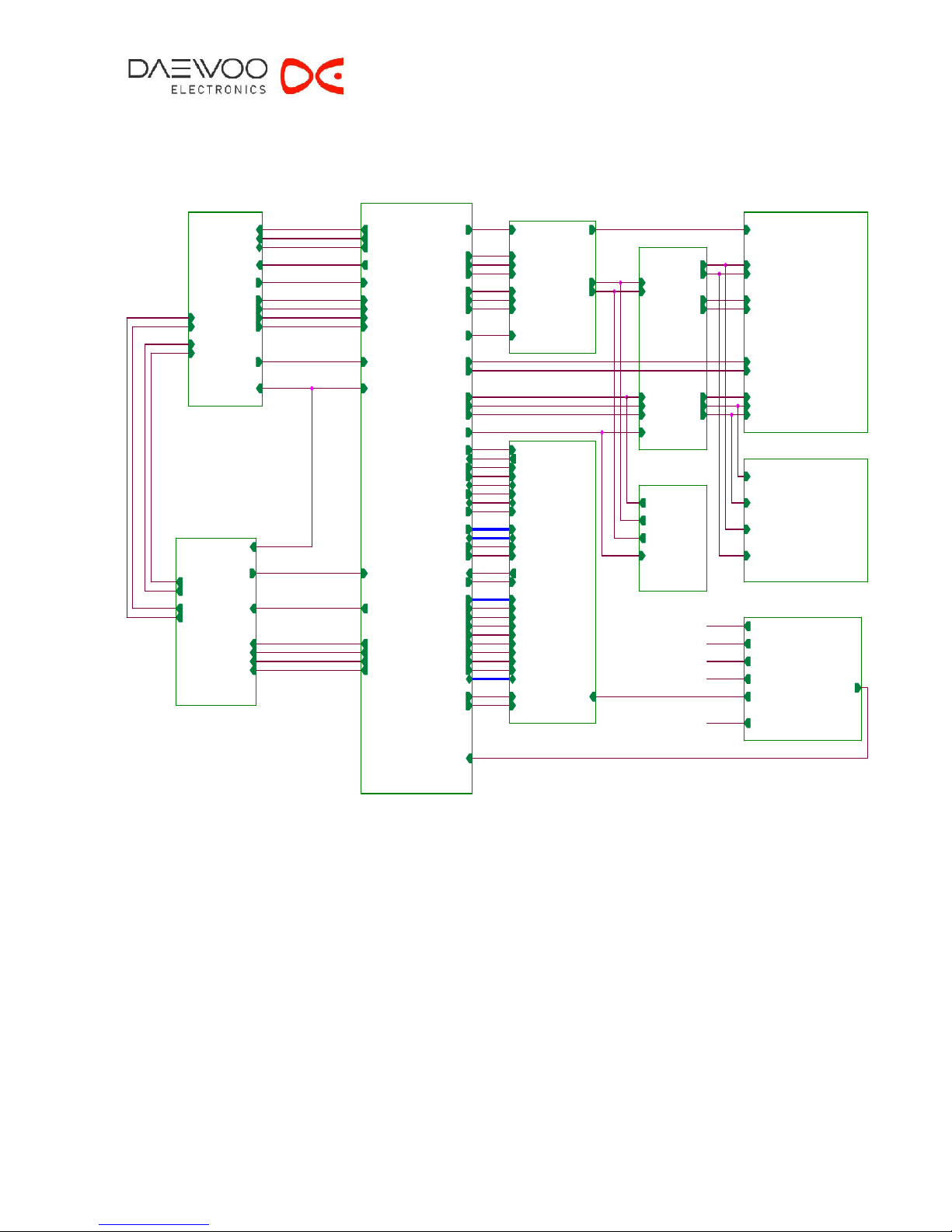

2.3 System Block Diagram
/RESET
SPDIF+
ADAC_SDA
/SCS
A/V INPUT
<Value>
CVBS
R
L
AV-SW
SBAD
SRVM
POWER
POWER
/RESET
/uPRST
MVREF
+12V
+5V
+3.3V
+1.8V
/WR
MA[0..11]
SA[0..19]
IR_IRQ
AV_Switcher
<Value>
CVBS/Y CVBS/Y
YY
C C
AOR
AOL
AOR-1
AOL-1
AOR-2
AOL-2
AV-SW
ADAC_SCK
RF_SCK
FEI
+12V
LDON PCMWS
PCMCLK
RF Amp
RF_AMP
RF_SDEN
RF_SCK
RF_SDA
MIRR
FEI
TEI
SBAD
RFO
LDON
FOCUS-
FOCUS+
TRACK-
TRACK+
LEI
MVREF
Audio DAC
AUDIO.SCH
AOR
AOL
PCMSD0
PCMCLK
PCMWS
ACLK
MUTEA
ADAC_SCK
ADAC_SDA
ADAC_CS0
RESET
/RAS
DQM
RFO
HOMESW
SD[0..7]
I2C_SCK
/CAS
TUNER_DI
STRACK
A/V OUTPUT
AV_OUT
AOR-1(TV)
AOL-1(TV)
SPDIF+
Y/G/CVBS1
Cb/B/Y
Cr/R/C
MUTEA
AOR-2(PHONE)
AOL-2(PHONE)
PSCAN
MUTEA
BS1
BACK_LIGHT
/uPRST
ADAC_CS0
FLASH_RY
ACLK
LEI
RF_SDEN
/PSEN
VFD_CS
SFOCUS
MIRR
PCMSD0
MD[0..15]
MOTOR
MOTOR
TRACK+
TRACK-
FOCUS+
FOCUS-
SSLED
SFOCUS
HOMESW
SSPDON
STRACK
SMOTOR
MVREF
RF_SDA
/RD
SMOTOR
/WE
VFD_SDA
VFD_SCK
TUNER_CL
/uPRST
PANEL
<Value>
Y
C
Speaker_R
Speaker_L
BS0
TEI
SSPDON
/FWR
SSLEG
+5V
/FLASH_WP
+1.8V
PSCAN
+3.3V
LED
I2C_SDA
SDCLK
DVD Servo & Decoder
CT908
RF_SDEN
RF_SCK
RF_SDA
LDON
MIRR
FEI
TEI
SBAD
RFO
HOMESW
SSPDON
SSLED
SFOCUS
STRACK
SMOTOR
MA[0..11]
MD[0..15]
BS0
BS1
/SCS
/RAS
/WE
SDCLK
DQM
/PSEN
/FWR
SA[0..19]
SD[0..7]
IR_IRQ
VFD_CS
VFD_SDA
I2C_SCK
I2C_SDA
BACK_LIGHT
PCMWS
PCMCLK
PCMSD0
Y/G/CVBS1
Cb/B/Y
Cr/R/C
SPDIF+
ACLK
/CAS
/uPRST
VFD_SCK
FLASH_RY
/FLASH_WP
/WR
/RD
LED
LEI
ADAC_CS0
ADAC_SDA
ADAC_SCK
MVREF
RESET
PSCAN
AV-SW SDRAM & ROM
Memory
IR_IRQ
VFD_CS
VFD_SDA
I2C_SCK
I2C_SDA
BACK_LIGHT
SA[0..19]
SD[0..7]
/PSEN
/FWR
MA[0..11]
MD[0..15]
BS0
BS1
/SCS
/RAS
/WE
SDCLK
DQM
/CAS
/RESET
VFD_SCK
/FLASH_WP
FLASH_RY
/RD
/WR
LED

- 5 -
3 Power
3.1 Power Supply
Input voltage:
Normal voltage: 100 to 240 Vac.
Variation range: 90 to 264 Vac.
Input frequency:
Normal frequency: 50 to 60 Hz.
Variation range: 47 to 63 Hz.
Input current: 0.6 arms max. at any input voltage and max. DC output rated load.
Inrush current: 70 amps max. cold start at 240 Vaz. Input, with rated load and 25ambient.
AC leakage current: 0.25 mA max. at 240 Vac. Input.
3.2 Rechargeable Battery
Output Voltage8.4~6.0V
Cut-off Voltage5.7~6.0V
Charge voltageThe battery pack should be charged when the input voltage is from11V to 15V
Chargera.) Mustek 12V/1.25A adaptor.
b.) Mustek 12V/1.25A adaptor and Portable DVD
LED is in red color when the battery pack is in charging; and turns into green color when
batter pack is full.
If the battery pack is in Full status, no matter use adaptor charge directly or link DVD to
charge again, the LED must be turn into green color in 15 min.
The cycle life of battery pack has more than 300 cycles.
Charge: The battery pack must be able to charge when used the Mustek 12V/1.25A adaptor or
Mustek 12V/1.25A adaptor and portable DVD (power off status).
Discharge: Using the battery pack as the power source for portable DVD that in DVD disc
playing mode, the discharging time must be exceed 2.7hrs.
4.2.1 Electrical Protection
The battery pack shall be capable of withstanding a continuous short circuit output

-6-
without damage.
lThe battery pack shall return to normal operation only after the fault has been removed.
lA thermal fuse must be added on the surface of cell body to protect the battery pack.
lA polyswitch must be add to protect the battery pack.
lCharge & Play Time of Battery Pack
<Option>
Charge Time
(hr) DVD Title Play Time (hr) Styling
NiMH 3800mAh
(6S1P) 3.5 2.5
For DPC-8100P, DPC-8500P
Li-ion 4000mAh
(2S2P) 3.7 3.0
For all models
Li-ion 6600mAh
(2S3P) 6.0 5.0
For DPC-8100P, DPC-8500P

- 7 -
4 Dimension & Physical Characteristics
4.1 Outline Dimension
 212mm(L) x 158mm(W) x 29.8mm(H)
4.2 Physical Characteristics
4.3 IM Drawing

- 12 -
5 Regulatory Standards
5.1 Safety
ETL
TUV-GS
LVD
CB
5.2 EMI
CE
FCC
5.3 Ergonomics
Dolby
Macrovision

- 13 -
6 Trouble Shooting
6.1 Error Code Table
CODE Descriptions of Error Note
Power Test
T01 No power no action
T02 Power Led indicator is not on or insufficient brightness
T03 Loading time too long
T04 Remote control bad sensing or not functional
T05 System stays in the Run In condition after power on, can’t be tested
T06 System down at power on
T07 System down during playing
T08 Power on unstable
T09 Abnormal sound in the system
Disc Drive Test
T11 Can’t read the disc (No Disc)
T12 Disc drive no action or locked
T13 Disc drive scratches the disc
T14 Some discs can’t be played (can’t play CD or VCD or DVD)
T15 Head does not work
T16 Spindle does not work
Video Test
T21 No video / abnormal (Please indicate the abnormal condition)
T22 Video: no video / abnormal (Please indicate the abnormal condition)
T23 S-Video No video / abnormal or black & white (Please indicate the
abnormal condition)
T24 VCD picture abnormal (Please indicate the abnormal condition)
T25 DVD picture abnormal (Please indicate the abnormal condition)
T26 Picture subtitle display abnormal or no display
T27 Setting menu picture abnormal (Please indicate the abnormal condition)
Audio Test
T31 Audio / left sound channel (AOL) does not have waveform (sound) or
waveform (sound) abnormal
T32 Audio / right sound channel (AOR) does not have waveform (sound) or
waveform (sound) abnormal

- 14 -
T33 MP3 abnormal sound
T34 Audio no waveform (sound) or waveform (sound) abnormal
Earphone Test
T41 Earphone no sound or the sound has pause, abnormal sound, noise, echo
T42 Earphone (right) no sound or the sound has pause, abnormal sound, noise
T43 Earphone (left) no sound or the sound has pause, abnormal sound, noise
Function Key Test
T51 Video can’t be still or stop
T52 Can’t execute fast forward or rewind
T53 Panel button
System Setting Test
T61 Can’t enter the system setting
T62 The system can not be played or it is down after the system is set
TFT Test
T71 TFT image and color error
T72 TFT image is black and white
T73 TFT image shakes and is distorted
T74 TFT PAL color strip
T75 TFT ripple
6.2 Debug & Trouble Shooting
                  CBA for any missing components and bad soldering
T01No Power
Main Board
A. Check for components EC028E026EC025C019C020 on the Main Board
to see if there are any short circuits.
B. Check for component J06 on the Main Board and J103 on the Power Board to
see if the pins are straight.
Power Board
A. Check the components on the Power Board for any burnt marks.
B. Check components EC105EC109EC113 on the Power Board to see if there
are any short circuits.
C. Check the components L103, L104 on the Power Board for any burnt marks.
D. If none of the above actions is effective, please change Power Boards.
T02Power LED indicator not on or insufficient brightness
Main Board
A. Open the cover of the portable DVD-player to inspect if LEDD901functions
normally.

- 15 -
B. Measure pin 168 on U201 to see if the voltage is high.
C. Measure R903 to see if the voltage is highand the negative end of D901 must
be low voltage.
D. Disassemble F/W, replace with a good one or re-plug it to see if the LED lights
up when Power ON.
E. If the above actions are not working, replace the Main Board.
T03Loading time too long
Main Board
A. Remove the cover to see if the resistors or resistor-array adjacent to U201 and
U701or IC, to see if there is any cold soldering, hollow soldering, misplaced
soldering, or wrong part.
B. If the above actions are not working, replace the Main Board.
T04Remote control bad sensing or sensing not functional
Remote control
A. If the main body of the system works normally, then making sure that the
battery of the Remote control has sufficient power, if it is not, replace the
battery.
Main Board
A. Remove the top cover and the panel. Check to see if U901 has short circuit,
broken circuit, hollow soldering, or other problems. Also check if the pins 1 of
U901 have power.
B. If the above actions are not working, replace the Main Board.
T05Stay in the Run In condition after power on, can’t be tested
Main Board
A. Remove the top cover and replace with another U301 F/W.
B. If the above actions are not working, replace the Main Board.
T06System down at power on
Main Board
A. Remove the top cover, check all flat cables in the system to see if they are
correctly plugged to the fixed positions, or re-plug them.
B. Disassemble U301 F/W, replace with a good one or re-plug it to see if the
symptom will disappear.
C. If the above actions are not working, replace the Main Board.
T07System down during play
Main Board
A. Remove the top cover, check all flat cables in the system to see if they are
correctly plugged to the fixed positions, or re-plug them.
B. Disassemble U301 F/W, replace with a good one or re-plug it to see if the
symptom will disappear.

- 16 -
C. Check the resistors or capacitors of J601, U301, or U201 on the main board, or
those adjacent to IC to see if there is any hollow soldering, cold soldering,
wrong part, or misplaced soldering.
D. If the above actions are not working, replace the Main Board.
DVD ROM
A. Check the loader to see if it is not stable (any condition that some of the discs
can’t be played). If so, replace the loader.
DVD DISC
A. Check the Test Disc to see if there is any serious scratch or ring shape, circular
shape scratches, if so, replace the Test Disc and test again.
T08Power on unstable
Main Board
A. Remove the top cover, check all flat cables in the system to see if they are
correctly plugged to the fixed positions, or re-plug them.
B. Disassemble U301F/W. Replace it with a good one or re-plug it to see if the
symptom will disappear.
C. If the above actions are not working, replace the Main Board.
T09Abnormal sound in the machine base (Power on abnormal sound)
DVD ROM
A. Check the loader to see if it is the source of the abnormal sound. If so, replace
the loader.
T11Disc drive can’t read (NO DISC)
Main Board
A. Check the resistors or resistor-array adjacent to U201 Pin200~208 and
Pin61~70 or IC to see if there is any hollow soldering or cold soldering.
B. Check the resistors or capacitors of J601, U601, U201, or U302, or those
adjacent to IC to see if there is any hollow soldering, cold soldering, wrong part,
or misplaced soldering.
C. Check to see whether J902 is damaged.
D. If the above actions are not working, replace the Main Board. If it is still not
working, replace the loader.
DVD ROM
A. Check the loader to see if it can’t read. If so, replace the loader.
T12Disc drive no action or locked
Main Board
A. Remove the cover. Check to see if it is caused by mis-assembly.
B. Check the resistors or capacitors of J801, U801, or U802 on the main board, or
those adjacent to IC to see if there is any hollow soldering or cold soldering.
C. If the above actions are not working, replace the loader. If it is still not working,

- 17 -
replace the main board.
T13Disc drive scratches disc
Main Board
A. Check the resistors or capacitors of J601 or U601 on the main board, or those
adjacent to IC to see if there is any hollow soldering, cold soldering, wrong part,
or misplaced soldering.
B. If the above actions are not working, replace the loader. If it is still not working,
replace the main board.
DVD ROM
A. Check the loader to see if it is the cause of disc scratching. If so, replace the
loader.
T14Not every disc can be played
Main Board
A. Check the resistors or capacitors of J601 or U601 on the main board, or those
adjacent to IC to see if there is any hollow soldering, cold soldering, wrong part,
or misplaced soldering.
B. If the above actions are not working, replace the loader. If it is still not working,
replace the main board.
T15Head does not work
Main Board
A. Remove the top cover, check the 30-pin flat cable in the system to see if they
are correctly plugged to the fixed positions, or re-plug them.
B. Check the resistors or capacitors of J601 or U601 on the main board, or those
adjacent to IC to see if there is any hollow soldering, cold soldering, wrong part,
or misplaced soldering.
C. If the above actions are not working, replace the loader. If it is still not working,
replace the main board.
T16Spindle does not work.
Main Board
A. Remove the top cover, check the 18-pin flat cable in the system to see if they
are correctly plugged to the fixed positions, or re-plug them.
B. Check the resistors or capacitors of J801 or U802 on the main board, or those
adjacent to IC to see if there is any hollow soldering, cold soldering, wrong part,
or misplaced soldering.
C. If the above actions are not working, replace the loader. If it is still not working,
replace the main board.
T21no video / abnormal
Main Board
A. Remove the top cover, check all flat cables in the system to see if they are
