Service Manual
Refrigerator
Model: FR-320
DAEWOO ELECTRONICS CO., LTD.
S/M No. : FR32000010

1.Specification-----------------------------------------------------------------------------------------------1
2.External view ----------------------------------------------------------------------------------------------2
3.Wire diagram---------------------------------------------------------------------------------------------3
4.Name of parts---------------------------------------------------------------------------------------------4
5.Air flow diagram-----------------------------------------------------------------------------------------5
6.Refrigerant cycle diagram----------------------------------------------------------------------------6
7.Machine room view and part list-------------------------------------------------------------------7
8.Main components---------------------------------------------------------------------------------------8
9.Door color specification -------------------------------------------------------------------------------11
10.Exploded view and parts lilst ------------------------------------------------------------------------14

1. SPECIFICATION
MODEL NAME FR-320
Refirgerant R12 150g
R134a 120g
Cooling System Fan Cooling Convection Type
Refrigeration System Air Forced Convection
DefrostSystem Forced Fin-enaporatorType
DefrostOperation AutomaticStart & Stop
ColdControl Adjustable Dial
Capacity
Freezer 60

Refrigerator 207

Total267

External
Dimension
Height 1661mm
Width 600mm
Depth 625mm
NetWeight 62Kg

2
2. EXTERNAL VIEW
600 590
1661
1043.5124.5 10 477 6
590
625
530600
47
3017
16
449.5
60
985150.5

3

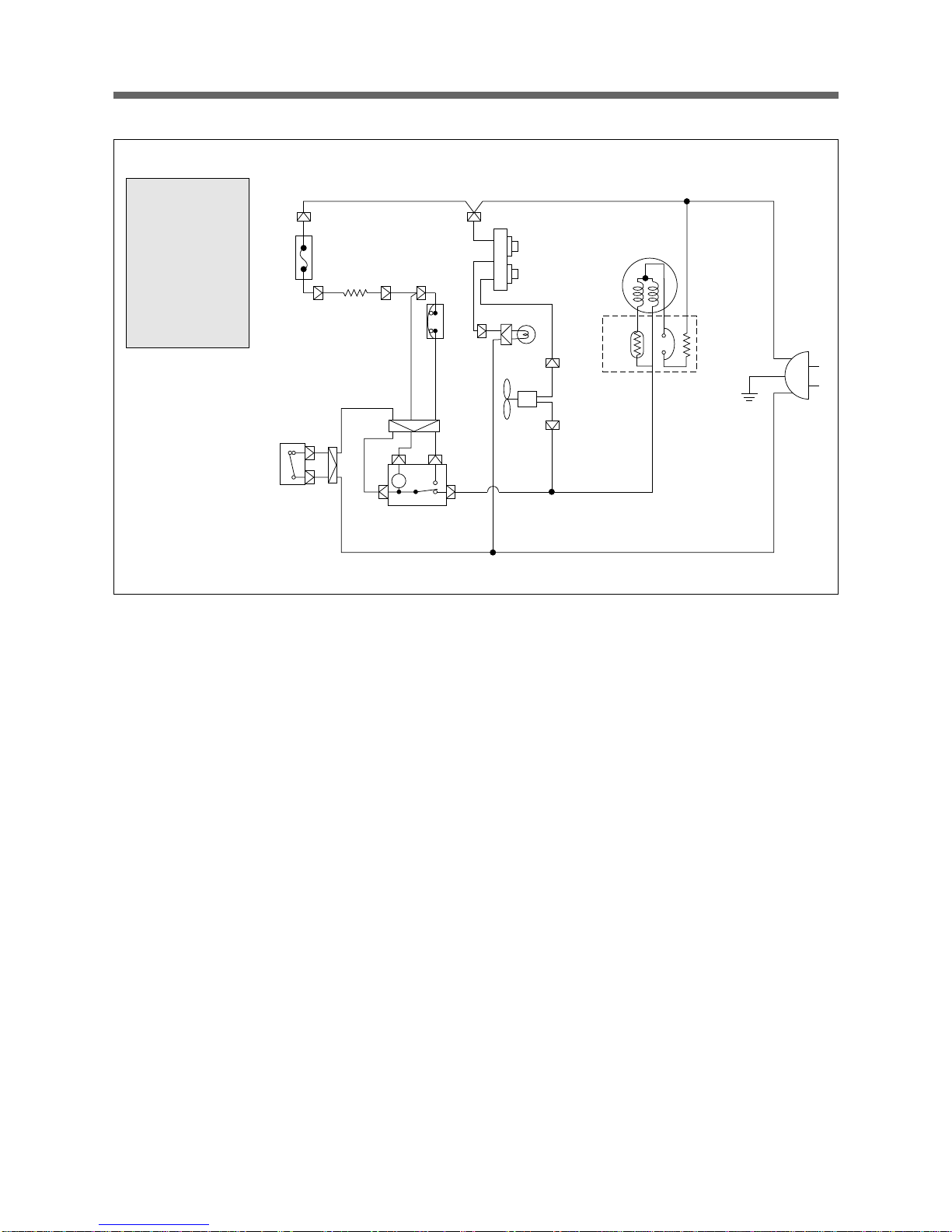

3. WIRE DIAGRAM
POWER
CORD
P-RELAY GN/YW
SW
OL
COMPRESSOR
1
3
2
BR
L/BL
YW
YW
WH
WH/BL
BK
BK
BK
GR
TEMP
FUSE
DEFROST
HTR WH
WH
BR
BI-METAL
BL
LAMP
PK
BK
FAT
MOTOR
GRAY
WH/BL DEFROST
TIMER
M2
4
1
3
BK
YW
FREEZER
TEMP
CONTROL
GN : GREEN
BR : BROWN
WH : WHITE
PK : PINK
BK : BLACK
YW : YELLOW
BL : BLUE
GY : GRAY
WH/BL : WHITE WITH
BLUE STRIPE
L/BL : LIGITH-BLUE
RD
A M
PTC

4
4. NAME FLOW DIAGRMA
3
1
2
4
5
6
7
8
15
14
13
12
9
10
11
1Freezer Temperasture
Controller
2 Caseicing
3 Freezer Shelf
4 Case Icing
5 Case Child
6
Refrigerator Temperature
Controller
7 Refrigerator Shelf
8 Crisper Cover
9 Crisper
10 Front Grille
11 Adjustable Foot
12 Freezer Pocket
13 Egg Pocket
(Bar Pocket Type)
14
Refrigerator Pocket (SM)
15
Refrigerator Pocket (BG)

5
-16~-18
-16~-18
-17~-19
1~32~4
1~32~4
2~3
5~7
2~4
3~5
3~5 2~4
A
B
C
Freezer door pocket
Do not put ice cream or frozen
food in freezer door pocket to
store for a long term. Opening
and shutting the door can rise up
the temperature.
Cold air absorbing duct
Do not place food in front
of the duct because it is the
entrance of the cold air.
Refrigerator door pocket
Temperature is high even if the
pocket is in the middle.
When storing margarine or cheese
for one or two weeks, make use
of the refrigerator shelf.
Crisper
Suitable in storing fruits or
vegetable.
Wrapping can prevent from
dryness.
Freezer room
Do not put in any bottle such as
beer or beverage because it can
be frozen and broken.
Refrigerator room
This model is multi-flow type
which flows out cold air from
each shelf space. The hot air
after making the refrigerator
cold, flows into cooling system
through the front upper part.
Do not put food having much
moisture at the middle part of
each shelf space (ÒAÓ, ÒBÓ and
ÒCÓ part). It can be frozen owing
to the low temperature.

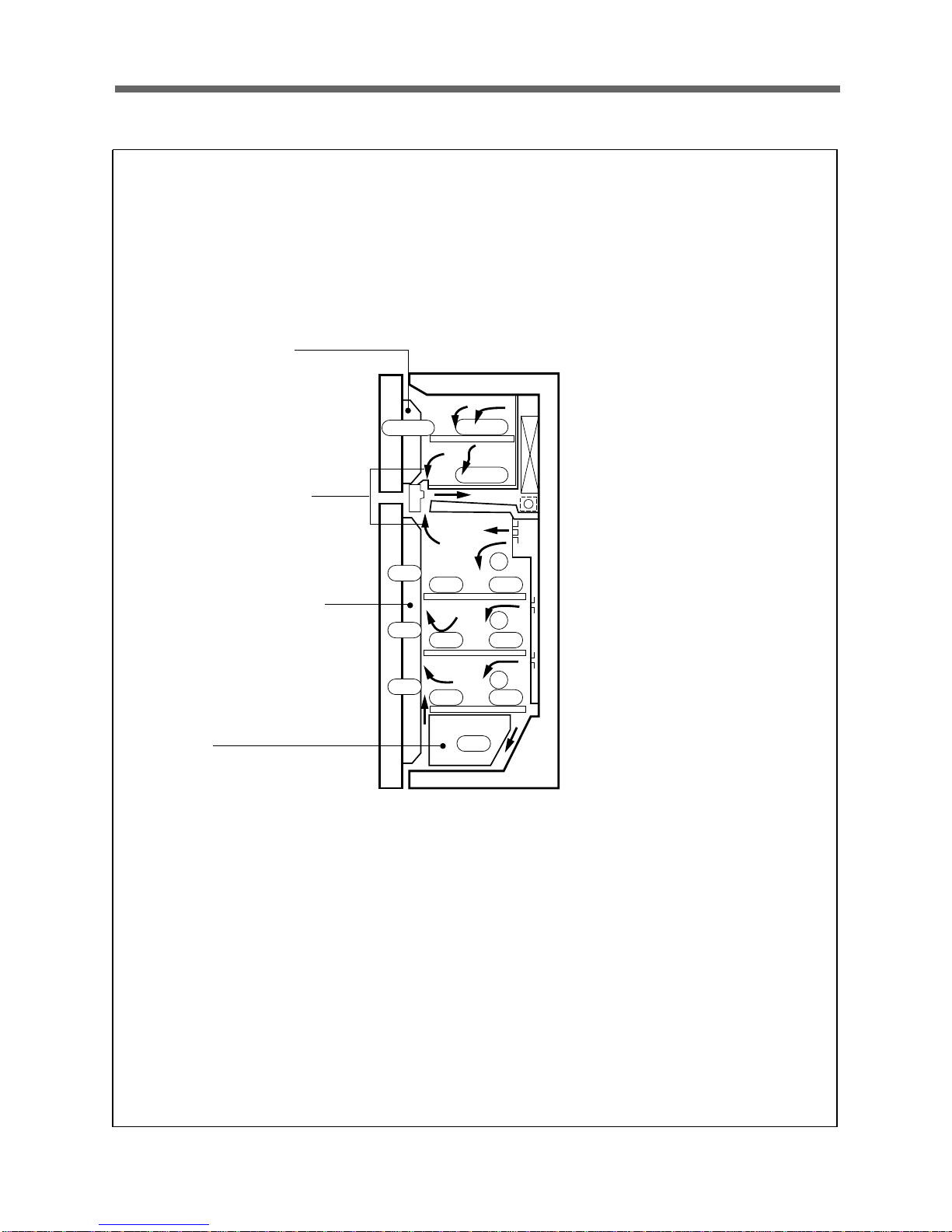

5. AIR FLOW DIAGRAM

6

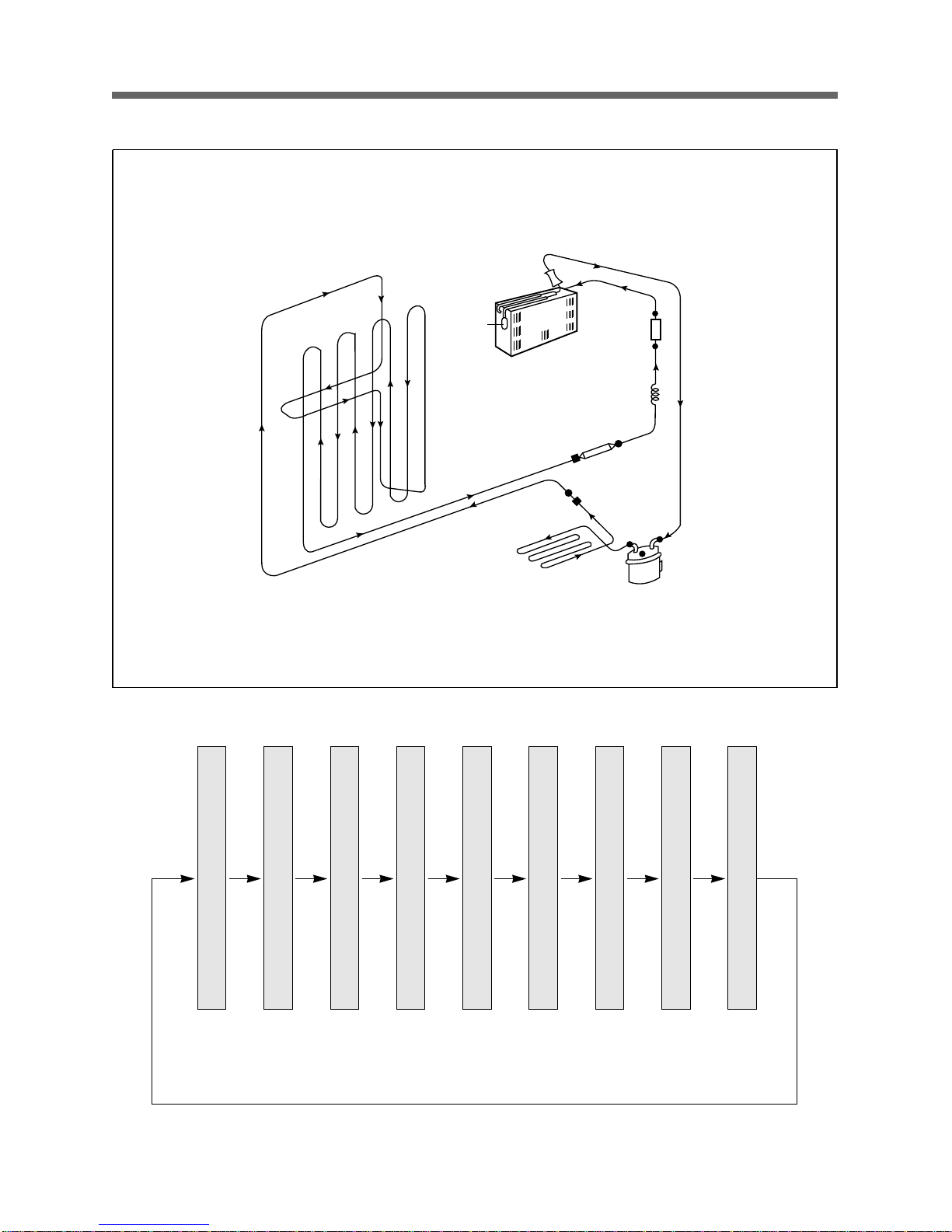

6. REFRIGERANT CYCLE DIAGRAM
FIN. CROSS
EVA
ACCUM
ACCUM
COMP
HOT POPE
DRYER
SUC. PIPE
I-PIPE
CAPI. TUBE
SIDE PLATE PIPE
AUX-CON PIPE
C
O
M
P
R
E
S
S
O
R
A
U
X
I
C
O
N
P
I
P
E
H
O
T
P
I
P
E
S
I
D
E
P
L
A
T
E
P
I
P
E
D
R
Y
E
R
C
A
P
I
T
U
B
E
E
V
A
P
O
R
A
T
O
R
A
C
C
U
M
S
U
C
P
I
P
E

7
7
18 20
12
3
19
15
9
21
15
25
11
2
6
13
10
8
16
14
17
22
23
4
24
NO PART NAME NO PART NAME NO PART NAME
1BASE COMP 10 POWER BOX AS 19 ENTRANCE OF AUX-CON PIPE
2FIXTURE BOLT COMP 11 SWITCH P-RELAY AS 20 ENTRANCE OF SIDE PLATE PIPE
3WASHER 12 POWER CORD 21 ENTRANCE OF HOT PIPE
4DRYER 13 CABINET URT AS 22 EXIT OF AUX-CON PIPE
5ABSORBER 14 PIPE CON (PA) 23 EXIT OF SIDE PLATE PIPE
6COMPRESSOR 15 SUC-PIPE AS 24 CAPILLARY TUBE
7P-RELAY LEAD WIRE 16 SUC-PIPE CON 25 VIBRATIONPROOF MASS
8REINFORCE *R 17 PIPE CON
9 REINFORCE *L 18 EXIT OF HOT PIPE

8
8. MAIN COMPONENTS
1. COMPRESSOR
2. RELAY ASSEMBLY
3. RUNNING CAPACITOR
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Comp. model X FL21Y-3 X FL21YE-2 SL21YE-5 PL21YE-4 SL21YE-5
Part code X 3951121A30 X 3956121A20 3954121A50 3956121A40 3954121A50
Strating type X RSIR X RSIR RSIR RSCR RSIR
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Comp. model HBL23YE-C HBL23YE-3 HBL23YE-1 X HSL23YE-5 HPL23YE-4-C HSL23YE-5
Part code 3952123L00 3952123G30 3952123G10 X 3954123G50 3956123L40 3954123G50
Strating type CSR XRSIR RSCR RSIR
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Relay model X S068 X S068 S220 S330 S220
Part code X 3018102820 X 3018102810 3018102750 3018103010 3018102750
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Relay model S068 S220 S220 X S220 S330 S220
Part code 3018110590 3018108120 3018108120 X 3018108010 3018110610 3018108010
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X X X X X 350V/5µF X X
Part code X X X X X 400EL15110 X X
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. 230V/10µF 300V/7µF X X X X
Part code 400EL15130 3016800400 X
X
X
X X
X
X X

9
4. STARTING CAPACITOR
5. F-FAN MOTOR
6. DEFROST HEATER
7. LAMP ASSEMBLY
8. DEFROST TIMER
9. DRYER
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. 3211DREB 3010DWNFH-2 3210DWNFF-2 3210DWNFD-1 3210DWNFI-2
Part code 3011804220 401ND24402 4019A24402 4017G24405 401NB24402
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. 110V/150W 220V/150W
Part code 400EL22321 3012800500
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. 120V/10W 240V/15W
Part code 4019S15200 400EL20111
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. TMDEX09UA1 TMDEX09UM1
Part code 3018101200 3018100310
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X X X X X X X X
Part code X X X X X X X X
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. 200V/100µF X X XXX
Part code 3016400100 X
X
X
X
X
X
X
X
X
X
X
X XXX
Refrigerant R12 R134a
Spec. 10 g 15 g
Part code 3016800103 3016801100

10

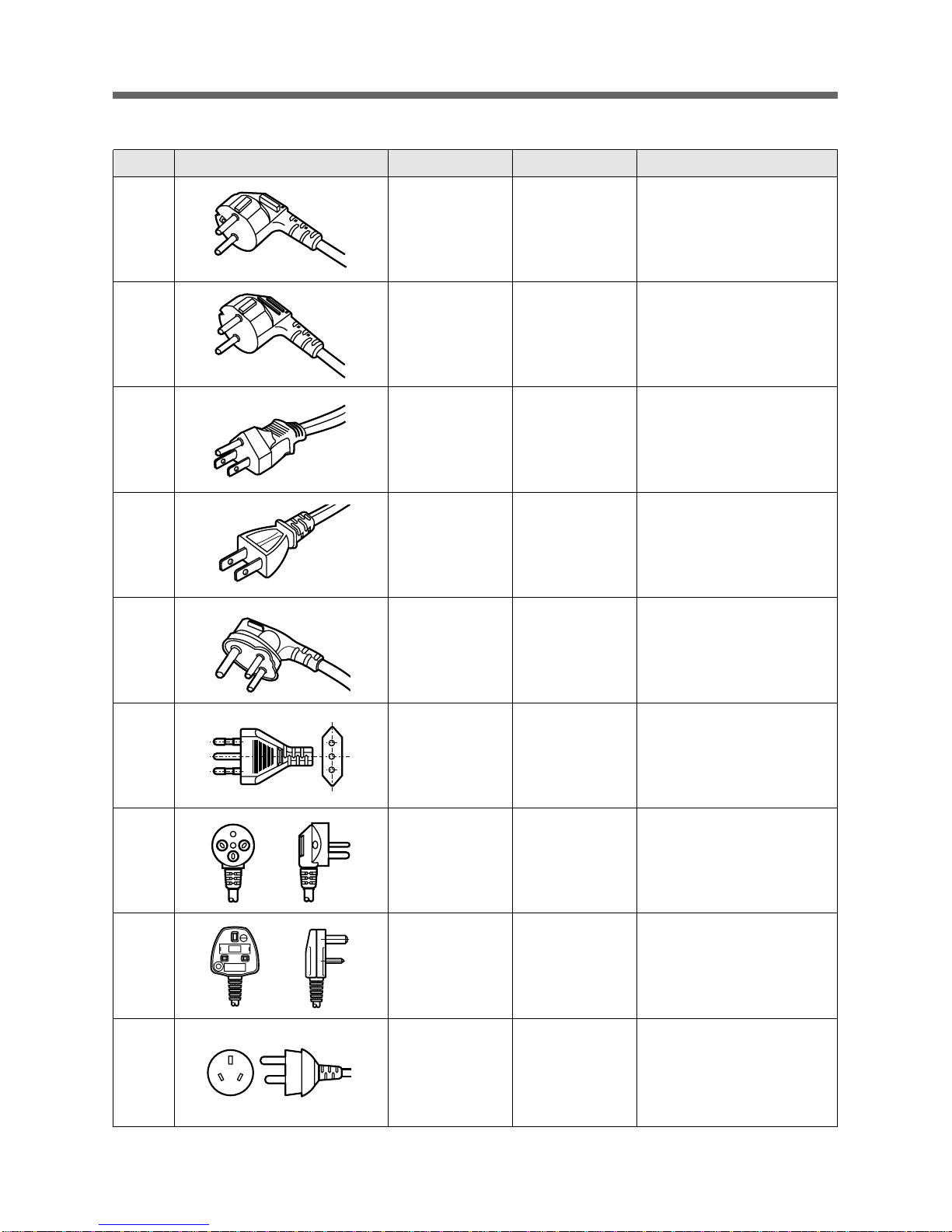

POWER CORD SPECIFICATION
NO SHAPE OF POWER CODE PART CODE DESCRIPTION REMARK
1 3011315000 CP-2PIN FOR EUROPEAN COUNTRY
2401RA17200 CP-2PIN FOR OTHER COUNTRY
34006D17101 KP-30 FOR AMERICA
4401PD17101 KP-211 FOR JAPAN & TAIWAN
53011300801 BP-3PIN
63011303010 #267 FOR CHILE
73011315310 FOR ISRAEL
83011303050 BS-1363A FOR U.K, MIDDLE ASIA
SINGAPORE & MALAYSIA
9 3011301200 KP-551/550 FOR CHINA & AUSTRALIA
* Upper power cord's part code is only for lead wire, without any kinds of terminal or housing.

11
9. DOOR COLOR SPECIFICATION
Refrigerant R12 R134a
Color type Dull lamina High glossy Normal PCM High glossy Dull lamina High glossy Normal PCM High glossy
sheet lamina sheet bright PCM sheet lamina sheet bright PCM
Part code X X X PFDU2UF120 X X X PFDU2UF125
2. ASSEMBLY URETHAN REFRIGERATOR DOOR
1. ASSEMBLY URETHAN FREEZER DOOR
Refrigerant R12 R134a
Color type Dull lamina High glossy Normal PCM High glossy Dull lamina High glossy Normal PCM High glossy
sheet lamina sheet bright PCM sheet lamina sheet bright PCM
Part code X X X PFDT1UF010 X X X PFDT1UF015

12
COLOR TABLE
1. PCM Type
NO COLOR CHIP COLOR NAME
1 P/WITH (WH069)
2'94 L/GRAY (GY158)
3'95 L/GRAY (GY259)
4'94 M/GRAY (GY331)
5'95 M/GRAY (GY335)
6'97 M/GRAY (GY267)
7M. D/GRAY (GY750)
8N/BLUE (BL718)
9MINT GREEN (GN206)
10 '97 BEIGE (BE215)

13
2. Lamina sheet type
NO COLOR CHIP COLOR NAME
1 P/WITH (WH069)
2'94 L/GRAY (GY158)
3'95 L/GRAY (GY259)
4'94 M/GRAY (GY331)
5'95 M/GRAY (GY335)
6'97 M/GRAY (GY267)
7M. D/GRAY (GY750)
8N/BLUE (BL718)
9MINT GREEN (GN206)
10 S/GOLD
11 G/GREEN

10. EXPLODED VIEW AND PARTS LIST
14
1. Exploded views

15
2. Parts list
NO PART CODE PART NAME DESCRIPTION QUANTITY REMARK
1 ASSY URT CAB 1
2 4018G57110 GUIDE DRN *O 1
3 HEATER GLAS AS 1 REFER TO # 9
4 4019R73570 COVER DEFR HTR *T AL 1
5 4019R73580 COVER DEFR HTR *U AL 1
6 4019R03205 EVAPORATOR AS 1
7 3018100603 SWITCH BIMTL AS 1
8 4017Z90590 FUSE TEMP AS 1
9 4017Z90590 FIXTURE FUSE TEMP PP 1
10 3012900401 HINGE *U AS MF-ZN5-C 1
11 3016000600 SPECIAL SCREW M6 X20 4
12 3010023400 SWITCH DR AS 1
13 4017Z40622 FOOT *F ASS 2
14 3010302300 BASE COMP 1
15 4019H09010 ABSORBER COMP NR-A 4
16 COMPRESSOR 1 REFER TO # 8
17 3014503802 PLATE AXCON AS 1
18 4019H09030 SPECIAL WASHER SWRH 4
19 SWITCH P RELAY AS 1 REFER TO # 8
20 DRYER AS 1 REFER TO # 9
21 401ZA26000 DAMPR R ASS 1
22 4010C31261 INSULATOR DAMP A F-PS 1
23 4017Z31272 INSULATOR DAMP B F-PS 1
24 4017G32670 GEAR ABS 1
25 4017Z18180 KNOB ABS 1
26 LAMP AS 1 REFER TO # 9
27 400EL19311 SOCKET LAMP AS 200, 200/WHITE HOUSING 1
28 4010R21300 DAMPER AS D-702-1 1
29 4010R22131 COVER DAMP HIPS 1
30 4017Z87570 SHADE R HC-2 1
31 4010C75260 SEAL MULTI DUCT 1
32 4010C75270 SEAL MULTI DUCT B 1
33 4010R75220 INSU MULTI DUCT 1
34 4010R75213 DUCT MULTI HIPS 1
35 4010C75252 LABEL DUCT PC T0.17 1
36 FAN MOTOR ASS 1
37 4017Z42312 FAN ABS 1
38 MOTOR SHADED AS 1 REFER TO # 9
39 3010502401 BOX CONTL AS 1
✔ Caution : In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list.
So, if you need the latest parts information, please refer to PPL (Parts Price List) in Service Information Center
(http://svc.dwe.co.kr)

16
NO PART CODE PART NAME DESCRIPTION QUANTITY REMARK
40 3010500403 BOX CONTL HIPS 1
41 3018300400 THERMOSTAT 1
42 4017G31041 KNOB C/S ABS 1
43 ASSY URT *U DOOR 1REFER TO # 11
44 4019R47023 GASKET R DR AS 1
45 4019R37016 LINER R DR ABS 1.4 X630 X 1083 1
46 3019005010 POCKET EGG PVC-H BAR 1
47 3012900611 HINGE *M AS 1
48 ASSY URT *T DOOR 1REFER TO # 11
49 4019R46015 LINR *F DR ABS 1.4 X610 X1005 1
50 4019R47014 GASKET F DR AS PVC-S 1
51 4019R30011 POCKET F *T GP 2
52 4010G51402 HINGE *T AS SPHC 1
53 4010G51455 COVER *T HI PP 1
54 3011415700 COVER V/CASE GASKET A 1
55 4019R30133 CASE CHILD GP 1
56 4019R30143 DOOR CHILD GP 1
57 4010R55212 SHELF R GP 2
58 4019R91110CASE VAPORI PP 1
59 4019R30030 POCKET EGG HIPS 1
60 4019R30041 POCKET BOTL HIPS 2
61 4017Z99112 CASE ICE HC-2 1
62 4010G56011 CASE ICING PE-HD 1
63 4019R30812 CASE VEGTB GP 1
64 4019R74109 INSULATOR F LUVR AS 1
65 4019R74015 LOUVER F PP 1
66 3017800305 SHELF F GPPS 1
67 4010R44510 COVER CAB BRKT PP 1
68 4019R10686GRILL PP 1
