Daewoo FR-440M User manual

Service Manual
Refrigerator
Model: FR-440M
FR-440P
DAEWOO ELECTRONICS CO., LTD.
S/M No. : FR440P0010
✔ Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).

1.Specification-----------------------------------------------------------------------------------------------1
2.External view-----------------------------------------------------------------------------------------------2
3.Wire diagram--------------------------------------------------------------------------------------------- 3
4.Name of parts--------------------------------------------------------------------------------------------- 4
5.Air flow diagram----------------------------------------------------------------------------------------- 5
6.Refrigerant cycle diagram---------------------------------------------------------------------------- 6
7.Machine room view and part list--------------------------------------------------------------------7
8. Main components----------------------------------------------------------------------------------------- 8
9. Door color specification-------------------------------------------------------------------------------- 11
10. Exploded view and parts list ------------------------------------------------------------------------ 14
11. Electronic function -------------------------------------------------------------------------------------- 20

1
1. SPECIFICATION
MODEL NAME FR-440M FR-440P
Refirgerant R12 160g 160g
R134a 130g 130g
Cooling System Fan Cooling Convection
Refrigeration System AirForced Convection
Defrost System Fin EvaporatorForced
Defrost Operation Automatic Start& Stop
Cold Control Adjustable Dial Adjustable Button
Capacity
Freezer 95
 95 
Refrigerator 271
 271 
Total366
 366 
External
Dimension
Height 1762mm 1762mm
Width650mm650mm
Depth 650mm650mm
Net Weight 72Kg 72Kg

2
2. EXTERNAL VIEW
2. FR-440P
640
1624473.51048.5140 60
24 592 24
640 7.5
650
1256.5
580
116 1097.5
1762
532.5 610
650
1. FR-440M
640
16
24
473.5
1048.5140 60
24 592 24
640 7.5
650
1256.5
580
116 1097.5
1762
532.5 6
10
650

3. WIRE DIAGRAM
1. FR-440M
PLUG
GN/YW
L/BLBKBK
WH
GY
TEMP
FUSE
WH/BL
THERMOSTAT
YW M
WH/BL DEFROST
TIMER
3
12
4
BRWH
DEFROST
HEATER
BI-METAL
YW LAMP
FAN
MOTOR
RD RD
YW
YW
BR
PK
BL
1
3
2DOOR
S/W
COMPRESSOR
AM
P-RELAY
OL
PTC
RD : RED
GN : GREEN
BR : BROWN
WH : WHITE
PK : PINK
BK : BLACK
YW : YELLOW
BL : BULE
GY : GRAY
WH/BL : WHITE WITH
:BLUE STRIPE
2. FR-440P
F-PCB
M-PCB
PATTERN
FUSE
VAR
TRANS
FAN
COM
SNUBBER
F/M RY
HTR RY
COMP RY
BLUE X 2 ORANGE X 2
D-SENSORF-SENSOR
HTR
S/N
COMP
220V
WHITE
PINK
GREEN PINK WHITE
FM
GREEM
VIOLET
BLACK
GRAY
BLUE
DOWN
TRANS VIOLETGRAY
TEMP
FUSE
PTC OL
COMPRESSOR
P-RELAY
2
1
3PINK
BLUE
DOOR
SWITCH
DEFROST
HEATER
R-LAMP
BLACK
YELLOW
YELLOW BROWN
GREEN
GN/YW
PLUG
L/BLUEBLACK
BLACKBLACK
3

4. NAME OF PARTS
4
1. FR-440M
1
18
2
3
4
5
6
7
15
16
14
1213
17
11
8
10
9
1Freezer Shelf
2Case Icing
3Case Ice
4Case Child
5
Refrigerator
Temperature Controller
6Shelf Refrigerator
7Crisper Cover
8Crisper
9Adjustable Foot
10 Front Grille
11 Freezer Door Pocket
12 Egg Pocket
13 Case Egg
14 Refrigerator Pocket(SM)
15 Refrigerator
Pocket(Medium)
16 Refrigerator Pocket(BG)
17 Deodorant(Option)
18 Freezer Temperature
Controller
2. FR-440P
1
2
3
4
5
6
7
15
16
14
17
1213
11
8
10
9
1Freezer Shelf
2Case Icing
3Case Ice
4Case Child
5
Refrigerator Temperature
Controller
6Shelf Refrigerator
7Crisper Cover
8Crisper
9Adjustable Foot
10 Front Grille
11 Freezer Door Pocket
12 Egg Pocket
13 Case Egg
14
Refrigerator Pocket(SM)
15
Refrigerator
Pocket(Medium)
16
Refrigerator Pocket(BG)
17 Deodorant(Option)

5. AIR FLOW DIAGRAM
5
-16~-18
-16~-18
-17~-19
1~32~4
1~32~4
2~3
5~7
2~4
3~5
3~5 2~4
A
B
C
Freezer door pocket
Do not put ice cream or frozen
food in freezer door pocket to
store for a long term. Opening
and shutting the door can rise up
the temperature.
Cold air absorbing duct
Do not place food in front
of the duct because it is the
entrance of the cold air.
Refrigerator door pocket
Temperature is high even if the
pocket is in the middle.
When storing margarine or cheese
for one or two weeks, make use
of the refrigerator shelf.
Crisper
Suitable in storing fruits or
vegetable.
Wrapping can prevent from
dryness.
Freezer room
Do not put any bottle such as
beer or beverage because it can
be frozen and broken.
Refrigerating room
This model is multi-flow type
which flows out cold air from
each shelf space. The hot air
after making the refrigerator
cold, flows into cooling system
through the front upper part.
Do not put food having much
moisture at the middle part of
each shelf space ("A", "B" and
"C" part). It can be frozen owing
to the low temperature.

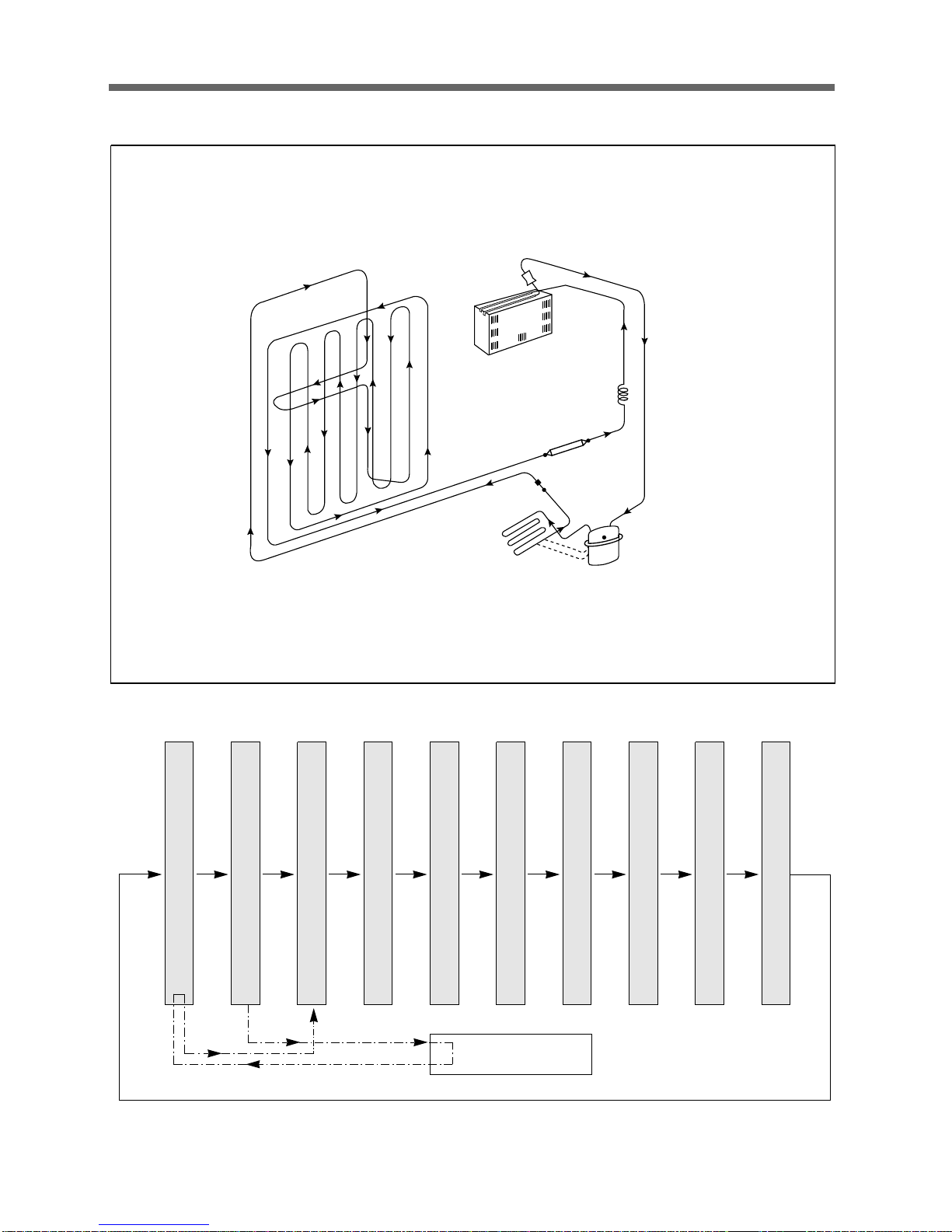

6. REFRIGERANT CYCLE DIAGRAM
6
FIN CROSS
EVA
SUC-PIPE
MAIN CAPI TUB.
ACCUM
HOT PIPE
DRYER
COMP
AUX-HOT PIPE
AUX-HOT PIPE
BACK PLATE PIPE
C
O
M
P
R
E
S
S
O
R
A
U
X
I
C
O
N
P
I
P
E
H
O
T
P
I
P
E
A
U
X
I
H
O
T
P
I
P
E
B
A
C
K
P
L
A
T
E
P
I
P
E
D
R
Y
E
R
C
A
P
I
T
U
B
E
E
V
A
P
O
R
A
T
O
R
A
C
C
U
M
U
L
A
T
O
R
S
U
C
P
I
P
E
COOLING PIPE

7. MACHINE ROOM VIEW AND PART LIST
7
16
15
14
13
12
11
19
232243212112 76
5
9
8
10
11
20
NO PART NAME NO PART NAME NO PART NAME
1COMPRESSOR 9PIPE CON (SUC) 17 CABLE CLAMP
2ABSORBER 10 PIPE COOLING CON (AUX) 18 STARTING CAPACITOR
3BOLT COMP. FIXTURE 11 PIPE COOLING (A) 19 POWER CORD
4FIXTURE COMP. WASHER 12 PIPE CON (P.A) 20 ABSORBER PIPE
5PLATE AUX-CON AS 13 SCREW MACHINE 21 VIBRATIONPROOF MASS(B)
6CASTER PIN 14 DRAIN HOSE(B) AS 22 SWITCH P-RELAY AS
7CASTER 15 TAPE OPP 23 RELAY BAND
8 DRYER 16 CEC COVER

8
8. MAIN COMPONENTS
1. COMPRESSOR
2. RELAY ASSEMBLY
3. RUNNING CAPACITOR
4. STARTING CAPACITOR
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Comp. model XCL23YE-3-C CL23Y-1-C CL23Y-2-C SL27YE-5-C PL25YE-4 XSL27YE-5-C
Part code X3957123C30 3951123C10 3957123C20 3954127C80 3956125442 X3954127C80
Strating type XCSIR CSIR CSIR RSIR RSCR xRSIR
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Comp. model XHBL23YE-3- CHBL23YE-1-C XHSL27YE-5-C XHSL27YE-5- CHSL27YE-5-C
Part code X3952123L20 3952123L10 X3954127L50 X3954127L50 3954127L50
Strating type XCSR CSR XRSIR XRSIR RSIR
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Relay model X427THBYY-52 414THBYY-5 2232THBYY-5 2197SHBYY-52 X232THBYY-52
Part code X3018108120 3018109740 3018103090 3018103010 X3018103090
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Relay model X427THBYY-52 X276THBYY-52 X276THBYY-5 2276THBYY-52
Part code X3018108120 X3018105031 X3018109510 3018105031
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. XXXXX350V/5 µF XX
Part code XXXXX400EL15110 XX
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X300V/7 µF XXXXX
Part code X386100400 XXXXX
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X200V/100 µF XXX290V/50 µF X
Part code X3016400100 XXX4124G62020 X
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X140V/100 µF XXXX
Part code X XXXX

5. F-FAN MOTOR
6. DEFROST HEATER
7. LAMP ASSEMBLY
8. DEFROST TIMER (FR-440M)
9. PCB TRANSFORMER (FR-440P)
10. MAIN PCB ASSEMBLY (FR-440P)
11. DRYER
9
Refrigerant R12 R134a
Spec. 10 g 15 g
Part code 3016800103 3016801100
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X3210DWNFH-2 3210DWNFF-23210DWNFD-13210DWNFI-1
Part code
X401VB42021 401VA42021 4017G24502 401UB42021
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X148W 148W
Part code
X400EL22311 400EL22211
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X10W 13W
Part code
X4019S15200 400EL20111
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. XTMDEX09UA1 TMDEX09UC1
Part code X3018101200 3018100300
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Part code
X5EPK041506 5EPK041504 5EPK041507 X5EPK041030 5EPK041504
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Part code
X5EPK041506 5EPK041504 5EPK041507 5EPK041508
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. XP717
Part code
X3014300920 3014300930
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. XP717
Part code
X3014300940 3014300910

10
POWER CORD SPECIFICATION
NO SHAPE OF POWER CODE PART CODE DESCRIPTION REMARK
13011315000 CP-2PIN FOR EUROPEAN COUNTRY
2401RA17200 CP-2PIN FOR OTHER COUNTRY
34006D17101 KP-30 FOR AMERICA
4401PD17101 KP-211 FOR JAPAN & TAIWAN
53011300801 BP-3PIN
63011303010 #267 FOR CHILE
73011315310 FOR ISRAEL
83011303050 BS-1363A FOR U.K, MIDDLE ASIA
SINGAPORE & MALAYSIA
93011301200 KP-551/550 FOR CHINA & AUSTRALIA
* Upper power cord’s part code is only for lead wire, without any kinds of terminal or housing.

11
1. ASSEMBLY URETHAN FREEZER DOOR
9. DOOR COLOR SPECIFICATION
1) FR-440M
2) FR-440P
2. ASSEMBLY URETHAN REFRIGERATOR DOOR
Refrigerant R12 R134a
Color type Dull lamina High glossy Normal PCM High glossy Dull lamina High glossy Normal PCM High glossy
sheet lamina sheet bright PCM sheet lamina sheet bright PCM
Part code XPFDT1UH060 XXXPFDT1UH065 XX
Refrigerant R12 R134a
Color type Dull lamina High glossy Normal PCM High glossy Dull lamina High glossy Normal PCM High glossy
sheet lamina sheet bright PCM sheet lamina sheet bright PCM
Part code XPHDT1UH190 XXXPFDT1UH195 XX
Refrigerant R12 R134a
Color type Dull lamina High glossy Normal PCM High glossy Dull lamina High glossy Normal PCM High glossy
sheet lamina sheet bright PCM sheet lamina sheet bright PCM
Part code XPFDY2UH060 XXXPFDY2UH065 XX

12

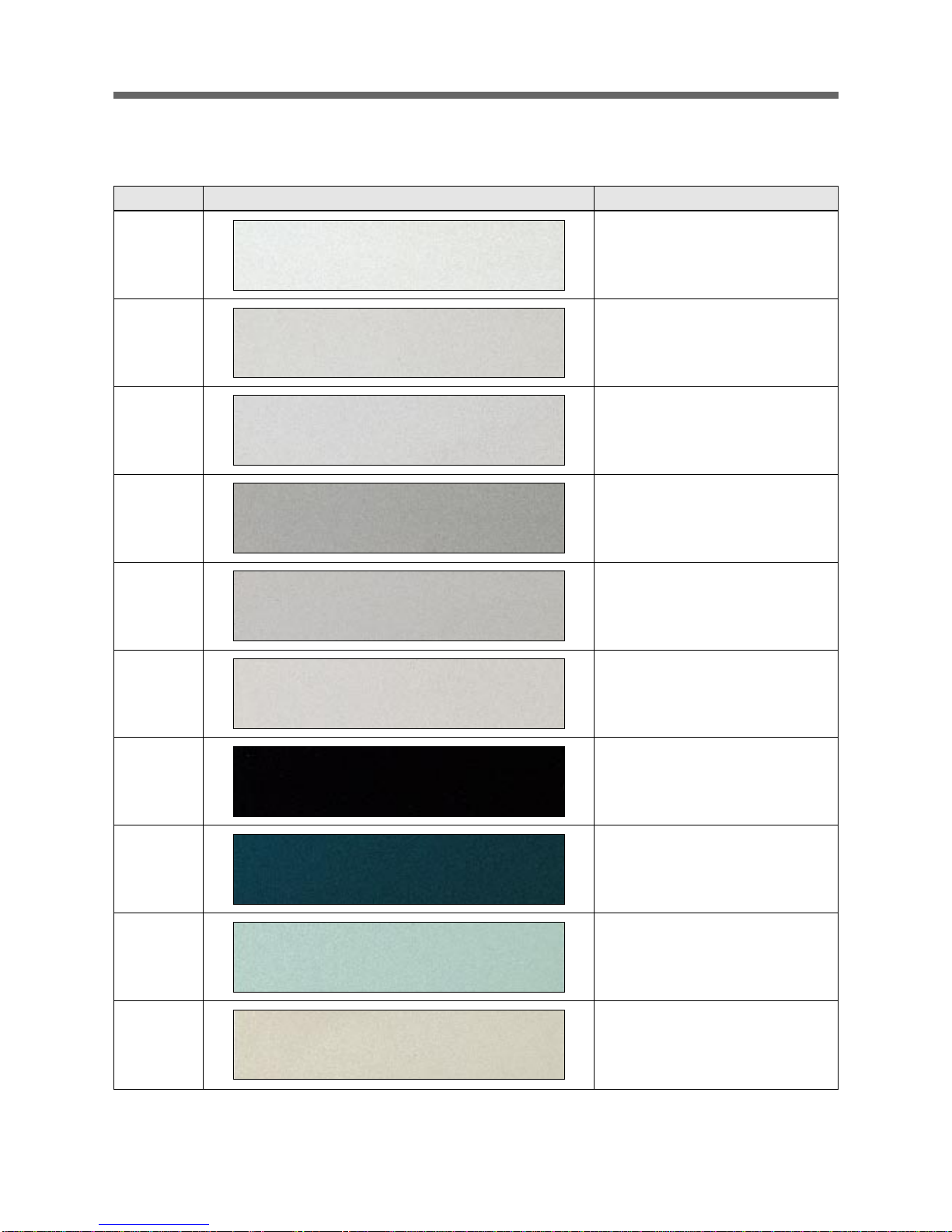

COLOR TABLE
1. PCM type
NO COLOR CHIP COLOR NAME
1P/WITH (WH069)
2'94 L/GRAY (GY158)
3'95 L/GRAY (GY259)
4'94 M/GRAY (GY331)
5'95 M/GRAY (GY335)
6'97 M/GRAY (GY267)
7M. D/GRAY (GY750)
8N/BLUE (BL718)
9MINT GREEN (GN206)
10 '97 BEIGE (BE215)

13
2. Lamina sheet type
NO COLOR CHIP COLOR NAME
1P/WITH (WH069)
2'94 L/GRAY (GY158)
3'95 L/GRAY (GY259)
4'94 M/GRAY (GY331)
5'95 M/GRAY (GY335)
6'97 M/GRAY (GY267)
7M. D/GRAY (GY750)
8N/BLUE (BL718)
9MINT GREEN (GN206)
10 S/GOLD
11 G/GREEN

10. EXPLODED VIEW AND PARTS LIST
14
1. FR-440
1. Exploded views

15
2.Partslist
NO PART CODE PART NAME DESCRIPTION QUANTITY REMARK
1ASSY URT CAB 1
24018G54120 PIPE DRN AL T1.0 1
34018G45110 GUIDE DRN AL 1
4HTR GLASS TUBE AS 1REFER TO # 9
54017Z73570 COVER DEFR HTR *T AL 1
64017Z73580 COVER DEFR HTR *U AL 1
73017044800 EVA FIN SAS 1
83018111100 SWITCH BIMTL AS 1
9400EL21213 FUSE TEMP AS 1
10 4017Z90590 FIXTURE FUSE TEMP PP 1
11 4017Z40622 FOOT *F ASS 2
12 4017Z40192 ADJ FOOT AS PP 2
13 3010302800 BASE COMP 1
14 3010100201 ABSORBER COMP NR H=40 4
15 3014504001 PLATE AXCON AS SGCC 1
16 COMPRESSOR 1REFER TO # 8
17 SWITCH P RELAY AS 1REFER TO # 8
18 4019H09030 SPECIAL WASHER SWRH 4
19 3012900640 HINGE *M AS ZN DC-2 1
20 3016000220 SPECIAL SCREW M6X16 SWCH22A 2
21 3010023400 SWITCH DR AS 1
22 MOTOR FAN AS 1REFER TO # 9
23 4017Z42312 FAN ABS 1
24 4017Z28490 COVER M/PCB PP 1
25 3010501600 BOX CONTL AS 1
26 3010500403 BOX CONTL HIPS 1
27 3018300401 THERMOSTAT 1
28 4017G31041 KNOB C/S ABS 1
29 401QA26000 ASSY R/DAMPER 1
30 4010Y26030 INSULATOR DAMP B F-PS 1
31 4010Y21300 DAMPER R AS D-704 1
32 4010C31261 INSULATOR DAMP A F-PS 1
33 4017Z18180 KNOB ABS 1
34 4010Y22130 COVER DAMP HIS 1
35 3017901410 SOCKET LAMP AS 1
36 4010Y75203 MULTI DUCT AS 1
37 4010Y75213 DUCT MULTI HIPS 1
38 4010Y75221 INSULATOR M/F DUCT F-PS 0.033 1
39 LAMP AS 1REFER TO # 9

16
NO PART CODE PART NAME DESCRIPTION QUANTITY REMARK
40 4017Z87570 SHADE R HC-2 1
41 4010C75252 LABEL DUCT PC T0.17 1
42 DRYER AS 1REFER TO # 9
43 ASSY URT *T DOOR 1REFER TO # 11
44 4018G35011 POCKET F *T HC-2 2
45 4018Z46017 LINER F DR ABS 1. 4 X 682 X 1116 1
46 4010Y47100 GASKET F DR AS PVC-S+NR+MAGNET 37 1
47 4010G51402 HINGE *T AS SPHC 1
48 3016000301 SPECIAL SCREW M5X14 S1018C ZN5 MICRO 3
49 4010G51455 COVER *T HI PP 42 1
50 ASSY URT *U DOOR 1REFER TO # 11
51 4010Y47200 GASKET R DR AS PVC-S+NR+MAGNET 37 1
52 4018Z37018 DR INL R ABS 1.4X682X1138 1
53 3012900401 HINGE *U AS MF-ZN5-C 1
54 3016000600 SPECIAL SCREW M6X20 4
55 4017Z91110 CASE VAPORI PP 1
56 3011413001 COVER V/CASE AS 1
57 4017Z97171 CASE EGG 2
58 4018G35113 POCKET EGG HIPS 2
59 4017Z68414 POCKET BOTL HIPS 2
60 4010E30312 CASE CHILD 1
61 3011703201 DOOR CHILD AS 1
62 4017Z99112 CASE ICE HC-2 1
63 4018G30011 CRISPER HC-2 1
64 4010E55211 SHELF R GPS 2
65 4010Y44515 COVER PLT *F PP 1
66 4010G56011 CASE ICING PE-HD 1
67 4018Z75502 INSULATOR F LUVR AS 1
68 4018Z75115 LOUVER F PP 1
69 4017Z1068A COVER MECH ROOM PP (JI-36) 1
70 4010E55112 SHELF F 1

17
2. FR-440P
1.Explode view

18
2.Partslist
NO PART CODE PART NAME DESCRIPTION QUANTITY REMARK
1ASSY URT CAB 1REFER TO # 75
24018G54120 PIPE DRN AL T1.0 1
34018G54110 GUIDE DRN AL 1
4HTR GLASS TUBE AS 1REFER TO # 62
54017Z73570 COVER DEFR HTR *T AL 1
64017Z73580 COVER DEFR HTR *U AL 1
73017044800 EVA FIN SAS 1
8400EL30141 SENSOR TEMP AS FD10 1
93012001102 FIXTURE TEMP SENS PP 1
10 400EL21213 FUSE TEMP AS 1
11 4017Z90590 FIXTURE FUSE TEMP PP 1
12 4017Z40622 FOOT *F ASS 2
13 4017Z40192 ADJ FOOT AS PP 2
14 3010302800 BASE COMP 1
15 3010100201 ABSORBER COMP NR H=40 4
16 3014504001 PLATE AXCON AS SGCC 1
17 COMPRESSOR 1REFER TO # 61
18 SWITCH P RELAY AS 1REFER TO # 61
19 4019H09030 SPECIAL WASHER SWRH 4
20 TRANSFORMER PCB 1REFER TO # 62
21 3012900640 HINGE *M AS ZN DC-2 1
22 3016000220 SPECIAL SCREW M6¡¿16 SWCH22A 2
23 3010023400 SWITCH DR AS 1
24 MOTOR FAN AS 1REFER TO # 62
25 4017Z42312 FAN ABS 1
26 PCB MAIN AS 1REFER TO # 62
27 4017Z80430 FIXTURE M/PCB PP 1
28 4017Z28490 COVER M/PCB PP 1
29 401QA26000 ASSY R/DAMPER 1
30 4010Y26030 INSULATOR DAMP B F-PS 1
31 4010Y21300 DAMPR R AS D-704 1
32 4010C31261 INSULATOR DAMP A F-PS 1
33 4017Z18180 KNOB ABS 1
34 4010Y22130 COVER DAMP HIS 1
35 3017901410 SOCKET LAMP AS 1
36 4010Y75203 MULTI DUCT AS 1
37 4010Y75213 DUCT MULTI HIPS 1
38 4010Y75221 INSULATOR M/F DUCT F-PS 0.033 1
39 LAMP AS 1REFER TO # 62
✔ Caution : In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list.
So, if you need the latest parts information, please refer to PPL (Parts Price List) in Service Information Center
(http://svc.dwe.co.kr)
