Daewoo FR-631ND User manual

Service Manual
Refrigerator
Model: FR-631ND
FR-710ND
DAEWOO ELECTRONICS CO., LTD.
http://svc.dwe.co.kr Feb. 2001
S/M No. : FR631ND011
✔ Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).

1
SAFETY AND PRECAUTIONS
1) For starters, be sure to check any chances of the leakage of electricity
2) You could handle a part in the vicinity of electricity after unplugging
3) You should put on rubber glovers to prevent an electric shock on operation test
4) Make sure the rated current, voltage, capacity before using an instrument
5) Keep your wet hands away from the metal goods in the freezer compartment not to be frostbitten
6) Be careful not to let water to permeate the electric part in the machine room
7) with the door open during your working, you might be damaged by that door
8)
You should give a tilt to the refrigerator for your safe after removing the breakable goods inside the refrigerator
9) You'd better use cotton gloves if you fix it up around the evaporator
TABLE OF CONTENTS
1. EXTERNAL VIEWS .........................................................................................................................................................2
1-1. EXTERNAL SIZE ...........................................................................................................................................2
1-2. NAME OF PARTS.........................................................................................................................................2
2. SPECIFICATIONS...........................................................................................................................................................3
2-1. OUTLINE........................................................................................................................................................3
2-2. ELECTRIC PARTS........................................................................................................................................3
2-3. POWER CORD..............................................................................................................................................8
2-4. DOOR COLOR...............................................................................................................................................9
3. DIAGRAM...................................................................................................................................................................... 10
3-1. WIRING DIRGRAM......................................................................................................................................10
3-2. CIRCIT DIAGRAM........................................................................................................................................11
3-3. AIR FIOW DIAGRAM...................................................................................................................................12
3-4. REFRIGENT CYCLE DIAGRAM..................................................................................................................13
4. EXPLODED VIEW AND PARTS LIST...........................................................................................................................14
4-1. TOTAL EXPLODED VIEW...........................................................................................................................14
4-2. TOTAL PARTS LIST....................................................................................................................................15
4-3. MACHINE ROOM EXPLODED VIEW AND PARTS LIST............................................................................19

2
1. EXTERNAL VIEWS
1-1. EXTERNAL SIZE
model FR-631ND FR-710ND
A 590 650
1-2. NAME OF PARTS
1Freezer Compartment Lamp
2Shelf Ffreezer
3Case Icing
4Guide Icing
5Ice Box
6Refrigerator Compartment Lamp
7Cover Cubic Duct
8Fresh Case
9Shelf Refrigerator
0Deodorant
qCover Vegetable
wCase Vegetable(B)
eCase Vegetable(A)
rGuide Vegetable
tFront Grille
yAdjustable Foot
uFreezer Pocket Top
iFreezer Pocket Under
oEgg Pocket
pEgg Tray
aGuide Bottle
sBottle Pocket
dMulti Pocket
fMulti Pocket
125
62
16
96 1084 10 589
1817.4
38.4
52
1.1
A
105
732
820 17.3
650
12
810
820
A
u
1
2
3
4
5
6
7
8
9
0
q
w
e
r
t
y
i
p
d
a
s
f
o

3
DIVISION CONTENTS
MODEL NAME FR-631ND FR-710ND
FREEZER 138 156
USABLE CAPACITY (L) REFRIGERATOR 366 398
TOTAL 504 554
WIDTH 818 818
EXTERNAL DIMENSION( mm) DEPTH 752 812
HEIGHT 1818 1818
REFRIGENT R12 125
R134a 110
COOLING SYSTEM Fan Cooling System
COOLING &CONTROL SYSTEM DEFROST SYSTEM Fin Evaporator Forced
DEFORST CONTROL Automatic Start & Stop
NET WEIGHT (kg) 85 95
2. SPECIFICATIONS
2-1. OUTLINE
1) COMPRESSOR
2-2 ELECTRIC PARTS
REFRIGERANT R12
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
SL KL
COMP MODEL X X X X SL28YE-5 X PL23YH-4 SL28YE-5 SL28YE-5
PART CODE 3954128A50 3956125G40 3954128A50 3954128A50
STARTING TYPE RSIR RSCR RSIR RSIR
MAIN COIL A9RESISTANCE
AUX. COIL RESISTANCE
REFRIGERANT R134a
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
PL KL
COMP MODEL X HBL25YG-3 X X HPL26YH-5 X X HPL26YH-5 HPL26YH-5
PART CODE3952125R30 3952125R30 3956126S50 3956126S50 3956126S50
STARTING TYPE CSR RSCR RSCR RSCR
MAIN COIL A9RESISTANCE
AUX. COIL RESISTANCE

4
2) RELAY
REFRIGERANT R12
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
SL KL
ASSY TYPE NAME X X X X
276THBYY-52 X 181SHBYY-52 276THBYY-52 276THBYY-52
PART CODE 3018119350 3018116610 3018119350 3018119350
C-RELAY RESIS-TANCE
PART CODE
PTC RESIS-TANCE S220 S330 S220 S220
PART CODE
OVER LOAD PART CODE 276THB 181SHB 276THB 276THB
REFRIGERANT R134a
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
PL KL
ASSY TYPE NAME X
783NHBZZ-52 XX 197NHBYY-52 XX 197NHBYY-52 197NHBYY-52
PART CODE 3018119390 3018119920 3018119920 3018119920
C-RELAY RESIS-TANCE
PART CODE
PTC RESIS-TANCE S220 S330 S330 S330
PART CODE
OVER LOAD PART CODE 783NHB 197NHB 197NHB 197NHB
REFRIGERANT R12
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
SL KL
PART CODE
RATED VOLTAGE
RATED CAPACITANCE
REFRIGERANT R134a
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
PL KL
PART CODE 3016400100
RATED VOLTAGE 200V
RATED CAPACITANCE 100µF
3) STARTING CAPACITOR

5
REFRIGERANT R12
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
SL KL
PART CODE 400EL15110
RATED VOLTAGE 350V
RATED CAPACITANCE 5µF
REFRIGERANT R134a
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
PL KL
PART CODE 3816800400 3016401900 3016401900 3016401900
RATED VOLTAGE 300V 400V 400V 400V
RATED CAPACITANCE 7µF 4µF 4µF 4µF
4) RUNNING CAPACITOR
REFRIGERANT R12, R134a
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
SL KL
TYPE NAME DL-2213DWFA DL-2213DWFA DL-2213DWFA DL-2213DWFA DL-2213DWFA DL-2213DWFA DL-2213DWFA DL-2213DWFA DL-2213DWFA
PART CODE 3015905300 3015905300 3015905300 3015905300 3015905300 3015905300 3015905300 3015905300 3015905300
REVOLUTION 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM
5) F-FAN MOTOR
6) R-FAN MOTOR
REFRIGERANT R12, R134a
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
SL KL
TYPE NAME DL-2213DWRA DL-2213DWRA DL-2213DWRA DL-2213DWRA DL-2213DWRA DL-2213DWRA DL-2213DWRA DL-2213DWRA DL-2213DWRA
PART CODE 3015906900 3015906900 3015906900 3015906900 3015906900 3015906900 3015906900 3015906900 3015906900
REVOLUTION 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM
7) C- FAN MOTOR
REFRIGERANT R12, R134a
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
SL KL
TYPE NAME S6111EEC05 S6111NEC04 S6111CEC05 S6111GEC05 S6111CEC05 S6111CEC05
PART CODE 3015909900 3015910100 3015909800 3015910000 3015909800 3015909800
REVOLUTION 2100RPM 2100RPM 2100RPM 2100RPM 2100RPM 2100RPM

6
9) LAMP ASSEMBLY
REFRIGERANT R12, R134a
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
SL KL
SPEC (W) 15W 15W 15W 15W 15W 15W 15W 15W
PART CODE 3013600050 3013600050 3013600050 3013600010 3013600020 3013600020 3013600020 3016800020
COLOR
8) DEFROST HEATER
REFRIGERANT R12, R134a
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
SL KL
SPEC (W) 180W 180W 180W 180W 180W 180W 180W
PART CODE 3012803210 3012803210 3012803210 3012803200 3012803200 3012803200 3012803200
10) MAIN PCB ASSEMBLY
REFRIGERANT R12,R134a
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
SL KL
TYPE NAME Y200 Y200 Y200 Y200 Y200 Y200 Y200 Y200
PART CODE 3014385020 3014385020 3014385020 3014385020 3014385020 3014385020 3014385020
11) DRYER
REFRIGERANT R12 R134a
SPEC (g) 10g 15g
PART CODE 3016805300 3016805610
12) THERMO FUSE
REFRIGERANT R12,R134a
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
SL KL
OPERATING 77°C 77°C 77°C 77°C 77°C 77°C 77°C 77°C
TEMPERATURE
PART CODE 3017200500 3017200500 3017200500 3017200500 3017200500 3017200500 3017200500 3017200500

7
13) DOOR S/W
REFRIGERANT R12,R134a
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
SL KL
TYPE NAME
PART CODE 3018100010 3018100010 3018100010 3018100010 3018100010 3018100010 3018100010
14) F-SENSER
REFRIGERANT R12,R134a
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
SL KL
TYPE NAME
PART CODE 3014801501 3014801501 3014801501 3014801501 3014801501 3014801501 3014801501 3014801501
15) R-SENSER
REFRIGERANT R12,R134a
VOLTAGE (V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
SL KL
TYPE NAME
PART CODE 3014801601 3014801601 3014801601 3014801601 3014801601 3014801601 3014801601 3014801601

8
2-3. POWER CORD
NO SHAPE OF POWER CORD PART CODE DESCRIPTION REMARK
1 3011315000 CP-2PIN For european country
2 401RA17200 CP-2PIN For other country
3 4006D17101 KP-30 For America & El Salvador
4 401PD17101 KP-211 For Japan & Taiwan
5 3011300801 BP-3PIN
6 3011303010 # 267 For Chile
7 3011315310 For Israel
8 3011303050 BS-1363A
9 3011301200 KP-551/550 For China & Australia
"For U.K, Middle Asia
Singapore & Malaysia"

9
2-4. DOOR COLOR
1) ASSEMBLY URETHAN FREEZER DOOR
1NON-KEY TYPE
Refrigerant
COLORTYP
PARTCODE
Embo
PCM
3010024400
High-glossy
Laminasheet Normal PCM High-glossy Bright PCM Embo PCM
3010024410
High-glossy
Laminasheet Normal PCM
3010024420
High-glossy
Bright PCM
R12 R134a
2) ASSEMBLY URETHAN REFRIGERATOR DOOR
1NON-KEY TYPE
Refrigerant
COLORTYP
PARTCODE
Embo
PCM
3010026300
High-glossy
Laminasheet Normal PCM High-glossy Bright PCM Embo PCM
3010026330
High-glossy
Laminasheet Normal PCM
3010026340
High-glossy
Bright PCM
R12 R134a
Refrigerant
COLORTYP
PARTCODE
Embo
PCM
3010024400
High-glossy
Laminasheet Normal PCM High-glossy Bright PCM Embo PCM
3011124410
High-glossy
Laminasheet Normal PCM
3010024420
High-glossy
Bright PCM
R12 R134a
2KEY TYPE
Refrigerant
COLORTYP
PARTCODE
Embo
PCM
3010026320
High-glossy
Laminasheet Normal PCM High-glossy Bright PCM Embo PCM
3010026350
High-glossy
Laminasheet Normal PCM High-glossy Bright PCM
R12 R134a
2KEY TYPE

10
3. DIAGRAM
3-1. WIRING DIAGRAM

11

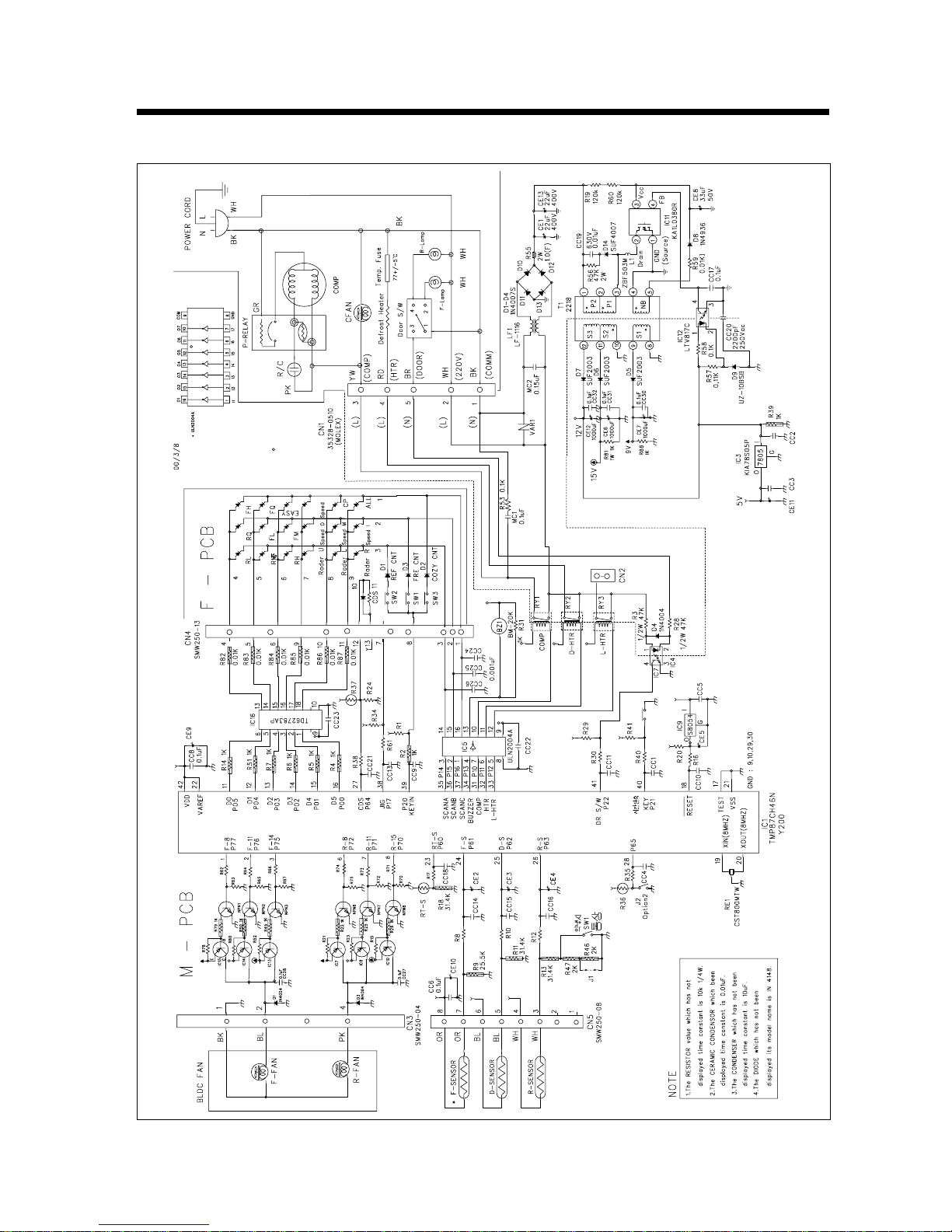

3-2. CIRCUIT DIAGRAM
AC INPUT

12
3-3. AIR FLOW DIAGRAM
Freezer pocket
Please don’t put long term storing
items such as ice cream etc.
It might be melted because of
opening the door freguently.
Freezer
Pleas don’t put bottles such as beer,
beverage etc.
It might be broken because of freezing
Chilled room
It is good for the storage of fishes
and meats.
Crisper
It is suitable to store vegetable and fruit.
The moisture panel which is attached to
the cover humidity properly.
Vegetable and fruit would be better to
Multiple outlet of cooling air.
Please don’t put in vegetable etc. which
contain moisture. It might be frozen
because of low temperature.
Inlet of cooling air
It should not be blocked with
food etc. as it is the inlet
where cooling air returns.

13
3-4. REFRIGRANT CYCLE DIAGRAM
C
O
M
P
R
E
S
S
O
R
W
I
-
C
O
N
H
O
T
P
I
P
E
D
R
Y
E
R
E
V
A
P
O
R
A
T
O
R
A
C
C
U
M
U
L
A
T
O
R
S
U
C
P
I
P
E
P
I
P
E
C
O
N
S
C
A
P
I
L
L
A
R
Y
T
U
B
E

14
4. EXPLODED VIEW AND PARTS LIST
4-1. TOTAL EXPLODED VIEW

15
4-2 TOTAL PARTS LIST
NO PART CODE PART NAME PART DESCRIPTION Q'TY REMARK
1-1 3010019900 ASSY CAB URT 5080NB 1 5080NB
1-2 3010022800 ASSY CAB URT 5580NB 1 5580NB
2 3012905400 HINGE *T T2.3 SCP1 1
3 3011429000 COVER *T HI PP 1
4 3016001230 SPECIAL BOLT T/U M6X22 MFZN 4
5 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN 5
6 3011425300 COVER M-PCB BOX PP VO 1
7 400EL15110 CAPACITOR RUN 1
9 3010511700 BOX M-PCB PP 1
10 PCB MAIN AS Y200 1
11 3012712501 HARNESS RUN CONN 1
3012905801 HINGE *M AS 1
12 3012905501 HINGE *M T3.2 PO 1
13 3014901820 SHAFT *M HI S20C 1
14 3016001230 SPECIAL BOLT M T1 TRS 4X12 MFZN 3
15 3011424700 COVER *M HI 1
16 3012905600 HINGE *U 1
17 3016005300 SPECIAL WASR 1
18 3016001230 SPECIAL BOLT T/U T1 TRS 4X22 MFZN 3
19 3016500720 CASTER F *L AS 1
20 3016000700 SPECIAL SCREW M5x15 2
21 3012102501 FOOT ADJ *L AS 1
22 3016500820 CASTER F *R AS 1
23 3012101501 FOOT ADJ AS 1
24 3011448600 COVER CAB BRKT PP 1
25 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN 2
26 CORD POWER AS 1
27 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN 7
29 3013202400 HOSE DRN AS PP 1
30 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN 6
31 3012400901 GRILL 1
32 3014423320 COIL CON AS 1
33 3010102100 ABSORBER C MOTR 1
34 3012004400 FIXTURE C MOTOR 1
35 MOTOR C AC 2100RPM 1
36 3011800400 FAN 1
37 3011200500 CLAMP FAN 1
39 DRYER AS 1
40 3011113610 CASE VAPORI PP 1
41 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN 2
42 COMPRESSOR 1
✔ Caution : In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list.
So, if you need the latest parts information, please refer to PPL (Parts Price List) in Service Information Center
(http://svc.dwe.co.kr)

16
NO PART CODE PART NAME PART DESCRIPTION Q'TY REMARK
43 3016002500 SPECIAL WASR SK-5 1
44 SWITCH P-RELAY AS 1
45 3012610000 RELAY BAND SK-5 1
46 3010309101 BASE COMP AS 1
47 3016003300 SPECIAL BOLT MFZN 4
48 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN 2
3018908000 LOUVER F B AS 1
49 3012007800 FIXTURE MOTR A PP 2
50 3015906900 MOTOR R DC MOTOR 1
51 3015905300 MOTOR F DC MOTOR 1
52 3018908000 LOUVER F B 99«¸ 1
53 3014524800 PLATE SENS 1
54 3011800400 FAN ABS 2
54 3018904201 LOUVER F B PP 1
3018909300 LOUVER F A AS 1
55 3013335100 INSU F LUVR A 1
56 3018909300 LOUVER F A HIPS 1
57 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN 4
58 3010924600 CAP F LUVR 1
59 3017820900 SHELF F AS HIPS(FR-631ND) 1
59-1 3017820920 SHELF F AS HIPS(FR-710ND) 1
60 3010621500 BRACKET F SHELF 1
61 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN 3
62 3011110200 CASE ICING PP 2
3010519500 BOX ICE AS 1
63 3012603400 HANDLE ICE BOX ABS 1
64 3011415500 COVER ICE BOX GPPS 1
65 3010519600 BOX ICE HIPS 1
66 3012003800 FIXTURE F LAMP 1
67 3017900840 SOCKET F LAMP AS 1
68 LAMP AS 1
69 3015502600 WINDOW F PP 1
70 3018100040 SWITCH DR 1
3012508700 GUIDE V/CASE *M AS 1
71 3012505600 GUIDE V/CASE *M 1
72 3015304100 SUPPORTER ROLL B 1
73 3014904300 SHAFT ROLLER
74 3011110400 CASE VEGETB *L A 1
75-1 3011110700 CASE VEGETB *L B HIPS(FR-631ND) 1
75-2 3011110800 CASE VEGETB *L B HIPS(FR-710ND) 1
76-1 3011428701 COVER V/CASE SAN(FR-631ND) 1

17
NO PART CODE PART NAME PART DESCRIPTION Q'TY REMARK
76-2 3011428601 COVER V/CASE SAN(FR-710ND) 1
77 3011110500 CASE VEGETB *R A 1
78-1 3011111000 CASE VEGETB *R B HIPS(FR-631ND) 1
78-2 3011113400 CASE VEGETB *R B HIPS(FR-710ND) 1
79 3014700200 ROLLER V/CASE *R / *L = 2 / 2 4
80 3015303300 SUPPORTER ROLL *R / *L = 2 / 2 4
81-1 3017815010 SHELF R *U AS GLASS(FR-631ND) 1
81-2 3017813110 SHELF R *U AS GLASS(FR-710ND) 1
82-1 3011111310 CASE CHILD SAN(FR-631ND) 1
82-2 3011111510 CASE CHILD SAN(FR-710ND) 1
83-1 3017814910 SHELF R *T AS GLASS(FR-631ND) 1
83-2 3017812610 SHELF R *T AS GLASS(FR-710ND) 1
84 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN 2
85 3012507020 GUIDE *L AS 1
85-1 3012505000 GUIDE V/CASE *L 1
85-2 3014700300 ROLLER A 4
85-3 3016003700 SPECIAL WASR 1
85-4 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN 1
86 3012507100 GUIDE *R AS PA-6 1
87 7112401611 SCREW TAPPING TRS 4X16 MFZN 4
88 3014228300 PANEL R *T FR-710ND 1
89 3011428900 COVER CUBIC DUCT ABS 4
3018904500 LOUVER R *S *L AS
90 3018904300 LOUVER R *S *L PP 1
91 3013324301 INSULATOR R *S *L F-PS 1
92 7112401611 SCREW TAPPING TRS 4X16 MFZN 2
3018908410 LOUVER R *S *R AS 1
93 3018904400 LOUVER R *S *R PP 1
94 3013324401 INSULATOR R *S *R F-PS 1
95 3010916800 CAP RETUN DUCT ABS 2
96 3011900600 FILTER DEO CUBIC 6
97 3018701400 DEODRANT ANTI CUBIC 6
98 3015502800 WINDOW R GPPS 1
99 LAMP AS 2
100 3017901010 SOCKET R LAMP AS 250 [V] / 1 [A] 1
101 7112401611 SCREW TAPPING TRS 4X16 MFZN 2
102 3011416800 COVER RETUN DUCT PP 1
103 3019012600 POCKET SM HIPS 1
104 3019012700 POCKET JUMBO HIPS 1
104-1 3019012800 POCKET MULTI HIPS 2
105 3012509000 GUIDE JUMBO POCKET AS ABS 1

18
NO PART CODE PART NAME PART DESCRIPTION Q'TY REMARK
106 3019012500 POCKET EGG HIPS 1
106-1 3019012400 POCKET FRESH HIPS 1
106-2 3011448400 COVER FRESH POCKET GPPS 1
107 3011161500 CASE EGG GPPS 1
108 3012307620 GASKET R DR AS PVC-S 1
109 3019012300 POCKET F *U HIPS 1
110 3019012200 POCKET F *T HIPS 2
111 3012307520 GASKET F DR AS PVC-S 1
112 ASSY F DR 1
113 ASSY R DR 1
114 3012610900 HANDLE F ABS 1
115 7002501611 SCREW MACHINE TRS 5X16 MFZN 2
116 3011609100 DECO F DR HNDL ABS 1
117 3012611000 HANDLE R ABS 1
118 7002501611 SCREW MATCHING TRS 5X16 MFZN 2
119 3011609200 DECO R DR HNDL ABS 1
120 EMBLEM 1
121 7173301011 SCREW TAPPING TT2 BIN 3X12MFZN 2
122 3014395120 PCB *F AS Y200 1
123 3014228510 PANEL *F CONTL ABS 1
124 7125301211 SCREW TAPPING T2S FLT 3X10 MFZN 3
125 3016301100 BUTTON FCP *L 1
126 3016301200 BUTTON FCP *R 1
127 3015505110 WINDOW FCP AS 1

19
4-3. MACHINE ROOM EXPLODED VIEW AND PARTS LIST
NO PART NAME
1 BASE CAB *B
2 SCREW MACHINE
3 CORD POWER AS
4 SCREW TAPPING
5 COMPRESSOR
6 ABSORBER COMP AS
7 WASHER SPECIAL
8 BASE COMP AS
9 DRYER AS
NO PART NAME
10 CABLE TIE
11 CASE VAPORI AS
12 PIPE WI-CON AS
13 SCREW TAPPING
14 DRAIN HOSE B AS
15 SWITCH P-RELAY AS
16 BAND RELAY
17 PIPE SUC AS
NO PART NAME
18 PIPE SUC CONN
19 ABSORBER PIPE
20 PIPE MUFFLER AS
21 ABSORBER PIPE A
22 PIPE HOT
23 PIPE SERVICE
24 MOTOR C
25 FAN C AS
15 16
13
4
9
11
11
11
7
13 13
2
5
24
25 14
12
