Daewoo FRX-623B Series User manual

FPX6034501

Basic Model(B-Type)
Dispenser Model (D-Type) / Dispenser + Magic Room Model (E-Type)
MODEL INFORMATION
F/Model:FRX‐623B..
B/Modle:FRS(N)‐X22B3..
F/Model:FRX‐625B..
B/Modle:FRS(N)‐X22B5..
F/Model:FRX‐624B..
B/Modle:FRS(N)‐X22B4..
▶ Notice:FPS‐ R‐134aModel,FPN‐ R‐600aModel
Dispenser +Homebar Model (F-Type) / Dispenser+Homebar+Magic Room (G-Type)
F/Model:FPX‐603D(E)..
B/Modle:FPS(N)‐X22D(E)3..
F/Model:FPX‐604D(E)..
B/Modle:FPS(N)‐X22D(E)4..
F/Model:FPX‐605D(E)..
B/Modle:FPS(N)‐X22D(E)5..
F/M
odel :FPX
603F(G)
F/M
odel :FPX
604F(G)
F/M
odel :FPX
‐
605F(G)
F/M
odel

:

FPX
‐
603F(G)
..
B/Modle:FPS(N)‐X22F(G)3..
F/M
odel

:

FPX
‐
604F(G)
..
B/Modle:FPS(N)‐X22F(G)4..
F/M
odel

:

FPX
‐
605F(G)
..
B/Modle:FPS(N)‐X22F(G)5..
1

1. Information
242
380
538
179
Width (mm)
735
906
373
577
380
X22E(G)3..
X22E(G)4..
X22E(G)5..
Refrigerant Type
Refrigerator
Freezer 204
1770
107 kg / 109kg
R-134a or R-600a
Diemension
Total
Freezer
Refrigerator
359
906
1770
109 kg / 111kg
Storage Vol.
(ISO 15502)
228
Buyer No.
608
228
Gross Vol.
(ISO 15502)
Total
X22D(F)3..
X22D(F)4..
X22D(F)5..
549
179
Depth (mm)
Weight (kg)
1770
735
Height (mm)
98 kg
SPECIFICATIONS
380
X22B3..
X22B4..
X22B5..
608622
359
906
735
X22B.. : Basic Model ( none Hombar , none dispenser) / X22H.. : Home bar door Only
X22D.. : Dispenser Only / X22F.. : Dispenser + Home bar door
X22E : Dispenser + Change Room
X22G Di H b D Ch R
5Wx
280W
Fin Type
Compulsory Convection Type
Evaporator Type
Refrigerant Charge
Refrigerator Sensor
Dispenser Heater
Electronic Part
Refrigerator Lamp
Condenser Fan Motor
Freezer Lamp
Fuse Temp. (Defrost)
Freezer Fan Motor
Freezer Sensor
Defrost Sensor
Condenser Type
Heater
Dryer
Capillary Tube
Defrost Heater
Home Bar Heater
Water Pipe Heater
Sensor
PBN-43
LED(DC12V / 2.7W)
LED (DC12V / Basic : 1.8W , Disp. : 1.5W)
DC 13V, 1100rpm
DC 12V, 1450rpm
AC 250V, 10A, 77C
PBN-43B
PT-38
Cooling Cycle
ID0.7 x T0.55 x L2,340
190g (R-134a) or 75g (R-600a)
Molecular Sieve xH-9
5W
3W
X22G
:
Di
spenser +
H
ome
b
ar
D
oor +
Ch
ange
R
oom
2

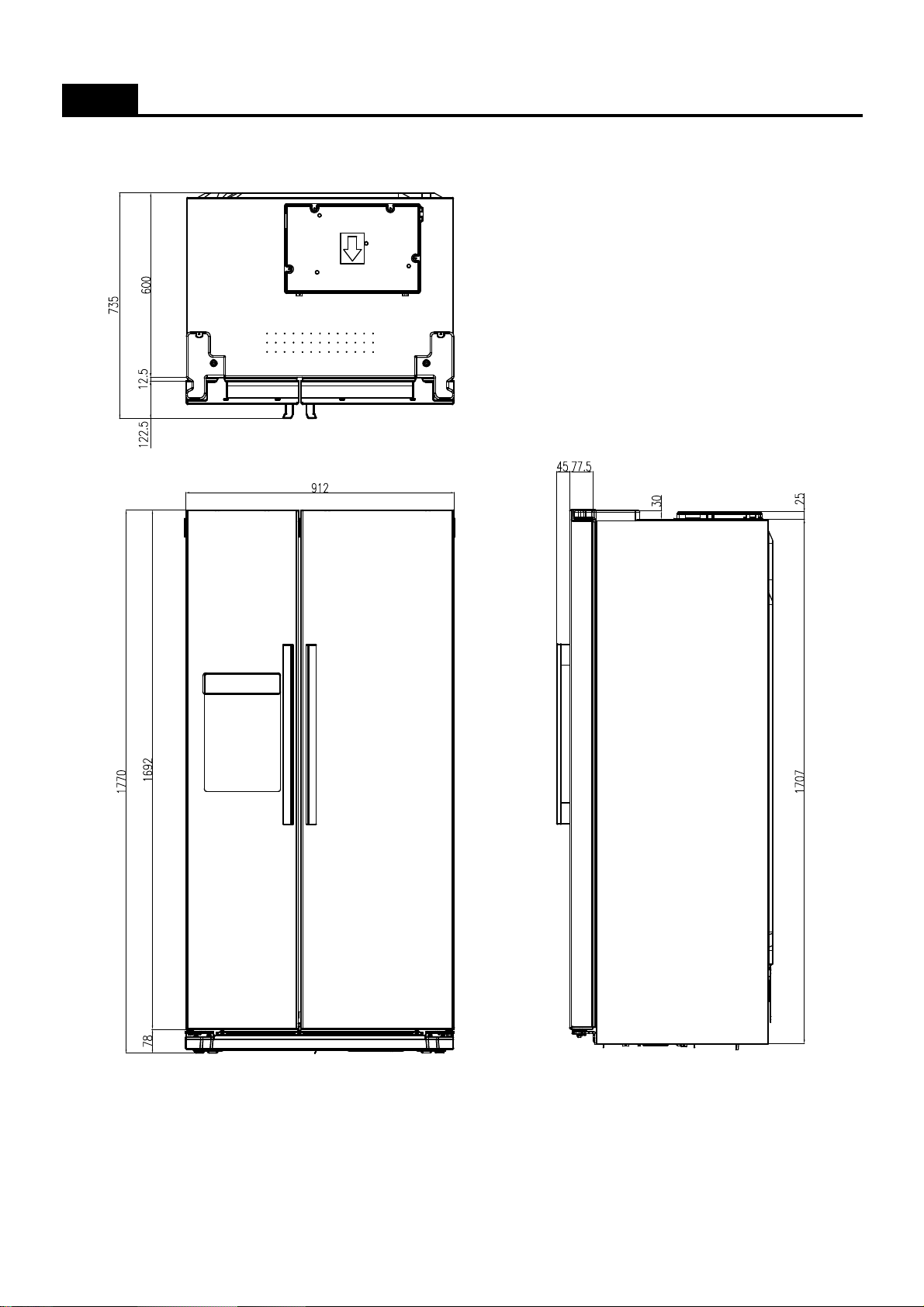

2. Outside Diemension
SPECIFICATIONS
[ The real features are model dependent ]
3

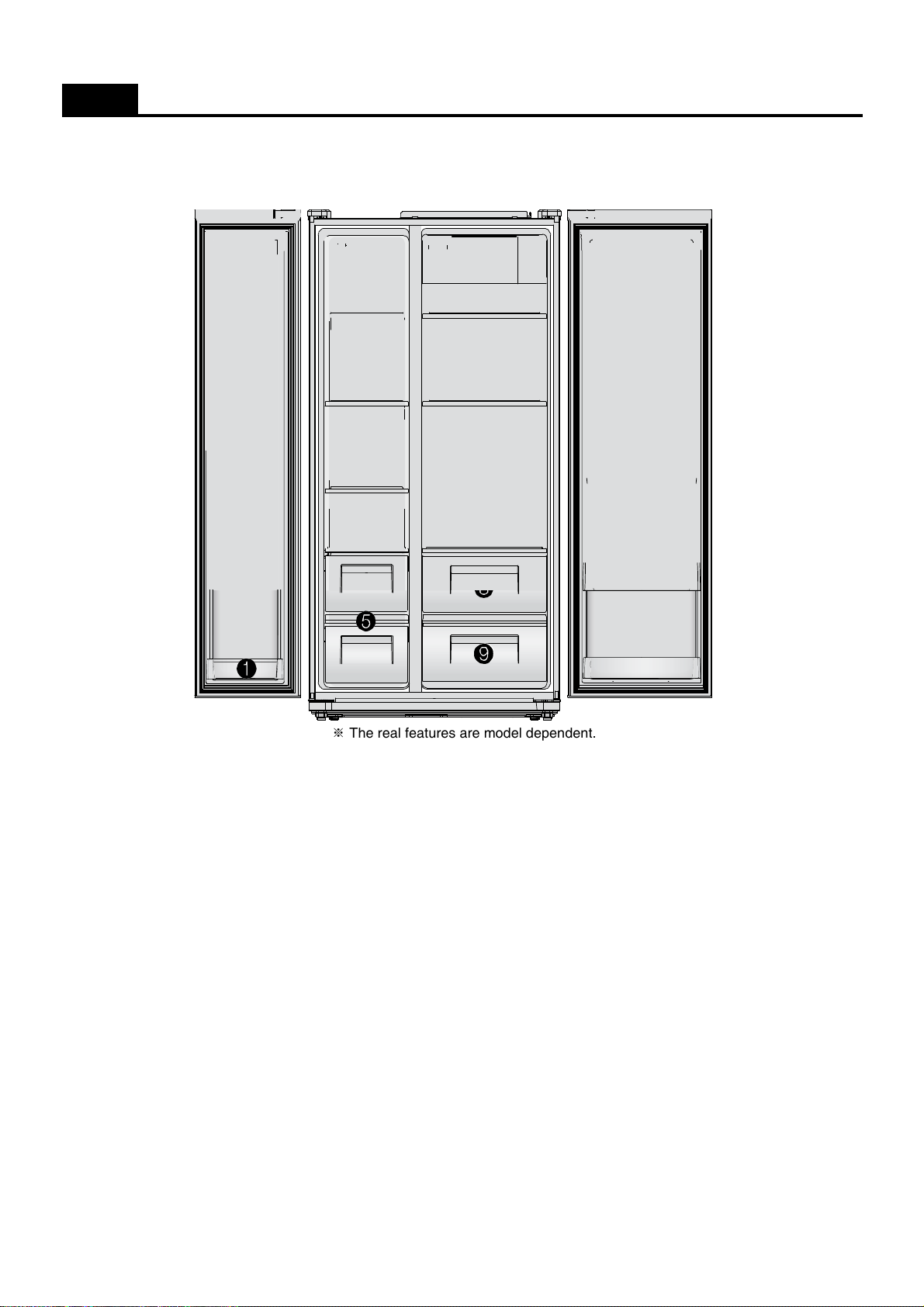

3. Interior Parts(Basic)
SPECIFICATIONS
1. Door storage compartment 6. Xpress can chiller
; for shot-term storage ; for storing beverage ( quick cooling compartment )
2. Door storage compartment 7. Refrigerator shelf
; for storing frozen food ; for storing common foods
3. Freezer shelf 8. Vegetable case
; for storing frozen food 9. Fruit case
4. Ice cube tray ; for storing cold water
5. Freezer case 10. Refreshment pocket
; for storing dried or fish, meat for ;for storing refrigerating foods. ( milk, juice, beer bottles, etc.. )
long periods of time.
※The real features are model dependent.
4

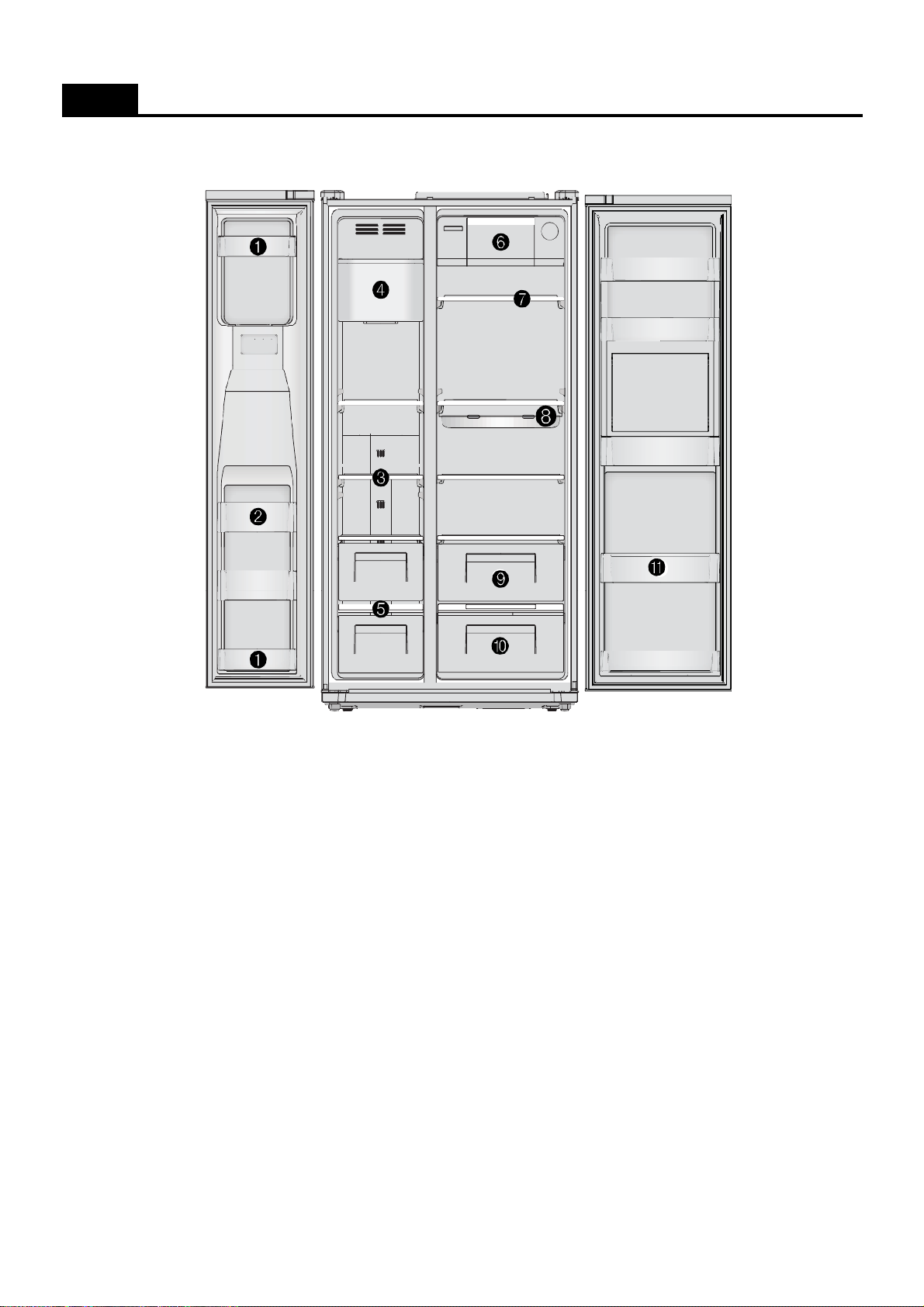

3. Interior Parts(Dispenser +H/bar)
SPECIFICATIONS
1. Door storage compartment 6. Xpress can chiller
; for shot-term storage ; for storing beverage ( quick cooling compartment )
2. Door storage compartment 7. Refrigerator shelf
; for storing frozen food ; for storing common foods
3. Freezer shelf 8. Water tank
; for storing frozen food ; for storing cold water
4. Ice maker & storage case 9. Vegetable case
5. Freezer case 10. Fruit case
; for storing dried or fish, meat for 11. Refreshment pocket
long periods of time. ; for storing refrigerating foods. ( milk, juice, beer bottles, etc.. )
※The real features are model dependent.
5

1. Display (Basic)
a Temperature adjustment button for freezer compratment.
b Lock & Unlock button.
c Temperature adjustment button for refrigerator compartment.
2. Display Control
FUNCTIONS
a
bf
e
cd
abc
3. FRZ.SET button
1) Temperature control of freezer compartment.
2) Initial power plug in : Medium ( -19C )
- Every time you press the FRZ.SET button, the setting temperature changes below order.
4.REF.SET button
1) Temperature control of refrigerator compartment
2)Initial power plug ing : Medium (4C)
- Every time you press the REF.SET button, the setting temperature changes below order.
5.Lock Mode (Childproof lock)
1) When lock the other buttons, press LOCK button.(In this mode other buttons are unable)
FCP Control
Temp.Display(Set Temp.)
Quick Freezer & Refresh Compartment
Key Lock
Initial Mode : Freezer / Refrigerator set medium ( -19C / 4C)
Button
Button
2)To unlock, press again for 3 seconds.
6

1. Display
a Temperature adjustment button for freezer compratment.
b Dispenser light button.
c Lock & Unlock button.
d Lock ice maker & cubed ice selction button.
e Temperature adjustment button for refrigerator compratment.
FUNCTIONS
a
bf
e
cd
abc
d
e
f
f Water dispenser selction button.
2. Display Control
3. FRZ.SET button
1) Temperature control of freezer compartment.
2) Initial power plug in : Medium ( -19C )
- Every time you press the FRZ.SET button, the setting temperature changes below order.
Lock ice maker / Cubed ice Button
KEY LOCK Button
FCP Control
Temp. Display (Set Temp.) Initial Mode : Freezer / Refrigerator set medium ( -19C / 4C)
Quick Freezer & Refresh Compartment Button
7

4. REF.SET button
1) Temperature control of refrigerator compartment
2) Initial power plug in : Medium ( 4C )
- Every time you press the REF.SET button, the setting temperature changes below order.
5. WATER/ICE select
1) When push the WATER button, water dispensing available.
2) When push the ICE button, cubed ice dispensing available.
3) The initial mode is WATER.
6. ICE MAKER LOCK
1) Push the 'ICE' button for 3 seconds. To unlock push the ICE button for 3 seconds.
2) Wh l i th i t h t f l i d f ti
FUNCTIONS
2)
Wh
en c
l
ean
i
ng t
h
e
i
ce storage case or w
h
en not use
f
or a
l
ong per
i
o
d
o
f
t
i
me.
7. LOCK Mode (Childproof lock)
1) When lock the other buttons, press LOCK button.
( In this mode other buttons are unable )
2) To unlock, press again for 3 seconds .
< REFERENCE >
: Please wait for 2 ~ 3 seconds in order to take final ice or drops of water when taking out cup from the pressing
switches after taking ice or water.
: The actual inner temperature varies depending on the frood status, as the indicated setting temperature is a target
temperature, not actual temperautre within refrigerator.
8

1. Freezer Compartment Control
1) Adjust by the pushing the FRZ.SET button.
2) Compressor & Freezer Fan controlled by each mode ON/OFF point.
3) Freezer Compartment ON/OFF Difference : 4C
- MEDIUM OFF point : -19.8C
4) Control Temperature Point in Each Mode
6) QUICK FREEZER ( ) Mode
In this mode Compressor & Freezer Fan motor is on unconditionally for 24hours ( free of freezer sensor )
FUNCTIONS ( Temperature Control )
Initially On 1st Press 2nd Press 3rd Press 4th Press 5th Press 6th Press 7th Press
Sensor On -15.8 -16.8 -18.8 -18.8 - -10.6 -13.9 -14.8
Sensor Off -19.8 -20.8 -22.8 -22.8 - -15.1 -17.9 -18.8
-18-21 -22
Min
-16 -17
Medium Max Max Medium Min
-22
(super)
Division
Control
Temperature Medium
Display -19
Normal
-20
-
-
In
this
mode
,
Compressor
&
Freezer
Fan
motor
is
on
unconditionally
for
24hours
.
(
free
of
freezer
sensor
)
Freezer
Sensor
Freezer
Fan On/Off
QUICK FREEZER Start NORMAL MODE
24hours
9

2. Refrigerator Compartment Control
1) Adjust by the pushing the REF.SET button.
2) Refrigerator Damper controlled by each mode ON/OFF point.
3) Refrigerator Compartment ON/OFF Difference : 0.5C
- MEDIUM OFF point : 6.0C
4) Weak Cooling Prevention Function
- This funtion is free of Freezer sensor.
- When refrigerator compartment reaches the OFF point, compressor is controlled by freezer sensor.
- Weak cooling temperautre is + 7C in each dial sensor OFF temperature.
- Weak cooling terminate temperautre is same as each dial sensor OFF temperature.
5) Control Temperature Point in Each Mode
FUNCTIONS ( Temperature Control )
Initially On 1st Press 2nd Press 3rd Press 4th Press 5th Press 6th Press 7th Press
Sensor On 6.5 5.5 4.5 - 10.5 9.5 8.5 7.5
Sensor Off
60
50
40
-
10 0
90
80
70
7
Medium Min
586
Medium Max Max Min
3
Division
Display
Normal
Temperature
42
(super)
-
2
Medium
6) QUICK REFRIGERATOR Mode ( ) : This mode runs for 40 minutes.
- Until the sensor reaches the Excess Refrigeration OFF point ( -7C), Refrigerator Damper, freezer fan and compressor is ON.
- Until the QUICK Mode ends, the appliance runs with MAX dial mode.
- After QUICK Mode ( about 40 mins ) the normal mode start.
Refrigerator
Sensor
Excess
Refrigeration
OFF point
ON/OFF
MAX MODE
NORMAL MODE
QUICK MODE (40MIN )
Sensor
Off
6
.
0
5
.
0
4
.
0
10
.
0
9
.
0
8
.
0
7
.
0
Sensor On 13.0 12.0 11.0 - 17.0 16.0 15.0 14.0
Sensor Off 6.0 5.0 4.0 - 10.0 9.0 8.0 7.0
Weak refrigeration
10

3. Fan voltage per control mode
Exerted fan motor voltage
1) Normal control : Slow operation mode with relatively low noise level.
2) Load mode : Operation mode which need to be operated by temperature rise at inner side of
refrigerator according to operating condition.
4. Load mode
1) Purpose : To recover temperature rise inside of refrigerator as quickly as possible by load or frequent door opening.
FUNCTIONS ( Fan Control )
Super Freezer mode 13 V 13 V
Normal mode 10 V 13 V
Mode F-Fan C-Fan
Load mode /
4 hours after defrosting
/
RT >= 38C
13 V 13 V
2) Operating condition
- When door opening time is more than 1 minutes per 1 time -> Frz. / Ref. go to load mode.
- When sensing more than R/S On Point + 5deg : Ref. load response.
- When sensing more than F/S On Point + 5deg : Frz. load response.
3) Conditions for inactive load response mode.
- When there is no door opening signal during and after defrost cycle, load response mode is inactive.
4) Terminate condition
- After 20 mintues.
- When Ref. sensor reaches to off point, Ref. load mode ends.
- When Frz. sensor reaches to off point, Frz. load mode ends.
11

1. When Defrost Mode start?
1) When total Compressor runnig time becomes at 10,12,14..40hours.
- Door opening time is over 2 minutes ( Each Freezer / Refrigerator door )
- Any error happens. ( R1, F1, D1, F3, RT-Sensor, C1, Door switch etc. )
- The compressor runing time is over 12 hours.
2) Total compressor running time ( on time + off time ) is 70hours.
FUNCTIONS ( Defrost Mode )
Compressor runing
time is over 2hours
Start
Total appiance runing
time is over 60 hours
Yes
No
Yes
Compressor runing
time is over 40 hours
Compressor runing
time is over 10 hours
any error happens
total door open time is
over 2 minutes
compressor is running
continuously 12hours
End
No
No
Defrost mode start
Yes
Yes
Yes
Yes
No
No
YES
No
No
12

2. Normal Defrost Mode
FUNCTIONS ( Defrost Mode )
HEATER
DEFROTING
PAUSE
FAN DELAY
1) HEATER DEFROSTING
- Defrost heater is switch on until Defrost Sensor temperature reaches 13C.
- Heater operation time
; 30 seconds - Heater is ON free of Defrost Sensor.
; 30 minutes - When Defrost Sensor is malfunction. ( D1 error )
; 60 minutes - Heater maximum operation time. ( F3 error)
2) PAUSE
- After Defrost Heater switch OFF, Compressor dosen't run within 10 minutes.
3) FAN DELAY
- Freezer & Refrigerator fan switch on after 5miunuts' cmopressor running.
Normal Mod
e
10min
30min ( D1 error )
60min ( F3 error)
Time
FAN DELAY
OFF
5min
OFFRefrigerator Fan
OFF
HEATER DEFROST
OFF
OFF
ONDefrsot Heater OFFOFF
OFF
Division
Compressor
Freezer Fan OFF
ON
PAUSE
OFF
13

1. How to enter this check mode
1) Push the LOCK button.
2) Push the LOCK button 5 times while pressing the FRZ.SET button.
2. The Front LED displays the current error code ( if happens ).
; Every time you press the Freezer Set button, the following value display.
1) The appliance running time. ( From the plug in. )
2) Freezer sensor temperature.
3) Defrost sensor temperature.
4) Refrigerator sensor temperature.
5) Room temperature.
3. How to exit this mode
1) Push the LOCK button.
2) After 4 minutes automatically exit.
Error Display ( Basic Models )
4. Error Code
No
1
2
3
4
5
6
7
8
9
10
; All Error Code reset, when the relative parts turn into normal.
Display (Error Code) Remark
F1
Freezer sensor disconnection or short
r1
Refrigerator sensor disconnection or short
rt
Room temperature sensor disconnection or short
d1
Defrost sensor disconnection or short
dr
Refrigerator Door switch is defective.
Co
Pull-Down mode display (No error)
d2
Forced Defrost mode display (No error)
dF
Freezer Door switch is defective.
C1
Abnormal or defective cycle
F3
Return after defrosting : abnormal or defective
14

1. How to enter this check mode
1) Push the LOCK button.
2) Push the WATER button 5 times while pressing the FRZ.SET button.
2. The Front LED displays the current error code ( if happens ).
; Every time you press the Freezer Set button, the following value display.
1) The appliance running time. ( From the plug in. )
2) Freezer sensor temperature.
3) Defrost sensor temperature.
4) Refrigerator sensor temperature.
5) Room temperature.
6) P Factor display.
7) Filter remaing time until exchange. ( Initial filter runing time is about 4,320 Hour = 6 months )
3. How to exit this mode
1) Push the LOCK button.
Error Display ( Dispenser Models )
2) After 4 minutes automatically exit.
4. Error Code
No
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Display (Error Code) Remark
F1
Freezer sensor disconnection or short
r1
Refrigerator sensor disconnection or short
rt
Room temperature sensor disconnection or short
d1
Defrost sensor disconnection or short
dr
Refrigerator Door switch is defective.
dF
Freezer Door switch is defective.
dH
Home Bar Door switch is defective.
El
Ice sensor disconnection or short
EF
Flow sensor is defective.
Et
Horizontal switch error
Eg
Water supply error
EA
Drop the ice while Et
Eu
Full ice switch error
C1
Abnormal or defective cycle
F3
Return after defrosting : abnormal or defective
Co
Pull-Down mode display (No error)
d2
Forced Defrost mode display (No error)
; All Error Code reset, when the relative parts turn into normal.
15

5. Troubleshooting when error happens
( If the relative parts is normal, Error code display will be reset. )
1) F1 error
- Cause : Freezer sensor disconnection or short.
- Check point : Measure the resistance of freezer sensor in the Main PCB.
If sensor is disconnected or short, change that in the freezer compartment.

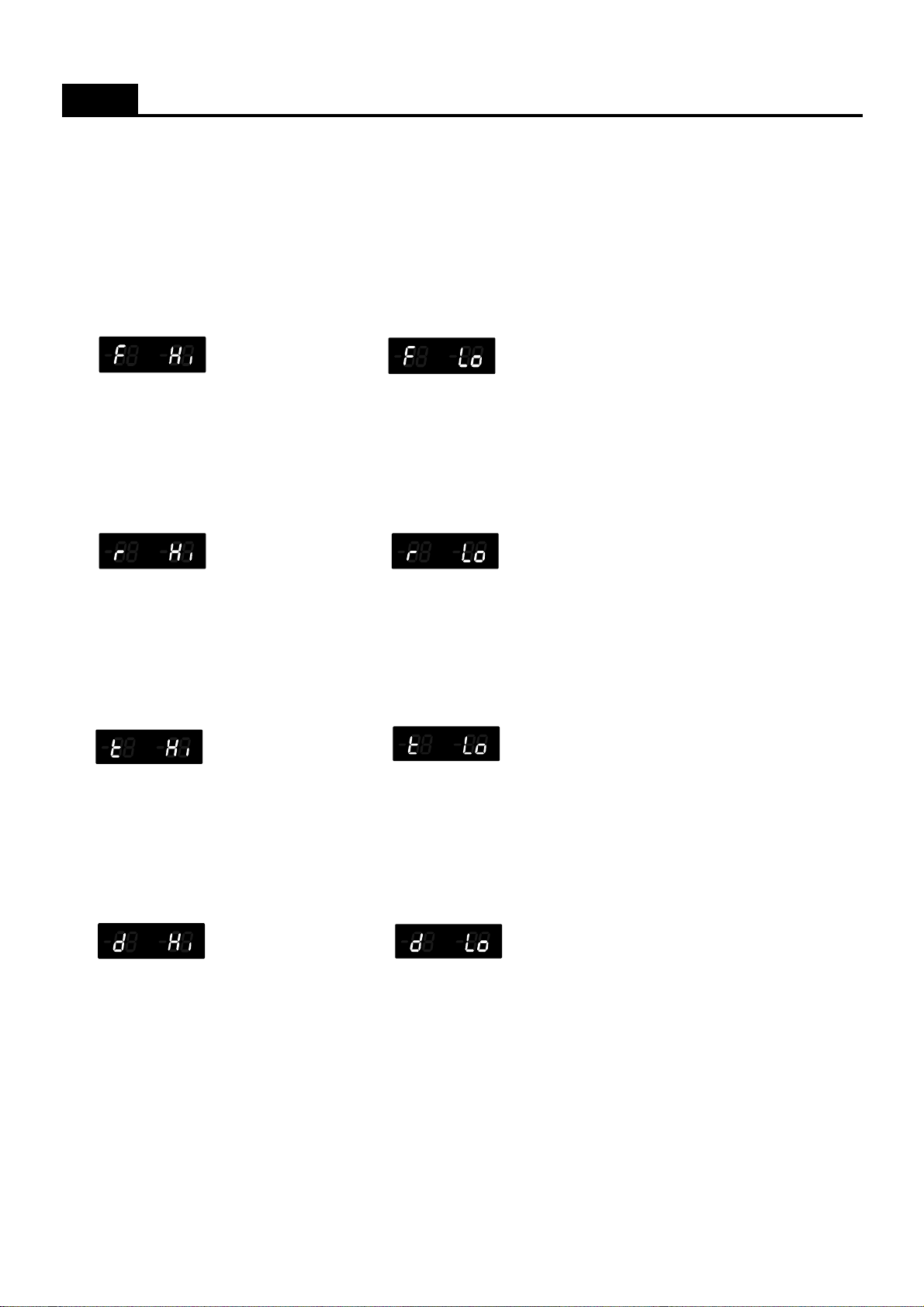

- Error code display
Freezer sensor is short. Freezer sensor is disconneted.
2) R1 error
- Cause : Refrigerator sensor disconnection or short.
- Check point : Measure the resistance of refrigerator sensor in the Main PCB.
If sensor is disconnected or short, change that in the refrigerator compartment.
- Error code display
Refrigerator sensor is short. Refrigerator sensor is disconneted.
FUNCTIONS ( Error Display )
3) rt error
- Cause : Room temperature sensor disconnection or short.
- Check point : Measure the voltage of sensor part on the Main PCB.
If voltage is 0.5~4.5V, normal. If voltage is 0V (short) or 5V (disconnect), change new one.
- Error code display
RT sensor is short. RT sensor is disconneted.
4) d1 error
- Cause : Defrost sensor disconnection or short.
- Check point : Measure the resistance of defrosting sensor in the Main PCB.
If sensor is disconnected or short, change that on the evaporator.
- Error code display
Defrost sensor is short. Defrost sensor is disconneted.
5) Door switch error ( dr, dF, dH on display )
- Cause : When it senses the door open for more than 1 hour.
- Check point : Check the each door switch and exchange.
6) EI error
- Cause : Ice sensor is abnormal.
- Check point : Measure the resistance between both terminals after separating CN11 of the Main PCB.
If sensor is disconnected or short, change that in the automatic ice maker.
16

7) Et error
- Cause : Level switch abnormal. ( No pulse is sensed for some time. )
- Control : By time. ( Supply mode is skipped. )
8) Eg error
- Cause : When Ice sensor temperature ( 5 minutes after water supply ) doesn't go up.
- Check point : Ice sensor or water supply line.
9) EA error
- Cause : When sensing ice drop 3 times in level sensor switch error.
- Control : Stop ice maker
- After 1 time rotation EA error code disappear if level swtich is normal.
10) Eu error
- Cause : Sensor which senses if ice is full or not is abnormal.
- Control : When drops the ice, the motor rotates 90 degree.
FUNCTIONS ( Error Display )
11) C1 error
- Cause : When compressor works for over 3 hours although Defrost sensor is over -5C.
- Check point : Refrigerant leakage.
12) F3 error
- Cause : in case defrosting mode ends after 60 minutes.
- Check point : Measure the resistance between both terminals of the defrost heater.
If the resistance is infinity (disconnection) or 0 ohm (short).
17

1. Ice making flow
FUNCTIONS ( Ice Maker )
Start
Making the Ice
Ice separating
Water supply
Water supply
check
- water freezing
water supply stand by
- Ice tray rotation to separate ice cubes
- water supply to ice tray
- check if water supply complete or not
1) Press Test switch ( which is under the ice tray ) for more than 1 second and then test starts.
- Test mode starts from ice separating mode.
- In case test switch is abnormal, test is done only 1 time.
2) When the initial power input, ice tray turns to be horizontal.
3) Water supply hose heater control - defrost heater linkage operation
- Heater is always ON if Room temperature sensor is abnormal or room temperature is below 15 degree.
- Heater is ON for 60minutes (max limit time) if Flow sensor is abnormal.
4) Water supply stand by
- Condition : When ice is full
- Operation : Proceeds to ice making mode. ( stop ice separating and water supply mode )
5) Crusher function
- It stops operation when freezer door is open.
- It operates if door is close.
End
18

2. Ice making mode
FUNCTIONS ( Ice Maker )
Start
70 minutes pass
Ice sensor is over
-12.5C
Ice separating
Ice sensor is below
-9.5C
15 minutes pass
NO NO
NO
YES
YES
YES
NO
YES
1) If Ice sensor temperature is below -12.5C after 70minutes, ice making completes.
2) If Ice sensor temperature keep below -9.5C for 15 minutes ice making complete, although the sensor is not below -12.5C
3) After 4.8hours ice making complete, when ice sensor is abnormal,
3. Water supply mode
1) If water supply mode starts, the water pump is ON.
2) Supply mode controlled by the time.
3) Factor value is variable when After sales action.
( Adjust water quantity )
; Normal Water flow time setting is 6.3 seconds.
( Maximum time limit is 15 seconds.)
Start
Water pump on
Supply time >
target time
NO
YES
YES
Water pump off
Ed
E
n
d
19
