Daewoo FRN-T30H3GP User manual

FRN-T30H3GP
( FRT-803ZG..)
FRN-T30H3TB
( FRT-803HB..)
FRN-T30H3PW
( FRT-813HP..)
FRN-T30H2MW
( FRT-822HW..)
May. 2013.

Specification
1. Information
374.2
530.0
780.2
330.7
449.5
FRN-T30H3PW
( Preuve White )
FRT-813HP..
904.2
374.2
530.0
817.9
FRN-T30H3TB
( Stella Black )
FRT-803HB..
904.2
FRT-803ZG..
904.2
330.7
487.2
Factory No.
Refrigerator
907.5
374.2
533.3
Buyer No.
Gross Vol.
(IEC 62552)
Total
447.9
330.7
FRN-T30H3GP
( Glitzen Pearl )
Total
Freezer
822.7
330.5
Refrigerator
Freezer
492.2
FRN-T30H2MW
( Mone White )
Storage Vol.
(IEC 62552)
FRT-822HW..
778.6
530.0
374.2
150W
893
1790
141 kg
893
954
149 kg
DREP 9020 LR
893
954
Compulsory Convection Type
954
R-600a
70g
Fin Type
149 kg 140 kg
210W
954
Diemension
DC 12V
AC 250V, 10A, 77C
DREP 9020 LR
DRCP 9020 LC
DC 12V
Electronic Part
Refrigerator Lamp LED
Condenser Fan Motor
Freezer Lamp LED
Refrigerator Fan Motor
Cooling Cycle
Evaporator Type
Refrigerant Type
Refrigerant Charge
Heater Ref) Defrost Heater
Condenser Type
Fuse Temp. (Defrost)
Freezer Fan Motor
Molecular Sieve xH-9
ID0.7 x T0.55 x L2,200
Dryer
Capillary Tube
Frz) Defrost Heater
H/Bar Heater 10W
1790
Width (mm)
Depth (mm)
1790
Weight (kg)
1790Height (mm)
893
1

Specification
2. Outside Diemension
2

Specification

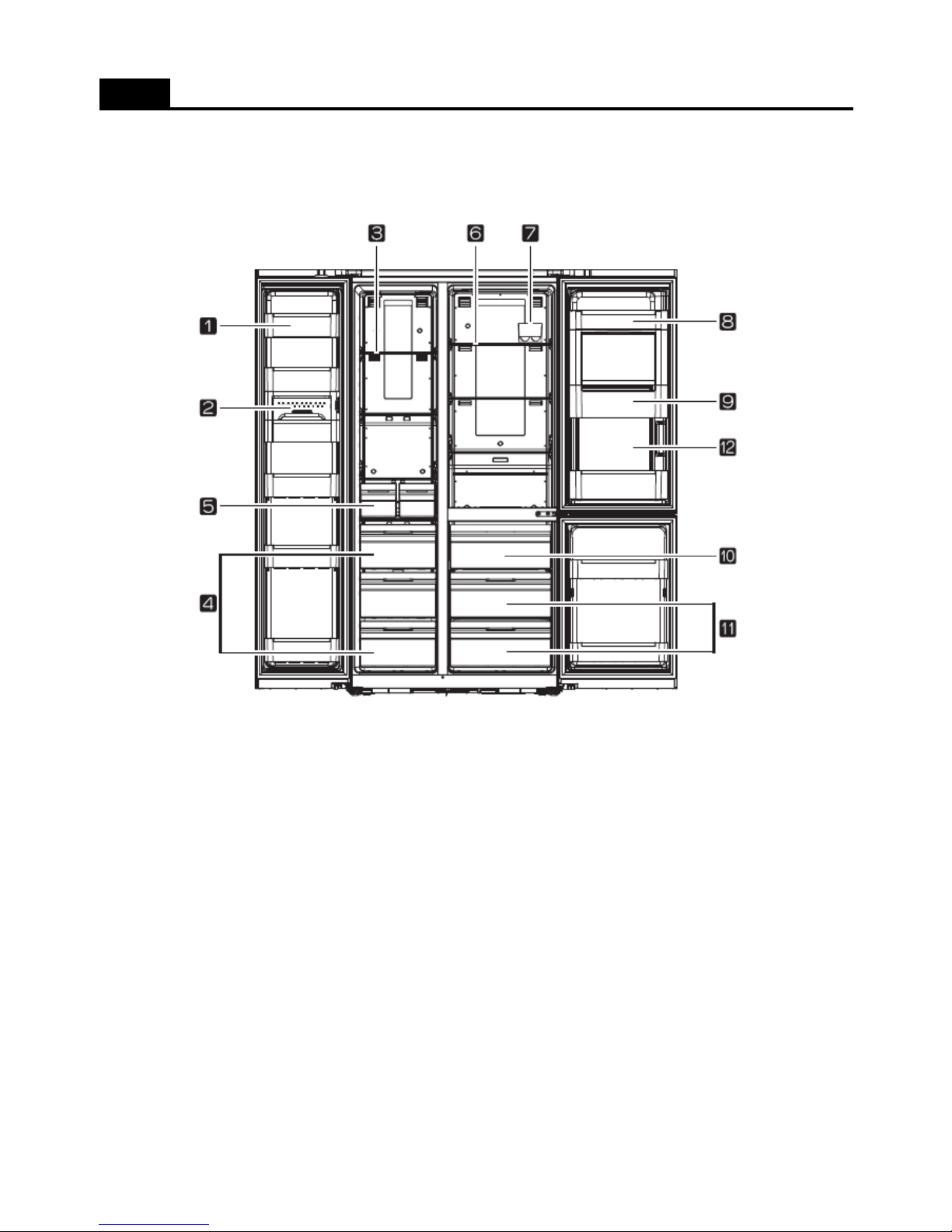

3. Interior Parts
1) T30H3GP / T30H3TB
1. Door storage compartment 7. Egg case
2. Ice maker / Ice storage bin 8. Door storage compartment
3. Freezer shelf 9. Can pocket
4. Freezer compartment drawer 10. Multi crisper
5. Takeout case 11. Vegetable / fruit drawer
6. Refrigerator shelf 12. EZ Home bar
3

Specification

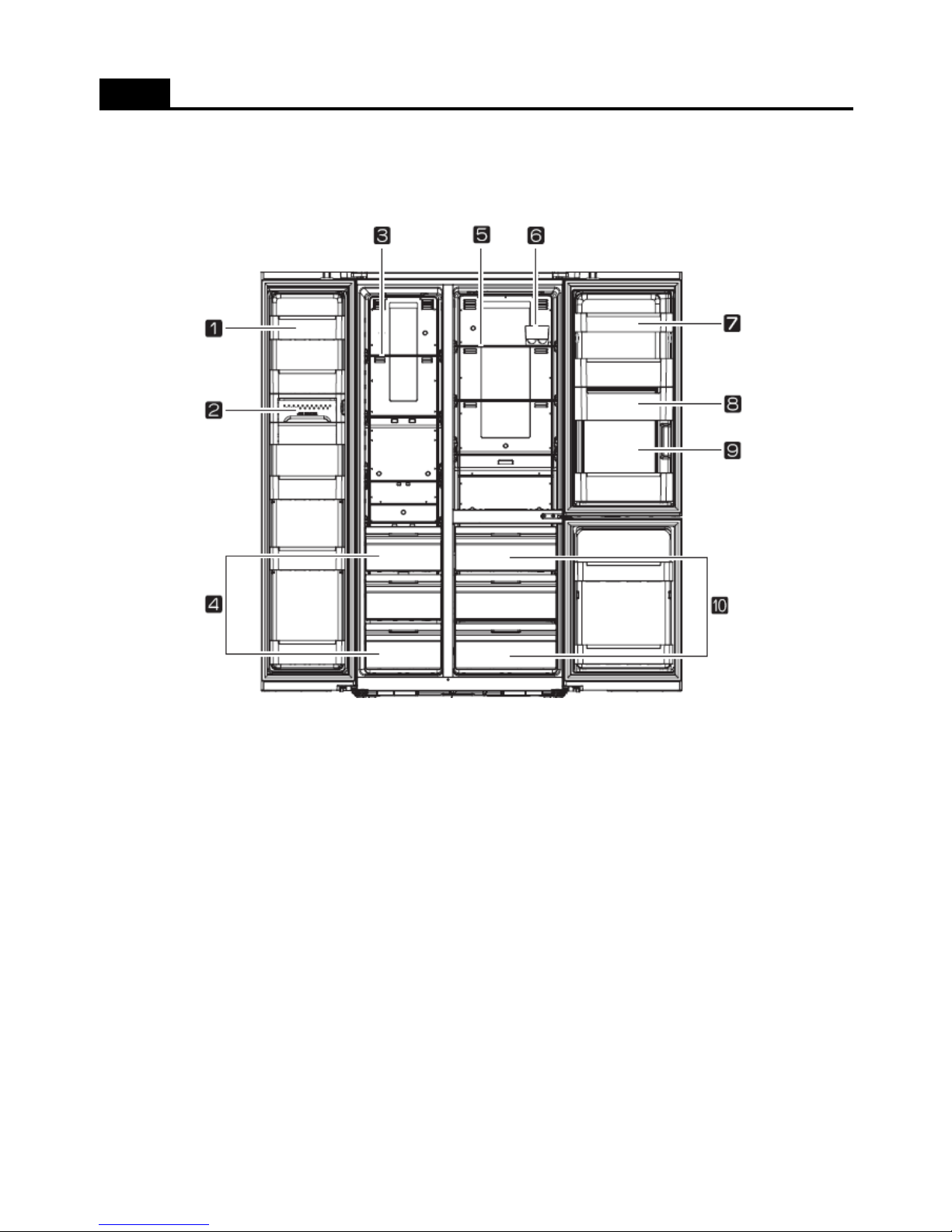

2) T30H3PW / T30H2MW
1. Door storage compartment 6. Egg case
2. Ice maker / Ice storage bin 7. Door storage compartment
3. Freezer shelf 8. Can pocket
4. Freezer compartment drawer 9. EZ Home bar
5. Refrigerator shelf 10. Vegetable / fruit drawer
* The real features are model dependent.
4

Refrigerant Cycle
5

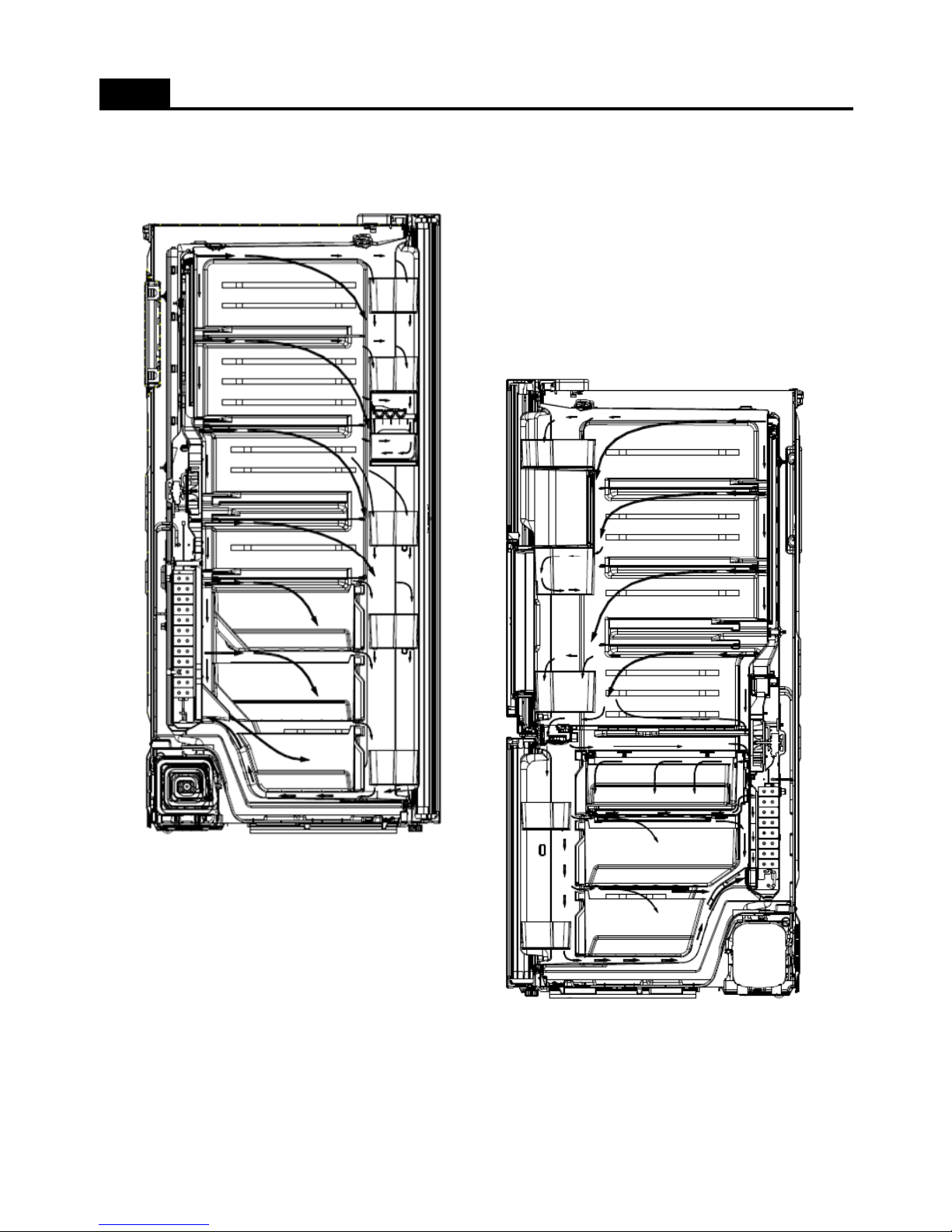

Air Flow [ Side View ]
[ Freezer Compartmnet ]
[ Refrigerator Compartmnet ]
* The illustration is 'FRN-T30H3GP / FRN-T30H3TB' model.
6

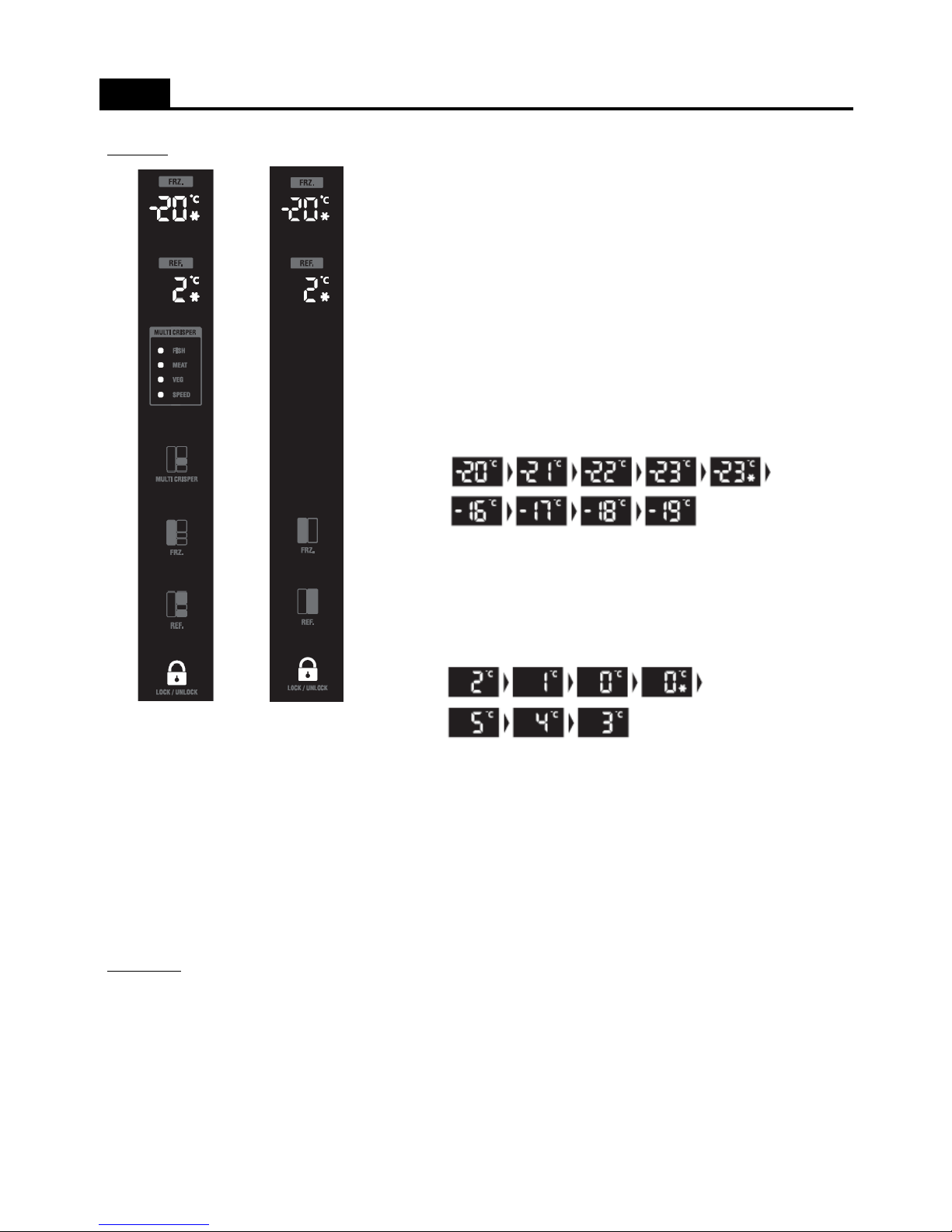

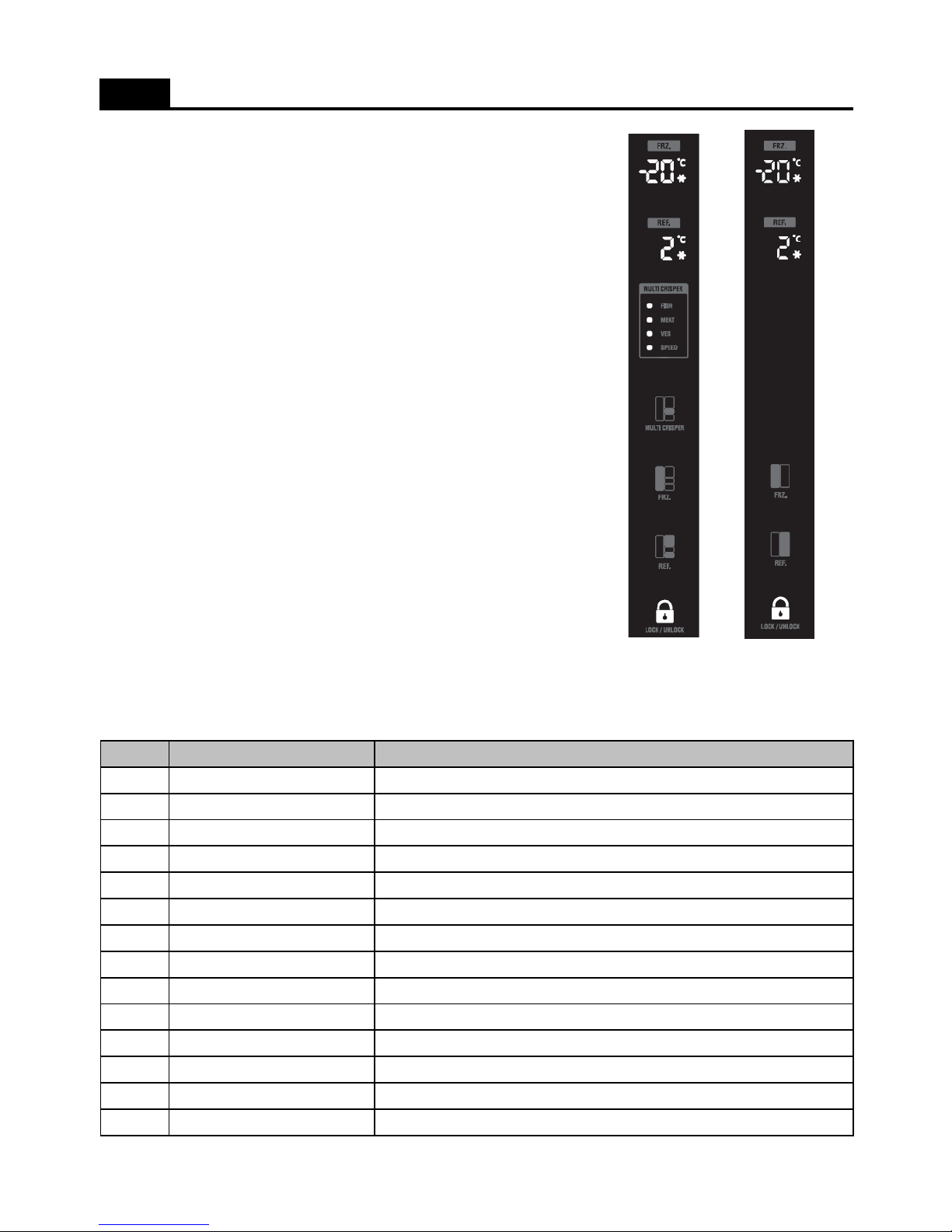

1. Display
a Multi Crisper ( Option ) button
; To select Fish - Meat - Vegetable - Speed mode.
( Speed mode works for 60 minutes.)
b Frz. Set button
1) Initial plug in : Medium ( -20C )
2) Every time you press the Frz. Set button, the setting temperature
changes below order.
Functions
a
b
c Ref. Set button
1) Initial plug in : Medium ( 2C )
2) Every time you press the Ref. Set button, the setting temperature
changes below order.
d Lock button ( Childproof lock )
1) After 2 minutes when no dial setting, this mode is active automatically.
Except Lock icon, all Led is Off.
2) After another 30 seconds, Lock icon is also off except Eco led.
3) Manually, you can enter this mode by touching Lock button for 1 second.
After 2 min 30 sec all led is off except Eco led.
Power Save
; After 2 min 30 sec when no dial setting or no door opening, all led is off except Eco led.
T30H3PW/MWT30H3GP/TB
c
d
7

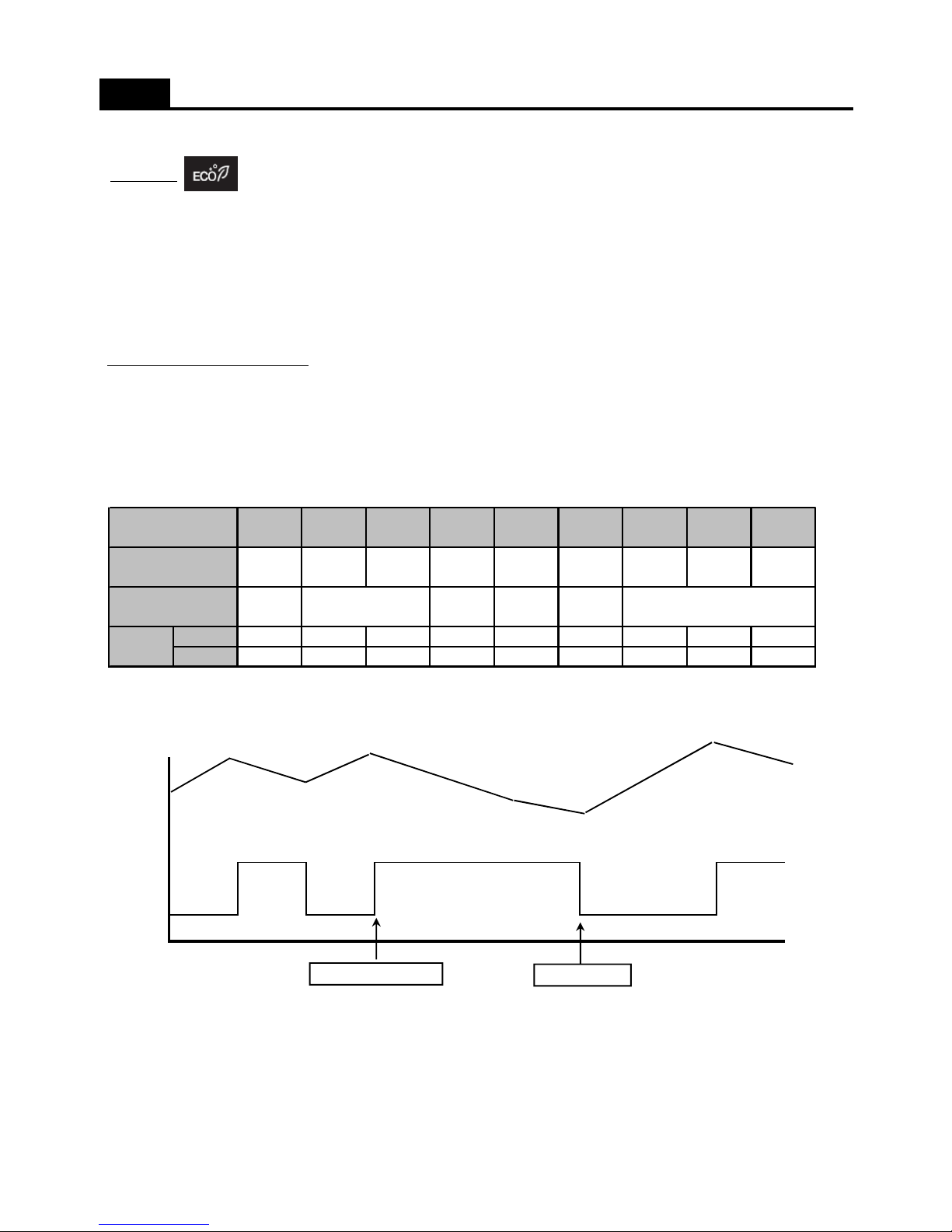

ECO Mode
; Eco Mode is automatically lights up when energy-saving mode is driving.
1) Green : Power saving mode
2) Blue : Normal control mode
3) Pink : Acceleration mode ( Refrigerator is driving continually to lower temperature of inside of refrigerator when
there is a big difference between inside and outside. )
2. Freezer Compartment Control
1) Adjust by the pushing the FRZ.SET button.
2) Compressor & Freezer Fan controlled by each mode ON/OFF point.
3) Freezer Compartment ON/OFF Difference : 4.5C
- MEDIUM OFF point : -20.8C
4) Control Temperature Point in Each Mode
Functions
Plug in 1st Press 2nd Press 3rd Press 4th Press 5th Press 6th Press 7th Press 8th Press
Division
5) Quick Freezer Mode
; In this mode, Compressor & Freezer Fan motor is on unconditionally for 150 minutes.
- After Quick mode, the dial is to Medium mode. ( After 150 minutes or sensor temperature is below -25.8C.
- Quick freezer mode is free of Refrigerator sensor.
- In this mode defrosting is not active. Defrosting is priority to Quick mode.
Temp.
Freezer
Fan On/Off
QUICK FREEZER Start NORMAL MODE
150 minutes
On -16.3 -17.4 -18.3 -19.3 -21.3 -12.1 -13.1 -14.1 -15.2
Off -20.8 -21.9 -22.8 -23.8 -25.8 -16.6 -17.6 -18.6 -19.7
-19-18
Sensor
Mode Medium
-23 -23 * -16 -17
Max Quick Min Min - MediumMedium - Max
Display -20 -21 -22
8

2. Refrigerator Compartment Control
1) Adjust by the pushing the REF.SET button.
2) Refrigerator Compartment ON/OFF Difference
- Dial 5C / 4C / 3C : 2.0C
- Dial 2C : 2.1C
- Dial 1C : 2.6C
- Dial 0C : 3.5C
* Medium OFF point : 3.5C
3) Quick Refrigerator Mode : This mode runs for 40 minutes.
Functions
Plug in 1st Press 2nd Press 3rd Press 4th Press 5th Press 6th Press
On 5.6 4.6 4.5 1.5 9.6 8.6 6.6
Off 3.5 2.0 1.0 -2.0 7.6 6.6 4.6
Medium
Max Max Quick
Sensor
Min - MediumMin
100*543
Division
Display 2
Mode Medium
- This mode runs for 40 min until the sensor reach -2.0 C and free of Freezer sensor.
- After this mode, the dial setting is to Medium.
- In this mode defrosting is not active. Defrosting is priority to Quick mode.
Refrigerator
Sensor
Refrigeration
OFF point
Normal
Control
NORMAL MODE
QUICK MODE (40MIN )
9

3. Multi Crisper Control ( *Option )
1) Adjust by the pushing the Multi Crisper button.
2) Display is 'Fish →Meat →Vegetable →Speed'
3) Each mode controls Compressor, Fan Motor, Step Valve and Damper.
4) Speed mode
- It works 60 minutes. After finishing this mode it changes to Vegetable mode.
- In this mode defrosting is not active. Defrosting is priority to Speed mode.
3. Fan voltage of each control mode
1) Normal fan motor RPM : Slow operation with relative low noise level.
Functions
F
a
n M
oto
rFr
ee
z
e
rR
e
fri
ge
r
ato
rCompressor
li
R
e
m
a
r
k
-4.5 C
same as Ref.
compartment.
-2.5 C
Off -1.0 C
Speed
-4.5 C
Division Fish Meat Vegetable
On 1.0 C -2.5 C
2) Load response : Operation mode which need to be operated by temperature rise at inner side of refrigerator
according to operating condition.
4. Load response mode
1) Purpose : To recover temperature rise inside of refrigerator as quickly as possible by heavy load or frequent door opening.
2) Operating condition
; When door opening time is more than 1 minutes →Freezer & Refrigerator compartment enter load response mode.
3) How to control : Change compressor rpm +1 step up.
4) How to end : When each sensor reaches to sensor off point.
aoto
ee e
egeato
coo
li
ng
ea
Normal
1500 RPM 1300 RPM 1150 RPM
10

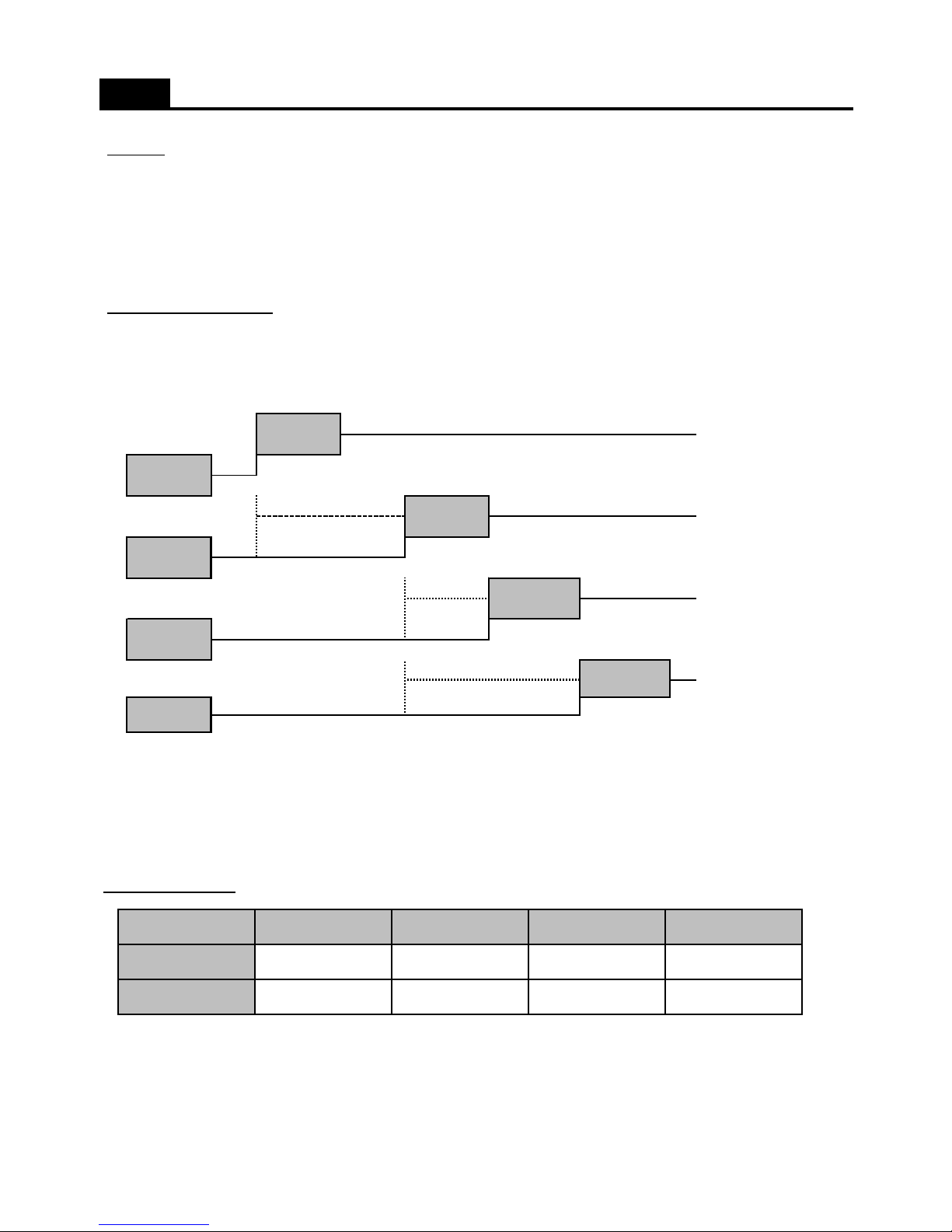

1. Freezer Defrost Process
- Time limit : 50 minutes. ( Comp., Freezer Fan, Step Valve is active. ) or
- Until Freezer Defrost sensor is below -27c.
( If Error F3 happens, Precool is over. )
- Until Freezer Defrost Sensor is 13c.
- If Error F3 happens, Defrost Heater is active for 30 minutes.
- For 30 sec. after Defrost start : Heater is on without conditions.
- 30 min.'s Defrost : When Error F3 happen.
- 80 min.'s Defrost : Normal state, maximum defrost time.
- For 10 min.
- Defrost heater, Comp. and Freezer / Refrigertor Fan is off.
- For 5 min.
- Compressor is on, Heater is off.
Defrost
Precool
Heater Defrost
Pause
Fan Motor Delay
2. Refrigerator Defrost Process
- Until Ref. Defrost sensor is 20c.
- If maximum time is 60 min. Error R3 happen.
- Ref. Defrost sensor is abnormal, Heater is on for 10 min. ( Maximum time limit )
- For 30 sec. after Defrost start : Heater is on without conditions.
- 10 min.'s Defrost : When Error R3 happen.
- 60 min.'s Defrost : Normal state, maximum defrost time.
- For 10 min.
- Defrost heater, Comp. and Freezer / Refrigertor Fan is off.
- For 5 min.
- Compressor is on, Heater is off.
Heater Defrost
Pause
Fan Motor Delay
11

3. When Freezer Compartment Defrost Mode start?
; When total Compressor runnig time becomes at 10, 12 ~ 60hours.
- Any error happens ( R1, F1, D1, F3, RT-Sensor, C1, Door switch etc. ) or door opening time is over 2 minutes.
- Door opening time is over 1 minutes and compressor operating rate is over 85%.
- Door opening time is over 1 minutes and Humidity is over 70%.
- Total compressor running time ( on time + off time ) is 80hours.
- Compressor running time ( on time only ) is 60hours.
Defrost - Freezer
Start
Comp. running
time 10, 12 ~ 60h?
4 hours passed from
previous defrost?
No
No
YES
YES
Any errror or 2 min. passed
from door opening?
1 min. passed from door
opening and comp. runing
85%?
1 min. passed from door
opening and humidity is
over 70%?
Total runing time
is 80h?
Comp. runing time
is 60h?
End
Freezer Defrost
Start
YES
YES
YES
YES
YES
No
No
No
No
No
12

4. When Refrigerator Compartment Defrost Mode start?
; When total Compressor runnig time becomes at 4, 6 ~ 40hours.
- Any error happens ( R1, F1, D1, F3, RT-Sensor, C1, Door switch etc. ) or door opening time is over 2 minutes.
- Door opening time is over 1 minutes and compressor operating rate is over 85%.
- Door opening time is over 1 minutes and Humidity is over 70%.
- Total compressor running time ( on time + off time ) is 50hours.
- Compressor running time ( on time only ) is 40hours.
Defrost - Refrigerator
Start
Comp. running
time 4, 6 ~ 40h?
4 hours passed from
previous defrost?
No
No
YES
YES
Any errror or 2 min. passed
from door opening?
1 min. passed from door
opening and comp. runing
85%?
1 min. passed from door
opening and humidity is
over 70%?
Total runing time
is 50h?
Comp. runing time
is 40h?
End
Refrigerator Defrost
Start
YES
YES
YES
YES
YES
No
No
No
No
No
13

1. Plug-in Defrost
1) When Freezer & Refrigerator Defrsot sensor is below 3.5c, Defrost mode start.
2) Freezer and Refrigerator compartment defrost start by defrost sensor.
3) Plug-in Defrost makes Compressor Delay 6 min.
2. Pull Down Mode
1) How to start?
- Push the Lock button to enter test mode.
- Push the Lock button 10 times while holding the Ref. Set button.
2) Control : Compressor and all Fan motor is on and Step Valve is Open / Open for 30 hours.
3) Display : 'C o' display on the FCP. ( Need to enter Error Display Mode )
4) How to exit this mode : After 30 hours or Plug-out.
3. Compressor RPM Control
1) Compressor RPM is dependent on RT (Room Temperature ), appliance state ( Dial setting ) and Step Valve position.
Plug-in Defrost / Pull Down / Compressor RPM
RT sensor is below 29.1c RT sensor is 29.1 ~ 36.5c RT sensor is over 36.5c
2) Initial plug-in : For initial 2 minutes, compressor rpm is 1650. And then follow above table.
3) For 6 minutes after compressor is off, it doesn't restart.
Refrigerator
30000 RPM
Mode Freezer Refrigerator Freezer Refrigerator Freezer
2360 RPM 3490 RPM 30000 RPM 3490 RPM
Normal 1830 RPM 3000 RPM 2360 RPM 3490 RPM
30000 RPM
Quick 2360 RPM 2360 RPM 3490 RPM 30000 RPM 3490 RPM 30000 RPM
Load Response 2360 RPM
3490 RPM
Power Saving 1650 RPM -
Pull Down 3490 RPM 3490 RPM 3490 RPM 3490 RPM 3490 RPM
14

1. Buzzer
1) When FCP buttoning.
2) After 3 seconds plug-in.
3) When Pull Down or A/S Defrosting start.
4) Every 1 minute with door opening for 5 minutes.
2. Electric parts time delay
1) Compressor / All Fan Motor
- Check Step Valve position and after 90 seconds compressor start.
( But, after 5 seconds from iniitial plug-in compressor start. )
Other Functions
OFF
OPEN
90 seconds
OFF
ON
Step Valve
Compressor
2) Frz. / Ref. Fan Motor time delay is 20 seconds when door opening.
( This function is active after 2 hours' plug-in. )
3) Frz. Fan Off : After 3 minutes from Off condition.
4) Ref. Fan Off : After 3 minutes from Off condition.
3. Step Valve Control
1) Set the starting Point : Rotate CW) 210 step and CCW) 154 step when initial plug-in.
2) Compressor is ON after 90 seconds from Step Valve when compressor active condition happen.
3) Step valve rotate 34 step ( Close / Close ) after 2 seconds from compressor is OFF.
0.5 second
OFF
ON
OFF
ON
3.5 seconds
Comp.
Fan Motor
Frz. / Ref.
Fan Motor
OFF
Frz. Compartment Close Close Open Open
Ref. Compartment Close Open Open Close
Division 34 Step 100 Step 154 Step 195 Step
15

4. Led Lamp Control
1) Each door switch connected to each compartment Led Lamp.
2) When door switch is opened for 10 minutes, Led Lamp is off automatically.
3) When door switch is opened for 1 hour, FCP display Error 'd F' or 'd R' or 'd H'.
( 'd F' = Freezer door switch error, 'd R' = Refrigerator door switch error, 'd H'= Homebar door switch error. )
4) When above No. 3) conditions happen, door switch signal discarded.
5. DEMO Mode
1) How to start?
- Push the Lock button to enter test mode.
- Push the Frz.Set button 10 times while holding the Ref. Set button.
2) Control
- All electrical component is OFF.
- But, each door opening makes each fan motor ON.
( Door Open
→ Fan ON, Door Close → Fan OFF )
3) Display
Other Functions
- ECO LED : PINK → SKY BLUE → GREEN
- Frz. / Ref. dial step display
- (Option : Multi Crisper) 'Fish
→ Meat → Vegetable → Speed'
2) How to finish?
- Reset power.
- Push the Frz.Set button 10 times while holding the Ref. Set button.
6. Weak Cooling Easy Troubleshooting
1) Adjust Ref. sensor Off point ( Max. 3c down )
2) Troubleshooting
i. Resistance ( R44 ) : Normal state.
ii. Resistance ( R44+R63 ) : Cut J1 to make resistance 2K up. ( 1.5c down )
iii. Resistance ( R44+R63+R64 ) : Cut J2 to make resistance 2K up. ( 3.0c down )
16

7. Multi Crisper Compartment ( Option Parts )
1) Every 'Multi crisper' buttoning,
Fish
→ Meat → Vegetable → Speed ( Default is Fish mode )
2) When choosing 'Speed' mode,
After 60 minutes' operation ( max. time limit ), back to 'Fish' mode.
3) Damper Control
; Damper is controlled by Refrigerator sensor and Multi Crisper Internal sensor.
Other Functions
Ref. Sensor Multi Crisper
Sensor Demaper
ON ON Open
OFF ON Close
OFF OFF Open
ON OFF Open
8. Ionizer LED Control
1) Door Opening → Ionizer LED Lamp is ON.
2) Ionizer operation is link to Ref. Fan Motor.
17

1. How to enter this check mode
1) Push the LOCK button.
2) Push the LOCK button 5 times while pressing the Frz.SET button.
2. The Front LED displays the current error code ( if happens ).
; Every time you press the Freezer Set button, the following value display.
1) The appliance running time. ( From the plug in. )
2) Freezer sensor temperature.
3) Freezer Defrost sensor temperature.
4) Refrigerator sensor temperature.
5) Refrigerator Defrost sensor temperature.
6) Multi Crisper Room temperature ( *Option Parts )
7) Room Temperature sensor display.
8) Humidity sensor display.
9) Freezer Fan RPM Display.
10) Refrigerator Fan RPM Display.
Error Display
11) Compressor Cooling Fan RPM Display.
3. How to exit this mode
1) Push the LOCK button.
2) After 4 minutes automatically exit.
4. Error Code
No
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
Display (Error Code) Remark
F 1
Freezer sensor disconnection or short
Refrigerator sensor disconnection or short
d 2
R 1
A/s forced defrosting is running. ( No Error )
C o
r t
Room temperature sensor disconnection or short
F d
Freezer Defrost sensor disconnection or short
r d
Refrigerator Defrost sensor disconnection or short
F 3
Return after defrosting : Defrosting parts is abnormal or defective. ( Freezer )
Pull Down Mode is running. ( No Error )
H 5
Humidity sensor is dosconnection or short.
E P
EEPROM reading/writing Error
D r
Refrigerator Door switch is defective.
d F / d H
Freezer Door switch is defective. / Homebar switch is defective.
C1
Abnormal or defective cycle
14) Multi Crisper room door switch is defective.
d
2
18

No
15)
16)
17)
18)
19)
5. Troubleshooting when error display
( If the relative parts is normal, Error code display will be reset. )
1) 'F 1' error
- Cause : Freezer sensor disconnection or short.
- Control : Short - continuous operation. Disconnection - No operation.
2) 'R 1' error
- Cause : Refrigerator sensor disconnection or short.
- Control : Short - continuous operation. Disconnection - No operation.
3) 'r t' error
- Cause : Room temperature sensor disconnection or short.
- Control : Normal operation. Discard control conditon by RT sensor.
4) 'F d' error
- Cause : Freezer defrost sensor disconnection or short.
- Control : Defrost heater is ON for 30 minutes.
5) 'd F', 'd r', 'd H', 'd 2' error ( Door switch )
- Cause : When door is opening for more than 1 hour.
- Control : Discard all information from doow swtich.
6) 'C 1' error
- Cause : After compressor 3 hours' operation, Frz. Defrost sensor is over 0c or Ref. Defrost sensor is over 15c.
- Control : Normal control.
7) 'E P' error
- Cause : EEPROM IC reading / writing is error.
- Control : Normal operation but no saving the Dial setting & Locking.
C H Step Valve ( Freezer / Refrigerator ) pipe wrong assembly.
Error Display
Display (Error Code) Remark
F u
r 2 Multi Crisper room room sensor disconnection or short
r 3 Return after defrosting : Defrosting parts is abnormal or defective. ( Refrigerator )
Step Valve ( Freezer part ) pipe blockage.
r u Step Valve ( Refrigerator part ) pipe blockage.
19
