Daewoo FRN-U20DAI User manual

Especificaciones sujetas a modificaciones sin previo aviso
Product News
DAEWOO Electronics Europe GmbH
Edificio Inblau A, calle Selva, 10, 2ªplanta
Mas Blau Business Park
08820 El Prat de Llobregat. Barcelona.
Tel.: + 34 902 13 30 30. Fax.: + 34 93 262 30 35
Internet: www.daewoo-electronics.es
Email: [e-mail]
Capacidad
Capacidad total 536 litros.
Congelador 184 litros. /Frigorífico 352 litros.
Dimensiones
Fondo de 60cm, sin puerta.
895 x 1790 x 730 (AnxAlxPr, en mm)
Características generales:
Magic Cool Zone
Dispensador agua-hielo
Nano Silver anti-bacterias
Cajones frigorífico con selector de humedad
Sistema No Frost 4****
Clasificación energética “A”
Descongelación automática
2 ventiladores
Pantalla LCD de control
Funcionamiento silencioso
Sin CFC/HCFC
Alarma de puerta abierta
6 termostatos interiores + 1 exterior
Peso: 113 Kg.
FRS-U20DAI

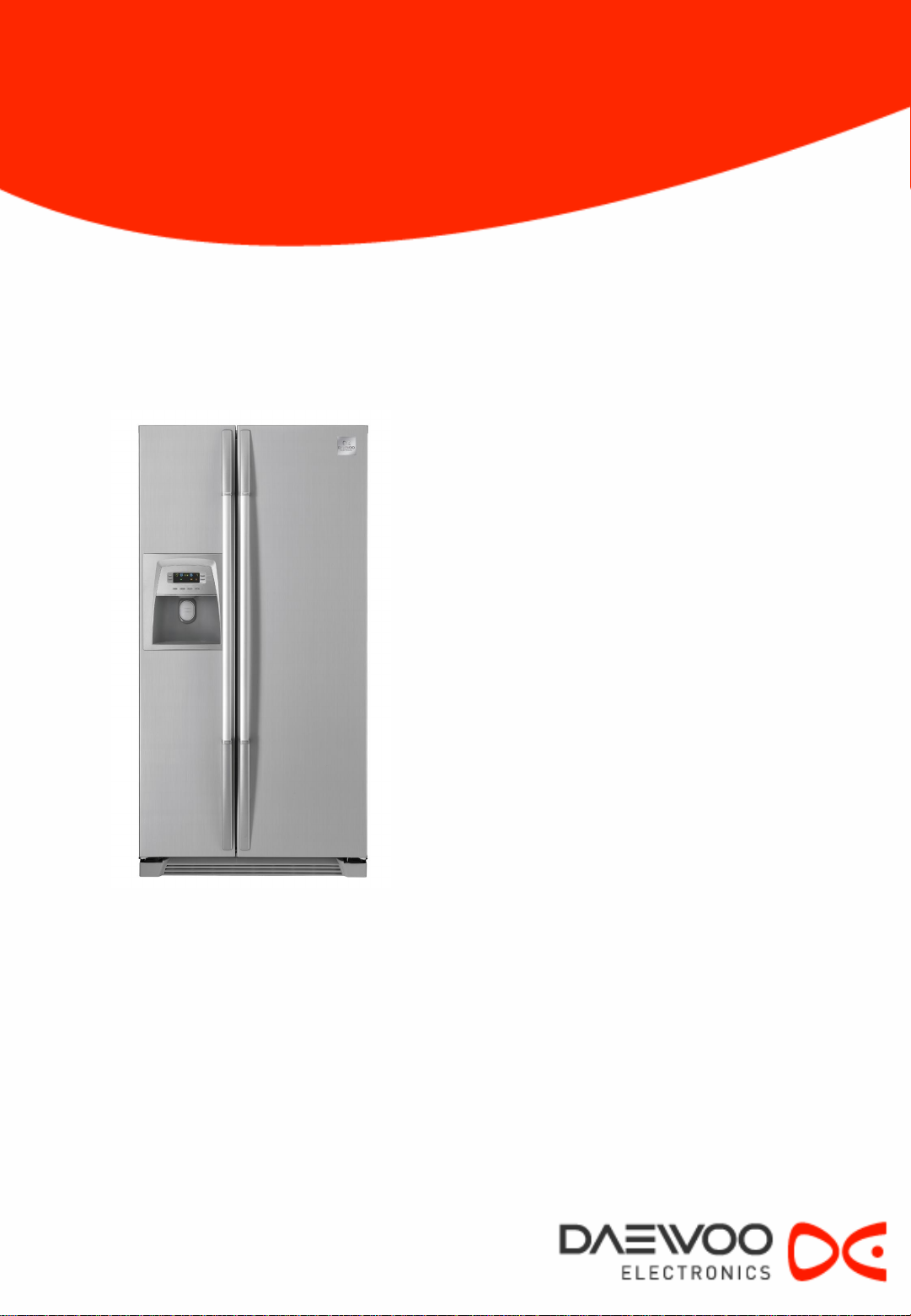

Frigorífico Side by Side 536 litros.
Código EAN: 40 23182 09245 4
Magic Cool Zone
Permite seleccionar la
temperatura según el tipo de
alimento.
SERVICE MANUAL
Model : FRN-U20DAI

1
C O N T E N T S
1. WARNINGS AND PRECAUTIONS FOR SAFETY ----------------------------2
2. EXTERNAL VIEW
2-1. External Size ---------------------------------------------------3
2-2. Name of Each Parts ----------------------------------------- ----4
2-3. Cold Air Circulation ----------------------------------------------5
3. SPECIFICATION -------------------------------------------------- -6
4. OPERATION AND FUNCTIONS ----------------------------------------8
5. CIRCUIT OPERATION
5-1. Power Circuit Diagram --------------------------------------------25
5-2. Function of Each Sensor ------------------------------------------26
5-3. Fan Function ---------------------------------------------------29
6. DIAGRAM
6-1. Wiring Diagram --------------------------------------------------30
6-2. Circuit Diagram of Main PCB ---------------------------------------32
7. COMPONENT LOCATE VIEW -----------------------------------------33
8. HOW TO CHECK EACH PARTS
8-1. Hose Ice Maker Tube ---------------------------------------------36
8-2. Bracket Geared Motor ---------------------------------------------37
8-3. Dispenser Micro Switch--------------------------------------------38
8-4. Dispenser Solenoid Valve ------------------------------------------39
8-5. Main PCB ------------------------------------------------------40
8-6. Ice Maker ------------------------------------------------------41
9. TROUBLE DIAGNOSIS
9-1. Power Failure ----------------------------------------------------43
9-2. Freezer Compartment ---------------------------------------------44
9-3. Refrigerator Compartment ------------------------------------------50
9-4. Operation Noise of Refrigerator --------------------------------------55
9-5. Door -----------------------------------------------------------61
10. COOLING CYCLE HEAVY REPAIR
10-1. Summaryof HeavyRepair ------------------------------------------62
10-2. Precaution during HeavyRepair --------------------------------------63
10-3. Practical Work for Heavy Repair --------------------------------------64
10-4. Standard Regulations for HeavyRepair --------------------------------66
10-5. Brazing Reference Drawing -----------------------------------------67
11. EXPLODED VIEW & PARTS LIST
11-1. Exploded View(FRS(N)-U20DA) ------------------------------------ 68
11-2. Parts List (FRS(N)-U20DA) ---------------------------------------- 74

2
Please observe the following safety precautions in order to use safely and correctly the refrigerator
and to prevent accident and danger during repair.
1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more than
three minutes before replacing PCB parts.
Shut off the power whenever replacing and repairing electric components.
2. When connecting power cord, please wait for more than five minutes after power cord was
disconnected from the wall outlet.
3. Please check if the power plug is pressed down by the refrigerator against the wall.
If the power plug was damaged, it may cause fire or electric shock.
4. If the wall outlet is over loaded, it may cause fire.
Please use its own individual electrical outlet for the refrigerator.
5. Please make sure the outlet is properly earthed, particularly in wet or damp area.
6. Use standard electrical components when replacing them.
7. Make sure the hook is correctly engaged.
Remove dust and foreign materials from the housing and connecting parts.
8. Do not fray, damage, machine, heavily bend, pull out or twist the power cord.
9. Please check the evidence of moisture intrusion in the electrical components.
Replace the parts or mask it with insulation tapes if moisture intrusion was confirmed.
10. Do not touch the icemaker with hands or tools to confirm the operation of geared motor.
11. Do not let the customers repair, disassemble and reconstruct the refrigerator for themselves.
It may cause accident, electric shock, or fire.
12. Do not store flammable materials such as ether, benzene, alcohol, chemicals, gas, or
medicine in the refrigerator.
13. Do not put flower vase, cup, cosmetics, chemicals, etc., or container with full of water
on the top of the refrigerator.
14. Do not put glass bottles with full of water into the freezer.
The contents shall freeze and break the glass bottles.
15. When you scrap the refrigerator, please disconnect the door gasket first and scrap it
where children are not accessible.
1. WARNINGS AND PRECAUTIONS FOR
SAFETY

3

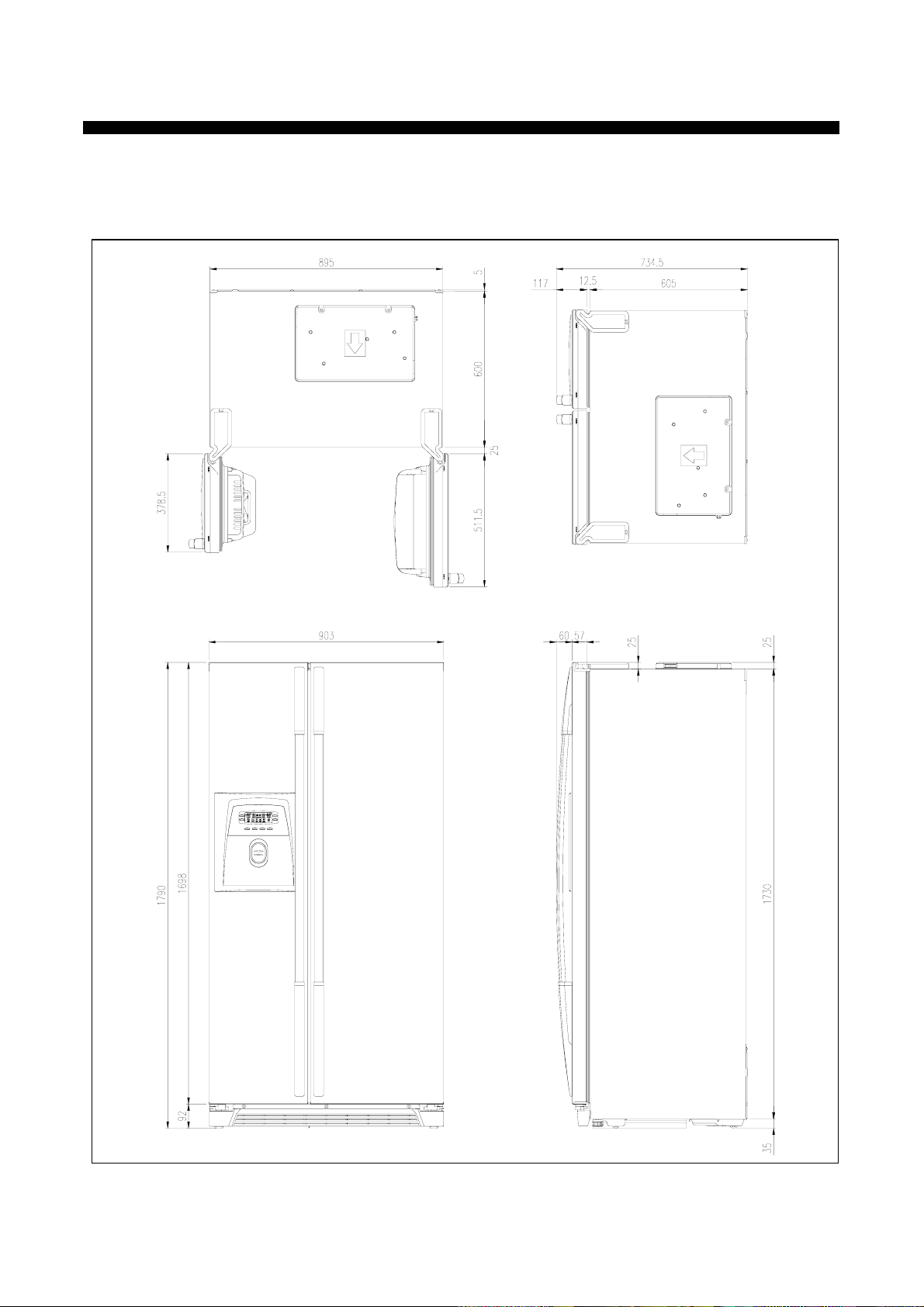

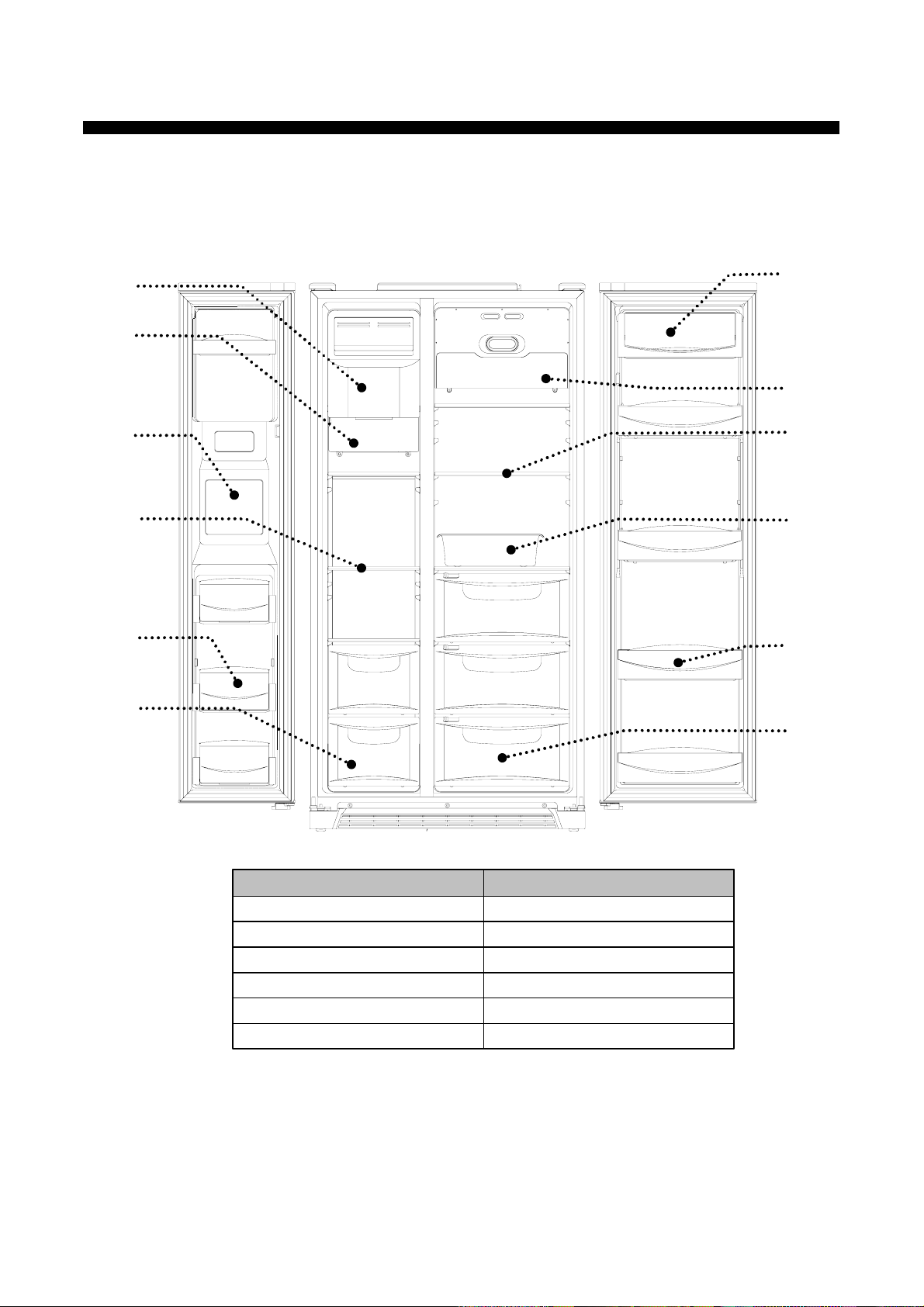

■2. EXTERNAL VIEWS. 2-1. External Size FRS(N)-U20DA

4
7. Dairy pocket1. Ice cubes storage case
12. Refrigerator case6. Freezer case
11. Refrigerator pocket5. Freezer pocket
10. Movable Egg case4. Freezer shelf
9. Refrigerator shelf3. Water/Ice Dispenser
8. Refrigerator light2. Freezer light
Refrigerator CompartmentFreezer Compartment
1
2
4
3
6
8
9
10
11
12
7
5
■FRS(N)-U20DA

5
Freezer
CompartmentRefrigerator Compartment

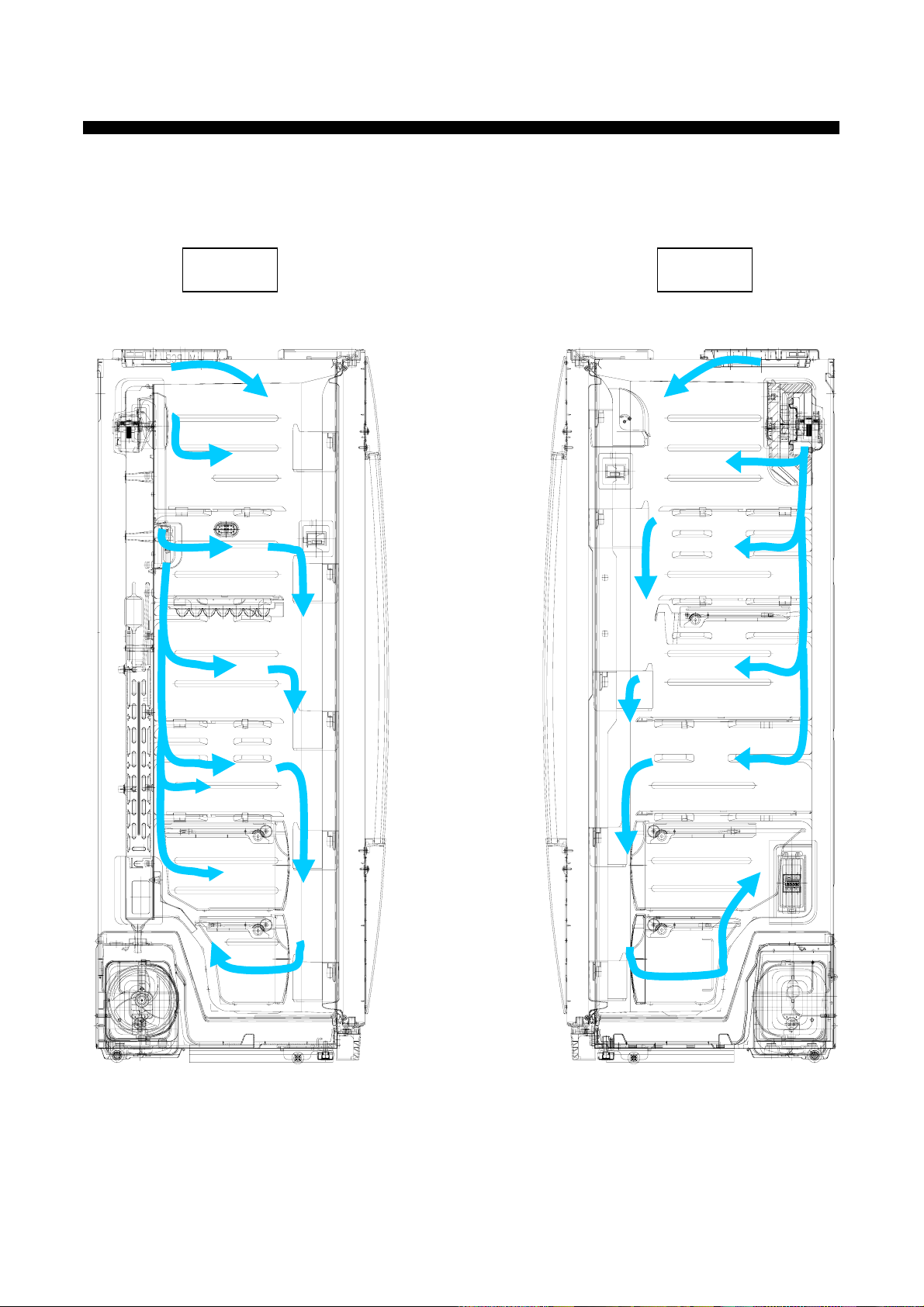

2-3. Cold Air Circulation

6
3. SPECIFICATION
3-1. Specification
190g (76g)Quantity
4TM265RHBYY-53Model Name
O.L.P
Resistance :33Ω
Max Voltage :385V
Spec
J531Q35E330M385-2Model Name
PTC
350VAC/5㎌Running Capacitor
RSCRMotor Type
MK183Q-L2U (MK5A5Q-R1U)Model
Comp
C
O
O
L
I
N
GIDΦ0.7 ×T0.55 ×L2200Capillary Tube
Molecular Sieve XH-9Dryer
Fan Cooling SystemCondenser
Fin TypeEvaporator
R-134a (R-600a )Refrigerant
69℃/ 130℃Close/Open Temp
113kgWeight
541 LiTotal
ISO Gross
Volume
(Li) 184 LiFreezer
357LiRefrigerator
220~240V (50Hz)
903mm ×734.5mm ×1790mm
334Li
170 Li
504 Li
FRS(N)-U20DA
Rated Voltage
External Dimension
(Width ×Depth ×Height)
Refrigerator
Freezer
Total
ISO Storage
Volume
(Li)
Model Name
SpecificationItem
※( ) is the specification for the model which use R-600a(refrigerant)

7
DC13V / 1100±100 rpm
Condenser
Fan Motor
DC13V / 1950±100 rpm
R-Fan Motor
DC13V / 2050±100 rpmF-Fan Motor
E
L
E
C
T
R
I
C
A
L
P
A
R
T
S
SpecificationItem
FRS(N)-U20DAModel Name
AC250V , 10A , 77℃Fuse Temp (Defrost)
PBN-38F-Sensor
D-Sensor
D
E
F
O
R
E
S
T
AC220V / 5WWater Pipe Heater
AC220V / 5WDispenser Heater
AC220V / 8WLouver Heater
H
E
A
T
E
R
SP201R-7DL / SP201R-7DR
(SPF101B-2D / SPF101B-1D)
AC230~240V / 25W (2EA)
AC230~240V / 25W (2EA)
R-Lamp
Door Switch , F / R
F-Lamp
AC250V 15AMain Fuse (Power cord)
AC220V / 7WMain Duct Heater
AC220V / 192WDefrost Heater
PBN-43
PBN-43
R-Sensor
※( ) is the specification for the model which use R-600a(refrigerant)

8
1. Display control
2. “FREEZER SET” Button
1) Temperature control of freezer compartment
2) 7 step mode of successive temperature mode.
3) Initial mode by power input : “Medium(-19℃)”
※Whenever pressing button, setting is repeated in the order of
Medium (-19℃) →Medium Max 1 (-20℃) →Medium Max 2 (-21℃)→Max (-22℃)
→Min (-16℃) →Medium Min 2 (-17℃) →Medium Min 2 (-18℃).
INPUT CONTROL OBJECT
CONTENTS REMARKS
Front PCB button
FREEZER SET, REFRIGERATOR SET
SUPER FREEZER, SUPER REFRIGERATOR
RESET FILTER, WATER / ICE, ICE MAKER LOCK
,LOCK
FCP C-LED
3. “SUPER FREEZER” Button
When this mode is chosen, the icon (FREEZER QUICK) is ON.
After six month, LED ONFILTER CHANGE ICON
DialICE MAKER LOCK ICON
DialLOCK ICON
DialWATER / CUBED ICE/ CRUSHED ICE ICON
Always ONFUZZY, DEODORIZER ICON
Dial
SUPER FREEZER,SUPER
REFRIGERATOR ICON
Initial mode : Freezer & Refrigerator set→
Medium (-19℃/4℃)
88 DISPLAY (SET TEMP.)
ControlFCP-LED
-21℃
Medium
Max 2
-18℃
Medium
Min 2
-19℃
Medium
-22℃
Max
-20℃-17℃-16℃
Temp
indication
Medium
Max 1
Medium
Min 1
Min
Temperature
Change
4. OPERATION AND FUNCTIONS. 4-1. Display. 4-1-1.FRS(N)-U20DA
Temperature adjustment button
for freezer compartment.
Super freezer Temperature adjustment button
for refrigerator compartment.
Super Refrigerator
Lock buttonWater filter reset Dispenser select button Ice maker lock button
Letters are indicated on 88 Display LED

9

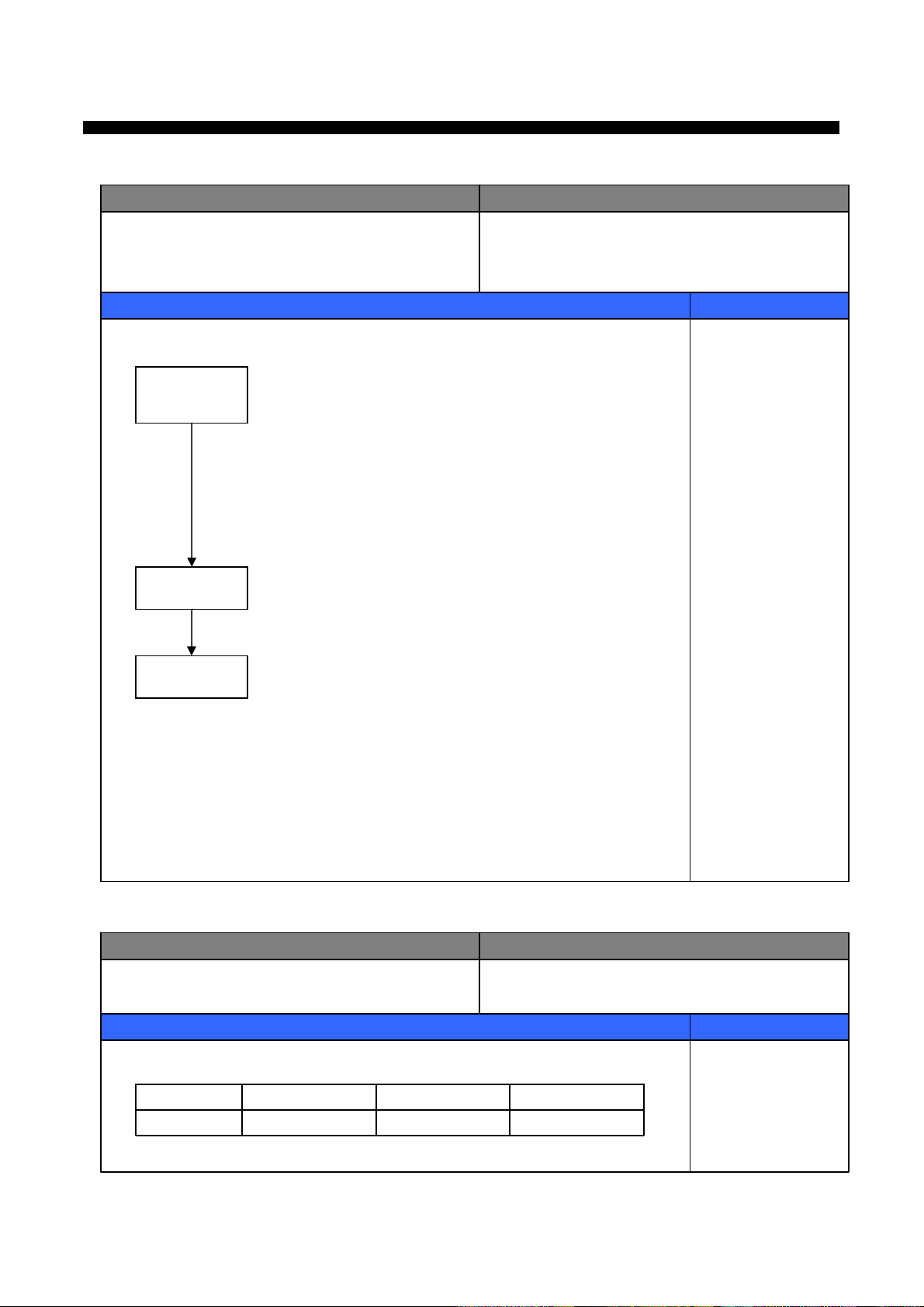

CONTENTS REMARKS
4. “REFRIGERATOR SET” button.
1) Temperature control of Refrigerator compartment
2) 5 step mode of successive temperature mode.
3) Initial mode by power input : “Medium (4℃)”
※Whenever pressing button, setting is repeated in the order of
Medium (4℃) →Medium Max (3℃) →Max (2℃) →Min (6℃) →Medium Min (5℃).
2℃3℃
4℃5℃6℃Temp indication
Max
Medium
Max
Mid
Medium
Min
MinTemperature Change
5. “SUPER REFRIGERATOR” button.
When this mode is chosen, the icon (REFRIGERATOR QUICK) is ON.
6. “WATER / ICE” button
1) Select Water / Cubed Ice / Crushed Ice.
2) Icon lights up to show your selection is on.
Initial mode by power input : “Water” mode.
3) The mode of Cubed Ice or Crushed Ice continues for 1 hour and then changes
to Water. (Water icon turns ON)
7. “ICE MAKER LOCK” button
1) Start by pushing “ICE MAKER LOCK” button
①“ICE MAKER LOCK” icon is on
②“WATER” icon is always on
2) Stop by pushing “ICE MAKER LOCK” button again
①“ICE MAKER LOCK” icon is off
②“WATER” icon is on
8. “RESET WATER FILTER” button
1) The normal (ICON OFF) is on for 6 month after are first power input.
2) After sic months, icon is ON.
3) How to reset Filter information
①Push the “RESET WATER FILTER” button for 3 seconds after change.
9. “LOCK” button
1) This button stops operation of different button.
①“LOCK” icon is on
②Press this button to lock out this case and to keep temperature and
function setting.
2) Push “LOCK” button again for more than a second to stop it.
※The actual inner temperature varies depending on the food status, as the indicated setting
temperature is a target temperature, not actual temperature within refrigerator.
※Refrigeration function is weak in the initial time.
Please adjust temperature as above after using refrigerator for minimum2~3 days.
Letters are indicated on 88 Display LED
REFERENCE : Please wait
for 2-3 seconds in order
to take final ice or drops
of water when taking out
cup from the pressing
switches after taking ice
or water.

10

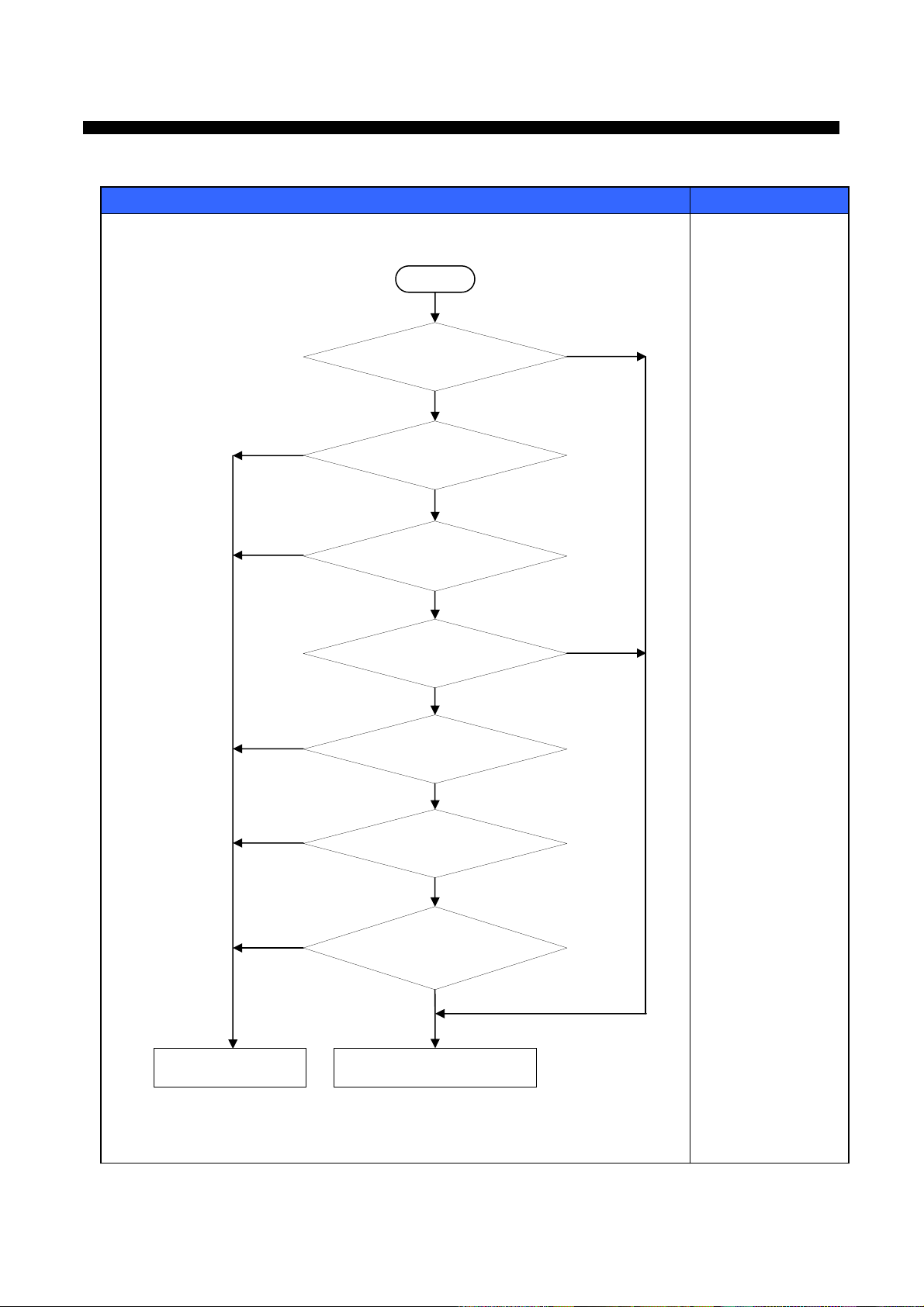

1. Defrost Mode
INPUT CONTROL OBJECT
CONTENTS REMARKS
1. Defrosting Cycle 1. Comp
2. F-Fan
3. R-Fan
4. D-Heater
Pre-Cool
Pause
Fan-Delay
Heater
Defrosting
Pre-Cool
1) Time : 50 minutes
2) Comp , F-fan : ON
R-fan : Control
D-HTR : OFF
3) If F-sensor ≤-27℃, then Pre-Cool becomes. OFF
Heater
Defrosting
1) Comp, F-fan, R-fan : OFF
D-HTR : ON
2) Time limit
30 seconds : Heater is ON regardless of D-sensor
temperature right after defrosting start
30 minutes : in case of D1- Error
80 minutes : in normal control state
3) If D-sensor ≥13℃, Heater Defrosting is OFF
Pause
Time : 7 minutes
Comp, F-fan, R-fan, Heater etc. : OFF
Fan-Delay
1) Time : 5 minutes
Comp : ON and F-fan, R-fan, Heater : OFF
4-2. Defrost Mode
2.The defrost mode start with the following conditions
1) Total operation time of comp. becomes : 6,8,10,……… 24 hours.
①Comp. operating rate : more 85%
②Total door open time : 2 minutes
(Any door, F or R open time is over 2 minutes.)
③Any error mode : R1, F1, D1, F3, RT/S, Door-switch etc.)
2) Defrosting mode starts unconditionally as long as total comp. work time is
24 hours, even if the above conditions 1) are not satisfied.
3) Defrosting mode starts immediately as long as total time of [comp. ON +
comp. OFF] is over 60 hours, even if the above 1) and 2) conditions are not
satisfied.
3. In providing initial power (or returning power failure)
If D-sensor temp. ≤3.5℃, defrosting mode starts .

11
CONTENTS REMARKS
4. Flow Chart of Defrosting Start
Start
Comp. operating time
is over 24 hours?
Total time is
over 60 hours?
Comp. operating time
is over 6 hours?
EndDefrosting start
Comp. operating time
is over 2 hours?
Any error ?
NO
YES
NO
NO
YES
Total door open
time is over 2 min?
YES
YES
YES
YES
NO
NO
NO
Comp. operating rate
is more 85%?
NO
YES

12
1. A/S Defrosting Mode (Heater defrost →Pause →Fan Delay)
INPUT CONTROL OBJECT
CONTENTS REMARKS
1. Defrosting Cycle 1. Comp
2. F-Fan
3. R-Fan
4. D-Heater
Heater
Defrosting
1) Comp, F-fan, R-fan : OFF
D-HTR : ON
2) Time limit
30 seconds : Heater is ON regardless of D-sensor
temperature right after defrosting start
30 minutes : in case of D1-Error
80 minutes : in normal control state
3) If D-sensor ≥13℃, Heater Defrosting is OFF
Pause
Time : 7 minutes
Comp, F-fan, R-fan, Heater etc. : OFF
Fan-Delay
1) Time : 5 minutes
Comp : ON
F-fan, R-fan, Heater : OFF
Pause
Fan-Delay
Heater
Defrosting
2. How to start
1) Push “REF.TEMP” button 5 times while pushing “FRZ.TEMP” button simultaneously.
--------- FRS-U20IA
2) In “LOCK” mode, push “REFRIGERATOR SET” button 5 times while pushing “FREEZER SET”
button simultaneously. ------ FRS(N)-U20DA
3. How to proceed
1) Delete Pre-cool mode. (Others are same as normal defrosting)
2) Heater is ON regardless of D-sensor temp. at first 30 seconds.
(Check of defrosting current)
4-3. c (Forced Defrosting) Mode
1. Fan voltage of control mode
INPUT CONTROL OBJECT
CONTENTS REMARKS
1. F-Sensor
2. R-Sensor 1. F-FAN, R-FAN, C-FAN
13 V13 V13 VVoltage
C-FANR-FANF-FANFAN
4-4. Fan Voltage of Control Mode
※Refer to the 5-4. (Fan Function )

13
It is linked with comp.
INPUT CONTROL OBJECT
CONTENTS REMARKS
1. Comp Louver Heater
1. Buzzer sounds if any button of Inner Control is pushed.
2. Buzzer sounds 4 times 3 seconds after initial power input.
3. Buzzer sounds for 3 or 1 times in case of A/S forced defrosting and short (pull down)
operation or explanation mode.
4. If door is open, buzzer sounds after every 1 minutes for 5 minutes (Door open alarm)
INPUT CONTROL OBJECT
CONTENTS REMARKS
1. Control (Inner or F-PCB) buttons
2. Door Switch
3. Initial Power Input Buzzer
4-5. Louver Heater Control
4-6. Buzzer or Alarm Control
1. Control refrigerator compartment lights
R-Lights turn ON/OFF by R-door switch ON/OFF
(※For 10 minutes after sensing door open, the lights turn off automatically
through door close is not sensed.)
2. Control of freezer compartment lights.
F-Light turn ON/OFF by F-door switch ON/OFF
(※For 10 minutes after sensing door open, the lights turn off automatically
through door close is not sensed.)
3. R-lights ON/OFF by home bar door switch ON/OFF. ( for only model with home bar )
R-lights turn ON for 10 minutes after sensing home bar door switch open.
4. Dispenser lamp control ( for only model with water/ice dispenser )
Dispenser lamp turns ON/OFF by Dispenser switch.
Dispenser lamp turns ON for 4 seconds after sensing switch close.
INPUT CONTROL OBJECT
CONTENTS REMARKS
1. Refrigerator door switch
2. Freezer door switch
3. Home bar door switch
4. Dispenser switch
Lamp
4-7. Control of Interior Lights (FRS(N)-U20DA)

14
1. Start
Open and close “Freezer door switch” 5 times while pushing “FRZ. TEMP” button
simultaneously.
2. Control
1) All other electrical components are OFF except for F-fan / R-fan
2) Fan Control
Door open →Fan ON / Door close →Fan OFF.
3) Display control
“FRZ. LED” and “REF. LED” are ON in good order
3. Stop
1) During Demo mode, push “Freezer door switch” open and close 5 times while pushing
“FRZ. TEMP” button simultaneously.
2) Power in again
INPUT CONTROL OBJECT
CONTENTS REMARKS
1. FRZ. TEMP
2. Door Switch
Comp
F/R-Fan
Heater
4-8. Demonstration
1. Start
Push “ICE/WATER” button 5 times while pushing “FREEZER SET” button
simultaneously.
2. Control
1) All other electrical components are OFF except for F-fan / R-fan
2) Fan Control
Door OPEN →Fan ON / Door close →Fan OFF.
3. Stop or termination
1) During Demo mode, push “ICE/WATER” button 5 times while pushing “FREEZER
SET” button simultaneously.
2) Power in again
INPUT CONTROL OBJECT
CONTENTS REMARKS
1. “FREEZER SET, WATER/ICE” Button , Door switch Comp
F/R-Fan
Heater
4-8-1. FRS(N)-U20IA
4-8. Demonstration. 4-8-1.FRS(N)-U20DA

15
Compensation of R-sensor ON/OFF temp. (down)
In case temperature of refrigerator compartment is weak or insufficient,
take the following action.
INPUT CONTROL OBJECT
CONTENTS REMARKS
Main PCB Resistance of R-sensor Mid ON/OFF Point
R36 : R-SENSOR standard resistance in normal mode (31.4K)
R37 : In case of weak ref., cut J1 (or J18) to down the standard resistance by 1.5deg(2K)
R38 : In case of weak ref., cut J2 (or J19) to down the standard resistance by 1.5deg(2K)
4-9. Compensation of R-sensor ON/OFF Point
FRS(N)-U20IA FRS(N)-U20DA
R-SENSOR
J2
R36
R37
R38 J1
R-SENSOR
J19
R36
R37
R38 J18
J1
J2
J18,19
※Refer to the 5-2.
(Function of each sensor)
3℃ -1.5℃ 0℃
Temperature
compensation
cut--J19 cutcut-J18
FRS(N)
-U20DA
3℃ -1.5℃ 0℃
Temperature
compensation
cut--J2 cutcut-J1
FRS(N)
-U20IA

16
1. How to start
1) Under “LOCK” mode, press “SUPER FREEZER” button 5 times while pressing
“FREEZER SET” button at the same time.
2) The front CLED displays as the right diagram shows
( [Ex.] Time Display of 0003 signifies 3 minutes of power on time.)
3) Press “FREEZER SET” button and the following value is displayed successively.
①Time
②F-Sensor temperature
③D-Sensor temperature
④R-Sensor temperature
⑤RT-Sensor temperature
⑥P Factor display (Refer to water supply mode of automatic icemaker)
⑦Filter remaining time until change (First check ; 4,320Hr)
Refer to Filter Information Reset of CLED of front control panel.
4) Error is displayed only if there is any ; it is skipped if no error.
2. How to stop
1) Push “LOCK” button 1 time.
2) It stops automatically in 4 minutes from the start.
3. All the error Codes are reset if they turn to be normal.
4. Error code
INPUT CONTROL OBJECT
CONTENTS REMARKS
Temperature Control Buttons 88 Display CLED
Display forced defrost mode for A/SD2
Display Full Down modeCo
Return after defrosting : abnormal or defectiveF3
Cycle : abnormal or defectiveC1
Full ice switch : errorEu
Drop the ice while EtEA
Micro switch : errorES
Water supply : errorEg
Horizontal switch : errorEt
Flow sensor : defectiveEF
I-sensor : disconnection (“Lo”), short (“Hi”)EI
Home bar Door Switch : defectivedH
F-Door Switch : defectivedF
R-Door Switch : defectivedr
D-sensor : disconnection (“Lo”), short (“Hi”)d1
RT-sensor : disconnection (“Lo”), short (“Hi”)rt
R-sensor : disconnection (“Lo”), short (“Hi”)r1
F-sensor : disconnection (“Lo”), short (“Hi”)F1
CONTENTSERROR CODE
4-10-1. FRS(N)-U20DA (CLED DisplayofFrontPCB)

17
1) “F1” error
Cause : F-sensor disconnection or short
Check point : Measure the resistance between both terminals after separating CN8 (or CN15)
of the Main PCB. (Refer to the 5-2.)
If F-sensor is disconnected or shorted , change the F-sensor in the freezer compartment.
How to reset : If F-sensor is normal, the error is terminal temperature.
CONTENTS REMARKS
2) “R1” error
Cause : R-sensor disconnection or short
Check point : Measure the resistance between both terminals after separating CN7 (or CN14)
of the Main PCB. (Refer to the 5-2.)
If R-sensor is disconnected or shorted , change the F-sensor in the refrigerator compartment.
How to reset : If R-sensor is normal, the error is terminal temperature.
7) “F3” error
Cause : in case defrosting return is done by time limit of 80 min
Check point : Measure the resistance between both terminals of the defrost heater.
(Assembled with evaporator)
If the resistance is ∞Ω (disconnected) or 0Ω(short) change the

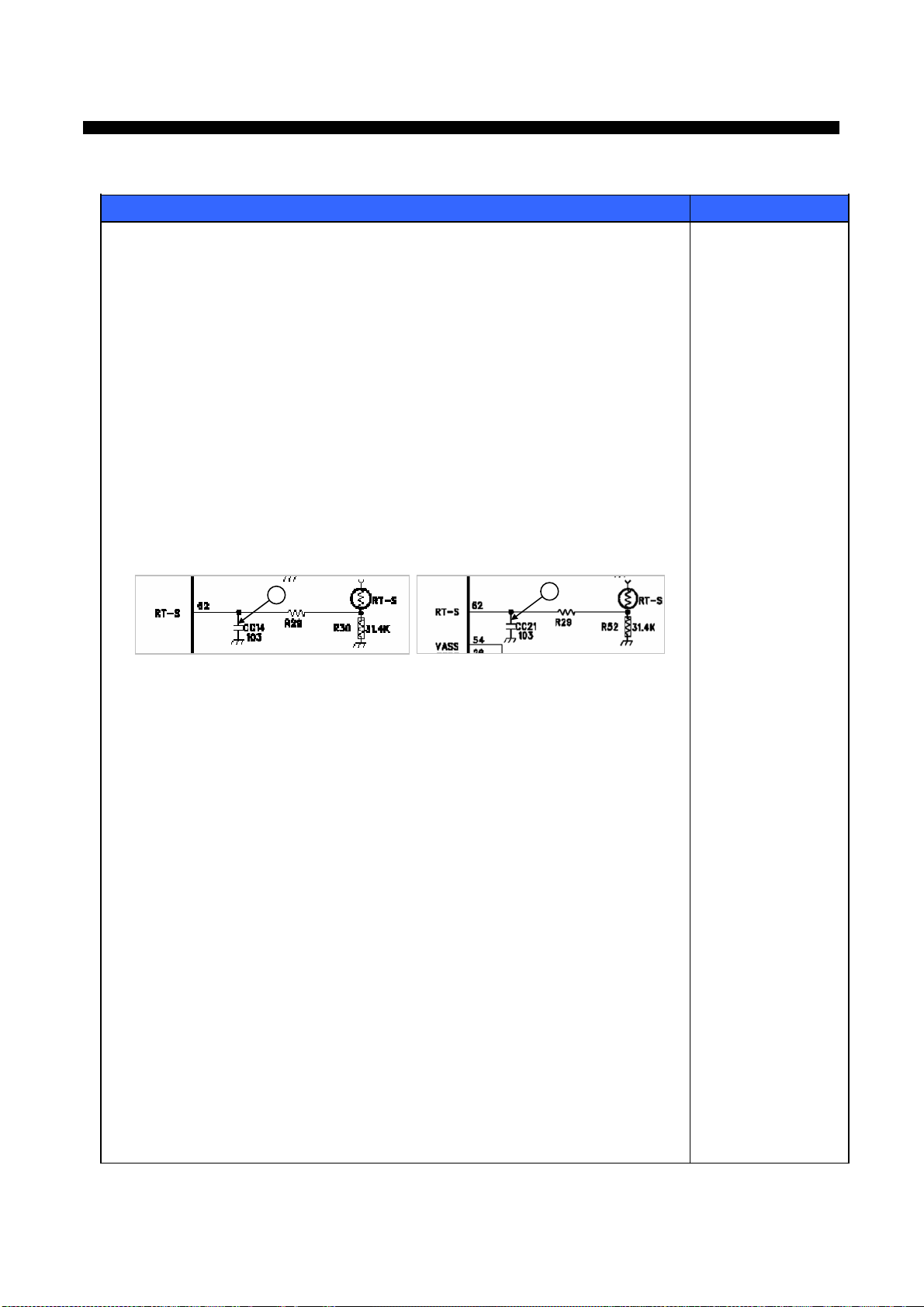

3) “rt” error
Cause : RT-sensor disconnection or short (full down)
Check point : Measure the voltage of “A” part on the Main PCB.
If the voltage is 0.5V~4.5V, it is normal.
If the voltage is 0V (short) or 5V (disconnected), change the RT-sensor on the Main PCB
How to reset : If RT-sensor is normal, the error is terminated automatically.
< FRS(N)-U20IA >
A
< FRS(N)-U20DA >
A
4) “d1” error
Cause : D-sensor disconnection or short (full down)
Check point : Measure the resistance between both terminals after separating CN8 (or CN15)
of the Main PCB. (Refer to the 5-2.)
If D-sensor is disconnected or shorted , change the D-sensor on the evaporator.
How to reset : If D-sensor is normal, the error is terminated automatically.
5) Door error (“dF” “dR” “dH” on display)
Cause : in case it senses that door is open for more than 1 hour.
Check point : F/R door is opened or not.
6) “C1” error
Cause : in case comp. works for over 3 hours when D-sensor temp. is over -5℃
Check point : Refrigerant leakage.
8) “d2” mode (A/S forced defrosting mode)
Push “REFRIGERATOR SET” button 5 times while pushing “FREEZER SET” button
simultaneously.
Control : A/S forced defrosting control (Pre-cool is deleted)
If D-sensor temp. is over 10℃, the mode is terminated automatically.
Refer to the 4-3. .
5. Control way of Error (if any)

18
9) “EI”ERROR
Cause : I-SENSOR disconnection / short
Check point : Measure the resistance between both terminals after separating CN11
of the Main PCB. (Refer to the 5-2.)
If F-sensor is disconnected or shorted , change the I-sensor in the automatic ice maker.
CONTENTS REMARKS
10) “EF” ERROR
Cause : When Flow-sensor ERROR (There is no Pulse during some time)
The number of pulse signal is below 10 by 1 sec during water supply.
Check point : Water supply line
13) “Ea” error
Cause : Malfunction of ice drop motor.
Check the motor by pushing test switch.
11) “Eg” ERROR
Cause : I-sensor temp (5min after water supply) doesn’t go up.
Check the I-sensor or water supply line.
12) “ES” error (MICRO switch error)
Cause : When it senses 1min continuously
Check the MICRO switch of the dispenser.
14) “Eu” error
Cause : Switch (which senses if the ice is full or not) is in error.
Control : When dropping the ice, the motor just rotates 90 degree.
Termination : When the switch is in normal.
15)“EA“ ERROR
Cause : When sensing Ice dropping by time 3 times in level sensor SW Error.
Control : Stop of Ice Maker
Termination : With normal level switch.
Re-input of power or push if icemaker test switch.
16)“Et” ERROR
Cause : Level switch error (No pulse is sensed for some time)
Control : By time (Supply mode is skipped)
Termination : Normal condition.
* When all ERROR CODE is normal, the Refrigerator reset

19
Element A/S Function
INPUT CONTROL OBJECT
CONTENTS REMARKS
Each button Resistance of R-sensor Mid ON/OFF Point
“REF.TEMP”+ “FRZ.TEMP” 5 timesError display
“FRZ.TEMP”+ “FRZ.DOOR” OPEN/CLOSE 5 timesDemo function
“REF.TEMP”+ “FRZ.DOOR” OPEN/CLOSE 5 timesPull Down
“FRZ.TEMP” + “REF.TEMP” 5 timesForced Defrosting
1. All the modes are started “LOCK” mode (except “FILTER RESET” mode)
2. Element A/S Function
INPUT CONTROL OBJECT
CONTENTS REMARKS
Each button Resistance of R-sensor Mid ON/OFF Point
“WATER/ICE” + “ICE MAKER LOCK” 5 timesIce maker test
“WATER/ICE”+ “RESET WATER FILTER” 5timesEEPROM clear
“FREEZER SET”+ “SUPER FREEZER” 5 timesError display
“REFRIGERATOR SET”+ “FREEZER SET”+ “WATER/ICE”5 timesPull Down
“REFRIGERATOR SET” + “WATER/ICE” 5 timesDemo function
Push “RESET WATER FILTER” for 3 secondsReset water filter
“FREEZER SET” + “REFRIGERATOR SET” 5 timesForced Defrosting
4-11. Summary ofFunction
4-11-1. FRS(N)-U20IA (Inner Control)
4-11. Summary of Function. 4-11-1. FRS(N)-U20DA (Front PCB)
