Daewoo FRS-2021CAL User manual

Be sure to keep for safety !
Read this safety instructions thoroughly and carefully before using. Please keep this user guide
at hand for future reference.
1
WARNING CAUTION
Indicates the possibility of danger of
death or serious injury Indicates the possibility of risk of personal injury or material damage
DO NOT remove or disassemble!
Be sure to unplug from receptacle(outlet/mains)!
NO., DO NOT...
Be sure to keep and follow!
Other Signs
WARNING
Do not plug several appliances into same
wall outlet (receptacle).
● It can be a cause of overheating and/or fire.
Use an exclusive grounding receptacle for the
refrigerator.
Never let power cord be crushed
by refrigerator itself or other (heavy) objects.
Never bend power cord excessively.
● If cord is damaged or peeled, it can be a cause
of fire and electric shock.
Never use damaged power cord or plug,
loose receptacle.
● There is a risk of fire, electric shock or serious
injury.
Never unplug by pulling only the power cord
wire. Always grip the plug firmly.
Never hold the power cord or plug with wet
hands.
● There is a risk of electric shock.
Be sure to ground. Check if your wall outlet is
grounding (earthed) one.
● There is a risk of electric shock hazards.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
simmilary qualified person in order to avoid a hazard.

2
Do not install refrigerator on a wet floor or in
a place with much humidity moisture.
● Electric insulation gets weakened, resulting in
a risk of electric shock hazards.
Let the cord from the plug outlet be
directed Downwards.
● If it directed up, the cord near the plug is
bent and can be damaged, which can cause
electric shock or fire.
Check if plug is loose from the wall outlet.
● Electric insulation gets weakened, resulting in
a risk of electric shock hazards.
Never let the power cord touch or pass over
heating appliances.
● Power cord can be damaged, resulting in a
risk of electric shock hazards.
Do not place containers with water or liquid
on top of refrigerator.
● Water can be poured into the refrigerator and
can cause electric shock hazards or damage.
Never pour or spray water into the
refrigerator (both interior and exterior).
● Electric insulation gets weakened, resulting in
a risk of electric shock hazards.
Do not move or remove compartment
shelves/pockets while foods and containers
are on them.
● Hard container (of glass, metal etc.) can fall to
hurt you and can break shelf glass and interior
parts.
Do not let children hang on the refrigerator
doors.
● Refrigerator can fall and do harm to them.
Never repair or disassemble or amend
refrigerator on your own
● There is a risk of personal injury or damage to
the refrigerator. It is recommanded that any
service be carried out by a qualified person.
Never store any flammable gas or liquid
in the refrigerator.
Never use flammable gas, benzene, thinner,
gasoline, spray etc. near the refrigerator.
● There is a risk of fire, explosion and personal
injury or damage.
If a gas leak found near the refrigerator or in
the kitchen, ventilate it immediately without
touching power plug or refrigerator.
WARNING

3
Do not store medicine, academic research
samples which require strict temperature
control in the refrigerator.
Never insert fingers or hands into the bottom
of refrigerator, especially into the bottom back.
● You can be hurt by sharp metal edges or can
receive an electric shock.
Do not change fuse or light bulb on your
own. Call the service agent to change them. When you find the power cord damaged or cut, call the service agent immediately.
When you get rid of your old refrigerator, be
sure to remove the door packings first.
● Children can be entrapped and suffocated in an
abandoned refrigerator.
Leave it“just a few days!”is very dangerous.
Be sure to unplug when the refrigerator is not
used for a long time. Never touch foods and containers especially of metal with wet hands in the freezer
compartment.
● You can be hurt by chilblains or cold bum.
Never eat any decayed or deteriorated food at all.
● Foods stored too long in the refrigerator can be
decayed or deteriorated .
Be sure to turn up the wheel first before
moving the refrigerator.
● The wheels can damage or scratch the floor.
If you move it a long distance, never forget to
fasten the interior parts tightly with tapes.
● The parts can shake to break each other.
When moving the refrigerator (layed or tilted),
more than 2 persons are required to hold it.
( One to hold top back handles, the other,
bottom holder. )
If other parts gripped, it is very dangerous and
likely to slip.
Never place bottles and containers of glass in
the freezer compartment.
● Glass containers and bottles can be broken so
can hurt you.
WARNING
CAUTION

4
󱎲 Never install the refrigerator on a wet, watery floor or where water can easily gather.
󱎳 Check the following before power connection.
● Connect power plug only to a grounding wall receptacle (an earthed mains).
● Do not plug refrigerator power together with other appliances to a same receptacle(socket).
󱎴 Do not use an adapter plug or an extension cord.
󱎵 Do not let power cord be crushed down by other (heavy) objects .
※If you hear strange noise or strong chemical odor or find smog etc. from the refrigerator after
power plugin, pull out the plug immediately and call the service.
※Wait about 5 minutes before you plugin again in order to prevent any
damage to the compressor and electrical devices of refrigerator.
※Wait 2~3 hours until the inside gets cold enough after first power plugin, then store foods in.
(There can be some peculiar smell of plastic parts at initial operation of refrigerator after plugin.
The smell fades away as refrigerator works and doors are opened and closed.)
Precautions in installation and power connection
■ To prevent fire, electric shock or leakage
Precautions in use
■To prevent personal injury, fire, electric shock etc. read this user guide carefully before use and
keep it at hand for any reference.
※ Read these safety instructions carefully before use and follow precautions for your safety.
Egg case Egg cradle User guide
󱇲Accessories
Installation Guide

The LCD light turns on in the following case to help you control the panel easily ;
● When the refrigerator is pluged in
● When you push a button (The background light turns on first, then button mode is activated.)
● When you open the door
※
If you push a button when the backlight is off, only the backlight turns on and it does not affect any other button mode.
The LCD light turns off in the following case to save energy consumption ;
● 1 minute after power plug in
● 10 seconds after the door is closed
● No other button is pushed for more than 1 minute after button selection
※
When you look at LCD display from side or down, not from front, the display (letters, icons and signs) can look faded or dim.

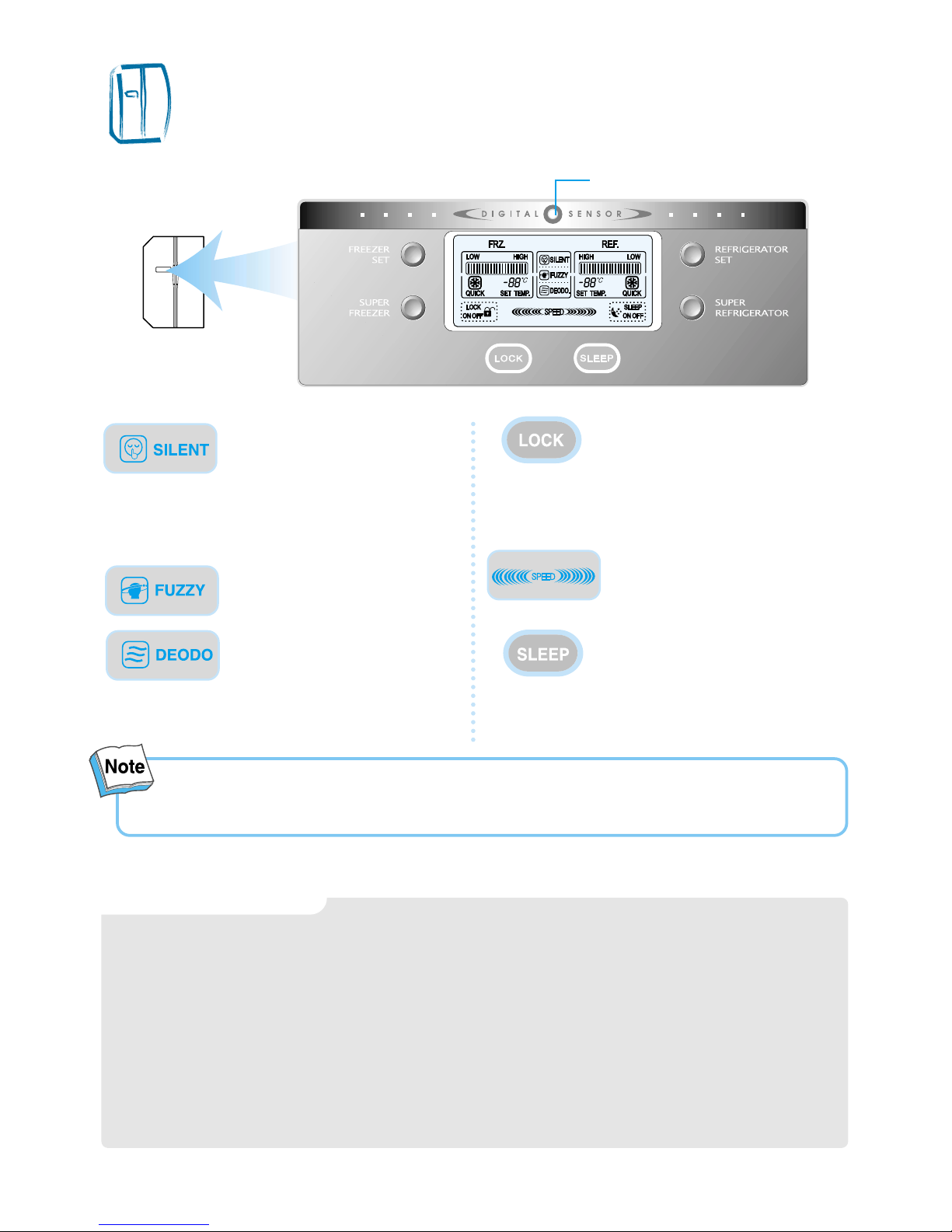

Control Panel
5
Optical Sensor in the top center of the panel
senses the amount of light surrounding the
refrigerator.
When it decides that it is dark (night), Silence
Mode starts. Refrigerator works on in minimum
operation condition, so it makes little or
less working noise.
[Notice] Do not let the Optical Sensor be
covered by memo sheet (Post-it) ect.
It shows that the digital control system is
working the refrigerator. (The icon is always on
while the refrigerator is working.)
As long as the refrigerator is working
deodorization is always on.
● Interior lights of refrigerator turn off when the doors are open for more than 10 minutes.
● In case either freezer or refrigerator door is open for more than a minute, door alarm rings for 5 minutes with
1 minute interval.
Children may push any button on the panel for
fun, resulting in disorder of temperature and
function of refrigerator. Press this button to lock
out this case and to keep temperature and
function setting.
Push Lock button again for more than a second
to stop it.
If you fill the refrigerator with much foods or in
case of frequent door openings, Speed Mode
starts automatically to maintain optimal condition
of temperature.
If you need total silence from the refrigerator just
push sleep button.
This mode works for maximum 12 hours and
then it returns to the previously set mode.
When you want to stop the mode, just push the
button again and it also returns to the previously
set mode
LCD Background Light
Optical Sensor

6

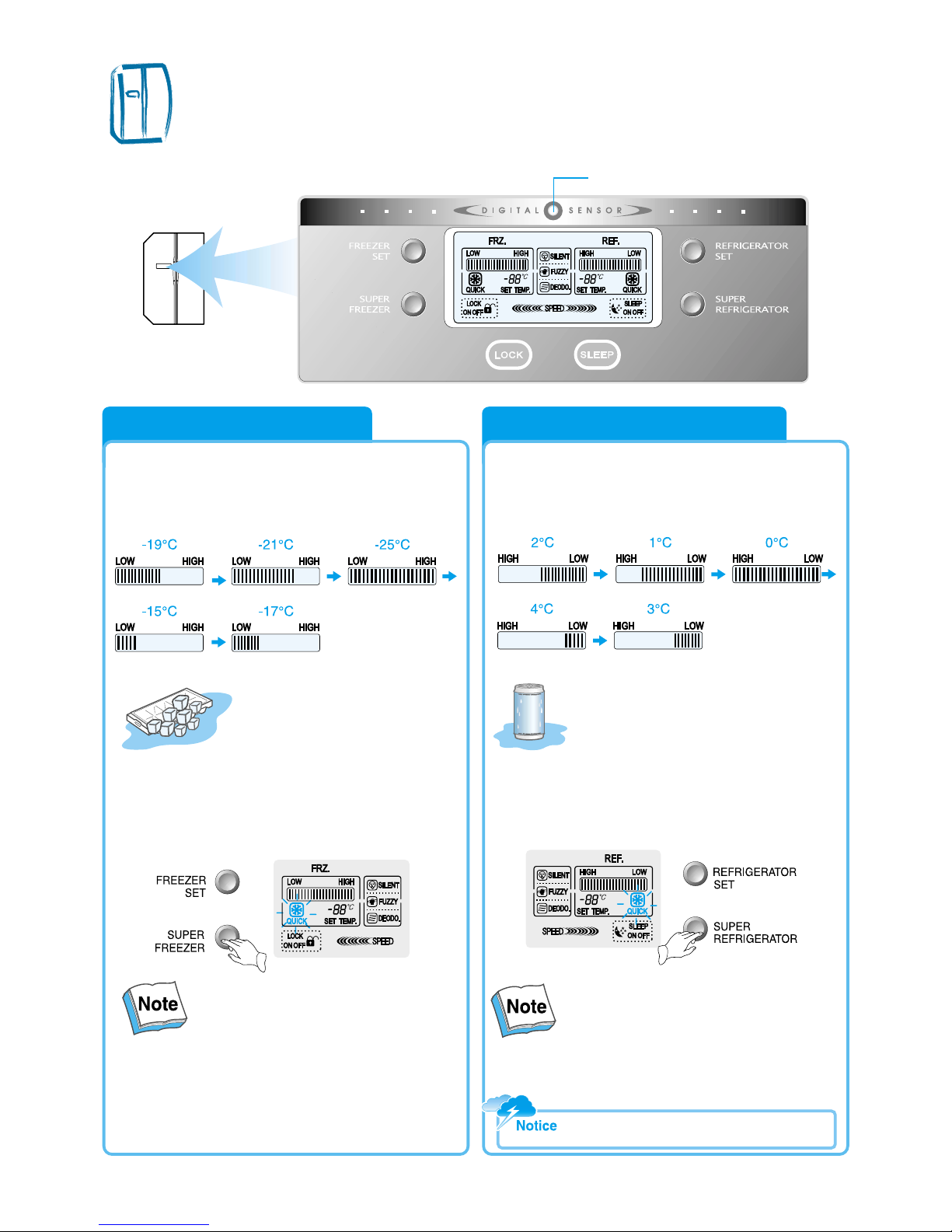

Temperature Control
※When this refrigerator is first plugged in, the temperature mode is set to [Middle].
Push the FRZ SET. button and the setting
temperature changes as the figure shows. Push the REF SET. button and the setting temperature changes as the figure shows.
>>> Sequential Temperature Change <<< >>> Sequential Temperature Change <<<
Foods in the refrigerator can be frozen if the ambient
temperature of refrigerator is below 5℃.
When you want faster freezing, push the SUPER
FRZ. button, then
““QUICK””
icon turns on and the
mode starts. Just push the button once again when
you want to stop the mode.
Faster Freezing...
When you want faster refrigerating, push the
SUPER REF. button, then
““QUICK””
icon turns on
and the mode starts. Just push the button once
again when you want to stop the mode.
Faster Cooling or
Refrigeration
●The inside temperature can varies according to door
openings, amount of foods, surrounding temperature
etc.
●The mode ends automatically and it returns to the
previously set mode.
For example) The refrigerator is working on [LOW Mode]. -->
[SUPER FRZ.] starts and ends. -->
Returns to [LOW Mode] again.
● The inside temperature can varies according to door
openings, amount of foods, surrounding temperature
etc.
● The mode ends automatically and it returns to the
previously set mode.
For example) The refrigerator is working on [LOW Mode].
--> [SUPER REF.] starts and ends. -->
Returns to [LOW Mode] again.
Freezer Compartment Refrigerator Compartment
Optical Sensor

7
How to use interior parts
●The first case or drawer of the refrigerator compartment can be
used either as a vegetable case or as a chilled case for your
convenience.
The temperature in the chilled case is somewhat lower than the
vegetable one, so you can keep food more fresh.
●If you store vegetables and fruits in the chilled room mode, they can be frozen.
●If you store fish in the chilled room mode for a long time, it can deteriorate. Store it in the freezer compartment.
●Do not place foods close to the cold air spout, for it can weaken cold air circulation.
➊ Pull out ice cubes
maker and fill with
pure water.
❷ When ice cubes are
ready, turn the handle
clockwise to separate.
●If ice cubes are not to fall easily, turn
it to the end several times.
●Do not turn the separation handle if
the ice cubes are not ready, for they
gets sticky on the ice tray and case.
❸ Do not use ice cubes
case to make big ice
block, for it can be
broken.
Pull out the case, clean
and dry it if not used
(for a long time).
●Do not pour water too much, for
the ice cubes made get sticky and
do not to separate easily.
●Keep in mind not to go beyond the
water line with an arrow mark
when filling with water.
󱇲For Vegetable Case 󱇲Be sure to check the handle bar direction󱇲For Chilled Case
󱇲Vegetable Case & Chilled Case
󱇲Ice Cubes Maker

8
➊Dairy Pocket
For storing dairy products
such as butter and cheese
➋Small Pocket
For storing small packed foods
➌Refreshment Pocket
For frequently used cans, drink water, beverages
➍Refrigerator Shelf (tempered glass)
For storng common foods
➎Chilled Case
For storing foods temporarily that is
ready to cook (meat, fish...)
➏Switch Handle for Chilled Room or Vegetable
󱇲Interior Parts

9
Wash foods before storing.
Divide and separate foods into
smaller pieces as possible.
Place watery foods or foods with
much moisture in front of
shelves (close to door side).
●If they are placed close to the cold
air spout, they can be frozen.
Warm or hot foods should be
cooled down enough before
storing to reduce power
consumption and to enhance
refrigeration performance.
Never forget to cover or wrap
foods to prevent odor of foods.
Be careful in storing such tropical
fruit as bananas, pineapples,
tomatos, for they can easily be
deteriorated in lower
temperature.
Keep enough space between the
foods as possible. If too tight or
too close, cold air circulation is
hindered, resulting in poor
refrigeration.
Food Storage Tips
● Egg case can be placed on a refrigerator shelf as you like.
●Do not touch or hold with wet hands foods (foods container) in the freezer
compartment.
☞There is a risk of chilblains (cold burn)
●Do not store medicine, academic research samples etc. in the refrigerator.
●Do not store vegetables in the chilled room, for they can be frozen.
➐Movable Egg Case
Place the case for your convenience.
(Do not use the case for storing ice cubes nor place in the freezer
compartment.)
➑Vegetable Case & Chilled Case
Refer to page 7.
➒Fruit Case
For storing fruits
➓Freezer Shelf (tempered glass)
For storing frozen foods such as meat, fish,
ice-cream...
󱁁Ice cubes maker & Ice cubes case
when the ice cubes are ready, turn the handle
clockwise to separate.
☞page 7.
󱁂Drying Case of Freezer
for storing dried foods for so long (dried
squid, dried anchovy etc.)
󱁃Meat case of Freezer
for storing meat, fish, chicken with foil cover
or vinyl wrap
󱁄Freezer Pocket
for storing frozen foods
(Do not store ice cream or long stored foods on the top freezer
pocket.)
󱁅Freezer Small Pocket
for storing small frozen foods
󱁆Refrigerator Pocket
for storing refrigerating foods, milk, juice, beer bottle etc.
󱁇Refrigerator Pocket Guide
to prevent (tall) foods on the pocket from falling
󱆓Bottle Guide
to retain tall bottles from sliding and falling
󱆔Wine Bottle Support

Care & Cleaning
10
Never use any other electrical appliances
together in the inside of refrigerator for fear of
electric shock or fire.
●Clean the interior at least once a month for sanitary food storage, deodorization.
●Be sure to unplug before cleaning or when not using for so long time.
●In case a power failure is predicted, store no more foods, make ice block and place it on the top refrigerator
shelf. It can keep the inside cool for about 2~3 hours. (Do not open the doors frequently ; minimize door
openings.)
Be sure to
unplug first !
Ice cubes maker & Ice cubes case
●Refer to page 7.
Pockets
guide

11

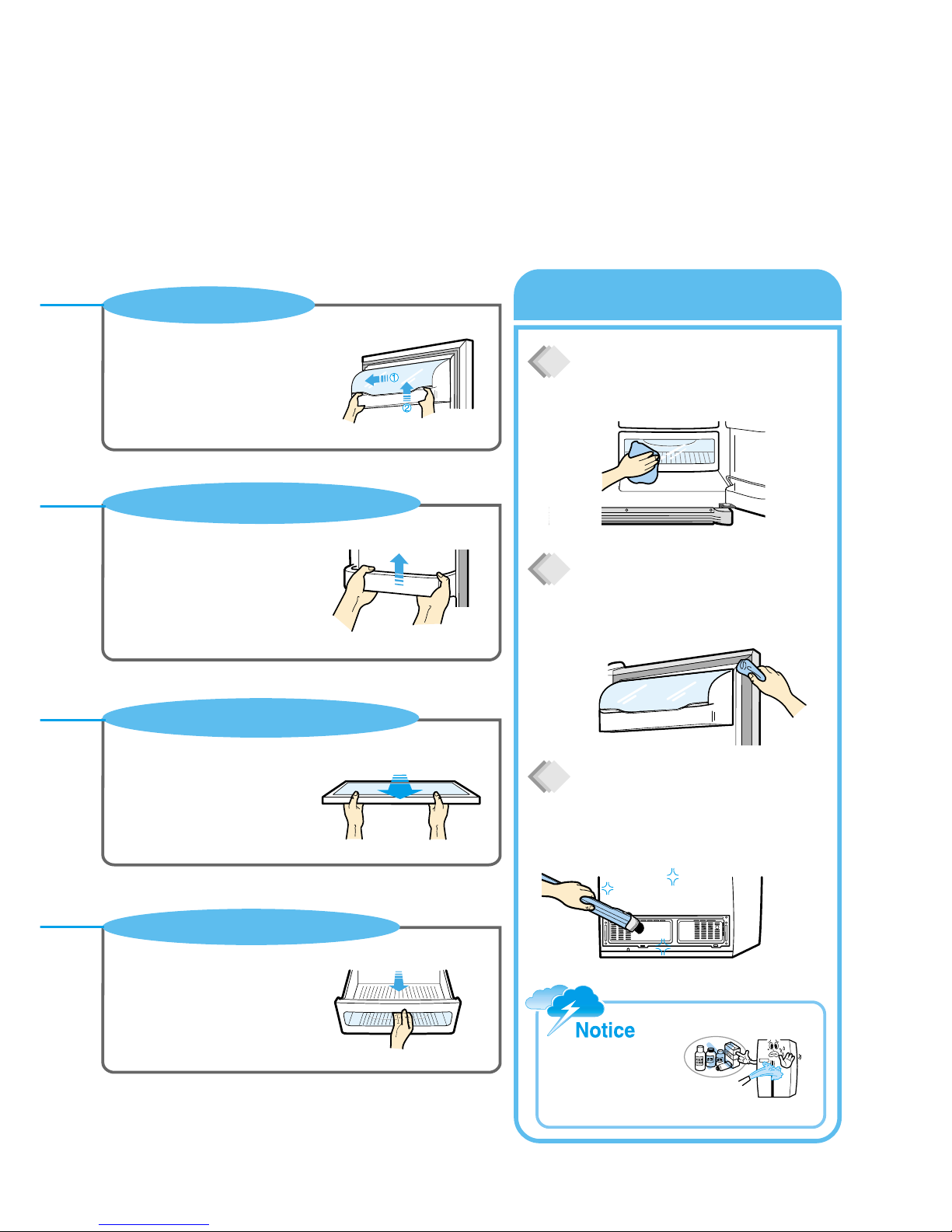

How to Clean
Dairy Pocket
●Diary Pocket Cover ; Open the cover a little,
hold both ends and push left to remove.
●Diary Pocket ; Hold both ends and pull
upward to remove.
Freezer & Refrigerator Shelves
●Open the doors fully,
then pull the shelves forward to remove.
Vegetable Case & Fruit Case
●Pull forward and lift up a little to remove.
Interior Parts
●Use cloth with water and mild(neutral) detergent to clean.
Door Packing
●Use cloth with mild(neutral) detergent.
Back (Machine Room)
●Remove dust on grill with a vacuum cleaner at least once
a year.
Freezer & Refrigerator Pockets
●Hold both end and pull up.
●4th and 5th pocket
①Removing ; Remove Pocket
Guide first, then Pocket.
②Replacing ; Replace Pocket first,
then Pocket Guide.
●Never use gasoline(petrol), benzene(benzol),
thinner etc., for they can damage the surfaces.

12
How To change lnterior Light Bulb
Change of Freezer Lights
Remove screw caps bottom
of light cover with
a tiny tip screw driver.
Remove 2 screws of light
cover.
Hold the bottom of light cover
and pull forward to remove.
Change the light bulb.
※Follow the reverse order
of disassembing after
changing the light
Remove screw caps
bottom of light cover with a
small tip screw driver.
Remove screws of light
cover.
Hold the bottom of cover and
pull forward to remove.
Change the light bulbs.
※Follow the reverse order
of disassembing when
assembling back.
Change of Refrigerator Lights
➊
➊
➊
❷
❷
❷
❸
❸
❸
❹
❹
Snap out hte bottom hook
of light cover with a flat tip
screw driver.
Hold down the light cover to
pull out. Change the light bulb.
※Follow the reverse order after
changing the light.
Refrigerator Top Lights
Refrigerator Bottom Lights
The lamp shall be replaced only by a service agent or similarly qualified person.

Before You Call for Service...
Please checkup the following troubleshooting tips before you call for service !
13
Problem Checkup Point Action
➊Is the refrigerator unpluged ?
󱂨Is the temperature set to [Low Mode] ?
󱂩Is the refrigerator under direct sunlight or is any
heat appliance placed near it ?
󱂪Is the space between refrigerator back and the
wall too close ?
➊Plug the refrigerator.
󱂨Set the temperature mode to Middle or High.
󱂩Move to a place where there is no direct
sunlight, no heat appliences around.
󱂪Keep sufficient space (more than
10cm)between refrigerator back and the wall.
It never gets cold inside.
Freezing & refrigerating is
not so good.
➊Is temperature set to [Strong] ?
󱂨Is surround temperature too low ?
󱂩Is foods with much moisture stored close to the cold
air spout ?
➊Set the temperature to [Middle] or [Low].
󱂨Foods can be frozen if ambient temperature is
below 5℃. Move to a place where the
temperature is over 5℃.
󱂩Place foods with moisture on the shelves
close to the doors.
Foods in the
refrigerator get frozen.
➊Is floor beneath the refrigerator uneven ?
󱂨Is the space between refrigerator back and the
wall too close ?
󱂩Does other stuff touch the refrigerator ?
➊Move the refrigerator to a level and even floor.
󱂨Keep sufficient space.
󱂩Remove any object a way which touches the
refrigerator.
Strange sound from
the refrigerator
➊Is food stored uncovered or unwrapped ?
󱂨Are the shelves and pockets stained with foods
stuff ?
󱂩Is food stored too long ?
➊Be sure to cover and wrap the foods.
󱂨Clean them regularly. Once smell gets
soaked to those parts, it is not easy to
remove.
󱂩Do not store foods for so long.
Refrigerator is neither a perfect nor a
permanent foods keeper.
Odor or disgusting
smell from the inside

14
Something strange ?
Don’’ t worry. Here is the answer.
Case
Heat
Door
is
sticky
Strange
Sound
Frost
& Dew
Explanation
Front and side of refrigerator
feels warm or hot.
Doors are not to open easily.
It sounds like water is flowing
from the refrigerator.
Something cracking or click
sound.
Humming or buzz sound.
Dew or frost on the wall and/or
food container surface in the
freezer and refrigerator
compartment.
Dew on the interior lights cover
Dew on the cabinet surface
● Pipes (refrigerant vessel) are placed beneath the
surface to prevent moisture forming on it.
● When you close the door and then open again
immediately,the door is not easy to open. Warm air
rushes into the inside to make the pressure difference.
In this case wait for a minute, then it will open easily.
● Defrosted water can also make such a sound. (This
refrigerator adopts an automatic defrosting system.)
● When the compressor starts to run or stops,
refrigerant which makes the inside cold flowing in the
pipes can make such a sound.
● Inside parts shrink and/or expand due to temperature
change ---When the inside gets cold or when the
door is open ---such sound can be made.
● Compressor or fans for cold air circulation can make
such working sound. (If the refrigerator is not level,
the sound can be louder.)
Frost and/or dew can be made in the following cases ;
●High temperature and/or high humidity around the
refrigerator
●When doors are open too long
●Foods with much moisture are stored uncovered or
unwrapped
※You can see the same appearance when cold
water is poured in a glass cup and dew is forming
on the surface of it.
●The light bulb radiates heat while it is on, so when
doors are open too long, dew can form on the light
cover due to temperature difference.
●In case it is highly humid around the refrigerator,
moisture in the air sticks to the surface to form the
dew.

15
Installation Preparation
Dimensions( including Door Handles)
(Width*Depth*Height) 928mm ×816mm ×1808mm
※Sufficient space from refrigerator back to the
wall for free air ventilation ※Avoid direct sunlight.
● Once the installation place is ready follow the installation instructions.
If surround temperature of refrigerator is low (below 5℃), foods can be frozen or the refrigerator can work
in abnormal way.
Check if the refrigerator can pass
a doorway or enter a door first.
Find a suitable place to install.

16
※Remove front bottom cover first, if it is attached.
If the refrigerator can not enter
the door, follow these steps.
!
!
@
!
@
!
@

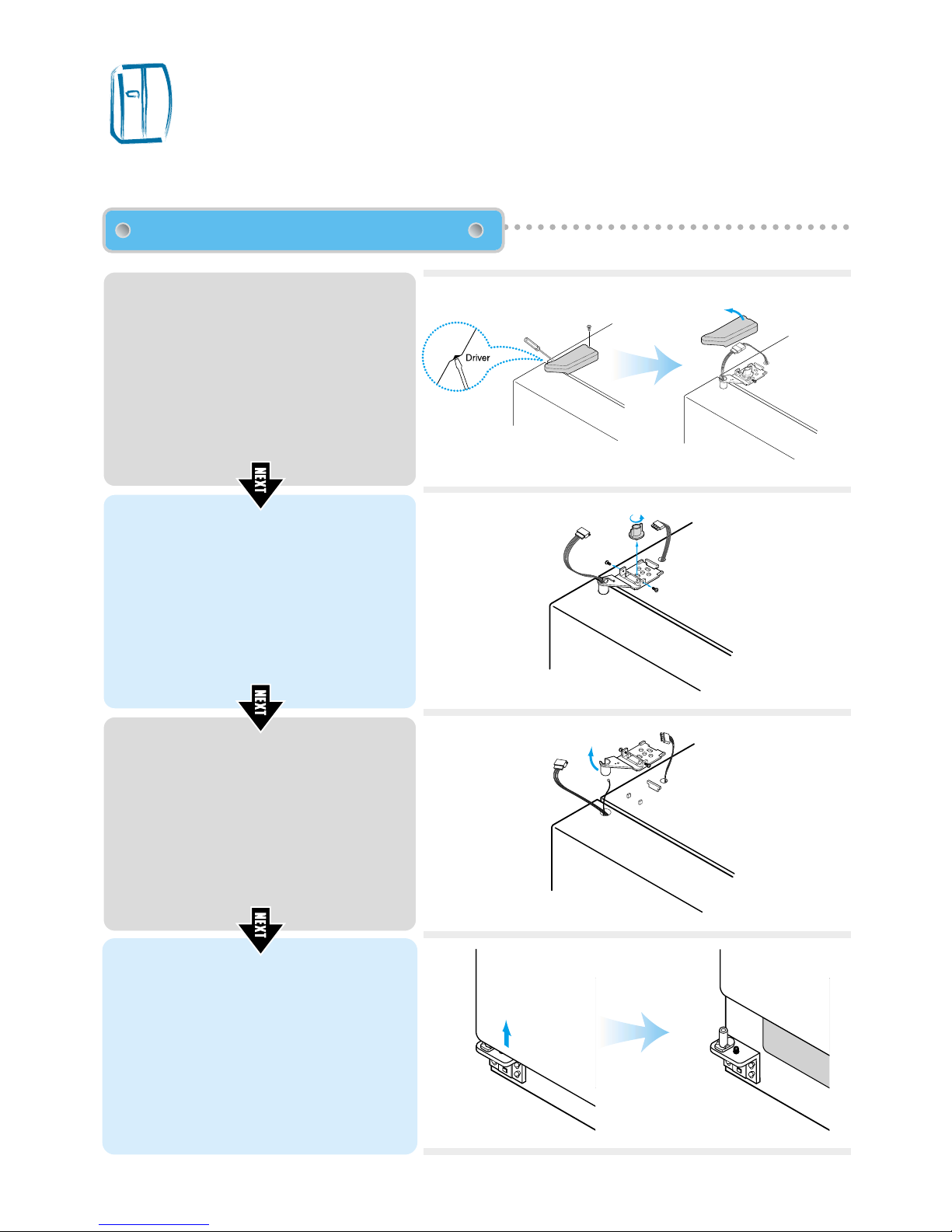

1
Unscrew top hinge cover with a screw
driver.
Insert a thin screw driver into the side
groove of the cover to remove.
2
Turn top hinge fastener counterclockwise
3~4 times. (Just make it loose ; do not
remove.)
Disconnect the harness wires.
Loosen hinge screws for several turn.
(Just make them loose ; do not remove.)
3
Lift up the front of hinge to remove. ( After
the hinge is removed the door can fall
down forward. Be careful !)
4
Lift the door straight up to remove.
Removing Freezer Door

17
!
@
!
@
!
@
1
Unscrew top hinge cover with a screw
driver.
Insert a thin screw driver into the side
groove of the cover to remove.
2
Turn top hinge fastener counterclockwise
3~4 times. (Just make it loose ; do not
remove.)
Disconnect harness wires.
Loosen hinge screws for several turn.
(Just make them loose ; do not remove.)
3
Lift up the front of hinge to remove. (After
the hinge is removed the door can fall
down forward. Be careful !)
4
Lift the door straight up to remove.
Removing Refrigerator Door

18
!
@
!
@
!
@
!
@
1
Insert the bottom hole of freezer door
straight to the bottom hinge pin.
2
Let the top of door close to the cabinet and
insert the top hinge pin to the top hole of
freezer door.
( Insert the back of hinge to the groove of
protrusion first, then front to the top hole of
door.)
3
Turn the fastener clockwise several times.
(Do not turn it to the end.)
Adjust the level of door and fasten the top
hinge with 2 (left & right) screws.
Turn the hinge fastener tightly to the end.
Connect harness wirings and screw ground
wire.
4
Click and screw the top hinge cover.
Replacing Freezer Door

19
!
@
!
@
!
@
!
@
1
Insert the bottom hole of refrigerator door
straight to the bottom hinge pin.
2
Let the top of door close to the cabinet and
insert the top hinge pin to the top hole of
freezer door.
( Insert the back of hinge to the groove of
protrusion first, then front to the top hole of
door.)
3
Turn the fastener clockwise several times.
(Do not turn it to the end.)
Adjust the level of door and fasten the top
hinge with 2 (left & right) screws.
Turn the hinge fastener tightly to the end.
Connect harness wirings and screw ground
wire.
Click and screw the top hinge cover.
Replacing Refrigerator Door

#
1
Insert a screw driver (flat tip) into a groove of the right wheel (bottom of refrigerator) and
turn it clockwise until the door is balanced. (clockwise to raise refrigerator door ;
counterclockwise to lower)
※ Unless the refrigerator door is balanced by step 1, then follow the next steps.
2
Loosen 3 hinge bolts(2 on the left + 1 on the right) a little. (Do not unfasten them
completely.)
Insert a hexagonal wrench into the groove of adjusting nut and turn clockwise until the
door is level.
3
Once the door is balanced, fasten the hinge bolts tightly.
In case refrigerator door is lower than freezer door...
⑤Hinge Bolt
After installation and/or door leveling, fasten front cover with screws.(Remove the screws on the front bottom panel first.
Click and screw the cover)
Front Cover
Refrigerator Leveling &
Door Adjustment ( If needed. )
Refrigerator must be level in order to maintain optimal performance and desirable front appearance.
(If the floor beneath the refrigerator is uneven, freezer and refrigerator doors look unbalanced.)
20
#
$
1
●Insert a screw driver (flat tip) into a groove of the left wheel (bottom of freezer) and turn it
clockwise until the door is balanced. (clockwise to raise freezer door ; counterclockwise
to lower)
※ Unless the freezer door is balanced by step 1, then follow the next steps.
2
●Open the doors, unscrew the front cover and remove, if it is attached.
3
● Loosen 3 hinge bolts(1 on the left + 2 on the right) a little. (Do not unfasten them
completely.) Insert a hexagonal wrench into the groove of adjusting nut and turn
clockwise until the door is level.
4
● Once the door is balanced, fasten the hinge bolts tightly and screw the front cover.
In case freezer door is lower than refrigerator door...
• The front of refrigerator needs to be higher just a little than the back for easy door
closing, but if the wheel is raised too much for door balance, i.e. front of refrigerator
is too higher than the back, it can be difficult to open the door.
Hinge Bolt ⑤
