Daewoo ERF-310 User manual

1
CONTENTS
1. Model specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Types of the approved safety standards . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. External drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4. Name of parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. Air flow diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6. Refrigerant cycle diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. Machine room view and part list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8. Component dissassembly pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
9. Component specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
10. Explode drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
11. Part lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
12. PCB control functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
13. Main PCB diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

3
1. SPECIFICATIONS
1. Specifications
Model Name ERF-310 ERF-340 ERF-370
Division M A M A M A
Refrigerant(R134a) 150g <– <– <– 160g <–
Cooling system Fan cooling convection
Refrigration system Air forced convection
Defrost system Fin evaporator forced
Defrost operation Automatic start and stop
Cold control Dialing Button Dialing Button Dialing Button
Gross Freezer 93 <– 93 <– 112 <–
Capacity Refrigerator 218 <– 248 <– 251 <–
(l.) Total 311 <– 341 <– 363 <–
External Height 1780 <– 1911 <– 2000 <–
Dimension Width 600 <– <– <– <– <–
(mm) Depth 618 <– <– <– <– <–
Net weight (Kg) 69 <– 75 <– 79 <–
Energy class C grade
Power consumption (kWh/24h) 1.45 1.48 1.5 1.54 1.58 1.62
Freezing capacity (kg/24h) 5 6.5 56.5 67.5
Autonomy (F room) 12 h
Rated input 120 125 120 125 130 135
Lamp rated input (W) 15
Rated voltage AC 230/50 Hz
Note) A: Electronic control type
M: Manual control type
2. Types of the approved safety standards

2. EXTERNAL DRAWINGS
4
1. ERF-310M, 340M, 370M
2. ERF-310A, 340A, 370A

5
3. WIRING DIAGRAMS
1. ERF-310M, 340M, 370M
2. ERF-310A, 340A, 370A

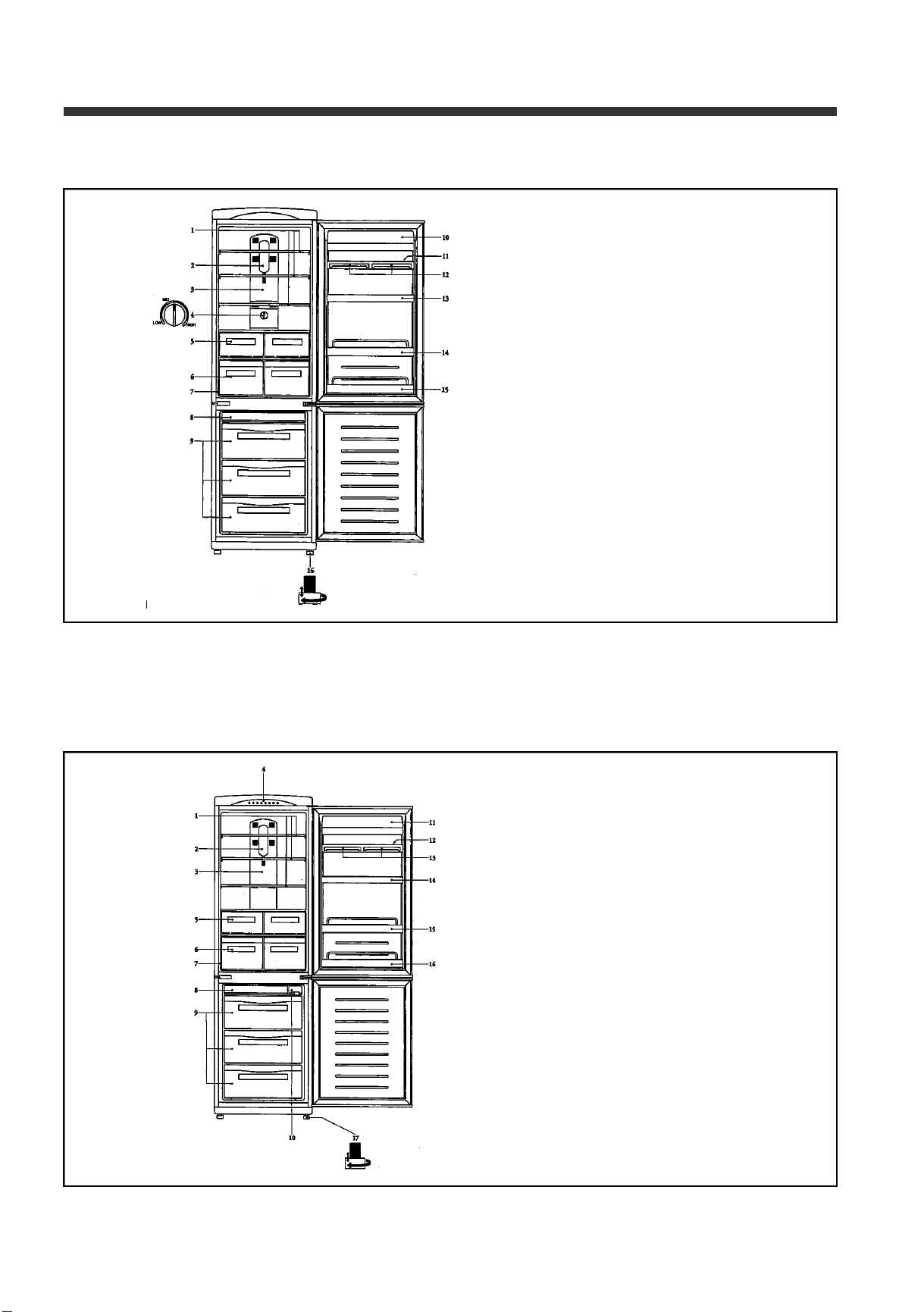

4. NAME OF
6
1. ERF-310M, 340M, 370M
1. Removable shelf (ERF-310 series: 2 shelves and
ERF-340,370 series: 3 shelves), glass or crystal
clear plastic depending on model.
2. Light.
3. Multi air-flow duct.
4. Refrigerator and freezer temperature control
knob.
5. Low temperature compartments.
6. Vegetable bin. Two bins or one bin; in case of
one bin item (15) won´t be applied depending
on model.
7. Rating plate. It is attached in the refrigerator
compartment on the left-hand side next to the
vegetable bins.
8. Ice cube tray.
9. Compartment for storing and freezing.
10. Butter pocket.
11. Removable pocket (for egg tray)
12. Egg tray.
13. Removable pocket (not in ERF-310M)
14. Bottle pocket.
Pocket assembled with plastic bottle fixture
(“A” type) or with metal bar (“B” type) depen-
ding on model.
15. R door pocket (depending on model).
16. Adjustable feet.
2. ERF-310A, 340A, 370A
1. Removable shelf (ERF-310 series: 2 shelves and
ERF-340,370 series: 3 shelves), glass or crystal
clear plastic (depending on model).
2. Light.
3. Multi air-flow duct.
4. Refrigerator temperature control.
5. Low temperature compartments.
6. Vegetable bin.
Two bins or one bin; with one bin, item (16)
will not be applied (depending on model).
7. Rating plate. Positioned in the refrigerator com-
partment on the left-hand side next to the
vegetable bins.
8. Ice cube tray.
9. Compartment for storing and freezing.
10. Freezer temperature control.
11. Butter pocket.
12. Removable pocket (for egg tray)
13. Egg tray.
14. Removable pocket (not in ERF-310A).
15. Bottle pocket.
Pocket assembled with plastic bottle fixture
(“A” type) or with metal bar (“B” type) depen-
ding on model.
16. R door pocket (depending on model).
17. Adjustable feet.

7
5. AIR FLOW DIA -
Refrigerator room
Do not place frozen
food near the duct
If may freezze due to
low temperature
Fresh food preserving
case (Chilled case)
Used for storing fish or
meat Case vegetable
Suitable in storing
fruits or vegetable
Wrapping can prevent
from dryness
Freezer room
Do not put it any
bottle such as beer or
beverage because it
can be frozen or
broken
Air circulation in the
freezer compartment
Cold air flow comes
out from the front
hole and comes into
the lower hole in
louver

6. REFRIGERANT CYCLE DIA -
8

9
7. MACHINE ROOM VIEW AND
NO PART NAME NO PART NAME NO PART NAME
1 ASS´Y BOX POWER 9 CASE VAPORI 17 ABSORBER VAPORI CASE
2 BASE COMP. AS 10 HARNESS EARTH 18 COMPRESSOR
3 ASS´Y WI-CON 11 PIPE CHARGE 19 SCREW MACHINE
4 SUCTION PIPE AS 12 HOT PIPE 20 SPECIAL SCREW C.
5 DRYER AS 13 PIPE SUCTION CONN 21 SPECIAL WASHER
6 BASE CAB. 14 CONN. B 22 ABSORBER PIPE B
7 COVER RELAY BOX 15 ABSORBER COMP. 23 ABSORBER PIPE C
8 BAND RELAY 16 FIXTURE COMP.

10
8. COMPONENTS DISASSEMBLY PIC -
1. Control Box
1. ERF-310A, 340A, 370A
1) Remove 2 fixing screws
2. Hall Pcb
1. ERF-310A, 340A, 370A
1) Remove knob control fixing screw
Take out knob control
2) Pull forward and down Control Box
3) Detach Hall Pcb harness

Components disassembly pictures
11
3. LOUVER F-A
1. ERF-310A, 340A, 370A, 310M,
340M, 370M
1) Remove 2 fixing screws
2) Remove Louver F A with hand
2) Remove flap link fixing screw
Take out flap link
3) Remove Hall Pcb As by pressing the fixture
ribs with the fingers

12
Components disassembly pictures
4. Louver F-B
1. ERF-310A, 340A, 370A, 310M,
340M, 370M
1) Detach the harness by pressing the housing
with the fingers
5. Fan Motor
1. ERF-310A, 340A, 370A, 310M,
340M, 370M
1) Remove a fixing screw
2) Remove 2 fixing screws
3) Take out Louver F B by hand

13
Components disassembly pictures
6. Evaporator
1. ERF-310A, 340A, 370A, 310M,
340M, 370M
1) Detach Fuse Temp and Defrost Heater harness
using a flat screwdriver.
3) Remove 2 welded points
2) Detach Swich Bi-Metal (M-type) or D-sensor
(A-type) harness by pressing the housing
with the fingers
2) Take out Fan Motor by pressing the housing

14
Components disassembly pictures
5) Extract evaporator forward with minimising the
pipe deformation after grasping the both sides of
evaporator and pulling accumulator slighty forward
4) Remove 2 evaporator fixing screws
7. Defrost Heater
1. ERF-310A, 340A, 370A, 310M,
340M, 370M
1) Remove the cable tie
2) Bend 2 small aluminium fixture ribs with
a screwdriver

15
Components disassembly pictures
4) Take out Defrost Heater
3) Bend the big aluminium fixture rib by hand
8. Fuse Temp
1. ERF-310A, 340A, 370A, 310M,
340M, 370M
1) Open the rib with a screwdriver and
take out Fuse Temp
9. D-Sensor
1. ERF-310A, 340A, 370A
1) Open the rib with the hand and take out D-Sensor

16
Components disassembly pictures
10. Switch Bi-Metal
1. ERF-310M, 340M, 370M
1) Remove fixing screw with a screwdriver
11. Control Panel
1. ERF-310A, 340A, 370A
1) Remove 2 fixing screws
2) Take out panel Control by pulling it up and forward
3) Detach F Pcb Harness by pulling it forward

17
Components disassembly pictures
4) Detach Switch Lamp Harness by pressing the
housing with the fingers
5) Remove 3 fixing screws to take out F Pcb
6) Remove 3 front and 2 upper screws to take out
Base Control Panel
7) Cut cable tie

18
Components disassembly pictures
8) Detach Main Pcb Harness by pulling forward
all the housings
9) Take out Main Pcb
10) Remove 2 screws to take Down Trans out
2. ERF-310M, 340M, 370M
1) Remove 2 fixing screws

19
Components disassembly pictures
2) Take out Panel Control by pulling it up and forward
and detach Switch Lamp harness by pressing
the housing with fingers
12. Door Switch
1. ERF-310A, 340A, 370A, 310M,
340M, 370M
1) Remove the door switch sliding by its guide
13. Gasket
1. ERF-310A, 340A, 370A, 310M,
340M, 370M
1) Take off the gasket as shown
2) Fix the new one

20
Components disassembly pictures
14. Cover Multi Duct
1. ERF-310A, 340A, 370A, 310M,
340M, 370M
1) Remove the Window by pushing lower part upward
and pulling forward
2) To replace the lamp unscrew it, if it is out of order
3) Remove 3 fixing screws
4) Pull forward with instant force
