Daewoo RCP-1000 User manual

RCP-1000
VACUUM CLEANER
READ AND KEEP THIS
■ Thank you for purchasing this vacuum cleaner.
■ For proper operation, please read this manual before using.
CONTENTS pages
• Important safety instructions . . . . . . . . . . . . . . . . . . .2
• Names of parts and using . . . . . . . . . . . . . . . . . . . . .3
• Names of parts and using for pet cleaner . . . . . . . . .5
• Using the main floor / pet turbo nozzle . . . . . . . . . . .6
• Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
• Cleaning the main floor / pet turbo nozzle . . . . . . . . .7
• Emptying the cloth bag . . . . . . . . . . . . . . . . . . . . . . .8
• Cleaning the filter . . . . . . . . . . . . . . . . . . . . . . . . . . .8
• Cleaning the exhaust filter . . . . . . . . . . . . . . . . . . . .9
• Cleaning the pet cleaner . . . . . . . . . . . . . . . . . . . . .10
• Before asking for service . . . . . . . . . . . . . . . . . . . . .11
OWNER'S MANUAL
CAAC RCP-1000 EN 7/13/07 2:17 PM Page 1

CAAC RCP-1000 EN 7/13/07 2:17 PM Page 2

IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock, injury to persons or damage when using
your vacuum cleaner, follow basic safety precautions including the following;
1. Use only as description in this manual.
Use only manufacturer's recommended attachments.
2. Do not leave appliance when plugged in, Unplug from outlet when not in use and
before servicing.
3. Do not use outdoors or on wet surfaces.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
5.
Do not use with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return it to a service center.
6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges of corners. Do not run appliance over cord. Keep cord away from
heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not put any object into openings. Do not use with any opening blocked ; keep free
of lint, hair, and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers, and all parts of body away from openings and mov-
ing parts(Covers, Handle, Floor nozzle, etc.).
11. Do not use without the cloth bag or filters.
12. Always turn the vacuum cleaner off before ; Emptying the filters. Cleaning filters.
13. Do not leave vacuum cleaner with the plug connected to a main outlet. Unplug when
not in use.
14. Do not vacuum anything that is burning or smoking, such as cigarettes ends, matches
or hot ashes.
15. Do not vacuum flammable or combustible liquids, such as gasoline, or use in areas
where they may be present.
16. Keep end of hose, wands and other opening away from your face and body.
Keep your hands, feet, hair and clothing away from moving parts.
17. Turn off controls(switch) before unplugging.
18. Use extra care when cleaning on stairs.
19.
This appliance is intended for household use only and not for commercial or industrial use.
20. The hose contains electrical wires. Do not use when damaged, cut, or punctured.
Avoid picking up sharp objects.
21. It must be replaced by the manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
SAVE THESE INSTRUCTIONS
2
CAAC RCP-1000 EN 7/13/07 2:17 PM Page 3

DUSTING BRUSH
CREVICE NOZZLE
HOSE INSTALLATION /REMOVAL
EXTENSION WAND
CORD REWIN
3
NAMES OF PARTS AND USING
• The dusting brush and crevice nozzle are
packaged separately in the box.
• The dusting brush or crevice nozzle is for
cleaning to vacuum the window frame or
opening.
• Fit the brush or nozzle onto the tool clip
on the extension wand.
• Fit the dusting brush or crevice nozzle
onto the end of the handle grip or the
extension wand.
Crevice nozzle
Dusting brush
Tool clip
Handle grip
Suction control
Extension wand
Extension wand button
Tool clip
Main floor nozzle
• Press the button in the
direction shown by the
arrows or pull (or push)
out the wand.
• Hold the hose and match tabs
to align with slot inlets of the
vacuum cleaner.
• Insert the hose.
Push firmly until hose locks into
place.
• To remove hose, press the but-
ton on the hose, then pull the
hose out of the vacuum cleaner.
CAAC RCP-1000 EN 7/13/07 2:17 PM Page 4

SUCTION CONTROL POWER CORD
DUST FULL INDICATOR
CLOTH BAGCORD REWIND BUTTON
4
• Do not unplug by pulling on cord.
To unplug, grasp the plug, not the cord.
• Adjust the suction power by using
the switch on the handle grip.
• The power is max by pushing up
the swich.
• The power is off by taking down
the swich.
• This red is on which means the dust
container(or the cloth bag) is full or the
filter in the dust container is blocked by
the dust.
Please empty the cloth bag and clean
the filter.
Dust full indicator
Cord rewind button
Plug
Cord
Red
• Pull out the power cord to the
desired length.
• Do not pull out past the red tape.
• To rewind the power cord, push
down on the cord rewind button.
Hold the plug while the power cord
is rewinding to prevent the power
cord from whipping.
• The cloth bag needs emptying
when the dust full indicator is red
or the suction power is weak.
CAAC RCP-1000 EN 7/13/07 2:17 PM Page 5

NAMES OF PARTS AND USING FOR PET CLEANER
• Hold the hose and match tabs to align
with slot inlets of the dust container.
• Insert the hose and rotate it in the
clockwise direction. Push firmly until
hose locks into place.
5
INSTALLATION/REMOVAL
• Adjust the suction power
by using the switch on
the dust container.
• The power is max by
rotating the switch in the
clockwise direction.
• The power is off by
rotating the swich in the
counter-clockwise.
SUCTION CONTROL
• Choose any of the direction for the pet
brush to meet your cleaning needs.
• When use the pet brush, take care the
suction power. The pet dislikes a
strong suction power.
PET BRUSH
• Hold the dust container and match tabs
to align with slot inlets of the vacuum
cleaner.
• Insert the dust container.
Push firmly until container locks into
place.
• To remove it, press the button on the
dust container, then pull it out of the
vacuum cleaner.
Hose
Dust container
Dust
container Rotation
Slot inlet
Hose
Dust container
Suction control
switch
Pet brush
CAAC RCP-1000 EN 7/13/07 2:17 PM Page 6

6
USING THE MAIN FLOOR PET TURBO NOZZLE
• Choose the extension wand or handle
grip to meet your various cleaning
needs.
• Then connect the main floor nozzles to
the extension wand or the handle grip.
When you connect, push firmly until the
floor nozzle lock into place.
To remove the main floor nozzles,
press the button, then pull out of the
wand(or handle grip).
• Adjust the suction power or the speed of
brush by using the air valve.
• Never use the pet turbo brush for the pet.
If use it for the pet, make the pet injured.
• This floor nozzle can clean in those
normally hard-to-reach places such as
between legs of table or furnitures.
• Pet turbo brush will not be able to use
like this.
• This floor nozzle can clean in those
normally hard-to-reach places such as
the bottom of the sofa.
Extension wand
Handle grip
Air valve
Pet turbo brush
Brush
Main floor nozzle
CAAC RCP-1000 EN 7/13/07 2:17 PM Page 7

7
STORAGE
CLEANING THE MAIN FLOOR / PET TURBO NOZZLE
• Collapse the extension wand completely. • Slide the wand clip on the extension
wand into the slot on the bottom of the
vacuum cleaner.
• Fit the dusting brush or crevice nozzle onto
the end of the handle grip, then remove the
hair, loose clothing or lint on the opening of
the main floor nozzle.
• Open the cover turbine.
• Remove the hair, loose clothing or lint on the turbine.
• Open the nude cover with the coin.
• Remove the hair, loose clothing or lint
on the opening of the neck.
Extension
wand Wand clip
Slot
Hair, loose clothing, lint, etc.
Hair, loose clothing, lint, etc.
Hair, loose
clothing,etc.
Turbine
Coin
Cover
turbine
CAAC RCP-1000 EN 7/13/07 2:17 PM Page 8

8

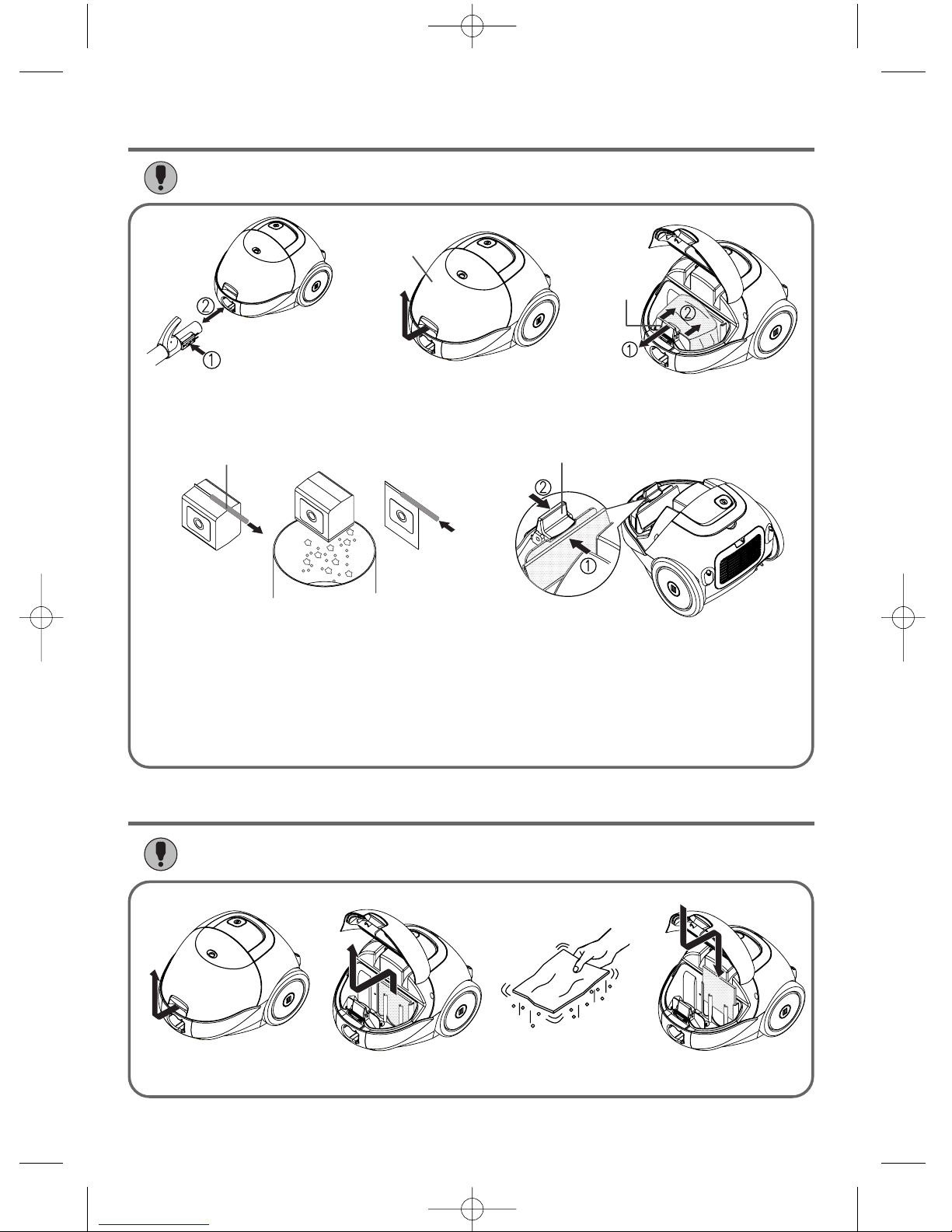

EMPTYING THE CLOTH BAG
CLEANING THE FILTER
• Remove the hose. • Open the dust cover. • Push the bag holder in the
direction of the arrow mark
and pull out the cloth bag.
The cloth bag needs emptying when the dust full indicator is red or the suction
power is weak.
If the dust full indicator is red after emptying the cloth bag,
the filter needs cleaning.
• Open the dust cover.
1
1
• Pull out the filter.
2
• Clean the filter.
3
• Insert the filter again.
4
2
• Remove the clip and throws away the
trash in the wastebasket .
• Insert the clip again.
• When inserting the cloth bag again, you
place the hard board of the bag between
the two guides and insert the lower part
of it into the bottom hooks and fix the
upper part of it with the bag holder.
• The dust cover can not be closed com-
pletely when the bag is set wrong.
45
3
Dust
cover
Bag
holder
Bag holder
Clip
CAAC RCP-1000 EN 7/13/07 2:17 PM Page 9

9
CLEANING THE EXHAUST FILTER
If the dust full indicator is red after emptying the cloth bag, the exhaust filter needs
cleaning.
• The filter needs cleaning when suction power is low.
The filter should be cleaned by periods(about every 2 months).
• Open the filter cover. • Pull out the exhaust
filter.
• Clean the exhaust filter.
123
• Assemble the filter and the filter cover to the
vacuum cleaner.
• Push firmly until filter cover locks into place.
4
CAAC RCP-1000 EN 7/13/07 2:17 PM Page 10

• If not dry out the washable filter, do not use the vacuum cleaner.
The wet washable filter make the vacuum cleaner trouble.
Note
• The filter needs cleaning when suction power is low.
• The filter should be cleaned after using the pet cleaner.
• If not clean the pet cleaner after using, the pet cleaner may make bad smell.
• Separate the pet cleaner. • Separate the pet brush.
• Separate the dust container.
• Separate the filter.
123
• Throws away the trash
in the wastebasket .
• Clean with running water.
• Dry the filter in the
shade.
• Assemble in reverse order.
45 6
•
CLEANING THE PET CLEANER
The pet cleaner needs emptying when the dust full indicator is red or the suction
power is weak.
10
Pet cleaner
Pet brush Dust container
Filter
CAAC RCP-1000 EN 7/13/07 2:17 PM Page 11

11
WL

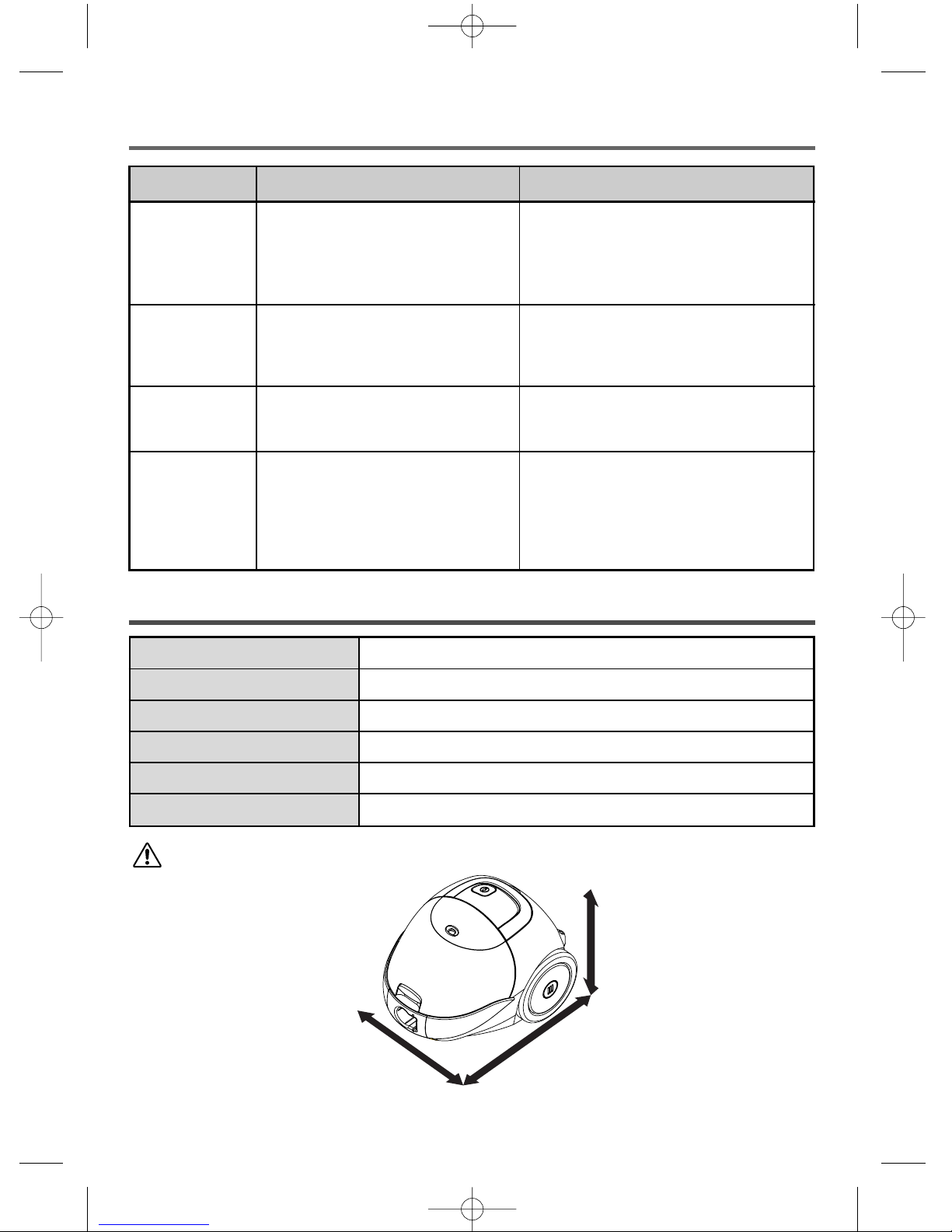

BEFORE ASKING FOR SERVICE
Cleaner won't run.
1. Power cord not firmly plugged into outlet.
2. Hose not firmly installed.
3. Blown fuse or tripped breaker.
4. Needs service.
5. Thermal protector activated.
PROBLEM POSSIBLE REASON POSSIBLE SOLUTION
Cleaner tools
won't pick up.
Dust escaping
from cleaner.
SPECIFICATIONS
Model
Rating
Watts
Size(unit)
Weight(unit)
Power cord length
RCP-1000
220V 50Hz
MAX 1600W
325 x 280 x 230mm (LxWxH)
4.2kg
6.0m
Specifications can be changed for improvement without notice.
H
Cleaner won't pick-
up or low suction.
1. Plug into the outlet firmly.
2. Review hose installation/removal.
3. Check fuse or breaker. Replace it.
4. Take to the Service Center
5. Unplug cleaner. Allow to cool for 30 minutes.
1. Cloth bag not installed correctly.
2. Cloth bag is full.
3. Filter clogged.
4. Nozzle/dirt passage clogged.
1. Review "Emptying the cloth bag"
2. Empty cloth bag.
3. Remove filter and clean.
4. Remove nozzle ; Check hose; remove obstruction.
1. Cloth bag is full.
2. Cloth bag not installed correctly.
3. Hose not installed correctly.
1. Empty cloth bag.
2. Review "Emptying the cloth bag".
3. Review hose installation.
1. Hose clogged.
2. Hose inlet clogged.
3. Cloth bag is full.
4. Filters clogged.
5. Floor nozzles clogged.
6. Extension wand clogged.
1. Remove hose and tools ; remove obstruction.
2. Remove hose and clean inlet.
3. Empty cloth bag.
4. Clean filters.
5. Remove obstruction.
6. Remove obstruction.
CAAC RCP-1000 EN 7/13/07 2:17 PM Page 12
