Daewoo DWD-M301WP User manual

• As this product undergoes a functional test, a small amount of water may remain in the product.
• Store the user manual in an easily reachable place for later use.
• Please read 'Safety Instructions' carefully before use.
※mini is the world's first wall-mounted front-load washer developed by Daewoo Electronics.
Wall-Mounted Front Load Washer
Wall-Mounted Front Load Washer
DWD-M301WP
D-M301WP_INTENSIVE_호주향.indd 1 2014-02-03 오후 4:18:28

mini is the world's first ever wall-mounted front-load
washer, which is installable in bathroom,
pantry, kitchen and various locations.
mini is a unique home appliance
featuring an innovative design and
practical functions.
World's First Ever Design
Wall-Mounted Front-Load Washer
mini features a cute and adorable design in a stable
cubic frame and harmonious colors to help decorate
house interiors.
Ultrasmall Design
Daewoo Electronics' cutting-edge technologies
apply to mini, featuring a variety of essential
functions for better everyday lives.
Mini's Practical Function
Wall-Mounted Front Load Washer
Wall-Mounted Front Load Washer
D-M301WP_INTENSIVE_호주향.indd 2 2014-02-03 오후 4:18:29

| 2 |
CONTENTS
Product Features ..................................................................... 3
Safety Instructions .................................................................... 4
Installation ................................................................................ 9
Preparation.................................. ............................................. 9
Parts and Components ............................................................. 10
Washable Items ........................................................................ 11
Non-Washable Items ................................................................ 11
Preparing Clothes for washing ................................................. 12
Directions on Detergent and Softener Containers .................... 13
Washing Course ....................................................................... 14
Preparation
Use
Installation
Buttons and Functions .............................................................. 15
Normal ...................................................................................... 16
Delicate..................................................................................... 17
Baby Care................................................................................. 18
Night time ................................................................................. 19
Intensive wash ......................................................................... 20
Spin .......................................................................................... 21
Rinse+Spin ............................................................................... 22
Q&A on Laundry ....................................................................... 23
Cleaning ................................................................................... 24
Installation Guide ...................................................................... 25
When malfunctions are suspected ........................................... 28
Before calling for service .......................................................... 29
Specifications and Wiring Diagram........................................... 30
D-M301WP_INTENSIVE_호주향.indd 3 2014-02-03 오후 4:18:29

| 3 |
Product Features
Intensive
Wash
Cleaning Programs
mini enables daily washes of towels, shirts,
underwear and socks for a cleaner home
environment.
Powerful Daily Cleaning
mini's unique functions for faster and
powerful cleaning of various fabrics
As normal cycle takes only 29 minutes, it
speeds the laundry process and reduces
water and power consumption by 14%
compared to regular front-load washers.
29 minute wash
mini's 'Baby Care' cycle leaves no detergent
residue after washing to protect sensitive
baby skin from irritation.
Baby Care
mini enables safe washing of blouses,
knitwear, and wool clothing that are
vulnerable to deformation without fabric
damage and discoloration.
Delicate Cleaning for High Quality Clothes
D-M301WP_INTENSIVE_호주향.indd 4 2014-02-03 오후 4:18:29

| 4 |
Ensure that the power
voltage, frequency, and
current match the product's
specification.
Violations may cause fire and
electric shock.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or metal
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Cautionary information on cases that
may cause death or severe personal
injuries
Cautionary information on cases that
may cause minor personal injuries or
damage to products
Warning
Do not scratch, damage,
deform, bend, pull, twist, or
tie the power cord. Do not
place or insert a heavy item
on the cord.
Violations may damage the
power cord, raising the risk of fire
and electric shock.
Do not unplug or plug the
cord with wet hands.
Violations may cause electric
shock.
Safety Instructions
Do not use the washer when
the power cord is damaged
or loosely plugged in.
Violations may cause electric
shock, short circuit, or fire.
Contact a sales store to request
the maintenance service.
If the washer doesn't run or
smokes or unusal smells
occur, unplug the washer
and contact the service
center promptly to prevent
accidents.
Violations may cause electric
shock, short circuit, or fire.
Do not disassemble, repair,
or rebuild the washer
without the assistance of
service engineer.
Violations may cause fire, electric
shock, and personal injuries.
Contact a sales store or read the
back page of user manual to
request the maintenance service.
D-M301WP_INTENSIVE_호주향.indd 5 2014-02-03 오후 4:18:30

| 5 |
Safety Instructions
Warning
If the power cord pin is
contaminated with dust or
water, wipe the pin clean
with a dry cloth before use.
Violations may cause fire.
Do not expose the washer to
rain or wind.
Violations may cause electric
shock, fire, technical problems,
or deformation.
Unplug the cord and open
the window for ventilation
without touching any
buttons if a gas leak occurs.
Violations may cause a spark
and, accordingly, explosion, fire,
or burns.
Electrical grounding is
required for safety.
Technical problems or short
circuits may cause electric
shocks.
Read user manual or contact the
service center with further
inquiries on grounding method.
Do not place gasoline,
petroleum, benzol, thinner, or
alcohol inside or beside the
washer. Do not place laundry
containing such materials
inside or beside the washer.
Violations may cause explosion
or fire.
Unplug the power cord before
cleaning or maintenance work.
Violations may cause electric
shock or injury.
Do not sprinkle water on the
washer. Violations may cause
short circuit or electric shock.
Do not enter the laundry
room and contact the
service center, if the washer
is submerged in water as the
water supply hose was
dislocated.
Violations may cause electric
shock.
Do not install the washer
near a heater and do not
place candles or cigarettes
on the washer.
Violations may cause fire or
deformation.
Insert the plug with 10A or
higher in the outlet directly.
Multiple connections to a single
outlet may cause fire due to heat.
D-M301WP_INTENSIVE_호주향.indd 6 2014-02-03 오후 4:18:30

| 6 |
Safety Instructions
Warning
Do not place your hands or
metal objects below the
washer while the washer is
running.
Violations may cause personal
injuries.
Prohibit children from
operate the washer. Do not
let children stand on the
washer or insert their head
into the tub at any time.
Violations may cause personal
injury, burn, or electric shock.
Do not insert hands, sticks
or metal objects into the tub
or touch laundry during
operation.
Violations may cause personal
injuries.
With 'Door Locked', do not
open the door by force.
Violations may destroy the door
or lock, causing technical
problems.
Prevent children from having
their hands jammed in the
door and approaching the
washer.
Violations may cause personal
injuries.
Children or people who are
not well-informed of use
method must not use the
washer.
Violations may cause burn,
electric shock, or injury.
Do not press the button with
sharp object.
Violations may cause electric
shock.
Install the washer where the
electric outlet is easily
accessible. Unplug the
power cord if the washer is
not to be used for a long
time.
Violations may cause electric
shock, short circuit, or fire. Hold
the plug firmly when unplugging
the power cord.
D-M301WP_INTENSIVE_호주향.indd 7 2014-02-03 오후 4:18:30

| 7 |
Caution
Turn on the tap to check for
leaks before use.
Improper connection may cause
leaks.
Do not operate the washer
with the detergent or
softener container detached.
Detachment of the detergent or
softener container causes water
leaks during operation. Please
close the detergent and softener
containers tight.
Leaks may cause personal
injuries.
Install the washer on a solid
wall and even.
Violations may cause abnormal
vibrations or noise.
Do not stand on the washer
or place a heavy item on it.
Violations may destroy the
washer or cause personal
injuries.
Prevent children from hanging on
the washer. Violations may
cause injuries.
Prevent pets and animals
from entering the washer
tub.
Violations may cause injuries.
Do not place magnets beside
the cap or the washer during
operation.
Violations may cause
malfunctioning of 'Door Lock
Sensor' and personal injuries
accordingly.
Do not use laundry net for
wash.
Violations may cause abnormal
vibrations, which can lead to
damage wall or cause personal
injuries.
Contact the service center
and do not operate the
washer when it is slanted or
out of horizontal.
Violations may cause injuries.
Safety Instructions
D-M301WP_INTENSIVE_호주향.indd 8 2014-02-03 오후 4:18:31

| 8 |
Safety Instructions
Caution
Remove any detergent
residue or contaminants on
the washer with a wet soft
cloth.
Remaining contaminants may
deform plastic parts.
Turn off the tap after use.
It aims to prevent leaks caused
by poor inlet hose connections.
Do not use the washer to
wash non-clothing items.
(Footwear, potato, cabbage,
kelp, etc.)
Violations may cause abnormal
vibrations, damage the washer or
cause personal injuries.
Do not wash waterproof
clothes and items such as
raincoat, car cover, and
sleeping bags.
Violations may cause abnormal
vibrations during spin, which may
lead to personal injuries.
Violations may cause abnormal
vibrations during wash, which may
lead to damage the wall, floor, or
clothing and cause part abrasion.
Close the door carefully to
prevent laundry from getting
jammed in the door.
It may cause damage to clothes
or malfunction.
Press the Start button after turning
off the tap and then slowly turn it
on when the water supply
resumes or the inlet hose is
reconnected (or when resuming
the use of washer after a long-term
suspension)
The high air pressures built in inlet hose
or water pipes may damage the washer,
causing leaks or personal injuries.
Put detergent and softener
in detergent and softener
containers separately.
Confusion or mixture may
prevent laundry from being
washed properly.
Remove all liquid detergent
and fabric softener in the
washer when relocating it.
Violations may cause liquid leaks
and malfunctions.
D-M301WP_INTENSIVE_호주향.indd 9 2014-02-03 오후 4:18:31

| 9 |
Installation
Refer to the installation guide for installation.
(see "installation guide" on page 25~27)
The washer is recommended to be installed by a professional
service engineer.
1
2
Preparation
- This washer is available for use with cold water only.
Do not connect the inlet hose to the hot water tap.
Caution
Connect the drain hose to the drain.
- Check that the drain hose is tightly connected.
- A minor water leak may occur during installation or the initial cycle. The leak is
caused not by a malfunction or a mechanical problem but by the remnant for
functional test performed at the manufacturing plant.
1
Connect the inlet hose and turn on the tap.
- Check whether any leaks occur around the hose guide or inlet hose connection.
2
- Check the grounding procedure to prevent electric shocks.
Plug in the power cord.
3
D-M301WP_INTENSIVE_호주향.indd 10 2014-02-03 오후 4:18:31

| 10 |
Parts and Components
Drum Door
(Do not open during
operation)
Control Panel
Softener
Container
Detergent Container
Power Cord
Cold Water Tap
(Turn off the tap
after cleaning
cycle is
complete)
Parts
Additional inlet hoses and drain hoses (for extension) are available for
purchase at service centers.
Note
Installation
Refer to the installation guide for installation.
(see "installation guide" on page 25~27)
The washer is recommended to be installed by a professional
service engineer.
1
2
Preparation
Elbow
(3 units)
Cushion pad
(4 units)
User manual Installation
manual
Water Filter inlet
(option)
Screw
(4 units)
Drain hose Inlet
hose
Anchor bolt
(4 units)
Connector
valve inlet
D-M301WP_INTENSIVE_호주향.indd 11 2014-02-03 오후 4:18:31

Non-Washable
Items
Washable
Items
- Underwear and socks
- Dress shirts and T-shirts
- Towel, handkerchief, pillow cover, kitchen towel, and
dust cloth
- Baby clothes, nappies, and underwear
- High-quality clothes such as blouse, knitwear, and
wool clothing
- Women's wear such as lingerie and stockings
About Laundry Shrinkage
- Easily shrinkable items:
Cotton shirts, synthetic socks, etc.
- Shrinkage-free items:
Polyester blouse, synthetic shirts (shirts), etc.
Laundry shrinkage varies by the wash cycle, type of fabric, weaving and sewing methods, and
finishing. Please examine the laundry guides before wash.
| 11 |
Leather and silk items
- Product such as pillow and comforter padded with
cotton or foamed urethane (sponge)
- All-wool blanket, electric blanket, blanket with a hair
length of 10mm or longer, and carpet cover
- Mat and carpet made of animal hair
- Wash supplements for commercial sales (laundry
ball, dust absorption filter, etc.)
- Rubber, nylon, and plastic items
- Waterproof mat, sheet, or clothing
Washable Items
D-M301WP_INTENSIVE_호주향.indd 12 2014-02-03 오후 4:18:32

Preparing
Clothes for washing
Waterproof mat or sheet, solid and heavy clothes, doormat, and blanket, and non-
permeable fabric products are not suitable for washing, rinsing, or spinning.
- Floating laundry or abnormal vibrations may cause personal injuries or damage to
the washer, wall, floor, and clothes.
Remove dust and sand from the laundry before use.
- Removal reduces the risk of malfunction.
Remove coins, hairpins, curtain attachments, and clips from the laundry.
- The metal items may damage clothes and washer or cause malfunctions.
- The metal items may cause dust or trash clogs in the drainage, which leads to
mechanical problems with the washer.
Check the laundry guide labels.
- Wash the clothes as specified in the guides. Wash the colored and white clothes
separately.
Reverse fluffy clothes before washing. Sort the clothes by fabric
type before washing (cotton, jean, synthetic fabrics, etc.)
- Mixture may cause damage to fabrics.
Hand-wash partially contaminated clothes before using the washer.
- Use stain removal detergents or bleaches.
Tie strings and close zippers.
- It may cause damage to the clothes or the washer.
Do not wash thick or voluminous clothes in the washer.
(Jeans, bathing gown, bathroom mat, thick sportswear, etc.)
- As thick clothes are not evenly washed in the tub, vibrations increase during
the spin cycle.
| 12 |
D-M301WP_INTENSIVE_호주향.indd 13 2014-02-03 오후 4:18:33

| 13 |

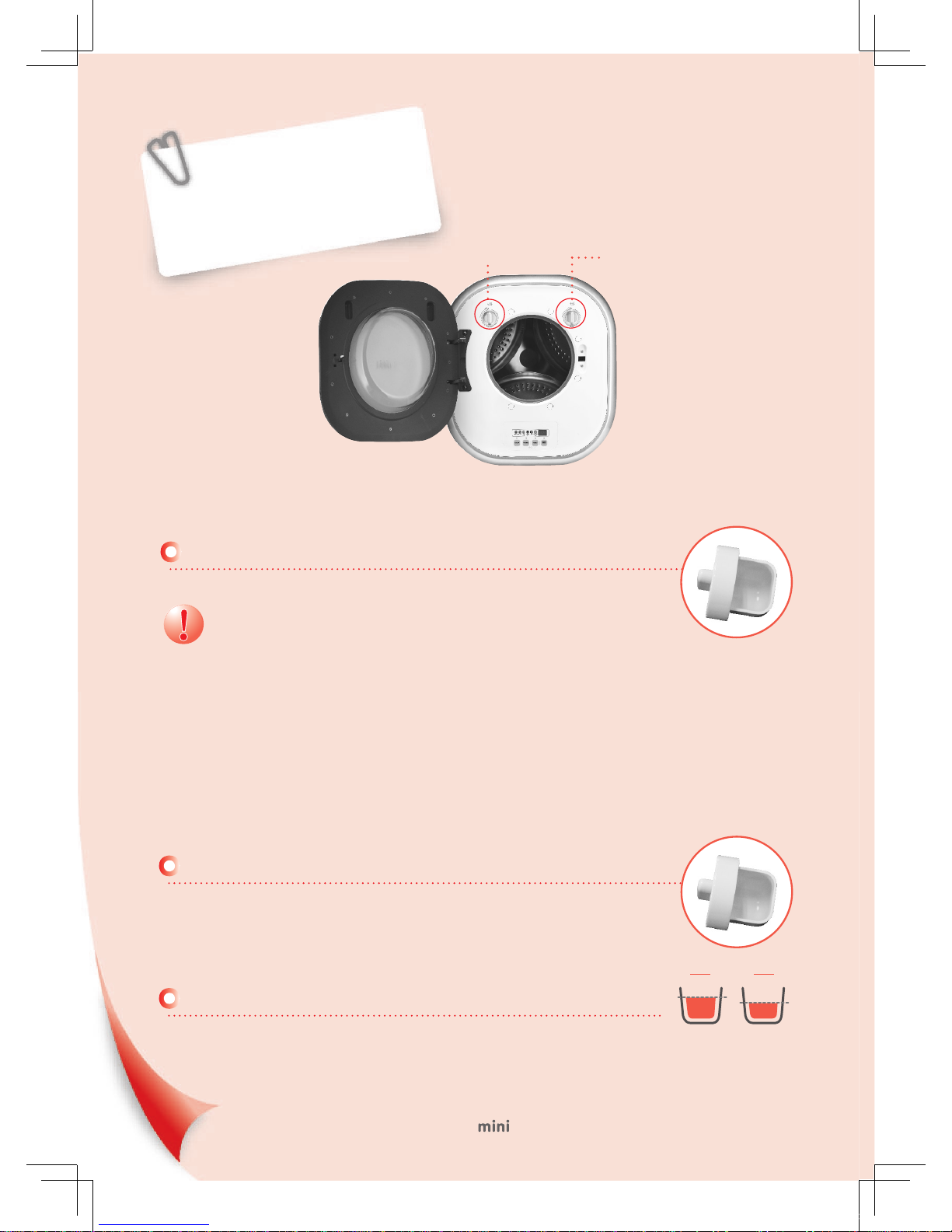

Directions on
Detergent and Softener
Containers
Addition of Detergent
Add detergent as recommended to the detergent container.
Addition of Fabric Softener
- Add softener as recommended to the softener container.
- Fabric softener is automatically discharged during the final rinse cycle.
- Do not leave fabric softener unused for a lon period (12 hours or longer).
- Fabric softener may get hardened and not be discharged.
Proper Amounts of Detergent and Fabric Softener
- Detergent Fabric Softener
- Add detergent and softener as recommended in the
product manuals.
- Powder detergent: 2/3 of detergent container (11g)
- Liquid detergent: 2/3 of detergent
container (12g)
- Fabric softener: 1/2 of softener container (6g)
- Add concentrated detergent as recommended in the
product manual.
Spoon-Shaped
Detergent Container
Wait! Please read the following instructions before applying detergent.
- Do not add detergent more than once to the detergent container. If the washer is not heavily loaded,
a half-full detergent container is sufficient for washing.
- Remove detergent remnants from the door or control panel immediately. Such contamination may cause damage to the
washer.
- Wet detergent container may harden the contents. Wipe the container with a dry cloth carefully before adding powder
detergent.
- Overloading may cause the following problems and malfunctions.
• Overloaded detergent causes excessive foam, which lengthens the rinse cycle and disturbs the normal rinse and spin
cycles.
• Foam may remain on clothes even after rinsing.
- Detergent container is exposed to contamination or detergent remnants. You can keep it clean with weekly cleanings.
- Water may remain in the container after a wash cycle. As it is caused by the process of cleaning detergent and softener
containers, it is not the remnant of detergent or softener. Remove water before starting a wash cycle.
Caution
■ Open : Turn the detergent and softener containers counterclockwise and then pull them.
■ Close : Turn the detergent and softener containers clockwise to close them tight and then run the washer.
Softener Container
2
3
1
2
Detergent Fabric Softener
D-M301WP_INTENSIVE_호주향.indd 14 2014-02-03 오후 4:18:34

| 14 |
Laundry Weight (Standards)
Washing
Course
- Wash your clothes as recommended in the manual.
- Overloading may reduce the washing efficiency or cause abnormal vibrations.
- Apply the recommended course. Other course are available for use.
(Fabric deformation may occur because of the type of fabric)
Note
Baby clothing set Approx.
200g in cotton
Bath towel
Approx. 300g in cotton
Sleepwear set
Approx. 500g in cotton
Panties
Approx. 50g in cotton
Dress shirt Approx. 150g in
synthetic fabrics
Pants
Approx. 600g in cotton
Underwear
Approx. 130g in cotton
Baby towel
Approx. 10g in cotton
Normal Delicate
Baby Care
DWD-M301WP
DWD-M301WA
Night
time Spin Intensive Load Recommendations
Cotton shirt (150g) ● ● ● 11 to 12 shirts
A pair of socks (50g) ● ● ● 19 to 20 pairs
Underwear set (50g) ● ● ● ● 9 to 10 sets
Towel (150g) ● ● ● ● 8 to 9 sheets
Kitchen towel (25g) ● ● ● ● 16 to 17 sheets
Baby clothes (150g) ● ● ● ● 7 to 8 items
Diaper (50g) ● ● ● 9 to 10 sheets
Dress shirt (200g) ● ● 4 to 5 shirts
Swimsuit (100g) ● ● 4 to 5 items
Long underwear set (400g) ● ● 3 to 4 sets
Knitwear (350g) ● ● 1 to 2 items
Handkerchief (10g) ● ● ● ● 16 to 17 sheets
Stockings (80g) ● ● ● 9 to 10 pairs
Pants (600g) ● ● ● 1 to 2 pants
D-M301WP_INTENSIVE_호주향.indd 15 2014-02-03 오후 4:18:34

| 15 |
Buttons and Functions
- Push the door slightly if the door is not easily opened after the completion of
washing.
- If 'Door Lock' is not working due to the overloading of laundry or incomplete
door closing, push the door slightly.
- You can open the door of running washer about 5 minutes after a power
interruption.
- Please open the door carefully for safety if the washer stops running during a
wash or rinse cycle because of a power interruption. (Reset the 'Door Lock' mode
if it remains unsafe after power supply resumes)
Note
󰏎
Power
- Use the Power button to turn the washer on
or off.
󰏏
Course
- Press the Course button to select a cycle.
- Course lamps indicate the selection.
󰏐
Add Rinse
- Press the Add Rinse button to add a rinse
cycle after selecting a wash cycle. (Up to 5
cycles addable)
󰏒
Display LED
- LED displays cleaning time and course
information.
󰏓
Child Lock (Button Lock)
- Press the Child Lock button to prevent your
kids from controlling the washer.
- In Child Lock mode, only the Power button is
available for use.
- Press the Course and Rinse button for 3
seconds to lock or unlock the mode.
󰏑
Start/Pause
- Press the button to start the cycle.
- The washer runs and stops alternately when the press is pressed.
- If you press the "Start/Pause" button after turning on the washer, the normal cycle starts.
5
1 2 3 4
D-M301WP_INTENSIVE_호주향.indd 16 2014-02-03 오후 4:18:34

| 16 |
Normal
Select the Normal Course for daily laundry (towel, socks, and dress shirts) and other
regular items.
Open the door and load the washer with clothes. Add detergent and fabric
softener into the detergent and softener containers respectively and then
close the door.
- Turn detergent and softener containers clockwise to close them tight before use.
Press the Course button to select 'Normal'.
- Cold water, two rinse cycles, and strong spin cycle are selected automatically.
Press the Power button slightly for a second.
- Press the Start/Pause button and then select other buttons to change the setting
while the washer is running.
- If you press the Start/Pause button after turning on the washer, the initial setting
applies automatically to the wash cycle.
Note
Tip
Press the Add Rinse button to change the number of rinse cycles.
(Up to 5 rinse cycles are available)
Press the Start/Pause button.
- The wash cycle starts with water supply after the door is locked.
"Do not pile up your daily laundry of towels, socks, and shirts.
Normal Course takes only 29 minutes to complete its entire cycle."
1
2
3
4
2 3 4
D-M301WP_INTENSIVE_호주향.indd 17 2014-02-03 오후 4:18:34

| 17 |
Delicate
Select the Delicate Course for items washable with water such as knitwear, wool
clothing, and lingerie.
- Do not select the Delicate Course for easily shrinkable or deformable leather
or cashmere items.
- Press the Start/Pause button and then select other buttons to change the
setting while the washer is running.
Note
"Wash your high-quality knitwear and wool clothing,
underwear and stockings without concern. Delicate Course helps wash your laundry
gently and safely without causing any fabric damage or discoloration."
Open the door and load the washer with clothes. Add detergent and fabric
softener into the detergent and softener containers respectively and then
close the door.
- Turn detergent and softener containers clockwise to close them tight before use.
- Do not use bleaches for Delicate Course to prevent decoloration of your laundry.
Press the Course button to select 'Delicate'.
- Cold water, two rinse cycles, and medium spin cycle are selected automatically.
Press the Power button slightly for a second.
Tip
Press the Add Rinse button to change the number of rinse cycles.
(Up to 5 rinse cycles are available)
Press the Start/Pause button.
- The wash cycle starts with water supply after the door is locked.
1
2
3
4
2 3 4
D-M301WP_INTENSIVE_호주향.indd 18 2014-02-03 오후 4:18:34

| 18 |
Baby Care (DWD-M301WP, DWD-M301WA)
Select the Baby Care Course to wash baby clothes, 100% cotton products, and
clothing requiring steam wash and bleaching.
"Select the Baby Care Course to steam wash baby
clothes and cotton products. The Course helps clean your laundry
hygienically with hot water and three rinse cycles."
- The water temperature is maintained at 80℃without any changes during the
cycle.
- If the steam wash causes excessive bubbles, you can remove them by
repeating the process of Drain(spin)→ Water Supply(rinse+spin)→ Start/Pause.
- Do not wash clothes that are not resistant to heat.
- Press the Start/Pause button and then select other buttons to change the
setting while the washer is running.
- Three rinse cycles apply automatically for sensitive baby skin.
Note
- Please check whether the laundry is suitable for steam wash (Pure cotton and
100% cotton baby clothes, diapers, etc.).
- Wash white and bright-colored clothes and dark items separately.
Caution
Open the door and load the washer with clothes. Add detergent and fabric
softener into the detergent and softener containers respectively and then
close the door.
- Turn detergent and softener containers clockwise to close them tight before use.
Press the Course button to select 'Baby Care'.
- The water temperature of 80℃, three rinse cycles, and strong spin cycle are selected automatically.
Press the Power button slightly for a second.
Tip
Press the Add Rinse button to change the number of rinse cycles.
(Up to 5 rinse cycles are available)
Press the Start/Pause button.
- The wash cycle starts with water supply after the door is locked.
1
2
3
4
2 3 4
D-M301WP_INTENSIVE_호주향.indd 19 2014-02-03 오후 4:18:35

| 19 |
Night Time
Select the Night time Course to wash your laundry silently at night or when your baby
is asleep.
- Press the Start/Pause button and then select other buttons to change the
setting while the washer is running.
Note
" You can sleep undisturbed while the machine is washing"
Open the door and load the washer with clothes. Add detergent and fabric
softener into the detergent and softener containers respectively and then
close the door.
- Turn detergent and softener containers clockwise to close them tight before use.
Press the Course button to select 'Night time'.
- Cold water, two rinse cycles, and medium spin cycle are selected automatically.
Press the Power button slightly for a second.
Tip
Press the Add Rinse button to change the number of rinse cycles.
(Up to 5 rinse cycles are available)
Press the Start/Pause button.
- The wash cycle starts with water supply after the door is locked.
1
2
3
4
2 3 4
D-M301WP_INTENSIVE_호주향.indd 20 2014-02-03 오후 4:18:35
