Daewoo DWF-190SL User manual

Service Manual
Auto Washer
Model: DWF-190SL
S/M No. :
Jun. 2013
✔Caution
: In this Manual, some parts can be changed for improving,
their performance without notice in the parts list. So, if you
need the latest parts information, please refer to PPL(Parts
Price List) in Service Information Center (http://svc.dwe.co.kr).

AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
WASHING MACHINE
Contents
1. SPECIFICATIONS NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 2
2. STRUCTURE OF THE WASHING MACHINE NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 3
3. DIRECTIONS FOR INSTALLATION AND USE NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 4
INSTALLING PLACENNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 4
HOW TO INSTALL ON AN INCLINED PLACENNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 4
HOW TO CONNECT THE INLET HOSE NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 5
4. FEATURE AND TECHNICAL EXPLANATIONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 7
FEATURE OF THE WASHING MACHINE NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 7
WATER CURRENT TO ADJUST THE UNBALANCED LOAD NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 7
AUTOMATIC WATER SUPPLY SYSTEM FOR BLANKET WASH NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 7
FUNCTIONAL PRINCIPLE OF BUBBLE WASHING MACHINENNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 8
AUTOMATIC DRAINING TIME ADJUSTMENT NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 8
AUTOMATIC UNBALANCE ADJUSTMENT NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 9
CIRCULATING-WATER COURSE AND LINT FILTER NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 9
LINT FILTERNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 10
RESIDUAL TIME DISPLAY NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 10
DRAIN MOTOR NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 10
GEAR MECHANISM ASS’YNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 11
5. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 12
GEAR MECHANISM ASS’Y REPLACEMENT NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 12
MOTOR DRAIN AND VALVE REPLACEMENT NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 14
6. THE REPAIR METHOD OF GEAR MECHANISM FOR CLUTCH SPRING PROBLEMNNNNNNNNNNNN 15
THE STRUCTURE OF GEAR MECHANISM ............................................................................................... 15
HOW TO CHECK THE CLUTCH SPRING PROBLEM ............................................................................... 16
THE PROCESS OF DISASSEMBLING ........................................................................................................ 17
THE PROCESS OF ASSEMBLING .............................................................................................................. 19
7. TROUBLE SHOOTING GUIDENNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 21
CONCERNING WATER SUPPLY...................................................................................................................21
CONCERNING WASHING............................................................................................................................. 22
CONCERNING DRAINING ............................................................................................................................ 23
CONCERNING SPINNING ............................................................................................................................ 24
CONCERNING OPERATING......................................................................................................................... 25
8. PRESENTATION OF THE P.C.B ASS’Y NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN 26
9. APPENDIX
WIRING DIAGRAM ......................................................................................................................................... 27
PARTS DIAGRAM........................................................................................................................................... 28
PARTS LIST..................................................................................................................................................... 32
SEQUENCE CHART ...................................................................................................................................... 35

1. SPECIFICATIONS
SPECIFICATIONS
2
1POWER SOURCE A.C 220V/50Hz , A.C 220V/60Hz
2POWER CONSUMPTION 530W
3WEIGHT 43kg(net) /47kg(GLASS)
4DIMENSION (WxHxD) 630 x 1004 x 670 mm
5WASHING COURSE FULL AUTOMATIC 6 COURSES
(FUZZY, BLANKET, ECONOMY, BABY CARE, SPORTS WEAR, DELICATE)
6WATER CONSUMPTION 185ὀ
HIGH 91ὀ
7WATER LEVEL MED 82ὀ
SELECTOR LOW 69ὀ
SMALL 56ὀ
8OPERATING WATER PRESSURE 0.03MPa ~ 0.8MPa
(0.3kgf/cm2~ 8kgf/cm2= 2.94N/cm2~ 78.4N/cm2)
9REVOLUTION WASH 130~150 rpm(60Hz) / 125~140 rpm(50Hz)
PER MINUTE SPIN 710~740 rpm(60Hz) / 640~675 rpm(50Hz)
10 PULSATOR TORNADO PULSATOR
11 WATER LEVEL CONTROL ELECTRONIC SENSING
12 AUTOMATIC WATER SUPPLY O
13 GEAR MECHANISM ASS'Y HELICAL GEAR
14 LINT FILTER 1~2 (OPTION)
15 AUTOMATIC SOFTENER INPUT O
16 FUNCTION FOR TIME DELAY O (OPTION)
(RESERVATION)
17 DISPLAY OF RESIDUAL TIME O
18 FUNCTION FOR BUBBLE O (OPTION)
19 DRAIN TYPE PUMP
20 AUTOMATIC POWER OFF O
21 DOOR TYPE (TRANSPARENT)
No. ITEM DWF-190SL
In case of moving Washing Machine, please
follow the following picture.
NOTES
PLASTIC DOOR
(TRANSPARENT,OPAQUE) GLASS DOOR(TRANSPARENT)

2. STRUCTURE OF THE WASHING MACHINE
STRUCTURE OF THE WASHING MACHINE
3
⏿⏿
ACCESSORIES (FULL OPTION)
The parts and features of your washer are illustrated on this page.
Become familiar with all parts and features before using your washer.
NOTE
• The drawings in this book may vary from your washer model.
They are designed to show the different features of all models covered by this book. Your model may not
include all features.
• HOT WATER TAP
After using the washer, close the water tap.
In case of the single valve model, there is
no hot water valve.
• COLD WATER TAP
After using the washer,
close the water tap.
• BLEACH INLET
• LINT FILTER
• CASE DETERGENT
AND SOFTENER
• GROUND WIRE
In case of 3-wire power cord,
ground wire will not be provided.
• POWER CORD
• CONTROL PANEL
• POWER SWITCH
• PULSATOR
• ADJUSTABLE LEG
Water supply hoses
(two)
Drain hose Water hose fixer (two) User manual

3. DIRECTIONS FOR INSTALLATION AND USE
DIRECTIONS FOR INSTALLATION AND USE
4
ᵄThe place where it would be exposed to
direct sunlight.
ᵄThe place nearby a heater or heat appli-
ance.
ᵄThe place where it would be supposed
to be frozen in winter.
ᵄThe kitchen with coal gas and a damp
place like a bathroom.
10Cm
Install the washer on a horizontal
solid floor. If the washer is installed
on an unsuitable floor, it could make
considerable noise and vibration.
⏿⏿
INSTALLING PLACE
Never install in these places
Keep the machine body
more than 25cm apart from
the wall surface. It will
make easy cleaning the
drain filter which is equipped
at the back side of it. And if
it comes into contract vibra-
tion may occur.
25cm
The openings must not
be obstructed by carpet-
ing when the washing
machine is installed on a
carpeted floor.
⏿⏿How To Install On An Inclined Place
NOTES
2Check the Horizon
Status
Check the position of tub above
the center of the washer.
1Horizon
Setting
After controlling the height
by turning the adjustable
leg, let the washer put
down to the ground.

DIRECTIONS FOR INSTALLATION AND USE
5
FOR ORDINARY TAP
6Connect the inlet hose adapter
to the water inlet of the washer
by turning it clockwise to be
fixed tightly.
• Please check the rubber packing
inside the inlet hose adapter.
1Pull down the collar
of the inlet hose to
separate it from the
water tap adapter.
2Loosen the four
screws at the water
tap adapter, but don’t
loosen the screws until
they are separated from
the water tap adapter.
4Remove the tape,
and screw connector
B into connector A
tightly.
5Connect the inlet
hose to the water tap
adapter by pulling down
the collar of the hose end.
3Connect the water tap
adapter to the water tap and
tighten the four screws evenly
with pushing up the adapter
so that the rubber packing
can stick to the water tap
tightly.
⏿⏿How to Connect the Inlet Hose
Be careful not to mistake in supplying between the hot(maximum : 50˚C) and cold water.
In using only one water tap or in case of attached one water inlet valve, connect the inlet hose to the cold water inlet
valve.
Do not over tighten : This could cause damage to couplings.
FOR SCREW-SHAPED TAP
3Insert the inlet hose adapter
into the water inlet of a washer
and turn it to be fixed.
• Check the packing in the inlet.
1Connect the inlet
hose to the water tap
by screwing the con-
nector D tightly.
2Connect the connec-
tor-inlet supplied if
necessary.
Inlet Hose
Connector D
Rubber
Packing
Connector C
Connector
Inlet

Rubber
Packing
Connector D
Connector C
Hose
TAPE
Connector B
Connector A

DIRECTIONS FOR INSTALLATION AND USE
6
CLEANING THE LINT FILTER
• This washer has two Lint Filters in the top TUB in order to filter off lint and fuzz.
CLEANING THE WATER INLET FILTER
• Clean the filter when water leaks from the water inlet.
3Return the filter as it was, and
insert the filter frame into the
slot.
1Pull the Filter frame
upward. 2Turn the lint filter inside out, wash to
the lint off with water.
1Pull the power plug out
before cleaning it.
2Turn off the water sup-
ply to the washer and
separate the inlet hose.
3Pull the inlet filter out. 4Remove the dirt from
the inlet filter with a
brush.
CLEANING THE DRAIN FILTER
• In case “Pump-Model” drain hose, this filter’s equipped at the back side of washer.
• This drain filter is to screen the foreign stuffs such as threads, coins, pins, buttons, etc.
• If the drain filter is not cleaned at proper time (every 10 times of use), Drain problem could be caused.
1Put down the remained water in
the hose. And put a container
under the filter to collect water.
2Turn the cap counter clockwise. 3Pull out the filter assembly off
the case.
4Clean the drain filter removing
the foreign stuffs.
5Put the filter into the case. And
turn the cap to adjust the promi-
nence of the filter to the hole of
the case.
6Turn the cap clockwise tightly.
Lint Filter Filter Frame
FILTER
FILTER
CAP
CAP
CASE
CONTAINER
FILTER
CAP
CAP
CAP
CASE
STOPPER
STOPPER

4. FEATURE AND TECHNICAL EXPLANATION
FEATURE AND TECHNICAL EXPLANATION
7
WASH DRAIN SPIN FILL RINSE 1 DRAIN SPIN FILL RINSE 2 DRAIN •••
MOTOR C.W
SIGNAL C.C.W
TIME(SEC.) 0.3 0.3 0.3 0.3 0.3 0.3 •••••••
35 SEC. (About 29 Times)
Feature of the Washing Machine
1 First applying the Radical Technology in the world ... go beyond washing, sterilize your clothes and deodorize a bad
smell(Option).
2 The first air bubble washing system in the world.
3 Quiet washing through the innovational low-noise design.
4 Improving washing performance by more than 35%, while reducing power consumption by 40%.
5 The laundry detergent dissolves well in water because of the air bubble washing system.
6 The adoption of the water currents to adjust the unbalanced load.
7 One-touch operation system.
Water Current to Adjust the Unbalanced Load
It is a function to prevent eccentricity of the clothes after wash by rotating pulsator C.W and C.C.W for 35
seconds.(But, the DELICATE course have no operation of the water currents to adjust the unbalanced load.)
EFFECT
It reduces vibration and noise effectively while spinning.
WATER FLOW
Automatic Water Supply System for Blanket Wash
The water level would be lowered because the blanket absorbs water at the beginning of washing. Therefore, after
2 minutes, the operation is interrupted to check the water level, and then the water is supplied again until the select-
ed water level is reached.

FEATURE AND TECHNICAL EXPLANATION
8
FUNCTIONAL PRINCIPLE
1. The micom can remember the time(D) from the begining of drain to reset point when the pressure switch reaches
to “OFF” point
2. In case of continuous draining, residual drain time is determined by micom.
Draining time as a whole = D + 90
Residual drain time.
The time remembered by micom.
FUNCTIONAL PRINCIPLE
Bubble Motor supplies the air from the bottom of outer tub to the inner space of pulsator, the air is dispersed by the
rotation of pulsator. Air-bubble is created by the centrifugal force, and rises up.
Draining Good draining The washer begins spin process after drainage.
condition Bad draining Draining time is prolonged.
No draining Program is stopped and gives the alarm.
Drain Time Movement of the Program
Less than Continue draining.
15 minutes
More than Program stops and gives the alarm with blinked on display lamp.
15 minutes
Functional Principle of Bubble Washing Machine
ACROSS SECTION
Automatic Drainning time Adjustment
This system adjusts the draining time automatically according to the draining condition.
Air bubble
Tub
Outer tub
Pulsator

FEATURE AND TECHNICAL EXPLANATION
9
Contact of safety switch
Lid closing
Lid opening
Contact lever A
Normal (ON)
Position of
unbalanced load (OFF)

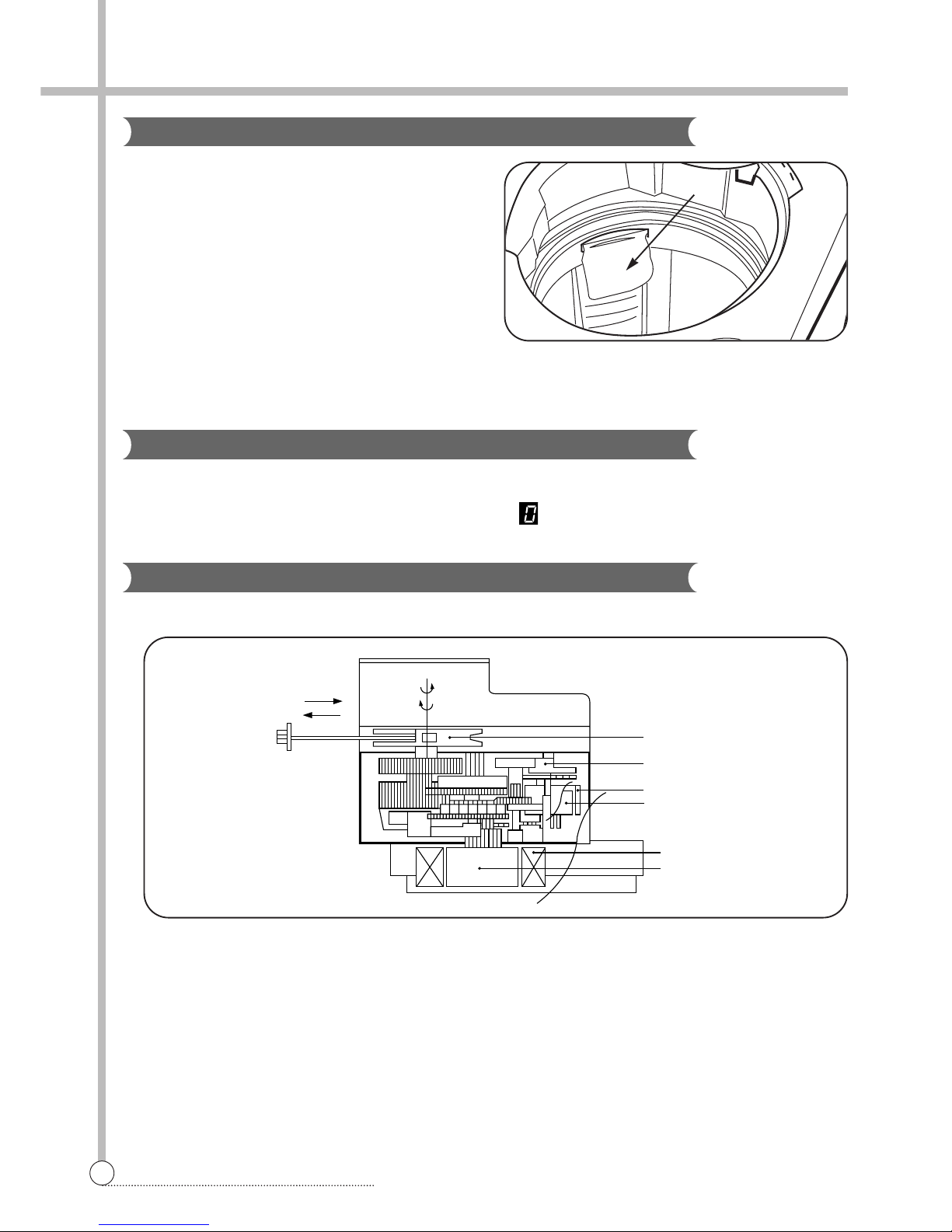

Automatic Unbalance Adjustment
Circulating-Water Course and Lint Filter
The alarm finished when you close the lid after opening
it. Check the unbalance of the wash load and the instal-
lation condition.
NOTES
Filter
Tub
Outer tub
Water
channel
Pulsator
This system is to prevent abnormal vibration during intermittent spin and spin process.
FUNCTIONAL PRINCIPLE
1. When the lid is closed, the contact lever A of
the safety switch is “ON” position.
2. In case that wash loads get uneven during
spin, the outer tub hits the safety switch due
to the serious vibration, and the spin pro-
cess is interrupted.
3. In case that P.C.B. ASS’Y gets “OFF” signal
from the safety switch, spin process is
stopped and rinse process is started auto-
matically.
4. If the safety switch is operated due to the
unbalance of the tub, the program is
stopped and the alarm is given.
CIRCULATING-WATER
The washing and rinsing effects have been
improved by adopting the water system in
which water in the tub is circulated in a
designed pattern.
When the pulsator rotates during the washing
or rinsing process, the water below the pul-
sator fans creates a water currents as shown
in figure.
The water is then discharged from the upper
part of the tub through the water channel.
About 40 L/min. water is circulated at the ‘high’
water level, standard wash load and standard
water currents.

FEATURE AND TECHNICAL EXPLANATION
10
Much lint may be obtained according to the kind of
clothes to be washed and some of the lint may also
stick to the clothes.
To minimize this possibility a lint filter is provided on
the upper part of the tub to filter the wash water as it
is discharged from the water channel. It is good to
use the lint filter during washing.
HOW TO REPLACE LINT FILTER
1. Pull the filter frame upward.
2. Turn the lint filter inside out, and wash the lint off with water.
3. Return the filter as it was, and fix the filter frame to the slot.
When the START/HOLD button is pressed, the residual time (min.) is displayed on the time indicator, and it will be
counted down according to process.
When operation is finished, the TIME INDICATOR will light up .
STRUCTURE
FUNCTIONAL PRINCIPLE
1. When the DRAIN MOTOR connected to the power source, the DRAIN MOTOR rotates with 900 r.p.m and
revolves the pulley by gear assembly for reducing.
2. When the pulley is rotated, the pulley winds the wire to open the drain valve.
3. Therefore, rotation of pulley changed to the linear moving of wire.
4. The wire pulls the brake lever of Gear Mechanism Ass’y within 5 seconds.
5. After the wire pulled, gear assembly is separated from motor and condition of pulling is held by operation of the
lever.
6. When the power is turned off, the drain valve is closed because the wire returns to original position.
Pull
Loosen
Pulley
Lever
Inductive ring
Magnet
Coil of motor
Magnet of motor
Lint Filter
Residual Time Display
Drain Motor
Filter

FEATURE AND TECHNICAL EXPLANATION
11
The proper water currents is made by the rotation of pulsator at a low speed to prevent the damage to the small
sized clothes.
Planetary gear Sun gear
Internal gear
Pulsator
1 revolution
5 revolutions
Gear pulley
V-belt
Gear unit as
Motor
Motor
1800 r.p.m (60Hz)
1500 r.p.m (50Hz)
Gear Unit as
Directly
V-Belt
Tub
710-740r.p.m(60Hz)
640-675r.p.m(50Hz)
Pulsator
130-150r.p.m(60Hz)
125-140r.p.m(50Hz)
Spinner Pulley
710-740r.p.m(60Hz)
640-675r.p.m(50Hz)
Gear Mechanism Ass’y

5. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
12
Gear Mechanism Ass’y Replacement
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE WASHING MACHINE, DISCONNECT
THE POWER CORD FROM THE ELECTRIC OUTLET.
Warning

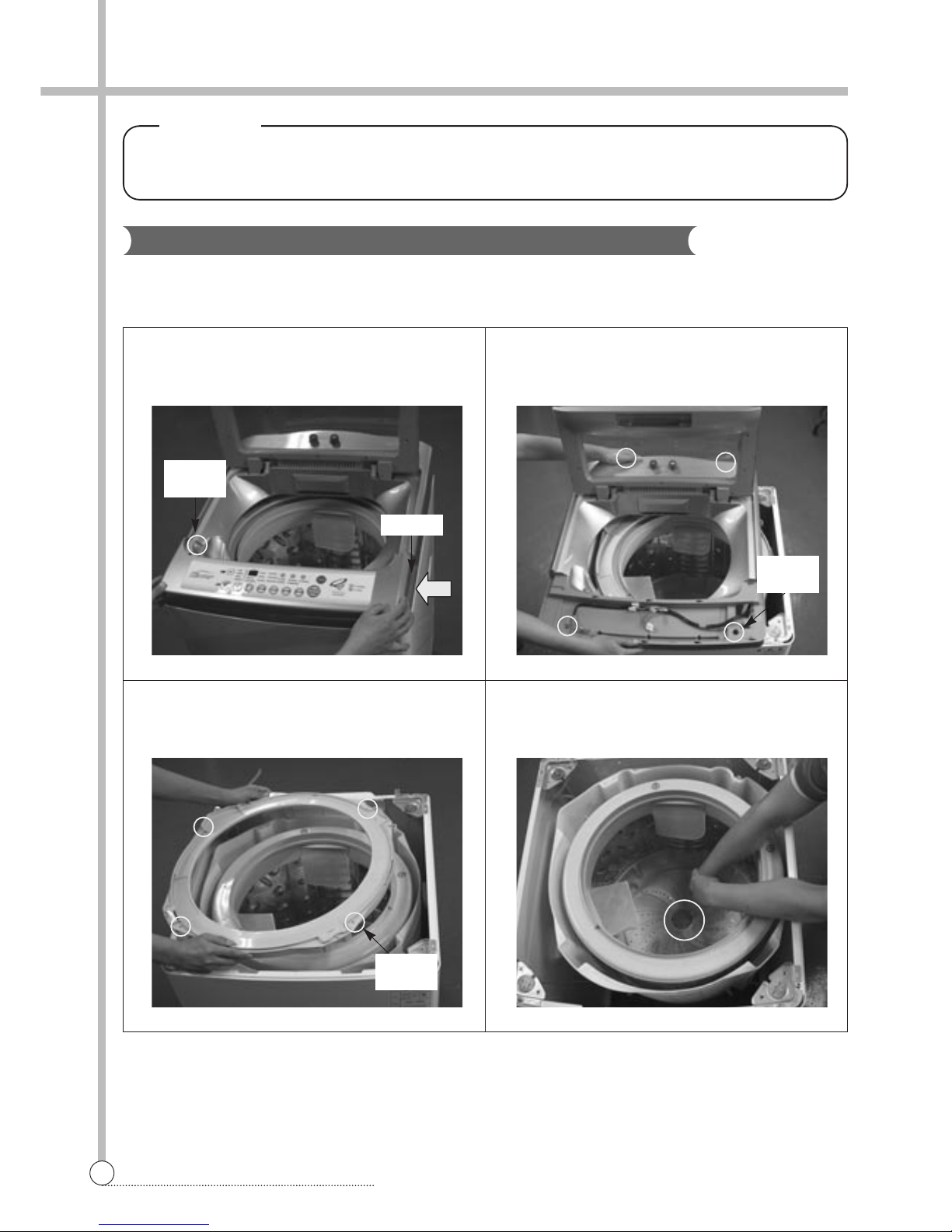

1Remove 1 screw from the PANEL F.
2Separate PANEL F by pushing PANEL F washing to
the right.
3Remove 4 screws and separate PLATE T from
washing machine.
4Remove 4 screws and separates
COVER TUB from TUB ass’y.
6Remove CAP PULSATOR form PULSATOR using
screw driver.
GEAR MECHANISM ASS’Y REPLACEMENT
Remove
screw
Pushing
Remove
4 screws
Remove
4 screws

DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
13
To assemble the gear mechanism ass’y, reverse the disassembly procedure.
NOTES
6Unscrew PULSATOR mounting screw and separates
PULSATOR form TUB ass’y.
7Unscrew special nut using ‘T’ type box wrench.
8Separate TUB I from TUB ass’y. 9Lay the top of the washing machine on the floor.
0Unscrew 4 special bolts of GEAR PROTECT using a
box wrench and separate GEAR PROTECT .
qUnscrew 4 special bolts of GEAR MECHANISM using
a box wrench.
wSeparate GEAR MECHANISM and BELT V.

DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
14

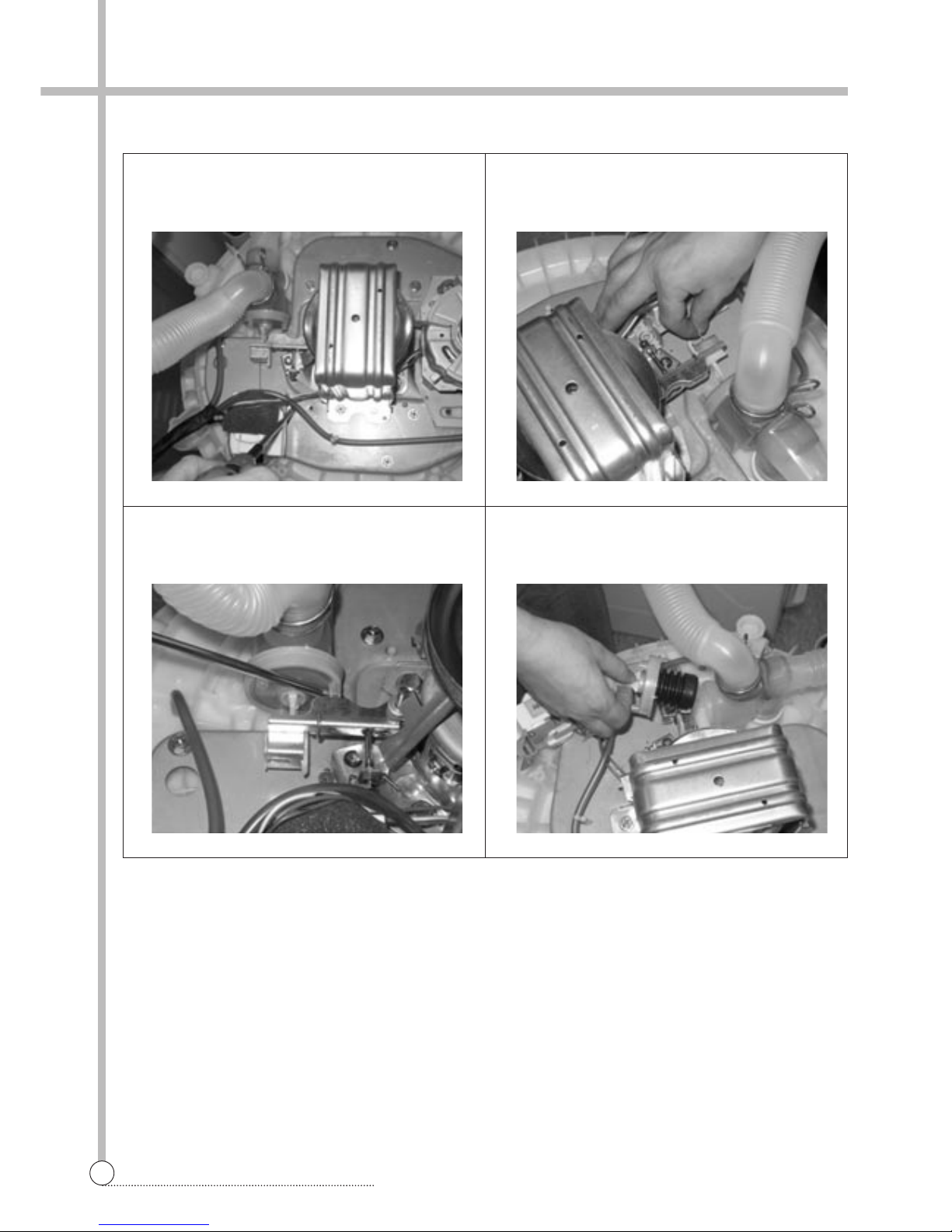

1Lay the top of the washing machine on the floor.
2Unscrew 2 special bolts mounting MOTOR DRAIN.
3Take out the wire of MOTOR DRAIN.
4Separate MOTOR DRAIN from BASE.
5Turn the valve using screw driver as shown picture. 6Separate the valve lid from VALVE DRAIN ass'y.
MOTOR DRAIN AND VALVE REPLACEMENT (NON PUMP MODEL)

6. THE REPAIR METHOD OF GEAR MECHANISM FOR CLUTCH SPRING PROBLEM
THE REPAIR METHOD
15

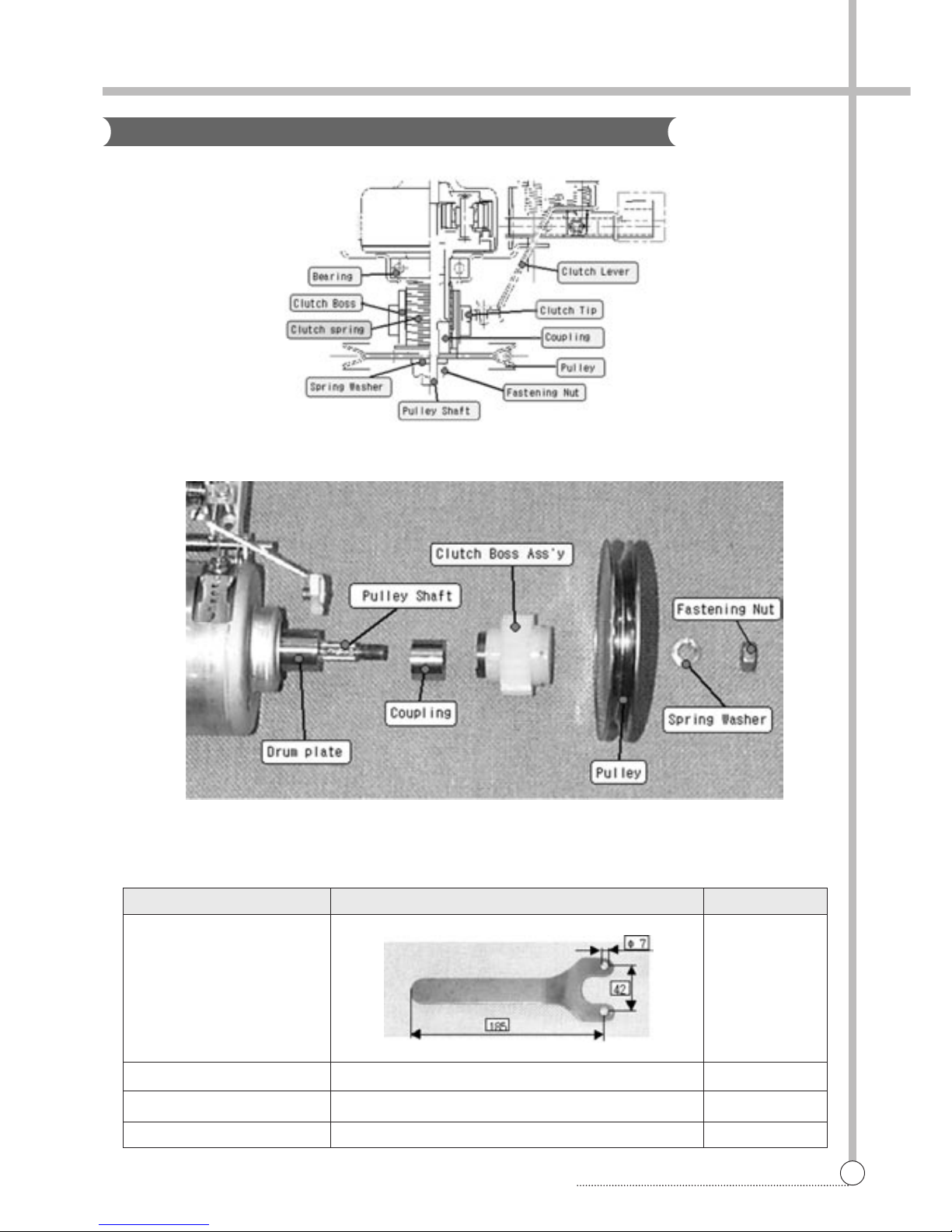

ᵄTOOL FOR REPLACING THE CLUTCH BOSS ASSEMBLYᵄ
Tool name Specification Q’ty
Fixing jig 1
Ratchet handle 1
Socket and extension bar socket : 10mm, 17mm per each
Cotton yarn some

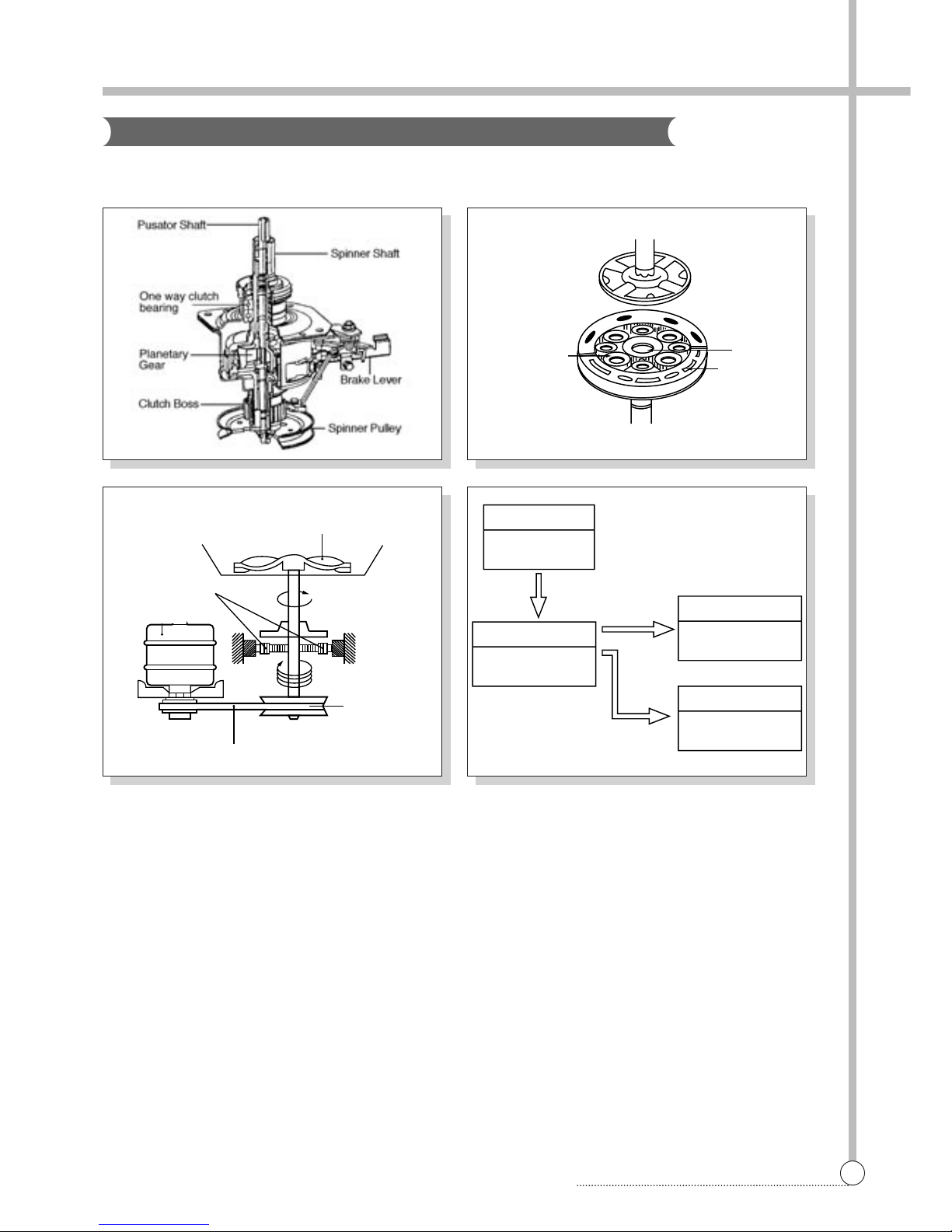

The structure of gear mechanism
Figure 1

THE REPAIR METHOD
16
NO. PARTS NAME SPECIFICATION Q’TY
1CLUTCH SPRING 1.5*1.5 1
2CLUTCH BOSS PP 1
3GREASE beacon#325 3g
PACKING PACKING THE CLUTCH BOSS ASS’Y 1
METHOD BY USING VINYL PACK
CHECKING METHOD
IN THIS CASE, YOU MUST EMPTY THE SPIN TUB FIRST.
1) TO CHECK THE REVOLUTION OF SPIN TUB.
IF THE SPIN TUB DOES NOT REVOLVE AND ONLY THE PULSATOR IS TURNING, THAT IS
CLUTCH SPRING DEFECT.
2) TO CHECK THE SPIN SPEED(RPM) BETWEEN SPIN TUB AND PULSATOR.
IF YOU FIND THE DIFFERENT SPIN SPEED BETWEEN SPIN TUB AND PULSATOR, THIS IS ALSO
CLUTCH SPRING DEFECT.
IN THIS CASE, WE ARE GOING TO SUPPLY THE CLUTCH BOSS ASSEMBLY INSTEAD OF GEAR
MECHANISM ASSEMBLY. PLEASE REFER TO FOLLOWING FIG.
THE CLUTCH BOSS ASSEMBLY
How to check the clutch spring problem

THE REPAIR METHOD
17
No. Process Notice

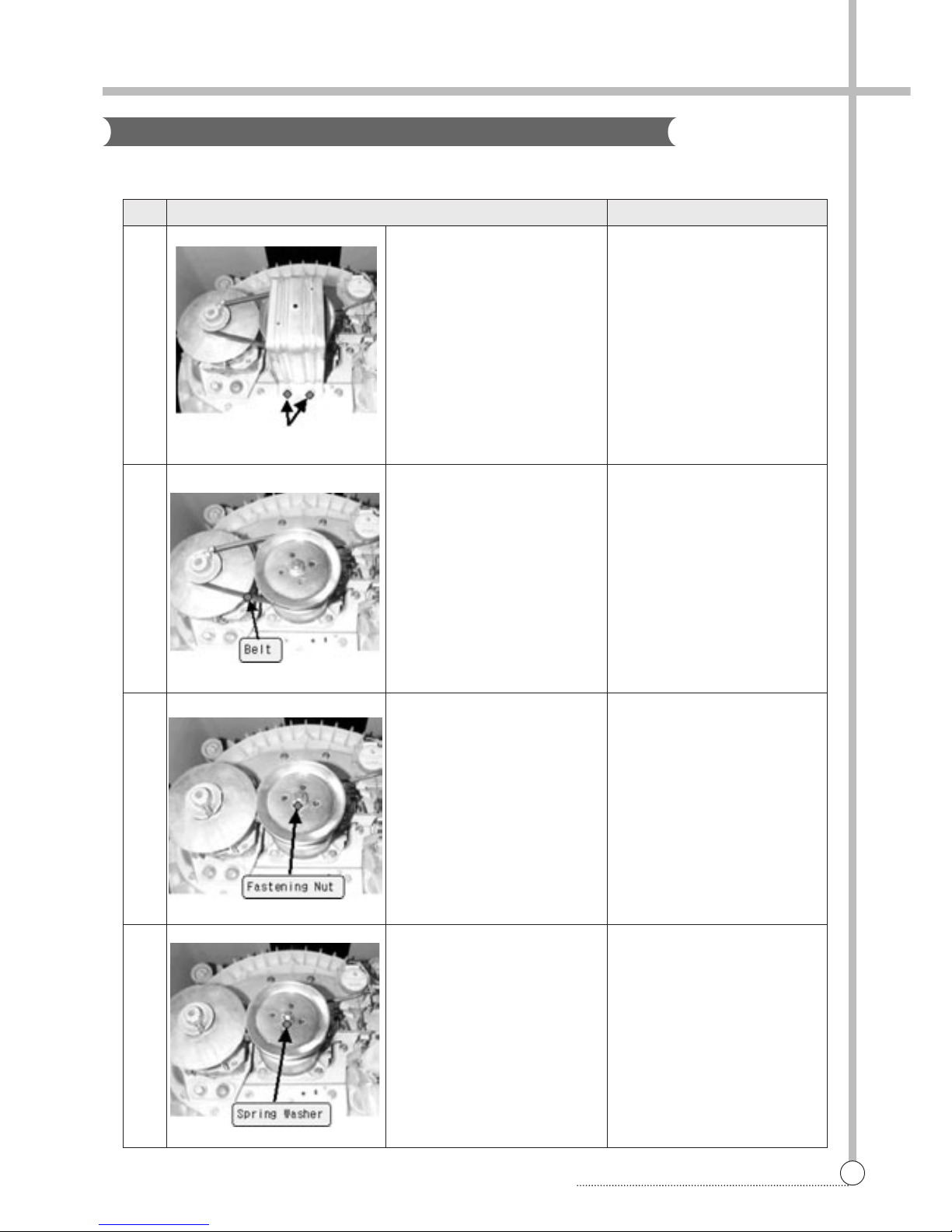

Disassembling 1
1
2
3
4
Release screws marked 4-point
Remove the protector
Remove the v-belt
Loosen the fastening nut
Disassemble the spring washer
Use wrench or driver.
- ratchet handle
- extension bar
- socket : 10mm
Use fixing jig for pulley as to
see fig 1.
and 17mm-socket for nut.
Take out plain washer if it has.
The Process Of Disassembling

THE REPAIR METHOD
18
No. Process Notice
Disassembling 2
5
6
7
8
Disassemble the pulley
Disassemble the clutch boss
assembly
Separate coupling from clutch
boss ass’y
Cleaning
Catch the boss and pull
upward with spiral rotate in the
clockwise direction.
Clean the drum plate, coupling
surface and contact face
between drum plate and cou-
pling.
It is necessary to keep cotton
piece goods being dry and
clean.

THE REPAIR METHOD
19
No. Process Notice
Assembling 1
1
2
3
4
Assemble the coupling
Assemble the new clutch boss
ass’y
Assemble the pulley
Assemble the spring washer
Check the uneven face of cou-
pling is assembled upward.
- Push in the clutch boss ass’y
with rotating on the clockwise
direction.
-
After assembling, rotate on the
clockwise more 2~3 teeth and
pull out the pulley shaft upward.
If there was plain washer, you
have to assemble plain washer
the first and then assemble
spring washer.
The Process Of Assembling
