Daewoo DWF-1094 User manual

Service Manual
Auto Washer
Model :DWF-1094
DAEWOO ELECTRONICS CO., LTD.
OVERSEAS SERVICE DEPT.

1. SPECIFICATIONS
2
SPECIFICATIONS
NO.ITEMDWF-1094
1POWER SOURCE AVAILABLE IN ALL LOCAL AC VOLTAGE AND CYCLE
2
POWER CONSUMPTION
3
MACHINE NON-PUMP
WEIGHT PUMP
4 DIMENSION (WXHXD)
5 WASHING COURSE FULL AUTOMATIC 6 COURSE
(FUZZY, MEMORY, BLANKET, SUIT, HEAVY, ECONOMY)
6
WATER CONSUMPTION
7 WATER LEVEL SELECTOR
8 OPERATING WATER PRESSURE 0.3kgf/cm2~8kgf/cm2 (2.94 N/cm2~78.4N/cm2)
60Hz
9 50Hz
SUIT COURSE
10PULSATOR
11
WATER LEVEL CONTROL ELECTRONICAL SENSOR
12 ANTI NOISE PLATE O
13
GEAR MECHANISM ASS’Y HELICAL GEAR
14 LINT FILTER O
15 SOFTENER INLET O
16
FUNCTION FOR SOAK WASH O
17 ALARM SIGNAL O
18
RESIDUAL TIME DISPLAY O
19
AUTO. WATER SUPPLY O
20 NEW WATER FLOW WATER FLOW FOR ADJUST THE UNBALANCED LOAD
21
FUNCTION FOR BUBBLE O
22
AUTO RE-FEED WATER O
23 AUTO POWER OFF O
50Hz
480W
60Hz
550W
49Kg (GROSS : 56Kg)
50Kg (GROSS : 57Kg)
630mm X 980mm X 670mm
NORMAL 250L
HIGH(93L), ¢‚(85L)E.SMALL(40L)
MEDIUM(77L), ¢‚(70L)
LOW(63L), ¢‚(50L)
WASH : 125~140, SPIN : 675~695
WASH : 120~130, SPIN : 630~640
WASH : 65(60Hz), 55(50Hz)
6 WINGS (Ø376mm)
REVOLUTION
PER MINUTE

2. STRUCTURE OF THE WASHING MACHINE
3
STRUCTURE
„‡
¿ł
¿„ ˆº … …… ¯„ ˙ – ¯» … ˜ ‰” „¿´
¿ /
ˇ‰ˆ`⁄`
„‡
`
œ
–…
……`ƒ•fi „ ¿´
DAEWOO AUTOMATIC WASHER
¿´ …
„¿´…
‡ˆ …
……¯„ ¯»…
˙–
¿„
‡† ”‰ˆ £
‰ˆ £»¿¿
”—
– ·ª¿ ”„ ´ …
”‚†
18
14 10
7
9
5
3
61234»¿1
˘`
• BLEACH INLET
• HOT WATER TAP
• POWER SWITCH
• CONTROL PANEL
• PULSATOR
• ADJUSTABLE LEGS
• GROUND WIRE
In case of 3-wire power cord
ground wire will not be provided.
• COLD WATER TAP
After using the washer,
close the water tap
and turn off the power.
• POWER CORD
• DETERGENT CASE
• HOOK HOLE
• LINT FILTER
• HOSE DRAIN
After using the washer, close the water
tap and turn off the power. In case of
the single valve model, There is no
hot water valve.
DRYTEN
HOSE DRAIN O AS [NON-PUMP]
COVER UNDER [OPTION]
HOSE DRAIN O AS [PUMP]
WATER TAP ADAPTER
HOSE DRAIN CLAMP
INLET HOSE
CONNECTOR INLET [OPTION]
Accessories
UP

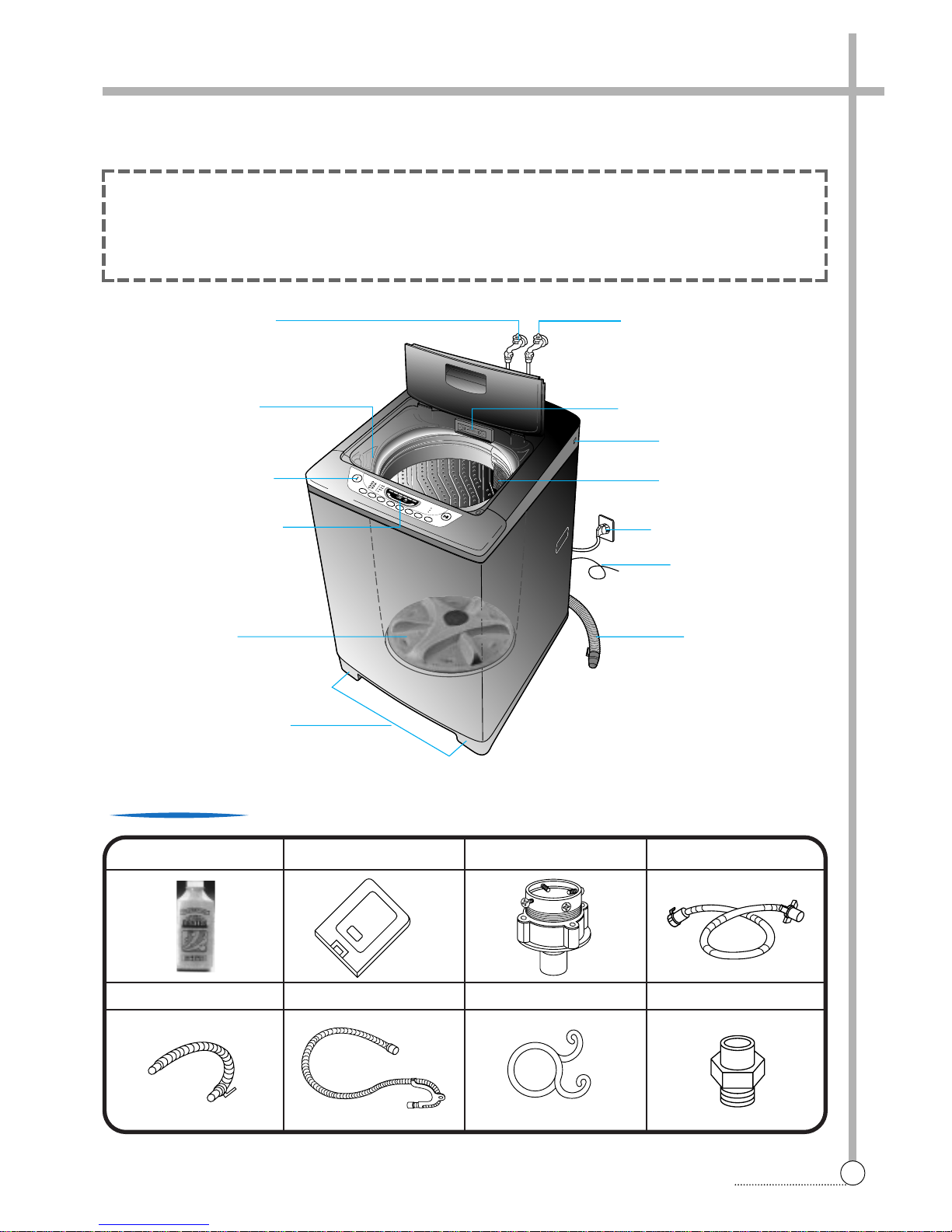

The parts and features of your washer are illustrated on this page.
Be come familiar with all parts and features before using your washer.
NOTE
• The drawing in this book may vary from, your washer model. They are designed to show the different fea-
tures of all models covered by this book, Your model may not include all features.
• Page references are included next to same features.
Refer to those pages for more information about the features.

3. DIRECTIONS FOR INSTALLATION AND USE
4
DIRECTIONS
The openings must not
be obstructed by carpet-
ing when the washing
machine is installed on a
carpeted floor.
§§ è

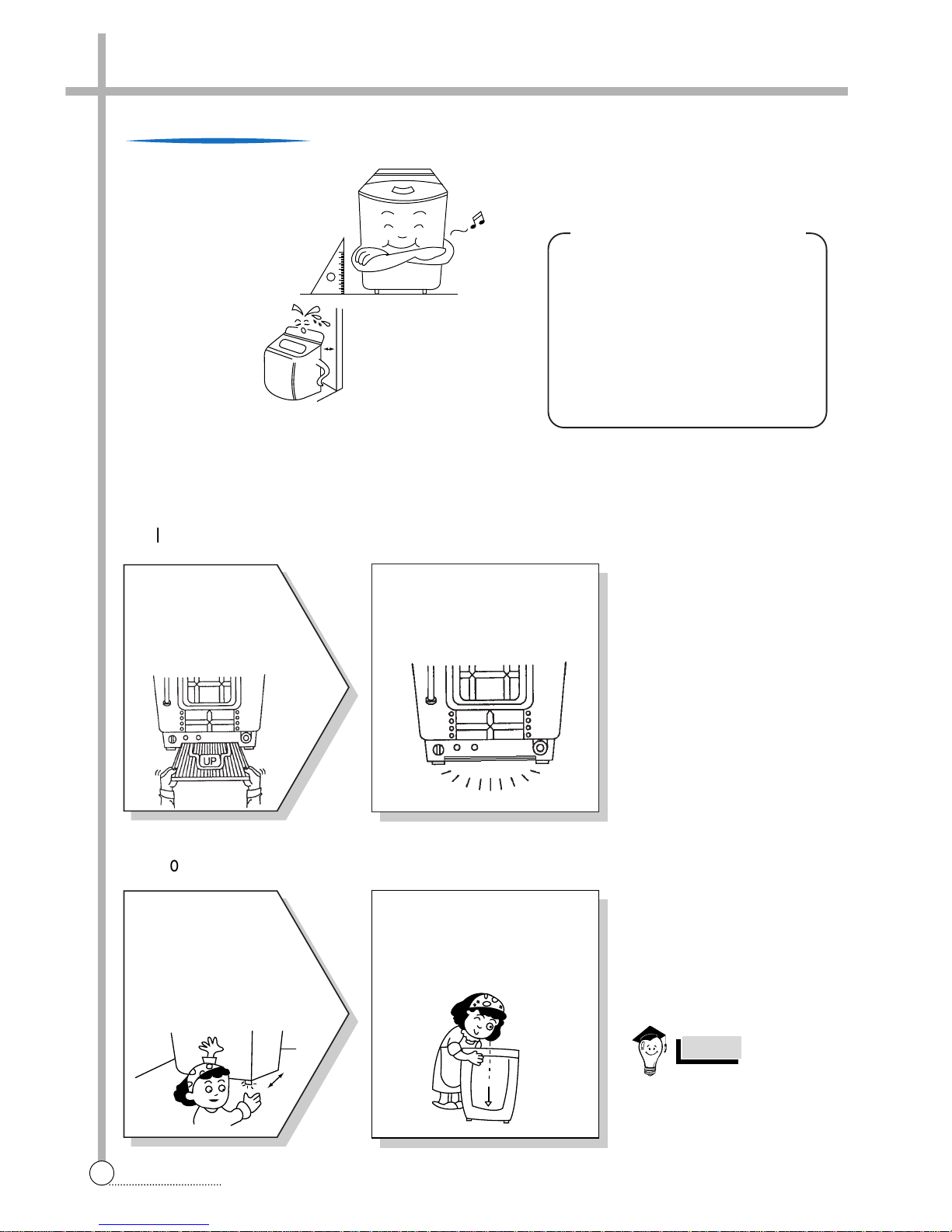

Installation Of The Under Base Cover [Option]
§§ è
How To Install On An Inclined Place
¡The place where it would be exposed to
direct sunlight.
¡The place nearby a heater or heat appli-
ance.
¡The place where it would be supposed
to be frozen in winter.
¡The kitchen with coal gas and a damp
place like a bathroom.
NOTES
10Cm
Install the washer on a horizontal
solid floor. If the washer is installed
on an unsuitable floor, it could make
considerable noise and vibration.
Installing Place
NNeevveerriinnssttaalllliinntthheesseeppllaacceess
2Push the noise insulation plate
into the end, which decrease
the noise made by this washer.
1The packing box
opened, there is a
noise insulation plate
at the bottom of the back
(DWF-7094, 8094) or front
(DWF-1094).
2Check the Horizon
Status
Check the position of tub above
the center of the washer.
1Horizon
Setting
After controlling the height
by turning the adjustable
leg, let the washer put
down to the ground.
Keep the machine body
more than 25cm apart from
the wall surface. It will
make easy cleaning the
drain filter which is equipped
at the back side of it. And if
it comes into contract vibra-
tion may occur.

5
CONNECTION
FOR ORDINARY TAP
6Connect the inlet hose adapter
of the hose to the water inlet of
the washer by turning it clock-
wise to be fixed tightly.
• Please check the rubber packing
inside the inlet hose adapter of
the hose.
1Pull down the collar
of the inlet hose to
separate it from the
water tap adapter. 2Loosen the four
screws at the water
tap adapter, but don’t
loosen the screws until
they are separated from
the water tap adapter.
4Remove the tape,
and screw connector
B into connect A tightly. 5Connect the inlet
hose to the water tap
adapter by puling down
the collar of the hose end.
3Connect the water tap
adapter to the water tap tight-
en the four screws evenly
while pushing up the adapter
so that the rubber packing
can stick to the water tap
tightly.
§§ è
How to Connect the Inlet Hose
Be careful not to mistake in supplying between the hot(maximum : 50˚C) and cold water.
In using only one water tap or in case of attached one water inlet valve, connect the inlet hose to the cold water inlet
valve.
Do not over tighten : this could cause damage to couplings.
FOR SCREW-SHAPED TAP 3Insert the inlet hose adapter
into the water inlet of a washer
and turn it to be fixed.
• Assert the packing in the inlet
1Connect the inlet
hose to the water tap
by screwing the con-
nector D tightly. 2Connect the connec-
tor-inlet supplied if
necessary.
Inlet Hose
Connector D Rubber
Packing
Connector C
Connector
Inlet
Rubber
Packing
Connector D
Connector C
Hose
„‡
¿ł
¿„ ˆº … ……¯„ ˙– ¯»… ˜ ‰” „¿´
¿ /
ˇ‰ˆ`⁄`
„‡
`
œ
–…
……`ƒ•fi„¿´
DAEWOOAUTOMATICWASHER
¿´ …
„¿´…
‡ˆ …
……¯„¯»…
˙–
¿„
‡†”‰ˆ£
‰ˆ£»¿¿
”—
– ·ª¿ ”„´…
”‚†
18
14 10
7
9
5
3
6 1 2 3 4 »¿ 1
˘`
TAPE
Connector B
Connector A
§§ è
How to Connect the Inlet Hose
Be careful not to mistake in supplying between the hot(maximum : 50˚C) and cold water.
In using only one water tap or in case of attached one water inlet valve, connect the inlet hose to the cold water inlet
valve.
Do not over tighten : this could cause damage to couplings.

6
CONVENIENCE
§§ è

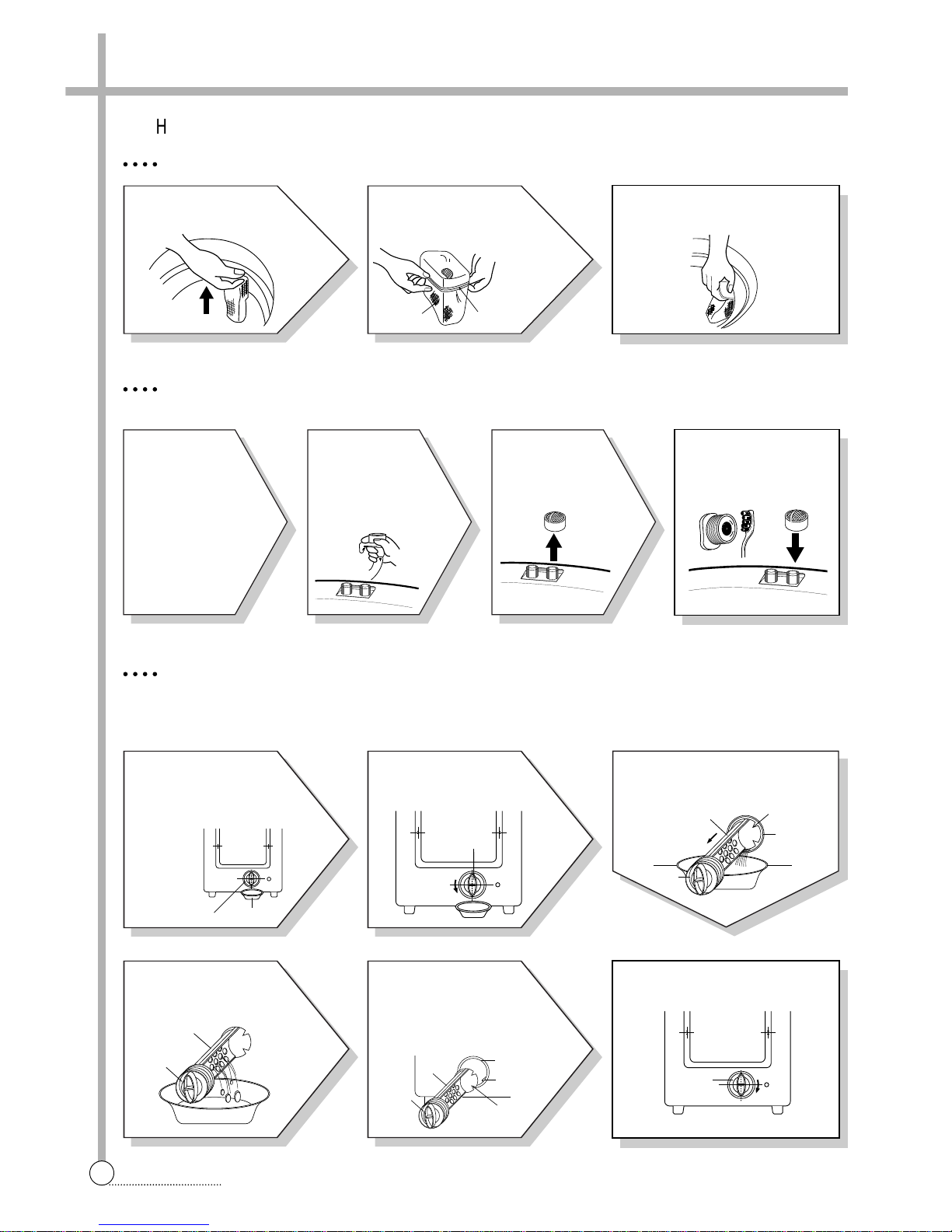

How To Clean The Filter
4
Remove the dirt
from the inlet filter
with a brush.
1
Pull the
power plug
out before
cleaning it.
2
Turn off the
water supply
to the washer
and sperate the
3
Pull the
inlet filter out.
CLEANING THE LINT FILTER
CLEANING THE WATER INLET FILTER
• Clean the filter when water leaks from, the water inlet.
CLEANING THE DRAIN FILTER
• In case “U” shape drain hose, this filter’s equipped at the cack side of washer.
• This drain filter is to screen the foreign stuffs such as threads, coins, pins, buttons etc ...
• If the drain filter is not cleaned at proper time (every 10 times of use), Drain problem could be caused.
3Return the filter as it was, and
insert the filter frame into the
slot.
1Pull the Filter frame
upward. 2Turn the lint filter inside out, wash to
the lint off with water.
1Put down the
remained water in the
hose. And put a container
under the filter to collect
water.
2Turn the cap counter
clockwise. 3Pull out the filter assembly off the case of the main body.
6Turn the cap clockwise tightly.
4Clean the drain filter
removing the foreign
stuffs. 5
Put in the filter along the
guiding prominence of the
case. Please note the left
position of the filter adjusting
the groove to the guide rib.
FILTER CONTAINER
CAP
SLIT
CASE
FILTER
CAP
CAP
FILTER
CAP
FILTER CASE
GUIDE
RIB
SLIT
CAP
Filter Frame
Lint Filter

4. FEATURE AND TECHNICAL EXPLANATION
7
EXPLANATION
WASH DRAIN SPIN FILL RINSE 1 DRAIN SPIN FILL RINSE 2 DRAIN •••
MOTOR C.W
SINGAL C.C.W
TIME(SEC.) 0.3 0.3 0.3 0.3 0.3 0.3 •••••••
35 SEC. (About 29 Times)
FILL WASH STOP WASH STOP
• 2’ 28’ 2’ 28’
SOAK PROCESS MAIN PROCESS
60 Minute
Feature of the Washing Machine
1The first air bubble washing system in the world.
2Quiet washing through the innovational low-noise design.
3The wash effectiveness is much more enhanced because of the air bubble washing system.
4The laundry detergent dissolves well in water because of the air bubble washing system.
5The adoption of the water currents to adjust the unbalanced load.
6One-touch operation system.
Water Current to Adjust the Unbalanced Load
It is a function to prevent eccentricity of the clothes after wash by rotating pulsator C.W and C.C.W for 35
seconds.(But, the SUIT course have no operation of the water currents to adjust the unbalnced load.)
EFFECT
It reduces vibration and noise effectively while spinning.
WATER FLOW
Function for Soak Wash
DISPLAY THE RESIDUAL TIME
When the SOAK WASH is selected, the total wash time increases because 60 minutes for soak process are added
to the time of main process.
PROGRESS
Automatic Water Supply System For Blanket Wash
The water level would be lowered because the blanket absorbs water at the beginning of washing. Therefore, after
30 seconds, the operation is interrupted to check the water level, and then the water is supplied again until the select-
ed water level is reached.
‘ ’ mark indicates the operation of the water currents to adjust the unbalanced load.
NOTES

8
EXPLANATION
FUNCTIONAL PRINCIPLE
1 The micom can remember the time from the begining of drain to reset point when the pressure switch reaches to
“OFF” point
2 In case of continuous draining, residual drain time is determined by micom.
Draining time as a whole = D + 90 Residual drain time.
The time remembered by micom.

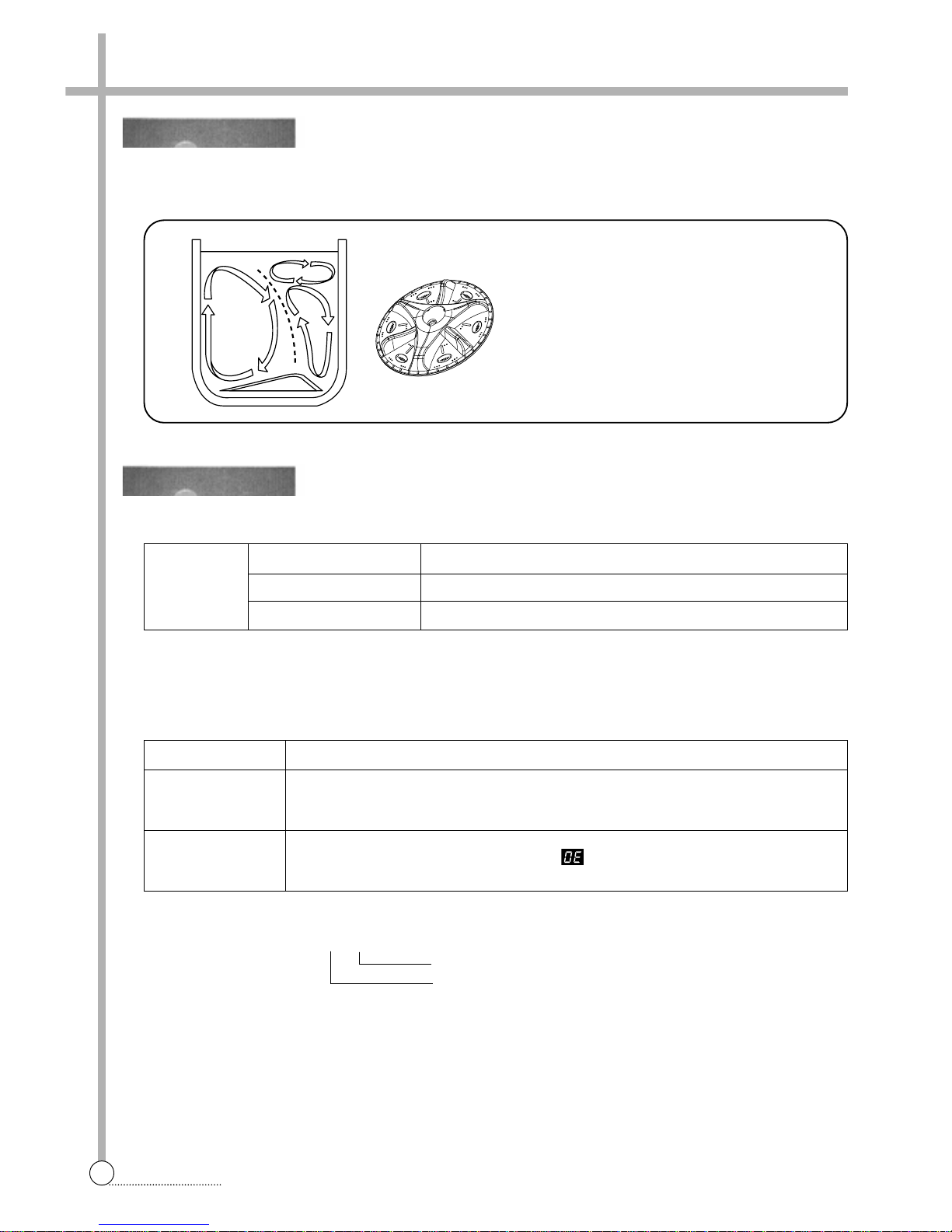

Asymmetrically designed pulsator
makes the cyclone water fow, which get
rid of the washing dead zone to
increase the washing effect and reduce
the entanglement of laundry.
Draining Good draining The washer begins spin process after drainage.
condition Bad draining Draininig time is prolonged.
No draining Program is stopped and gives the alarm.
Drain Time Movement of the Program
Less than Continue draining
15 minutes
More than Program stops and gives the alarm with blinked on display lamp.
15 minutes
Pulsator System
When the pulsator is rotated C.W or C.C.W at a high speed, it makes the cyclone water flow from the asymmetrically
designed pulsator as shown below.
Automatic Drainning time Adjustment
This system adjusts the draining time automatically according to the draining condition.

9
EXPLANATION
Contact of safety switch Lid closing
Lid opening
Contact lever A
Normal (ON)
Position of
unbalanced load (OFF)
Automatic Unbalance Adjustment
Circulating-Water Course and Lint Filter
The alarm finished when you close the lid after opening
it. Check the unbalance of the wash load and the instal-
lation condition.
NOTES
Filter Tub
Outer tub
Water
channel
Pulsator
This system is to prevent abnormal vibration during intermittent spin and spin process.
FUNCTIONAL PRINCIPLE
1When the lid is closed, the safety switch
contact is “ON” position.
2In case that wash loads get uneven during
spin, the outer tub hits the safety switch
due to the serious vibration, and the spin
process is interrupted.
3In case that P.C.B. ASS’Y gets “OFF” signal
from the safety switch, spin process are
stopped and rinse process is started auto-
matically by P.C.B. ASS’Y.
4If the safety switch is operated due to the
unbalance of the tub, the program is
stopped and the alarm is given.
CIRCULATING-WATER
The washing and rinsing effects have been
improved by adopting the water system in
which water in the tub is circulated in a
designed pattern.
When the pulsator rotates during the washing
or rinsing process, the water below the pul-
sator vanes creates a water currents as shown
in figure.
The water is then discharged from the upper
part of the tub through the water channel.
About 40 L/min. water is circulated at the ‘high’
water level, standard wash load and standard
water currents.

10
EXPLANATION
Much lint may be obtained according to the kind of
clothes to be washed and some of the lint may also
sticks to the clothes.
To minimize this possibility a lint filter is provided on
the upper part of the tub to filter the wash water as it
is discharged from the water channel. It is good to
use the lint filter during washing.

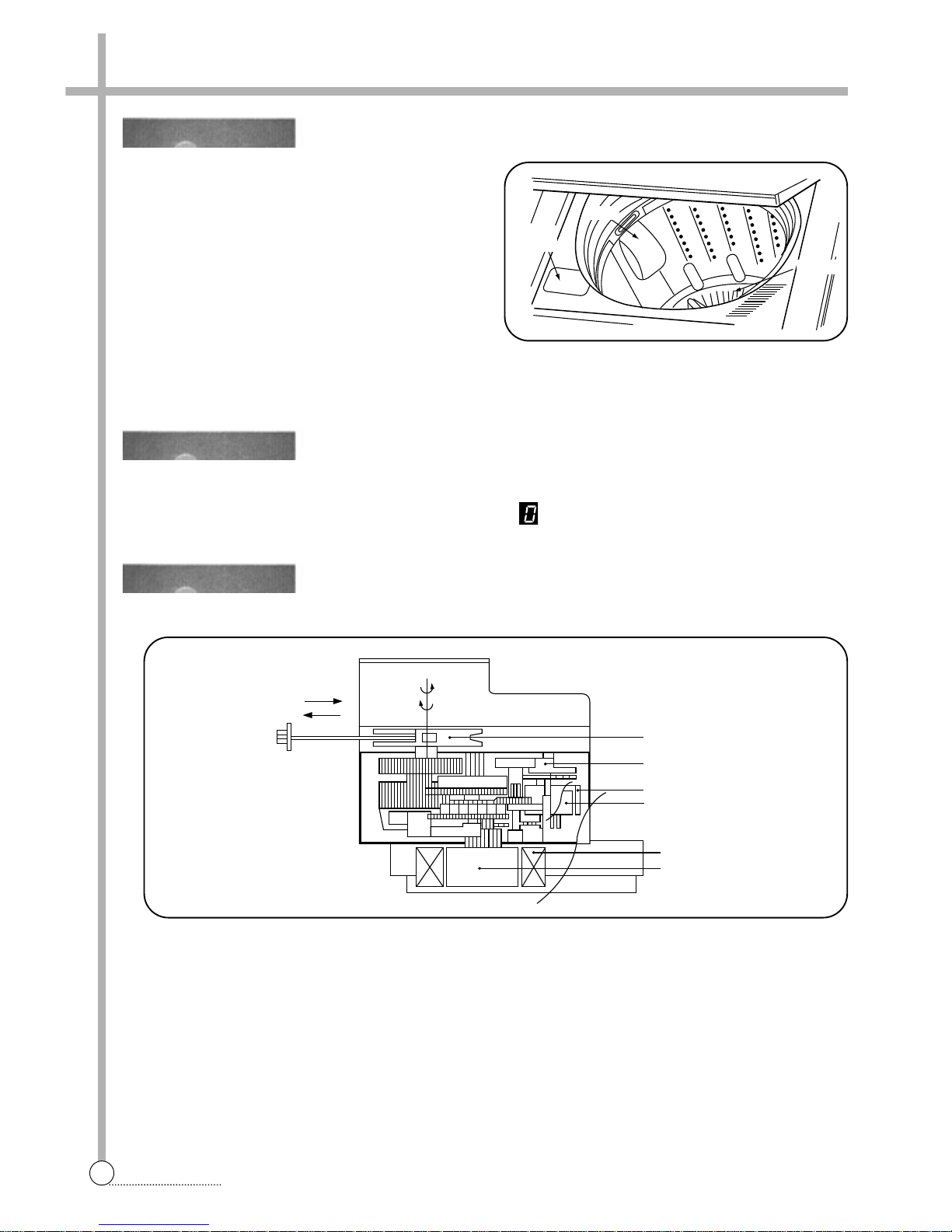

HOW TO REPLACE LINT FILTER
1Pull the filter frame upward.
2Turn the lint filter inside out, and wash the lint off with water.
3Return the filter as it was, and fix the filter frame to the slot.
When the START/HOLD button is pressed, the residual time (min.) is displayed on the time indicator, and it will be
counted down according to process.
When operation is finished, the TIME INDICATOR will light up .
STRUCTURE
FUNCTIONAL PRINCIPLE
1When the DRAIN MOTOR connected to the power source, the DRAIN MOTOR rotates with 900 r.p.m and
revolves the pulley by gear assembly for reducing.
2When the pulley is rotated, the pulley winds the wire to open the drain valve.
3Therefore, rotation of pulley changed to the linear moving of wire.
4The wire pulls the brake lever of Gear Mechanism Ass’y within 5 seconds.
5After the wire pulled, gear assembly is separated from motor and condition of pulling is held by operation of the
lever.
6When the power is turned off, the drain valve is closed because the wire returns to original position.
Bleach Inlet
Filter
Pulsator
Pull
Loosen
Pulley
Lever
Inductive ring
Magnet
Coil of motor
Magnet of motor
Lint Filter
Residual Time Display
Drain Motor
Bleach
Inlet
Filter
Pulsator

11

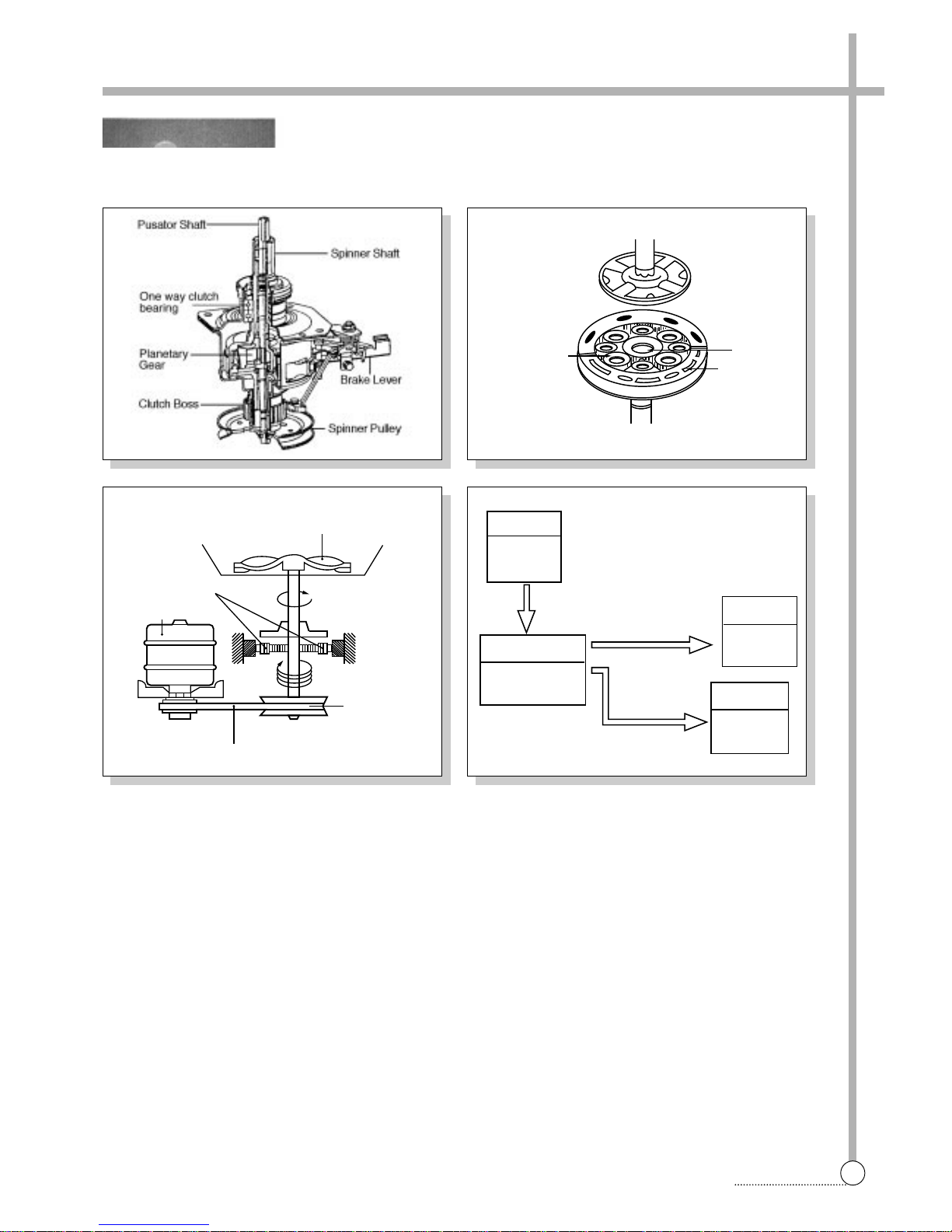

EXPLANATION
The proper water currents is made by the rotation of pulsator at a low speed to prevent the damage to the small
sized clothes.
Planetary gear Sun gear
Internal gear
Pulsator
1 revolution
5 revolutions
Gear pulley
V-belt
Gear unit as
Motor
Motor
1490 r.p.m
(50Hz)
Gear Unit as
Directly
1/5
Tub
640 r.p.m
Pulsator
128 r.p.m
Gear Pulley
640 r.p.m
Gear Mechanism Ass’y

12
DIRECTIONS
7. TECHNICAL POINT
Replacing Process of Synchronous Motor Wire
– replace the New G/M
– replace the Link valve drain
from Plate valve connector
– insert the Link v/v drain into the G/M Lever with pulling the Lever toward
Syncronous Motor
– to assemble the wire of Syncronous Motor to the inside of Link valve
drain with pulling the Lever toward Syncronous Motor

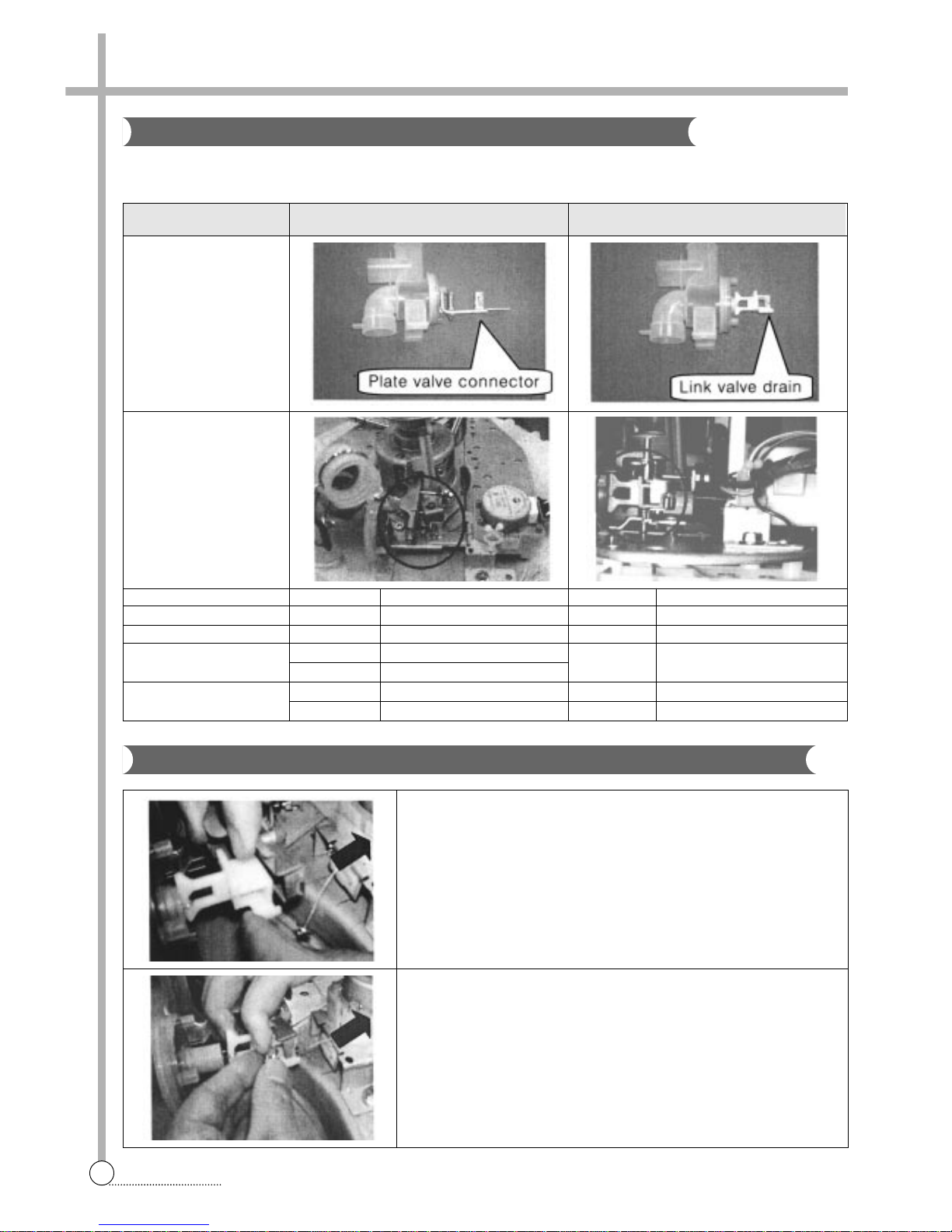

Valve Drain Assy and Gear Mechanism
We changed the shape of the Lever because of preventing water leakage and noise of G/M.
Please refer to the changing date as following table
OLD type NEW type
Valve Drain Assy
G/M with Tub O
Part name Part Cord Specification Part Cord Specification
Plate valve conn’r 4509k78070 SECC –
Link valve drain – 3617801900 POM
Gear Mechanism 367305900 GM-8094-KS0X0 3617307610 GM-1300-KS6P0
367305800 GM-1094, KELVAR
Syncronous Motor 4505D45100 L=56.5/18mm(110-130V/60Hz) 4505E45120 L=64.5/23mm(110-130V/60Hz)
3966010200 L=56.5/18mm(220-240V/50Hz) 3966010220 L=64.5/23mm(220-240V/50Hz)

OLD type NEW type
Appearance
Shaft design
Pulley design
Part name Part Cord Specification Part Cord Specification
3964220620 110V/60Hz 3966221101 110-127V/60Hz W1D46CA012
3964720110 127V/60Hz
3964320100 220V/60Hz 3964321111 220V/60Hz W1D46UA012
3964010160 220-240V/50Hz 3964311311
220-240V/50Hz W1D46VA012-S
Motor condenser 3964220420 110V/60Hz 3964221211 110V/60Hz W1D50CA012-S
(DWF-1094) 3964820520 127V/60Hz 3964821311 127V/60Hz W1D50JA012-S
3610019720 220V/60Hz 3964321211 220V/60Hz W1D50UA012
3964310530 220V/50Hz 3964510411 220V/50Hz W1D50VA012
3964610320 240V/50Hz 3964610321 240V/50Hz F33-2C-S
Pulley motor assy 3618401400
M-TYPE DS=10 DP=48.5 60Hz 3618432000 M-TYPE DS=10 DP=48.5 60Hz
3614801420 M-TYPE DS=10 DP=53.0 50Hz 3618431900 M-TYPE DS=10 DP=53.0 50Hz
Motor cushion down 3611502800 POM, H=18mm 3611502700 POM, H=8.0mm
OLD type NEW type
Appearance
Shaft design
Pulley design
Part name Part Cord Specification Part Cord Specification
Motor condenser 3964220620 110V/60Hz 3966221101 110-127V/60Hz W1D46CA012
(DWF-8094, 7094) 3964720110 127V/60Hz
3964320160 220V/60Hz 3964321111 220V/60Hz W1D46UA012
3964010160 220-240V/50Hz 3964311311
220-240V/50Hz W1D46VA012-S
Motor condenser 3964220420 110V/60Hz 3964221211 110V/60Hz W1D50CA012-S
(DWF-1094) 3964820520 127V/60Hz 3964821311 127V/60Hz W1D50JA012-S
3610019720 220V/60Hz 3964321211 220V/60Hz W1D50UA012
3964310530 220V/50Hz 3964510411 220V/50Hz W1D50VA012
3964610320 240V/50Hz 3964610321 240V/50Hz F33-2C-S
Pulley motor assy 3618401400
M-TYPE DS=10 DP=48.5 60Hz 3618432000 M-TYPE DS=10 DP=48.5 60Hz
3614801420 M-TYPE DS=10 DP=53.0 50Hz 3618431900 M-TYPE DS=10 DP=53.0 50Hz
Motor cushion down 3611502800 POM, H=18mm 3611502700 POM, H=8.0mm
13
DIRECTIONS
– check the assemble condition by moving Lever 2~3 times

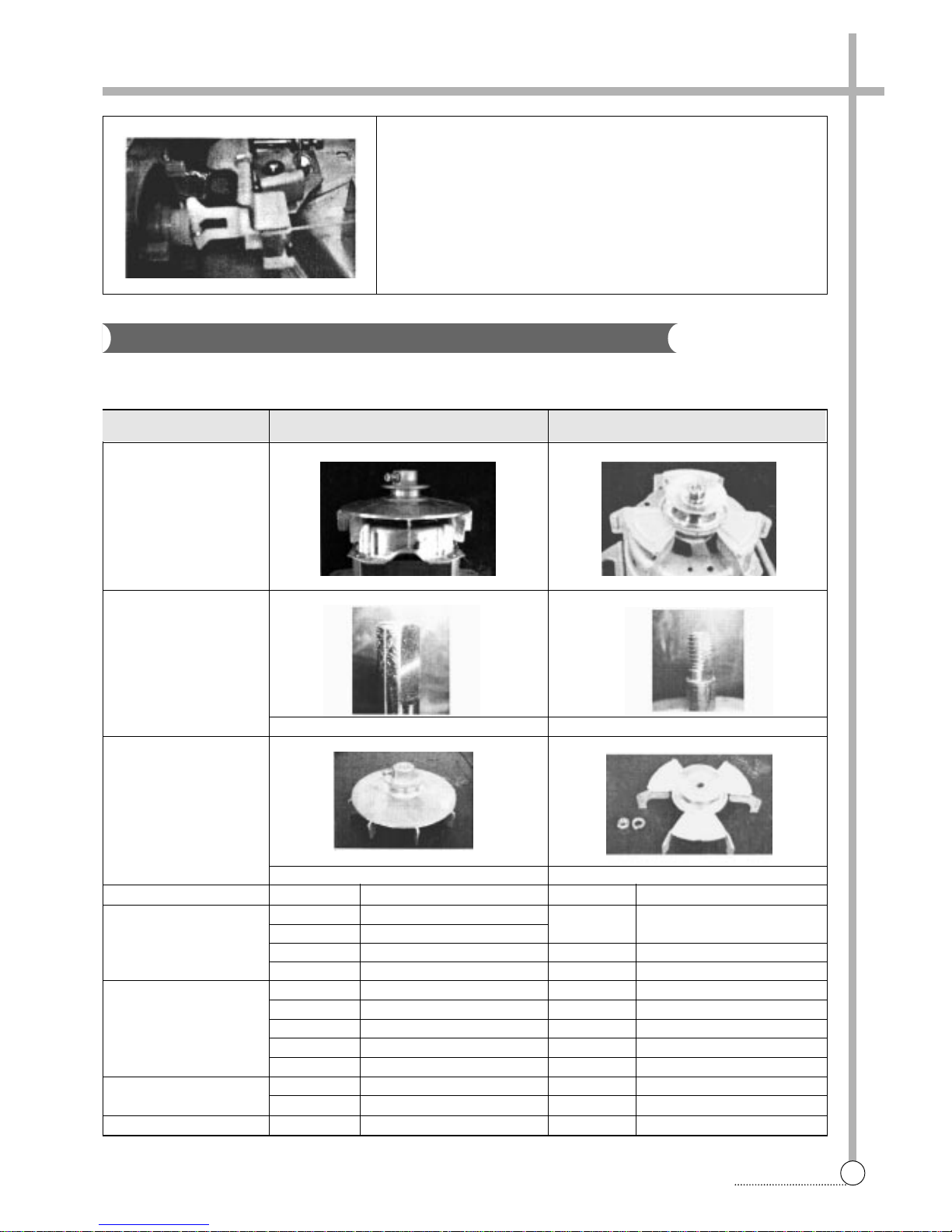

Pulley Motor Assy
In case of replacing the Motor from OLD type to NEW type, Daewoo will supply Motor condenser, Pulley motor assy,
Motor Cushion (down) together.
Al – diecasting, bolt and nut
D cut M – 8 tapping
press type, washer and net

14
Switch Safety Ass’y
Replacing method from OLD type to NEW type.
Please use the “Special connector’ which will be supplied by Daewoo.
Switch Safety Ass’y
OLD type NEW type
Appearance
Structure lead wire type terminal type
Part name Part Cord Specification Part Cord Specification
Sensor pressure assy 3614800960 CDN-D7N 3614801110 D8T, TERMINAL
OLD type NEW type
Appearance
Structure lead wire type terminal type
Part name Part Cord Specification Part Cord Specification
Switch safety assy 3619003100 SF-040A 3619003101 SF-030A, CU/T=14mm
(DWF-8094, 7094) 3619003110 SF-040F 3619003111 SF-030S, CU/T=9mm
3619003130 SF-041A(DWF-8094PM) 3619003131
SF-031A, CU/T=9mm Australia
3619003120 SF-040Z(DWF-7094PM) 3619003121 SF-030Z, CU/T=14mm Australia
Switch safety assy 3619008920 SF-040T 3619008921 SF-030T, CU/T=0.5mm
(DWF-1094) 3619003190 SF-040A5 3619003191
SF-030T, CU/T=0.5mm Australia
Connector

15

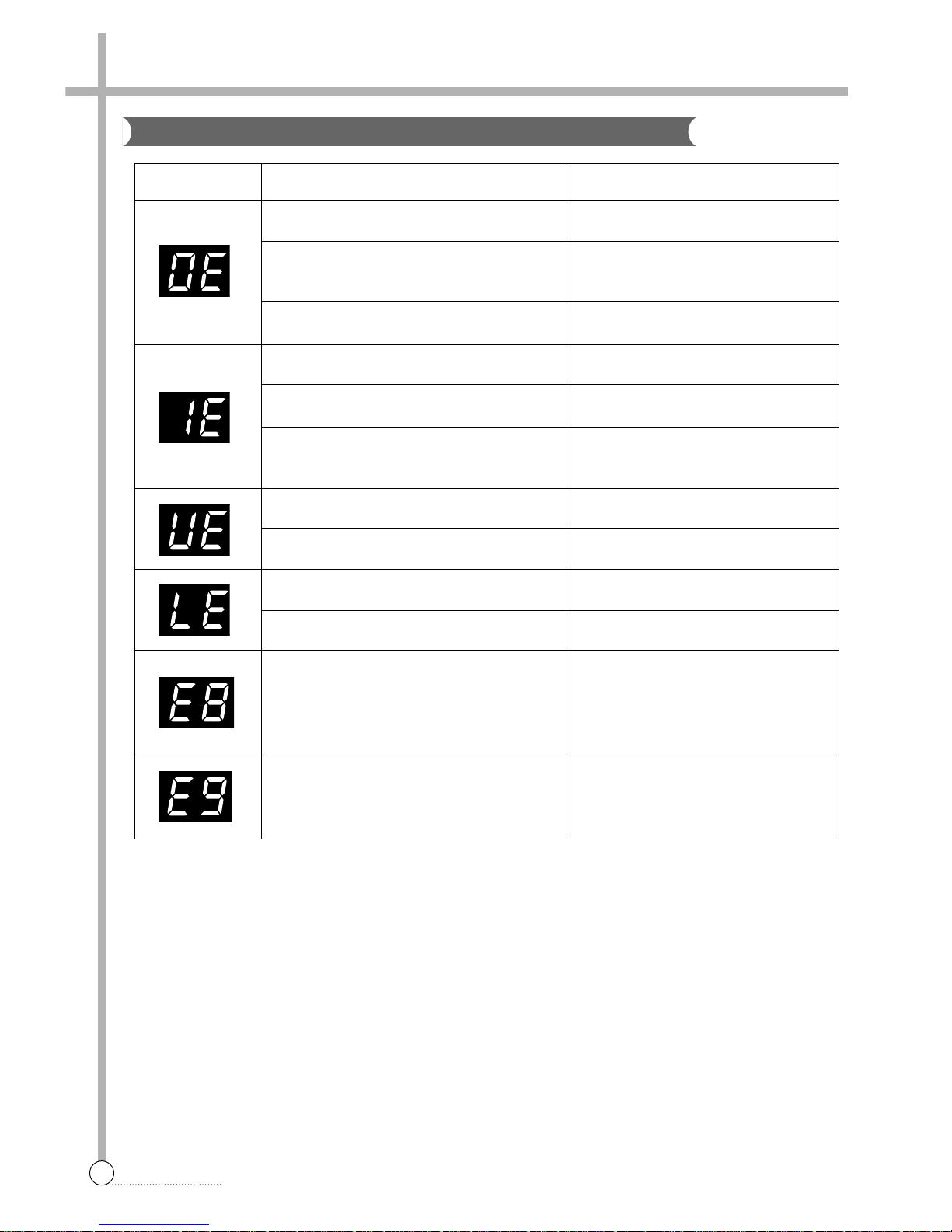

9. PRESENTATION OF THE P.C.B ASS’Y
MESSAGE CAUSE SOLUTION
Improper installation of drain hose.
The drain hose is blocked up by foreign
matter.
Drain motor is inferior.
The water tap is closed.
The water inlet filter clogged.
It passes over the 60 minutes, yet it doesn’t
come to assigned water level.
Wash loads get uneven during spin.
Poor installation of the unit.
The lid is opened.
The safety switch is inferior.
The load sensing is inferior. After the load
sensing operates about 15 seconds, the
message is displayed during 0.5 second
and water level is always fixed ‘high’.
The water level sensing is inferior.
Install drain hose properly.
Remove foreign matter from drain hose.
Change drain motor.
Open the water tap.
Clean the water inlet filter.
Check whether or not is comes to the
assigned water level.
Re-set wash loads evenly.
Proper installation.
Close the lid.
Change the safety switch.
Change the P.C.B. ASS’Y.
Check the water level sensor and the
contact part of the connector.
Concerning Error Message

16
WIRING DIAGRAM
§§ è
[Dwf-1094 non-pump]

17
WIRING DIAGRAM
§§ è
[Dwf-1094 non-pump, single valve]

18
WIRING DIAGRAM
§§ è
[Dwf-1094 pump]

19
PARTS DIAGRAM
§§ è
Parts Diagram

20
PARTS DIAGRAM
