Daewoo DWF-805M User manual

Service Manual
Auto Washer
Model: DWF- 805M
DAEWOO ELECTRONICS CO. LTD.

ASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASH
TO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AU
ASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASH
TO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AU
ASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASH
TO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AU
ASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASH
WASHING MACHINE
CCoonntteennttss
1. SPECIFICATIONS................................................................................................................... 2
2. STRUCTURE OF THE WASHING MACHINE ....................................................................... 3
3. DIRECTIONS FOR INSTALLATION AND USE..................................................................... 4
INSTALLATION OF THE UNDER BASE COVER.......................................................................... 4
HOW TO INSTALL ON AN INCLINED PLACE .............................................................................. 4
HOW TO CONNECT THE INLET HOSE........................................................................................ 5
HOW TO CLEAN THE FILTER....................................................................................................... 6
4. FEATURE AND TECHNICAL EXPLANATION...................................................................... 7
FEATURE OF THE WASHING MACHINE..................................................................................... 7
WATER CURRENT TO ADJUST THE UNBALANCED LOAD...................................................... 7
FUNCTION FOR SOAK WASH...................................................................................................... 7
AUTOMATIC WATER SUPPLY SYSTEM FOR BLANKET WASH................................................ 7
FUNCTION PRINCIPLE OF BUBBLE WASHING MACHINE........................................................ 8
AUTOMATIC DRAINING TIME ADJUSTMENT............................................................................. 8
AUTOMATIC UNBALANCE ADJUSTMENT .................................................................................. 9
CIRCULATING-WATER COURSE AND LINT FILTER .................................................................. 9
LINT FILTER.................................................................................................................................. 10
RESIDUAL TIME DISPLAY...........................................................................................................10
DRAIN MOTOR............................................................................................................................. 10
GEAR MECHANISM ASS’Y.......................................................................................................... 11
5. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT ................................................. 12
GEAR MECHANISM ASS’Y REPLACEMENT............................................................................. 12
MOTOR SYNCRONOUS AND VALVE REPLACEMENT............................................................ 14
6. THE REPAIR METHOD OF GEAR MECHANISM FOR CLUTCH
SPRING PROBLEM...........................................................................................................................15
THE STRUCTURE OF GEAR MECHANISM............................................................................... 15
HOW TO CHECK THE CLUTCH SPRING PROBLEM................................................................ 16
THE PROCESS OF DISASSEMBLE............................................................................................ 17
THE PROCESS OF ASSEMBLE.................................................................................................. 19
REPLACE THE CASE FILTER ASSY.......................................................................................... 21

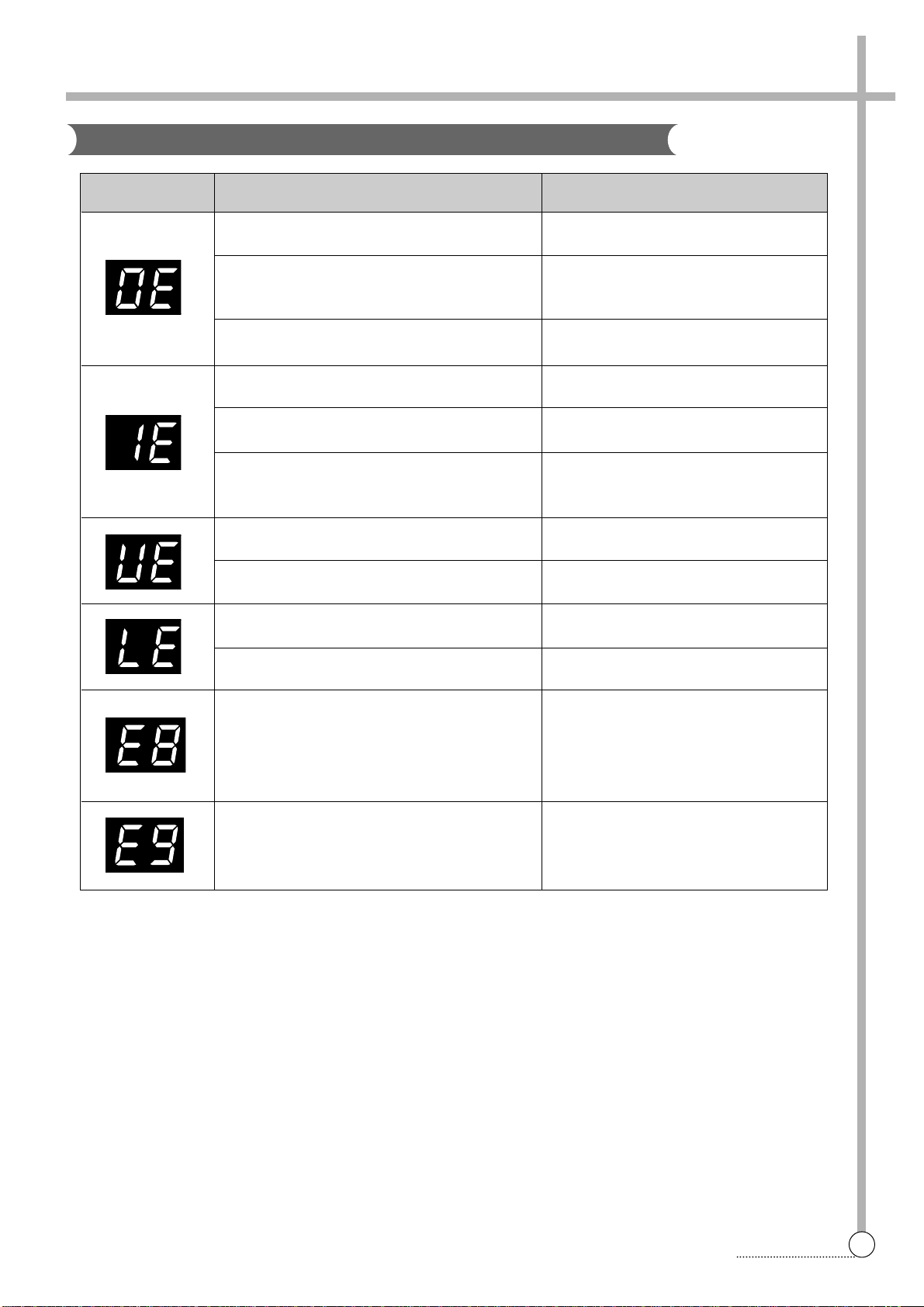

7. TROUBLE SHOOTING GUIDE............................................................................................ 22
CONCERNING WATER SUPPLY................................................................................................. 22
CONCERNING WASHING ........................................................................................................... 23
CONCERNING DRAINING........................................................................................................... 24
CONCERNING SPINING..............................................................................................................25
CONCERNING OPERATING ....................................................................................................... 26
8. PRESENTATION OF THE P.C.B ASS’Y.............................................................................. 27
APPENDIX
WIRING DIAGRAM....................................................................................................................... 28

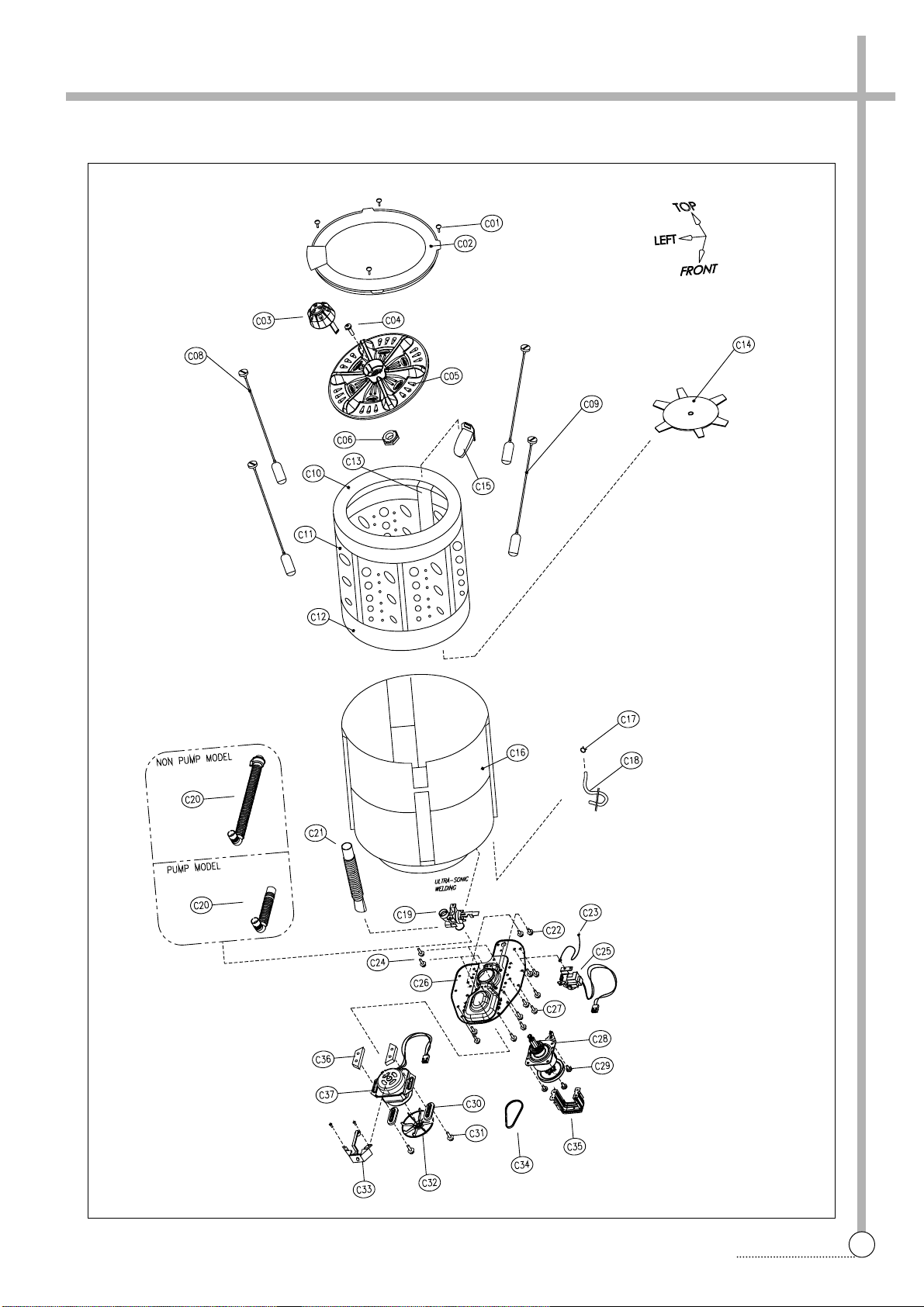

PARTS DIAGRAM......................................................................................................................... 31
PARTS LIST .................................................................................................................................. 34
CIRCUIT DIAGRAM...................................................................................................................... 38

1. SPECIFICATIONS
2
SPECIFICATIONS
NO. ITEM DWF-805M
1 POWER SOURCE AVAILABLE IN ALL LOCAL AC VOLTAGE AND CYCLE
2 POWER CONSUMPTION
3 MACHINE WEIGHT
4 DIMENSION (WXHXD)
5 WASHING COURSE FULL AUTOMATIC 5 COURSE
(NORMAL, BLANKET, ECONOMY, SUIT, SOAK)
6 WATER CONSUMPTION
7 WATER LEVEL SELECTOR
8OPERATING WATER PRESSURE 0.3kgf/cm
2
~8kgf/cm
2
(2.94 N/cm
2
~78.4N/cm
2
)
50Hz
960Hz
10 PULSATOR 6 WINGS (Ø376mm)
11 WATER LEVEL CONTROL ELECTRONICAL SENSOR
12 GEAR MECHANISM ASS’Y HELICAL GEAR
13 LINT FILTER O
14 SOFTENER INLET O
15 FUNCTION OF SOAK WASH O
16 ALARM SIGNAL O
17 RESIDUAL TIME DISPLAY O
18 AUTO. WATER SUPPLY O
19 FUNCTION OF RADICAL AND BUBBLE O
20 AUTO RE-FEED WATER O
21 AUTO POWER OFF O
50Hz
60Hz
430W
530W
598 X 956 X 643
NON-PUMP
PUMP
42Kg
43Kg
207 L
HIGH
MEDIUM
LOW
SMALL
88 L
75 L
61 L
48 L
WASH : 125 - 140 RPM, SPIN : 640 - 675 RPM
WASH : 130 - 150 RPM, SPIN : 710 -140 RPM
REVOLUTION
PER MINUTE

2. STRUCTURE OF THE WASHING MACHINE
3

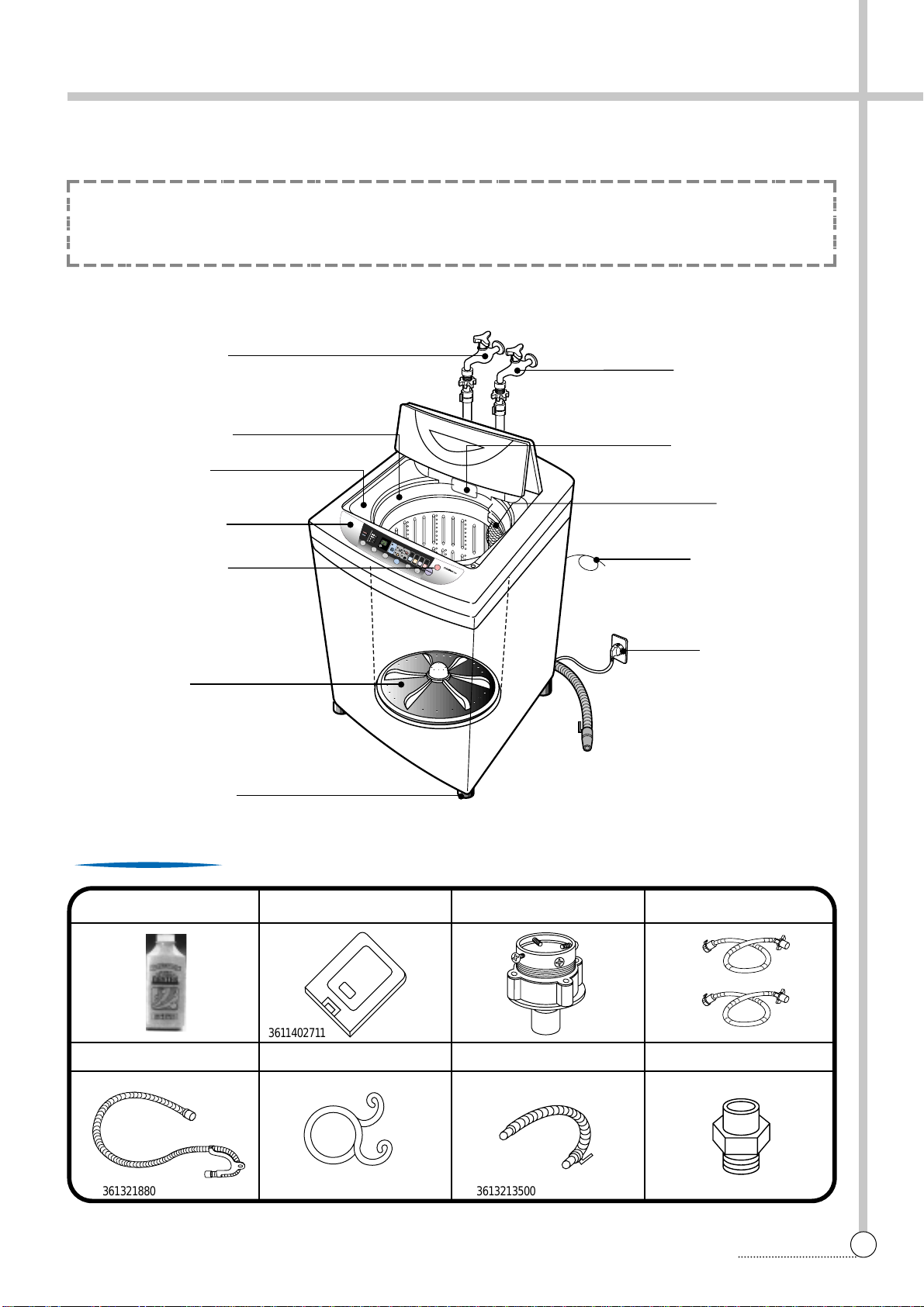

STRUCTURE
•GROUND WIRE
In case of 3-wire
power cord, ground
wire will not be
provided
•POWER CORD
•LINT FILTER
•COLD WATER TAP
After using the washer,
close the water tap
•DETERGENT CASE
•PULSATOR
•POWER SWITCH
•CONTROL PANEL
•BLEACH INLET
•HOT WATER TAP
After using the washer, close the water tap.
In case of the single valve model,
there is no hot water valve.
•ADJUSTABLE LEG
•SOFTENER INLET
WASHSPRAY
RINSE
RINSESPIN
FUZZY
BLANKETECONOMY
SUIT
DETERGENT
SOAK
CONTROL
ONLYSPIN
WATER
LEVEL
RES.
COURSE
PROCESS
START
HOLD
POWER
WASH
TEMP.
HOT
COLD
HIGH
MEDIUM
LOW
SMALL
RES.
REMAIN
MIN.
DWF-174W
DRYTEN
HOSE DRAIN [FOR PUMP]
COVER UNDER [OPTION]
HOSE DRAIN CLAMP
WATER TAP ADAPTER
HOSE DRAIN[FOR NONPUMP]
INLET HOSE
CONNECTOR INLET [OPTION]
Accessories
UP
The parts and features of your washer are illustrated on this page.
Become familiar with all parts and features before using your washer.
NOTE
• The drawing in this book may vary from your washer model. They are designed to show the different fea-
tures of all models covered by this book, Your model may not include all features.
@@@@@@@@e?
@@@@@@@@e?
@@h?
@@h?
@@h?
@@h?
@@h?
@@h?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@
@@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
?@@
?@@
?@@
?@@
?@@
?@@
?@@@@@@@@
?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
@@g
@@g
@@g
@@g
@@g
@@g
@@@@@@@@
@@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
361321880 3613213500
3611402711

3. DIRECTIONS FOR INSTALLATION AND USE
4
DIRECTIONS
The openings must not
be obstructed by carpet-
ing when the washing
machine is installed on a
carpeted floor.
§

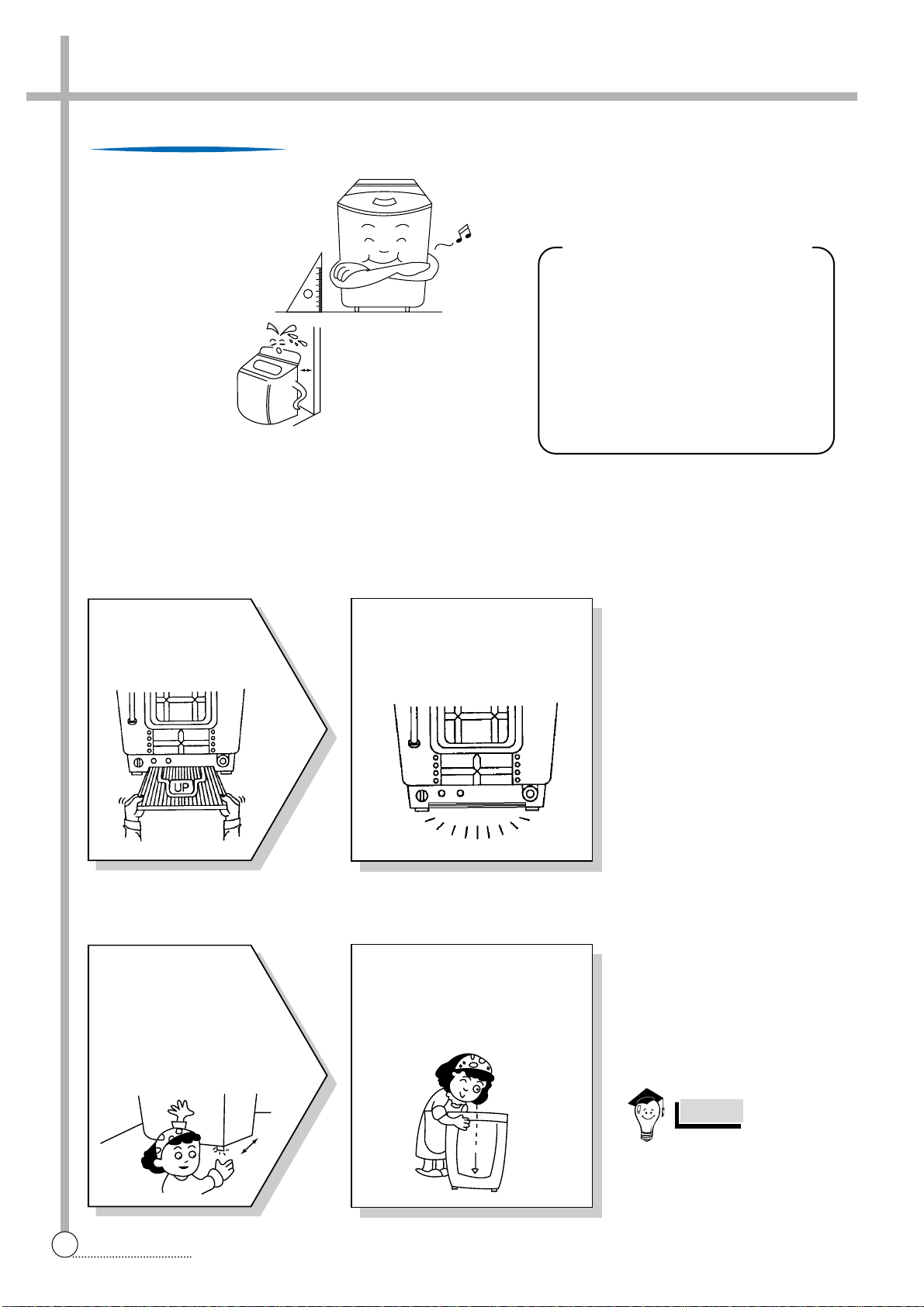

INSTALLATION OF THE UNDER BASE COVER [OPTION]
§
HOW TO INSTALL ON AN INCLINED PLACE
¡The place where it would be exposed to
direct sunlight.
¡The place nearby a heater or heat appli-
ance.
¡The place where it would be supposed
to be frozen in winter.
¡The kitchen with coal gas and a damp
place like a bathroom.
NOTES
10Cm
Install the washer on a horizontal
solid floor. If the washer is installed
on an unsuitable floor, it could make
considerable noise and vibration.
INSTALLING PLACE
NNeevveerriinnssttaalllliinntthheesseeppllaacceess
2Push the noise insulation plate
into the end, which decrease
the noise made by this washer.
1The packing box
opened, there is a
noise insulation plate
at the bottom of the back
2Check the Horizon
Status
Check the position of tub above
the center of the washer.
1Horizon
Setting
After controlling the height
by turning the adjustable
leg, let the washer put
down to the ground.
Keep the machine body
more than 25cm apart from
the wall surface. It will
make easy cleaning the
drain filter which is equipped
at the back side of it. And if
it comes into contract vibra-
tion may occur.

5
CONNECTION
FOR ORDINARY TAP
6Connect the inlet hose adapter
of the hose to the water inlet of
the washer by turning it clock-
wise to be fixed tightly.
• Please check the rubber packing
inside the inlet hose adapter of
the hose.
1Pull down the collar
of the inlet hose to
separate it from the
water tap adapter. 2Loosen the four
screws at the water
tap adapter, but don’t
loosen the screws until
they are separated from
the water tap adapter.
4Remove the tape,
and screw connector
B into connect A tightly. 5Connect the inlet
hose to the water tap
adapter by puling down
3Connect the water tap
adapter to the water tap tight-
en the four screws evenly
while pushing up the adapter
so that the rubber packing
can stick to the water tap
tightly.
§
HOW TO CONNECT THE INLET HOSE
Be careful not to mistake in supplying between the hot(maximum : 50˚C) and cold water.
In using only one water tap or in case of attached one water inlet valve, connect the inlet hose to the cold water inlet
valve.
Do not over tighten : this could cause damage to couplings.
FOR SCREW-SHAPED TAP
3Insert the inlet hose adapter
into the water inlet of a washer
and turn it to be fixed.
• Assert the packing in the inlet
1Connect the inlet
hose to the water tap
by screwing the con-
nector D tightly. 2Connect the connec-
tor-inlet supplied if
necessary.
Inlet Hose
Connector D Rubber
Packing
Connector C
Connector
Inlet
Rubber
Packing
Connector D
Connector C
Hose
WASHSPRAY
RINSE
RINSESPIN
FUZZY
BLANKETECONOMY
SUIT
DETERGENT
SOAK
CONTROL
ONLYSPIN
WATER
LEVEL
RES.
COURSE
PROCESS
START
HOLD
POWER
WASH
TEMP.
HOT
COLD
HIGH
MEDIUM
LOW
SMALL
RES.
REMAIN
MIN.
DWF-174W
TAPE
Connector B
Connector A

6
CONVENIENCE
§
HOW TO CLEAN THE FILTER
4
Remove the dirt
from the inlet filter
with a brush.
1
Pull the
power plug
out before
cleaning it.
2
Turn off the
water supply
to the washer
and sperate the
inlet hose.
3
Pull the
inlet filter out.
CLEANING THE LINT FILTER
CLEANING THE WATER INLET FILTER
•Clean the filter when water leaks from, the water inlet.
CLEANING THE DRAIN FILTER
•In case “U”shape drain hose, this filter’s equipped at the back side of washer.
•This drain filter is to screen the foreign stuffs such as threads, coins, pins, buttons etc ...
•If the drain filter is not cleaned at proper time (every 10 times of use), Drain problem could be caused.
3Return the filter as it was, and
insert the filter frame into the
slot.
1Pull the Filter frame
upward. 2Turn the lint filter inside out, wash to
the lint off with water.
1Put down the
remained water in the
hose. And put a container
under the filter to collect
water.
2Turn the cap counter
clockwise. 3Pull out the filter assembly off the case of the main body.
6Turn the cap clockwise tightly.
4Clean the drain filter
removing the foreign 5
Put in the filter along the
guiding prominence of the
case. Please note the left
position of the filter adjusting
the groove to the guide rib.
FILTER CONTAINER
CAP
SLIT
CASE
FILTER
CAP
CAP
FILTER
CAP
FILTER CASE
GUIDE
RIB
SLIT
CAP
Filter Frame
Lint Filter

4. FEATURE AND TECHNICAL EXPLANATION
7
FEATURE
WASH DRAIN SPIN FILL RINSE 1 DRAIN SPIN FILL RINSE 2 DRAIN •••
MOTOR C.W
SINGAL C.C.W
TIME(SEC.) 0.3 0.3 0.3 0.3 0.3 0.3 •••••••
35 SEC. (About 29 Times)
FILL WASH STOP WASH STOP
•30”2’30”2’
SOAK PROCESS MAIN PROCESS
60 Minute
FEATURE OF THE WASHING MACHINE
1The first applying Radical Technology in the world....go beyond washing, sterilize your clothes and deodorize a
bad smell.(optional function)
2The first air bubble washing system in the world.
3Quiet washing through the innovational low-noise design.
4The wash effectiveness is much more enhanced because of the air bubble washing system.
5The laundry detergent dissolves well in water because of the air bubble washing system.
6The adoption of the water currents to adjust the unbalanced load.
7One-touch operation system.
WATER CURRENT TO ADJUST THE UNBALANCED LOAD
It is a function to prevent eccentricity of the clothes after wash by rotating pulsator C.W and C.C.W for 35
seconds.(But, the SUIT course have no operation of the water currents to adjust the unbalnced load.)
EFFECT
It reduces vibration and noise effectively while spinning.
WATER FLOW
FUNCTION FOR SOAK WASH
DISPLAY THE RESIDUAL TIME
When the SOAK WASH is selected, the total wash time increases because 60 minutes for soak process are added
to the time of main process.
PROGRESS
AUTOMATIC WATER SUPPLY SYSTEM FOR BLANKET WASH
The water level would be lowered because the blanket absorbs water at the beginning of washing. Therefore, after
2 minutes, the operation is interrupted to check the water level, and then the water is supplied again until the select-
ed water level is reached.
‘’mark indicates the operation of the water currents to adjust the unbalanced load.
NOTES

8
FEATURE
FUNCTIONAL PRINCIPLE
1 The micom can remember the time from the begining of drain to reset point when the pressure switch reaches to
“OFF”point
2 In case of continuous draining, residual drain time is determined by micom.
Draining time as a whole = D + 90 Residual drain time.
The time remembered by micom.
FUNCTIONAL PRINCIPLE
Bubble Motor supplies the air from the bottom of outer tub to the inner space of pulsator, the air is dispersed by the
rotation of pulsator. Air-bubble is created by the centrifugal force, and rises up.
Draining Good draining The washer begins spin process after drainage.
condition Bad draining Draininig time is prolonged.
No draining Program is stopped and gives the alarm.
Drain Time Movement of the Program
Less than Continue draining
15 minutes
More than Program stops and gives the alarm with blinked on display lamp.
15 minutes

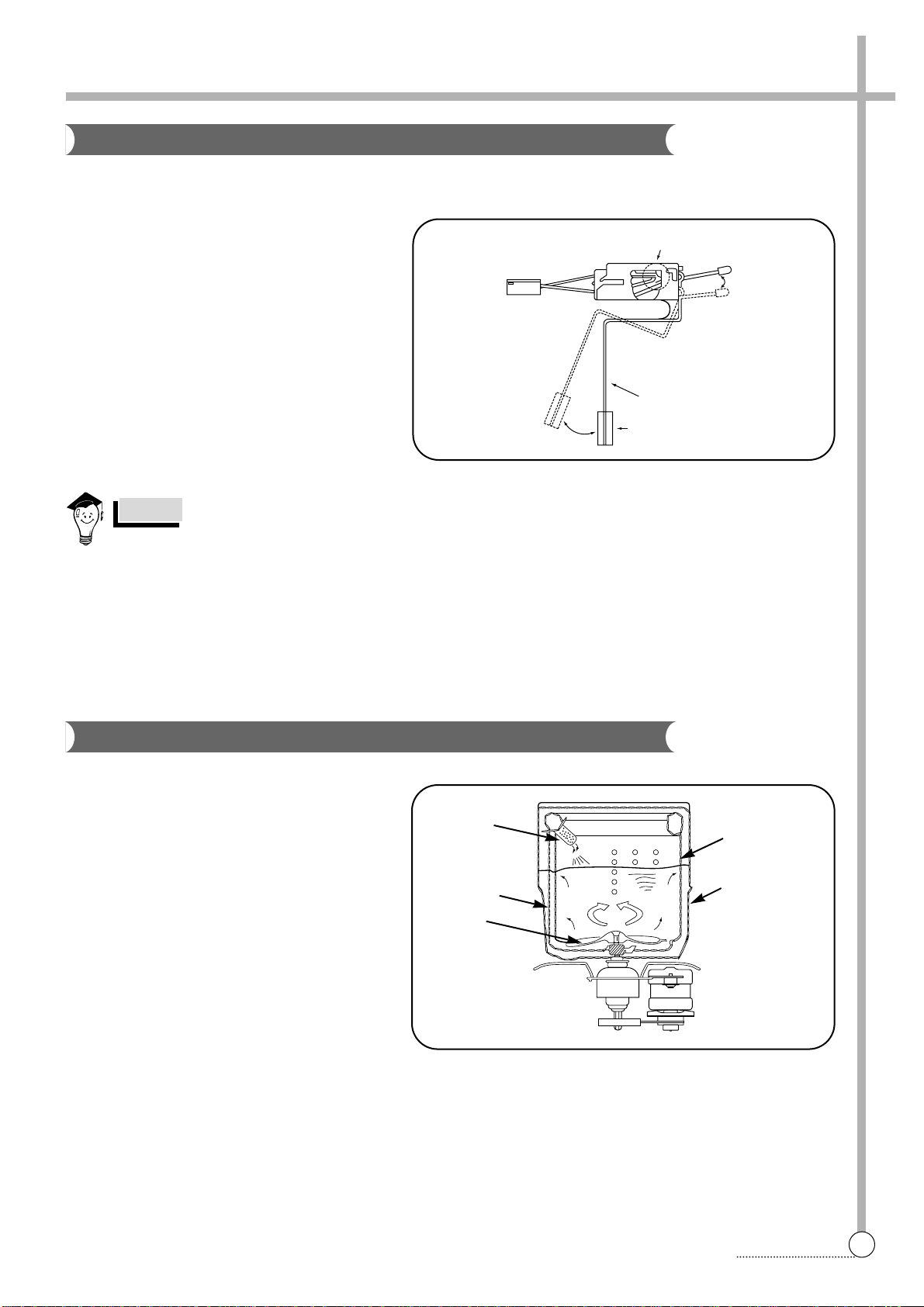

FUNCTIONAL PRINCIPLE OF BUBBLE WASHING MACHINE
ACROSS SECTION
AUTOMATIC DRAINNING TIME ADJUSTMENT
This system adjusts the draining time automatically according to the draining condition.
Air bubble
Tub
Outer tub
Pulsator

9
FEATURE
Contact of safety switch Lid closing
Lid opening
Contact lever A
Normal (ON)
Position of
unbalanced load (OFF)
AUTOMATIC UNBALANCE ADJUSTMENT
CIRCULATING-WATER COURSE AND LINT FILTER
The alarm finished when you close the lid after opening
it. Check the unbalance of the wash load and the instal-
lation condition.
NOTES
Filter Tub
Outer tub
Water
channel
Pulsator
This system is to prevent abnormal vibration during intermittent spin and spin process.
FUNCTIONAL PRINCIPLE
1When the lid is closed, the safety switch
contact is “ON”position.
2In case that wash loads get uneven during
spin, the outer tub hits the safety switch
due to the serious vibration, and the spin
process is interrupted.
3In case that P.C.B. ASS’Y gets “OFF”signal
from the safety switch, spin process are
stopped and rinse process is started auto-
matically by P.C.B. ASS’Y.
4If the safety switch is operated due to the
unbalance of the tub, the program is
stopped and the alarm is given.
CIRCULATING-WATER
The washing and rinsing effects have been
improved by adopting the water system in
which water in the tub is circulated in a
designed pattern.
When the pulsator rotates during the washing
or rinsing process, the water below the pul-
sator fans creates a water currents as shown
in figure.
The water is then discharged from the upper
part of the tub through the water channel.
About 40 L/min. water is circulated at the ‘high’
water level, standard wash load and standard
water currents.

Much lint may be obtained according to the kind of
clothes to be washed and some of the lint may also
sticks to the clothes.
To minimize this possibility a lint filter is provided on
the upper part of the tub to filter the wash water as it
is discharged from the water channel. It is good to
use the lint filter during washing.
HOW TO REPLACE LINT FILTER
1Pull the filter frame upward.
2Turn the lint filter inside out, and wash the lint off with water.
3Return the filter as it was, and fix the filter frame to the slot.
When the START/HOLD button is pressed, the residual time (min.) is displayed on the time indicator, and it will be
counted down according to process.
When operation is finished, the TIME INDICATOR will light up .
STRUCTURE
FUNCTIONAL PRINCIPLE
1When the DRAIN MOTOR connected to the power source, the DRAIN MOTOR rotates with 900 r.p.m and
revolves the pulley by gear assembly for reducing.
2When the pulley is rotated, the pulley winds the wire to open the drain valve.
3Therefore, rotation of pulley changed to the linear moving of wire.
4The wire pulls the brake lever of Gear Mechanism Ass’y within 5 seconds.
5After the wire pulled, gear assembly is separated from motor and condition of pulling is held by operation of the
lever.
6When the power is turned off, the drain valve is closed because the wire returns to original position.
Bleach Inlet
Filter
Pulsator
Pull
Loosen
Pulley
Lever
Inductive ring
Magnet
Coil of motor
Magnet of motor
LINT FILTER
RESIDUAL TIME DISPLAY
DRAIN MOTOR
Bleach
Inlet
Filter
Pulsator

27
PCB ASS’Y
8. PRESENTATION OF THE P.C.B ASS’Y
MESSAGE CAUSE SOLUTION
Improper installation of drain hose.
The drain hose is blocked up by foreign
matter.
Drain motor is inferior.
The water tap is closed.
The water inlet filter clogged.
It passes over the 60 minutes, yet it doesn’t
come to assigned water level.
Wash loads get uneven during spin.
Poor installation of the unit.
The lid is opened.
The safety switch is inferior.
The load sensing is inferior. After the load
sensing operates about 7 seconds, the
message is displayed during 0.5 second
and water level is always fixed ‘high’.
The water level sensing is inferior.
Install drain hose properly.
Remove foreign matter from drain hose.
Change drain motor.
Open the water tap.
Clean the water inlet filter.
Check whether or not is comes to the
assigned water level.
Re-set wash loads evenly.
Proper installation.
Close the lid.
Change the safety switch.
Change the P.C.B. ASS’Y.
Check the water level sensor and the
contact part of the connector.
CONCERNING ERROR MESSAGE

28
WIRING DIAGRAM
APPENDIX
§
WIRING DIAGRAM [NON PUMP]
WIRING DIAGRAM
F-PCB M-PCB
SYMBOL
FUSE A FUSE B 250V/8A
600mA 250V/5A
315mA
RATING(V)
110-127V 220-240V
* RATING: REFER TO
RATING PLATE
AC SOURCE
BK or BR
WH or BL
GN or GN/YW
FUSE A
BL/YW
WH
BK
BL
WH/RD
WH/RD
WH/RD
WH/RD
WH
RD/BL
YW/BK
GN/WH
BK/WH
BRBR
YW
PK
VT
VT BL
VT
MOTOR
DRAIN
MOTOR
COLD
WATER
VALVE
HOT
WATER
VALVE
WATER
LEVEL
SENSOR
RADICAL
GENE-
RATOR
SAFETY
SWITCH
BL
WH/RD
WH/RD WH/RD WH/RD WH/BK
WH/RD FUSE B
COND-
ENSOR
BR

29
WIRING DIAGRAM
§
[NON-PUMP, SINGLE VALVE]
WIRING DIAGRAM
F-PCB M-PCB
SYMBOL
FUSE A FUSE B 250V/8A
600mA 250V/5A
315mA
RATING(V)
110-127V 220-240V
* RATING: REFER TO
RATING PLATE
AC SOURCE
BK or BR WH or BL GN or GN/YW
FUSE A
BL/YW
WH
BK
BL
WH/RD
WH/RD
WH/RD
WH
RD/BL
YW/BK
GN/WH
BK/WH
BRBR
PK
VT
VT BL
VT
MOTOR
DRAIN
MOTOR
WATER
VALVE
WATER
LEVEL
SENSOR
RADICAL
GENE-
RATOR
SAFETY
SWITCH
BL
WH/RD
WH/RD WH/RD WH/BK
WH/RD FUSE B
COND-
ENSOR
BR

30
WIRING DIAGRAM
§
[PUMP]
WIRING DIAGRAM
F-PCB M-PCB
SYMBOL
FUSE A FUSE B 250V/8A
600mA 250V/5A
315mA
RATING(V)
110-127V 220-240V
* RATING: REFER TO
RATING PLATE
AC SOURCE
BK or BR WH or BL GN or GN/YW
FUSE A
BL/YW
BL/WH
WH
BK
BL
WH/RD
WH/RD
WH/RD
WH
WH/RD
RD/BL
YW/BK
GN/WH
BK/WH
BRBR
YW
PK
VT
VT BL
VT
MOTOR
DRAIN
MOTOR
HOT
WATER
VALVE
PUMP
MOTOR
COLD
WATER
VALVE
RADICAL
GENE-
RATOR
WATER
LEVEL
SENSOR
SAFETY
SWITCH
BL
WH/RD
WH/RD
WH/RD WH/RD WH/RD WH/BK
WH/RD FUSE B
COND-
ENSOR
BR

31
PARTS DIAGRAM
§
PARTS DIAGRAM

32
PARTS DIAGRAM

33
PARTS DIAGRAM

34
PARTS DIAGRAM
§
PARTS LIST
NO. PART NAME PARTCORD SPECIFICATION Q¡¡flfl TY NOTE
A01 PLATE T 3614519300 PP 1
A02
NOZZLEDETERGENT 3618102400 PP 1
A03 CASE DETERGENT 3611119600 PP 1
A04 DOOR B AS 3611798900 ABS 1
A05 DOOR F AS 3611799000 ABS 1
A06 SPRING 3615111210 DWF-850M, D=2.0 1
A07 HINGE DOOR 3612902400 POLYACETAL 1
A08 SWITCH SAFETY 3619006381 SF-030P, CU/T=9, #187
3619003171 SF-030A3, CU/T=14, #187 1
3619003191 SF-030A5, CU/T=14, #187
A09
SENSOR PRESSURE AS 3614802320 CDL-D04N 1
A10 CLAMP 4507D08150 MFZN HOSE ID=Ø7 1
A11 VALVE INLET(H) 3615403610 AC110-130V/60Hz 270° 1
3615403811 AC220-240V/50Hz 270°
3615402110 AC220V/60HZ 270°
A12 VALVE INLET(C) 3615403530 AC110-130V/60Hz 90° 1
3615403731 AC220-240V/50Hz 90°
3615402030 AC220V/60HZ 90°
A13 POWER CORD AS 3611302820 A-VCTFK 2X0.75 2.3M BK 1 TAIWAN
3611304610 N LFC-3R 3X0.752.3M GY AUSTRALIA
3611304710 F H05W 3X0.75 2.3M WH CHILE
3611304810 RW-300/500 3X0.75 2.3M CHINA
3611304910 VCTF 3X0.75 2.3M INDIA
3611305310 H05W-F 3X0.75 2.3M WH MALAYSIA
3611305410 H05W-F 3X0.75 2.3M BK SINGAPOLE
3611305810 H05W-F 3X0.75 2.3M GY SOUTH AFRICA
3611305610 F H05W 3X0.75 2.3M BK USSR
3611306030 H05W-F 3X0.75 2.3M GY ARGENTINA
3611305110 3X0.75 2.3M KOREA
A14
ASSY RADICAL GENERATOR 36100E2E00 100VSNH, 100-110, 806, L700 1
A15 PANEL B 3614237900 3614237900 ABS 1
A16 SCREW TAPPING 7112503011 T1S TRS 5X30 MFZN 2
A17 HARNESS AS 3612789800
110V, NON PUMP, SINGLE VALVE 1 WITHOUT RADICAL FUNCTION
3612789810 110V, NON PUMP, SINGLE VALVE WITH RAPICAL FUNCTION
3612789820 220V, NON PUMP, SINGLE VALVE WITHOUT RAPICAL FUNCTION
3612789830 220V, NON PUMP, SINGLE VALVE WITH RAPICAL FUNCTION
3612789840 220V, NON PUMP, DUAL VALVE WITHOUT RAPICAL FUNCTION
3612789850 220V, NON PUMP, DUAL VALVE WITH RAPICAL FUNCTION
3612789860 110V, PUMP, DUAL VALVE WITHOUT RAPICAL FUNCTION
3612789870 110V, PUMP, DUAL VALVE WITH RAPICAL FUNCTION
3612789880 220V, PUMP, DUAL VALVE WITHOUT RAPICAL FUNCTION
3612789890 220V, PUMP, DUAL VALVE WITH RAPICAL FUNCTION
A18 PANEL F 3614237800 ABS 1
A19 DECORATOR PANEL F 3611620700 PC FILM/3M 1

35
NO. PART NAME PARTCORD SPECIFICATION Q¡¡flfl TY NOTE
A20 PCB AS PRPSSWXC19 110V, PUMP, DUAL VALVE 1 WITH RADICAL FUNCTION
PRPSSWXC20 220V, PUMP, DUAL VALVE WITH RADICAL FUNCTION
PRPSSWXC21 110V, PUMP, DUAL VALVE WITHOUT RADICAL FUNCTION
PRPSSWXC22 220V, PUMP, DUAL VALVE WITHOUT RADICAL FUNCTION
PRPSSWXC15 110V, NON PUMP, DUAL VALVE
WITH RADICAL FUNCTION
PRPSSWXC16 220V, NON PUMP, DUAL VALVE
WITH RADICAL FUNCTION
PRPSSWXC17 110V, NON PUMP, DUAL VALVE
WITHOUT RADICAL FUNCTION
PRPSSWXC18 220V, NON PUMP, DUAL VALVE WITHOUT RADICAL FUNCTION
PRPSSWXC11 110V, NON PUMP, SINGLE VALVE WITH RADICAL FUNCTION
PRPSSWXC12 220V, NON PUMP, SINGLE VALVE WITH RADICAL FUNCTION
PRPSSWXC13 110V, NON PUMP, SINGLE VALVE WITHOUT RADICAL FUNCTION
PRPSSWXC14 220V, NON PUMP, SINGLE VALVE WITHOUT RADICAL FUNCTION
A21 CAP REAR 3610902600 CR 1
B01 CLAMP 4501F06120 SWPA2 ZN8-C D34 1 NON PUMP
3611202200 HSW3 PE-LD PUMP
B02 HOSE DRAIN O AS 3613213560 1089CTE, L=950MM 1 NON PUMP
3613218800 PE-LD/EVA, L=1600MM PUMP
B03 SCREW TAPPING 7122401211 TRS 4X12 MFZN 4
B04 PLATE UPPER 3614519400 PP 1
B05 SUPPORTER TUB BL 3615302931 FRPP(5203G6) 1
B06 SCREW TAPPING 7112401211 T1 TRS 4X12 MFZN 8
B07 SUPPORTER TUB BR 3615302921 FRPP(5203G6) 1
B08 SUPPORTER TUB FR 3615302901 FRPP(5203G6) 1
B09 SUPPORTER TUB FL 3615302911 FRPP(5203G6) 1
B10 COVER B 3611414010 372X508X0.4T SGCC 1
B11 ASSY CONDENSER 3618921500 54.0uF+60uH L=470 #250 1 110V/60Hz
3618921900 41.6uF+60uH L=470 #250 127V/60Hz
3618921000 13.5uF+60uH L=470 #250 220V/50HZ,60Hz
3618913740 11.4uF+60uH L=470 #250 240V/50Hz
B12 HANDEL CABINET 3612603300 PP 2
B13 CABINET AS 3610809501 PAINTING(0.6) 1
BASE U AS 3610388700 850M 1
B14 BASE U 3610388300 PP 1
B15 LEG ADJUST AS 3617702120 SCREW (4*14) 1
B16 LEG FIX 3617702300 THERMAL PLASTIC ELASTOM 3
B17 SCREW TAPPING 7112401211 T1 TRS 4X12 MFZN 12
B18 COVER UNDER 3611402711 PP-M/B 1
B19 COVER PUMP 3611405320 PP(B360F) 1
3611405301 UL/CSA(466FWU, HFH-400)
B20 SCREW TAPPING 7112501611 T1 TRS 5X16 MFZN 2
B21 MOTOR SHADED POLE 3618957310 AC 110-127V/60Hz 1
3618957280 AC 220V/60Hz
3618957250 AC 220V/50Hz
3618957220 AC 240V/50Hz
B22 FILTER AS 3611901530 DWF-5591DPNF E-TYPE 1
