Daewoo DWD-AF1011 User manual

Service Manual
Washing Machine
Model: DWD-AF1011
DWD-AF1012
DWD-AF1013

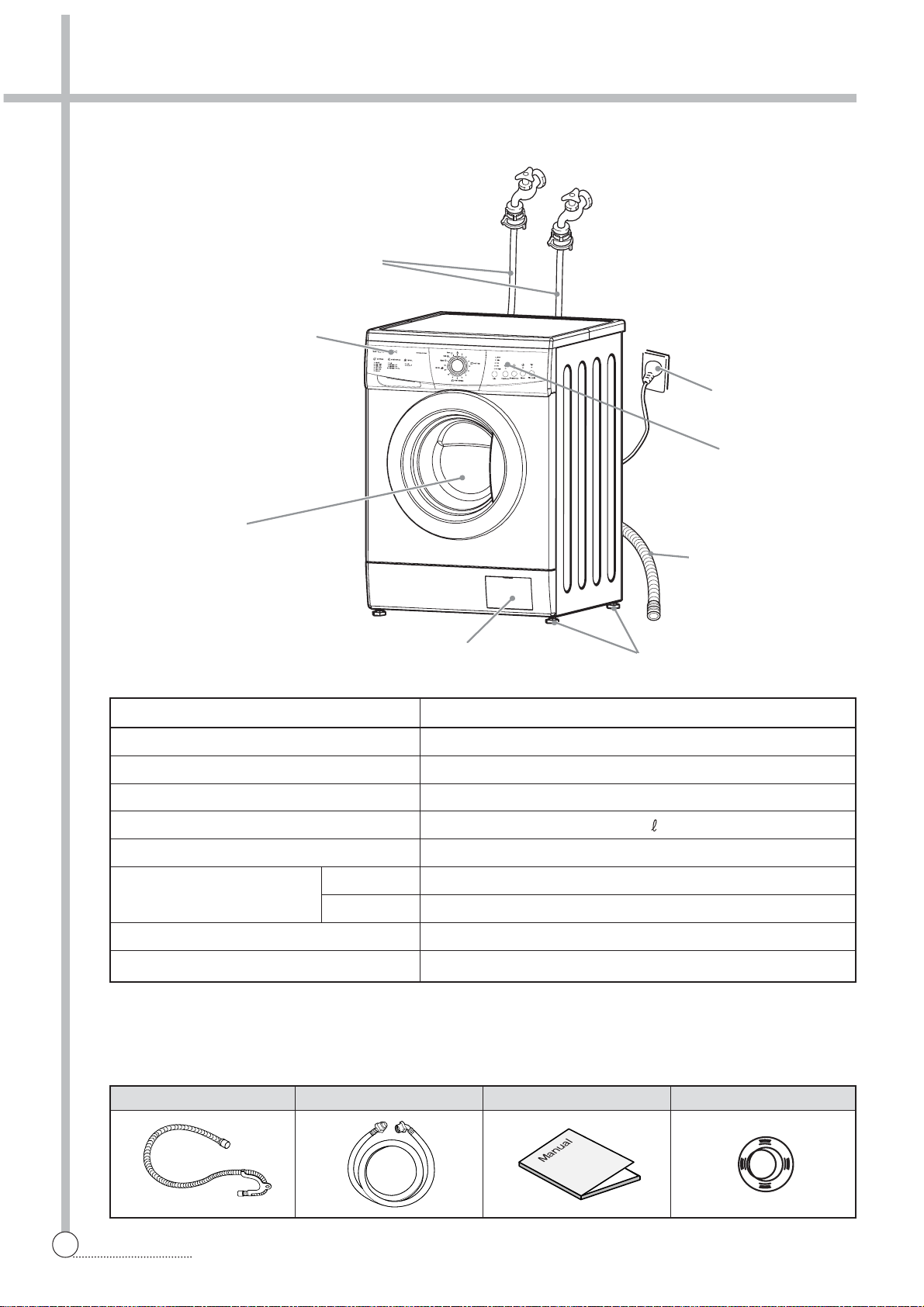

1. SPECIFICATIONS
2
SPECIFICATIONS
HOT
(OPTION) COLD
■ Accessories
■ DWD-AF101X SERIES
Hose drain Inlet hose Manual Cap holder(3EA)
POWER SOURCE A.C 220V/50Hz , A.C 230V/50Hz , A.C 240V/50Hz
DiMENSION (WXDXH) 595mm x 540mm x 850mm
WEIGHT 64 kg
WATER CONSUMPTION 47~59
POWER CONSUMPTION 2200W
MAXIMUM MASS WASH 7 kg
OF TEXTILE SPIN 7 kg
WASHER TYPE DRUM TYPE (FRONT LOADING WASHING MACHINE)
OPERATING WATER PRESSURE 0.3 ~ 8kgf/cm2(29.4 ~ 784kPa)
DWD-AF1011/AF1012/AF1013
MODEL
ADJUSTABLE LEG
CONTROL PANEL
DOOR
DETERGENT CASE
INLET HOSE
LOWER COVER
POWER CORD
HOSE DRAIN

5. EXPLODE VIEW AND PARTS LIST
14
EXPLODE VIEW AND PARTS LIST
■ BOX INLET AS
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
A01 HANDLE CASE 3612611600 DWD-AF1011,HIPS 1
DWD-AF1011(2)
3612611601 ABS + SILVER SPRAY DWD-AF1013
A02 CASE DETERGENT 3611140300 PP 1
A03 CAP SOFTENER 3610916600 PP 1
A04 BOX INLET 3610526500 PP 1
A05 NOZZLE AS 3618103510 NOZZLE TOP + NOZZLE UNDER 1 COLD ONLY
3618103500 COLD +HOT
A06 SCREW TAPPING 7122402011 T2S TRS 4X20 MFZN 1
A07 CLAMP AS 3611203200 ID=60,WIRE+GUIDE+BOLT+NUT 1
A08 HOSE INLET 3613267200 EPDM U-TRAP 1
A09 CLAMP HOSE I 3611201400 HSW3,D2.6,MFZN,ID=38 1
A10 HOSE WATER SUPPLY 3613270900 EPDM,ID=9.5,OD=14.5,L=225 2(1) COLD(HOT)
A11 CLAMP HOSE 3611205800 ID=13.8, W=10.0, T=0.9 4(2) COLD(HOT)
A12 VALVE INLET 3615416821 220-240V.VDE.BITRON.2WAY 1 COLD
3615414900 220-240V 2-WAY PP/BRACKET
A13 VALVE INLET 3615416720
220-240 50/60-1WAY,HOT,BITRON,VDE
1 HOT(OPTION)
3615414800 220-240V 1-WAY HOT PP-BRACKET
A14 SCREW TAPTITE 7272400811 TT3 TRS 4X8 MFZN 2(2) COLD(HOT)

15
EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS (DWD-AF101X SERIES)
B01
B02
B03
B06
B04
B05
B07
B08
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
B01 PANEL FRONT 36142T1700 HIPS 1DWD-AF1011(2)
PANEL F AS 3614285822 ABS, URETHANE COATING DWD-AF1013
B02 BUTTON SELECT 3616639200 ABS 1DWD-AF1011(2)
BUTTON SELECT AS 3613405252 ABS + SILVER SPRAY DWD-AF1013
B03 WINDOW LED 3615507100 ABS-TR 1 DWD-AF101X
B04 PCB AS PRPSSWC03- DWD-AF101X SERIES 1
B05 CASE PCB 36111T1600 HIPS 1 DWD-AF101X
B06 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 6
B07 KNOB DIAL 3613406900 ABS 1DWD-AF1011(2)
KNOB DIAL AS 3613405232 ABS + SILVER SPRAY DWD-AF1013
B08 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2
Refer to Detailed Part
Code of PCB AS

16
EXPLODE VIEW AND PARTS LIST
■ Detailed Part Code of PCB AS
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
PRPSSWC030 AF1011 SERIES, EC OPTION, HOT V/V, BUBBLE OPTION
B04 PCB AS PRPSSWC031
AF1011 SERIES, EC OPTION, COLD V/V, NON BUBBLE OPTION
1
PRPSSWC032 AF1011 SERIES, EC OPTION, COLD V/V, BUBBLE OPTION
PRPSSWC033
AF1011 SERIES, EC OPTION, HOT V/V, NON BUBBLE OPTION
DWD-AF101X'S
(1000RPM)

17
EXPLODE VIEW AND PARTS LIST

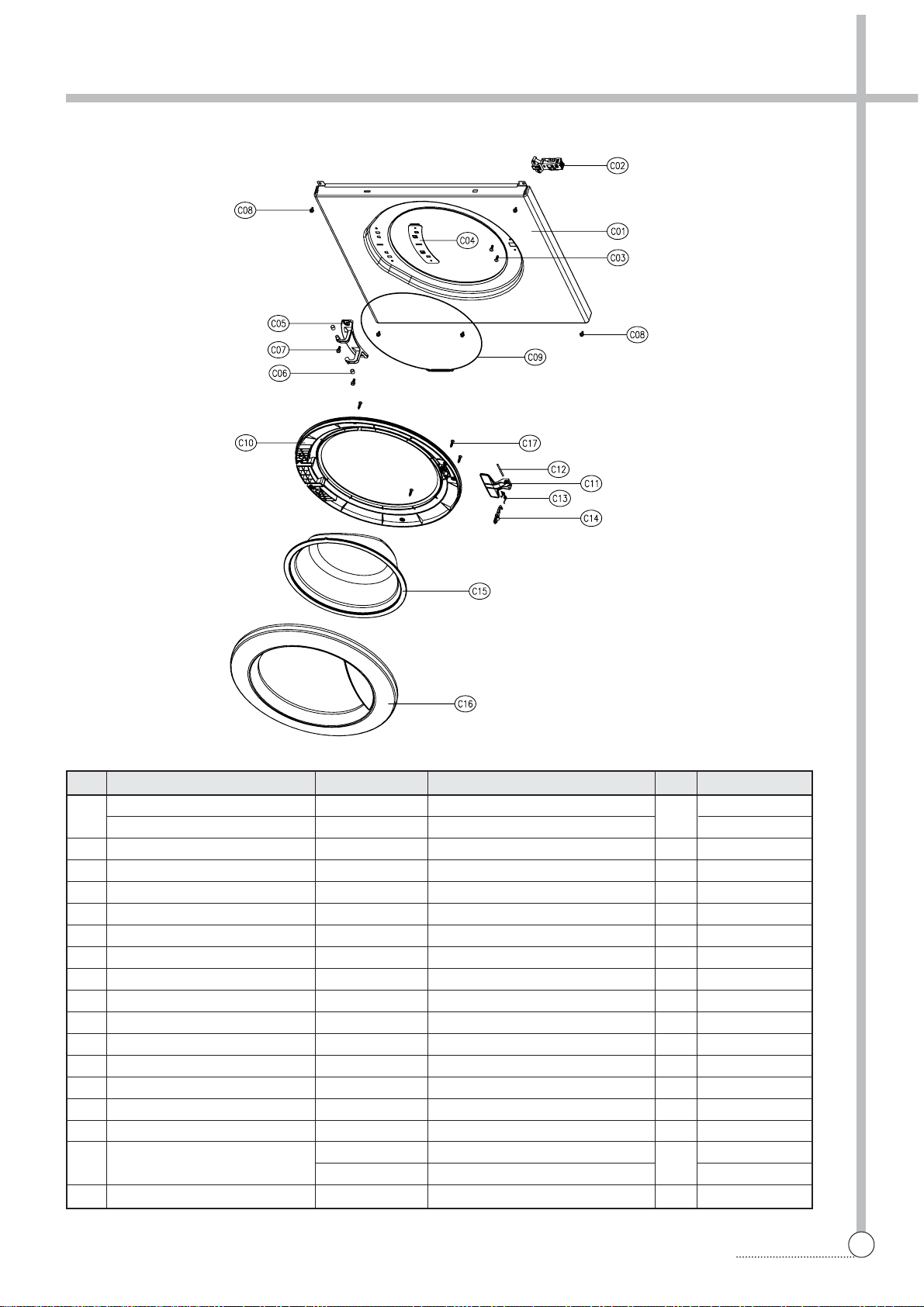

■ CABINET FRONT AS
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
C01 CABINET F 3610811201 DWD-800W PAINTING 1
DWD-AF1011(2)
CABINET FRONT 3610811210 PCM, SGCC 0.8T, SILVER DWD-AF1013
C02 SWITCH DOOR LOCK 3619046800 250V16A, ROLD, BI-METAL 1
C03 SCREW TAPPING 7122401208 T2S TRS 4X12 SUS 2
C04 PLATE HINGE SUPPORT 3614531900 SGCC T1.6 1
C05 HINGE DOOR 3612902800 ZNDC 1
C06 CAP HINGE DOOR 3610916500 POM 2
C07 SCREW TAPPING 3616030000 F/L BOLT(SE) 5*12 SUS 2
C08 SCREW TAPPING 3616029950 TTS"S" HEX F/L 4*8 6
C09 CLAMP DOOR AS 3611204800 HSWR D=1.4 1
C10 FRAME DOOR I 3612205200 PP 1
C11 HANDLE DOOR 3612608600 ABS 1
C12 PIN HANDLE 3618200200 SUS304, D3, L48 1
C13 SPRING HOOK 3615114600 SUS D1.4 1
C14 HOOK DOOR 3613100700 ZNDC 1
C15 DOOR GLASS 361A110700 GLASS PI300 1
C16 FRAME DOOR O 3612205102 HIPS D-F'S 1DWD-AF1011
3612205120 ABS, CR3 GILDING DWD-AF1012(3)
C17 SCREW TAPPING 7115402008 T1S FLT 4*20 SUS 6

18
EXPLODE VIEW AND PARTS LIST

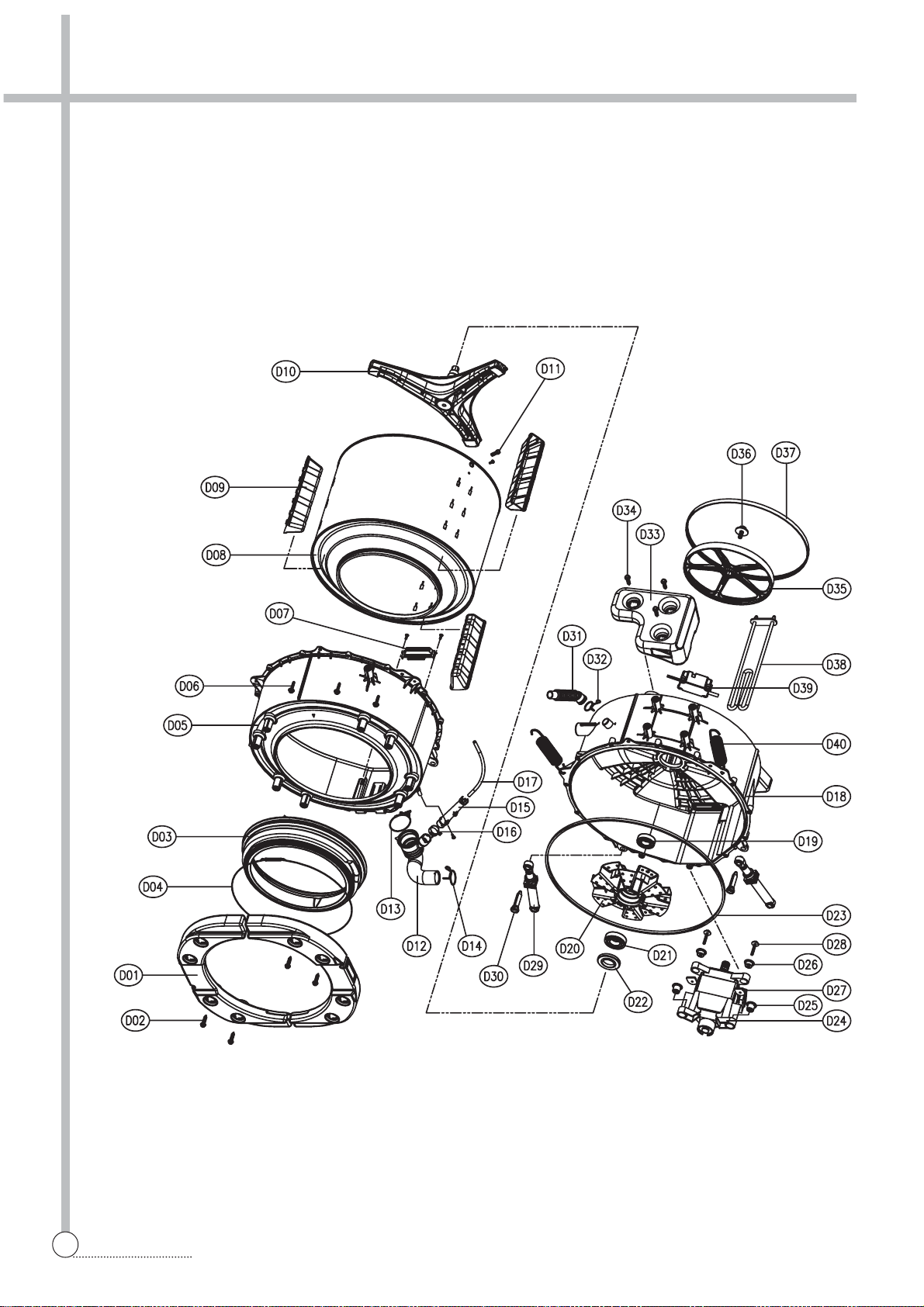

■ TUB ASS’Y

19
EXPLODE VIEW AND PARTS LIST
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
D01 BALANCER WEIGHT F L/R 3616106300 FRONT, 6.0kg 2
D02 SPECIAL SCREW(BALANCER) 3616029400 SWCH 8.5X30 8
D03 GASKET 3612321400 EPDM 1
D04 CLAMP GASKET AS 3611204500 HSWR D=1.8 1
D05 TUB FRONT 3618821001 FRPP FH7300GM 1
D06 SPECIAL SCREW(TUB) 3616029800 SWCH 6.5X30 14
D07 FIXTURE HEATER 3612007300 SUS 0.7T 440x45 1
D08 DRUM SUB AS 3617004001 SUS 0.5T 1
D09 LIFTER WASH 361A400400 PP 3
361A400410 NANO OPTION
D10 SPIDER AS 361A300500 ALDC+SM45C 1
D11 SPECIAL SCREW(SPIDER) 3616029500 SUS430 8x25 3
D12 HOSE DRAIN 3613267300 EPDM 1
D13 CLAMP AS 3611203200 ID=60,WIRE+GUIDE+BOLT+NUT 1
D14 CLAMP HOSE I 3611201400 HSW3, D2.6, MFZN, D=38 1
D15 AIR TRAP 361A500101 PP 1
D16 CLAMP HOSE 3611204700 D27 1
D17 HOSE AIR 3613268600 ID=4, OD=8, L=700 1
D18 TUB REAR 3618821101 FRPP FH7300GM 1
D19 BEARING OUTER 3616303200 6205Z FAG 1
D20 BEARING HOUSING 3616303300 ALDC 1
D21 BEARING INNER 3616303100 6206Z FAG 1
D22 WATER SEAL 361A600100 NBR 1
D23 GASKET TUB 3612321600 EPDM L=1675 1
D24 UNIT MOTOR UNIVERSAL 36189L4H00 220VDC50HZ 2POLES PI340 1
D25 CUSHION MOTOR FIX(A) 3611563900 BUTYLE 2
D26 CUSHION MOTOR FIX(B) 3611564000 BUTYLE 2
D27 SPECIAL WASHER 3616030400 T=4.0 M6 2
D28 SPECIAL BOLT 3616030900 M6x43, SPRING+PLATE WASER 2
D29 DAMPER FRICTION 361A700120 120N, AKS, ST=170-160, DL=197.5 2
D30 DAMPER PIN 361A700200 AKS, D=14.5 2
D31 HOSE VENT 3613267100 EPDM 1
D32 CLAMP HOSE 3611204700 D27 1
D33 BALANCER WEIGHT T 3616106500 TOP, 6.0kg 1
D34 SPECIAL SCREW(BALANCER) 3616029400 SWCH 8.5x30 3
D35 PULLEY 3618433500 PA6+GF30%, KEP 1330GF 1
D36 SPECIAL BOLT AS 3616029600 SWCH M10xL30, F/L BOLT 1
D37 BELT V 3616591100 MEGADTNE 5RIB, POLYURETHANE 1
3612802400 220V 2KW.1R0A721001.RW8TF.IRCA 220V 2kW
D38 HEATER WASH 3612802410 230V 2KW.1R0A721002.RW8TF.IRCA 1 230V 2kW
3612802420 240V 2KW.1R0A721003.RW8TF.IRCA 240V 2kW
D39 UNIT BUBBLE PUMP 36189L4120 220-240V DBK-204DB 1 OPTION
D40 SPRING SUSPENSION 3615114500 D3.2, L158 2

20
EXPLODE VIEW AND PARTS LIST

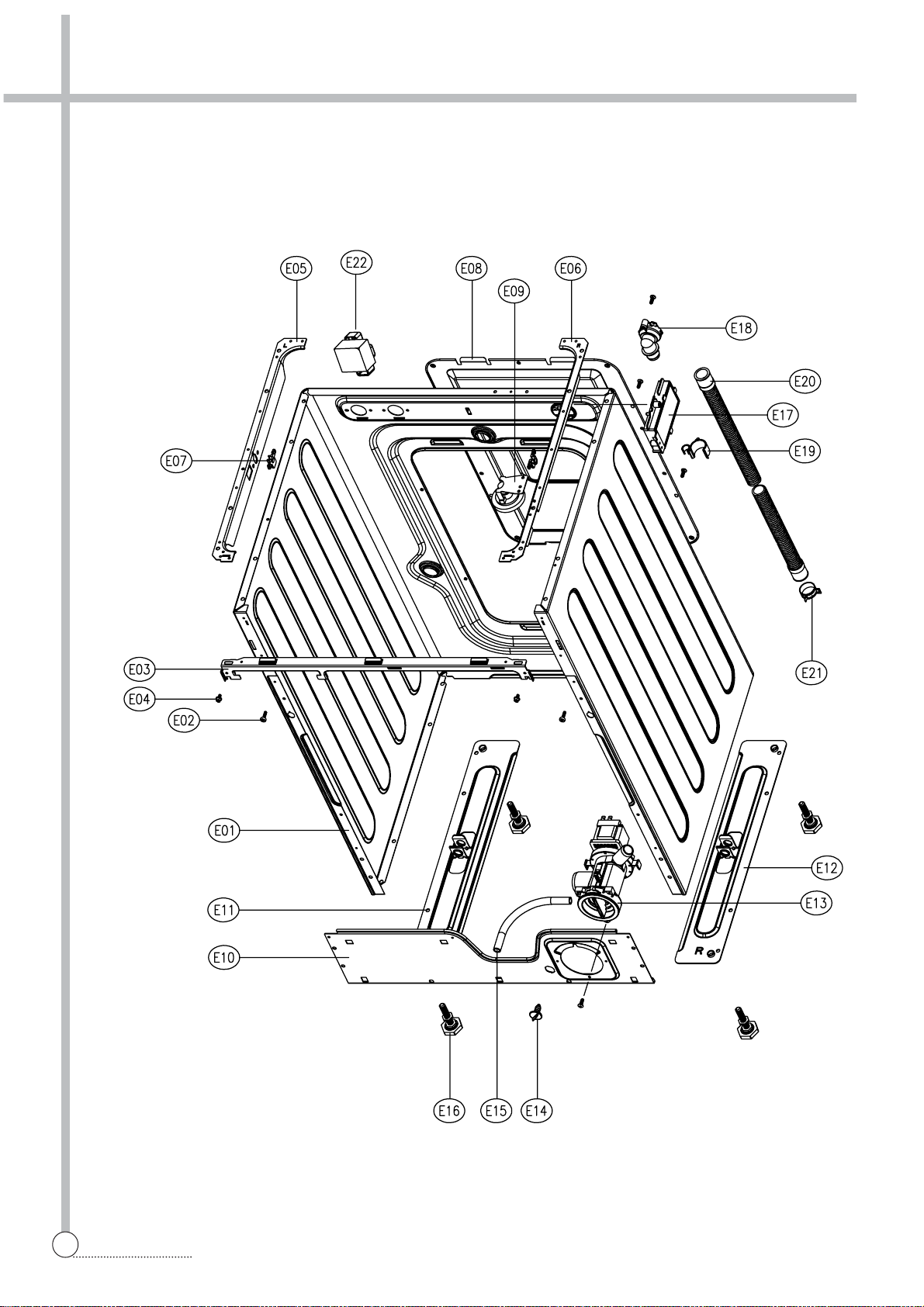

■ CABINET AS

21
EXPLODE VIEW AND PARTS LIST
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
E01 CABINET 3610811101
SGCC(GI), 0.7TX825.7X1630.8, WHITE PAINTIN G
1
DWD-AF1011(2)
3610811101 SGCC(GI), 0.7TX825.7X1630.8, SILVER PAINTING DWD-AF1013
E02 SPECIAL SCREW 3616029100 M4x12.5, MACHINE 2
E03 FRAME UPPER 3612205800 SGCC T1.2 55X580 1
E04 SCREW TAPPING 3616029950 TTS"S" HEX F/L 4X8 4
E05 FRAME TOP-L 3612205600 SGCC T1.6 52x500 1
E06 FRAME TOP-R 3612205700 SGCC T1.6 52x500 1
E07 STOPPER SPRING 3615202200 POM 2
E08 COVER BACK AS 3611425510 SGCC 0.35T + EPDM 2T 1
E09 SENSOR PRESSURE 3614825300 5V DRUM DL-DW11 INLET 90 1
E10 FRAME LOWER 3612205500 SGCC T1.2 160X580 1
E11 BASE U-L 3610392200 SGCC T1.6 100x500 1
E12 BASE U-R 3610392300 SGCC T1.6 100x500 1
E13 UNIT DRAIN PUMP AS 36189L5K20 AL.220-240/50 B20-6 30W 6KG 1 220-240V/50Hz
E14 CAP WATER REMAIN 3610916800 PP 1
E15 HOSE WATER REMAIN 3613267800 EPDM, ID8.5, L200 1
E16 LEG ADJUST AS 3617703810 MFZN M10x1.25 + BUTYLE 4
E17 EMI FILTER(K26) 3611908730 [MIN]3MH, 0.47UF, 3TURN 1 K26
E18 CUFF DRAIN HOSE 3616802500 PP 1
E19 GUIDE DRAIN HOSE 3612510400 PP 1
E20 HOSE DRAIN I AS 3613268400 L=870 1
E21 CLAMP HOSE 3611204700 D27 1
E22 REACTOR AS 3615800100 DWD-800W RT--046B 1 OPTION

22
EXPLODE VIEW AND PARTS LIST
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
F01 PLATE T AS 3614532940 HIPS,AF1011,AF1221,AFD1431 1
DWD-AF1011(2)
3614532941 URETHANE,1433 DWD-AF1013
F02 SCREW TAPPING 7122401411 T2S TRS 4x14 MFZN 2
F03 PANEL LOWER 3614282801 HIPS 1
F04 COVER PUMP FILTER 3611425801 HIPS 1
■ PLATE T AS + PANEL LOWER AS

29
9. TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
This wahing machine is equipped with automatic safety function which detect and diagnose faults at an
early stage and react appropriately.
When the machine does not function properly or does not fuction at all, check the following points.
Program dose not start.
Water dose not enter
the washing machine.
Washing machine is
not drain.
Washing machine is
not spin.
Spin result is unsatis-
factory.
Foam come out of the
detergent case.
Serious noise and
vibration.
Plug is loose or not plugged in.
Power failure.
Loading door is not closed.
Program is not selected.
Start/Pause button is not pressed.
Water tap is not turned on.
Inlet hose is kinked or folded.
Filters is blocked in water inlet
filter.
Drain hose is kinked or clogged.
Pump filter is clogged.
The amount of laundry is too
small.
The laundry is unbalanced.
Drain hose is placed over 1m
above the floor.
Too much detergent or unsuit-
able detergent used.
Transit bolts are not removed.
Washing machine is installed
on uneven floor.
Washing machine is not lev-
eled.
Insert plug tightly.
An interrupted program will be resumed when the
power return.
Check whether laundry is trapped in door.
Close the loading door. (a click should be heard)
Select the desired program.
Press the Start/Pause button.
Turn the water tap on.
Straighten the inlet hose.
Clean the water inlet filter.
Straighten and clean the drain hose.
Clean the pump filter.
Add the laundry to balance. And repeat the Spin
cycle.
Rearrange the laundry. And repeat the Spin cycle.
If articles of heavy clothing (e.g. bath robe) are
loaded, washing machine may skip or stop the
spin cycle.
Place the drain hose under 1m above the floor.
Repeat the Rinse cycle.
Remove the transit bolts.
Reinstall washing machine on even floor.
Adjust the level of washing machine using
adjustable legs.
Problem Cause Solution

30
TROUBLESHOOTING GUIDE

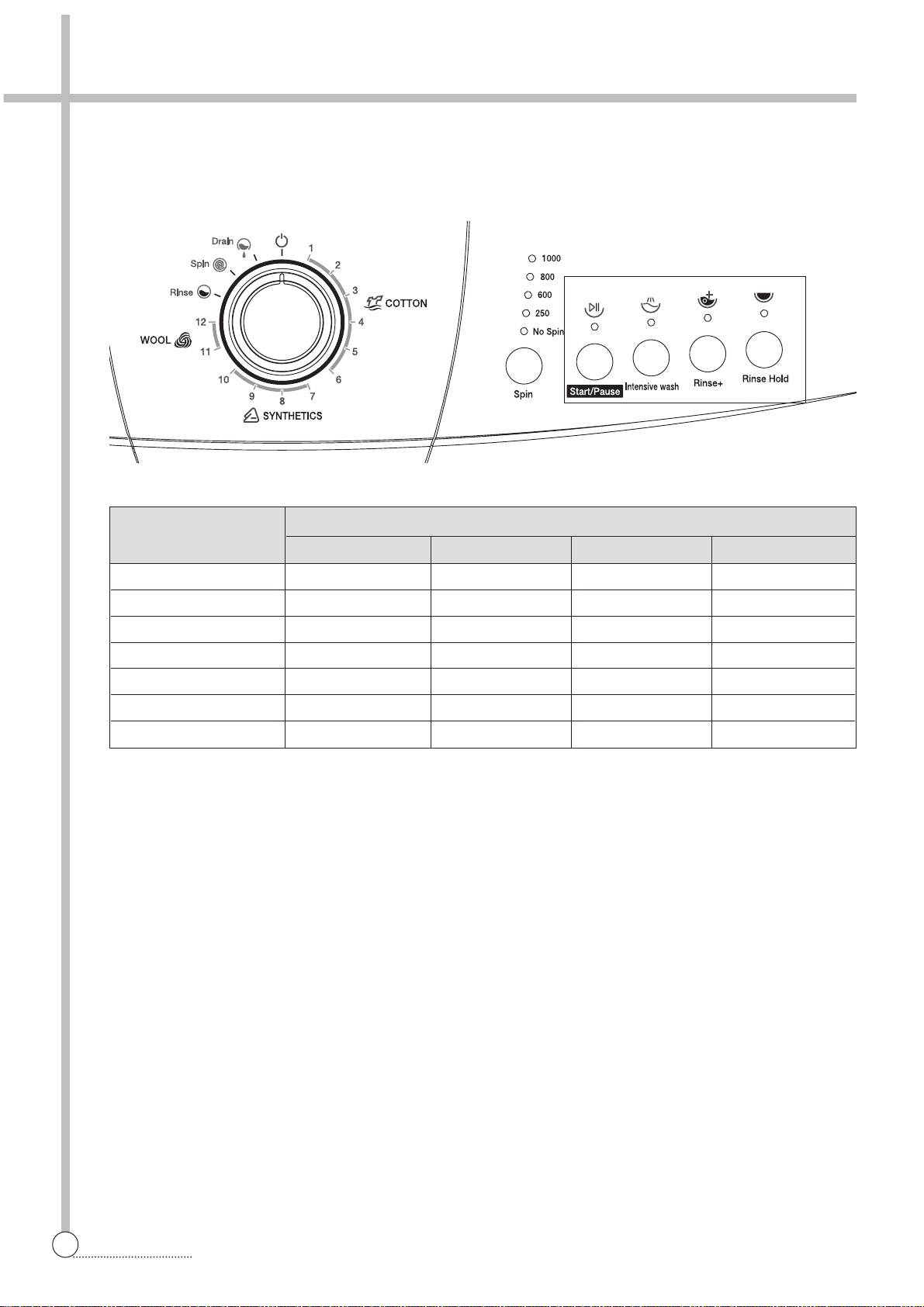

■ DISPLAY ERROR MESSAGE
When mechanical or electrical troubles of the washer are occurred, indicator lights of buttons twinkle simultaneously
as follows;
IE ●●
PFE(E0), OE, E4 ●●
E5, E6, E7, E8 ●●
E2, E9 ●●●
H2, H4, H5, H6, H8 ●● ●
UE ●●●
LE ●●●●
Indicator Light twinkling
Start/Pause Intensive wash Rinse+ Rinse hold
ERROR
MESSAGE

31
TROUBLESHOOTING GUIDE
MESSAGE ERROR CAUSE SOLUTION
The water tap is closed. Open the water tap.
The filter of the valve inlet is clogged. Clean the filter of the valve inlet.
The valve inlet is an inferior product or broke down. Change the valve inlet.
The water level sensor (sensor pressure) is an inferior product Change the water level sensor
or broke down. (sensor pressure).
The drain motor works during water supply. Change the drain motor.
The PCB ASS’Y does not check the water level. Change the PCB ASS’Y.
The drain hose is kinked or clogged. Clean and straighten the drain hose.
The drain motor is an inferior product. Change the drain motor.
The valve inlet works during drain. Change the valve inlet.
The water level sensor is an inferior product. Change the water level sensor.
The PCB ASS’Y does not check the water level. Change the PCB ASS’Y.
The RPM of drum did not reach the setting RPM Clean the drain pump filter,
within the setting time during the spin. or restart spin only course.
The laundry is concentrated to one side of the drum during spin. Rearrange the laundry.
The Start/Pause button is pressed while the door is opened. Close the door.
The switch door lock is an inferior product. Change the switch door lock.
The PCB ASS’Y does not check the door lock. Change the PCB ASS’Y.
The water is supplied continuously due to an inferior valve inlet. Change the valve inlet.
The valve inlet is normal, but the water level sensor Change the water level sensor
(sensor pressure) is inferior. (sensor pressure).
The drain motor does not work. Change the drain motor.
(The drain motor is an inferior product or broke down.)
Water leaks from the tub or the hose drain. Check the leak of the tub or the hose drain.
Then change the tub or the hose drain.
The laundry is jammed between the gasket and the drum. Rearrange the laundry.
The PCB ASS’Y is an inferior product. Change the PCB ASS’Y.
The laundry is jammed between the gasket and the drum. Rearrange the laundry.
The motor is an inferior product. Change the motor.
The PCB ASS’Y is an inferior product. Change the PCB ASS’Y.
The motor spins into an opposite direction. Change the PCB ASS'Y or the motor.
The motor hall IC is an inferior product or broke down. Change the motor hall IC or the motor.
The motor is not normally connected. Check the connector of the motor.
The motor does not work. Change the motor.
(The motor is an inferior product or broke down.)
The water level sensor is an inferior product. Change the water level sensor.
The thermistor wash is an inferior product or broke down. Change the thermistor wash.
The thermistor wash is not connected normally. Check the connector of the thermistor wash.
WATER INLET
ERROR
DRAIN
ERROR
UNBALANCE
ERROR
DOOR OPEN
ERROR
OVERFLOW
ERROR
LEAKAGE
ERROR
EMG ERROR
IE
OE
UE
LE
E2
E4
HIGH VOLTAGE
ERROR
E5
DIRECTION
ERROR
E7
SENSOR PRES-
SURE ERROR
E9
THERMISTOR
WASH ERROR
H2
E6
MOTOR
ERROR
E8

32
TROUBLESHOOTING GUIDE
MESSAGE ERROR CAUSE SOLUTION
The heater worked without the water in the tub. Check the water level.
The thermistor wash is an inferior product or broke down. Change the thermistor wash.
The water temp. is over 45°C in delicate & wool course. Change the thermistor wash.
(The thermistor wash is an inferior product or broke down.)
The heater wash dose not work. Change the heater wash.
(The water temp. doesn't rise over 2°C during 15min.)
The heater worked without the water in the tub.
Check the water level and the heater wash.
The drain pump filter is clogged. Clean the drain pump filter.
The drain pump does not work during spin. Change the drain pump.
The large amount of detergent was used. Use the proper amount of detergent.
The drain hose is placed higher than 1m above the floor. Place the drain hose 1m below the floor.
THERMISTOR
WASH OVER-
HEATING
ERROR
WATER TEMP.
ERROR
H4
HEATER
WASH
OVERHEATING
ERROR
H8
PUMP FILTER
ERROR
PFE
H5
HEATER WASH
ERROR
H6

10. WIRING DIAGRAM
33
WIRING DIAGRAM

S/M No. :
DAEWOO ELECTRONICS CORP.
1-2, Jeo-dong 1(il)-ga, Jung-gu, Seoul, Korea
C.P.O. BOX 8003 SEOUL, KOREA
TELEX: DWELEC K28177-8
CABLE: “DAEWOOELEC”
PRINTED DATE: Aug. 2010

vision@
@creativeL@ @incN
Էړ ܞ΂ĸ ࣃۉʷ
VѨݖ ێΟӂ˱ Tࠚ
ABOUT THIS MANUAL
ABOUT THIS MANUAL
ɽ তۉř ɮ
fN@model dMafQPQQOafQPQROafQPQSHsOmI
bN@model dwdMafQPQQOafQPQROafQPQSHsOmI
܂ ր RPPXNPYNQP
Q޵
R޵
ۑ܄S޵
T޵
U޵
܆ࣽ ې լ
memo@܂րZ@H߭SUI
ِߏ
vision ɽ ۧĤՆ ֯ۧɮ
telZ WSPMPVVP@faxZ WSPMSWXX
PXNPYNQPM۾ߘ֭Ŕ SU
PXNQRNQYMݖ˒L@RL@QTL@QUL@QWL@QYL@RQL@RRL@RSL@RTL@RUL
RVL@RWL@RXL@RYL@SPL@SQL@SR@ր܄@֭Ŕ QX
PXNQRNRYMQTL@QUL@QWL@RQL@RR@ր܄@֭Ŕ U
QPNPWNRVMRWL@RX@ր܄@֭Ŕ R
QPNPXNQSMݖL@ݖ˒ ր܄@֭Ŕ R
