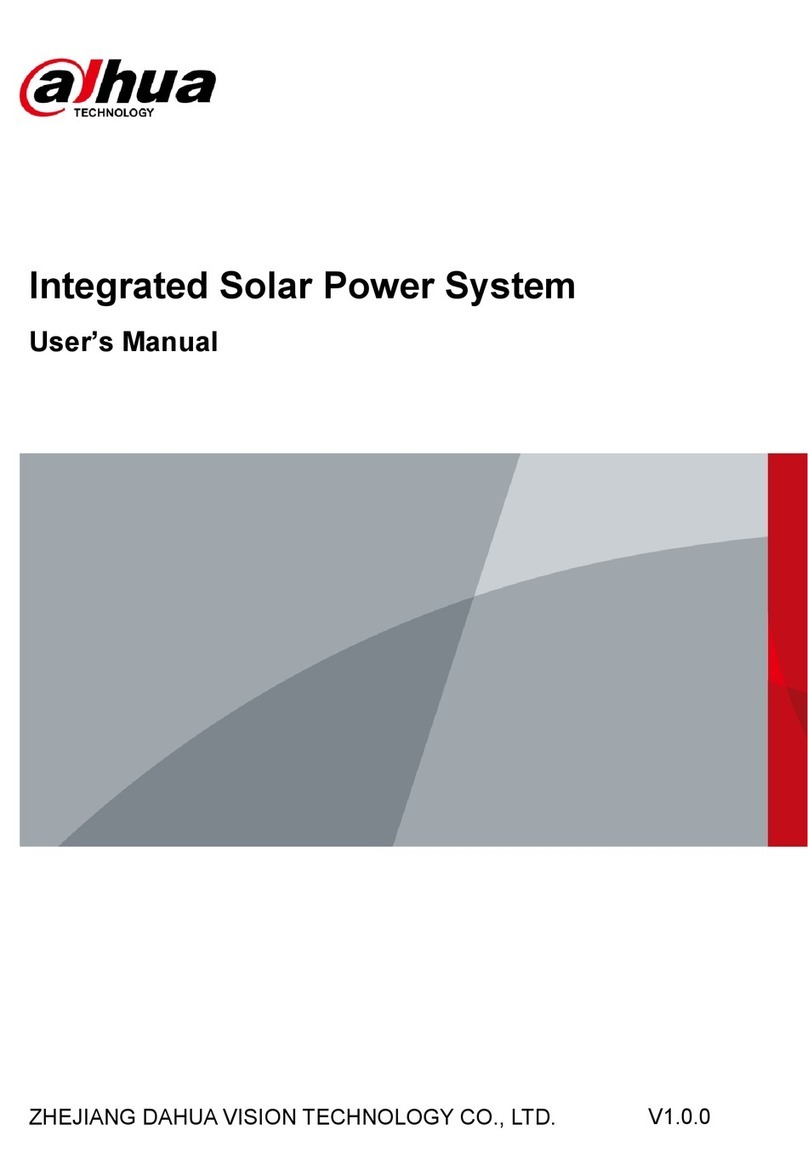

User’s Manual
User's
V1.0.0
V1.0.0
Integrated Solar Power System
User's Manual

User’s Manual
II
Foreword
General
This manual introduces the functions and operations of the integrated solar power system
(hereinafter referred to as the "System").
Models
PFM364L-D1, PFM363L-D1, PFM363L-SD1, and PFM372-L45-4S14P
Safety Instructions
The following categorized signal words with defined meaning might appear in the manual.
Signal Words
Meaning
CAUTION
Indicates a potential risk which, if not avoided, may result in
property damage, data loss, lower performance, or
unpredictable result.
TIPS
Provides methods to help you solve a problem or save you time.
NOTE
Provides additional information as the emphasis and
supplement to the text.
Revision History
Version
Revision Content
Release Time
V1.0.0
First release.
November 2020
About the Manual
The manual is for reference only. If there is inconsistency between the manual and the
actual product, the actual product shall prevail.
We are not liable for any loss caused by the operations that do not comply with the
manual.
The manual would be updated according to the latest laws and regulations of related
jurisdictions. For detailed information, refer to the paper manual, CD-ROM, QR code or
our official website. If there is inconsistency between paper manual and the electronic
version, the electronic version shall prevail.
All the designs and software are subject to change without prior written notice. The
product updates might cause some differences between the actual product and the
manual. Please contact the customer service for the latest program and supplementary
documentation.
There still might be deviation in technical data, functions and operations description, or

User’s Manual
III
errors in print. If there is any doubt or dispute, we reserve the right of final explanation.
Upgrade the reader software or try other mainstream reader software if the manual (in
PDF format) cannot be opened.
All trademarks, registered trademarks and the company names in the manual are the
properties of their respective owners.
Please visit our website, contact the supplier or customer service if there is any problem
occurring when using the device.
If there is any uncertainty or controversy, we reserve the right of final explanation.

User’s Manual
IV
Important Safeguards and Warnings
This chapter describes the contents covering proper handling of the integrated solar power
system, hazard prevention, and prevention of property damage. Read these contents
carefully before using the System, comply with them when using, and keep it well for future
reference.
Storage
Do not drop or splash liquid onto the System, and make sure there is no object filled with
liquid on the System to prevent liquid from flowing into the System.
Do not dissemble the System.
Transport, use and store the System under the allowed humidity and temperature
conditions.
Keep the System away from corrosive gas and liquid.
Charge the battery every 3 months if you want to store the System for a long period.
Installation and Operation
Install the System in a well-ventilated place.
Before trying to install, operate and maintain the System, make sure the installation
personnel has completely understood the content in the manual, and has an idea about
the potential risk during installation.
Do not install or operate the System when it is raining, damp or in strong wind.
Keep the System in the original packing box until installing it.
Do not install or use the System that has been damaged.
Do not dismantle and maintain the System by yourself or non-professional personnel.
Disclaimer
The company will not be responsible for the damages resulting from the following reasons:
Improper use, or use the System in improper scenario.
Temperature of working environment exceeds the limit of the System’s working
temperature.
Dismantling and maintenance of the System by yourself or non-professional personnel.
Force majeure.

User’s Manual
V
Table of Contents
Foreword ................................................................................................................................................... II
Important Safeguards and Warnings ....................................................................................................IV
1 Overview................................................................................................................................................. 1
Introduction ................................................................................................................................... 1
Features ........................................................................................................................................ 1
2 Packing List ........................................................................................................................................... 2
3 Structure................................................................................................................................................. 3
Appearance ................................................................................................................................... 3
Dimensions ................................................................................................................................... 5
3.2.1 PFM364L-D1 ...................................................................................................................... 5
3.2.2 PFM363L-D1 and PFM363L-SD1 ...................................................................................... 6
3.2.3 PFM372-L45-4S14P........................................................................................................... 7
4 Installation.............................................................................................................................................. 9
Preparation.................................................................................................................................... 9
4.1.1 Installation Site Requirements............................................................................................ 9
4.1.2 Tools.................................................................................................................................... 9
4.1.3 Cables............................................................................................................................... 10
Installation Procedures ............................................................................................................... 10
5 Daily Maintenance............................................................................................................................... 18
Notes........................................................................................................................................... 18
Instructions.................................................................................................................................. 18
Lightning and Surge Protection....................................................................................... 19
Cybersecurity Recommendations ................................................................................... 20

User’s Manual
1
1 Overview
Introduction
This off-grid integrated solar power system consists of solar panel, lithium battery pack,
maximum power point tracking (MPPT) charge controller, and mounting bracket. The System
can be used in places without power supply and network connection. Specifically, it is
applicable to the following scenarios:
Supplying power for surveillance devices installed at places such as small construction
sites, mobile toilets, mobile waste stations, street vendor markets, temporary traffic
control zones.
Supplying power for surveillance devices installed at public places in parks, office areas,
residential buildings, and so on to prevent potential damages to infrastructures and
landscaping.
Features
All-in-one design, easy to install, remove, and maintain.
Aluminum alloy frame brings attractive appearance and excellent anti-corrosion
performance.
IP66 protection level.
RS-485 communications port and standard Modbus protocol, meeting communications
requirements in various scenarios.
MPPT controller helps significantly improve the energy utilization efficiency of the
System, and raise the charging efficiency by 10%–30% compared with conventional
PWM method.
Comprehensive electronic protection: Current limiting, short circuit, and reverse current
protection of solar panel; reverse connection, overcurrent, overdischarge, and
overtemperature protection of lithium battery; overload and short circuit protection for
device that consumes power.

User’s Manual
2
2 Packing List
After opening the packing box, check whether there is any obvious damage to the System,
and make sure that all the items included in the packing list are provided.
Packing list (PFM364L-D1, PFM363L-D1, and PFM363L-SD1)
Table 2-1 Packing list description (1)
No.
Name
Quantity
1
Camera mounting plate
1
2
S10.0L
1
3
M8*20
2
4
M4*12
5
5
S6.0L
1
6
S3.0L
1
7
S4.0L
1
Packing list (PFM372-L45-4S14P)
Table 2-2 Packing list description (2)
No.
Name
Quantity
1
M6*30
6
2
S5.0L
1

User’s Manual
3
3 Structure
Appearance
Components (PFM364L-D1 and PFM363L-D1)
Table 3-1 Component description (PFM364L-D1 and PFM363L-D1)
No.
Name
Description
1
Male circular connector
Connector pin.
2
Gear for adjusting angle
Gear for adjusting horizontal and vertical angles. 5
degrees will be adjusted by rotating each slot.
3
Mounting sleeve
Attach the mounting sleeve to the pole, and then tighten
the sleeve.
4
Female circular connector
Connector socket.
5
Male circular connector
Connector pin.
6
Controller holder
Holds the controller.
7
RS-485 serial line
Used for communications between the System and
another device.
8
Power output interface
Supplies power to another device.

User’s Manual
4
Components (PFM363L-SD1)
Table 3-2 Component description (PFM363L-SD1)
No.
Name
Description
1
Male circular connector
Connector pin.
2
Gear for adjusting angle
Gear for adjusting horizontal and vertical angles. 5°
will be adjusted by rotating each slot.
3
Mounting sleeve
Attach the mounting sleeve to the pole, and then
tighten the sleeve.
4
Female circular connector
Connector socket.
5
Male circular connector
Connector pin.
6
Power output interface
12V DC/1A power output.
7
LAN port
Used for data transmission of surveillance device.
8
Controller holder
Holds the controller.
9
PoE output port
12 V non-standard PoE output, usually supplying
power for wireless CPE (customer premises
equipment) device.
10
RS-485 port (serial port to
network interface)
Used for communications between the System and
another device.

User’s Manual
5
Components (PFM372-L45-4S14P)
Table 3-3 Component description (PFM372-L45-4S14P)
No.
Name
Description
1
Female circular connector
Connector socket.
2
Battery box
Hold batteries.
Dimensions
3.2.1 PFM364L-D1
Front view (mm [inch])

User’s Manual
6
Side view (mm [inch])
Top view (mm [inch])
3.2.2 PFM363L-D1 and PFM363L-SD1
Front view (mm [inch])

User’s Manual
7
Side view (mm [inch])
Top view (mm [inch])
3.2.3 PFM372-L45-4S14P
Front view (mm [inch])

User’s Manual
8
Side view (mm [inch])
Top view (mm [inch])

User’s Manual
9
4 Installation
Preparation
4.1.1 Installation Site Requirements
The installation site shall meet the requirements of electrical and relevant fire prevention
codes.
Choose an installation site with sufficient sunshine all the year round, and make sure no
shelter around the site to ensure natural lighting.
If there is shelter at the installation site, make sure the lowest installation position of the
System is at least 1 meter above the shelter, otherwise, it will lead to decline in power
generation and battery power loss, which will finally damage the battery.
Avoid public facilities such as underground cables, optical cables to ensure smooth
installation.
Make sure the back side of the System is well-ventilated.
4.1.2 Tools
Tools included in the packing list are provided. Besides, you need to prepare the tools shown
in Figure 4-1. Tools

User’s Manual
10
4.1.3 Cables
We recommend you to ground all the devices, and you need to prepare the cables for
grounding connection.
Select cables that comply with requirements on cables for surveillance industry. Cable length
depends on pole length and height of drilled holes. Select proper cable by referring to the
following table and combining with your actual needs.
Table 4-1 Grounding cable requirements
Cable Type
Description
Grounding
cable
It is recommended to use stranded bare copper flexible cable with ground
impedance less than 4 Ω and cable length not more than 10 m. Use green
wire with yellow stripe for the protective ground.
Installation Procedures
Installation steps have minor differences for the three models. The manual takes installation
of PFM364L-D1 and PFM372-L45-4S14P for example.
Open the package, and place the System on a flat surface.
Attach the lithium battery (PFM372-L45-4S14P) to the System (PFM364L-D1).
1) Align two circular connectors, and then connect them firmly.
Insert the connectors into each other

User’s Manual
11
Fasten the connectors
2) Place the battery onto the System, align the screws holes, and then fasten the
M6 screws with a S5.0L wrench.
Install the battery
Adjust the horizontal angle.
1) Use a S10.0L wrench to loosen M12 screw.

User’s Manual
12
Installation diagram (1)
2) Rotate the mounting sleeve 90°.
Installation diagram (2)
You can know the rotated angle according to the quantity of slots that have been
rotated.
5° will be adjusted by rotating each slot.
The System is designed with gear for adjusting horizontal or vertical angle.

User’s Manual
13
Installation diagram (3)
3) Use a S10.0L wrench to tighten the screw.
Adjust the vertical angle.
1) Use a S10.0L wrench to loosen M12 screw.
Installation diagram (4)
2) Adjust angle of mounting sleeve until β equals to local latitude.

User’s Manual
14
Installation diagram (5)
3) Use a S10.0L wrench to to tighten the screw.
Install camera mounting plate.
Make the mounting plate parallel with the mounting sleeve, and then use a S6.0L
wrench to tighten the plate. Installation diagram (6)
Use a screwdriver to remove the cover of cable tray.

User’s Manual
15
Installation diagram (7)
Connect cables, and then close the cover of cable tray.
1) Wire through the cable tray, and pull the cable out of the camera mounting plate.
Installation diagram (8)
2) Connect RS-485 serial line.
Connect RS-485_A to port A of camera, and RS-485_B to port B.
3) Connect 12.8V DC power output line of the System to power input line of
camera.
4) After connecting the cables, use the screwdriver to close the cover of cable tray.
Installation diagram (9)
