Dahua DH-TPC-BF5300 User manual

Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
i
Dahua IR Thermal Imaging Network Camera Web3.0
Operation Manual
Version 1.0.0

Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
ii
Table of Contents
1Network Config............................................................................................................................1
1.1 Network Connection.....................................................................................................1
1.2 Log in ..............................................................................................................................1
2Live................................................................................................................................................6
2.1 Encode Setup................................................................................................................6
2.2 System Menu.................................................................................................................7
2.3 Video Window Function Option..................................................................................7
2.4 Video Window Setup....................................................................................................8

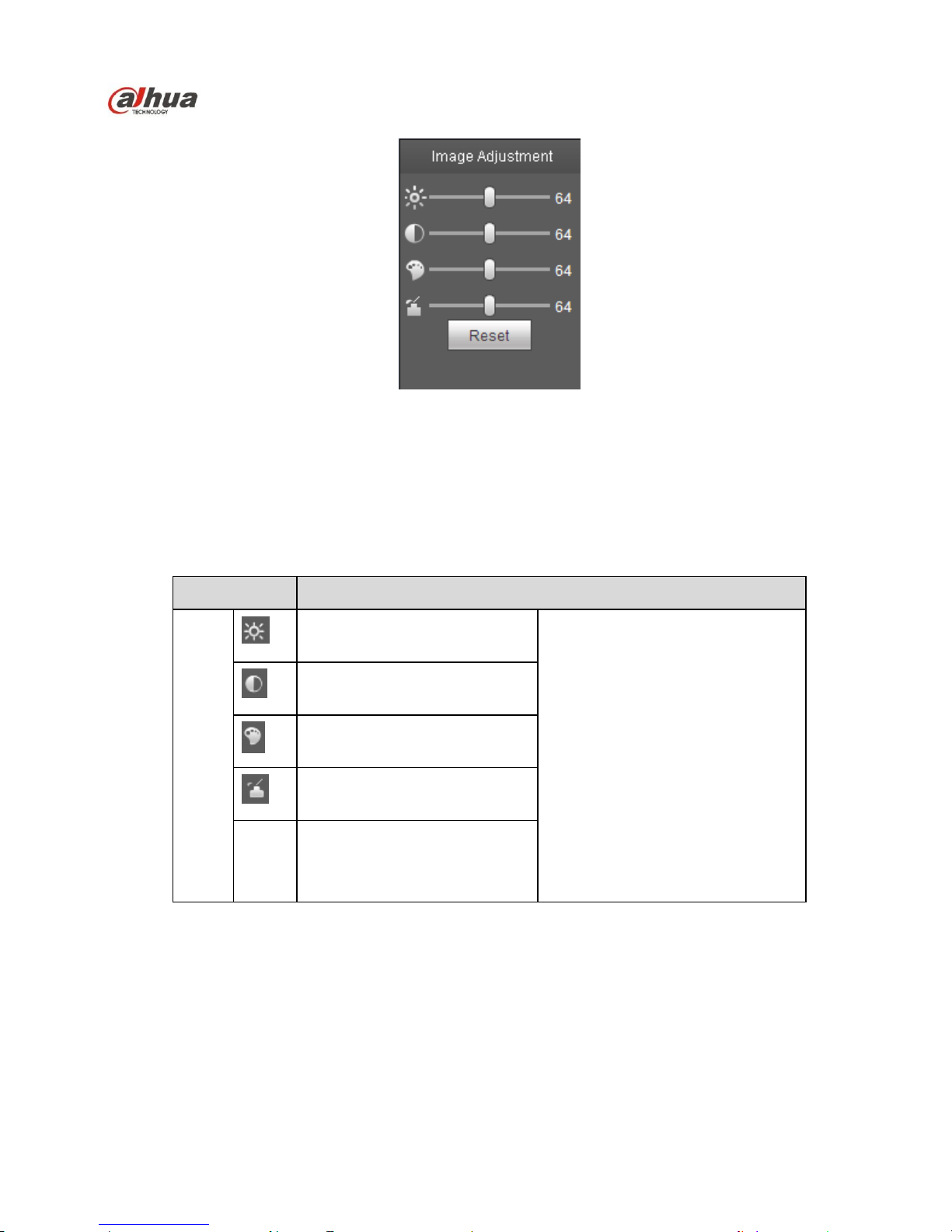

2.4.1 Image Adjustment.....................................................................................................8
2.4.2 Original Size.............................................................................................................9
2.4.3 Full Screen................................................................................................................9
2.4.4 Width and Height Ratio..........................................................................................10
2.4.5 Fluency Adjustment................................................................................................10
2.4.6 Rules Info ...............................................................................................................10
2.4.7 Realtime Report......................................................................................................10
2.4.8 Ray Axis Correct ....................................................................................................10
3Playback.....................................................................................................................................12
3.1 Playback.......................................................................................................................12
3.1.1 Function of Play......................................................................................................12
3.1.2 Playback File ..........................................................................................................13
3.1.3 Playback Cut...........................................................................................................16
3.1.4 Record Type ...........................................................................................................16
3.1.5 Progress Bar............................................................................................................17
3.1.6 Assistant Function ..................................................................................................17
3.2 Picture Playback .........................................................................................................17
3.2.1 Play.........................................................................................................................18
3.2.2 Playback File ..........................................................................................................18
3.2.3 Snapshot Type ........................................................................................................20
4Report.........................................................................................................................................22
5Setup...........................................................................................................................................24
5.1 Camera.........................................................................................................................24
5.1.1 Conditions...............................................................................................................24
5.1.2 Video ......................................................................................................................27
5.1.3 Audio......................................................................................................................34
5.2 Network.........................................................................................................................35
5.2.1 TCP/IP ....................................................................................................................35
5.2.2 Connection..............................................................................................................36

Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
iii
5.2.2.1 Connection..............................................................................................................36
5.2.3 PPPoE.....................................................................................................................39
5.2.4 DDNS .....................................................................................................................40
5.2.5 IP filter....................................................................................................................41
5.2.6 SMTP （e-mail).....................................................................................................42
5.2.7 UPnP.......................................................................................................................43
5.2.8 SNMP .....................................................................................................................44
5.2.9 Bonjour...................................................................................................................47
5.2.10 Multicast.................................................................................................................47
5.2.11 802.1x .....................................................................................................................48
5.2.12 QoS.........................................................................................................................49
5.3 Event.............................................................................................................................50
5.3.1 Video detect............................................................................................................50
5.3.2 IVS Analyse............................................................................................................54
5.3.3 Temperature Alarm.................................................................................................61
5.3.4 Fire Alarm...............................................................................................................62
5.3.5 Alarm......................................................................................................................65
5.3.6 Abnormity...............................................................................................................66
5.4 Temperature................................................................................................................69
5.4.1 Rule Setup...............................................................................................................69
5.4.2 Global .....................................................................................................................73
5.4.3 Heatmap..................................................................................................................78
5.5Storage Management.................................................................................................78
5.5.1 Schedule..................................................................................................................78
5.5.2 Destination..............................................................................................................82
5.5.3 Record control ........................................................................................................84
5.6 System..........................................................................................................................85
5.6.1 General....................................................................................................................85
5.6.2 Account...................................................................................................................87
5.6.3 Default ....................................................................................................................91
5.6.4 Import/Export .........................................................................................................91
5.6.5 Auto Maintenance...................................................................................................91
5.6.6 Upgrade ..................................................................................................................92
5.7 Information...................................................................................................................93
5.7.1 Version....................................................................................................................93
5.7.2 Log..........................................................................................................................93
5.7.3 Online User.............................................................................................................94
6Alarm...........................................................................................................................................95
7Log out........................................................................................................................................97

Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
iv
Important
The following functions are for reference only. Some series products may not
support all the functions listed below.

Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
1
1 Network Config
1.1 Network Connection
Network camera and PC connection mainly has two ways, see Figure 1-1 and Figure 1-2.
Figure 1-1
Figure 1-2
Before you access network camera via the Internet, you need to have its IP address. User can use
quick config tool to search IP of the network camera. Please refer to Quick Configuration Tool manual.
1.2 Log in
Open IE and input network camera address in the address bar.
For example, if your camera IP is 192.168.1.108, then please input http:// 192.168.1.108 in IE address
bar.

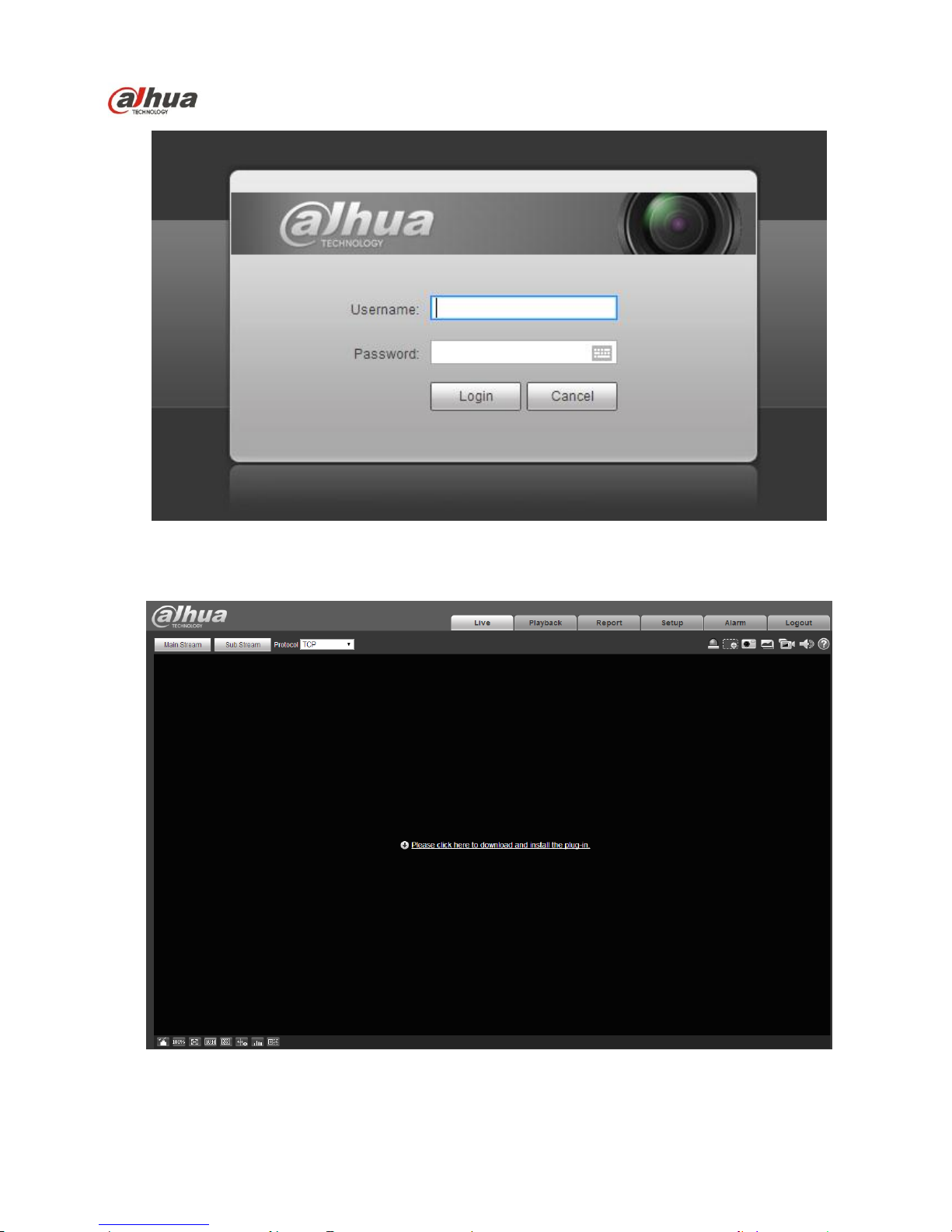

The login interface is shown as below. See Figure 1-3.
Please input your user name and password.
Default factory username is admin and password is admin.
Note: For security reasons, please modify your password after you first login.

Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
2
Figure 1-3
If it is your first time to login in, you may see the interface shown as in Figure 1-4.
Figure 1-4

Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
3
Click on “Please click here to download and install the plug-in”. The system pops up warning information
to ask you whether run or save this plug-in. See Figure 1-5.
Figure 1-5

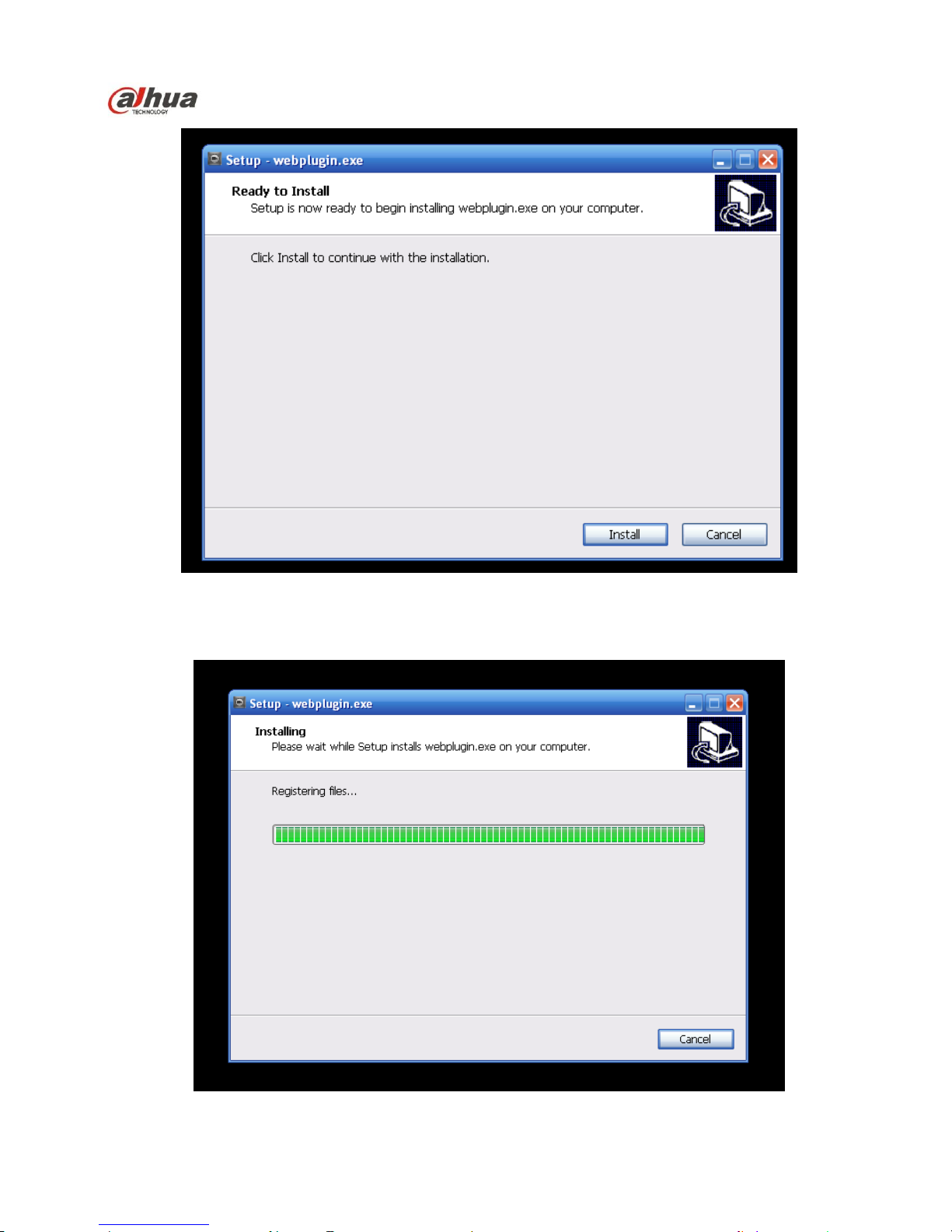

You must either run or save the file to local and install it. Follow the following steps. Click on run, you
will see Figure 1-6 and Figure 1-7.

Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
4
Figure 1-6

Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
5
Figure 1-7
When plug-in installation completes, the installation page closes automatically. The web-end will
refresh automatically, and then you can view video captured by the camera. See Figure 1-8.
Figure 1-8

Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
6
2 Live
After you logged in, you can see the live monitor window. See Figure 2-1.
Figure 2-1

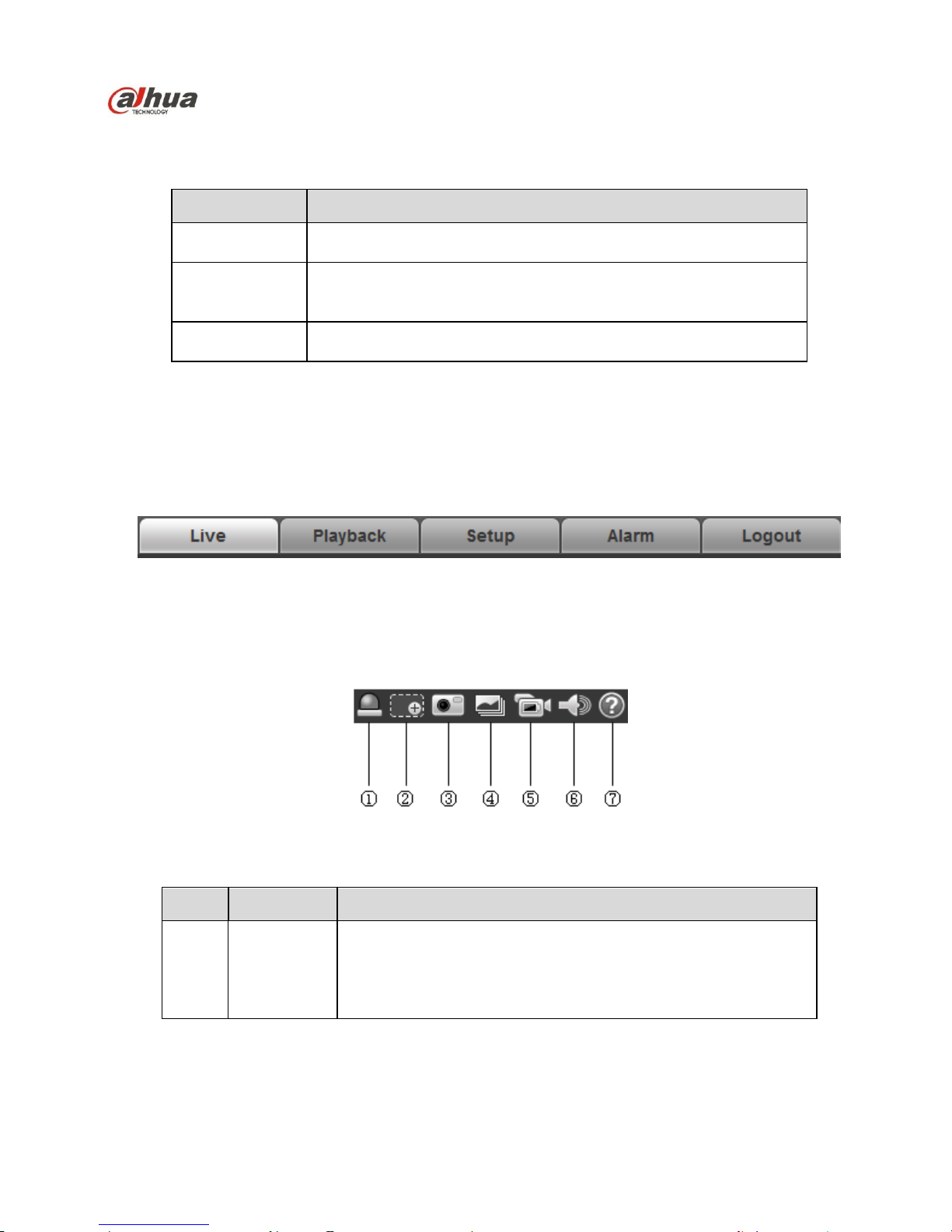

There are four sections:
Section 1: Encode setup bar
Section 2: System menu
Section 3: Window function option bar
Section 4: Window adjust bar
2.1 Encode Setup
The encode setup interface is shown as in Figure 2-2.
