Daikin ComfortNet DX18TC Series Operating instructions

RSD6200007
November2015
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman
does not assume any responsibility for property damage or personal injury due to improper
service procedures or services performed by an unqualified person.
Copyright © 2015 Daikin Manufacturing Company, L.P.
ComfortNet™
DX16TC & DX18TC Condensing Units,
DZ16TC & DZ18TC Split System Heat Pumps
with R-410A Refrigerant
Blowers, Coils, & Accessories
Service Instructions

Pride and workmanship go into every product to provide our customers with quality products. It is possible, however, that during
its lifetime a product may require service. Products should be serviced only by a qualified service technician who is familiar
with the safety procedures required in the repair and who is equipped with the proper tools, parts, testing instruments and
theappropriateservicemanual. REVIEWALLSERVICEINFORMATIONINTHEAPPROPRIATESERVICEMANUALBEFORE
BEGINNINGREPAIRS.

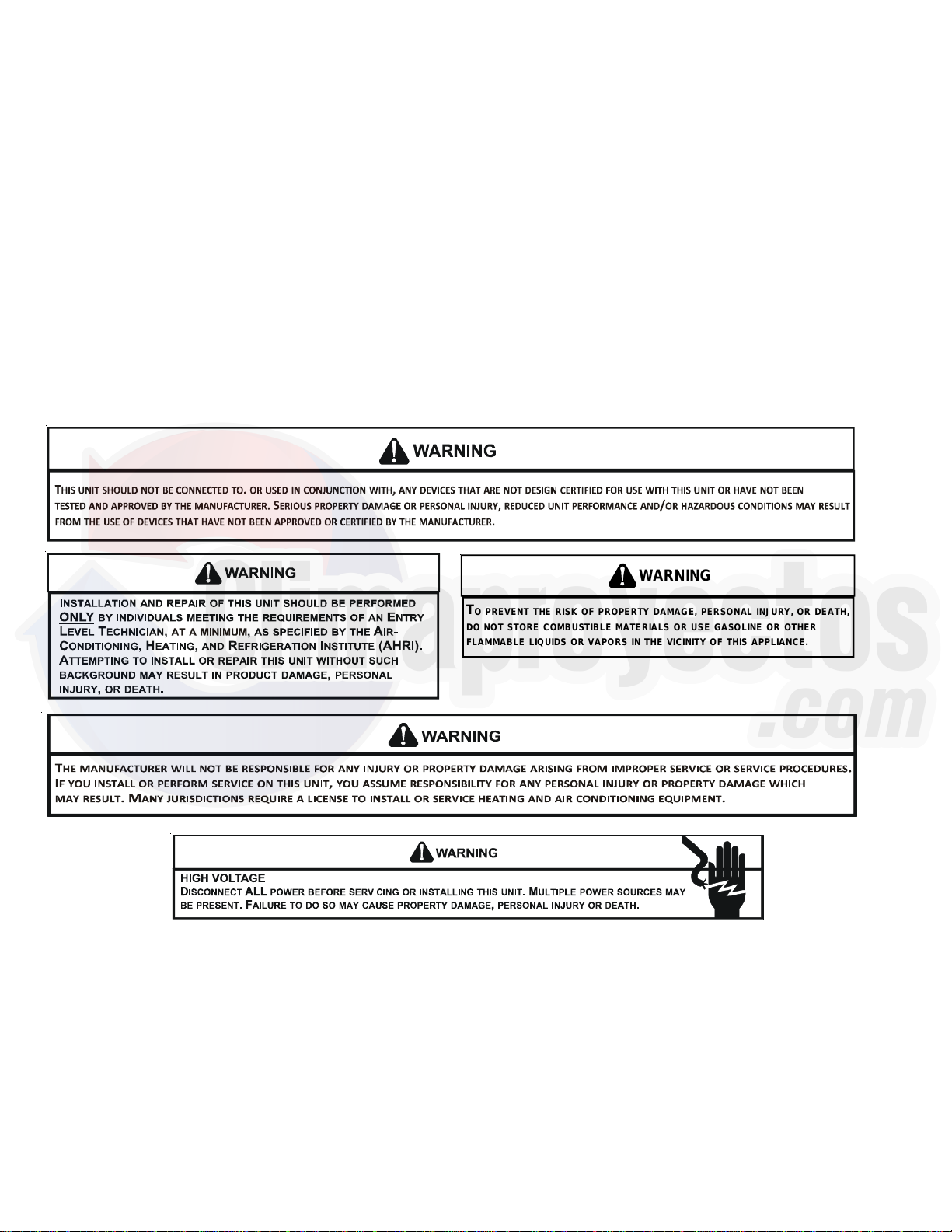

IMPORTANT NOTICES FOR CONSUMERS AND SERVICERS
RECOGNIZESAFETYSYMBOLS,WORDSANDLABELS
WARNING
TO PREVENT THE RISK OF PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH,
DO NOT STORE COMBUSTIBLE MATERIALS OR USE GASOLINE OR OTHER
FLAMMABLE LIQUIDS OR VAPORS IN THE VICINITY OF THIS APPLIANCE.
To locate an authorized servicer, please consult your telephone book or the dealer from whom you purchased this product.
For further assistance, please contact: CONSUMERINFORMATIONLINE
TOLLFREE1-855-770-5678 (U.S.only)
(Not a technical assistance line for dealers.)
emailusat:[e-mail]
fax us at: [phone]
IMPORTANTINFORMATION
OutsidetheU.S., call 1-713-861-2500.
(Nota technical assistance linefor dealers.)
Your telephone company will bill you for the call.
2
INDEX
IMPORTANTINFORMATION.........................................2
PRODUCTID ................................................................4
ACCESSORIES .......................................................... 15
PRODUCTDESIGN .................................................... 21
SYSTEMOPERATION................................................ 24
TROUBLESHOOTINGCHART..................................... 29
SERVICINGTABLEOFCONTENTS ........................... 29
SERVICING ................................................................ 30
WIRINGDIAGRAMS ................................................... 87

SAFE REFRIGERANT HANDLING
Whilethese items will not cover every conceivable situation, they should serve as a useful guide.
IMPORTANT INFORMATION
Thesuccessfuldevelopmentofhermeticallysealedrefrigera-
tioncompressorshascompletelysealedthe compressor's
movingpartsand electricmotorinsideacommon housing,
minimizing refrigerant leaks and the hazards sometimes
associated with moving belts, pulleys or couplings.
Fundamental to the design of hermetic compressors is a
method whereby electrical current is transmitted to the
compressormotorthroughterminalconductorswhichpass
throughthecompressorhousingwall. Theseterminalsare
sealedinadielectricmaterialwhichinsulatesthemfromthe
housing and maintains the pressure tight integrity of the
hermetic compressor. The terminals and their dielectric
embedmentarestronglyconstructed,butarevulnerableto
careless compressor installation or maintenance proce-
dures and equally vulnerable to internal electrical short
circuits caused by excessive system contaminants.
Ineither of these instances, an electrical short between the
terminalandthe compressor housing may result in theloss
of integrity between the terminal and its dielectric embed-
ment. This loss may cause the terminals to be expelled,
thereby venting the vaporous and liquid contents of the
compressor housing and system.
Aventingcompressorterminalnormallypresentsnodanger
toanyone,providingtheterminalprotectivecoverisproperly
in place.
If, however, the terminal protective cover is not properly in
place,aventingterminal may dischargeacombinationof
(a) hotlubricatingoilandrefrigerant
(b) flammable mixture (if system is contaminated
withair)
inastreamofspraywhichmaybedangeroustoanyoneinthe
vicinity. Death or serious bodily injury could occur.
Under no circumstances is a hermetic compressor to be
electrically energized and/or operated without having the
terminalprotectivecoverproperlyinplace.
SeeServiceSectionS-17forproperservicing.
WARNING
REFRIGERANTS ARE HEAVIER THAN AIR. THEY CAN "PUSH OUT" THE
OXYGEN IN YOUR LUNGS OR IN ANY ENCLOSED SPACE. TO AVOID
POSSIBLE DIFFICULTY IN BREATHING OR DEATH:
•NEVER PURGE REFRIGERANT INTO AN ENCLOSED ROOM OR SPACE. BY
LAW, ALL REFRIGERANTS MUST BE RECLAIMED.
•IF AN INDOOR LEAK IS SUSPECTED, THOROUGHLY VENTILATE THE AREA
BEFORE BEGINNING WORK.
•LIQUID REFRIGERANT CAN BE VERY COLD. TO AVOID POSSIBLE FROST-
BITE OR BLINDNESS, AVOID CONTACT WITH REFRIGERANT AND WEAR
GLOVES AND GOGGLES. IF LIQUID REFRIGERANT DOES CONTACT YOUR
SKIN OR EYES, SEEK MEDICAL HELP IMMEDIATELY.
•ALWAYS FOLLOW EPA REGULATIONS. NEVER BURN REFRIGERANT,
AS POISONOUS GAS WILL BE PRODUCED.
WARNING
SYSTEM CONTAMINANTS, IMPROPER SERVICE PROCEDURE AND/OR PHYSICAL
ABUSE AFFECTING HERMETIC COMPRESSOR ELECTRICAL TERMINALS MAY
CAUSE DANGEROUS SYSTEM VENTING.
WARNING
TO AVOID POSSIBLE INJURY, EXPLOSION OR DEATH, PRACTICE SAFE
HANDLING OF REFRIGERANTS.
WARNING
TO AVOID POSSIBLE EXPLOSION, USE ONLY RETURNABLE (NOT DISPOSABLE)
SERVICE CYLINDERS WHEN REMOVING REFRIGERANT FROM A SYSTEM.
• ENSURE THE CYLINDER IS FREE OF DAMAGE WHICH COULD LEAD TO A
LEAK OR EXPLOSION.
• ENSURE THE HYDROSTATIC TEST DATE DOES NOT EXCEED 5 YEARS.
• ENSURE THE PRESSURE RATING MEETS OR EXCEEDS 400 LBS.
WHEN IN DOUBT, DO NOT USE CYLINDER.
WARNING
TO AVOID POSSIBLE EXPLOSION:
• NEVER APPLY FLAME OR STEAM TO A REFRIGERANT CYLINDER. IF YOU
MUST HEAT A CYLINDER FOR FASTER CHARGING, PARTIALLY IMMERSE
IT IN WARM WATER.
• NEVER FILL A CYLINDER MORE THAN 80% FULL OF LIQUID REFRIGERANT.
• NEVER ADD ANYTHING OTHER THAN R-22 TO AN R-22 CYLINDER OR
R-410ATO AN R-410ACYLINDER. THE SERVICE EQUIPMENT USED MUST
BE LISTED OR CERTIFIED FOR THE TYPE OF REFRIGERANT USED.
• STORE CYLINDERS IN A COOL, DRY PLACE. NEVER USE A CYLINDER
AS A PLATFORM OR A ROLLER.
WARNING
THE UNITED STATES ENVIRONMENTAL PROTECTION AGENCY ("EPA")
HAS ISSUED VARIOUS REGULATIONS REGARDING THE INTRODUCTION AND
DISPOSAL OF REFRIGERANTS INTRODUCED INTO THIS UNIT. FAILURE TO
FOLLOW THESE REGULATIONS MAY HARM THE ENVIRONMENT AND CAN
LEAD TO THEH IMPOSITION OF SUBSTANTIAL FINES. THESE REGULATIONS
MAY VARY BY JURISDICTION. SHOULD QUESTIONS ARISE, CONTACT YOUR
LOCAL EPA OFFICE.
3

PRODUCT IDENTIFICATION
4
ComfortNet™
D X 16 T C 024 1 AA
1 2 3,4 5 6 7,8.9 10 11,12
Brand
D - Daikin brand Major/Minor Revisions
Type
XAC- R-410A 1 - 208/230V Single-Phase 60 Hz
Z3 - 208/230V Three-Phase 60 Hz
4 - 460V Three-Phase 60 Hz
SEER
16 - 16 SEER NominalCapacity
024 - 2 Tons
Compressor 036 - 3 Tons
S: Single Stage 048 - 4 Tons
T: Two Stage 060 - 5 Tons
Communication Feature
C: 4-Wire Communication Ready
HP R-410A
Engineering
Voltage

PRODUCT IDENTIFICATION
5
ComfortNet™

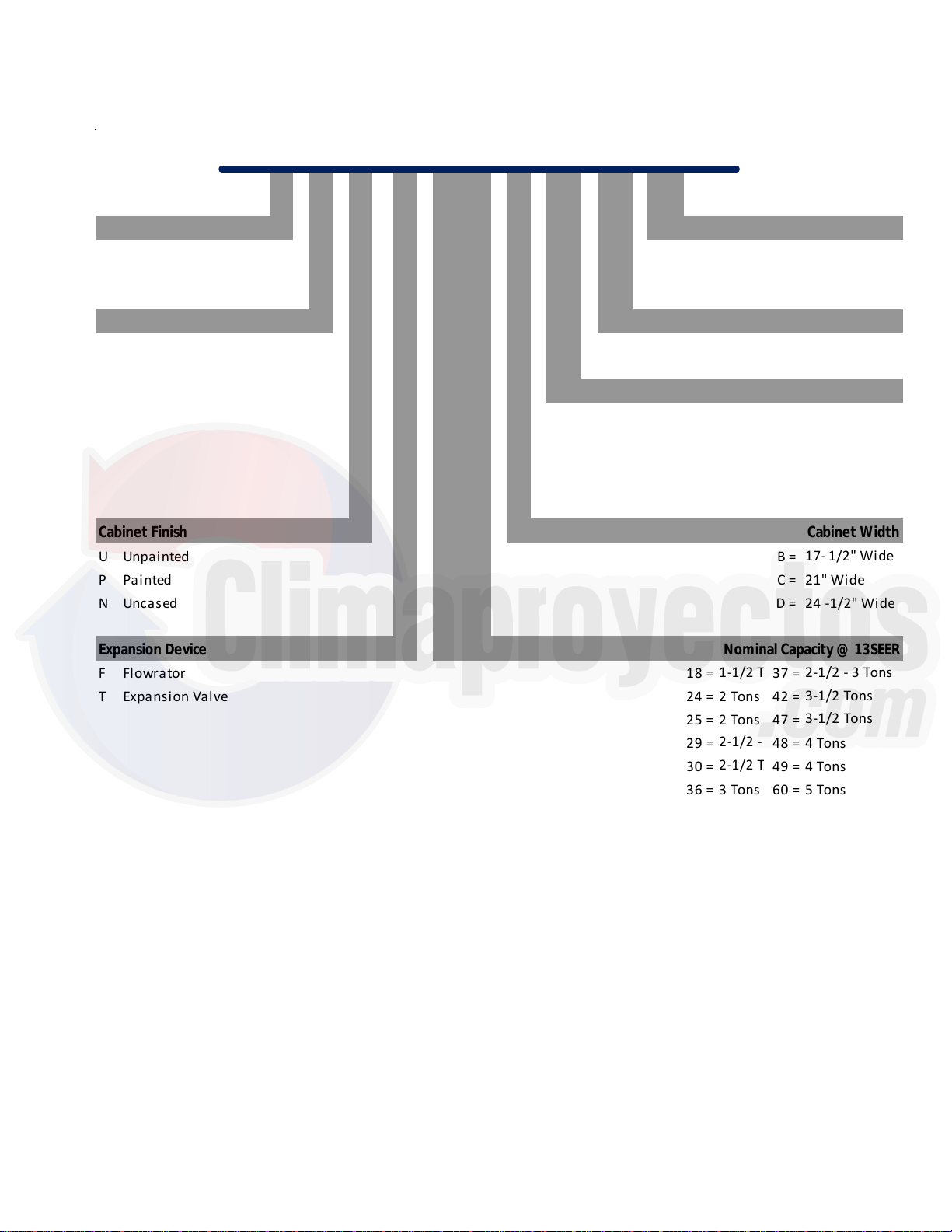

ARUF 18 B 1 4AA
1 2 3 4 5,6 7 8 9 10,11
Brand Engineering*
A Singl e-Pi ece
Ai rha ndl er
Unit Application Refrigerant Charge
C Ceiling Mount PSC Motor 4 = R-410a
R Mul ti Pos ition PSC Motor
S Multi Positi on EEM Motor Electrical
W Wall Mount PSC/EEM Motor 1 208/240V, 1 Phase, 60 Hz
Cabinet Finish
U Unpainted B = 17- 1/2" Wide
PPainted C = 21" Wide
NUncased D = 24 -1/2" Wide
Expansion Device
FFlowrator 18 = 1-1/2
T
37 = 2-1/2 - 3 Tons
TExpansionValve 24=2Tons42=
3-1/2 Tons
25 = 2 Tons 47 = 3-1/2 Tons
29 = 2-1/2 - 48 = 4 Tons
30 = 2-1/2
T
49 = 4 Tons
36 = 3 Tons 60 = 5 Tons
Nominal Capacity@ 13SEER
Major/Minor Revisions
Cabinet Width

PRODUCT IDENTIFICATION
6
C
A
P F 1824
A
6A
A
1 2 3 4 5,6,7,8 9 10 11,12
Brand Engineering*
C Indoor Coil
Refrigerant Charge
Unit Application 2 = R-22
A Upfl ow/Downfl ow Coi l 4 = R-410A
H Horizontal A-Coil 6 = R-410A or R-22
S
TNominal Width for Gas Furnace
A = Fits 14" Furnace Cabinet
B = Fits 17-1/2" Furnace Cabinet
C = Fits 21" Furnace Cabinet
D = Fits 24-1/2" Furnace Cabinet
N
=
Does Not Appl y (Hori zonta l Sl ab Coi l s
Cabinet Finish
U Unpainted 1-1/2 - 2 Tons
PPainted 2-1/2 Tons
N Unpainted Case 2-1/2 Tons
3 Tons
Expansion Device 3 - 3-1/2 Tons
FFlowrator 3 - 3-1/2 Tons
T4 - 5 Tons
Expansion Valve 4 - 5 Tons
Factory-Installed Non-Adjustable
Horizontal Slab Coil
Major/Minor Revisions
Coated Coils
Nominal Capacity @ 13 SEER
4961 =
1824 =
3030 =
3131 =
3636 =
3642 =
3743 =
4860 =

PRODUCT IDENTIFICATION
7
ComfortNet™
MB V C 12 00 A A 1
1,2 3 4 4 5,6 7 8 9
Brand
MB - Modular Blower 1: 208-230V/60Hz/1 P
H
Type A: First Series
V:
Communication Feature A: No Ci rc ui t Brea ker
C: 4-Wire Communication Ready B: Circuit Breaker
Airflow
12: 00 No Heat
16:
20:
Electrical
Design Series
Circuit Breaker
Factory Heat
1200 CFM
1600 CFM
2000 CFM
Speed

PRODUCT IDENTIFICATION
8
All Airhandlers use DIRECT DRIVE MOTORS.Power supply is AC 208-230v, 60 hz, 1 phase.
ComfortNet™

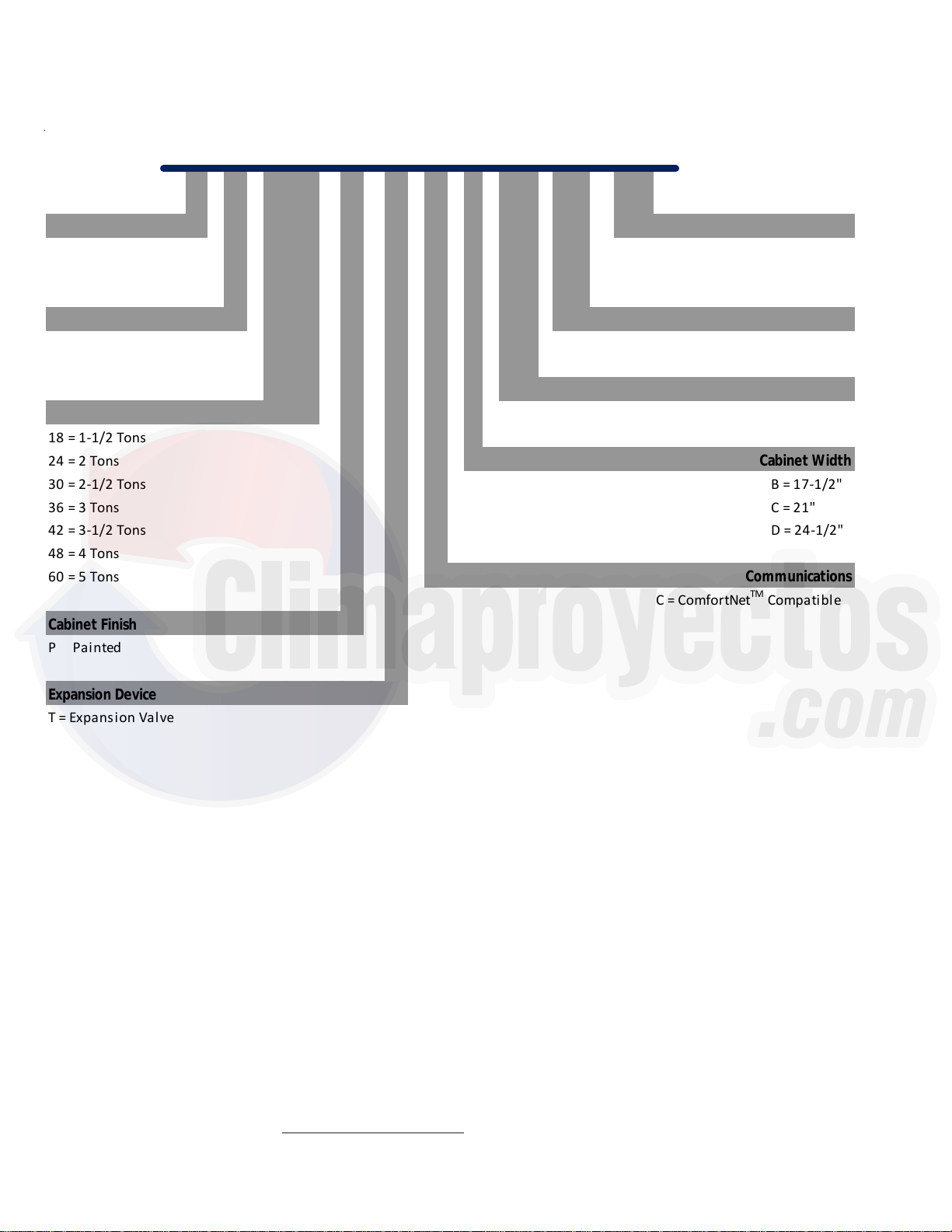

DV 18 P TCB1 4 AA
1 2 3,4 5 6 7 8 9 10 11,12
Brand
DDaikinSinglePiece
Ai rha ndl er
Unit Application
V
Nominal Capacity 1 208/240V, 1 Phase, 60 Hz
18 = 1-1/2 Tons
24 = 2 Tons
30 = 2-1/2 Tons
36 = 3 Tons
42 = 3-1/2 Tons
48 = 4 Tons
60 = 5 Tons
C = ComfortNetTM Compatible
Cabinet Finish
PPainted
Expansion Device
Multi Position
Electrical
C = 21"
D = 24-1/2"
Communications
4 = R-410A
Engineering*
Major/Minor Revisions
*Not used for inventory management
Refrigerant Charge
Variable Speed Motor
T = Expansion Valve
Cabinet Width
B = 17-1/2"

PRODUCT IDENTIFICATION
9
Model/Rev Description
DX16TC[024-060]1AA Introduces Daikin brand 2-stage 16 SEER condensing units with R-410A, communicating
models.
Model/Rev Description
DX18TC[024-060]1AA Introduces Daikin brand 2-stage 18 SEER condensing units with R-410A, communicating
models.
DX16TC
DAIKIN BRAND X [AC], 16 SEER, TWO STAGE COMPRESSOR, COMNUNICATING
DX18TC
DAIKIN BRAND X [AC], 18 SEER, TWO STAGE COMPRESSOR, COMNUNICATING

PRODUCT IDENTIFICATION
10
Model/Rev Description
DZ16TC[024-060]1AA Introduces Daikin brand 2-stage 16 SEER heat pump units with R-410A, communicating
models.
DZ16TC[024-060]1AB Introduces Daikin brand 2-stage 16 SEER heat pump units with SanHau reversing valves.
Model/Rev Description
DZ18TC[024-060]1AA Introduces Daikin brand 2-stage 18 SEER heat pump units with R-410A, communicating
models.
DZ18TC[024-060]1AB Introduces Daikin brand 2-stage 18 SEER heat pump units with SanHau reversing valves.
DZ16TC
DAIKIN BRAND X [HP], 16 SEER, TWO STAGE COMPRESSOR, COMNUNICATING
DZ18TC
DAIKIN BRAND X [HP], 18 SEER, TWO STAGE COMPRESSOR, COMNUNICATING

PRODUCT IDENTIFICATION
11
Model/Rev Description
DV24PTCB14AA
DV[30-36, 48]PTCC14AA
DV[42-60]PTCD14AA
Initial release of 13 SEER air handler with communicating control and serial
communicating indoor blower motor.
DV24PTCB14AB
DV[36, 48]PTCC14AB
DV[42-60]PTCD14AB Updating the shared data information for all DV**PTC communicating models.
DV24PTCB14AC
DV30PTCC14AB Heater Kit airflow update.
DV60PTCD14AB Updated S&R and travel labels.
DV**PTC*14
SINGLE PIECE DAIKIN AIR HANDLER MULTIPLE-POSITION VARIABLE SPEED
PAINTED TXV WITH 4-WIRE COMMUNICATING CONTROL

PRODUCT IDENTIFICATION
12
Model/Rev Description
MBVC1200AA-1AA
MBVC1600AA-1AA
MBVC2000AA-1AA
Initial release of module blower with variable seed blower motor with communicating
control & serial communicating motor.
MBVC1200AA-1AB
MBVC1600AA-1AB
MBVC2000AA-1AB
Replaced Emerson motors (013M00111 and 013M00112) with motors013M00270 and
013M0071, respectively.
MBVC1200AA-1AC
MBVC1600AA-1AC
MBVC2000AA-1AC Replaced insulation with 0.75" Quiet Flex Insulation. Quality Improvement.
MBVC1200AA-1AD
MBVC1600AA-1AD
MBVC2000AA-1AD
Replaced PCBJA101 communicating air handler control board (PCBJA101) with
PCBJA103.
MBVC
MODULAR BLOWER MULTIPLE-POSITION VARIABLE SPEED
WITH 4-WIRE COMMUNICATING CONTROL

PRODUCT IDENTIFICATION
13
Model/Rev Description
CAUF*****6AA Initial release of CAUF Dayton Upflow/Downflow coils.
CAUF*****6BA Burr Oak Louvered Fin released in place of the Wavy Fin.
CAUF****6*DA Replaced existing copper coils and other associated parts with aluminum components.
CAUF*****6DB Drain pan material changed.
CAUF1824A6RDB
CAUF1824B6RDB Manufacturing Location Change from Dayton to Houston. Designated by "R".
CAUF36***CA Redesign from 2 row to 3 row for performance improvement .
CAUF3030(A/B)6RDB
CAUF3030(C/D)6RDB
CAUF3131(B/C)6RDB Manufacturing Location Change from Dayton to Houston. Designated by "R".
CAUF
C-INDOOR COIL A-UPFLOW/DOWNFLOW UNCASED FLOWRATOR
Model/Rev Description
CAPF*****6AA Initial release of CAPF Dayton Upflow/Downflow coils.
CAPF*****6BA Burr Oak Louvered Fin released in place of the Wavy Fin.
CAPF36***CA Redesigned for performance improvement from 2 row to 3 row.
CAPF*****6DA Replaced existing copper coils and other associated parts with aluminum components.
CAPF*****6DB Drain pan material changed.
CAPF
C-INDOOR COIL A-UPFLOW/DOWNFLOW PAINTED FLOWRATOR
Model/Rev Description
CHPF*****6AA Intial release of 13 SEER CHPF horizontal A coil.
CHPF*****6BA Released Burr Oak Louvered Fin in place of the Wavy Fin. The rows changed by one, (i.e.
4 row to 3 row; 3 row to 2 row) where applicable.
CHPF1824A6CB
CHPF2430B6CB
CHPF3636B6CB
CHPF3642C6CB
CHPF3642D6CB
CHPF3743C6BB
CHPF3743D6BB
CHPF4860D6DB
Drain pan material changed.
CHPF
C-INDOOR COIL HORIZONTAL A-COIL PAINTED FLOWRATOR
Model/Rev Description
CAPT3131C4BA
CAPT3131C4BA Initial release of coils with factory-installed non-adjustable TXV.Development of single stage AHRI ratings for CAPT3131 NTC combinations.
CAPT3743C4AA
CAPT3743D4AA Initial release of coils with factory-installed non-adjustable TXV.Development of single stage AHRI ratings for CAPT3743 NTC combinations.
CAPT
C-INDOOR COIL A-UPFLOW/DOWNFLOW PAINTED TXV

PRODUCT IDENTIFICATION
14
Model/Rev Description
CSCF*****6AA Initial release of 13 SEER CSCF horizontal slab coils.
CSCF*****6BA Burr Oak Louvered Fin released in place of the Wavy Fin. Rows reduced by one where
applicable.
CSCF1824N6BB
CSCF3036N6BB
CSCF3642N6CB
CSCF4860N6CB
Drain pan material changed.
CSCF1824N6CA
CSCF3036N6CA
CSCF3642N6CA
CSCF4860N6CA
Replaced copper coils and other associated parts with aluminum components.
CSCF
C-INDOOR COIL S-HORIZONTAL SLAB COIL C-UNPAINTED FLOWRATOR

15
ACCESSORIES
DZ16TC / DZ18TC
Model Description DZ16TC024 DZ16TC036 DZ16TC048 DZ16TC060 DZ18TC036 DZ18TC048 DZ18TC060
ABK-20 Anchor Bracket Kit X X X X X X X
TX2N41 TXV Kit X
TX3N41 TXV Kit XX
TX5N41 TXV Kit XXXX
CSR- U-1 Ha rd-s ta rt Ki t X
CSR- U-2 Ha rd-s ta rt Ki t XX
CSR- U-3 Ha rd-s ta rt Ki t XXXX
FSK01A2FreezeProtectionKitX XXXXX X
OT18-60A3 Outdo or Thermosta t/
Lockout Thermos ta t X XXXXX X
B1141643 24V Tra ns fo rme r X XXXXX X
*
Contains 20 brackets; four brackets needed to anchor unit to pad
1
2
Installed on the indoor coil
3
4
This component is included in the CTK0*** communicating thermostat kit.
Field-installed, non-bleed, expansion valve kit - Condensing units and heap pumps with reciprocating compressors
require the use of start-assist components when used in conjunction with an indoor coil using a non-bleed thermal
expansion valve refrigerant
Available in 24V legacy mode only. This feature is integrated in the communicating mode. Required for heat pump
applications where ambient temperature fall below 0 °F with 50% or higher relati ve humidity.
Model Description DZ16TC024 DZ16TC036 DZ16TC048 DZ16TC060 DZ18TC036 DZ18TC048 DZ18TC060
ABK-20 Anchor Bracket Kit X X X X X X X
TX2N4
1
XtiKVXT
TX3N4
1
XXtiKVXT
TX5N4
1
XXXXtiKVXT
CSR-U-1 Hard-start Kit X
XXtiKtrats-draH2-U-RSC
XXXXtiKtrats-draH3-U-RSC
FSK01A
2
Freeze Protection Kit X X X X X X X
OT18-60A
3
Outdoor Thermostat/
Lockout Thermostat XX X XXX X
B1141643
4
24VTransformer XX X XXX X
* Contains 20 brackets; four brackets needed to anchor unit to pad
1
2
Installedontheindoorcoil
3
4
This component is included in the CTK0*** communicating thermostat kit.
DZ16TC /DZ18TC
Field-installed, non-bleed, expansion valve kit - Condensing units and heap pumps with reciprocating compressors require the
use of start-assist components when used in conjunction with an indoor coil using a non-bleed thermal expansion valve
refrigerant
Available in 24V legacy mode only. This feature is integrated in the communicating mode. Required for heat pump applications
where ambient temperature fall below 0 °F with 50% or higher relative humidity.

ACCESSORIES
16
SUCTION LINE BULB
1/4 FLARE CONNECTION
EXPANSION VALVE
EVAPORATOR COIL
REMOVE BEFORE INSTALLING EXPANSION VALVE
SEAL SUPPLIED W/ KIT
SEAL SUPPLIED W/ KIT
BULB TO BE LOCATED
AT 10 OR 2 O'CLOCK
ForApplications requiring
afieldinstalledaccessfitting
TAILPIECE
3/8"-
SWEAT
7/8" NUT
DISTRIBUTOR
BODY
PISTON
SEAL
EVAPORATOR COIL
1/4' FLARE
CONNECTION
BULB SUCTION LINE
EXPANSION VALVE
REMOVE BEFORE
INSTALLING
EXPANSION VALVE
SEAL SUPPLIED W/ KIT
SEAL SUPPLIED W/ KIT
BULB TOBE LOCATED
AT 10 OR 2 O'CLOCK
TAILPIECE
3/8"-
SWEAT
7/8" NUT
DISTRIBUTOR
BODY
PISTON
SEAL
For Applications not requiring
afieldinstalledaccessfitting
EXPANSIONVALVEKITS

17
ACCESSORIES
FSK01A
FREEZETHERMOSTAT
KIT
Install Line
Thermostat
Here
Install Line
Thermostat
Here
Wire Nut
Wire Nut
Y
Y
Black
Black
Wire Nut
Y
Wire Nut Y
Black
Black

ACCESSORIES
18

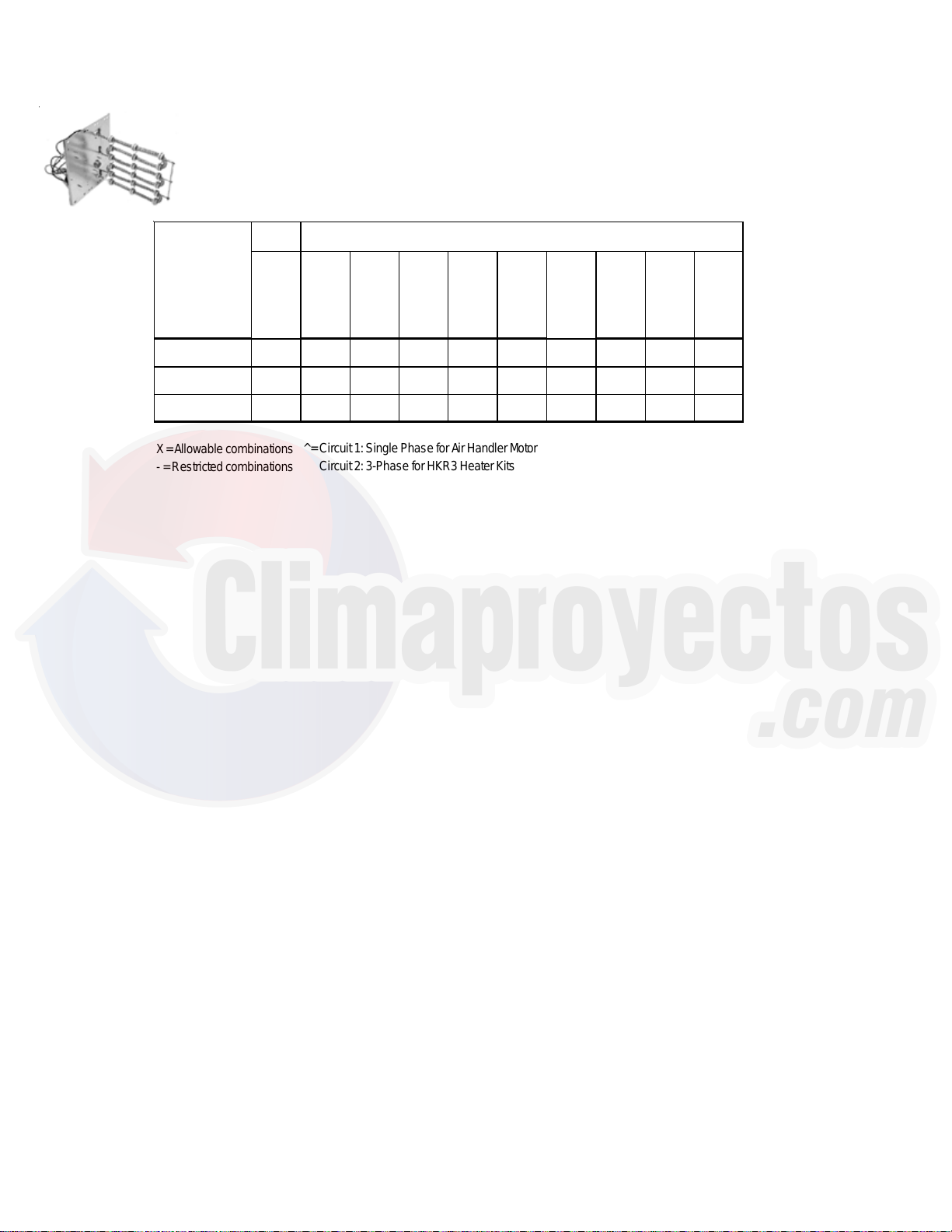

HK*SERIES ELETRIC HEAT KITS -
ELECTRIC HEAT KIT APPLICATIONS - MBVC
NO HEAT
HKR-03*
HKR05-(C)'
HKR-06*
HKR-08(C)* HKR-10(C)*
HKA-15C* HKA-20C*
^HKR3-15*
^HKR3-20A
MBVC1200AA-1** -XXXXXX- - -
MBVC1600AA-1** -XXXXXX- - -
MBVC2000AA-1** -XXXXX-X- -
X=Allowable combinations ^= Circuit 1: Single Phase for Air Handler Motor
- = Restricted combinations Circuit 2: 3-Phase for HKR3 Heater Kits
BLOWER
ELECTRIC HEAT KIT

19
ACCESSORIESELECTRICHEATKITAPPLICATIONS - AVPTC
* Revisionlevelthatmayormaynotbedesignated.
C Circuitbreakeroption.
NOTE:
When8kW and 10kW heat kits are usedwith an AVPTC1830 and AVPTC3137, matched with2- tonoutdoor unit, see Note 1below.
1Set Heater Kit dip switches 9, 10 and 11 to 6kW setting (9-ON, 10-OFF,11-ON) to obtain 840 CFM.
2Thisheaterkitcanonlybeusedfor‘1000CFMor higher’ applications.
3Thisheaterkitcanonlybeusedfor‘1200CFMor higher’ applications.
MODELS HKR-03* HKR-05*/-05C* HKR-06* HKR-08*/-08C* HKR-10*/-10C* HKR-15C* HKR-20C* HKR-21C* HKA-15C* HKA-20C*
AVPTC183014A* X X X X1X1--- --- --- --- ---
AVPTC313714A* X X X X1X1X2 --- --- X2X
AVPTC426014A* X X X X X X X3 X3 X X3

ACCESSORIES
20
†For match up with a 2 ton outdoor uni t: Hea ter kit a pplica Ɵon shall not exceed 10 kW.
Airflow for 5 kW u
p
to 10 kW hea ter ki ts s ha l l be set to 850 cfm s
p
eed ta
p
of ON-ON-ON.
††For match u
p
with a 3 ton outdoor uni t: Hea te r ki t a
pp
licaƟon shall not exceed 15 kW.
Airflow for 5 kW u
p
to 15 kW hea ter ki ts s hal l be set to 1400 cfm s
p
eed ta
p
of ON-ON-OFF.
†††For ma tch u
p
with a 3.5 ton outdoor uni t: Hea ter ki t a
pp
licaƟon shall not exceed 20 kW.
Airflow for 5 kW u
p
to 20 kW he a ter ki ts s hall be s et to 1620 cfm s
p
eed ta
p
of ON-ON-OFF
** 3 kW heater kit is not applicable for this indoor application.
DV**PTC14**
Heat Kit Applications
Type / Model 24B14-A* 30C14-A* 36C14-A* 48C14-A* 42D14-A*†48D14-A*†† 60D14-A*†††
HKSX03XC X X X
HKSX05XC XXXXXXX
HKSX06XC XXXXXXX
HKSX08XC XXXXXXX
HKSX10XC XXXXXXX
HKSX15XF* XXXXX
HKSX20XF* XXXXX
HKSC05XC XXXXXXX
HKSC08XC XXXXXXX
HKSC10XC XXXXXXX
HKSC15XA XXXXX
HKSC15XB XXXXX
HKSC15XF* XXXXX
HKSC19CA* X X
HKSC19CB* X X
HKSC20DA XXX
HKSC20DB XXX
HKSCX20XF* XXXXX
HKSC25DC* XX
* Revision level that mayor may not be designated.
Refer to the minimum airflowrequirements for each of the heat kits.
DVPTC
3 5 6 8 10 15 19 20 21 or 25
24B 550 650 700 800 850
30C 600 700 750 875 950
36C 850 900 1000 1200 1440 1500
48C 850 900 1000 1200 1440 1500
42D†850** 1250 1300 1500 1550 1720 1800
48D†† 1250 1300 1500 1550 1720 1815 1850
60D††† 1250 1300 1500 1550 1780 1850 1850
†For ma tch up wi th a 2 ton outdoor uni t: Hea ter ki t a ppl i ca Ɵon shall not exceed 10 kW.
Ai rfl ow for 5 kW up to 10 kW he a ter ki ts sha l l be s e t to 850 cfm s pe e d ta p of ON-ON-ON.
††For match up with a 3 ton outdoor unit: Heater kit applicaƟon s ha ll not exce ed 15 kW.
Ai rfl ow for 5 kW up to 15 kW he ate r kits s ha l l be s et to 1300 cfm s pe ed ta p of ON-OFF-ON.
†††For match up with a 3.5 ton outdoor unit: Heater kit applicaƟon s ha l l not e xceed 20 kW.
Ai rfl ow for 5 k W up to 20 kW h ea te r ki ts s ha l l be s e t to 1500 cfm s pe e d ta p of ON-OFF-OFF
** 3 kW heater kit is not applicable for this indoor application.
DV**PTC HEATER (kW)
Minimum CFM required for Heater Kits
Note: Airflow data shown appl ies to the electric heat only in either legacy mode or communicating mode operation
