Daikin EHBX04C3V Instruction manual

Heating
Technical Data
Daikin Altherma low temperature split
EEDEN12-725
EHBX-C

• Heating • Daikin Altherma low temperature split 1
• • Daikin Altherma low temperature split • EHBX-C
TABLE OF CONTENTS
EHBX-C
1Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Combination table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Combination Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5 Capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Domestic Hot Water performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

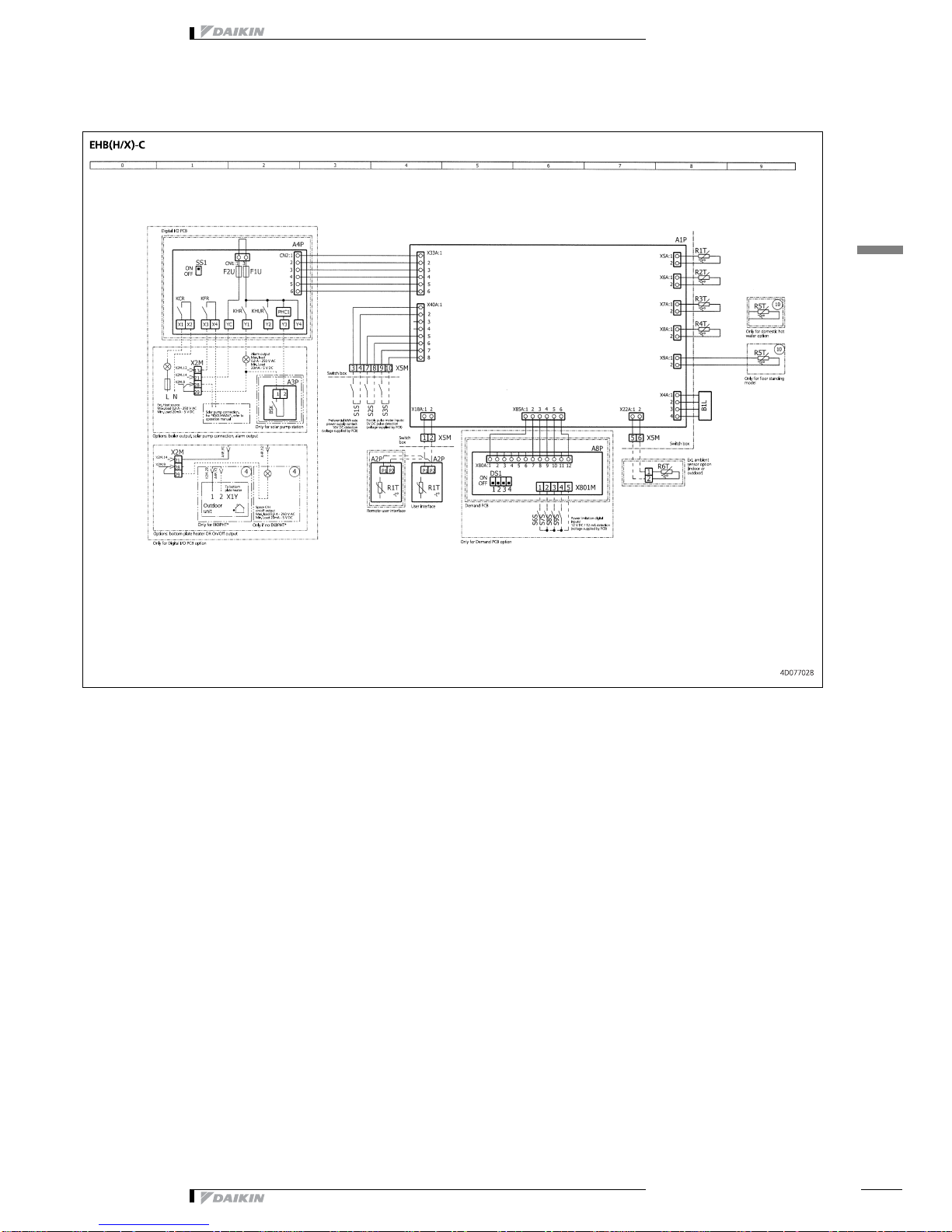

8 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Wiring Diagrams ... . ................................. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
9 External connection diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
External Connection Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

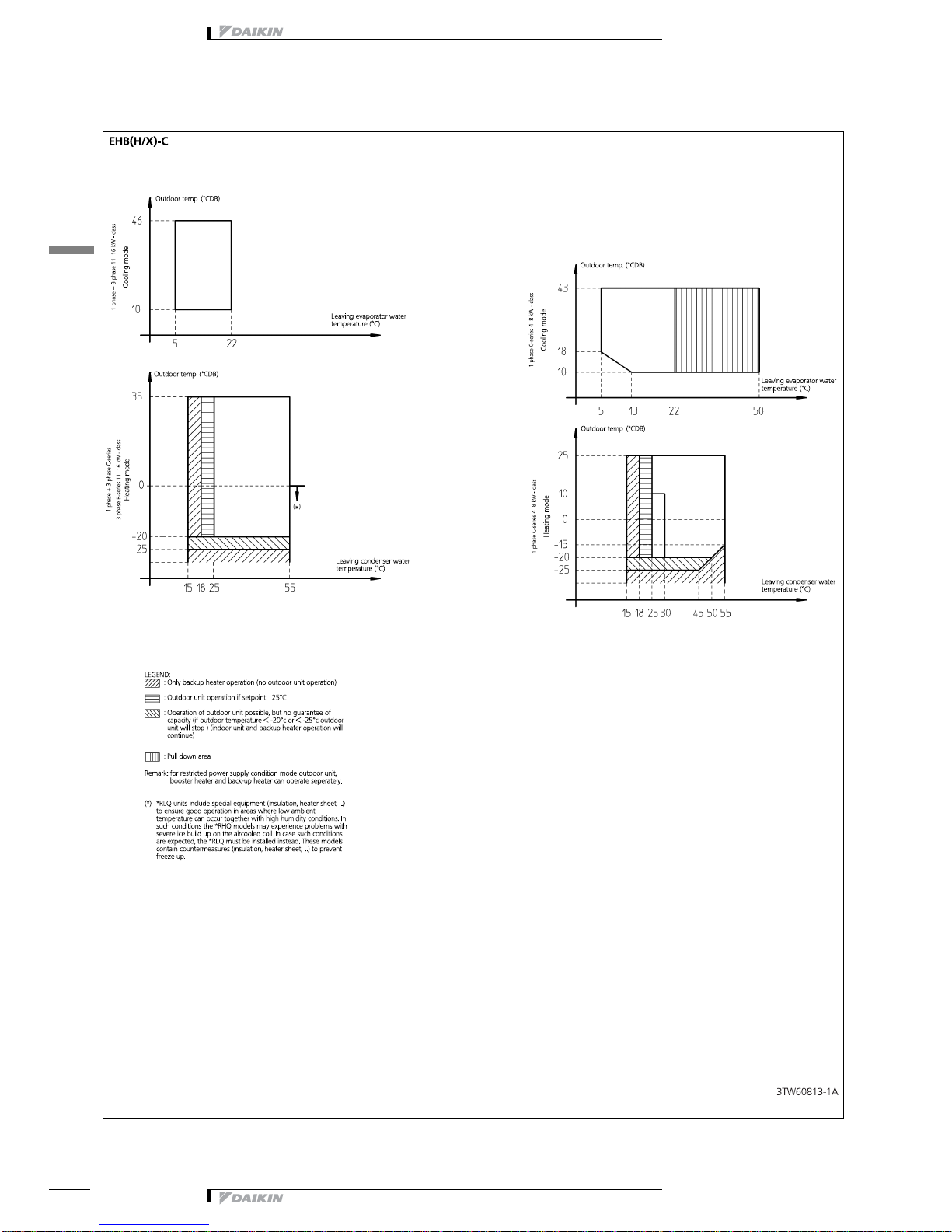

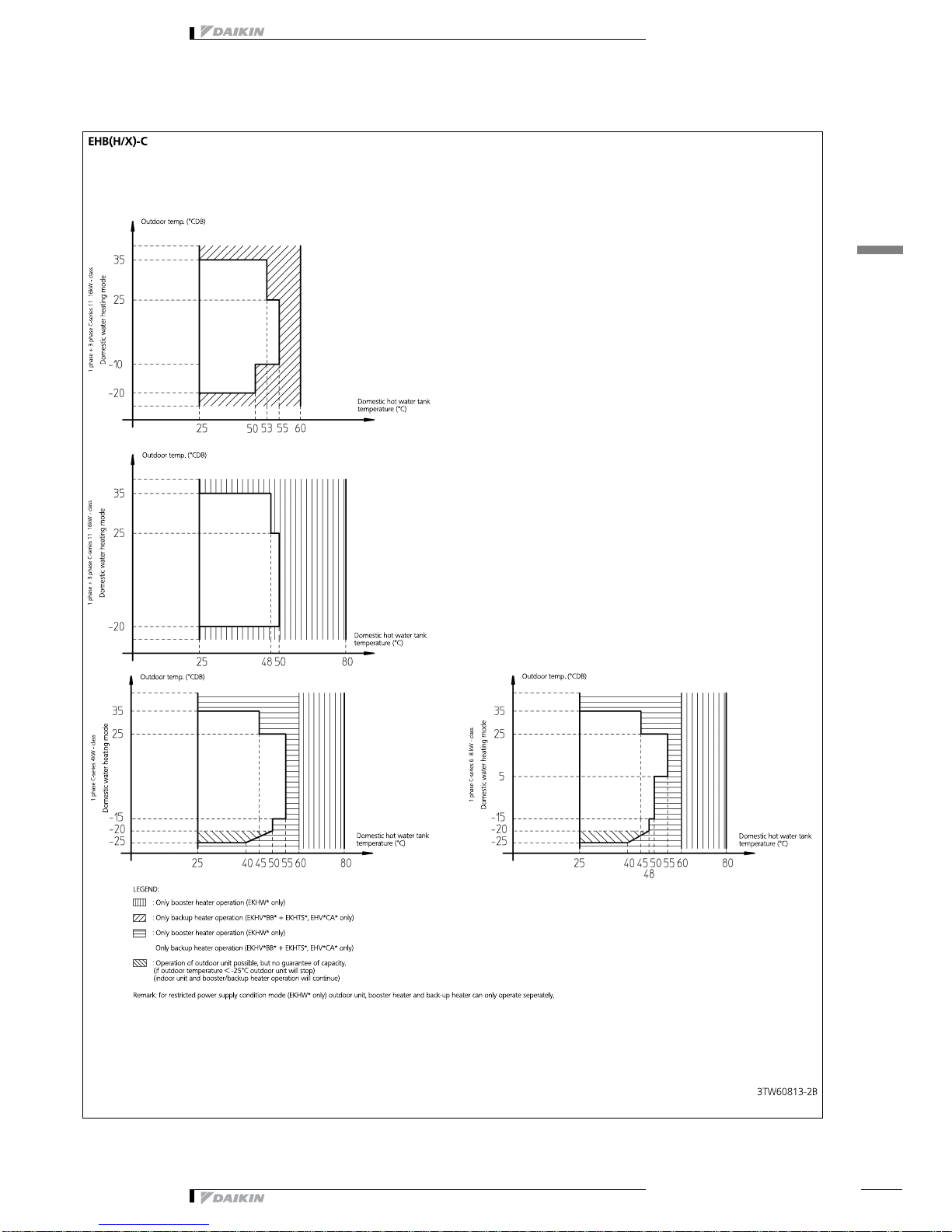

10 Operation range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Operation Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
11 Hydraulic performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Static Pressure Drop Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

• Daikin Altherma low temperature split • EHBX-C
1
1
• Heating • Daikin Altherma low temperature split
2

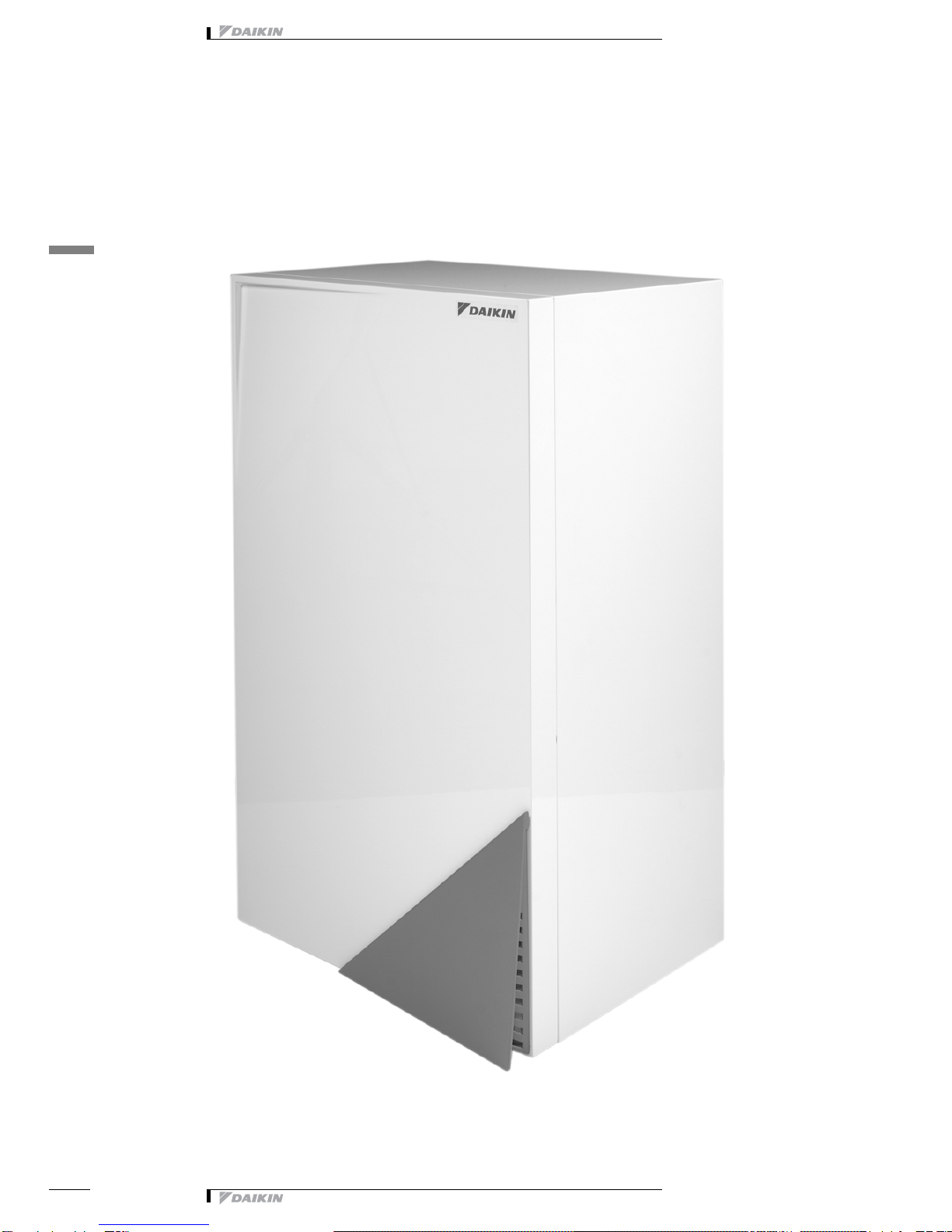

1 Features
HeatingEHBX-CDaikin Alth • Wall mounted indoor unit
• Energy efficient heating and cooling system based on air to water
heat pump technology
• Flexible configuration with respect to heat emitters

• Daikin Altherma low temperature split • EHBX-C
1
2
• Heating • Daikin Altherma low temperature split
3
2 Specifications
2-1 Technical Specifications EHBX04C3V EHBX08C3V EHBX08C9W EHBX16C3V EHBX16C9W
Power input Nom. kW 0.075 0.180
Casing Colour White
Material Precoated sheet metal
Dimensions Unit Height mm 890
Width mm 480
Depth mm 344
Packed unit Height mm 415
Width mm 650
Depth mm 1,016
Weight Unit kg 44 46 48 45 48
Packed unit kg 47 49 51 48 51
Packing Material Carton / EPS / PP
(Straps)
Carton / EPS / PP
(Straps)
Carton / EPS / PP
(Straps)
Carton / EPS / PP
(Straps)
Carton / EPS / PP
(Straps)
Weight kg 2.8
Pump Type DC motor
Nr of speeds Inverter controlled
Power input W 45 150
Expansion vessel Volume l 10
Max. water pressure bar 3
Pre pressure bar 1
Operation range Heating Ambien
t
Min. ºC -25 -25 (11)
Max. ºC 25 35 (11)
Water
side
Min. ºC 15 (5)
Max. ºC 55 (5)
Cooling Ambien
t
Min. ºCDB 10
Max. ºCDB 43 46
Water
side
Min. ºC 5
Max. ºC 22
Domestic hot water Ambien
t
Min. ºCDB -25 -20
Max. ºCDB 35
Water
side
Min. ºC 25
Max. ºC 80
Water side Heat
exchanger
Type Brazed plate
Quantity 1
Water volume l 0.9 1.3 1.0
Water flow rate Min. l/min 5.0 11.0
Heating Max. l/min 25 34 51
Cooling Max. l/min 25 34 51
Cooling Insulation material Elastomeric foam
Refrigerant circuit Gas side diameter mm 15.9
Liquid side diameter mm 6.35 9.52
Sound power level Nom. dBA 40 (2) 47
Sound pressure level Nom. dBA 26 33
Water filter Diameter perforations mm 1
Material copper - brass - stainless steel
Water circuit Piping connections diameter inch G 1"1/4 (female)
Safety valve bar 3
Manometer Yes
Drain valve / fill valve Yes
Shut off valve Yes
Air purge valve Yes
Total water volume l 3 (6) 4 (6) 5 (6) 4 (6) 5 (6)
PED Category Art3§3 Category I Art3§3
Most critical part Name - Plate heat exchanger -
Ps*V Bar*l - 51.0 (0.000) -

3
1
2
• Heating • Daikin Altherma low temperature split 4
• Daikin Altherma low temperature split • EHBX-C
2 Specifications
2-2 Electrical Specifications EHBX04C3V EHBX08C3V EHBX08C9W EHBX16C3V EHBX16C9W
Power supply Voltage range Min. % 10
Max. % 10

• Daikin Altherma low temperature split • EHBX-C
1
2
• Heating • Daikin Altherma low temperature split
5
2 Specifications
Wiring connections Communication
cable
Quantity 3
Remark 2,5 mm²
Electric meter Quantity 2
Remark Minimum 0,75 mm² (5VDC pulse detection)
Preferential kWh
rate power supply
Quantity Signal: 2 / Power:
2
Signal: 2 / Power:
2
Signal: 2 / Power:
2
Signal: 2 / Power:
2
Signal: 2 / Power:
2
Remark Power 6,3A
(Select diameter
and type
according to
national and local
regulations) /
Signal: 0,75 mm²
till 1,25 mm² (max
length 50m)
Power 6,3A
(Select diameter
and type
according to
national and local
regulations) /
Signal: 0,75 mm²
till 1,25 mm² (max
length 50m)
Power 6,3A
(Select diameter
and type
according to
national and local
regulations) /
Signal: 0,75 mm²
till 1,25 mm² (max
length 50m)
Power 6,3A
(Select diameter
and type
according to
national and local
regulations) /
Signal: 0,75 mm²
till 1,25 mm² (max
length 50m)
Power 6,3A
(Select diameter
and type
according to
national and local
regulations) /
Signal: 0,75 mm²
till 1,25 mm² (max
length 50m)
Domestic hot water
pump
Quantity 2
Remark Minimum 0,75 mm² (2A inrush, 1A continuous)
For power supply
connection to
optional *KHW*
Quantity 3G
Remark 13A (Select diameter and type according to national and local regulations)
For connection to
optional *KHW*
model + Q2L
Quantity 5G
Remark Select diameter
and type
according to
national and local
regulations / For
more details of the
voltage range and
current, refer to
installation manual
Select diameter
and type
according to
national and local
regulations / For
more details of the
voltage range and
current, refer to
installation manual
Select diameter
and type
according to
national and local
regulations / For
more details of the
voltage range and
current, refer to
installation manual
Select diameter
and type
according to
national and local
regulations / For
more details of the
voltage range and
current, refer to
installation manual
Select diameter
and type
according to
national and local
regulations / For
more details of the
voltage range and
current, refer to
installation manual
For connection with
R5T
Quantity Wire included in option *KHW*
Remark Wire included in option *KHW*
For connection with
R6T
Quantity 2
Remark Minimum 0,75 mm²
For connection with
A3P
Remark Select diameter &
type according to
national & local
regulations /
Voltage: 230V /
Max.current:
100mA / Min.
0.75mm²
Select diameter &
type according to
national & local
regulations /
Voltage: 230V /
Max.current:
100mA / Min.
0.75mm²
Select diameter &
type according to
national & local
regulations /
Voltage: 230V /
Max.current:
100mA / Min.
0.75mm²
Select diameter &
type according to
national & local
regulations /
Voltage: 230V /
Max.current:
100mA / Min.
0.75mm²
Select diameter &
type according to
national & local
regulations /
Voltage: 230V /
Max.current:
100mA / Min.
0.75mm²
For connection with
M2S
Quantity 2
Remark Voltage: 230V /
Max.current:
100mA / Min.
0.75mm² / Select
diameter & type
according to
national & local
regulations
Voltage: 230V /
Max.current:
100mA / Min.
0.75mm² / Select
diameter & type
according to
national & local
regulations
Voltage: 230V /
Max.current:
100mA / Min.
0.75mm² / Select
diameter & type
according to
national & local
regulations
Voltage: 230V /
Max.current:
100mA / Min.
0.75mm² / Select
diameter & type
according to
national & local
regulations
Voltage: 230V /
Max.current:
100mA / Min.
0.75mm² / Select
diameter & type
according to
national & local
regulations
For connection with
M3S
Quantity 3
Remark Select diameter &
type according to
national & local
regulations /
Voltage: 230V /
Max.current:
100mA / Min.
0.75mm²
Select diameter &
type according to
national & local
regulations /
Voltage: 230V /
Max.current:
100mA / Min.
0.75mm²
Select diameter &
type according to
national & local
regulations /
Voltage: 230V /
Max.current:
100mA / Min.
0.75mm²
Select diameter &
type according to
national & local
regulations /
Voltage: 230V /
Max.current:
100mA / Min.
0.75mm²
Select diameter &
type according to
national & local
regulations /
Voltage: 230V /
Max.current:
100mA / Min.
0.75mm²
For connection with
bottom plate heater
Quantity 2
Remark Select diameter and type according to national and local regulations
For connection with
optional FWXV*
(demand input and
output)
Quantity 4
Remark 100 mA, minimum 0,75 mm²
2-2 Electrical Specifications EHBX04C3V EHBX08C3V EHBX08C9W EHBX16C3V EHBX16C9W

3
1
2
• Heating • Daikin Altherma low temperature split 6
• Daikin Altherma low temperature split • EHBX-C
2 Specifications
Notes
(1) With option kit *KHBDP installed: Height = XXX mm
(2) DB/WB 7ºC/6ºC - LWC 35ºC (DT=5ºC)
(3) The sound pressure level is measured via a microphone at a 1m distance from the unit. It is a relative value, depending on the distance and acoustic environment.
(4) The sound pressure level mentioned is maximum possible value inside operation range of unit
(5) 15ºC-25ºC: BUH only, no heat pump operation = during commisioning
(6) Including piping + PHE + back-up heater; excluding expansion vessel
(7) Value mentioned is connection after ball valves, Connection at unit is G1-1/4 FEMALE
(8) See separate drawing for operation range
(9) \> 50ºC BSH only, no heatpump operation
(10) BUH 3V/9W can only operate at flow \> 12/15 l/min
(11) Refer to operation range for detail for differences between *RHQ* and *RLQ* models
(12) PED unit category: Art3§3: excluded from scope of PED due to article 1, item 3.6 of 97/23/EC

• Daikin Altherma low temperature split • EHBX-C
1
3
• Heating • Daikin Altherma low temperature split
7
3 Electrical data
3 - 1 Electrical Data
∼ ∼ ∼ ∼ ∼ ∼ ∼ ∼ ∼
∼
∼
∼
∼
∼
∼
∼ ∼ ∼ ∼ ∼ ∼

3
1
4
• Heating • Daikin Altherma low temperature split 8
• Daikin Altherma low temperature split • EHBX-C
4 Combination table
4 - 1 Combination Table
∼
∼
∼
∼
∼
∼
∼
∼
∼
∼
∼
∼
∼
∼
∼
∼
∼
∼
∼
∼
∼

• Daikin Altherma low temperature split • EHBX-C
1
5
• Heating • Daikin Altherma low temperature split
9
5 Capacity tables
5 - 1 Domestic Hot Water performance
′ ′

3
1
6
• Heating • Daikin Altherma low temperature split 10
• Daikin Altherma low temperature split • EHBX-C
6 Dimensional drawings
6 - 1 Dimensional Drawings
″
″
″
″
″
″

• Daikin Altherma low temperature split • EHBX-C
1
7
• Heating • Daikin Altherma low temperature split
11

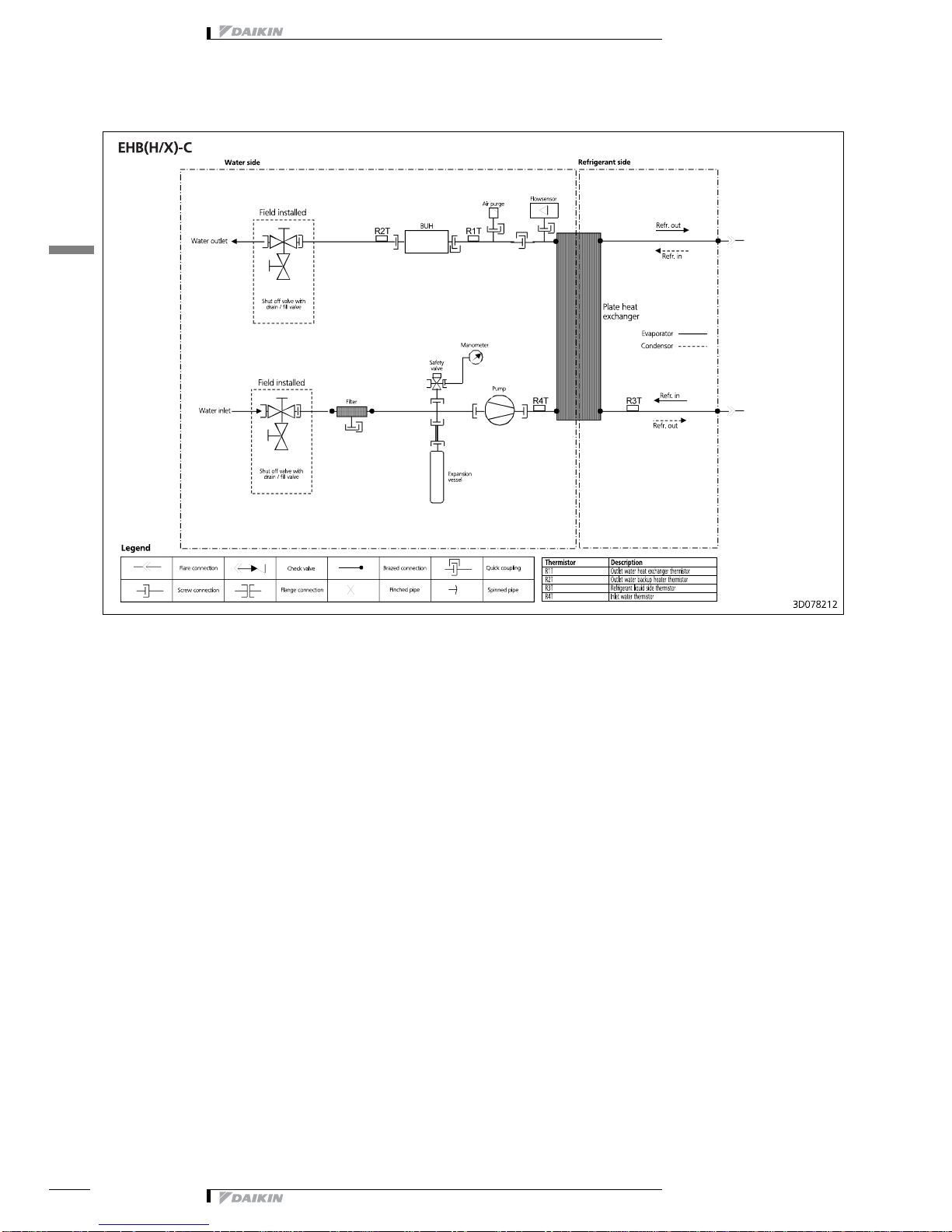

7 Piping diagrams
7 - 1 Piping Diagrams

3
1
8
• Heating • Daikin Altherma low temperature split 12
• Daikin Altherma low temperature split • EHBX-C
8 Wiring diagrams
8 - 1 Wiring Diagrams
∼∼
∼
∼
∼

• Daikin Altherma low temperature split • EHBX-C
1
8
• Heating • Daikin Altherma low temperature split
13
8 Wiring diagrams
8 - 1 Wiring Diagrams
∼
∼
∼
∼
∼∼ ∼ ∼ ∼
∼
∼
∼

3
1
8
• Heating • Daikin Altherma low temperature split 14
• Daikin Altherma low temperature split • EHBX-C
8 Wiring diagrams
8 - 1 Wiring Diagrams

• Daikin Altherma low temperature split • EHBX-C
1
8
• Heating • Daikin Altherma low temperature split
15
8 Wiring diagrams
8 - 1 Wiring Diagrams
∼

3
1
9
• Heating • Daikin Altherma low temperature split 16
• Daikin Altherma low temperature split • EHBX-C
9 External connection diagrams
9 - 1 External Connection Diagrams

• Daikin Altherma low temperature split • EHBX-C
1
10
• Heating • Daikin Altherma low temperature split
17
10 Operation range
10 - 1 Operation Range
≥
∼
∼
∼
∼

3
1
10
• Heating • Daikin Altherma low temperature split 18
• Daikin Altherma low temperature split • EHBX-C
10 Operation range
10 - 1 Operation Range
∼
∼
∼
