Daikin FXFQ09PVJU User manual

INSTALLATION MANUAL
English
Français
Español
SYSTEM Inverter Heat Pump
MODELS
Ceiling mounted cassette type (Round flow model)
FXFQ09PVJU FXFQ30PVJU
FXFQ12PVJU FXFQ36PVJU
FXFQ18PVJU FXFQ48PVJU
FXFQ24PVJU
READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION.
KEEP THIS MANUAL IN A HANDY PLACE FOR FUTURE REFERENCE.
LIRE SOIGNEUSEMENT CES INSTRUCTIONS AVANT L’INSTALLATION.
CONSERVER CE MANUEL A PORTEE DE MAIN POUR REFERENCE ULTERIEURE.
LEA CUIDADOSAMENTE ESTAS INSTRUCCIONES ANTES DE INSTALAR.
GUARDE ESTE MANUAL EN UN LUGAR A MANO PARA LEER EN CASO DE TENER
ALGUNA DUDA.
00_CV_3P161684-5H.fm Page 1 Thursday, October 21, 2010 1:26 PM

English 1
VRV SYSTEM Inverter Heat Pump Installation manual
CONTENTS
1. SAFETY CONSIDERATIONS........................................................................................ 1
2. BEFORE INSTALLATION.............................................................................................. 3
3. SELECTING INSTALLATION SITE ............................................................................... 6
4. PREPARATIONS BEFORE INSTALLATION ................................................................ 7
5. INDOOR UNIT INSTALLATION..................................................................................... 9
6. REFRIGERANT PIPING WORK.................................................................................. 10
7. DRAIN PIPING WORK ................................................................................................ 13
8. ELECTRIC WIRING WORK......................................................................................... 16
9. WIRING EXAMPLE AND HOW TO SET THE REMOTE CONTROLLER ................... 17
10. INSTALLATION OF THE DECORATION PANEL...........................................................24
11. FIELD SETTING .......................................................................................................... 24
12. TEST OPERATION...................................................................................................... 26
1. SAFETY CONSIDERATIONS
Read these “SAFETY CONSIDERATIONS for Installation” carefully before installing air conditioning equip-
ment. After completing the installation, make sure that the unit operates properly during the startup operation.
Instruct the customer on how to operate and maintain the unit. Inform customers that they should store this
Installation Manual with the Operation Manual for future reference.
Always use a licensed installer or contractor to install this product. Improper installation can result in water or
refrigerant leakage, electrical shock, fire, or explosion.
Meanings of DANGER, WARNING, CAUTION, and NOTE Symbols:
DANGER ........... Indicates an imminently hazardous situation which, if not avoided, will result in death
or serious injury.
WARNING ......... Indicates a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
CAUTION .......... Indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury. It may also be used to alert against unsafe practices.
NOTE................. Indicates situations that may result in equipment or property-damage accidents only.
DANGER
•Refrigerant gas is heavier than air and replaces oxygen. A massive leak can lead to oxygen depletion,
especially in basements, and an asphyxiation hazard could occur leading to serious injury or death.
•Do not ground units to water pipes, gas pipes, telephone wires, or lightning rods as incomplete grounding
can cause a severe shock hazard resulting in severe injury or death. Additionally, grounding to gas pipes
could cause a gas leak and potential explosion causing severe injury or death.
•If refrigerant gas leaks during installation, ventilate the area immediately. Refrigerant gas may produce toxic
gas if it comes in contact with fire. Exposure to this gas could cause severe injury or death.
•After completing the installation work, check that the refrigerant gas does not leak throughout the system.
•Do not install unit in an area where flammable materials are present due to risk of explosions that can cause
serious injury or death.
01_EN_3P161684-5H.fm Page 1 Thursday, October 21, 2010 1:18 PM

2English
•Safely dispose all packing and transportation materials in accordance with federal/state/local laws or ordi-
nances. Packing materials such as nails and other metal or wood parts, including plastic packing mate-
rials used for transportation may cause injuries or death by suffocation.
WARNING
•Only qualified personnel must carry out the installation work. Installation must be done in accordance with
this installation manual. Improper installation may result in water leakage, electric shock, or fire.
•When installing the unit in a small room, take measures to keep the refrigerant concentration from exceed-
ing allowable safety limits. Excessive refrigerant leaks, in the event of an accident in a closed ambient
space, can lead to oxygen deficiency.
•Use only specified accessories and parts for installation work. Failure to use specified parts may result in
water leakage, electric shocks, fire, or the unit falling.
•Install the air conditioner on a foundation strong enough that it can withstand the weight of the unit. A foun-
dation of insufficient strength may result in the unit falling and causing injuries.
•Take into account strong winds, typhoons, or earthquakes when installing. Improper installation may result
in the unit falling and causing accidents.
•Make sure that a separate power supply circuit is provided for this unit and that all electrical work is carried
out by qualified personnel according to local, state, and national regulations. An insufficient power supply
capacity or improper electrical construction may lead to electric shocks or fire.
•Make sure that all wiring is secured, that specified wires are used, and that no external forces act on the ter-
minal connections or wires. Improper connections or installation may result in fire.
•
When wiring, position the wires so that the control box lid can be securely fastened. Improper positioning of
the control box lid may result in electric shocks, fire, or the terminals overheating.
•Before touching electrical parts, turn off the unit.
•Be sure to install a ground fault circuit interrupter if one is not already available. This helps prevent electrical
shocks or fire.
•Securely fasten the outside unit terminal cover (panel). If the terminal cover/panel is not installed properly,
dust or water may enter the outside unit causing fire or electric shock.
•When installing or relocating the system, keep the refrigerant circuit free from substances other than the
specified refrigerant (R410A) such as air. Any presence of air or other foreign substance in the refrigerant
circuit can cause an abnormal pressure rise or rupture, resulting in injury.
•Do not change the setting of the protection devices. If the pressure switch, thermal switch, or other pro-
tection device is shorted and operated forcibly, or parts other than those specified by Daikin are used, fire
or explosion may occur.
CAUTION
•Do not touch the switch with wet fingers. Touching a switch with wet fingers can cause electric shock.
•Do not allow children to play on or around the unit to prevent injury.
•Do not touch the refrigerant pipes during and immediately after operation as the refrigerant pipes may be
hot or cold, depending on the condition of the refrigerant flowing through the refrigerant piping, compressor,
and other refrigerant cycle parts. Your hands may suffer burns or frostbite if you touch the refrigerant pipes.
To avoid injury, give the pipes time to return to normal temperature or, if you must touch them, be sure to
wear proper gloves.
•Heat exchanger fins are sharp enough to cut.
To avoid injury wear glove or cover the fins when working around them.
•Install drain piping to proper drainage. Improper drain piping may result in water leakage and property dam-
age.
•Insulate piping to prevent condensation.
•Be careful when transporting the product.
•Do not turn off the power immediately after stopping operation. Always wait for at least 5 minutes before
turning off the power. Otherwise, water leakage may occur.
•Do not use a charging cylinder. Using a charging cylinder may cause the refrigerant to deteriorate.
01_EN_3P161684-5H.fm Page 2 Thursday, October 21, 2010 1:18 PM

English 3
•Refrigerant R410A in the system must be kept clean, dry, and tight.
(a) Clean and Dry -- Foreign materials (including mineral oils such as SUNISO oil or moisture) should be
prevented from getting into the system.
(b) Tight -- R410A does not contain any chlorine, does not destroy the ozone layer, and does not reduce
the earth’s protection again harmful ultraviolet radiation. R410A can contribute to the greenhouse effect
if it is released. Therefore take proper measures to check for the tightness of the refrigerant piping
installation. Read the chapter Refrigerant Piping and follow the procedures.
•Since R410A is a blend, the required additional refrigerant must be charged in its liquid state. If the refrig-
erant is charged in a state of gas, its composition can change and the system will not work properly.
•The indoor unit is for R410A. See the catalog for indoor models that can be connected. Normal operation
is not possible when connected to other units.
•Indoor units are for indoor installation only. Outdoor units can be installed either outdoors or indoors.
•Do not install the air conditioner in the following locations:
(a) Where a mineral oil mist or oil spray or vapor is produced, for example, in a kitchen.
Plastic parts may deteriorate and fall off or result in water leakage.
(b) Where corrosive gas, such as sulfurous acid gas, is produced.
Corroding copper pipes or soldered parts may result in refrigerant leakage.
(c) Near machinery emitting electromagnetic waves.
Electromagnetic waves may disturb the operation of the control system and cause the unit to malfunction.
(d) Where flammable gas may leak, where there is carbon fiber, or ignitable dust suspension in the air, or
where volatile flammables such as thinner or gasoline are handled. Operating the unit in such condi-
tions can cause a fire.
•Take adequate measures to prevent the outside unit from being used as a shelter by small animals. Small
animals making contact with electrical parts can cause malfunctions, smoke, or fire. Instruct the customer
to keep the area around the unit clean.
NOTE
•Install the power supply and control wires for the indoor and outdoor units at least 3.5 feet away from tele-
visions or radios to prevent image interference or noise. Depending on the radio waves, a distance of
3.5 feet may not be sufficient to eliminate the noise.
•Dismantling the unit, treatment of the refrigerant, oil and additional parts must be done in accordance with
the relevant local, state, and national regulations.
•
Do not use the following tools that are used with conventional refrigerants: gauge manifold, charge hose, gas leak
detector, reverse flow check valve, refrigerant charge base, vacuum gauge, or refrigerant recovery equipment.
•If the conventional refrigerant and refrigerator oil are mixed in R410A, the refrigerant may deteriorate.
•This air conditioner is an appliance that should not be accessible to the general public.
•The wall thickness of field-installed pipes should be selected in accordance with the relevant local, state,
and national regulations.
2. BEFORE INSTALLATION
Do not exert pressure on the resin parts when opening the unit or when moving it after opening.
Be sure to check the type of R410A refrigerant to be used before doing any work. (Using an incorrect
refrigerant will prevent normal operation of the unit.)
•When opening the unit or moving it after opening, be sure to lift it by holding on to the lifting lugs without
exerting any pressure on other parts, especially, drain piping, and other resin parts.
•Decide upon a line of transport.
•Leave the unit inside its packaging while moving, until reaching the installation site. Use a sling of soft mate-
rial, where unpacking is unavoidable or protective plates together with a rope when lifting, to avoid damage
or scratches to the unit.
•Refer to the installation manual of the outdoor unit for items not described in this manual.
•Do not dispose of any parts necessary for installation until the installation is complete.
01_EN_3P161684-5H.fm Page 3 Thursday, October 21, 2010 1:18 PM

4English
1. PRECAUTIONS
•Be sure to read this manual before installing the indoor unit.
•When selecting installation site, refer to the paper pattern.
•This unit is suitable for installation in a household, commercial and light industrial environment.
•Do not install or operate the unit in rooms mentioned below.
•Laden with mineral oil, or filled with oil vapor or spray like in kitchens. (Plastic parts may deteriorate.)
•Where corrosive gas like sulfurous gas exists. (Copper tubing and brazed spots may corrode.)
•Where volatile flammable gas like thinner or gasoline is used.
•Where machines can generate electromagnetic waves. (Control system may malfunction.)
•Where the air contains high levels of salt such as that near the ocean and where voltage fluctuates
greatly such as that in factories. Also in vehicles or vessels.
2. ACCESSORIES
Check the following accessories are included with your unit.
Name (1) Drain hose (2) Metal clamp
(3) Washer for
hanger bracket
(4) Clamp (5) Paper pattern
for installation
Quantity 1 pc. 1 pc. 8 pcs. 6 pcs. 1 pc.
Shape
Also used as
packing material
Name (6) Screw (M4) (7) Washer
fixing plate
Insulation for
fitting Sealing pad
Quantity 4 pcs. 4 pcs. 1 each 1 each 1 pc. 1 pc.
Shape
(13) Small
Name Installation guide Insulation tube Conduit mounting
plate
(Other)
• Installation manual
• Operation manual
Quantity 1 pc. 1 pc. 1 each
Shape
For paper
pattern for
installation
(8) for gas
pipe
(9) for liquid
pipe
(11) Medium-1
(12) Medium-2
(10) Large
(14)
(15) (16)
(17)
(18)
01_EN_3P161684-5H.fm Page 4 Thursday, October 21, 2010 1:18 PM

English 5
3. OPTIONAL ACCESSORIES
•The optional decoration panel and remote controller are required for this indoor unit. (Refer to Table 1, 2)
(However, the remote controller is not required for the slave unit of a simultaneous operation system.)
Ta b le 1
•These are two types of remote controllers: wired and wireless. Select a remote controller from Table 2
according to customer request and install in an appropriate place.
Ta b le 2
NOTE
•If you wish to use a remote controller that is not listed in “Table 2” on page 5, select a suitable remote con-
troller after consulting catalogs and technical materials.
FOR THE FOLLOWING ITEMS, TAKE SPECIAL CARE DURING CONSTRUCTION AND
CHECK AFTER INSTALLATION IS FINISHED.
1. Items to be checked after completion of work
2. Items to be checked at time of delivery
* Also review the “1. SAFETY CONSIDERATIONS”
Unit model Optional decoration panel
FXFQ09 · 12 · 18 · 24 · 30 · 36 · 48PVJU BYCP125K-W1
Color : Fresh white
Remote controller
Wired type BRC1E71/BRC1D71
Wireless type BRC7F812
Items to be checked If not properly done, what is likely to occur Check
Are the indoor unit and outdoor unit fixed firmly? The unit may drop, vibrate or make noise.
Is the outdoor unit fully installed? The unit may malfunction or the compo-
nents burn out.
Is the gas leak test finished? It may result in insufficient cooling.
Is the unit fully insulated? Condensate water may drip.
Does drainage flow smoothly? Condensate water may drip.
Does the power supply voltage correspond
to that shown on the name plate?
The unit may malfunction or the compo-
nents burn out.
Are wiring and piping correct? The unit may malfunction or the compo-
nents burn out.
Is the unit safely grounded? It may result in electric shock.
Is wiring size according to specifications? The unit may malfunction or the compo-
nents burn out.
Is something blocking the air outlet or inlet
of either the indoor or outdoor units? It may result in insufficient cooling.
Are refrigerant piping length and additional
refrigerant charge noted down?
The refrigerant charge in the system is not
clear.
Items to be checked Check
Are the control box lid, air filter, suction grille attached?
Did you explain about operations while showing the operation manual to your customer?
Did you hand the operation manual over to your customer?
01_EN_3P161684-5H.fm Page 5 Thursday, October 21, 2010 1:18 PM

6English
Points for explanation about operations
4. NOTE TO THE INSTALLER
Be sure to instruct customers how to properly operate the unit (especially cleaning filters, operating different func-
tions, and adjusting the temperature) by having them carry out operations themselves while looking at the manual.
3. SELECTING INSTALLATION SITE
〈Hold the unit by the 4 lifting lugs when opening the box and moving it, and do not exert pressure on to any
other part piping (refrigerant, drain, etc.) or plastic parts.
If the temperature or humidity inside the ceiling might rise above 86°F or RH 80%, respectively, use the high-
humidity kit (sold separately) or add extra insulation to the main unit body.
Use glass wool or polyethylene foam as insulation and make sure it is at least 3/8in. thick and fits inside the ceiling opening.〉
The direction this product blows can be selected. However, a separately sold shut-off material kit is
needed in order to make the unit blow in two, three, or four (corner shut-off) directions.
(1) Select an installation location with the customer’s approval which matches the following conditions.
•A location from which cool (warm) air will reach the whole room.
•A location with no objects blocking the air passage.
•A location where drainage can be done with no problem.
•A location strong enough to support the weight of the indoor unit.
•Locations where the wall is not significantly tilted.
•A location which leaves enough room for installation and service work.
•A location where there is no risk of flammable gas leaking.
•A location where the length of the indoor-outdoor piping is no longer than the tolerated length (see the
installation manual that came with the outdoor unit for details).
The items with WARNING and CAUTION marks in the operation manual are the items per-
taining to possibilities for bodily injury and material damage in addition to the general usage of
the product. Accordingly, it is necessary that you make a full explanation about the described con-
tents and also ask your customers to read the operation manual.
Model H (in.)
FXFQ09 · 12 · 18 · 24 · 30PVJU 10
FXFQ36 · 48PVJU 11-3/4
Fig. 2
[Space required for installation] (Unit: in.)
*≥60
*≥60
*≥60 *≥60
H
Floor surface
At least 70in.
from the floor.
Air
inlet
Fig. 1
≥ 60 ≥ 60
Air
discharge
Air
discharge
01_EN_3P161684-5H.fm Page 6 Thursday, October 21, 2010 1:18 PM

English 7

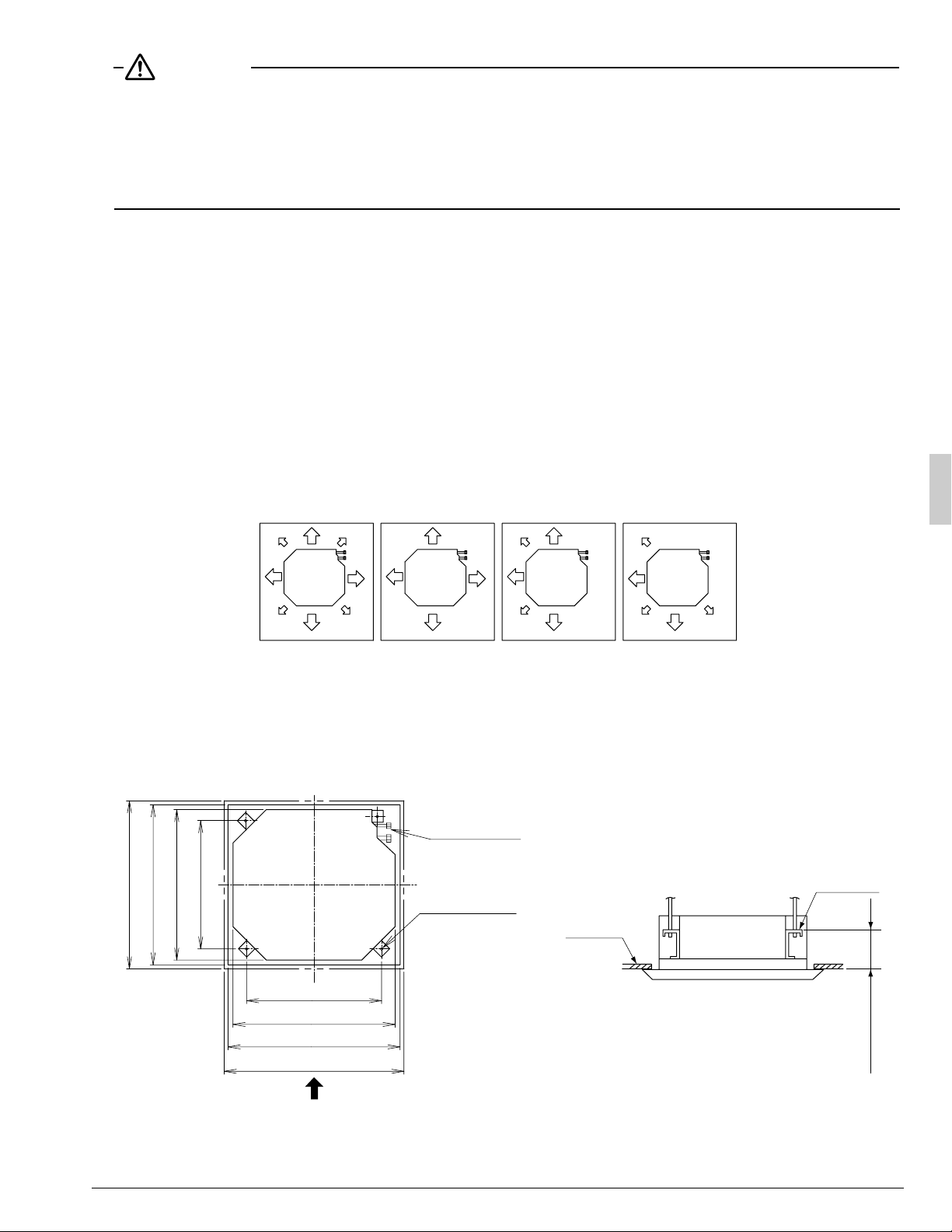

CAUTION
•The indoor and outdoor units and the power supply wiring and remote controller cord must be installed
at least 40in. away from any televisions or radios. This is to prevent interference with picture and sound
reception. (Interference may occur even at 40in. away depending on the reception quality.)
•If installing the wireless kit, the distance of the signal sent from the remote controller might be shorter if
there are fluorescent lights which are electrically started (such as with inverters, rapid starters, etc.) in
the room. The indoor unit should be installed as far away from fluorescent lights as possible.
(2) Ceiling height
This product can be installed in ceilings up to 11-1/2ft. high (13-3/4ft. high for the 36 and 48).
If the ceiling height is 8-3/4ft. (10-1/2ft. for the 36 and 48) or more, field settings will have to be made with
the remote controller. See “11. FIELD SETTING” for details.
(3) Air direction
The air direction shown in Fig. 3 is an example.
Select the appropriate number of directions according to the shape of the room and the location of the unit.
(Field settings have to be made using the remote controller and the outlet vents have to be shut off if two,
three, or four (corner shut-off) directions are selected. See the shut-off materials (sold separately) instal-
lation manual for details.)
(4) Use suspension bolts for installation. Check if the location for the installation is strong enough to support
the weight of the unit, reinforce it if necessary, and install using suspension bolts. (The spacing of the
installation is shown on the “paper pattern for installation (5)”.)
4. PREPARATIONS BEFORE INSTALLATION
(1) Relation of ceiling opening to unit and suspension bolt position.
Pipes Pipes Pipes Pipes
All-round air
[Air direction]
Two air direction Three air direction Four air direction
Fig. 3
37-3/8 (Decoration panel)
30-3/4 (Suspension bolt pitch)
33-1/16 (Indoor unit)
33-7/8
–
35-7/8 (Ceiling opening)
28(Suspension bolt pitch)
37-3/8 (Decoration panel)
33-7/8 – 35-7/8 (Ceiling opening)
33-1/16 (Indoor unit)
Refrigerant
piping
Suspension
bolt (×4)
Fig. 4
A
False
ceiling
View as seen from A
Hanger
bracket
4-15/16
–
5-1/8
Fig. 5
(Unit: in.)
01_EN_3P161684-5H.fm Page 7 Thursday, October 21, 2010 1:18 PM

8English

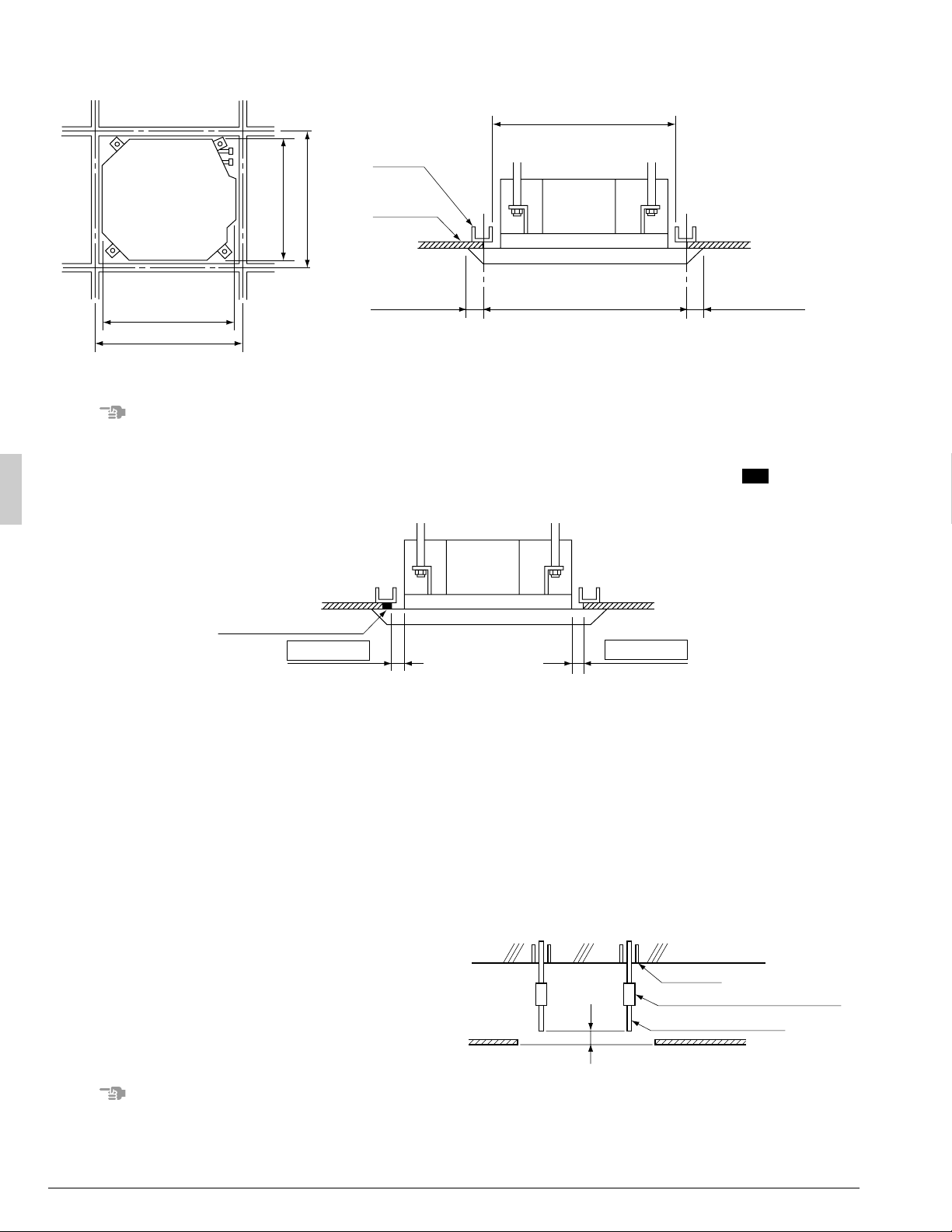

䡵Installation is possible when ceiling opening dimensions is as follows
•When installing the unit within the frame for fixing false ceiling.
NOTE
•Installation is possible with a ceiling dimension of 35-7/8in. (marked with *). However, to achieve a ceiling-
panel overlapping dimension of 13/16in., the spacing between the ceiling and the unit should be 1-3/8in. or
less. If the spacing between ceiling and the unit is over 1-3/8in., attach ceiling material to part or
recover the ceiling.
(2) Make the ceiling opening needed for installation where applicable. (For existing ceilings)
•Refer to the paper pattern for installation (5) for ceiling opening dimensions.
•Create the ceiling opening required for installation. From the side of the opening to the casing outlet,
implement the refrigerant and drain piping and wiring for remote controller (unnecessary for wireless
type) and indoor-outdoor unit casing outlet. Refer to “6. REFRIGERANT PIPING WORK”, “7. DRAIN
PIPING WORK” and “8. ELECTRIC WIRING WORK”.
•After making an opening in the ceiling, it may be necessary to reinforce ceiling beams to keep the ceiling
level and to prevent it from vibrating. Consult the builder for details.
(3) Install the suspension bolts.
(Use either a M8~M10 size bolt or the equivalent)
Use a hole-in anchor for existing ceilings, and a
sunken insert, sunken anchor or other field sup-
plied parts for new ceilings to reinforce the ceiling
to bear the weight of the unit. Adjust clearance
(2-4in.) from the ceiling before proceeding
further.
NOTE
•All the above parts are field supplied.
(Dimension inside frame)
33-1/16
35-7/8
35-7/8
(Dimension inside frame)
33-1/16
Fig. 6
33-7/8
(Opening dimension inside
the flame for ceiling)
Frame
≥13/16 33-7/8 – *35-7/8
(Ceiling-panel
overlapping dimension)
False
ceiling
(Ceiling opening dimension)
≥13/16
Fig. 7
(Unit: in.)
Ceiling material
1-3/8
Fig. 8
≥ 1-3/8 ≥
(Unit: in.)
2-4
Ceiling slab
Suspension bolt
Long nut or turn-buckle
Anchor
False ceiling
<installation example>
Fig. 9
(Unit: in.)
01_EN_3P161684-5H.fm Page 8 Thursday, October 21, 2010 1:18 PM

English 9
5. INDOOR UNIT INSTALLATION
Installing optional accessories (except for the decoration panel) before installing the indoor unit is
easier. However, for existing ceilings, install fresh air inlet component kit and branch duct before
installing the unit.
As for the parts to be used for installation work, be sure to use the provided accessories and specified parts
designated by our company.

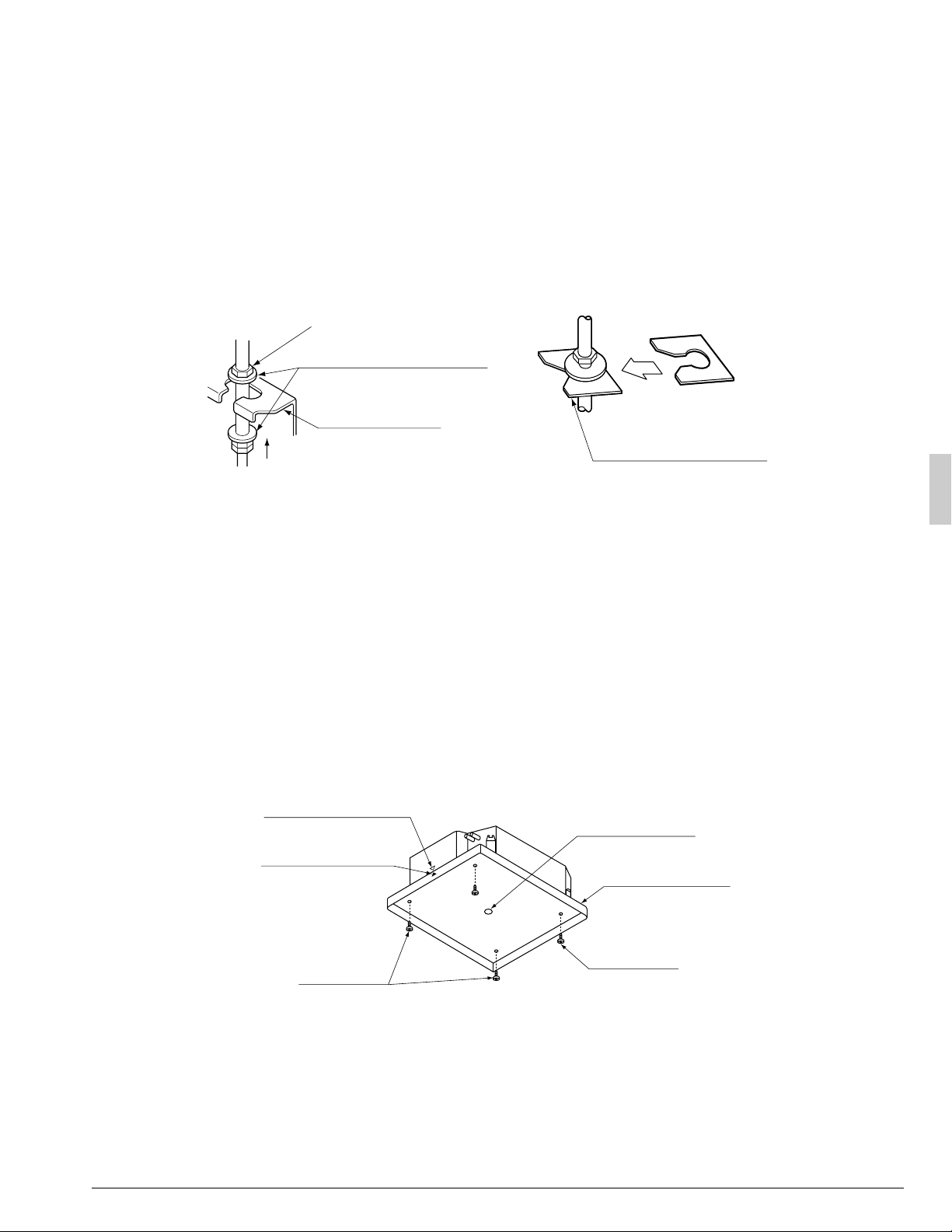

(1) For new ceilings
(1-1)Install the indoor unit temporarily.
•Attach the hanger bracket to the suspension bolt. Be sure to fix it securely by using a nut and
washer (3) from the upper and lower sides of the hanger bracket.
The washer fixing plate (7) will prevent the washer from falling.
(1-2)Refer to the paper pattern for installation (5) for ceiling opening dimension.
Consult the builder or carpenter for details.
•The center of the ceiling opening is indicated on the paper pattern for installation.
The center of the unit is indicated on the triangular mark to the unit bottom and on the paper pattern for
installation.
•Fix the paper pattern to the unit with screws (6) (×4).
•Ceiling height is shown on the side of the paper pattern for installation (5). Adjust the height of the unit
according to this indication.
Please perform one of the following, as the shape of the paper pattern for installation differs accord-
ing to the model.
Field supply
Washer (3) (accessory)
Hanger bracket
Tighten
(double nuts)
Fig. 10
[Securing the hanger bracket]
Insert
Washer fixing plate (7)
[Securing the washer]
(accessory)
Fig. 11
Paper pattern for
installation (5)
[Installation of paper pattern for installation]
Center of
ceiling opening
Screw (6)
(accessory)
Screw (6)
(accessory)
Center of main unit
Center mark of
main unit
Fig. 12
01_EN_3P161684-5H.fm Page 9 Thursday, October 21, 2010 1:18 PM

10 English
<Ceiling work>
(1-3)Adjust the unit to the right position for installation.
(Refer to “4. PREPARATIONS BEFORE INSTALLATION-(1)”.)
•Using the Installation guide (15) allows you to check the positions from the underside of the unit to the
lower ceiling surface.
(1-4)Check the unit is horizontally level.
•The indoor unit is equipped with a built-in drain pump and float
switch. Verify that it is level by using a level or a water-filled
vinyl tube.
CAUTION
If the unit is tilted against condensate flow, the float switch may
malfunction and cause water to drip.
(1-5)Remove the washer fixing plate (7) used for preventing the
washer from falling and tighten the upper nut.
(1-6)Remove the paper pattern for installation (5).
(2) For existing ceilings
(2-1)Install the indoor unit temporarily.
Perform step (1-1) in (1) For new ceilings.
(2-2)Adjust the height and position of the unit.
(Refer to “4. PREPARATIONS BEFORE INSTALLATION-(1)” and (1-3) in (1) For new ceilings.)
(2-3)Perform steps (1-4), (1-5) in (1) For new ceilings.
6. REFRIGERANT PIPING WORK
〈For refrigerant piping of outdoor units, see the installation manual attached to the outdoor unit.〉
〈Execute heat insulation work completely on both sides of the gas piping and the liquid piping. Otherwise, a
water leakage can result sometimes.〉
(When using a heat pump, the temperature of the gas piping can reach up to approximately 250°F, so use
insulation which is sufficiently resistant.)
〈Also, in cases where the temperature and humidity of the refrigerant piping sections might exceed 86°F or
RH80%, reinforce the refrigerant insulation. (13/16in. or thicker) Condensate may form on the surface of the
insulating material.〉
〈Be sure to check the type of R410A refrigerant to be used before doing any work. (Using an incorrect refrig-
erant will prevent normal operation of the unit.)〉
Apply the short
side of the
cut-out section.
Lower ceiling
surface
Installation guide (15)
(accessory)
Underside of
the unit
Level Vinyl tube
[Maintaining horizontality]
Fig. 13
01_EN_3P161684-5H.fm Page 10 Thursday, October 21, 2010 1:18 PM

English 11

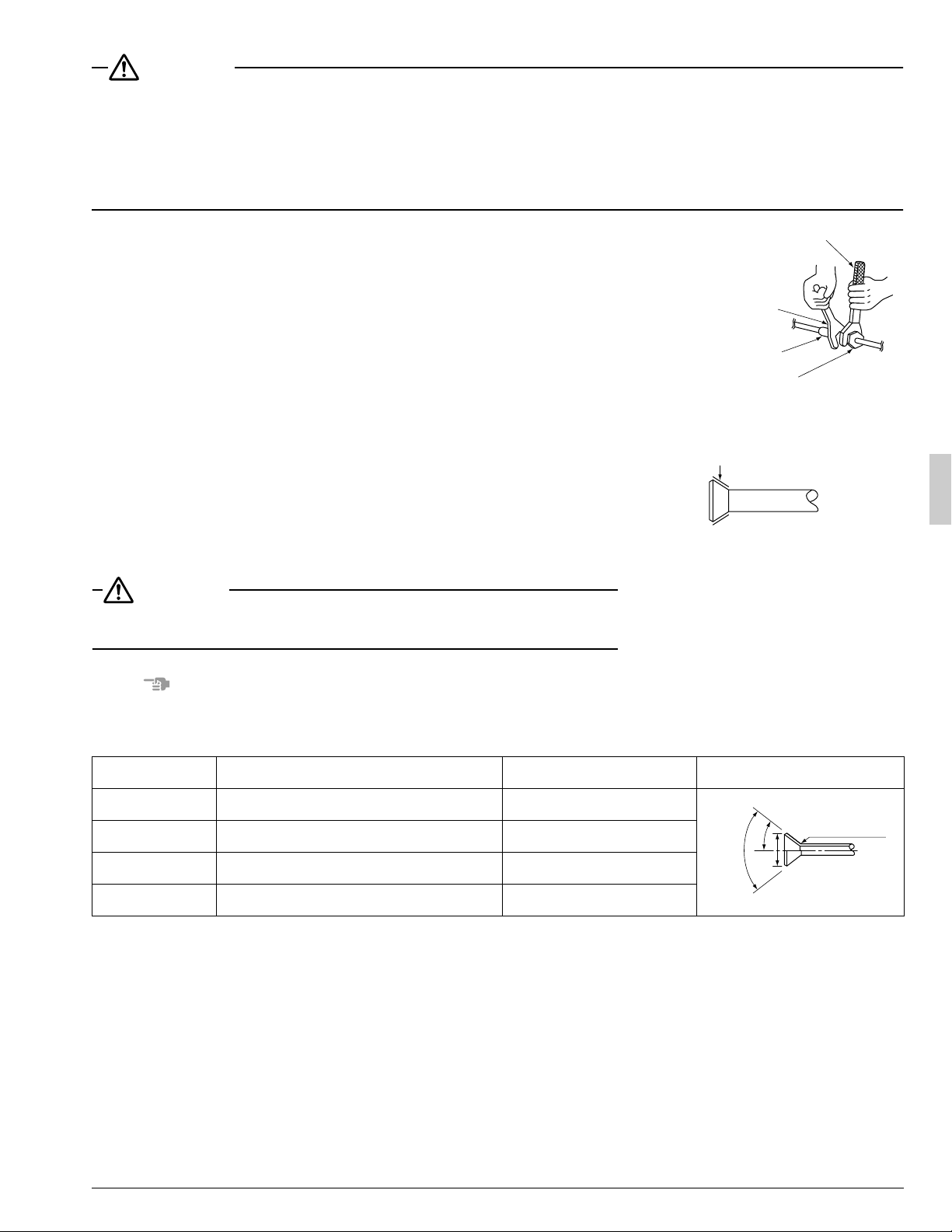

CAUTION
•Use a pipe cutter and flare suitable for the type of refrigerant.
•Apply ester oil or ether oil around the flare section before connecting.
•To prevent dust, moisture or other foreign matter from infiltrating the tube, either pinch the end or cover
it with tape.
•Do not allow anything other than the designated refrigerant to get mixed into the refrigerant circuit, such
as air, etc. If any refrigerant gas leaks while working on the unit, ventilate the room thoroughly right away.
• Do not mix air or other gas with the specified refrigerant in the refrig-
eration cycle.
• Ventilate the room if refrigerant gas leaks during the work.
•The outdoor unit is charged with refrigerant.
•Be sure to use both a spanner and torque wrench together, as shown in the
drawing, when connecting or disconnecting pipes to/from the unit.
(Refer to Fig. 14)
•Refer to “Table 3” for the dimensions of flare nut spaces.
•When connecting the flare nut, apply ester oil or ether oil to the flare
section (outside only), and spin 3-4 times before screwing in.
(Refer to Fig. 15)
• Keep all the screw mounting resin parts (e.g., piping presser
plates) away from oil.
If oil adheres, the strength of the screw mounting resin parts may
drop.
CAUTION
Over-tightening the flare nut may break it and/or cause the
refrigerant to leak.
NOTE
•Use the flare nut included with the unit main body.
Ta b le 3
•Refer to “Table 3” to determine the proper tightening torque.
Pipe size Tightening torque Flare dimensions A (in.) Flare shape
φ 1/4 10.4 – 12.7lbf·ft. 0.342 – 0.358
φ 3/8 24.1 – 29.4lbf·ft. 0.504 – 0.520
φ 1/2 36.5 – 44.5lbf·ft. 0.638 – 0.654
φ 5/8 45.6 – 55.6lbf·ft. 0.760 – 0.776
Torque wrench
Spanner
Pipe union
Flare nut
Fig. 14
Fig. 15
Coat here with ester or etheroil.
A
45
0
±2
0
R0.016-0.031
90
0
±2
0
01_EN_3P161684-5H.fm Page 11 Thursday, October 21, 2010 1:18 PM

12 English
Not recommendable but in case of emergency
You must use a torque wrench but if you are obliged to install the unit without a torque wrench, you may
follow the installation method mentioned below.
When you keep on tightening the flare nut with a spanner, there is a point where the tightening torque
suddenly increases. From that position, further tighten the flare nut the angle shown below:
After the work is finished, make sure to check that there is no gas leak.
•Make absolutely sure to execute heat insulation works on the pipe-connecting section after checking gas
leakage by thoroughly studying the following figure and using the attached heat insulating materials for
fitting (8) and (9). (Fasten both ends with the clamps (4).) (Refer to Fig. 16)
•Wrap the sealing pad (11) only around the insulation for the joints on the gas piping side. (Refer to Fig. 16)
CAUTION
For field insulation, be sure to insulate field piping all the way into the pipe connections inside the machine.
Exposed piping may cause condensation or burns on contact.
Pipe size Further tightening angle Recommended arm length of tool
φ1/4 60 to 90 degrees Approx. 6in.
φ3/8 60 to 90 degrees Approx. 8in.
φ1/2 30 to 60 degrees Approx. 10in.
φ5/8 30 to 60 degrees Approx. 12in.
Screw mounting part
of piping presser plate
(2 locations)
Liquid piping
Gas piping
Fig. 16
Gas Piping Insulation Procedure
Insulation for fitting (8)
(accessory)
Turn seams up
Turn seams up
Flare nut connection
Insulation for fitting (9)
(accessory)
Flare nut connection
Attach to base
Attach to base
Main unit
Main unit
Piping insulation
material
(Field supply)
Piping insulation
material
(Field supply)
Tighten the part other
than the piping insulation
material.
Wrap over from the
base of the unit to
the top of the flare
nut connection.
Wrap the
insulator around
the part from the
root.
Sealing pad
medium-1 (11)
(accessory)
Sealing pad
medium-2 (12)
(accessory)
Clamp (4) (accessory)
Tighten the part other
than the piping insulation
material.
Clamp (4) (accessory)
Liquid Piping Insulation Procedure
Piping insulation
material (main unit)
Piping insulation
material (main unit)
01_EN_3P161684-5H.fm Page 12 Thursday, October 21, 2010 1:18 PM

English 13
CAUTION
CAUTION TO BE TAKEN WHEN BRAZING REFRIGERANT PIPING
“Do not use flux when brazing refrigerant piping. Therefore, use the phosphor copper brazing filler metal
(BCuP-2/B-Cu93P-710/795) which does not require flux.”
(Flux has extremely harmful influence on refrigerant piping systems. For instance, if the chlorine based flux is
used, it will cause pipe corrosion or, in particular, if the flux contains fluorine, it will damage the refrigerant oil.)
•Before brazing field refrigerant piping, nitrogen gas shall be blown through the piping to expel air from the
piping.
If you brazing is done without nitrogen gas blowing, a large amount of oxide film develops inside the piping,
and could cause system malfunction.
•When brazing the refrigerant piping, only begin brazing after having carried out nitrogen substitution or
while inserting nitrogen into the refrigerant piping. Once this is done, connect the indoor unit with a flared
or a flanged connection.
•Nitrogen should be set to 2.9psi with a pressure-reducing valve if brazing while inserting nitrogen into the
piping. (Refer to Fig. 17)
7. DRAIN PIPING WORK
(1) Rig drain piping
•As for drain work, perform piping in such a manner that water can be drained properly.
•Employ a pipe with either the same diameter or with the diameter larger (excluding the raising section) than
that of the connecting pipe (PVC pipe, nominal diameter 1in., outside diameter 1-1/4in.).
•Keep the drain pipe short and sloping downwards at a gradient of at least 1/100 to prevent air pockets from
forming.
•If the drain pipe cannot be sufficiently set on a slope, execute the drain raising piping.
•To keep the drain pipe from sagging, space hanger bracket every 3 to 5ft..
CAUTION
Water pooling in the drainage piping can cause the drain to clog.
•Use the attached drain hose (1) and metal clamp (2).
•Insert the drain hose into the drain socket up to the base, and tighten the metal clamp securely within the
portion of a white tape of the hose-inserted tip. Tighten the metal clamp until the screw head is less than
5/32in. from the hose.
•Wrap the attached sealing pad (10) over the metal clamp and drain hose to insulate.
Nitrogen
Pressure-reducing valve
Hands valve
Taping
Refrigerant piping Part to be
brazed
Nitrogen
Fig. 17
1/100 gradient or more
3-5ft.
Fig. 18-1
GOOD
Hanger bracket
Fig. 18-2
WRONG
01_EN_3P161684-5H.fm Page 13 Thursday, October 21, 2010 1:18 PM

14 English
•Make sure that heat insulation work is executed on the following 2 spots to prevent any possible water leak-
age due to dew condensation.
•Indoor drain pipe
•Drain socket
<PRECAUTIONS FOR DRAIN RAISING PIPING>
•
Install the drain raising pipes at a height of less than 26-1/2in..
The drain pump of this unit has a high delivery flow rate. Therefore, the higher the drain raising height is, the
lower the sound of draining will be. For this reason, a minimum drain raising height of 12in. is recommended.
•Install the drain raising pipes at a right angle to the indoor unit and no more than 11-3/4in. from the unit.
NOTE
•To ensure no excessive pressure is applied to the included drain hose (1), do not bend or twist when install-
ing. (This may cause leakage.)
•If converging multiple drain pipes, install according to the procedure shown below.
Select converging drain pipes whose gauge is suitable for the operating capacity of the unit.
(2) After piping work is finished, check if drainage flows smoothly.
Metal
clamp (2)
Tape (White)
Drain hose (1)

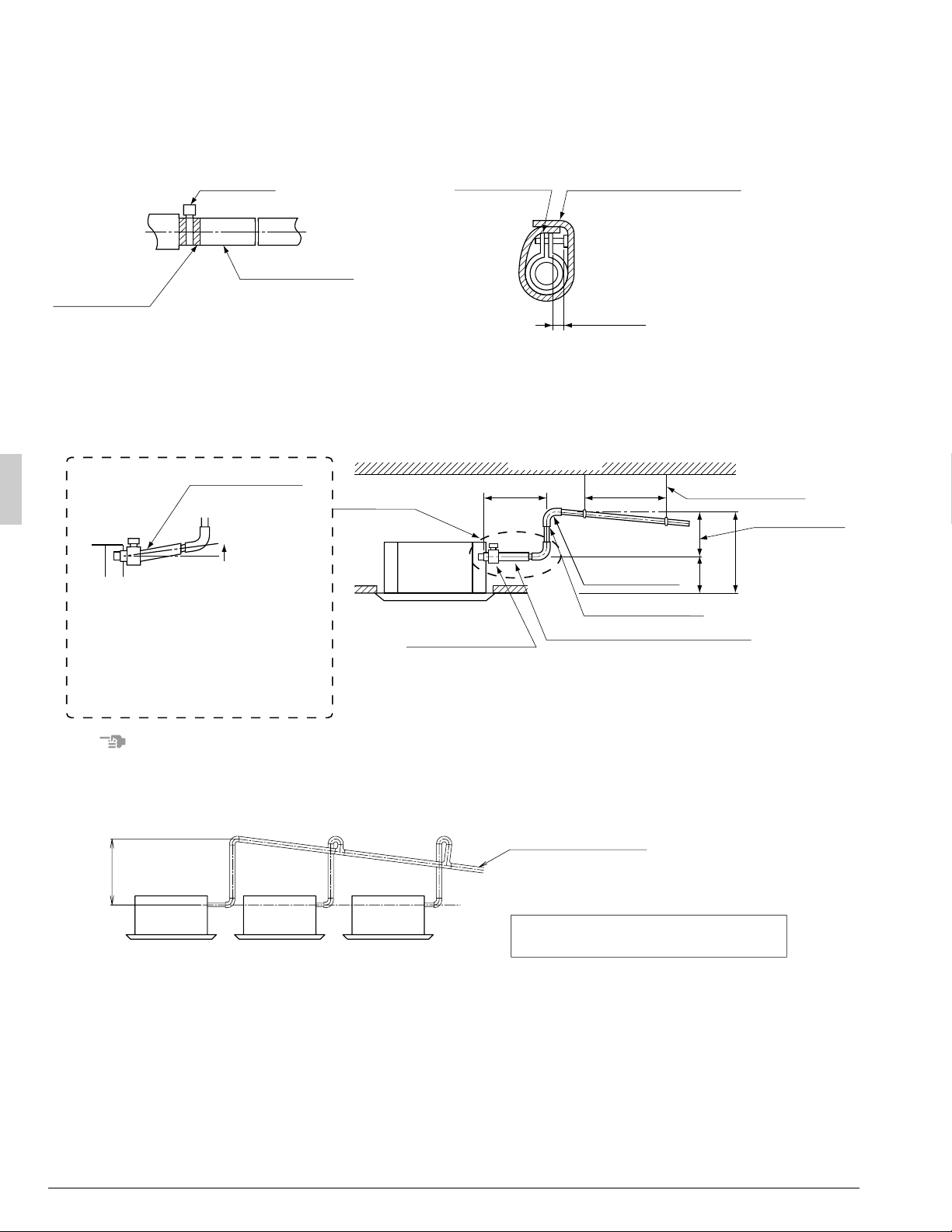

Fig. 19
Metal
clamp (2) Large sealing pad (10)
(accessory) (accessory)
5/32in.
Fig. 20
≥
Ceiling slab
Metal clamp
(accessory) (2)
Drain hose (1)
(accessory)
Drain raising pipe
Raising section
Drain hose (accessory) (1)
33-1/2in.
Hanger bracket
Adjustable
(26-1/2in.)
3-5ft.
11-3/4in.
7in.
Fig. 21
≥
≥
≥
To prevent air bubbles in the
drain hose part, keep it level or
slightly tilted up. Any bubbles in
the hose might cause the unit
to make noise due to backflow
when the drain pump stops.
Level or
tilted
slightly up
0 – 26-1/2in.
Fig. 22
Water accumulating in the drain
piping can cause the drain to clog.
Central drain pipe
The drain pipe should have a downward
slope of at least 1/100 to prevent
air pockets from forming.
01_EN_3P161684-5H.fm Page 14 Thursday, October 21, 2010 1:18 PM

English 15
WHEN ELECTRIC WIRING WORK IS FINISHED
•Add approximately 1/4gal. of water slowly from the air outlet and check drainage flow.
•Check drainage flow during COOL running, explained under ‘‘12. TEST OPERATION’’.
•Refer to the figure on the following after checking the draining of water, and mount the thermal insulation
material for drainage (14) and thermal insulate the drain socket.
WHEN ELECTRIC WIRING WORK IS NOT FINISHED
CAUTION
•Electrical wiring work should be done by a certified electrician.
•If someone who does not have the proper qualifications performs the work, perform the following after the
test run is complete.
•Remove the control box lid. Connect the single phase power supply (SINGLE PHASE 60Hz 208/230V) to
connections L1and L2on the terminal block for wiring the units. Connect the ground wire firmly. When car-
rying out wiring work around the control box, make sure none of the connectors come undone. Be sure to
attach the control box lid before turning on the power.
•Put approximately 1/4gal. of water into the drain pan through the blow-off mouth on the left-hand side of the
drain socket. Make sure not to pour water over the drain pump or any electric parts including those of the
drain pump.
•When the power is turned on, the drain pump will operate and you can check the draining of water through
the transparent part of the drain socket. (The drain pump will stop automatically in 10 minutes.)
After checking the draining of water, mount the thermal insulation material for drainage (14) and thermal
insulate the drain socket.
•After confirming drainage (Fig. 23, Fig. 24), turn off the power and remove the power supply.
•Attach the control box lid as before.
Thermal insulation
material for drainage (14)
(accessory)
Sealing pad (Large) (10)
Thermal insulation
material for drainage (14)
(accessory)
Make sure that there
is no clearance.
Be sure to lay the sealing
material on (14).
At least 4in.
Plastic watering can
(Tube should be
about 4in. long.)
(Check the
drainage now.)
Service drain outlet (with rubber plug)
(Use this outlet to drain water from
the drain pan.)
Drain sockets
<Adding water through air discharge outlet>
[Method of adding water] Fig. 23
Drain pump
location
01_EN_3P161684-5H.fm Page 15 Thursday, October 21, 2010 1:18 PM

16 English
CAUTION
Drain piping connections
Do not connect the drain piping directly to sewage pipes that smell of ammonia. The ammonia in the sew-
age might enter the indoor unit through the drain pipes and corrode the heat exchanger.
8. ELECTRIC WIRING WORK
8-1 General instructions
•All field supplied parts and materials and electric works must conform to local codes.
•Use copper wire only.
•For electric wiring work, refer to also “WIRING DIAGRAM” attached to the unit body.
•For remote controller wiring details, refer to the installation manual attached to the remote controller.
•All wiring must be performed by an authorized electrician.
•A circuit breaker capable of shutting down power supply to the entire system must be installed.
•Refer to the installation manual attached to the outdoor unit for the size of power supply electric wire con-
nected to the outdoor unit, the capacity of the circuit breaker and switch, and wiring instructions.
•Be sure to ground the air conditioner.
•Do not connect the ground wire to gas pipes, plumbing pipes, lightning rods, or telephone ground wires.
•Gas pipes: might cause explosions or fire if gas leaks.
•Plumbing: no grounding effect if hard vinyl piping is used.
•Telephone ground wires or lightning rods: might cause abnormally high electric potential in the ground
during lighting storms.

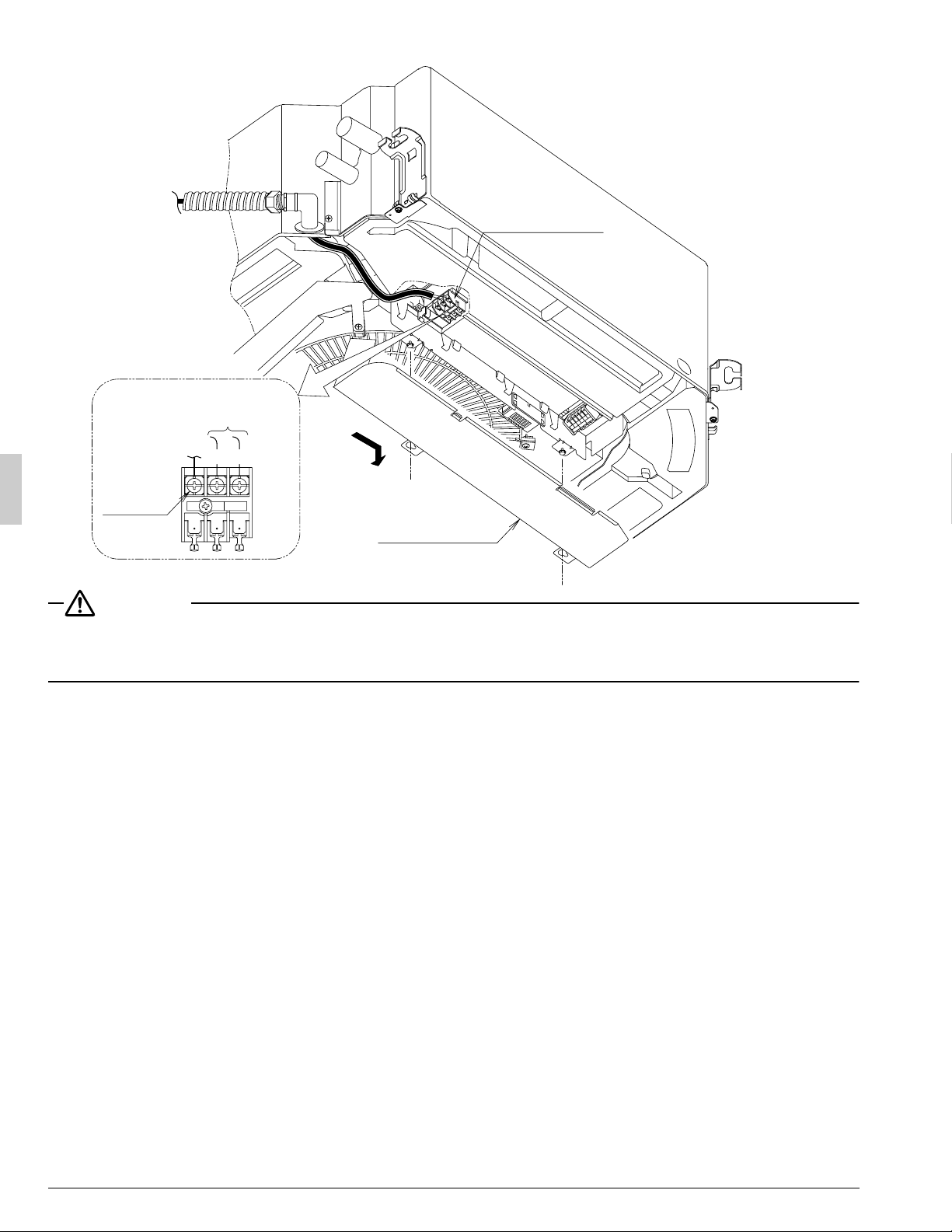

Fig. 24
Control box lid
Ground
terminal
Power supply
wiring terminal
block
Power supply
single phase 208/230V
L
2 L 1
Ground
wire
01_EN_3P161684-5H.fm Page 16 Thursday, October 21, 2010 1:18 PM

English 17
8-2 Electrical characteristics
MCA: Min. Circuit Amps (A) MOP: Maximum Overcurrent Protective Device (A)
kW: Fan Motor Rated Output (kW) FLA: Full Load Amps (A)
8-3 Specifications for field supplied fuses and wire
Allowable length of transmission wirings and remote controller wiring are as follows.
(1) Outdoor unit - Indoor unit:
Max. 3280ft. (Total wiring length: 6560ft.)
(2) Indoor unit - Remote controller
Max. 1640ft.
NOTE
1. Vinyl cord with sheath or cable (Insulated thickness : 0.04in. or more)
9. WIRING EXAMPLE AND HOW TO SET THE REMOTE CONTROLLER
9-1 How to connect wirings
Connection of wiring between units, ground wire and for the remote controller cord (Refer to Fig. 25)
•Wiring the units and ground wire
Remove the control box lid and connect wires of matching number to the terminal block for wiring the units
(3 P) inside. And connect the ground wire to the ground terminal. In doing this, pull the wires inside through
the hole and fix the wires securely with the included clamp (4) (2 points).
•Remote controller cords (not neccessary for slave unit of simultaneous operation system)
Remove the control box lid and pull the wires inside through the hole and connect to the terminal block for
remote controller (6 P). (no polarity) Securely fix the remote controller cord with the included clamp (4) (2
points).
•After connection, attach sealing pad (13).
•Be sure to attach it to prevent the infiltration of water from the outside.
Units Power supply Fan motor
Model Hz Volts Voltage range MCA MOP kW FLA
FXFQ09PVJU
60 208/230 Max. 253
Min. 187
0.3 15 0.056 0.2
FXFQ12PVJU 0.3 15 0.056 0.2
FXFQ18PVJU 0.4 15 0.056 0.3
FXFQ24PVJU 0.5 15 0.056 0.4
FXFQ30PVJU 0.6 15 0.056 0.5
FXFQ36PVJU 1.4 15 0.120 1.1
FXFQ48PVJU 1.5 15 0.120 1.2
Power supply wiring Remote controller wiring
Transmission wiring
Field fuses Size Wire Size
15A Wire size must comply with
local codes.
Sheathed wire
(2 wire) AWG18 - 16
01_EN_3P161684-5H.fm Page 17 Thursday, October 21, 2010 1:18 PM

18 English
[ PRECAUTIONS ]
1. Use round crimp-style terminals for connecting wires to the power supply terminal block.
If unavailable, observe the following points when wiring.
•Do not connect wires of different gauge to the same power supply terminal.
(Looseness in the connection may cause overheating.)
•Use the specified electric wire. Connect the wire securely to the terminal. Lock the wire down without
applying excessive force to the terminal. (Tightening torque: 1lbf·ft. ±10 %)
2. Tightening torque for the terminal screws.
•Use the correct screwdriver for tightening the terminal screws. If the blade of screwdriver is too small, the
head of the screw might be damaged, and the screw will not be properly tightened.
•If the terminal screws are tightened too hard, screws might be damaged.
•Refer to the table below for the tightening torque of the terminal screws.
When none is available, follow the instructions below.
3. Do not connect wires of different gauge to the same grounding terminal.
Looseness in the connection may deteriorate protection.
4. Outside of the unit, keep transmission wiring at least 2in. away from power supply wiring. The equipment
may malfunction if subjected to electrical (external) noise.
5. For remote controller wiring, refer to the “INSTALLATION MANUAL OF REMOTE CONTROLLER.”
attached to the remote controller.
6. Never connect power supply wiring to the terminal block for remote controller. A mistake of the
sort could damage the entire system.
7. Use only specified wire and tightly connect wires to terminals. Be careful wires do not place external stress
on terminals. Keep wiring in neat order and so as not to obstruct other equipment such as popping open
the control box lid. Make sure the lid closes tight. Incomplete connections could result in overheating, and
in worse case, electric shock or fire.
8. Pass the power supply wire through the attached insulation tube (16) between the outlet of conduit and the
power supply terminal, and bind them together with the attached clamp (4). (Refer to Fig. 27-2)
9. Use a pair of conduit mounting plate (17) and (18) to connect a conduit to the unit as shown Fig. 27-1.
Terminal Size Tightening torque
Terminal block for remote controller (6P) M3.5 0.58 – 0.72lbf·ft
Power supply terminal block (3P) M4 0.87 – 1.06lbf·ft
Fig. 25
Electric wire
Round crimp-style terminal
Attach insulation sleeve
Connect wires of the
same gauge to both
side.
Do not connect wires
of the same gauge to
one side.
Do not connect wires
of different gauges.
Fig. 26
01_EN_3P161684-5H.fm Page 18 Thursday, October 21, 2010 1:18 PM

English 19
10. Use a 90° elbow type of conduit with dimensions Fig. 27-1 to prevent it from hitting the swing motor hous-
ing of decoration panel.
Observe the notes mentioned below when wiring to the terminal block for wiring the units.
Fig. 27-1
Conduit
<1-3/8
≥3/8
Conduit mounting
plate (17)
Conduit mounting
plate (18)
Fig. 27-2
Sheaths
Remote controller wiring
(low voltage)
3/8 – 5/8in.
2-3/4 – 3-1/2in.
Clamp (4)
Approximately
1/4in.
Peel back
the sheath
on the power
line and twist.
Length of
sheath to
peel back
Cut off any excess
material after tightening.
Wiring
through-holes
Terminal block
for remote
controller
Control box lid
(P1 •P2)
Wiring diagram
(Backside of control box lid)
Remote
controller
wiring
Power supply
terminal block
Insulation
tube (16)
(3P)
Remote
controller wiring
Forced off
Transmission
wiring
Transmission
wiring
P1 P2 F1 F2 T1 T2
Power supply
and ground
wire sheath
Clamping position
Secure the ground wire
power supply and with
both edges aligned.
Clamp (4)
Cut off any
excess material
after tightening
the power
supply wiring
and ground
wire together.
Ground terminal
(Length of sheath to peel back)
3/8~5/8in.
3~4in.
L2L1
<<Power supply and ground wire (high voltage)>>
Power supply and
ground wire
Conduit mounting
plate (17) (18)
Insulation
tube (16)
Electric insulation
01_EN_3P161684-5H.fm Page 19 Thursday, October 21, 2010 1:18 PM
