Modular Air Source Heat Pump Water HeaterModular Air Source Heat Pump Water Heater
Catalogue/Engineering Data
Model: UHA075/100/200B5
Refrigerant: R410A
Heating Capacity: 30/40/80kW
ED-UHA-B5-V01
ODP=0
R410A
ODP=0
R410A
ODP=0
R410A
ODP=0
R410A
DAIKIN INDUSTRIES., LTD

1
Contents
Literature No.: ED-UHA-B5-V01
Supersedes: N/A
Note: Installation and maintenance are to be performed only by qualied personnel who are
familiar with local codes and regulations, and experienced with this type of equipment.
Caution: Sharp edges and coil surfaces are a potential injury hazard. Avoid contact with them.
Warning: Moving machinery and electrical power hazard may cause severe personal injury or
death. Disconnect and lock off power before servicing equipment.
Model Series.............................................................................................................................2
Nomenclature ...........................................................................................................................2
Features ...................................................................................................................................3
Specications ...........................................................................................................................5
Dimensions............................................................................................................................... 8
Performance Data ....................................................................................................................9

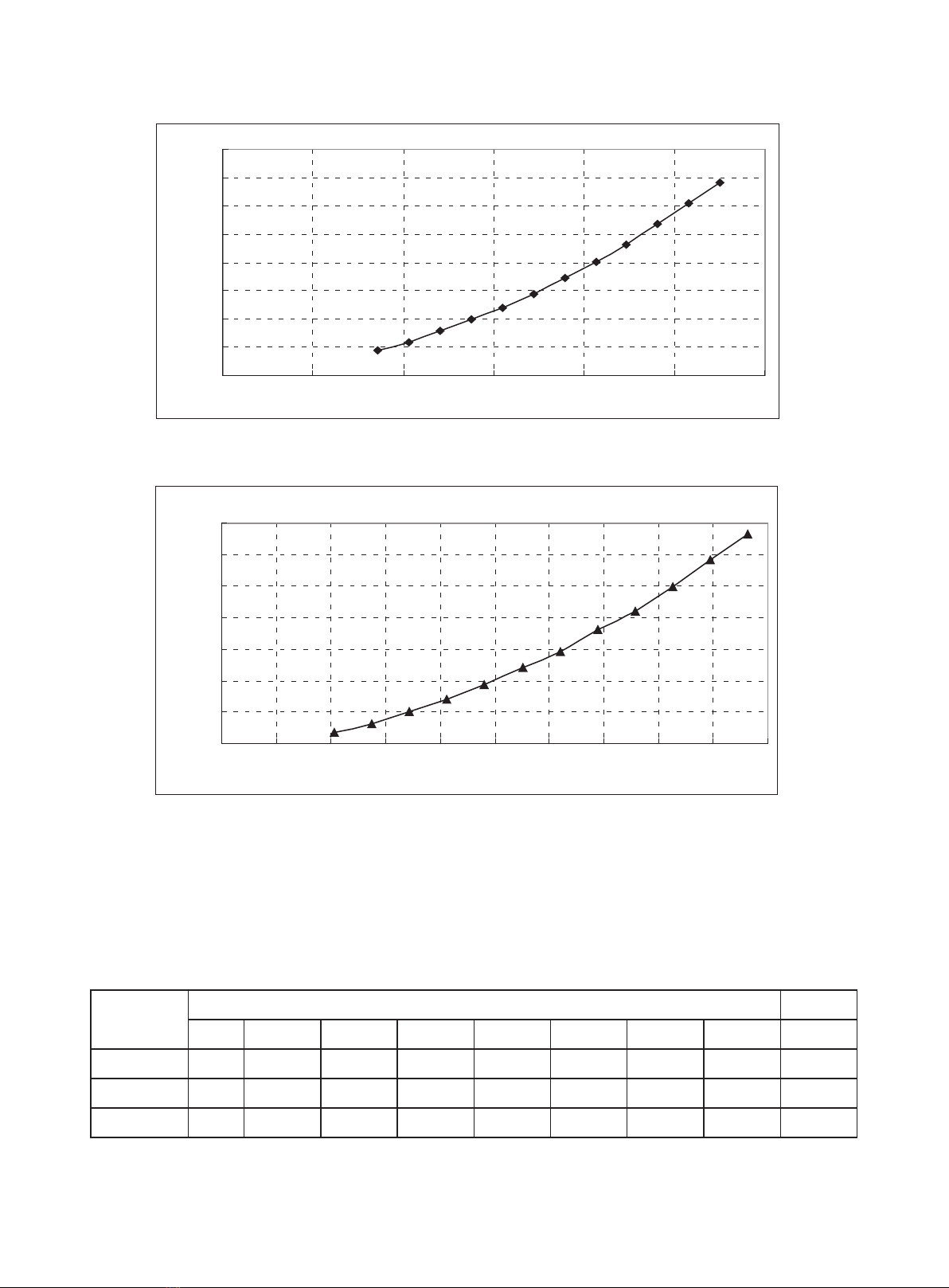

Water Pressure Drop Curve .....................................................................................................11
Sound Data...............................................................................................................................12

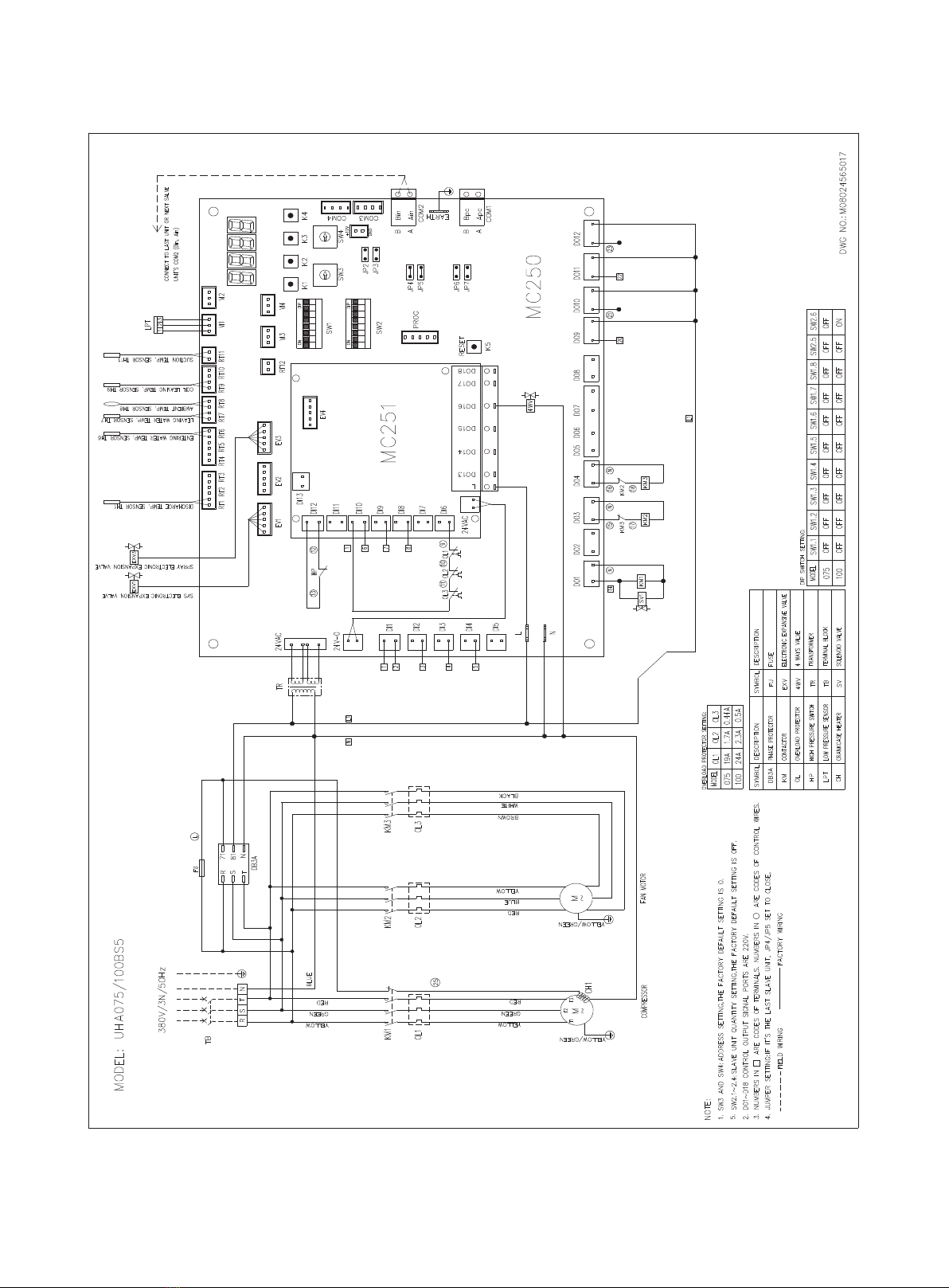

Wiring Diagrams....................................................................................................................... 13

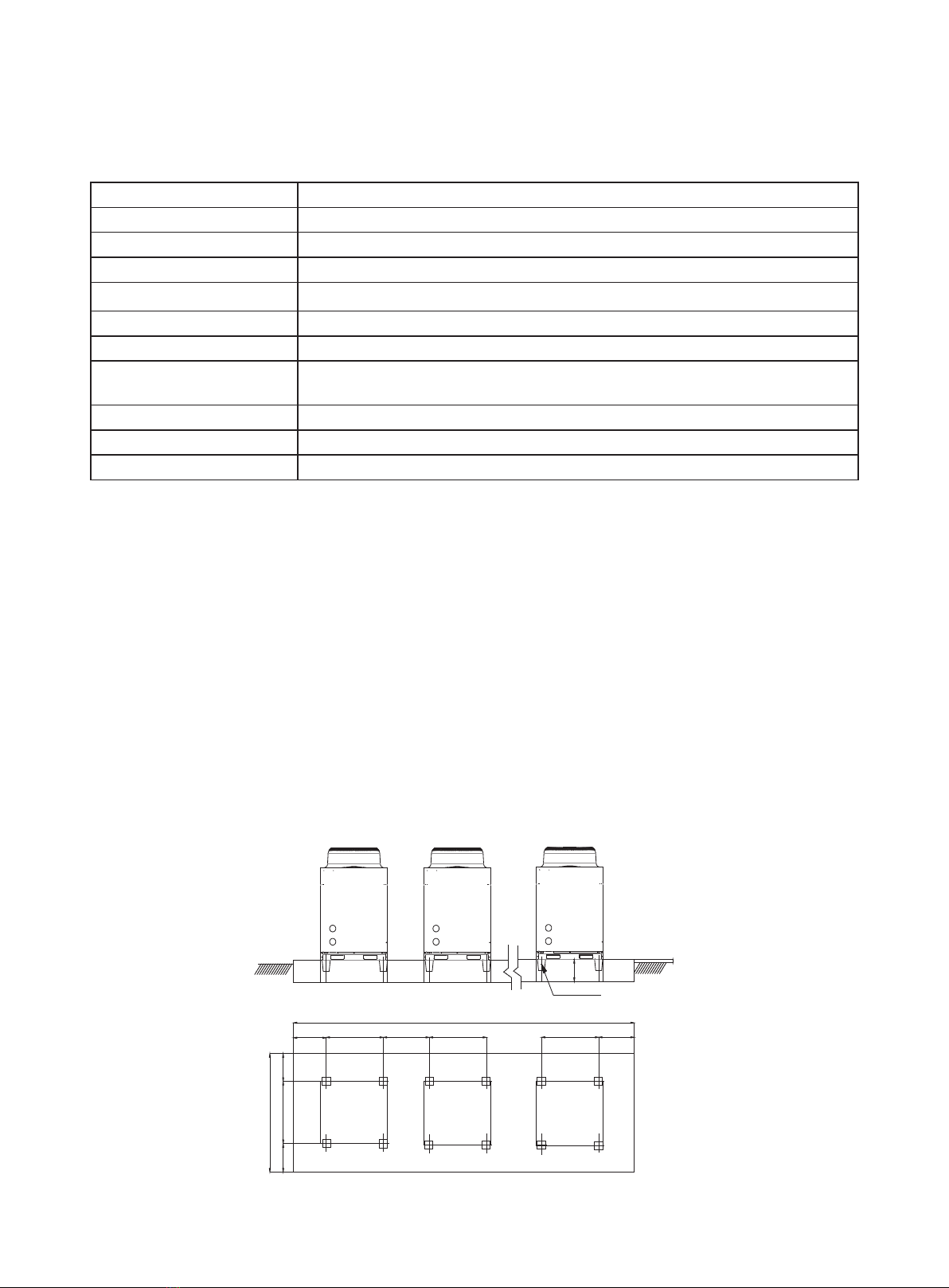

Installation ................................................................................................................................17
Model Selection and Hydraulic Calculation .............................................................................. 21
Hydraulic System Installation ...................................................................................................31
Commissioning and Operation .................................................................................................35
Maintenance............................................................................................................................. 37
Control System Instruction .......................................................................................................39
Wired Controller Instruction...................................................................................................... 42
Error Code and Trouble Shooting............................................................................................. 46

2

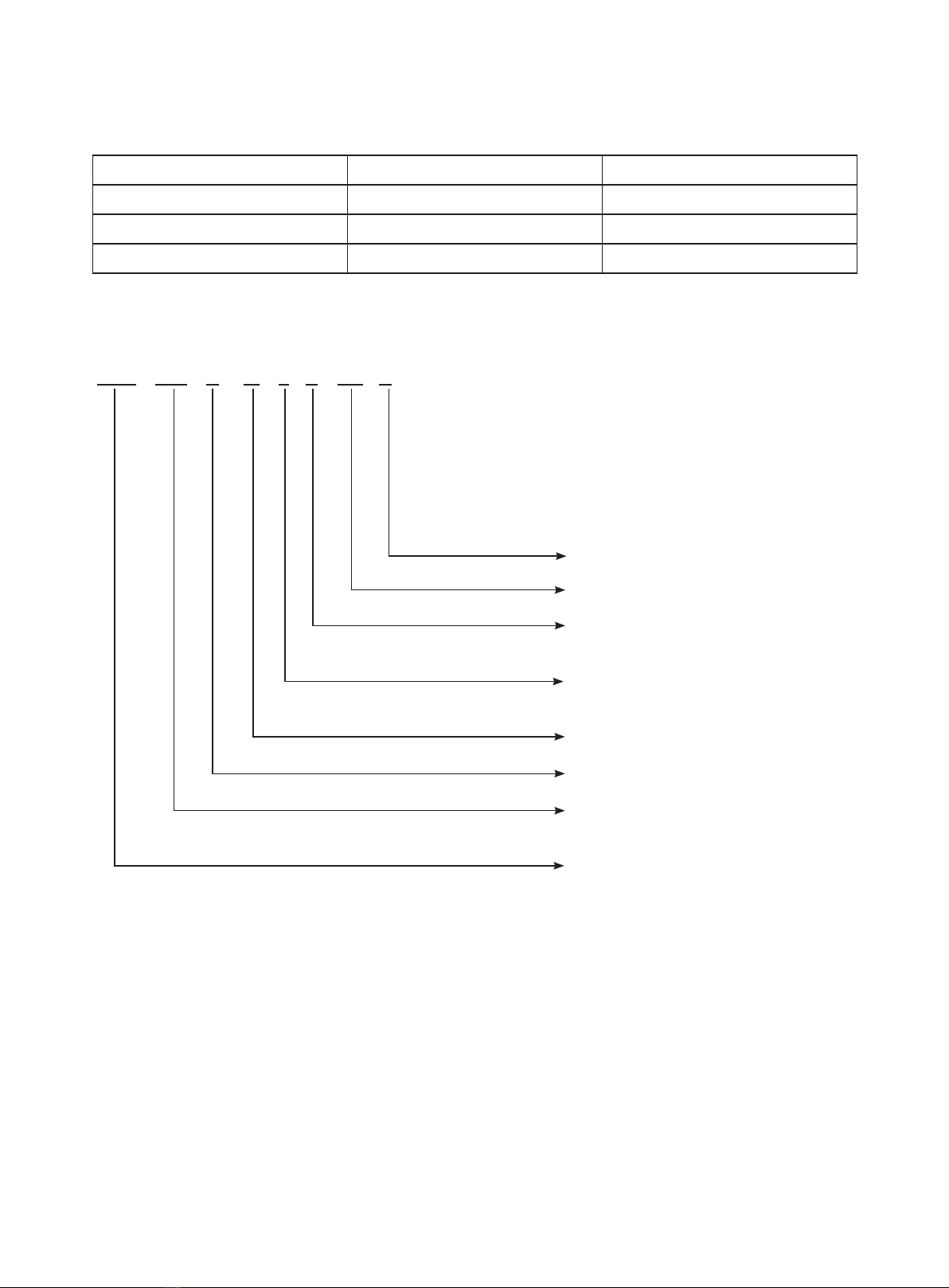

UHA 100 B M 5 - F AB E
Export sales code
Detailed description
Power supply
F: 380V/3N/50Hz
Regerant code
5: R410A
Code for modular connected units
Design series
Heating capatcity code
Product Code
Model Heating Capacity Max Combination Qty
UHA075B5 30 kW 16
UHA100B5 40 kW 16
UHA200B5 80 kW 16
Product code —— UHA: Air source heat pump water heater, DAIKIN brand
Heating capacity code —— 075, 100, 200 ……
Design series —— A, B, C ……
Refrigerant code —— 3: R134a, 4: R407C, 5: R410A, default: R22
Connected code —— M: master, S: slave
Power supply —— F: 380V/3N/50Hz, A: 220V/50Hz
Detailed description —— AA, AB, AC …… ZZ
Export sales cole —— E: for export, default: for domestic
Model Series
Nomenclature

3
Wide range of operation
UHA series air source heat pump water heater, with wider operation range, can realize normal operation from
-10°C to 43°C. Breaking the limit that traditional heat pump hot water unit can only be used in most southern
areas, UHA series of units are also applicable in most of northern areas.
Expand application of hot water units
UHA series air source heat pump water heater, breaks the traditional bound of domestic hot water, it can
also be used for fan coil units, radiator, oor heating and other hot water demands, according to different
customer requirments.
High EER
Air-cooled heat pump coheres forty years of experience, has introduced efcient and green new products,
help build energyefficient society. UHA series air source heat pump water heater obtained national
energysaving product certication, and were included in the government procurement list of energy-saving
products. The unit, at standard conditions, reaches the highest COP 4.59, an industry-leading level.
Dedicated compressor for hot water unit
UHA series air source heat pump water heater adopts a dedicated compressor. In its unique "spray liquid"
design, during low temperature running status, liquid refrigerant is sprayed into the middle of the scroll
compressor cooling chamber to cool down effectively and reduce the exhaust gas temperature, so as to
ensure the reliability and security. By advanced system design with special "spray liquid" compressor, the
operating range and efciency are greatly improved, to provide stable year-round hot water.
Environmental-friendly rerigerant
The unit uses environmentally friendly refrigerant R410A, ODP = 0. It does not destroy the ozone layer. The
unit integrate R410A and new technologies to provide customers with more efcient, more environmentally
friendly and more economical systems.
No exhaust emission
The unit is without waste gas, water, residue or other harmful substances, nor will it generate any
atmospheric pollution. It's green and environmentally friendly; while absorbing heat when the unit is running,
in summer it improves the surrounding environment, alleviate the urban heat island effect.
Temperature & level limit replenishment function
The unit, of its original "temperature & level limit replenishment function", is dual controlled by water tank hot
water temperature and water level to decide whether to rell water. When the tank temperature is below the
set temperature, it stops relling the water, avoid water temperature uctuates too much during peak of water
use. It provides a stable temperature, to ensure comfort.
Features

4
LCD controller
Using humanized microcomputer control system, LCD display controller, the unit is simple and quick to
use. Single controller can control up to 16 units, monitor unit running status dynamically. The controller has
parameter display, parameter settings and other functions. When the unit fails, the controller displays the
fault quickly and accurately assist rapid troubleshooting, easy maintenance and management.
Schedule management
Daily timer of on-off switch time, could be set in one week cycle, to run the unit automatically, and realize
unattended operation. The programmable switch timer function of the unit, during the night, utilize the low
price electricity, to produce hot water and store in the storage device, with no staff on duty.
Building controller
UHA series air source heat pump water heater with default ModBus gateway protocol components, can
be easily connected to building control system (BAS) for centralized control, easy to implement intelligent
management, improve management efciency, and save operating cost.
Flexible application
The unit uses a modular design, enabling free combination of 1 to 16 different units, and can be combined
freely between different models to meet hot water needs of different places. When design capacity of the
units change, or phased investment of project is required, it can respond exibly.
Convenient installation
The unit is compact enough to be delivered by elevators or barrows, without any large delievering, lifting
equipment. The unit can be delievered separately, and combine to install, very simple construction. It is
conductive to shorten the construction period. The unit is installed outdoor, without dedicated machine room,
and footprint is small enough to be adapted to irregular installation space.
Backup after failure
By its industry-leading modular design, in the modular combination, each unit is backup for each other. If any
unit in a modular combination needs repair or maintenance, it will not affect the operation of other units.
Intelligent defrosting
By detecting multivariate parameters, unit accurately judge the frosting situation, and intelligently select the
best time to enter or exit the defrosting condition, to avoid endless defrosting or frequent defrosting problems.
Intelligent defrosting control design makes defrosting more quickly and thoroughly. Dual system design helps
two systems in one unit to achieve interval defrosting, and avoid excessive temperature uctuation.

5
Specications
General data
Notes:
1. The nominal heating capacity above is measured at outdoor environment DB/WB temperature
20ºC/15ºC, initial water tank temperature 15ºC, and nal water temperature 55ºC;
2. Nominal cycle water ow is the design value of unit heating cycle, WPD is measured at this
operation mode and water ow value;
3. Noise level is measured at noise chamber whose background noise level is 11.5 dB(A), during
actual use, due to environmental noise or other reasons, the real noise may be different;
4. All specications are subjected to change by the manufacturer without prior notice.
Model UHA075B5 UHA100B5 UHA200B5
Nominal capacity kW 30 40 80
Nominal producing water l/h 645 860 1720
Nominal power input kW 6.83 8.71 18.22
COP W/W 4.39 4.59 4.39
Nominal current A 13.2 17.3 33.4
Power supply 380V/3N/50Hz
Nominal cycle water ow m³/h 5.16 6.88 13.76
WPD kPa 35 58 72
Throttle type EXV
Refrigerant Type R410A
Charging kg 4.1 5 5.0Х2
Pipes Inlet inch Rc1-1/2 Rc1-1/2 Rc2
Outlet inch Rc1-1/2 Rc1-1/2 Rc2
Air exhaust outlet On top
Fan power input (H/L) W 490/180 680/190 680Х2/190Х2
Net weight kg 220 250 500
Gross weight kg 248 278 540
Operating weight kg 225 255 510
Unit dimensions
L mm 990 990 1990
W mm 840 840 840
H mm 1515 1515 1780
Packing
dimensions
L mm 1080 1080 2070
W mm 890 890 890
H mm 1700 1700 1960
Noise dB(A) 60 62 65

6
Components data
Note: all specications are subjected to change by the manufacturer without prior notice.
Model UHA075B5 UHA100B5 UHA200B5
Water
side heat
exchanger
Type Tube in tube Tube in tube Tube in tube
Nominal water ow m3/h 5.16 6.88 13.76
Piping connecting Rc1-1/2 Rc1-1/2 Rc2
WPD kPa 35 58 72
Air side heat
exchanger
Material Copper Copper Copper
Type Inner groove Inner groove Inner groove
Outer dimeter mm 7.94 7.94 7.94
Fin
Material Aluminum Aluminum Aluminum
Type Blue n Blue n Blue n
Rows 222
Fin per inch 14 14 14
Face area m21.99 2.56 3.86
Condenser
fan
Type/ Drive Low-noise axial fan Low-noise axial fan Low-noise axial fan
Qty 1 1 2
Blade model ASG30 ASG30 ASG30
Motor poles 10 8 8
Air volume m38725 11846 23692
Compressor Type Scroll compressor Scroll compressor Scroll compressor
Qty 1 1 2
Refrigerant Type R410A R410A R410A
Charge kg 4.1 5 5.0 × 2
Flow control EXV EXV EXV
Numbers of circuits 1 1 2
Oil Model POE POE POE
Charge kg 3 3.3 3.3 × 2
Casing
Colour White White White
Material Electro-galvanized
Mild Steel
Electro-galvanized
Mild Steel
Electro-galvanized
Mild Steel
Protection devices
H/L pressure
switch /Thermal and
current overload
prtector
H/L pressure
switch /Thermal and
current overload
prtector
H/L pressure
switch /Thermal and
current overload
prtector

7
Electrical data
Safety devices
Notes:
1. All specictions are subjected to change by the manufacturer without prior notice.
2. The parameters above is measured at outdoor environment DB/WB temperature 20ºC/15ºC, initial
water tank temperature 15ºC, and nal water temperature 55ºC.
Notes:
1. All specictions are subjected to change by the manufacturer without prior notice.
Model UHA075B5 UHA100B5 UHA200B5
Compressor Rated running current A 19 24 24
Locked rotor AMP (LRA) A 98 142 142
IP/ Insulation grade IPX4 IPX4 IPX4
Unit operating current A 13.2 17.3 33.4
Unit max running current A 21.3 27.3 52.4
Unit max power input kW 11 13.8 28.6
Model UHA075B5 UHA100B5 UHA200B5
Safety device
High pressure
switch
Type PSW,H20PS B PSW,H20PS B PSW,H20PS B
Open MPa 4.15 ± 0.1 4.15 ± 0.1 4.15 ± 0.1
Close MPa 3.11 ± 0.1 3.11 ± 0.1 3.11 ± 0.1
Low pressure
switch
Type N/A N/A N/A
Open MPa N/A N/A N/A
Close MPa N/A N/A N/A
Phase sequencer YES YES YES
Discharge
temperature setting °C/°F 130/266 130/266 130/266

8
Dimensions
UHA075/100B5
18 18
844
880
45.3 90045.3
990
990
180247
181
14
20
Hot water return
Rc1-1/2
Hot water outlet
Rc1-1/2
14×20 Foundation bolt
840
1249
1515.4
Foundation bolt 4-14×20
UHA200B5
19844
19
45 81527081545
1990
880
1780
267
1513
179
247
824
840
20
14
Hot water return
Rc2
Hot water outlet
Rc2
Foundation bolt 8-14×20
14×20 Foundation bolt

9
UHA075/100/200B5
Operating range
Performance Data
Operating range
10
15
20
25
30
35
40
45
50
55
-15 -10 -5 0 5 10 15 20 25 30 35 40 45
Ambient temperature ℃
Water tank temperature ℃
Water tank temperature ℃
Ambient temperature
℃
Operating range

10

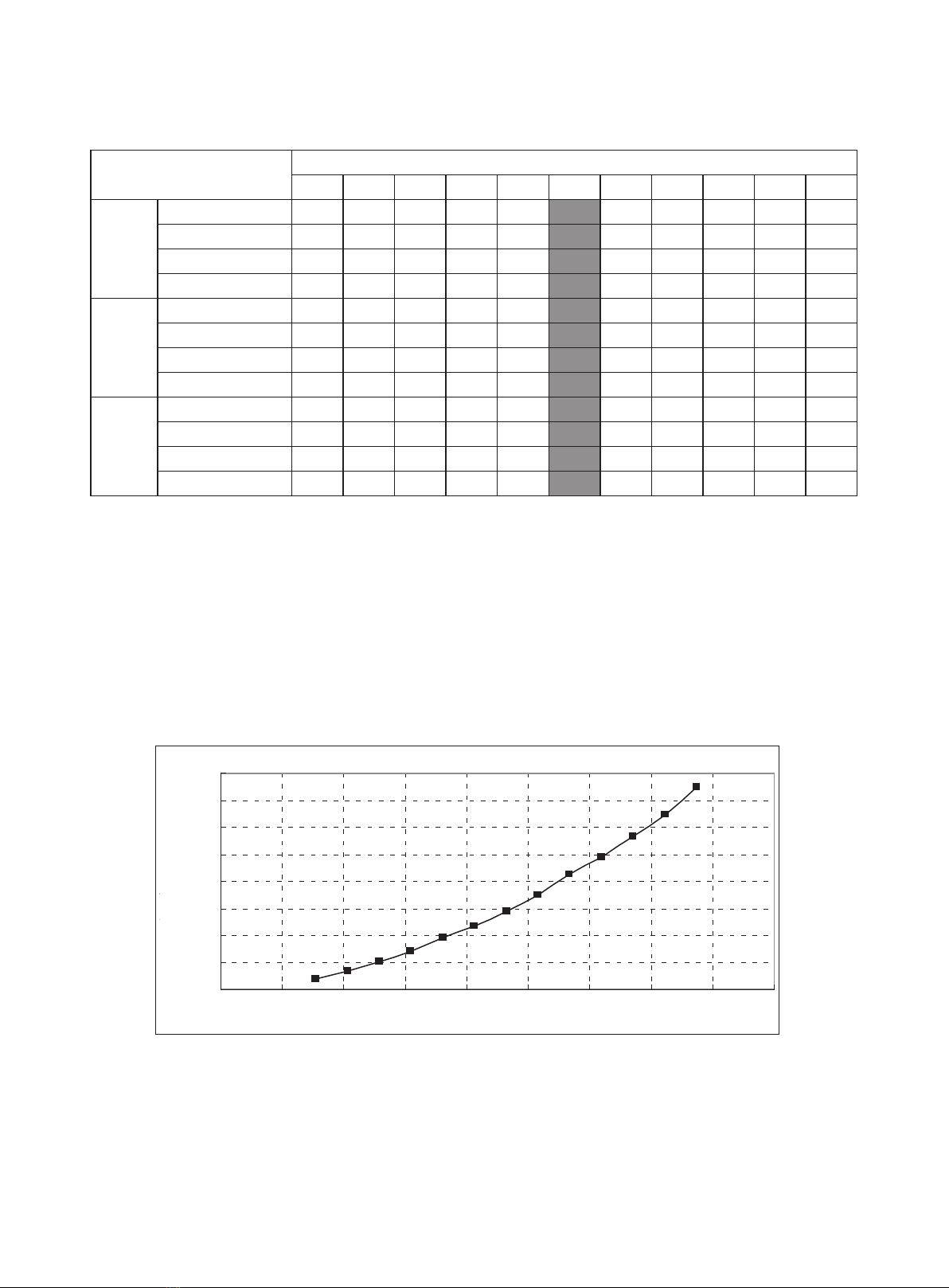

Heating capacity performance table
Note: The parameters above are measured base on constant inlet water temperature and nominal cycle water ow.
Model Inelt water
temp.
ºC
Ambient temp.
ºC
-10 0 10 15 20 25 30 35 40 43
UHA075B5
15
Heating capacity (kW) 15.15 19.24 23.72 25.37 27.02 29.31 31.59 32.54 33.48 34.56
Heating power (kW) 4.54 4.59 4.70 4.75 4.79 4.88 4.97 5.05 5.12 5.32
20
Heating capacity (kW) 14.86 18.79 23.30 25.03 26.76 28.87 30.98 31.75 32.52 33.41
Heating power (kW) 4.96 5.00 5.11 5.16 5.20 5.27 5.33 5.15 4.97 5.02
30
Heating capacity (kW) 14.19 18.15 22.33 24.29 26.24 28.16 30.07 30.33 30.58 32.84
Heating power (kW) 5.93 5.96 6.07 6.12 6.17 6.22 6.27 6.06 5.85 5.95
40
Heating capacity (kW) 13.48 17.81 21.47 23.35 25.22 27.14 29.06 29.50 29.94 31.86
Heating power (kW) 6.99 7.16 7.26 7.30 7.34 7.40 7.45 7.25 7.05 7.08
50
Heating capacity (kW) 13.37 17.51 20.55 22.17 23.78 24.79 25.80 27.49 29.17 31.10
Heating power (kW) 8.38 8.68 8.71 8.72 8.73 8.57 8.40 8.46 8.51 8.60
52
Heating capacity (kW) 13.14 16.93 20.44 22.05 23.66 25.13 26.60 27.93 29.25 29.99
Heating power (kW) 8.64 8.82 8.93 8.96 8.98 8.98 8.98 8.95 8.91 8.88
UHA100B5
15
Heating capacity (kW) 20.20 25.65 31.62 33.83 36.03 39.08 42.12 43.02 43.92 44.88
Heating power (kW) 5.79 5.85 6.00 6.06 6.11 6.22 6.33 6.10 5.86 5.91
20
Heating capacity (kW) 19.81 25.05 31.07 33.38 35.68 38.50 41.31 42.34 43.37 44.55
Heating power (kW) 6.32 6.37 6.52 6.58 6.63 6.72 6.80 6.57 6.33 6.40
30
Heating capacity (kW) 18.92 24.21 29.78 32.39 34.99 37.55 40.10 40.44 40.77 43.79
Heating power (kW) 7.56 7.60 7.75 7.81 7.87 7.94 8.00 7.74 7.47 7.59
40
Heating capacity (kW) 17.97 23.74 28.62 31.13 33.63 36.19 38.75 39.34 39.92 42.48
Heating power (kW) 8.92 9.13 9.26 9.32 9.37 9.44 9.50 9.25 9.00 9.02
50
Heating capacity (kW) 17.83 23.35 27.41 29.56 31.71 33.06 34.41 36.65 38.89 41.46
Heating power (kW) 10.69 11.06 11.11 11.12 11.13 10.92 10.71 10.79 10.86 10.97
52
Heating capacity (kW) 17.52 22.58 27.26 29.41 31.56 33.52 35.47 37.24 39.00 39.98
Heating power (kW) 11.02 11.25 11.39 11.43 11.46 11.46 11.45 11.41 11.37 11.33
UHA200B5
15
Heating capacity (kW) 40.40 51.30 63.25 67.66 72.07 78.15 84.23 86.40 88.56 90.12
Heating power (kW) 12.10 12.23 12.55 12.67 12.79 13.02 13.25 13.56 13.86 14.21
20
Heating capacity (kW) 39.62 50.10 62.14 66.75 71.36 76.99 82.62 84.68 86.73 89.10
Heating power (kW) 13.22 13.33 13.63 13.75 13.86 14.04 14.21 13.73 13.25 13.40
30
Heating capacity (kW) 37.83 48.41 59.55 64.77 69.98 75.09 80.20 80.87 81.54 87.57
Heating power (kW) 15.81 15.90 16.20 16.33 16.45 16.60 16.74 16.18 15.62 15.87
40
Heating capacity (kW) 35.95 47.48 57.25 62.26 67.26 72.38 77.50 78.67 79.84 84.96
Heating power (kW) 18.65 19.11 19.36 19.48 19.59 19.73 19.87 19.35 18.82 18.88
50
Heating capacity (kW) 35.65 46.70 54.81 59.12 63.43 66.12 68.81 73.30 77.78 82.93
Heating power (kW) 22.36 23.14 23.23 23.26 23.29 22.85 22.40 22.56 22.71 22.94
52
Heating capacity (kW) 35.04 45.16 54.52 58.82 63.12 67.03 70.94 74.47 78.00 79.96
Heating power (kW) 22.04 22.50 22.78 22.85 22.92 22.91 22.90 22.82 22.74 22.66

11
Note: The parameters above are measured at standard conditions of water tank initial water temperature 15ºC, nal water
temperature 55ºC.
Model
Ambient temp.
ºC
-10 0 7 10 15 20 25 30 35 40 43
UHA075B5
Heating capacity (kW) 16.50 21.30 24.50 25.80 27.90 30.00 31.90 33.80 34.90 36.00 37.90
Heating power (kW) 6.54 6.65 6.72 6.75 6.79 6.83 6.84 6.84 6.71 6.57 6.63
COP 2.53 3.21 3.64 3.82 4.11 4.39 4.67 4.95 5.22 5.48 5.72
Water production (m3/h) 0.36 0.46 0.53 0.56 0.60 0.65 0.69 0.73 0.75 0.77 0.81
UHA100B5
Heating capacity (kW) 22.00 28.50 32.60 34.40 37.20 40.00 42.55 45.10 46.55 48.00 50.50
Heating power (kW) 8.34 8.49 8.57 8.61 8.66 8.71 8.72 8.72 8.55 8.37 8.45
COP 2.64 3.35 3.81 4.00 4.30 4.59 4.88 5.17 5.45 5.73 5.98
Water production (m3/h) 0.47 0.61 0.70 0.74 0.80 0.86 0.92 0.97 1.00 1.03 1.09
UHA200B5
Heating capacity (kW) 44.10 56.90 65.30 68.90 74.45 80.00 85.10 90.20 93.10 96.00 101.00
Heating power (kW) 17.45 17.75 17.93 18.01 18.12 18.22 18.23 18.24 17.88 17.51 17.68
COP 2.52 3.21 3.64 3.82 4.11 4.39 4.67 4.94 5.21 5.48 5.71
Water production (m3/h) 0.95 1.22 1.40 1.48 1.60 1.72 1.83 1.94 2.00 2.07 2.17
Water Pressure Drop Curve
UHA075B5
Water Pressure Drop Curve
DMHA075B5
DMHA100B5
DMHA200B5
MHA075B5
0
10
20
30
40
50
60
70
80
0123456789
水流量（m3/h）
水阻力（kPa）
Water flow (m
3
/h)
Water pressure drop (kPa)
DMHA075B5
MHA100B5
0
20
40
60
80
100
120
140
160
水流量（m3/h）
水阻力（
kPa）
Water pressure drop (kPa)
Water flow (m
3
/h)
DMHA100B5
MHA200B5
0
20
40
60
80
100
120
140
0 2 4 6 8 10 12 14 16 18 20
水流量（m3/h）
水阻力（
kPa）
Water pressure drop (kPa)
Water flow (m
3
/h)
DMHA200B5
80
70
60
50
40
30
20
10
0
0 1 2 3 4 5 6 7 8
UHA075B5
9

12
Sound Data
Acoustic noise
Note: Noise level in the table is measured at noise chamber whose background noise level is 11.5 dB(A),
during actual use, due to environmental noise or other reasons, the real noise may be different.
UHA200B5
Water Pressure Drop Curve
DMHA075B5
DMHA100B5
DMHA200B5
MHA075B5
0
10
20
30
40
50
60
70
80
0123456789
水流量（m3/h）
水阻力（
kPa）
Water flow (m
3
/h)
Water pressure drop (kPa)
DMHA075B5
MHA100B5
0
20
40
60
80
100
120
140
160
水流量（m3/h）
水阻力（
kPa）
Water pressure drop (kPa)
Water flow (m
3
/h)
DMHA100B5
MHA200B5
0
20
40
60
80
100
120
140
0 2 4 6 8 10 12 14 16 18 20
水流量（m3/h）
水阻力（kPa）
Water pressure drop (kPa)
Water flow (m
3
/h)
DMHA200B5
140
120
100
80
60
40
20
0
0 2 68 10 12 14 16 18 20
4
Note: Unit water pressure drop is measured at unit water inlet and water outlet.
UHA200B5
UHA100B5
Water Pressure Drop Curve
DMHA075B5
DMHA100B5
DMHA200B5
MHA075B5
0
10
20
30
40
50
60
70
80
0123456789
水流量（m3/h）
水阻力（
kPa）
Water flow (m
3
/h)
Water pressure drop (kPa)
DMHA075B5
MHA100B5
0
20
40
60
80
100
120
140
160
水流量（m3/h）
水阻力（kPa）
Water pressure drop (kPa)
Water flow (m
3
/h)
DMHA100B5
MHA200B5
0
20
40
60
80
100
120
140
0 2 4 6 8 10 12 14 16 18 20
水流量（m3/h）
水阻力（
kPa）
Water pressure drop (kPa)
Water flow (m
3
/h)
DMHA200B5
160
140
120
100
80
60
40
20
00 2 6 8 10 124
UHA100B5
Model Octave Band Level (dB,ref20μPa) dB(A)
63Hz 125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz Overall
UHA075B5 46 47 53 54 55 53 48 42 60
UHA100B5 43 48 54 56 57 55 51 44 62
UHA200B5 51 54 58 61 59 55 49 41 65

13
Wiring Diagrams
UHA075/100BM5
14 53
27 86
14 53
27 86

14
UHA075/100BS5
14 53
27 86
14 53
27 86

15
UHA200BM5
14 53
27 86
14 53
27 86

16
UHA200BS5
14 53
27 86
14 53
27 86

17
Foundation bolts position
UHA075/100B5
Installation
Working condition
Installation dimensios and environment limits
Item Description
Power supply voltage Rated voltage ±10%
Power supply frequency Rated frequency ±1%
Variations between phases Rated voltage ±2%
Air quality Must not contain solute that can corrode copper, aluminum or iron.
Flow rate of chilled water 0.5 - 2.0m/s
Pressure of chilled water < 1.0Mpa
Quality of water "Must not contain solute that can corrode copper, iron, or welding material.
For details on the water quality requirements, see Water Quality Management."
Installation site Take anti-snow and ventilation measures as required.
Ambient temp. Refer to the Performae Data.
Relative humidity <90%
Note:
1. The unit is strictly tested before delivery and can work safely in the rated working conditions.
2. For the performance of the unit in different working conditions, please refer to performenc data.
3. This is the normal operating temperature range for the unit. Beyond this temperature range, the unit
can only operate for a short moment before a failure alarm is triggered.
Units must be installed by DAIKIN service staff or by specially trained personnel.
Units must installed by following relevant national and local electric, building and environment protection
standards as well as the installation manual.
500
445900 >490900900445
>1390×(N-1)+1790
≥300
840≥150
≥1140
≥150
Foundation bolt M12x200
Unit:mm

18
UHA200B5
Note:
1. The groundwork must be a concrete floor or a V-iron structure that is strong enough to bear the
operation pressure of the unit.
2. The groundwork must have draining facilities to discharge condensate water and defrosting water.
3. Installation on roof, strength of building must be checked and drainage measures must be adopted.
4. UHA075/100B5 must be xed by 4 M12x220 bolts, UHA200B5 must be xed by 8 M12x220 bolts.
5. 6 rubber cushions of 20mm thick must be installed between the unit and the groundwork.
6. N represents the number of modules installed.
Space allocated for a single unit
445815815>490815270815815270815445
>2390×(N-1)+2790
270
≥300
840≥180
≥180
≥1200
Foundation bolt M12x200
Unit:mm
＞ 45 °
＞ 45 °
>300
Front
Back
>300
＞
1000
≥400+h1
h1
≥800
≥400
≥800
≥400
≥400
＞
1000
≥400+h1
h1
≥800
≥400
≥400
≥400
≥800
Front
Back
Front
Back
Back
Front
Unit:mm
UHA200B5
Deflector
Deflector
UHA075/100B5

19
Note: "Front" is the side of unit airow inlet, "Back" is the side which with water pipes.
Note:
1. The unit must be moved with great care.
2. Accessory strips cannot be used to hoist or move the unit as they might break and cause unexpected
accidents.
3. Don't touch the heat sinks of the heat exchanger bare-handedly as they might cut your ngers.
4. Dispose all plastic bags properly and keep them away from children.
Space allotted for an array of units
Hoisting the unit
≥400 ≥600 ≥600
≥800 ≥400
≥400 ≥600
≥800 ≥400
Back
Front
Front
Back
Front
Back
Front
Back
Front
Back
Front
Back
Front
Back
Front
Back
Front
Back
Front
Back
Unit:mm
DMHA075/100B5
DMHA200B5
<40°
>8m
>8m
Hoisting cable (2 pcs)
Protective cushion
UHA075/100B5 UHA200B5
