Daikin Super Unit SUT00S8007-30 User manual


PIM00424

Hybrid Hydraulic System
Super Unit
SUT00S8007-30
SUT10S8007-30
SUT00D8021-30
SUT10D8021-30
SUT16D8021-30
Operation Manual
























DAIKIN INDUSTRIES, LTD.
Oil Hydraulics Division


PIM00424 



Introduction
Thank you very much for selecting DAIKIN hydraulic unit "Super Unit". The hydraulic unit
"Super Unit" drived by IPM motor provides overwhelmingly excellent energy conservation
performance and advanced functions by using our unique hydraulic technology and energy
saving IPM motor system. The handling procedures, maintenance, abnormality diagnosis and
specifications of this unit are described in this manual. Please carefully read , and correctly use
this manual before operation.
General Notes
● Improper operation may cause unexpected accidents, shorten the life of the equipment, and
reduce its performance.
● This manual and other annexes should be read before installation, operation and
maintenance. After being familiar with all of the precautions and safety information of this
equipment, please correctly use it.
● For detailed explanation of the unit, all figures and photographs included in this manual
show the unit without covers or safety shields. To operate this unit, be sure to mount the
covers and shields in the specified manner, and observe the operating procedures described
in this manual.
● The contents of this operation manual are subject to change appropriately for product
improvement, specification change or easier operations.
● The latest version of this manual is available through DAIKIN Oil Hydraulics Division
Internet Service (http: //www.daikinpmc.com/).
● Please ensure that the contents of this manual is transmitted to the personnel using this
equipment.
● The instruction manual of your machine which installed this unit should include this
manual’s contents.
● Please keep this operation manual, attached documents and delivery specifications in
place, so that you can read them whenever required.
● For product improvement some figures in this manual may be different from the actual
product.
● This operation manual is a reference for safe handling of the hydraulic unit. Please prepare
the materials about safe handling for your machine, such as safe operation and maintenance
manual based on various specifications and standards.





PIM00424 

Chapter 1 Safety Precautions ...............................................................................................1-1
1.1 Conventionsofsafetyinstructionsinthismanual.........................................................1-1
1.2 Safetyprecautions.......................................................................................................................1-1
1.2.1 EscapeClauses.....................................................................................................................1-1
1.2.2 LimitationsonApplications..............................................................................................1-1
1.2.3 GeneralPrecautions............................................................................................................1-2
1.3 PrecautionsforUse....................................................................................................................1-2
1.4 Usingitsafely................................................................................................................................1-3
1.4.1 Installationandwiring.........................................................................................................1-3
1.4.2 Operation.................................................................................................................................1-4
1.4.3 Maintenanceandinspection............................................................................................1-5
1.4.4 Disposal....................................................................................................................................1-5
Chapter 2 Features and Structure........................................................................................2-1
2.1 Energy-saving................................................................................................................................2-1

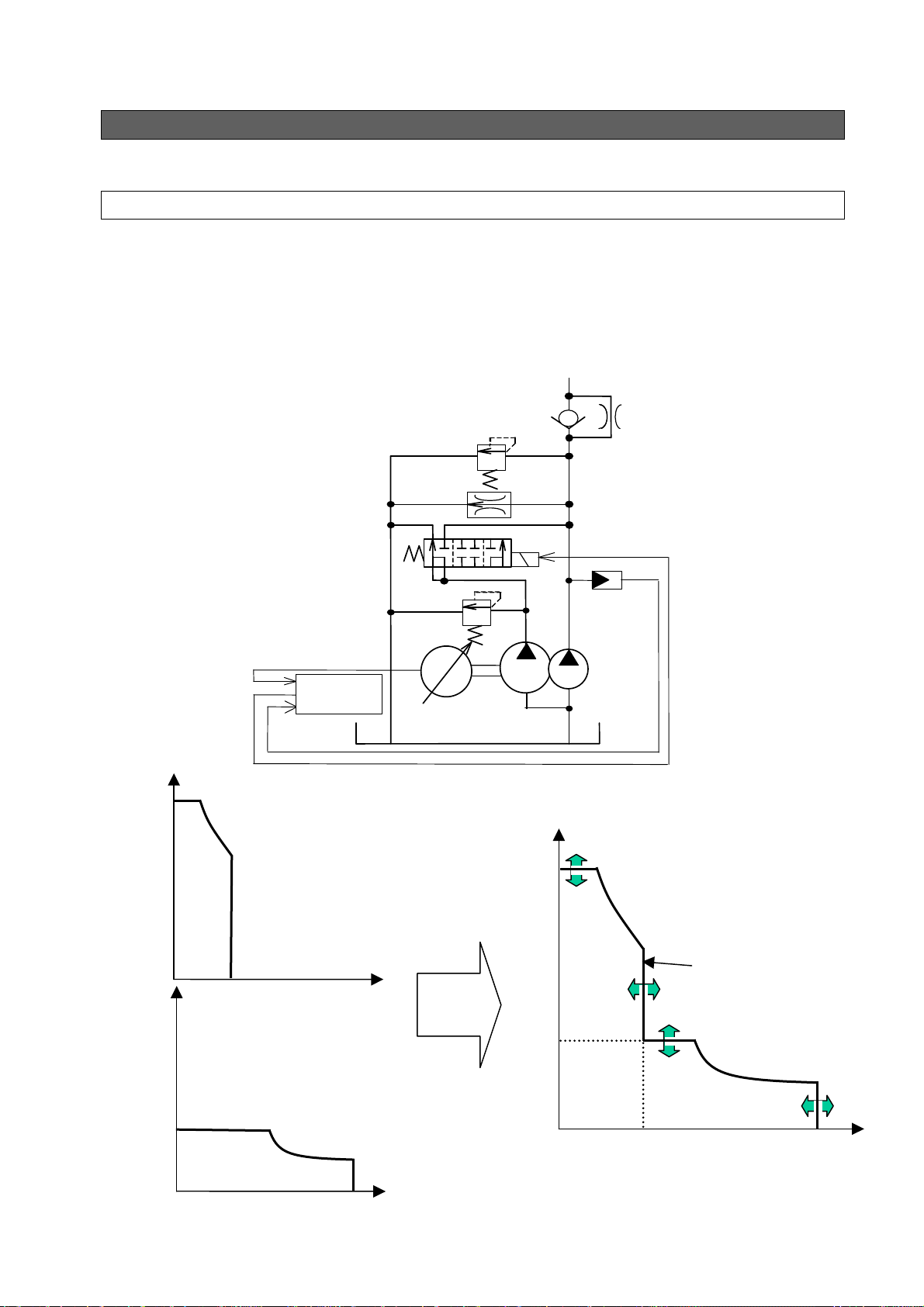

2.2 Multi-stagespeedcontrol/Multi-stagepressurecontrol,andshocklesscontrol
functions..........................................................................................................................................................2-2
2.3 Simplificationofthesystem.....................................................................................................2-2
Chapter 3 Specifications and Operating Conditions....................................................3-1
3.1 Modelidentificationcode..........................................................................................................3-1
3.1.1 Format......................................................................................................................................3-1
3.1.2 ManufacturingNumber.......................................................................................................3-2
3.2 Specificationsandoperatingconditions.............................................................................3-2
3.2.1 Productspecification..........................................................................................................3-2
3.2.2 CommonSpecifications.....................................................................................................3-3
3.3 TypicalP-Qcharacteristicdiagram(*1,2) ..............................................................................3-4
3.4 Dimensions......................................................................................................................................3-5
3.5 Hydrauliccircuit..........................................................................................................................3-10
Chapter 4 Names of Unit Components.............................................................................4-1
Chapter 5 Start-up Procedure...............................................................................................5-1
Chapter 6 Confirmation of the Arrival Product.............................................................6-1
6.1 PackageContents........................................................................................................................6-1
6.2 Formconfirmation........................................................................................................................6-1
Chapter 7 Transportation and Installation.......................................................................7-1
7.1 Transportation...............................................................................................................................7-1
7.1.1 Transportationunderpackingcondition......................................................................7-1
7.1.2 Transportationoftheunit................................................................................................7-1
7.2 Installation.......................................................................................................................................7-2
7.2.1 Ensuringairintake/exhaustspace................................................................................7-2
7.2.2 Fixationoftheunit..............................................................................................................7-3
Chapter 8 Piping........................................................................................................................8-1
8.1 Piping.................................................................................................................................................8-1
8.2 Fillinghydraulicoil(OnlySUT10,SUT16)...........................................................................8-3


PIM00424 
Chapter 9 Electric Wiring......................................................................................................9-1
9.1 Wiringdiagram.............................................................................................................................9-2
9.2 Installationofbreaker.................................................................................................................9-2
9.3 Connectingthemainpowersupplycable...........................................................................9-2
9.4 ConnectingtheI/Osignalcable.............................................................................................9-3
9.4.1 Digitalinput.............................................................................................................................9-4
9.4.2 Digitaloutput..........................................................................................................................9-5
9.4.3 Contactoutput......................................................................................................................9-6
Chapter 10 Test Run............................................................................................................10-1
Chapter 11 Panel Operation..............................................................................................11-1
11.1 Eachpartnameoftheoperationpanel.............................................................................11-1
11.2 Functionoftheoperationpanel...........................................................................................11-1
11.2.1 Functionaloverview...........................................................................................................11-1
11.2.2 Modeswitchingoperation...............................................................................................11-2
11.3 Normalmode.................................................................................................................................11-2
11.4 Monitormode...............................................................................................................................11-3
11.4.1 Monitormodedisplayitemlist......................................................................................11-3
11.4.2 Operationofthemonitormode....................................................................................11-4
11.5 Settingmode................................................................................................................................11-5
11.5.1 Operationofthesettingmode......................................................................................11-5
11.6 Alarmmode...................................................................................................................................11-8
11.6.1 Operationofthealarmmode.........................................................................................11-8
Chapter 12 Parameter Adjustment .................................................................................12-1
12.1 ParameterList.............................................................................................................................12-1
12.2 [P00:DIA]Validlogicswitchofthestart-stopsignal...............................................12-7
12.3 Pressure/flowratepropertyandPQselection...........................................................12-8
12.3.1 PQselectionparameter...................................................................................................12-8
12.3.2 PQselection.........................................................................................................................12-9
12.3.3 [P40:PLD]Settingswhenoperatingonlyathighpressureside(single) 12-10
12.4 OutputsignalSetting.............................................................................................................12-11
12.4.1 Parameter...........................................................................................................................12-11
12.4.2 [P39:DOS]Digitaloutputselection.......................................................................12-11
12.4.3 [P08:AMIX]Alarmmixoutput,[P07:WNM]Warningoutputlevel.............12-13
12.5 Pressureswitchsetting........................................................................................................12-13
12.5.1 Parameterslist.................................................................................................................12-13
12.5.2 Parameterdescription...................................................................................................12-14
12.6 Otherfunctions........................................................................................................................12-16
12.6.1 [P12:WTM]SolenoidvalveresponsedelaytimeatthetimeofswitchingPQ
selection.............................................................................................................................................12-16
12.6.2 [P32:STM]and[P33:LIN]Suppressionofsurgeduringstart-up.........12-16
12.6.3 [P45:ACF]ACfanstart-stopsignalsynchronizationsettings..................12-17
Chapter 13 Troubleshooting.............................................................................................13-1
13.1 Protectionfunction....................................................................................................................13-1
13.1.1 Outputsignaloftheprotectionfunction..................................................................13-1


PIM00424 
13.1.2 Alarm.......................................................................................................................................13-1
13.1.3 Warning...................................................................................................................................13-4
13.2 Periodicinspection....................................................................................................................13-5
13.3 Cleaningandreplacement.......................................................................................................13-7
13.4 Oilcoolermaintenanceprocedure(onlyforunittypeSUT10,SUT16)................13-8
13.4.1 Removingtheoilcooler...................................................................................................13-8
13.4.2 Disassemblingtheoilcooler..........................................................................................13-9
13.4.3 Cleanthecore.....................................................................................................................13-9
13.4.4 CleantheACfan................................................................................................................13-9
13.4.5 Reassemblingtheoilcooler...........................................................................................13-9
13.5 Oilfillingport(airbreather)maintenanceprocedure(onlyforunittypeSUT10,
SUT16)........................................................................................................................................................13-10
13.5.1 Removingmethod.........................................................................................................13-10
13.5.2 Cleaningmethod..............................................................................................................13-10
13.5.3 Mountingdirection..........................................................................................................13-10
13.6 Suctionstrainermaintenanceprocedure(onlyforunittypeSUT10,SUT16)13-10
13.6.1 Removingmethod..........................................................................................................13-10
13.6.2 Cleaningmethod..............................................................................................................13-10
13.6.3 Reassembling....................................................................................................................13-10
13.7 Replacementofthereturnfilterelement(onlyforunittypeSUT10,SUT16)13-11
13.8 High-pressureSafetyValveAdjustmentProcedure.................................................13-12
Chapter 14 Output Signal Timing Chart......................................................................14-1
14.1 Timingchartwhenthepoweristurnedon......................................................................14-1
14.1.1 Whenthesettingvalueof"P08:Alarmoutputmix"is"0"or"2"................14-1
14.1.2 Whenthesettingvalueof"P08:Alarmoutputmix"is"1"..............................14-1
14.1.3 TimingchartofPQselectionswitch..........................................................................14-2
Chapter 15 Hybrid-Win (Maintenance and Management Function).................15-1


PIM00424 1-1
Chapter 1 Safety Precautions

1.1 Conventions of safety instructions in this manual
In this manual, safety instructions are classified into three categories: “ DANGER”, “ WARNING” and
“CAUTION”.
DANGER: Improper handling regardless of this indication causes an urgently hazardous condition that
will result in death or serious injury.
WARNING: Improper handling regardless of this indication causes a potentially hazardous condition that
can result in death or serious injury.
CAUTION: Improper handling regardless of this indication causes a potentially hazardous condition that
may result in medium or slight injury, or property damage.
Even an item indicated as “ CAUTION” may result in a serious accident depending on the situation. All
instructions given in this manual include important information. Be sure to observe all of them.

1.2 Safety precautions
1.2.1 Escape Clauses
◆DAIKIN shall not be responsible for any damage attributable to a fire, earthquake, third party's action and other
accidents, as well as customer's intention, misuse or use under abnormal conditions.
◆DAIKIN shall not be responsible for any damage incidental to use of this product or impossibility to use this
product (loss of business profit, discontinuation of business).
◆DAIKIN shall not be responsible for any accident or damage attributable to negligence in observing the
instructions given in the operation manual or delivery specifications.
◆DAIKIN shall not be responsible for any damage attributable to malfunction caused by combinations of this unit
and external equipment.
◆DAIKIN shall not be responsible for any accident or damage attributable to decomposition and remodeling by
the customer.

1.2.2 Limitations on Applications
DANGER
 This product is not designed to be used in human life-support system or machine, or be used for other special
purposes, such as passenger mobile, medical and nuclear.
 This unit has been manufactured under strict quality control. However, when it is used for important equipment, the
equipment must be provided with a safety device to prevent malfunction of this unit from resulting in serious
accident or damage.









PIM00424 1-2
1.2.3 General Precautions
DANGER
 Transportation, installation, piping, wiring, operations, maintenance and inspections must be conducted by
qualified personnel.
 During the above work, wear protective gear required for safe work (work clothes, safety band, helmet, safety
shoes, gloves and so on).
 Do not use this unit under conditions other than those specified in the catalog or delivery specifications.
 Please do not unauthorizedly modify this product by a customer. In addition, please do not disassemble it, unless
the maintenance described in this manual. There is a risk of electric shock, fire, injury.
 Please install the whole system safety device, such as emergency brake, to prevent damaging the machinery or
equipment in case that the product failures.
 Please do not operate it in an atmosphere with rubber corrosion or cutting oil directly exposed locations. In
addition, please do not use near the combustible materials.
 Please do not operate or install this product if this product lost parts or damaged.
 Do not use the product which is not listed in the specifications of this manual. There is a risk of electric shock, fire,
injury. 
CAUTION
 Be sure to conduct daily inspections (described in this manual or attached documents).
 Do not apply external force to this unit. (Do not step on, or pound on this unit.) Otherwise, you may suffer from
injury, or the unit may be damaged.
1.3 Precautions for Use

（1） In this hydraulic unit, the motor pump unit is equipped with vibration suppressing rubber to prevent
vibration of the motor pump unit from being conveyed to the whole unit. For this purpose, the discharge
pipe provides a large degree of freedom. Therefore, when connecting the discharge pipe, be careful that the
discharge pipe will not touch the cover even if the pipe shakes with reaction force of the hose.
The piping to the unit should be connected with a hose, so that vibration of the motor pump unit will not be
conveyed to the machine.
（2） This hydraulic unit is equipped with an AC fan for cooling of hydraulic oil and motor.
To ensure spaces for air intake and exhaust, do not place an obstacle at 10 cm or shorter distance from the
fan motor air intake and exhaust planes.
（3） Frequently turning ON/OFF the power supply causes the controller service life to be remarkably shortened.
If you start and stop the hydraulic unit repeatedly by turning ON/OFF the power supply at intervals of 8
minutes or less, use the “start/stop” function using the start/stop signal.

（4） If you use this product in a hydraulic circuit fitted with in-line check valve on the pump discharge side, it
will not be able to control the pressure reducing of the load side. In addition, if the hydraulic circuit has
accumulators, please use check valve to prevent reverse flow to the pump side from the accumulator circuit.
When the power supply is turned OFF, because of the reverse flow, the motor will become a generator
which may damage the controller.
If load is applied to the pump when the power is turned on, there is a possibility that the motor does not
start properly. Please do not apply load to the pump for 5 seconds from power-on.

（5） This hydraulic unit uses an IPM motor, which generates counter-electromotive force during changeover
(regenerative operation). If the motor is frequently turned ON/OFF in the operating condition that easily
generate counter-electromotive force (a large load volume causes a large load reaction force accordingly),
it causes regenerative overload, resulting in unit stop.
（6） This hydraulic unit is equipped with a safety valve.This safety valve has been set to a specified pressure
before shipment. However, the set pressure of the safety valve may decrease while the machine is
repeatedly used for a long period, or due to contaminants in the hydraulic oil.


PIM00424 1-3
If this unit is continuously used in the state that the safety valve is actuated, it may output an alarm due to a
temperature rise and so on.In this case, re-adjust the high pressure safety valve pressure setting according to
“13.8 High-pressure Safety Valve Adjustment Procedure” in this instruction manual.

（7） If it is continuously used at the highest pressure, please follow the flowrate in the table below.

■Continuous flow rate at the highest pressure
Product Type Flowrate
SUT00S8007-30
SUT10S8007-30 19L/min or less
SUT00D8021-30
SUT10D8021-30
SUT16D8021-30 14L/min or less


1.4 Using it safely
This manual and other annexes should be read before installation, operation and maintenance. After being familiar
with all of the precautions and safety information of this equipment, please correctly use it.
1.4.1 Installation and wiring
DANGER
● Only the qualified personnel can do the wiring work. There is a risk of electrical shock or fire.
● Wiring worker should take safety measures, such as wearing long sleeves and gloves, for injury prevention.
● Wiring worker should take safety measures , such as wearing long sleeves and gloves, to prevent electric
shock or fire due to static electricity.
● Please wire after completing the installation. There is a risk of electrical shock or fire.
● Please wire after turning OFF the input power. There is a risk of electrical shock.
● If there is necessary to wire again after the power is turning ON, please make sure the motor is stopped and
the input power is turned OFF 5 minutes or more. There is a risk of electrical shock.
● Connect the no-fuse breaker and electric leakage breaker that conforms to EN60947-2 to the power supply
line. There is a risk of electrical shock or fire. Please refer to the "9.2 Breaker Installation " for breaker
capacity information.
● Please connect the ground terminal by the D class grounding method (formerly Class 3 grounding) . There is a
risk of electrical shock or fire.
● Please prevent the screws, conductive materials (for example metal piece), wood chips, flammable matter (oil)
entering the internal controller. There is a risk of electric shock, fire, or accident.
● Please do not use it near water or flammable materials, or in corrosive atmosphere or atmosphere of
inflammable gas. There is a risk of electric shock or fire.
● Do not scratch or apply force to the harness, and do not place heavy objects on the harness, pinch or bend it.
There is a risk of electric shock or damage.
● Please use the eye bolt to move the product. There is a danger of falling, if lift it by pump piping.
● Please do not operate or install this product if this product lost parts or damaged.There is a risk of accident.
● There is an orifice check valve in the discharge line in this hydraulic unit. It is important to set a pressure
release circuit, if the high response performance, such as pressure relief, is required.In addition, if the volume
of the load side is large, at the time of shutdown, the fluid sound may be generated from the orifice portion.
But it is not a malfunction.



PIM00424 1-4

CAUTION
● Please make sure the installation environment meets the requirements. There is a risk of fire or accident.
● Please install in somewhere can withstand its weight. There is a risk of accident.
● Please do not apply static electricity to terminals. There is a risk of accident.
● Please make sure that the input power supply voltage is equal to the rated voltage specification. There is a risk
of fire or accident.
● Check the terminal arrangement and terminal symbols, please do not connect to the wrong line.
● Please do not do the withstand voltage test. There is a risk of damage.
● Please do not do the megger test for the control circuit. There is a risk of damage.
● Please take measures to prevent the malfunction of the equipment and nearby sensors from electromagnetic
noise.
● Please do not apply strong shock to the product. There is a risk of accident.
● Do not step on, or place heavy objects on the product. There is a risk of electric shock, accident or damage.
● Please place the product in permissible temperature and humidity ambient. There is a risk of malfunction and
shorter service life.
● In order to exert a superior energy-saving performance, the hydraulic unit has a double-pump structure for
single and confluence switching by a solenoid valve. If the operating point of the machine is close to the
switching point of the solenoid valve, it is possible that the instability phenomenon may occur. In this case,
please change the settings of flow rate (qH) or pressure (PL) lower than the switching point (refer to page
[P00] ~ [P03]). It can also be stabilized by adjusting the width of the dead zone which is near the switching
point (refer to page 12-3 [P16] ~ [P17]).
1.4.2 Operation
DANGER
● Please do not touch the switch with wet hands. There is a risk of electrical shock.
● When the power is being supplied, please do not remove or insert terminals or change wires. There is a risk of
electrical shock, damage or accidents.
● Please do not frequently turn on or turn off the power. There is a risk of accident.

CAUTION
● Please set the pressure and flow rate in the permissible range of the machine. There is a risk of accident
● Before operation, please set the parameters according to the machine. There is a risk of damage or mechanical
failure.
● Before operation, please make sure that it can be switched into emergency stop situation at any time. There is
a risk of damage or mechanical failure.
● When the power failure occurs, the product may suddenly restarts after the power is restored, please do not
stay near the machine. There is a risk of injuries. Please adjust the machine to ensure its safety even restarting
it.
● If the power is turned off just for a while or the power is being supplied, because the electronic equipment and
heat dissipation fins may be very hot, please do not touch it. There is a risk of burns.












PIM00424 1-5
1.4.3 Maintenance and inspection
DANGER
● Only the qualified personnel can carry out the maintenance and inspection. There is a risk of electrical shock
or injuries.
● Before operation please make sure the input power supply is OFF. There is a risk of electrical shock.
● Please make sure the motor is stopped, and the power supply is cut off for five minutes or more. There is a
risk of electrical shock.
● When the power is being supplied, please do not remove or insert terminals or change wires. There is a risk of
electrical shock, damage or accidents.


CAUTION
● Please wear gloves and protective goggles when operation.
● Please do not directly touch the controller board. It may be damaged by static electricity.
● Please do not do the voltage resistance test. The product may be damaged.
● Please do not do the megger test for the control circuit. There is a risk of damage.
● Please do not disassemble this product. There is a risk of electric shock or injuries.

1.4.4 Disposal
CAUTION
● Please connect the specialized supplier to dispose this product (as a general industrial waste). There is a risk
of environmental pollution by solder (lead), and the like.

PIM00424 2-1
Chapter 2 Features and Structure

2.1Energy-saving
By using the highly efficient IPM motor driving system that DAIKIN originally developed, this hydraulic
unit remarkably improved the energy efficiency of the motor.
Two fixed displacement pumps (high-pressure small-capacity, low-pressure high-capacity) are adopted in
this double-pump specification. In this system, single/confluence mode can be automatically switched
according to load pressure. When the flow rate is necessary, the high-pressure small-capacity pump and
the low-pressure high-capacity pump are joined together to rotate at a high speed. When the flow rate is
not necessary (for example, pressure holding state), only the high-pressure small-capacity pumprotates
at a low speed. In this way, significant energy saving effect is achieved.






















Flow rate
Flow rate
Pressure
Pressure
Low pressure (confluence) side
PQ characteristics
q
L
PL
High pressure (single) side
PQ characteristics
q
H
PH
High pressure (single) side
0Pressure
Flow rate
16 patterns can be se
t
PL PH
qH
Low pressure (confluence) side
qL
Outlet (Rc 3/4)
Confluence / single switching
solenoid valve drive
High-pressure side relief valve
Flow rate
controlle
r
Low-
p
ressure side relief valve
IPM motor
Pressure
sensor
High pressure
small capacity
pump
Low pressure high
capacity pump
Drain
Controller
Rotational position
Check valve with
orifice


PIM00424 2-2
2.2Multi-stage speed control/Multi-stage pressure control, and shockless control functions
◆ The Super Unit enables multi-stage pressure control/flow rate control by selecting 16 patterns of P-Q
characteristics that have been registered in the controller from the master machine.
◆The Super Unit enables shockless control by setting/adjusting the rising/falling time at changes of the P-Q
characteristics.
2.3Simplification of the system
◆ The functions that have been controlled by valves in a conventional system can be controlled by pumps.
Therefore, when this system is used for high-speed/low-speed switching (for a press etc.) and multi-stage
pressure control applications, the system configuration can be simplified, and costs can be reduced.

Hydraulic press circuit construction
M
Controller
Joining/dividing
diverter valve
M
Cylinder speed
Pressurization force
High speed down Rising
Slow down →low
speed
Pressure
release
Pressurize
(three stage)
Generalized solenoid
operated valve
Driver
Special shock-less
solenoid operated
valve
Flow controlled
valve
Proportional relief valve
Standardization of the
solenoid operated valve
Elimination of the flow
controlled valve
Elimination of the
proportional valve
Reduction of the controlled
valve by software of the
equipment
Super unit system constructionFormer system construction


PIM00424 3-1
Chapter 3 Specifications and Operating Conditions

3.1Model identification code
3.1.1 Format
(a) (b) (c) (d) (e) (f) (ｇ) (ｈ) (i) (ｊ)
SUT ** * ** ** - 30 - * ** - * ***
(a) Series name
･SUT: SUT series
(b) Tank capacity
･00: No tank
･10: 100L tank
･16: 160L tank
(c) Pump type
･S: Single pump
･D: Double pump
(d) Maximum pump discharge rate
･80: 83.0 L/min
(e) Maximum operating pressure
･07: 7.0 MPa
･21: 20.6 MPa
(f) Design No.
･Advances according to model change
(g) Selection of function *
･C: Communication function（RS232C）
･P: Analog input command function
･No symbol: Standard product
(h) Option number
･Refer to the following table
(i) Control system
・A: With control system
・N: Without control system
(j) Non-standard number
● Option number
■Unit type (SUT10, SUT16)
Option number Description
01 Unit cover
02 Controller cover
03 DC reactor
04 Power, control
separation function
05 Water paste
06 Water leakage
07 Liquid level switch
08 Temperature switch
09 Thermometer
10 Micro separator
The number after 11 is a combination of
the 02-10 option number.
■Motor pump type (SUT00)
Option number Description
02 Controller cover
03 DC reactor
04 Power, control
separation function



PIM00424 3-2

3.1.2 Manufacturing Number

( i ) ( j ) ( k ) ( l )
** ** - ** - *****
（i ）Hardware revision history
（j ）Software revision history
（k ）Manufacture Date (*1)
（l ）Serial No.
*1First digit Year of manufacture (one digit of the western calendar). For example: 7 = 2007
 Second digit Manufacture month1 ~ 9 : January ~ September
  0: October
    X: November
 Y: December

3.2Specifications and operating conditions
3.2.1 Product specification
*1 The maximum flow rate is a theoretical value, not a guaranteed value.
CAUTION
 When shipped from the factory, the maximum flow rate was set. [Low pressure (confluence) side flow rate
setting value]
 Though the pressure and flow rate can be set beyond the adjustment range, please be sure to use it within the
pressure range and flow rate range.
 The high-pressure safety valve is installed in this hydraulic unit, and pressure is set as shown in the following
table.Product type High pressure safety valve setting pressure
SUT00S8007 / SUT10S8007 Maximum working pressure +0.5MPa
(7.5MPa)
SUT00D8021 / SUT10D8021
SUT16D8021 Maximum working pressure +2.0MPa (22.6MPa)
However, if it is necessary to minimize the surge pressure of actuator operation, please make adjustments in
accordance with the "13.8 high-pressure safety valve adjustment procedure".
Product type SUT00S8007-30
SUT10S8007-30
SUT00D8021-30
SUT10D8021-30
SUT16D8021-30
Maximum operating
pressure (MPa) 7.0 20.6
Maximum flow rate（*1）(MPa) 1.5 3.5
Operating pressure
adjusting range (L/min) 83.0
Operating discharge rate
adjusting range（*1）(MPa) 1.5 〜7.0 1.5 〜20.6
Pump capacity (L/min) 11.6 〜83.0
Maximum operating
pressure (cm3/rev) 19.28 Low pressure: 19.28
High pressure: 6.68


PIM00424 3-3
 If it continuously operate at the highest pressure, please follow the flow rate requirement showing in the table
below. Product type Flow rate
SUT00S8007-30
SUT10S8007-30 19L/min or less
SUT00D8021-30
SUT10D8021-30
SUT16D8021-30 14L/min or less
 Please check product specifications (in the format drawing) for other specifications.

3.2.2 Common Specifications

（Note 1） Please contact us if other kinds of oil besides mineral hydraulic oil (water-glycol) are going
to be used.
（Note 2） Even in the tolerance range, if the change is + side, there is a possibility that when
Hydraulic oil (Note 1)
Dedicated mineral hydraulic oil / Wear-resistant hydraulic oil (For recommended brands,
refer to DAIKIN "Hydraulic Equipment General Catalog (HK196)".)
・Viscosity grade: ISO VG 32 to 68 ・Viscosity range: 15 to 400 mm2/s
・Pollution degree: NAS Class 9 or lower level
Power supply 3φ200V/50Hz200V/60Hz220V/60Hz
Power supply voltage fluctuation tolerance range is ±10%.(Note2)
External input signal
(3ch) Photocoupler isolation, DC24V (up to 27V) 5mA/1ch
External output signal
(relay output) (1ch) Relay output contact capacity: DC30V 0.5A (resistance of load) 1c contact
External output signal
(dry contacts) (2ch) Photocoupler isolation, open collector output DC24V 50mA or less / 1ch
Standard paint color Ivory white (Munsell 5Y7.5 / 1)
Tank oil temperature 0 to 60 ℃(recommended operating temperature range: 15 to 50 ℃)(Note3)
Operating ambient
temperature 0 to 40 ℃
Storing ambient
temperature -20 to 60 ℃
Humidity 85% RH or less ( No condensation)
Height above the sea
level 1,000 m or less
Installation place Indoor (Be sure to fasten the unit with bolts.)
Others
・Be sure to mount a no-fuse breaker (three-pole) in main power supply circuit.
・Make sure that the electric wiring conforms to European Norm EN60204-1.
・If you frequently turn ON/OFF the power supply for this unit, the controller service life
will be remarkably deteriorated. If you intend to start and stop the unit at intervals of
eight minutes or less, use the start/stop signal function of this unit. However, if the start-
stop function is being used, please make sure the interval time is upto one minute or
more.
・Be sure to connect the ground terminal.



PIM00424 3-4
responding the regenerative overload alarm raises and the unit stops depending on the main
machine’s operating conditions and the load conditions. If the change is – side, the output
characteristics may become low.
（Note 3） If its operating temperature beyond the recommended temperature range, the pressure
pulsation may increase, the discharge flow rate may reduce, but it is not a malfunction.
3.3Typical P-Q characteristic diagram(*1,2)
78.7
(48.7)
07.0(3.4)
流量[L/min]
圧力[MPa]
78.7
(48.7)
07.0(3.4)
流量[L/min]
圧力[MPa]
SUT00S8007-30
SUT10S8007-30
81.7
27.4
(14.2)
(51.2)
020.6
(3.4) 7.0 (9.5)
SUT**D80L21
流量[L/min]
圧力[MPa]
SUT00D8021-30
SUT10D8021-30
SUT16D8021-30
Flowrate(L/min)
Flowrate(L/min)
Pressure(MPa)
Pressure(MPa) 
*1 The above charts show the typical characteristics when the oil temperature is 40 °C.
*2 The above PQ characteristics show the usable range by actual flow rate.


PIM00424 3-5

3.4 Dimensions
■Motor Pump Type (SUT00)
SUT00S8007-30



PIM00424 3-6
SUT00D8021-30
