Daikin EKWCTRDI1V3 Product information sheet

EKWCTRDI1V3
EKWCTRDI1V3
USER REFERENCE GUIDE
DIGITAL THERMOSTAT 230V

2
Contents
ENG
ENG 2
1 About these instructions ................................................3
1.1 Validity, storage and relaying of the instructions 3
1.2 Symbols 3
2 Safety ...............................................................................4
2.1 Intended use 4
2.2 General safety notes 4
3 Device overview ..............................................................6
4 Operation .........................................................................7
4.1 Setting the target temperature 7
4.2 Navigation and settings 7
4.2.1 Lifestyle functions menu 9
4.2.2 Settings menu 12
4.2.3 Service menu 16
5 Comfort and protection functions ...............................19
5.1 Comfort functions 19
5.1.1 Heating/cooling change-over 19
5.1.2 Restricted Mode 19
5.2 Protection functions 20
5.2.1 Valve protection function 20
5.2.2 Antifreeze protection 20
6 Maintenance ..................................................................21
6.1 Troubleshooting 21
6.2 Cleaning 21

3
About these instructions
1 About these instructions
1.1 Validity, storage and relaying of the instructions
These instructions apply to the room thermostat EKWCTRDI1V3
Digital Thermostat 230 V.
The instructions include information necessary for the operation
of the device. The instructions must be read completely and
thoroughly before commencing any work with the device. They
must be kept and handed over to future users. You can view
and download these instructions and the associated installation
instructions under https://qr.daikin.eu?N=EKWCTRDI1V3.
1.2 Symbols
The following symbols are used in this manual:
Hazard symbols: Identifi es a hazard
Information: Identifi es important or useful information
 User action
 Result of an action
• List without fi xed order
1., 2. List with fi xed order

4
Safety
The room thermostat controls thermal actuators connected in
a room-by-room temperature control system directly or via a
connection unit. The unit
• is a fi xed installation,
• measures the actual temperature (room temperature),
• can be used to set the target temperature (comfort
temperature),
• can be used to control the actual temperature by activating
actuators in heating/cooling operation in a predetermined
zone.
Every other use, modifi cation and conversion is expressly
forbidden and leads to dangers the manufacturer cannot be
held liable for.
All safety notes in these instructions must be observed in order
to avoid accidents with injury or property damage.
• Only an authorized electrician may open the device. It may
only be opened in de-energised state.
• Always disconnect from the mains network and secure
against unintended activation before opening.
• Only use the device if it is in perfect working condition state.
• Observe the performance limits of the device and the
environmental conditions.
2 Safety
2.1 Intended use
2.2 General safety notes

5
Safety
• This device is not intended to be used by persons (including
children) with restricted physical, sensory or mental skills
or who lack the necessary experience or knowledge.
If necessary, these persons must be supervised by a person
responsible for their safety or receive instructions from this
person on how to use this unit.
• Ensure that children do not play with this device. Children
must be monitored if necessary.
• In case of emergency, disconnect the complete room-by-
room temperature control system.

6
Device overview

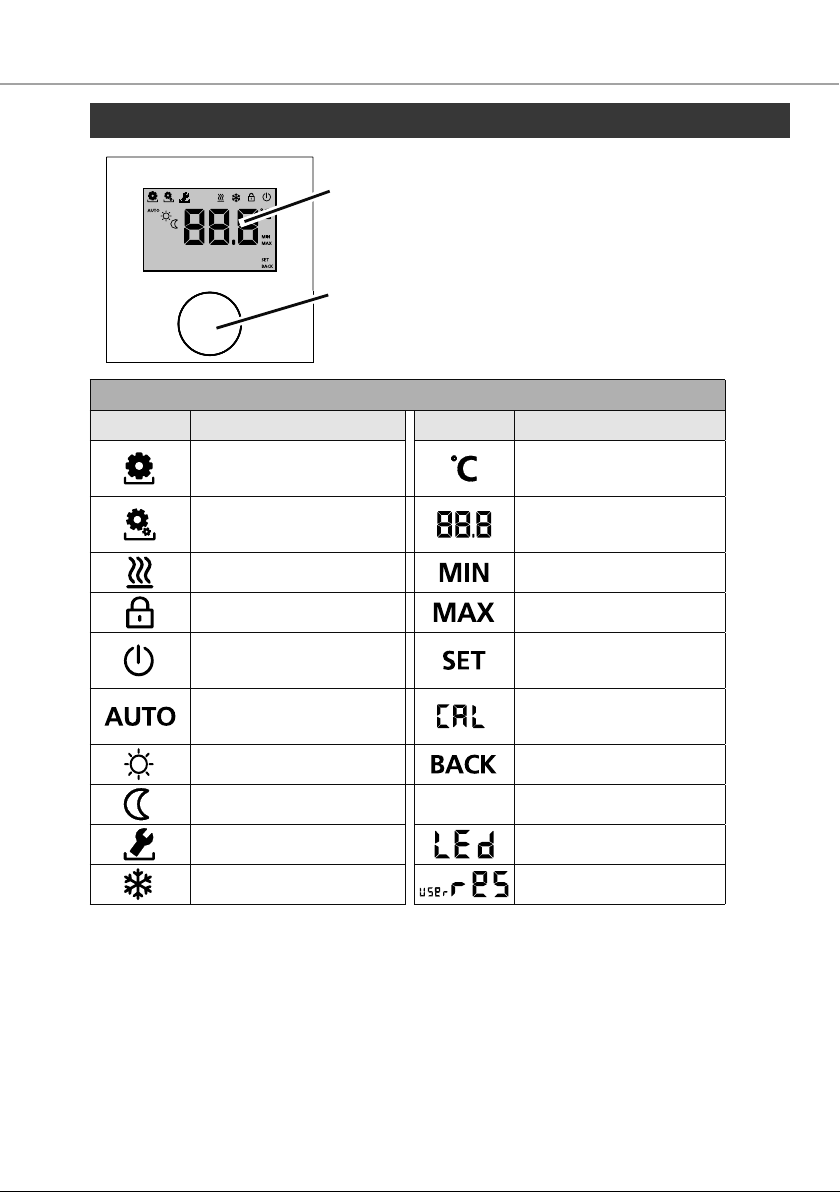

3 Device overview
Display
Dial with turn/press
mechanism and fi ne
ratchet
Room thermostat
Symbol Meaning Symbol Meaning
Lifestyle functions
menu Temperature unit
Settings menu Target/
actual temp.
Heating Min. temperature
Operating lock Max. temperature
Switching off Make/confi rm
entry
Automatic operation Correction of actual
temp. measuring
Day operation Back
Night operation
Service menu Display illum.
Cooling Factory settings

7
Operation
4 Operation
WARNING
Danger to life in case of swallowing!
The dial can be taken off ; children might swallow it.
Do not leave the dial near children.
The navigation and settings of the room thermostat are
performed with the dial:
+- The target temperature is set by turning the dial to the
left or to the right. Rotating to the left decreases the
temperature, rotating to the right increases it.
By pressing the dial, menus are opened and functions
are activated, and changed settings are applied.
+- By rotating the dial, settings can be adjusted and
functions and menus can be chosen.
Comfort temperatures for day and night operation can
be stored. A manual or automatic change between
the operating modes "day operation" and "night
operation" changes to the stored temperature. The
target temperature can be changed with the dial,
independently of the active operating mode. You can
fi nd more information in the section Lifestyle functions
menu.
4.1 Setting the target temperature
4.2 Navigation and settings

8
Operation

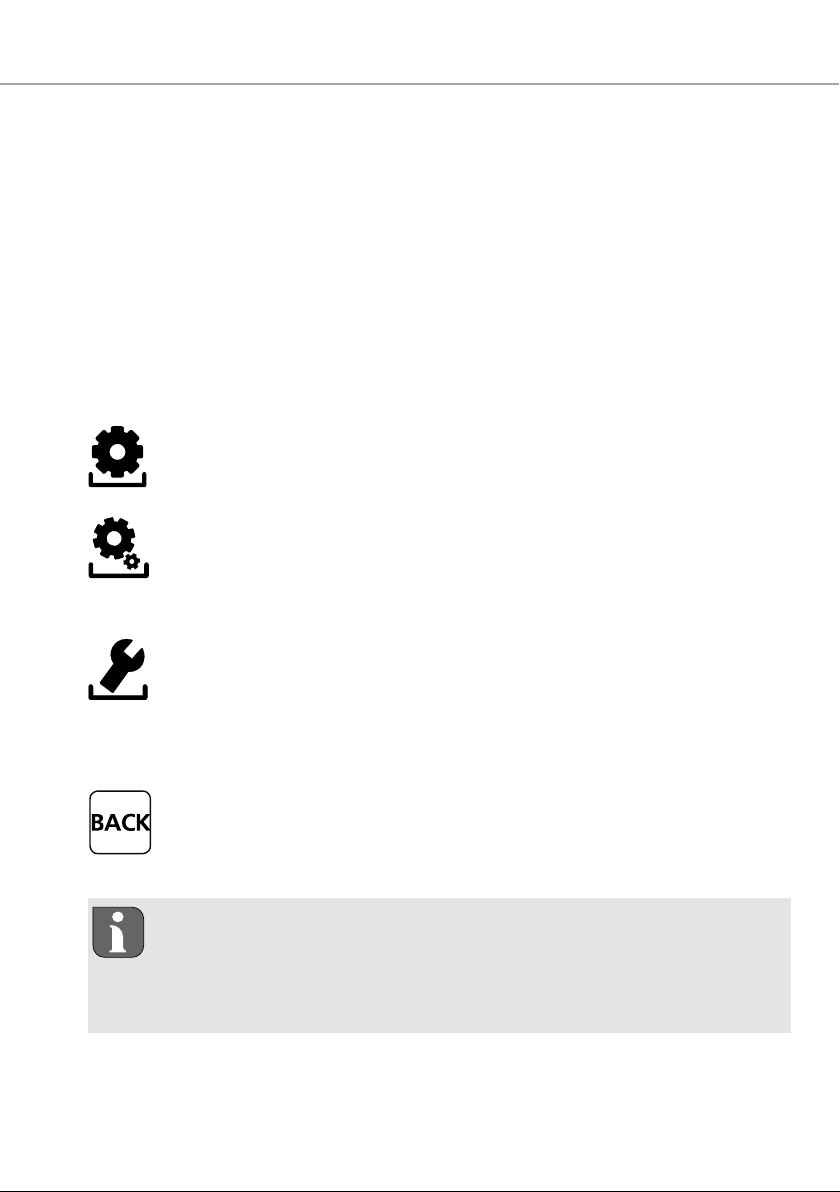

Menu selection
Lifestyle functions
Contains all important basic functions.
Settings
Includes extended functions and numerous possible
settings.
Service
Includes various system parameters. An optimal tuning
of the overall system can be obtained by adjusting
individual settings.
Back
Leaves the menu selection and returns to the main
level.
Main level
In the main level, all room thermostats show the current actual
temperature as well as active functions.
A main level and three menus are available for navigation and
settings:
• A selected menu or function is displayed by a fl ashing
symbol.
• If no operation is performed, the display returns to the
main level after approximately 5 seconds.

9
Operation
4.2.1 Lifestyle functions menu
This menu allows the setting of the lifestyle functions. The
settings shown in the graphic below. The following pages
contain detailed information.
• When selecting an operating mode (day, night,
automatic operation) only the inactive modes are
available for selection.
• If no operation is performed, the display returns to the
main level after approximately 30 seconds.
+-

10
Operation

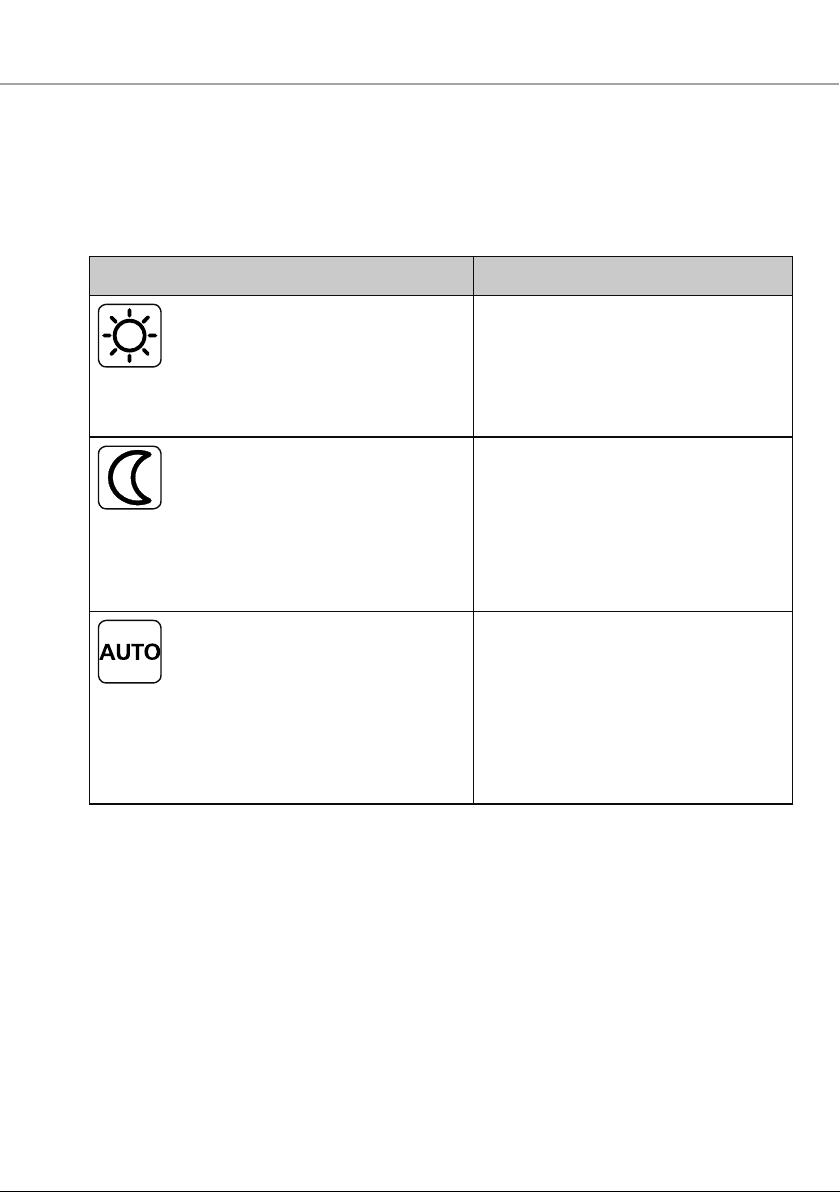

Description Steps
Day operation
Adjustment to the comfort tempera-
ture set in the Settings menu.
Confi rm the selection
by pressing the dial.
 Day operation is activated.
 The main level is dis-
played.
Night operation Confi rm the selection
by pressing.
 Night operation is activa-
ted.
 The main level is dis-
played.
Adjustment to the reduction tempera-
ture set in the Settings menu.
Automatic operation
The signal of an external system
clock (e. g. from a Control room ther-
mostat) activates day or night oper-
ation.
Confi rm the selection
by pressing.
 Automatic operation is
activated.
 The main level is dis-
played.
Open the menu selection by pressing the dial.
Select the menu Lifestyle functions.
Activate the menu by pressing again.
Select the desired function.

11
Operation
Description Steps

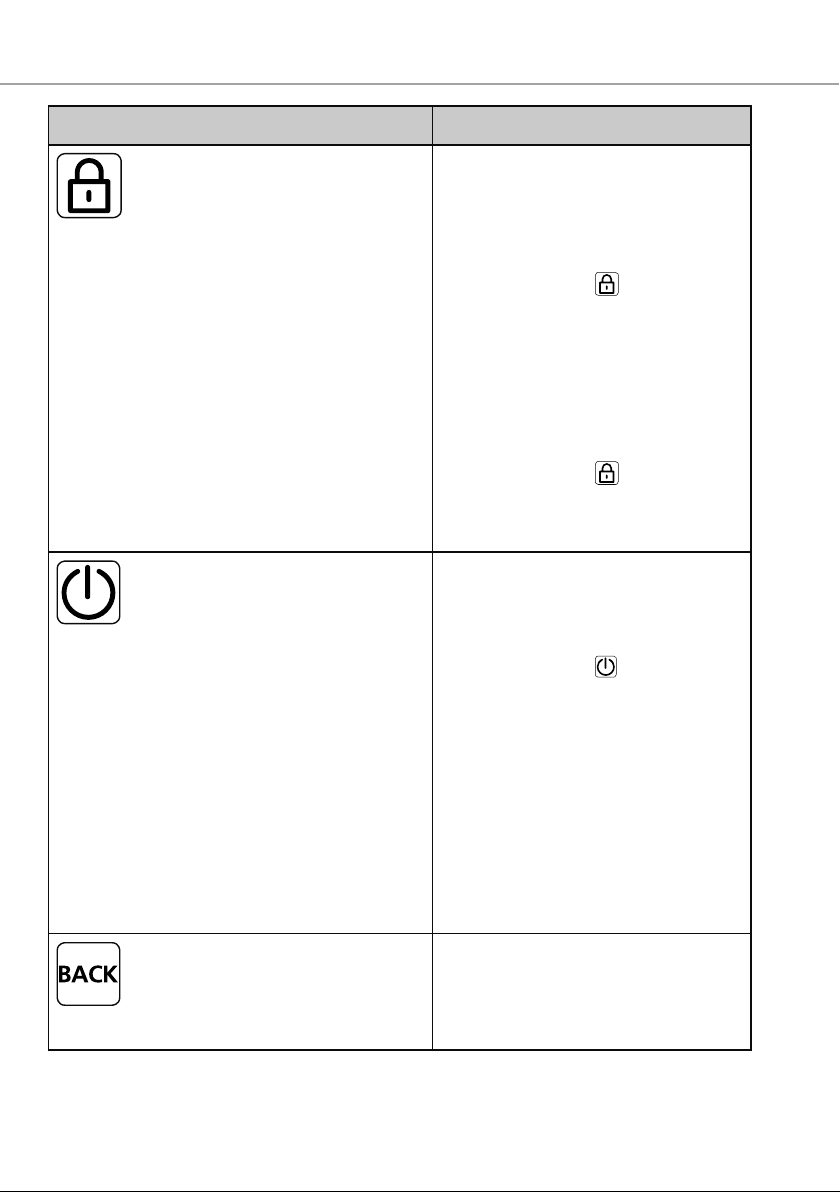

Operating lock
Locks the room thermostat.
The actual temperature and
all active functions are still displayed,
but the possibility to change the
target temperature and the operation
are deactivated.
Activate
Confi rm the selection
by pressing.
 The operating lock is
activated.
 The symbol is dis-
played.
 The main level is dis-
played.
Deactivate
Press the dial for
> 5 seconds.
 The symbol is deactiva-
ted, operation is possible
again.
Switching off
Switches the room
thermostat off . Temperature
control is deactivated. The protective
functions (valve protection and
antifreeze protection) remain active.
Confi rm the selection
by pressing the dial.
 All functions are deacti-
vated.
 The symbol is displayed.
 The actual temperature is
displayed
Switching on
Press the dial for
> 5 seconds.
 The main level is dis-
played.
 All active functions are
displayed.
Back
Leaves the menu.
Confi rm the selection
by pressing.
 The display returns to the
main level.

12
Operation

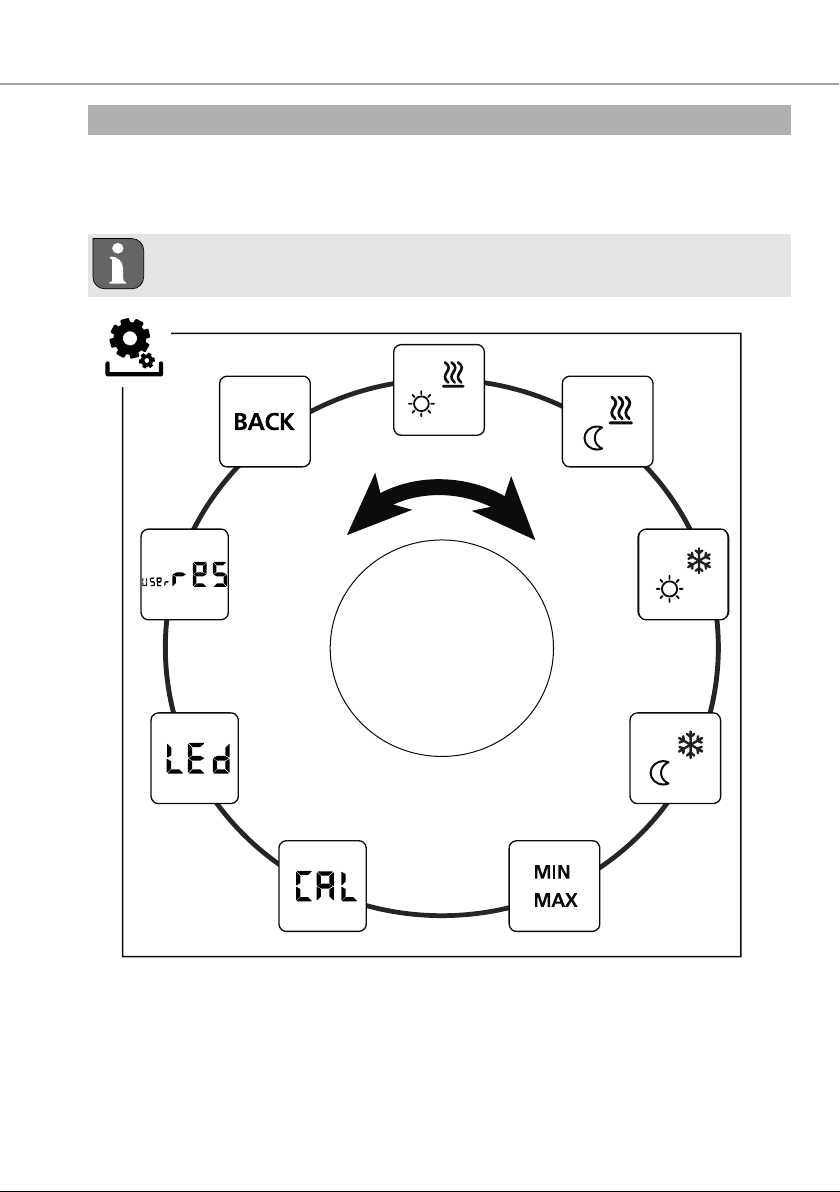

4.2.2 Settings menu
Extended settings can be made in this menu. The following
pages contain detailed information.
If no operation is performed, the display returns to the
main level after approximately 30 seconds.
+-

13
Operation
Open the menu selection by pressing.
Select the settings menu.
Activate the menu by pressing again.
Select the desired setting.
Description Steps
Comfort temperature
Heating
Sets the target temperature
for day operation.
Confi rm the selection
by pressing.
Set the target tempe-
rature.
Confi rm the entry by
pressing.
 Can be found in the
Settings menu.
Reduction temperature
Heating
Sets the target temperature
for night operation.
Confi rm the selection
by pressing.
Set the target tempe-
rature.
Confi rm the entry.
 Can be found in the
Settings menu.
Comfort temperature
Cooling
Sets the target temperature
for day operation.
Confi rm the selection
by pressing.
Set the target tempe-
rature.
Confi rm the entry.
 Can be found in the
Settings menu.
Reduction temperature
Cooling
Sets the target temperature
for night operation.
Confi rm the selection
by pressing.
Set the target tempe-
rature.
Confi rm the entry.
 Can be found in the
Settings menu.

14
Operation
Description Steps

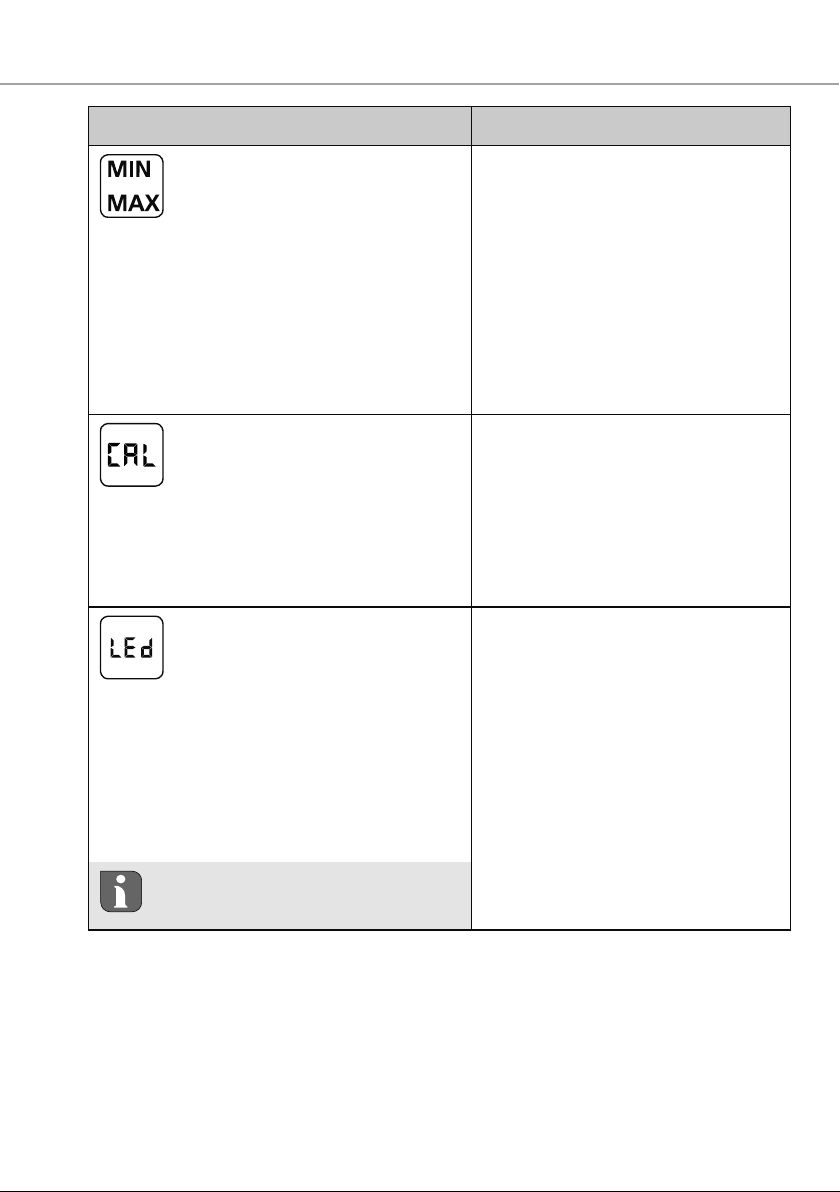

Target temperature
limitation
Setting of the maximum and
minimum settable target
temperature.
Confi rm the selection
by pressing.
Set the minimum
temperature.
Confi rm the entry.
Set the maximum
temperature.
Confi rm the entry.
 Can be found in the
Settings menu.
Temperature correction
Corrects a deviating
measurement of the actual
temperature of the internal sensor
by ±2 °C in 0.1 °C increments.
Confi rm the selection
by pressing.
Set the correction
value.
Confi rm the entry.
 Can be found in the
Settings menu.
Display illumination
Sets the brightness of the
display illumination in fi ve
levels:
0 Off
25 Level 1
50 Level 2
75 Level 3
100 Level 4
Confi rm the selection
by pressing.
Set the brightness of
the display illumina-
tion.
Confi rm the entry.
 The Settings menu is
displayed.
The setting is shown on the
time display.

15
Operation
Description Steps

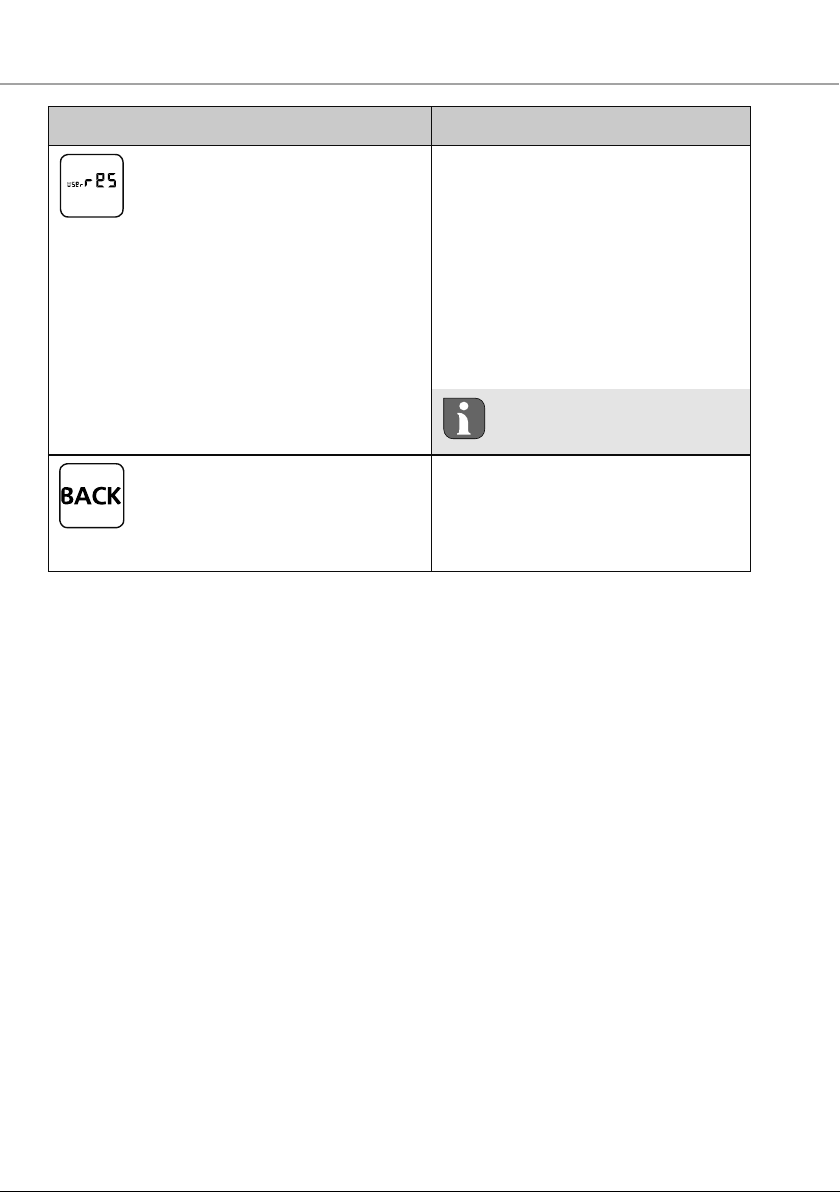

Factory settings
Restores the factory
settings. All previously
made settings will be reset.
Confi rm the selection
by pressing.
Select the entry “Yes”
for resetting.
Press the dial for
5 seconds.
 A restart is performed.
The main level is dis-
played subsequently.
The entry “No” cancels
the process.
Back
Leaves the menu.
Confi rm the selection
by pressing.
 The main level is dis-
played.

16
Operation
4.2.3 Service menu
An optimal tuning of the overall system can be reached by
adjusting settings of the system parameters. In order to avoid
a faulty confi guration, this menu is protected by a 4-digit PIN
(standard: 1234).
Open the menu selection by pressing.
Select the Parameters menu.
Activate the menu by pressing again.
Select the menu entry “Code”.
Activate the PIN entry by pressing.
Enter the 4-digit PIN (standard: 1234). Select the individual
digits by rotating and confi rm by pressing.
Start the entry by activating the function “PAR”.
Select the individual digits of the parameter number by
rotating and confi rm by pressing.
Activate the entry by selecting “SET” and by pressing.
Perform the setting according to the subsequent parameter
list.
Return to the main level by selecting “BACK” 2 times.
If no operation is performed, the display returns to the
main level after approximately 30 seconds.
CAUTION
Damage to the installation!
Faulty confi guration can lead to errors and installation damage.
Only authorised specialists may perform settings.

17
Operation
No. Description Setting
010
Heating system
Sets the existing heating system:
• Floor heating, standard (FBH St.)
• Floor heating, low energy (FBH NE)
• Radiator (RAD)
• Convector, passive (KON pas)
• Convector, active (KON akt)
0 = FBH St.
1 = FBH NE
2 = RAD
3 = KON pas
4 = KON akt
Standard: 0
020
Disable cooling
Deactivates the cooling function.
0 = activated
1 = deactivated
Standard: 0
030
Operating lock
Protects the deactivation of the operating
lock with a PIN.
0 = deactivated
1 = activated
Standard: 0
031
PIN operating lock
Sets the PIN for parameter 30.
0 ... 9999
Standard: 1234
If PIN is unknown:
De-energise the device.
Hold down the dial and apply
voltage again until the software
version is shown on the display
and goes out again.
Press the dial again until the
symbol disappears.
032
Restricted operation
Switches the room control unit operating
lock between “Standard” and “Restricted
operation”.
0 = deactivated
1 = activated
Standard: 0
050
Duration of the display illumination
Sets the duration of further illumination of
the display after use.
0 ... 30 sec.
in 5 second incre-
ments
Standard: 15 sec.
090
Signalling of switching output
Signals the control of switching outputs by
a fl ashing heating resp. cooling symbol.
0 = deactivated
1 = activated
Standard: 1

18
Operation
No. Description Setting
110
Control direction switching output
Sets the control direction of connected
actuators:
• Normally closed (NC)
• Normally open (NO)
0 = NC
1 = NO
Standard: 0
161
Antifreeze temperature
Activates the antifreeze protection function
when the temperature falls below the set
temperature.
5 ... 10 °C
Standard: 5
190
Valve protection function
Cyclic opening of the valve in order to
avoid clogging.
0 ... 28 days
Standard: 14
191
Valve activation duration
Time for triggering actuators for performing
the valve protection function.
0 ... 10 minutes
Standard: 5 min

19
Comfort and protection functions
5 Comfort and protection functions
5.1 Comfort functions
In order to increase user comfort, the room thermostat includes
functions for controlling the comfort temperature.
5.1.1 Heating/cooling change-over
This function switches the entire installation between heating
and cooling using an external signal.
5.1.2 Restricted Mode
The restricted mode only allows the target temperature to be
changed.
Activate mode
Activation is as follows:
Activate parameter 032 in the Service menu (value: 1).
The operating mode active before restarting is continued
for restricted operation.
De-energise the device.
Apply voltage again.
The restricted mode is activated.
Deactivate mode
De-energise the device.
Hold down the dial and apply voltage again until the software
version is shown on the display and disappears again.
In the Service menu, deactivate parameter 032 (value: 0).
The device is permanently in standard operation.

20
Comfort and protection functions
Temporarily deactivate mode
The restricted mode can be temporarily deactivated to use or
activate disabled functions of the device during this time. After
a voltage interruption of the device, the restricted mode is
reactivated.
De-energise the device.
Hold down the dial and apply voltage again until the software
version is shown on the display and disappears again.
The device is temporarily in standard operation until the next
power interruption occurs.
5.2 Protection functions
The room thermostat is equipped with protection functions for
avoiding damage to the overall installation.
5.2.1 Valve protection function
In periods without valve activation (e. g. outside the heating
period), all valves are opened cyclically. This avoids a clogging
of the valves (parameters 190 and 191).
5.2.2 Antifreeze protection
Independent from the operating mode, the room thermostat
is equipped with an antifreeze function (parameter 161).
When the temperature falls below the antifreeze protection
temperature, all connected actuators are activated and the
valves are opened.
