EKRTWA
Room thermostat
4PW56102-1
Operation manual
1
The English text is the original instruction. Other languages are
translations of the original instructions.
WARNINGS
■Never let the thermostat get wet, this may cause an electric
shock or fire.
■Never press the buttons of the thermostat with a hard,
pointed object. The thermostat may be damaged.
■Never inspect or service the thermostat yourself, ask a
qualified service person to do this.
Contents
1. Main features..........................................................................2
2. Buttons on front cover and LCD.............................................3
3. Getting started ....................................................................... 5
4. Description of the function modes and menus.......................7
5. Using the thermostat ..............................................................9
6. Setting up codes in the user menu....................................... 15
7. Troubleshooting .................................................................... 18
8. Maintenance......................................................................... 19
9. APPENDIX: factory-defined programs .................................20
EKRTWA Room thermostat Operation manual
THANK YOU FOR PURCHASING THIS THERMOSTAT.
READ THE MANUAL ATTENTIVELY BEFORE USING
THE INSTALLATION. AFTER READING THE MANUAL,
STORE IT IN A SAFE PLACE FOR FUTURE USE.
1D_OM_4PW56102-1.book Page 1 Thursday, August 27, 2009 10:52 AM

Operation manual
2
EKRTWA
Room thermostat
4PW56102-1
1. Main features
The EKRTWA is a state of the art programmable electronic
thermostat, which regulates your Daikin system, where comfort,
simplicity and energy saving go hand in hand. It is the wired
room thermostat option kit, mainly used for new installations.
The main features are:
■Room temperature control, based on the measurements of
the internal sensor.
■Cooling and heating mode (with possibility to disable cooling
function if not required).
■Off function (with integrated frost protection).
■Comfort and reduced function modes, using the comfort and
reduced setpoint respectively.
■Holiday function mode.
■Weekly schedule timer with 2 custom (◊1+◊2) and 5
predefined (π1~π5) schedules.
- The predefined schedules use the comfort and reduced
setpoints of the comfort or reduced function mode.
- The custom schedules use independent, programmed
setpoints (up to 12 setpoints per day).
-You can lock the schedule timer which allows a temporary
override with the comfort or reduced setpoint by means of
a single key push.
- It is possible to link a custom schedule to cooling and
heating mode.
- Comfort startup control. The schedule timer will
automatically start up in advance, trying to reach the
programmed setpoint at the programmed time.
■Clock (with day and month).
■Key lock function.
■Automatic daylight saving time change.
■Setpoint limitation. Your installer has the possibility to modify
the lower and upper limit of the setpoints. Refer to “Setting
up codes in the installer menu” (code 6® 12+6® 13) in the
installation manual.
1D_OM_4PW56102-1.book Page 2 Thursday, August 27, 2009 10:52 AM

EKRTWA
Room thermostat
4PW56102-1
Operation manual
3

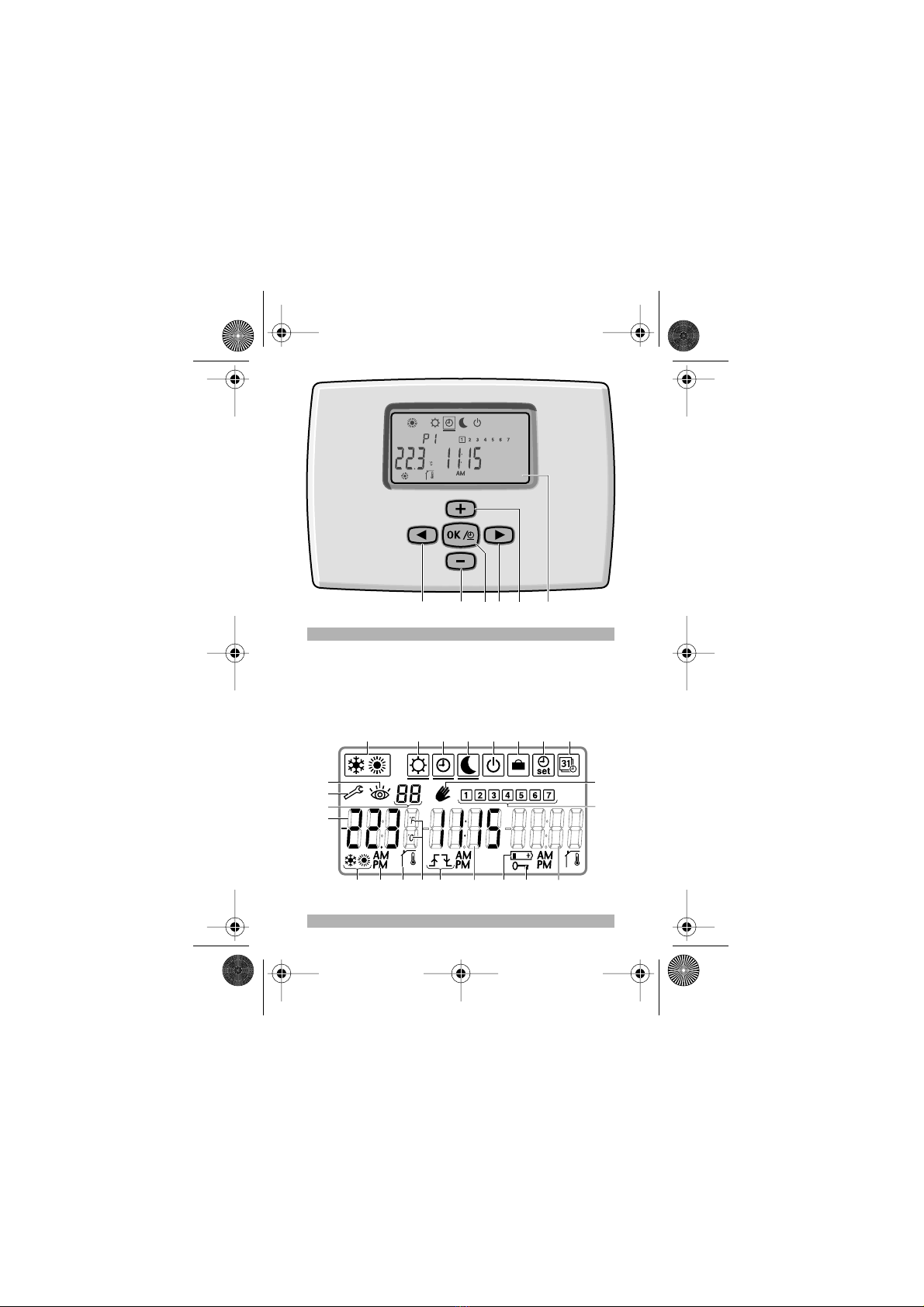

2. Buttons on front cover and LCD
Refer to figure 1 at the inside of the front cover.
Refer to figure 2 at the inside of the front cover.
1Left and right buttons (<and >). Used to select
modes.
2Up and down buttons (+or -). Used to change
values.
3OK - Schedule timer button (=).
Used to:
- confirm setpoints or save selections
- enable/disable locked schedule timer
4LCD
1Cooling/heating mode selection
2Comfort function mode
3Schedule timer function mode
4Reduced function mode
5OFF function mode (with integrated frost protection)
6Holiday function mode
7Schedule timer setting menu
8Date and clock setting menu
9Manual override of scheduled mode
10 Day of the week
11 Error occurred: intervention needed
12 Active user or installation menu or error occurred. Refer
to "Troubleshooting" on page 18.
13 Selected program (schedule timer) or code
14 Room temperature or setpoint (when flashing)
15 Thermostat ON (heating or cooling requested)
1D_OM_4PW56102-1.book Page 3 Thursday, August 27, 2009 10:52 AM

Operation manual
4
EKRTWA
Room thermostat
4PW56102-1
16 AM - PM indication
17 Room temperature symbol
18 Degrees type indication (°C or °F)
19 When manually overriding a schedule or when consulting
the active scheduled setpoints by pressing +or -,
the current and next setpoint together with the starting
hour of the next action are displayed.
•tis shown in case the next action setpoint goes up.
•uis shown in case the next action setpoint goes down.
•tu is shown in case the setpoints are equal.
20 Actual time
21 “Low batteries” indication
22 Key lock function
23 Next scheduled temperature setpoint
1D_OM_4PW56102-1.book Page 4 Thursday, August 27, 2009 10:52 AM

EKRTWA
Room thermostat
4PW56102-1
Operation manual
5
3. Getting started
3.1. Setting the clock and date
After installation you first need to set the clock before you can
actually use the thermostat.
1Activate the advanced mode by pressing > during 5
seconds in OFF mode (D).
Refer also to "Description of the function modes and menus"
on page 7.
2Navigate to the date and clock setting menu (G) by pressing
>and then press =.
3Set the hour, minutes, day of the week (&= Monday,
I= Tuesday,...), day, month and year by pressing +or
-and confirm each time by pressing =.
The value that you modify flashes.
3.2. Setting the desired mode: heating or cooling
1Press <to go to comfort mode (A).
2Press <during 5 seconds to go to the heating/cooling
selection mode.
3Press <or >to switch to the desired mode.
Oor Pis flashing.
4Press =to save your selection.
The thermostat returns to the schedule timer mode (B).
NOTE This is only possible if cooling mode is available.
1D_OM_4PW56102-1.book Page 5 Thursday, August 27, 2009 10:52 AM

Operation manual
6
EKRTWA
Room thermostat
4PW56102-1
3.3. Setting the desired setpoint
1Navigate to the comfort mode Aby pressing <or >to
set the comfort setpoint.
Refer also to "Description of the function modes and menus"
on page 7.
2Raise or drop the setpoint by pressing +or -.
The current setpoint flashes.
3Press =to save your settings.
The room temperature is displayed (R).
1D_OM_4PW56102-1.book Page 6 Thursday, August 27, 2009 10:52 AM

EKRTWA
Room thermostat
4PW56102-1
Operation manual
7
4. Description of the function modes and menus
4.1. Modes in the standard menu AB C D
Press <or >to switch to the desired mode.
The zcursor will move.
Icon Description
AComfort mode. Use this mode for a fixed temperature
on comfort level (comfort setpoint default on
21.0°C/70.0°F in heating mode, 24.0°C/75.5°F in cooling
mode).
BSchedule timer mode. Use this mode to let your
installation be controlled by the schedule timer. The
actions programmed in the schedule timer will be
executed automatically according to the actual time.
This function mode uses the scheduled temperature
setpoint.
The functionality of the locked/unlocked schedule timer
mode is explained in "Manually overriding a schedule"
on page 11.
It is advised to lock the schedule timer mode by pressing
=. A line will appear underneath the icon (S).
CReduced mode. Use this mode for a fixed temperature
on reduced level (reduced setpoint default on
17.0°C/63.0°F in heating mode, 28.0°C/82.5°F in cooling
mode).
DOFF mode. Use this mode to switch off your installation.
Integrated frost protection remains activated (frost
protection default on 4.0°C/39.5°F).
1D_OM_4PW56102-1.book Page 7 Thursday, August 27, 2009 10:52 AM

Operation manual
8
EKRTWA
Room thermostat
4PW56102-1
4.2. Modes and menus in the advanced menu EFG
To activate advanced modes, navigate to OFF mode (D) and
press >during 5 seconds.
Icon Description
EHoliday mode. Use this mode to set a fixed temperature
during a long absence. To exit the holiday mode, set the
duration to "?". Refer to "Using the holiday mode" on
page 14.
FSchedule timer setting menu. Use this menu to choose
a factory-defined schedule or create a custom one.
GDate and clock setting menu. Use this menu to set
date and time.
1D_OM_4PW56102-1.book Page 8 Thursday, August 27, 2009 10:52 AM

EKRTWA
Room thermostat
4PW56102-1
Operation manual
9
5. Using the thermostat
5.1. Using the key lock function k
Activate or deactivate the key lock function by pressing +and
-at the same time.
5.2. Activating the schedule timer
For full comfort with limitation of energy consumption you can
pick an ideal schedule for each day. This makes sure the
temperature is in the comfort mode when you are at home and
that the temperature is automatically reduced at times you are
sleeping, at work and so on.
1If needed, activate the advanced mode by pressing >
during 5 seconds in OFF mode (D).
2Navigate to the Schedule timer setting menu (F) by
pressing >.
3Select the desired schedule by pressing +or -.
When pressing +the next schedule is shown. When
pressing -the previous schedule is shown.
The possible schedules are: 2 user-defined (◊1+◊2) and 5
factory-defined (π1~π5).
The factory-defined schedules are described in "APPENDIX:
factory-defined programs" on page 20. For the user-defined
schedules, refer to "Setting up a user-defined schedule" on
page 12.
4Activate the selected schedule by pressing =.
Press <to exit the schedule.
Press +and -to consult the programmed actions,
press > and <to consult the other days (if already
programmed).
5Navigate to the schedule timer function mode (B) by
pressing <.
6Optionally, press =to lock the schedule timer mode (S).
1D_OM_4PW56102-1.book Page 9 Thursday, August 27, 2009 10:52 AM

Operation manual
10
EKRTWA
Room thermostat
4PW56102-1
NOTE For your optimum comfort, the schedule timer can
be set to start up in advance (120 minutes, code
2® 02, for 4.0° setpoint difference), trying to reach the
programmed setpoint at the programmed time. This
control can be enabled or disabled by means of code
2® 01 in the user menu. Refer to "Setting up codes in
the user menu" on page 15.
1D_OM_4PW56102-1.book Page 10 Thursday, August 27, 2009 10:52 AM

EKRTWA
Room thermostat
4PW56102-1
Operation manual
11
5.3. Manually overriding a schedule
There are 2 ways of overriding a schedule:
■A temporary override in locked schedule timer mode (SS
SS)
Temporarily choose the comfort or reduced setpoint by
pressing 1 button only: <or >. The cursor “Y” will
move.
• comfort setpoint: q and h are displayed.
• reduced setpoint: w and h are displayed.
■A temporary override of the setpoint in schedule timer
mode
Press +or -to modify the setpoint in steps of
0.5°C/0.5°F. Save a new, manual setpoint by pressing =or
by waiting 5 seconds.
h is displayed.
Locking and unlocking the schedule timer mode is performed by
pressing =. The locked schedule timer mode displays as S.
The unlocked schedule timer mode displays as B.
NOTE By default the manual override is active until the next
scheduled action. You can change this behavior by
means of user code 2® 03: the manual override will
then only be active for 1 hour. Refer to "Setting up
codes in the user menu" on page 15.
1D_OM_4PW56102-1.book Page 11 Thursday, August 27, 2009 10:52 AM

Operation manual
12
EKRTWA
Room thermostat
4PW56102-1
5.4. Setting up a user-defined schedule (◊◊
◊◊11 11 and ◊◊ ◊◊22 22)
Within the user-defined schedule each day can be programmed
individually and 12 actions (setpoints) are possible per day.
■First decide upon the temperature scale you prefer
(°C/°F) by setting up code 1® 01 as decribed in
"Setting up codes in the user menu" on page 15.
■At all times you can press <to go back 1 step.
Pressing >goes to the next step.
1If needed, activate the advanced mode by pressing >
during 5 seconds in OFF mode (D).
2Navigate to the schedule timer setting menu (F) by
pressing >.
3Press +or -until ◊1 or ◊2
flashes and press =to confirm.
4Press <or >to move to the
day you want to program and
press +to select or -to
deselect it.
You can program multiple days at
once by selecting them.
5Press =to confirm.
6Press +or -to adjust the
setpoint of the first action.
The first action starts at 00:00 and
lasts until the end time which you
set up in the next step.
1D_OM_4PW56102-1.book Page 12 Thursday, August 27, 2009 10:52 AM

EKRTWA
Room thermostat
4PW56102-1
Operation manual
13

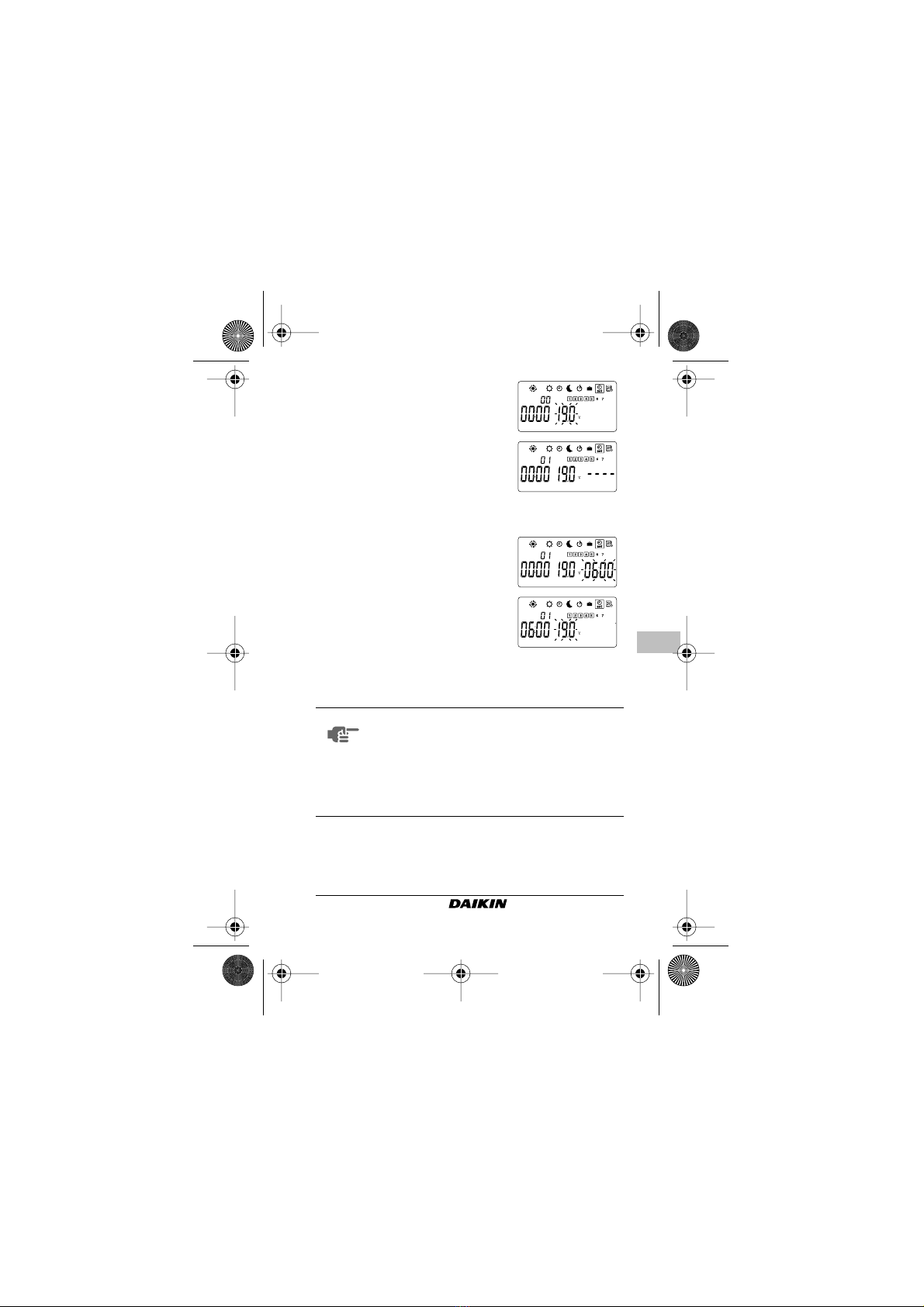

Your installer can link a custom schedule to cooling and heating
mode. Refer to “Setting up of codes in the installer menu” (code
8® 01) in the installation manual.
7Press =to confirm.
8Press +or -to adjust the
end time of this action.
Programming a day is finished
when the end time of the last
scheduled action is set to 23:59.
You can quickly set the time to
23:59 by pressing >.
9Press =to confirm.
10 Repeat step 6 till 9 for the next
scheduled actions of this day.
11 To program the remaining days, repeat above steps. Do
this for all days of the week.
NOTE Once programmed you can only modify
programmed actions one by one and no additional
actions can be added.
You can clear a user-defined schedule again by
selecting it (◊1 or ◊2 should be flashing) and then
pressing <during 10 seconds. “©¬® ◊1” or “©¬® ◊2”
appears on the LCD to confirm the schedule is
cleared.
1D_OM_4PW56102-1.book Page 13 Thursday, August 27, 2009 10:52 AM

Operation manual
14
EKRTWA
Room thermostat
4PW56102-1
5.5. Using the holiday mode
Use the holiday mode to set a fixed setpoint during a long
absence. The default holiday setpoint for heating is
14.0°C/57.5°F, for cooling 30.0°C/86.0°F.
1If needed, activate the advanced mode by pressing >
during 5 seconds in OFF mode (D).
2Press >to navigate to holiday mode (E).
3Press +or -to adjust the duration (È= hours, ∂= days).
To exit the holiday mode, set the duration to "?".
4Press =to confirm.
5Press +or -to adjust the holiday setpoint.
6Save this new setpoint by pressing =or by waiting 5
seconds.
The holiday setpoint will be kept for the programmed
duration. The duration is shown and counts down. In case
the duration becomes less than 1È, the remaining minutes
are shown (example: 59;). After the programmed duration the
thermostat will go back to the schedule timer mode (B).
1D_OM_4PW56102-1.book Page 14 Thursday, August 27, 2009 10:52 AM

EKRTWA
Room thermostat
4PW56102-1
Operation manual
15

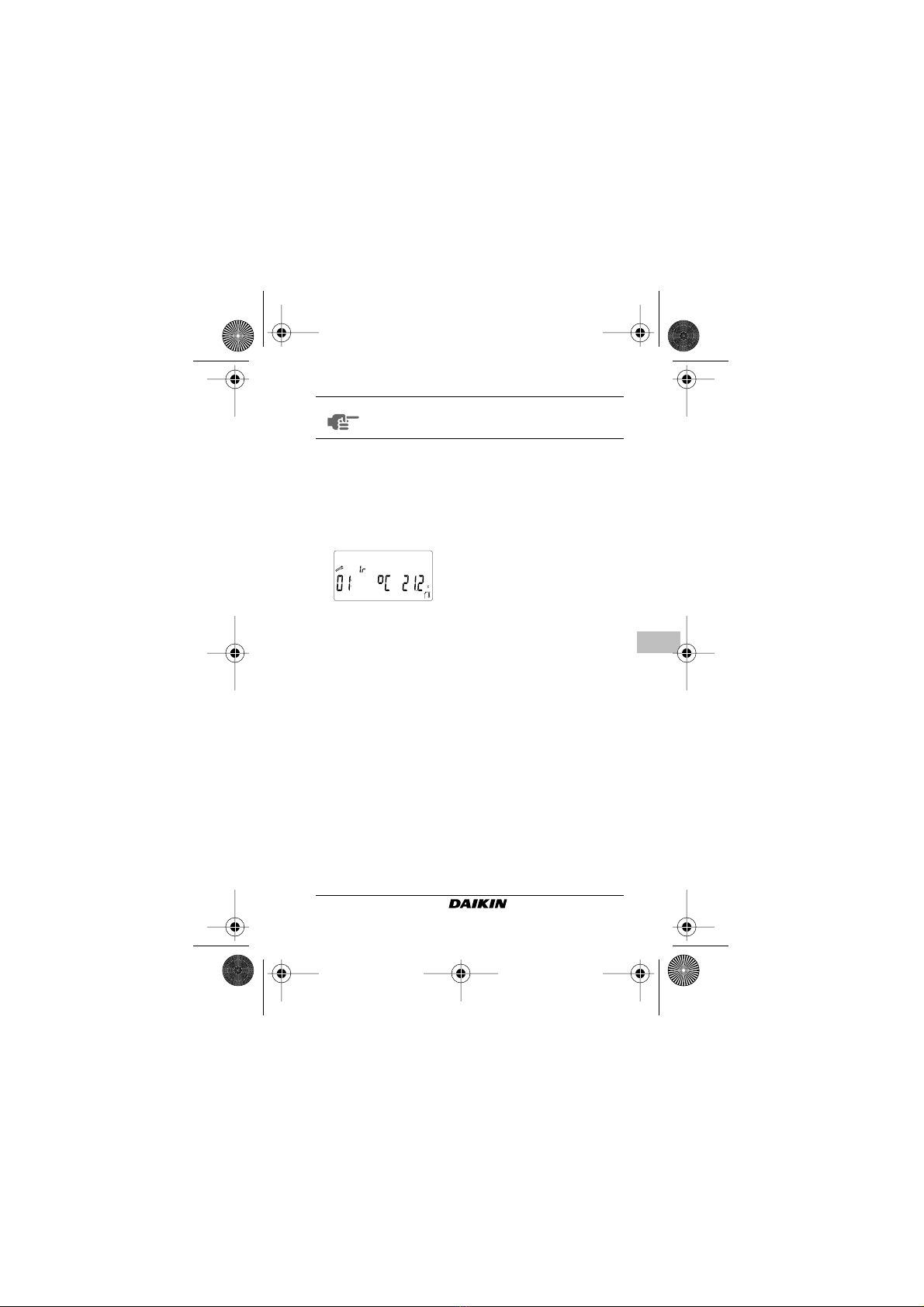

6. Setting up codes in the user menu
1Activate the advanced mode by pressing > during 5
seconds in OFF mode (D).
2Navigate to the date and clock setting menu (G) by
pressing >.
3Press >during 5 seconds.
yis displayed next to 1®.
4Press <or >to consult the current settings of the
codes.
5To modify codes, press +, -or =.
6Press +or - to increase or decrease the code value by
1 step.
7Press =to save your selection.
You can exit this user code menu by going to the “/” code
and pressing =.
To put a code back to its default value, press +and - at
the same time.
NOTE As a consequence of a customized configuration, it
is not abnormal that some codes are no longer
accessible.
1D_OM_4PW56102-1.book Page 15 Thursday, August 27, 2009 10:52 AM

Operation manual
16
EKRTWA
Room thermostat
4PW56102-1
Following codes can be consulted or changed in the user menu:
1st
code 2nd code Description Default Range Step
1® 01 + RDegrees type.
Current room
temperature is
displayed.
Refer also to note
below.
°© °©/°ƒ —
02 Choice of hour
control. Actual time
is displayed.
24È 12È/24È —
03 Always enable
advanced menu?
(≈œ = standard
menu enabled)
≈œ ÚêÒ/≈œ —
2® 01 Enable comfort
startup control? ≈œ ÚêÒ/≈œ —
02 Comfort control
speed: time for
temp. difference
of 4°.
Refer also to note
below.
120 060~240 1min.
03 Schedule timer
override: only
1 hour active?
(≈œ = until next
action)
≈œ ÚêÒ/≈œ —
3® 01 Showing software
version —— —
1D_OM_4PW56102-1.book Page 16 Thursday, August 27, 2009 10:52 AM

EKRTWA
Room thermostat
4PW56102-1
Operation manual
17
NOTE ■In case the 1® 01 code is modified after having
user-defined schedules programmed, the ◊1 and
◊2 user-defined schedules are cleared.
■Code 2® 02: Refer to diagram below for
clarification of the comfort control speed.
60
120
240
0oCB
A
1234
0
0oFB 1234
0
Aminutes
Bsetpoint difference
1D_OM_4PW56102-1.book Page 17 Thursday, August 27, 2009 10:52 AM

Operation manual
18
EKRTWA
Room thermostat
4PW56102-1
7. Troubleshooting
The guidelines below might help to solve your problem. If you
cannot remedy the problem, consult your installer.
7.1. No readings on the LCD (display blank)
Batteries are empty. Replace batteries. Refer to "Replacing
batteries" on page 19.
7.2. Buttons on front cover do not react
If kis flashing when pressing a button on the front cover it
means the key lock is activated. Press +and -at the same
time to deactivate it.
7.3. Schedule timer starts up too early
The schedule timer by default starts up in advance, trying to
reach the programmed setpoint at the programmed time. If
desired, disable this function by means of code 2® 01 in the user
menu.
7.4. Clock and date are flashing on the thermostat LCD
The clock and date are flashing before first use or after
replacement of batteries. Set clock and date as described in
“Setting the clock and date” on page 5.
7.5. User-defined schedule does not react
The 1® 01 code was modified after programming the user-defined
schedules. Re-program the schedules as described in "Setting
up a user-defined schedule" on page 12.
7.6. Error codes on the thermostat LCD
Error codes are displayed next to the flashing icons y i.
Error
code Failure cause Corrective action
Ï© Broken integrated
temperature sensor. Contact your local dealer.
1D_OM_4PW56102-1.book Page 18 Thursday, August 27, 2009 10:52 AM
