Daintree GE current Tetra GEPS24-180U User manual

Installation Guide
SIGN202 | GE2022-3612
Power Supply Features
• Supports all 24 VDC Tetra Products
• UL: Class 2
• IEC: SELV
• 100-277 VAC Input
• Two 90 Watt Output Banks
Save These Instructions
Use only in the manner intended by the manufacturer.
If you have any questions, contact the manufacturer.
Prepare Electrical Wiring
Electrical Requirements
• Limited to use in dry and damp locations.
• The suitability of rain enclosure shall be determined if
intended for wet location.
• The grounding and bonding of the LED Driver shall
be done in accordance with National Electric Code
(NEC) Article 600.
• Follow all National Electric Codes (NEC) and local
codes.
For the latest North American install guides for your product go to: https://products.gecurrent.com/led-signage-lighting
For the latest European install guides for your product go to: https://products.gecurrent.com/eu
BG Българската версия на инструкциите за инсталаця
и информация за безопасност могат да бъдат
намерени на следния адрес: https://products.
gecurrent.com/eu
CS Návod k montáží a bezpečnostní informace v češtině
najdete zde: https://products.gecurrent.com/eu
DA Den danske version af installationsvejledningen
og sikkerhedsoplysninger kan findes på følgende
placering: https://products.gecurrent.com/eu
DE Die deutsche Version der Installationsanleitung und
Sicherheitsinformationen finden Sie in folgendem
Verzeic: https://products.gecurrent.com/eu
EL Μπορείτε να βρείτε την ελληνική εκδχή των οδηγιών
νγκατάστασης και των πληροφοριών ασφάλειας στην
εξής τοποθεσία: https://products.gecurrent.com/eu
ES La versión española de las instrucciones de instalación
y la información sobre seguridad puede encontrarse
en la siguiente ubicación: https://products.gecurrent.
com/eu
ET Eestikeelse paigaldusjuhendi ja ohutusnñuded leiate
aadressilt: https://products.gecurrent.com/eu
FI Asennusohjeiden ja turvallisuustietojen
suomenkielinen versio löytyy seuraavasta paikasta:
https://products.gecurrent.com/eu
FR La version française des instructions d’installations
et information de sécurité est disponible à l’adresse
suivante: https://products.gecurrent.com/eu
HR Hrvatska verzija priručnika za ugradnju i sigurnosnih
informacija nalazi se na sljedečoj lokaciji: https://
products.gecurrent.com/eu
HU A telepítési útmutató és a biztnosági információk
magyar nyelvű változata az alábbi címen található:
https://products.gecurrent.com/eu
IT La versione italiana del manuale di installazione e
sicurezza può essere reperita nella seguente sezione:
https://products.gecurrent.com/eu
LT Lietuvišką diegimo instrukcijos ir saugos informacijos
versiją galima rasti šioje vietoje: https://products.
gecurrent.com/eu
LV Uzstādīšanas instrukciju un drošības informāciju
latviešu valodā var atrast šeit: https://products.
gecurrent.com/eu
NL De Nederlandse versie van de installatie-instructies
en veiligheidsinformatie kan op de volgende locatie
worden gevonden: https://products.gecurrent.com/eu
PL Polską wersję instrukcji instalacji oraz informacje
dotyczące bezpieczeństwa można znaleźć w
następującej lokalizacji: https://products.gecurrent.
com/eu
PT A versão em Português das instruções de instalação e
das informações de segurança pode ser encontrada
na seguinte localização: https://products.gecurrent.
com/eu
RO Versiunea în limba română a instrucţiunilor de
instalare şi a informaţiilor de siguranţă pot fi găsite la:
https://products.gecurrent.com/eu
SV Ni hittar den svenska versionen av
installationsanvisningarna och säkerhetsinformationen
på följande plats: https://products.gecurrent.com/eu
SL Previdnostna opozorila in varnostne informacije so na
zadnji strani vodnika za namestitev. Pred začetkom
namestitve izdelka jih skrbno preberite: https://
products.gecurrent.com/eu
SK Slovenskú verziu montažnej príručky a
bezpečnostnŷch instrukcií nájdete na nasledujúcej
lokalite: https://products.gecurrent.com/eu
FOR UL ONLY
EN
Tetra®LED Systems Power Supply
GEPS24-180U (100-277 VAC input/24VDC output/180W)
24
Volt
BEFORE YOU BEGIN
Read these instructions completely and carefully.

Tetra®Power Supply GEPS24-180U Installation Guide
2

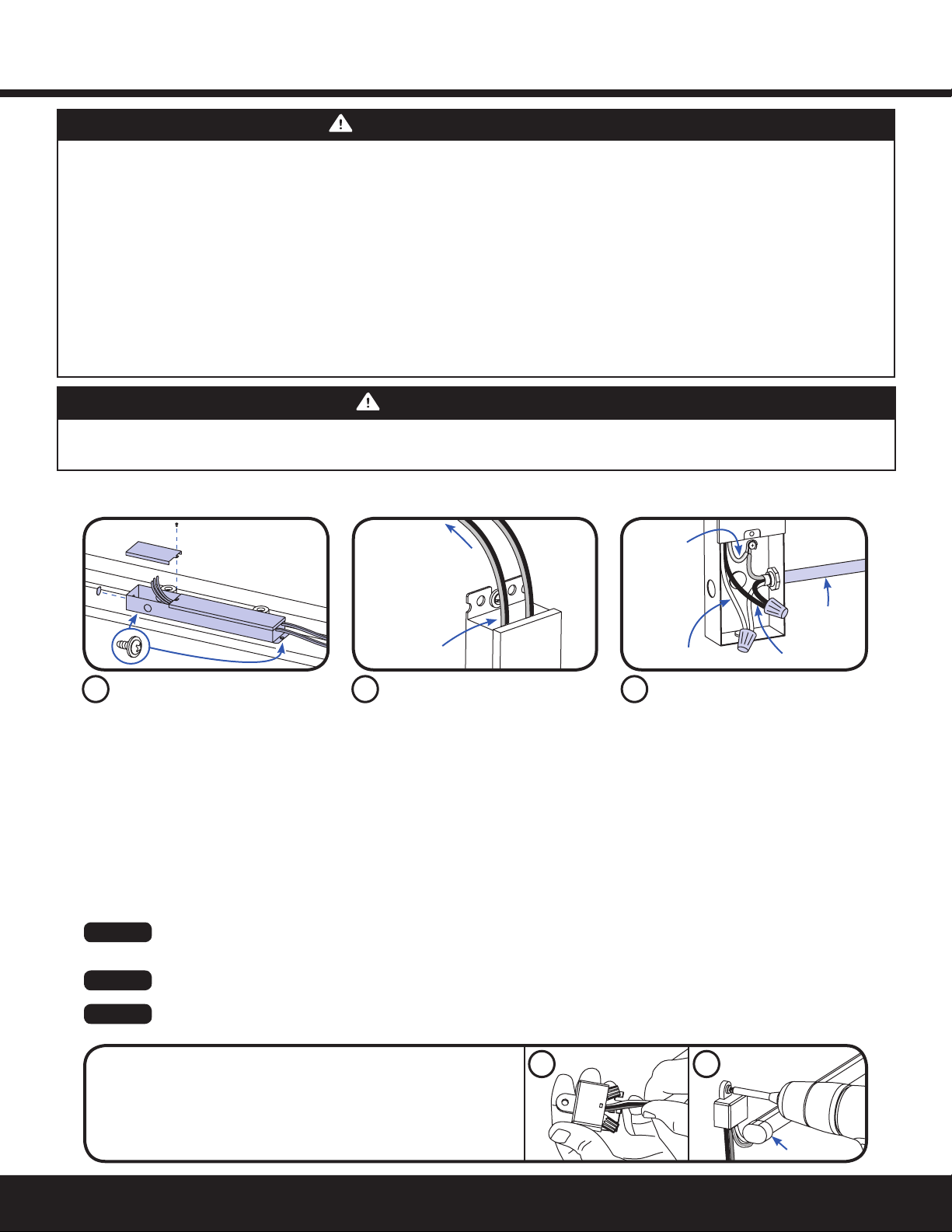

Power Supply Installation
Connect the supply wire that is
attached to your LED system to the red
(+) and black (-) output wires of the
LED driver as outlined in the “Electrical
Connections” section of your LED
system’s Installation Instructions.
Remove the junction box cover and
carefully remove knockout for AC line
input wires. Install appropriate electrical
ttings in the knockout holes for wire
protection. Securely mount the power
supply with the base in contact with the
mounting surface in accordance with
the power supply spacing requirements
described above. If used in a wet
location, the power supply and electrical
connections shall be protected from
weather by a suitable rain enclosure, and
not subject to saturation with water or
other liquids. If not protected from the
weather, the output connections may be
sealed with electrical grade silicone.
Connect the AC line to the black
(line) and white (neutral) input
wires of the LED driver using
18-14 AWG (0.82-2.08 mm2) twist-on
wire connectors. Ground LED driver
by connecting green wire with yellow
stripe to grounding screw. Replace
junction box cover.
White (neutral) Black (line)
Green with
yellow
stripe
(ground)
AC line
To LED system
Output wires
NOTE: To avoid overloading this
power supply with LED modules,
please refer to the specic module
loading guides.
FOR UL ONLY
NOTE: For CSA approval, a disconnect/toggle switch of appropriate rating needs to be placed within 29.5 ft. (9 m) of primary
side of the power supply. The minimum rating of the switch must be either 120 or 220 Volts AC. The switch must also support
twice the amount of input current.
FOR UL ONLY
NOTE: When installing power supply, connect to the appropriate sized building breaker or disconnect device for line and
neutral connections, in accordance with local, state or country regulations.
FOR UL ONLY
NOTE: The grounding and bonding of the power supply and overall sign shall be done in accordance with National Electric
Code (NEC) Article 600.
WARNING / AVERTISSEMENT
RISK OF ELECTRIC SHOCK
• Disconnect power at fuse box or circuit breaker before servicing or
installing product.
• Properly ground Tetra®power supply.
RISK OF FIRE
• In the end product, power supply spacing to other heat producing
components shall be minimum 2 inches spacing to sidewalls, and
minimum 2 inches spacing to top of enclosure.
• Adjacent power supplies shall be spaced at least 1 in. end to end
and 4 in. in any other direction.
• Use only approved wire for input/output connection. Minimum
size 18 AWG (0.82 mm2).
• Follow all local codes.
• Application considerations potentially requiring additional spacing
include high ambient temperature seen by the power supply, poor
contact with a heat dissipating material, inadequate ventilation, or
direct exposure to sun.
RISQUES DE DÉCHARGES ÉLECTRIQUES
• Coupez l’alimentation électrique à la boîte de fusibles ou au disjoncteur avant
l’entretien ou l’installation du produit.
• Assurez-vous de correctement mettre à terre le bloc d’alimentation Tetra®.
RISQUES D’INCENDIE
• Dans le produit ni, l’espacement entre le bloc d’alimentation et les autres
composants dégageant de la chaleur doit être d’au moins 2 pouces des
parois latérales et d’au moins 2 pouces du haut de l’enceinte.
• Les blocs d’alimentation adjacents doivent être espacés d’au moins 1 po
de bout en bout et 4 po dans toute autre direction.
• N’utilisez que des ls approuvés pour les entrées/sorties de connexion.
Taille minimum 18 AWG (0.82 mm2).
• Respectez tous les codes locaux.
• Certaines applications pourraient requérir un espacement additionnel, p.
ex. une température ambiante élevée autour du bloc d’alimentation, un
mauvais contact avec une matière dissipatrice de chaleur, une ventilation
inadéquate ou une exposition directe au soleil.
OPTIONAL
A Weather Box (GEXNWB2) may be used to house and seal Class 2
connections.
A) Insert wire connectors into weather box. Fill with electrical grade
silicone and close box.
B) Secure the weather box using a #6 or #8 (M2 or M3) screw.
Weather box
can be painted
Light engine
CAUTION / ATTENTION
RISK INJURY
• While performing installations described, gloves, safety glasses or
goggles should be worn.
RISQUES DE BLESSURE
• Lors de l’exécution des installations décrites, des gants, des lunettes de
sécurité ou des lunettes de protection doivent être portées.
1 2 3
A B

Tetra®Power Supply GEPS24-180U Installation Guide
www.gecurrent.com
© 2021 Current Lighting Solutions, LLC. All rights reserved. GE and the GE monogram are trademarks of the
General Electric Company and are used under license. Information provided is subject to change without
notice. All values are design or typical values when measured under laboratory conditions.
SIGN202 (Rev 02/08/21) GE2022-3612
Power Supply Specications
Performance Data Min Typical Max
Input Voltage (VAC) 90 100-277 305
Input Frequency (Hz) – 50/60 –
Input Current (A) – – 2.5
THD – – 20
PF 0.9 – –
Output Voltage (VDC) 23.25 24.0 24.75
Output Current (ADC) – – 3.8
Output Power (W) – – 180
Environmental Operating Temperature Range -40°C +25°C +60°C*
Environmental Humidity (non-condensing) 0% –95%
Environmental Storage Temperature Range -40°C –+85°C
Dimensions 15.5 in. x 2.5 in. x 1.6 in. (392 mm x 62 mm x 40 mm)
Conforms to the following standards:
This product is intended to be used as a lamp control gear that is installed after the mains control switch.
*Maximum case temperature is 80°C
Symptom Solution
All letters are OFF • Recycle AC power, turn it o, then turn on again.
• If still o, check the power supply DC output voltage using a voltmeter. It should be nominally 24V.
»If there is DC output, inspect and correct all DC wire damage/polarity issues; If no issue is found, replace the
OFF-module string.
»If there is no DC output, have a licensed electrician check the input AC voltage and if there is correct AC voltage,
replace the power supply.
»If there is no AC voltage, correct the upstream AC issue.
Some LEDs appear dim • Ensure the overall length of the Tetra®LED System does not exceed the maximum load.
• Ensure the length of supply wire is equal to or below the recommended remote mounting distance.
Some of the letters
are not illuminated
• Inspect and correct the wires of the non-illuminated letters for damage/polarity issues; If no issues are found, see the
troubleshooting solution for “All letters are OFF.”
Shadows • Re-route supply wire and secure to the back of the can with electrical grade RTV silicone. Adjust wire connector
orientation so that it does not cover any LEDs.
• Adjust LED layout to ensure uniformity of illumination of the face of the letter.
Troubleshooting
