MMX-6 Ultrasonic Thickness Gauge
CONTENTS
INTRODUCTION
OPERATION
THE KEYPAD
THE DISPLAY
THE TRANSDUCER
MAKING MEASUREMENTS
CONDITION AND PREPARATION OF SURFACES
PROBE ZERO
CALIBRATION
SCAN MODE,ALARM MODE,DUAL-MULTI MODE,
RSS232PORT
TRANSDUCER SELECTION
APPENDIX A:PRODUCTSPECIFICATIONS
APPENDIX B:APPLICATION NOTES
APPENDIX C:SOUND VELOCITIES OF COMMON MATERIALS
WARRANTY INFORMATION
1
2
2
6
8
9
11
12
13
18
22
24
28
30
34
36
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Dakota Ultrasonics
DISCLAIMER –Very Important!
Inherent in ultrasonic thickness measurement is the possibility that the
instrument will use the second rather than the first echo from the back
surface of the material being measured while in standard pulse-echo mode.
This may result in a thickness reading that is TWICE what it should be.
In addition, measurements through very thick paint or coatings while
using echo-echo mode, may result in the paint or coating being measured
rather than the actual material intended. The Responsibility for proper use
of the instrument and recognition of these types of phenomenon’s rest
solely with the user of the instrument.
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

MMX-6 Ultrasonic Thickness Gauge
1
INTRODUCTION
The Dakota Ultrasonics modelMMX-6is a multi-mode Ultrasonic
thickness gauge. Based on the same operating principles as SONAR, the
MMX-6is capable of measuring the thickness of various materials with
accuracy as high as ±0.001 inches, or ±0.01 millimeters. The principle
advantage of ultrasonic measurement over traditional methods is that
ultrasonic measurements can be performed with access to only one side of
the material being measured. The multi-mode feature of theMMX-6allows
the user to toggle between pulse-echo mode (flaw and pit detection), and
echo-echo mode (eliminate paint or coating thickness).
This manual is presented in three sections. The first section covers
operation of theMMX-6, and explains the keypad controls and display.
The second section provides guidelines in selecting a transducer for a
specific application. The last section provides application notes and a table
of sound velocity values for various materials.
Dakota Ultrasonics maintains a customer support resource in order to
assist users with questions or difficulties not covered in this manual.
Customer support may be reached at any of the following:
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Dakota Ultrasonics
2
OPERATION

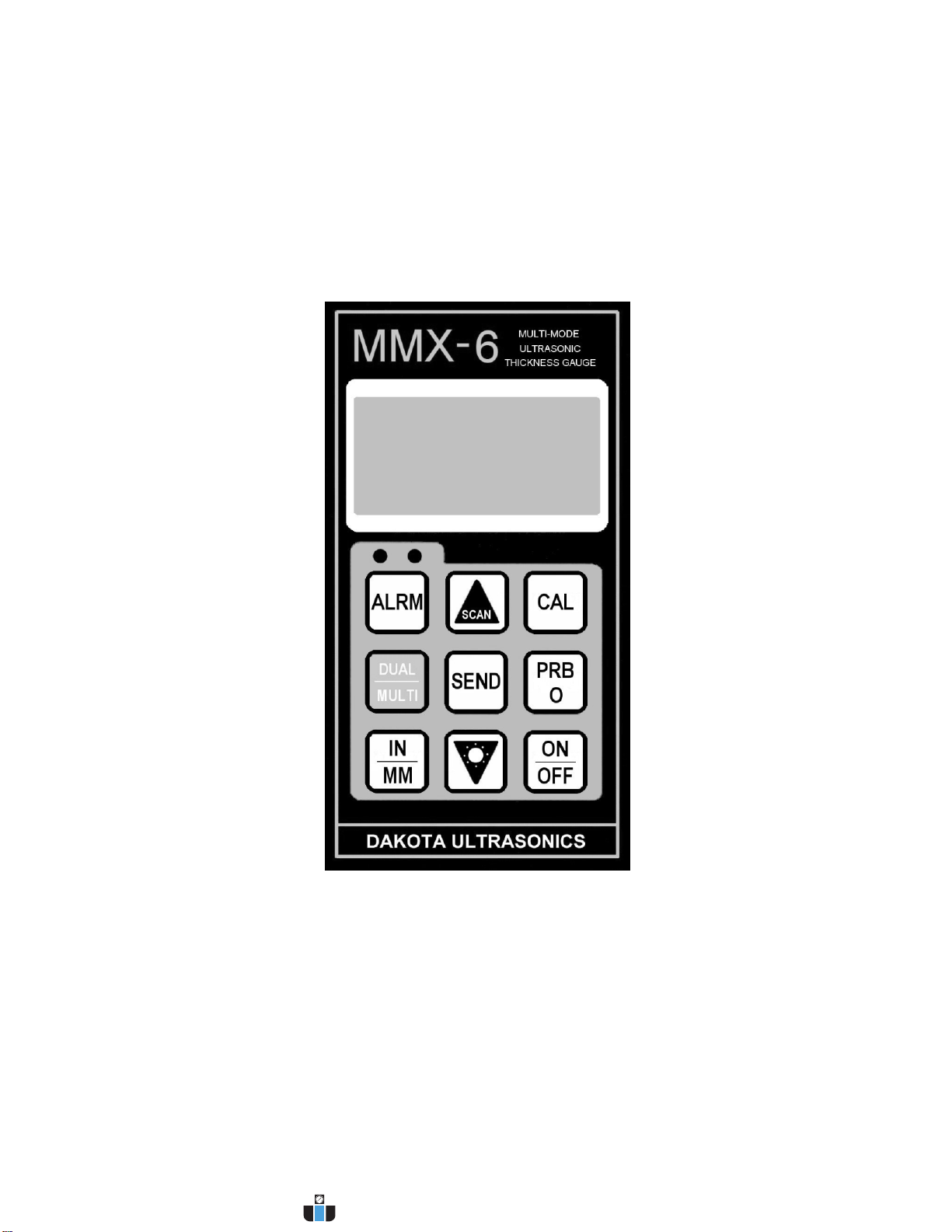

TheMMX-6interacts with the operator through the membrane keypad
and the LCD display. The functions of the various keys on the keypad are
detailed below, followed by an explanation of the display and its various
symbols.
The Keypad
This key is used to turn theMMX-6on and off. When the gauge is
turned ON, it will first perform a brief display test by illuminating all of the
segments in the display. After one second, the gauge will display the
internal software version number. After displaying the version number, the
display will show "0.000" (or "0.00" if using metric units), indicating the
gauge is ready for use.
TheMMX-6is turned OFF by pressing theON/OFF key. The gauge
has a special memory that retains all of its settings even when the power is
off. The gauge also features an auto-powerdown mode designed to
conserve battery life. If the gauge is idle for 5 minutes, it will turn itself off.
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

MMX-6 Ultrasonic Thickness Gauge
3
The PRB-0key is used to "zero" theMMX-6in much the same way that
a mechanical micrometer is zeroed. If the gauge is not zeroed correctly, all
of the measurements that the gauge makes may be in error by some fixed
value. Refer to page12 for an explanation of this important procedure.
The CAL key is used to enter and exit theMMX-6's calibration mode.
This mode is used to adjust the sound-velocity value that theMMX-6will
use when calculating thickness. The gauge will either calculate the sound-
velocity from a sample of the material being measured, or allow a known
velocity value to be entered directly. Refer to page 13 for an explanation of
the two CAL functions available.
The IN/MM key is used to switch back and forth between English and
metric units. This key may be used at any time, whether the gauge is
displaying a thickness (IN orMM) or a velocity value (IN/µsorM/s).
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Dakota Ultrasonics
4
The UP arrow key has two functions. When theMMX-6is in calibration
mode, this key is used to increase numeric values on the display. An auto-
repeat function is built in, so that when the key is held down, numeric
values will increment at an increasing rate. When theMMX-6is not in
calibration mode, the UP arrow key switches the SCANmeasurement
mode on and off. Refer to page18 for an explanation of theSCAN
measurement mode.
The DOWN arrow key has two functions. When theMMX-6is in the
CAL mode, this key is used to decrease numeric valueson the display. An
auto-repeat function is built in, so that when the key is held down, numeric
values will decrement at an increasing rate. When theMMX-6is not in
calibration mode, the DOWN arrow key switches the display backlight
between three available settings. OFF will be displayed when the backlight
is switched off. AUTO will be displayed when the backlight is set to
automatic mode, and ON will be displayed when the backlight is set to stay
on. In the AUTO setting, the backlight will illuminate while theMMX-6is
making a measurement and turn off after several seconds to conserve
battery life.
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

MMX-6 Ultrasonic Thickness Gauge
5
The ALRM key has two functions. By holding down theALRM key
when powering up theMMX-6, the audible beeper will be turned on or off
accordingly. After the unit has been turned on, pressing the ALRM key will
toggle the alarm mode to the on/off positions and allow the user to enter a
nominal thickness value. Refer to page 19 for details on how to use the
alarm feature.
The DUAL-MULTIkey is used to toggle pulse-echo ( flaw & pit
detection ), and echo-echo ( eliminate paint & coating thickness ). This
enables the user to very conveniently switch between modes depending on
application requirements. Refer to page 20 for a complete explanation of
this feature.
The SEND key is used to send the currently displayed thickness
measurement to an external storage device via theMMX-6's RS232 port.
Refer to page 22 for an explanation of how to use this feature.
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Dakota Ultrasonics
6
The Display
The numeric portion of the display consists of 4 complete digits
preceded by a leading "1", and is used to display numeric values, as well
as occasional simple words, to indicate the status of various settings.
When theMMX-6is displaying thickness measurements, the display will
hold the last value measured, until a new measurement is made.
Additionally, when the battery voltage is low, the entire display will
begin to flash. When this occurs, the batteries should be replaced.
These eight vertical bars form the Stability Indicator. When theMMX-6
is idle, only the left-most bar and the underline will be on. While the gauge
is taking a measurement, six or seven of the bars should be on. If fewer
than five bars are on, theMMX-6is having difficulty achieving a stable
measurement, and the thickness value displayed will most likely be
erroneous.
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

MMX-6 Ultrasonic Thickness Gauge
7
When the IN symbol is on, theMMX-6is displaying a thickness value in
inches. The maximum thickness that can be displayed is 19.999 inches.
When the MM symbol is on, theMMX-6is displaying a thickness value
in millimeters. If the displayed thickness exceeds 199.99 millimeters, the
decimal point will shift automatically to the right, allowing values up to
1999.9 millimeters to be displayed.
When the IN symbol is on, in conjunction with the/µssymbol, theMMX-
6is displaying a sound-velocity value in inches-per-microsecond.
When theMsymbol is on, in conjunction with the/s symbol, theMMX-
6is displaying a sound-velocity value in meters-per-second.
When the +symbol is on and blinking, this indicates that theMMX-6is
currently operating in echo-echo ( Thru-paint/coating ) mode.
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Dakota Ultrasonics
8
The Transducer
The transducer is the "business end" of the MMX-6. It transmits and
receives ultrasonic sound waves that theMMX-6uses to calculate the
thickness of the material being measured. The transducer connects to the
MMX-6via the attached cable, and two coaxial connectors. When using
transducersmanufactured by Dakota Ultrasonics, the orientation of the
dual coaxial connectors is not critical: either plug may be fitted to either
socket in theMMX-6.
The transducer must be used correctly in order for theMMX-6to
produce accurate, reliable measurements. Below is a short description of
the transducer, followed by instructions for its use.
This is a bottom view of a typical transducer. The two semicircles of the
wearface are visible, as is the barrier separating them. One of the
semicircles is responsible for conducting ultrasonic sound into the material
being measured, and the other semicircle is responsible for conducting the
echoed sound back into the transducer. When the transducer is placed
against the material being measured, it is the area directly beneath the
center of the wearface that is being measured.
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

MMX-6 Ultrasonic Thickness Gauge
9
This is a top view of a typical transducer. Press against the top with the
thumb or index finger to hold the transducer in place. Moderate pressure is
sufficient, as it is only necessary to keep the transducer stationary, and the
wearface seated flat against the surface of the material being measured.
Making Measurements
In order for the transducer to do its job, there must be no air gaps
between the wear-face and the surface of the material being measured.
This is accomplished with the use of a "coupling" fluid, commonly called
"couplant". This fluid serves to "couple", or transfer, the ultrasonic sound
waves from the transducer, into the material, and back again. Before
attempting to make a measurement, a small amount of couplant should be
applied to the surface of the material being measured. Typically, a single
droplet of couplant is sufficient.
After applying couplant, press the transducer (wearface down) firmly
against the area to be measured. The Stability Indicator should have six or
seven bars darkened, and a number should appear in the display. If the
MMX-6has been properly "zeroed" (see page12) and set to the correct
sound velocity (seepage13), the number in the display will indicate the
actual thickness of the material directly beneath the transducer.
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Dakota Ultrasonics
10
If the Stability Indicator has fewer than five bars darkened, or the
numbers on the display seem erratic, first check to make sure that there is
an adequate film of couplant beneath the transducer, and that the
transducer is seated flat against the material. If the condition persists, it
may be necessary to select a different transducer (size or frequency) for
the material being measured. See page 24.
While the transducer is in contact with the material that is being
measured, theMMX-6will perform four measurements every second,
updating its display as it does so. When the transducer is removed from
the surface, the display will hold the last measurement made.
IMPORTANT
Occasionally, a small film of couplant will be drawn out between the
transducer and the surface as the transducer is removed. When this
happens, theMMX-6may perform a measurement through this couplant
film, resulting in a measurement that is larger or smaller than it should be.
This phenomenon is obvious when one thickness value is observed while
the transducer is in place, and another value is observed after the
transducer is removed.
In addition, measurements through very thick paint or coatings may
result in the paint or coating being measured rather than the actual material
intended. The responsibility for proper use of the instrument, and
recognition of these types of phenomenon’s, rest solely with the user of the
instrument.
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

MMX-6 Ultrasonic Thickness Gauge
11
Condition and Preparation of Surfaces
In any ultrasonic measurement scenario, the shape and roughness of
the test surface are of paramount importance. Rough, uneven surfaces
may limit the penetration of ultrasound through the material, and result in
unstable, and therefore unreliable, measurements. The surface being
measured should be clean, and free of any small particulate matter, rust, or
scale. The presence of such obstructions will prevent the transducer from
seating properly against the surface. Often, a wire brush or scraper will be
helpful in cleaning surfaces. In more extreme cases, rotary sanders or
grinding wheels may be used, though care must be taken to prevent
surface gouging, which will inhibit proper transducer coupling.
Extremely rough surfaces, such as the pebble-like finish of some cast
iron, will prove most difficult to measure. These kinds of surfaces act on
the sound beam like frosted glass on light:, the beam becomes diffused
and scattered in all directions.
In addition to posing obstacles to measurement, rough surfaces
contribute to excessive wear of the transducer, particularly in situations
where the transducer is "scrubbed" along the surface. Transducers should
be inspected on a regular basis, for signs of uneven wear of the wearface.
If the wearface is worn on one side more than another, the sound beam
penetrating the test material may no longer be perpendicular to the material
surface. In this case, it will be difficult to exactly locate tiny irregularities in
the material being measured, as the focus of the soundbeam no longer lies
directly beneath the transducer.
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Dakota Ultrasonics
12
Probe Zero
Setting the Zero Point of theMMX-6is important for the same reason
that setting the zero on a mechanical micrometer is important. If the gauge
is not "zeroed" correctly, all of the measurements the gauge makes will be
in error by some fixed number. When theMMX-6is "zeroed", this fixed
error value is measured and automatically corrected for in all subsequent
measurements. TheMMX-6may be "zeroed" by performing the following
procedure:
Performing a Probe-Zero
1) Make sure theMMX-6is on.
2) Plug the transducer into theMMX-6. Make sure that the
connectors are fully engaged. Check that the wearface of the
transducer is clean and free of any debris.
3) The metal probe-disc is on the top end of theMMX-6. Apply a
single droplet of ultrasonic couplant to the face of this disc.
4) Make sure that theMMX-6is in P-E( pulse-echo mode ) by
pressing theDual-Multi key to toggle the modes.
Note: The Probe-Zero feature is not used in Echo-Echo Thru-Paint
mode, and has been disabled. If the PRB-0key is pressed, while
in this mode,“nO” followed by “Prb0” will bedisplayed.
5) Press the transducer against the probe-disc, making sure that the
transducer sits flat against the surface. The display should show
some thickness value, and the Stability Indicator should have
nearly all its bars illuminated.
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

MMX-6 Ultrasonic Thickness Gauge
13
6) While the transducer is firmly coupled to the probe-disc, press the
PRB-0key on the keypad. TheMMX-6will display "Prb0" while it
is calculating its zero point.
7) Remove the transducer from the probe-disc.
At this point, theMMX-6has successfully calculated it's internal error
factor, and will compensate for this value in any subsequent
measurements. When performing a "probe-zero", theMMX-6will always
use the sound-velocity value of the built-in probe-disc, even if some other
velocity value has been entered for making actual measurements. Though
theMMX-6will remember the last "probe-zero" performed, it is generally a
good idea to perform a "probe-zero" whenever the gauge is turned on, as
well as any time a different transducer is used. This will ensure that the
instrument is always correctly zeroed.
Calibration
In order for theMMX-6to make accurate measurements, it must be set
to the correct sound-velocity for the material being measured. Different
types of material have different inherent sound-velocities. For example, the
velocity of sound through steel is about 0.233 inches-per-microsecond,
versus that of aluminum, which is about 0.248 inches-per-microsecond. If
the gauge is not set to the correct sound-velocity, all of the measurements
the gauge makes will be erroneous by some fixed percentage. Theone
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Dakota Ultrasonics
14
point calibration is the simplest and most commonly used calibration
procedure -optimizing linearity over large ranges. The two point
calibration allows for greater accuracy over small ranges by calculating the
probe zero and velocity. TheMMX-6provides three simple methods for
setting the sound-velocity, described in the following pages.
Note: Although theMMX-6has a thru-paint/coating feature, one and two
point calibrations must be performed on material with the paint or coating
removed. Failure to remove the paint or coating prior to calibration, will
result in a multi material velocity calculation that may be different from the
actual material velocity intended to be measured.
Calibration to a known thickness
Note: This procedure requires a sample piece of the specific material
to be measured, the exact thickness of which is known, e.g. from
having been measured by some other means.
1) Make sure theMMX-6is on and switched to P-E (pulse-echo)
mode. Press the Dual-Multi key to toggle modes.
Note: The calibration function has been disabled in E-E(echo-echo)
mode. If theCAL key is pressed while in E-Emode,“nO” followed by
“CAL” will be displayed.
2) Perform a Probe-Zero (refer to page12)
3) Apply couplant to the sample piece.
4) Press the transducer against the sample piece, making sure that
the transducer sits flat against the surface of the sample. The
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

MMX-6 Ultrasonic Thickness Gauge
15
display should show some (probably incorrect) thickness value,
and the Stability Indicator should have nearly all its bars on.
5) Having achieved a stable reading, remove the transducer. If the
displayed thickness changes from the value shown while the
transducer was coupled, repeat step 4.
6) Press the CAL key. The IN (or MM) symbol should begin flashing.
7) Use the UP and DOWN arrow keys to adjust the displayed
thickness up or down, until it matches the thickness of the sample
piece.
8) Press the CAL key again. The IN/µs(or M/s) symbols should
begin flashing. TheMMX-6is now displaying the sound velocity
value it has calculated based on the thickness value that was
entered in step 7.
9) Press the CAL key once more to exit the calibration mode. The
MMX-6is now ready to perform measurements.
Calibration to a known velocity
NOTE: This procedure requires that the operator know the sound-
velocity of the material to be measured. A table of common
materials and their sound-velocities can be found in Appendix C.
1) Make sure theMMX-6is on and switched to P-E (pulse-echo)
mode. Press the Dual-Multi key to toggle modes.
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Dakota Ultrasonics
16
Note: The calibration function has been disabled in E-E(echo-echo)
mode. If theCAL key is pressed while in E-Emode,“nO” followed
by “CAL” will be displayed.
2) Press the CAL key to enter calibration mode. If the IN (or MM)
symbol is flashing, press theCAL key again, so that the IN/µs(or
M/s) symbols are flashing.
3) Use the UP and DOWN arrow keys to adjust the displayed velocity
up or down, until it matches the sound-velocity of the material to be
measured.
4) Press the CAL key once more to exit the calibration mode. The
MMX-6is now ready to perform measurements.
NOTE: At any time during the calibration procedure (IN,MM,IN/µs,or
M/s flashing in the display), pressing thePRB-0keywill restore the gauge
to the factory default sound-velocity for steel(0.233IN/µs).
To achieve the most accurate measurements possible, it is generally
advisable to always calibrate theMMX-6to a sample piece of known
thickness. Material composition (and thus, its sound-velocity) sometimes
varies from lot to lot and from manufacturer to manufacturer. Calibration to
a sample of known thickness will ensure that the gauge is set as closely as
possible to the sound velocity of the material to be measured.
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30
