DAKOTA ULTRASONICS MX-5 DL User manual

OPERATION MANUAL

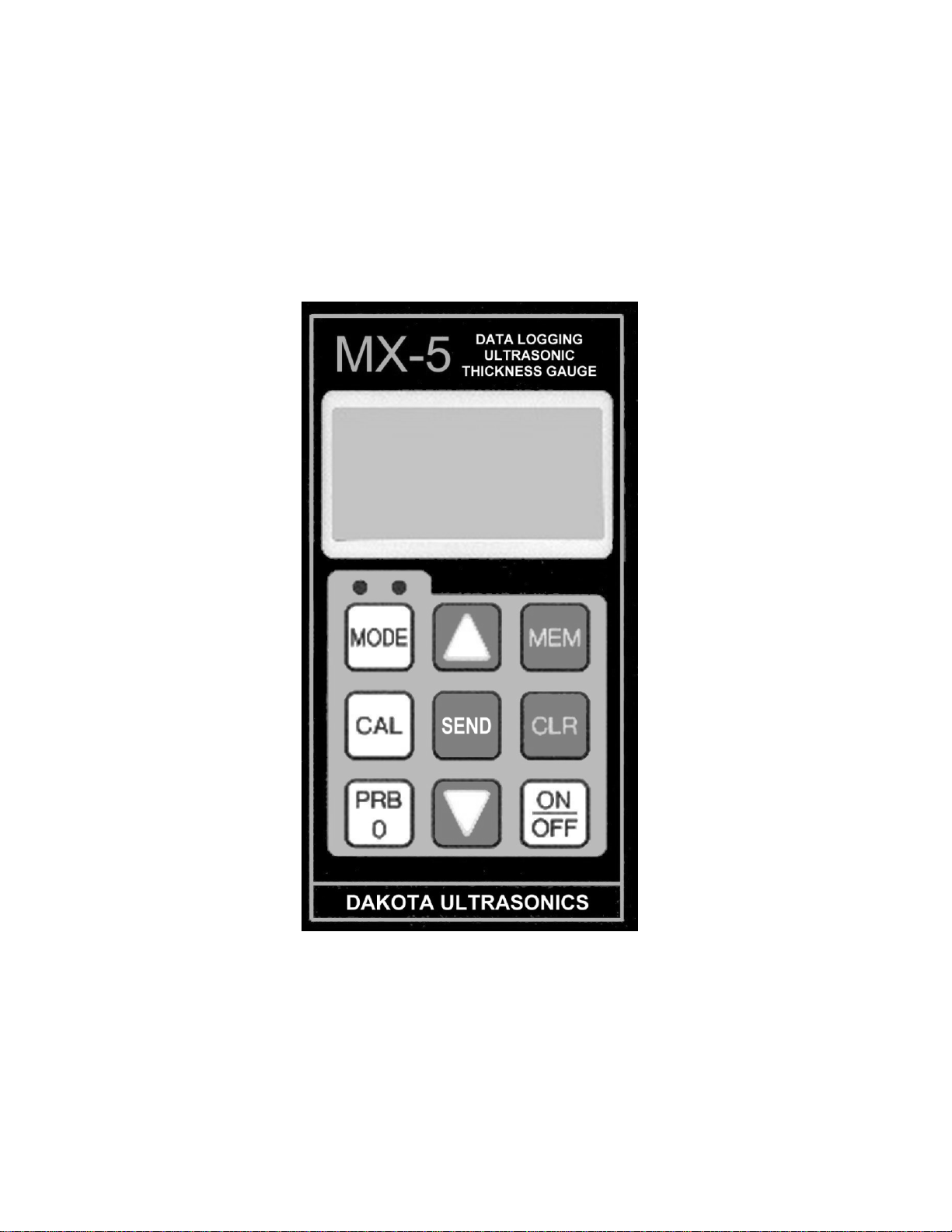

DAKOTA ULTRASONICS MODEL MX-5 DL ULTRASONIC THICKNESS GAUGE
P/N P
-
115
-
0002
Rev.
1.
9
0,Jan
uary
2008

Dakota Ultrasonics
Copyright 2008Dakota Ultrasonics. All rights reserved.
No part of this publication may be reproduced, translated into another
language, stored in a retrieval system, or transmitted in any form or by any
means; electronic, mechanical, photocopying, recording, or otherwise,
without the prior written consent of Dakota Ultrasonics.
Every precaution has been taken in the preparation of this publication.
Dakota Ultrasonics assumes no responsibility for errors or omissions.
Neither is any liability assumed for damages resulting from the use of
information contained herein.
Any brand or product names mentioned herein are used for identification
purposes only, and are trademarks or registered trademarks of their
respective holders.
1500 Green Hills Road, #107Scotts Valley, CA 95066 USA
Tel [phone] Fax [phone]
www.dakotaultrasonics.com

MX-5 DL Ultrasonic Thickness Gauge
CONTENTS
INTRODUCTION
OPERATION
THE KEYPAD
THE DISPLAY
THE TRANSDUCER
MAKING MEASUREMENTS
CONDITION AND PREPARATION OF SURFACES
PROBE ZERO
CALIBRATION
UNITS,BACKLIGHT,SCAN MODE,ALARM MODE,DIFF
MODE,BEEPER,RS232 PORT&DATA LOGGER
TRANSDUCER SELECTION
APPENDIX A:PRODUCTSPECIFICATIONS
APPENDIX B:APPLICATION NOTES
APPENDIX C:SOUND VELOCITIES OF COMMON MATERIALS
WARRANTY INFORMATION
1
3
3
7
9
10
12
13
14
18
30
34
36
40
42
DISCLAIMER
Inherent in ultrasonic thickness measurement is the possibility that the
instrument will use the second rather than the first echo from the back
surface of the material being measured. This may result in a thickness
reading that is TWICE what it should be. Responsibility for proper use of
the instrument and recognition of this phenomenon rests solely with the
user of the instrument.

Dakota Ultrasonics
blank page

MX-5 DL Ultrasonic Thickness Gauge
1
INTRODUCTION
The Dakota Ultrasonics modelMX-5 DL is a precision Ultrasonic
Micrometer. Based on the same operating principles as SONAR, theMX-5
DL is capable of measuring the thickness of various materials with
accuracy as high as ±0.001 inches, or ±0.01 millimeters. The principle
advantage of ultrasonic measurement over traditional methods is that
ultrasonic measurements can be performed with access to only one side of
the material being measured.
This manual is presented in three sections. The first section covers
operation of theMX-5 DL, and explains the keypad controls and display.
The second section provides guidelines in selecting a transducer for a
specific application. The last section provides application notes and a table
of sound velocity values for various materials.
Dakota Ultrasonics maintains a customer support resource in order to
assist users with questions or difficulties not covered in this manual.
Customer support may be reached at any of the following:
•Dakota Ultrasonics,1500 Green Hills Road, #107
Scotts Valley, CA 95066 USA
•Telephone: [phone]
•Facsimile: [phone]
•www.dakotaultrasonics.com

Dakota Ultrasonics
2
blank page

MX-5 DL Ultrasonic Thickness Gauge
3
OPERATION
TheMX-5 DL interacts with the operator through the membrane keypad
and the LCD display. The functions of the various keys on the keypad are
detailed below, followed by an explanation of the display and its various
symbols.
The Keypad

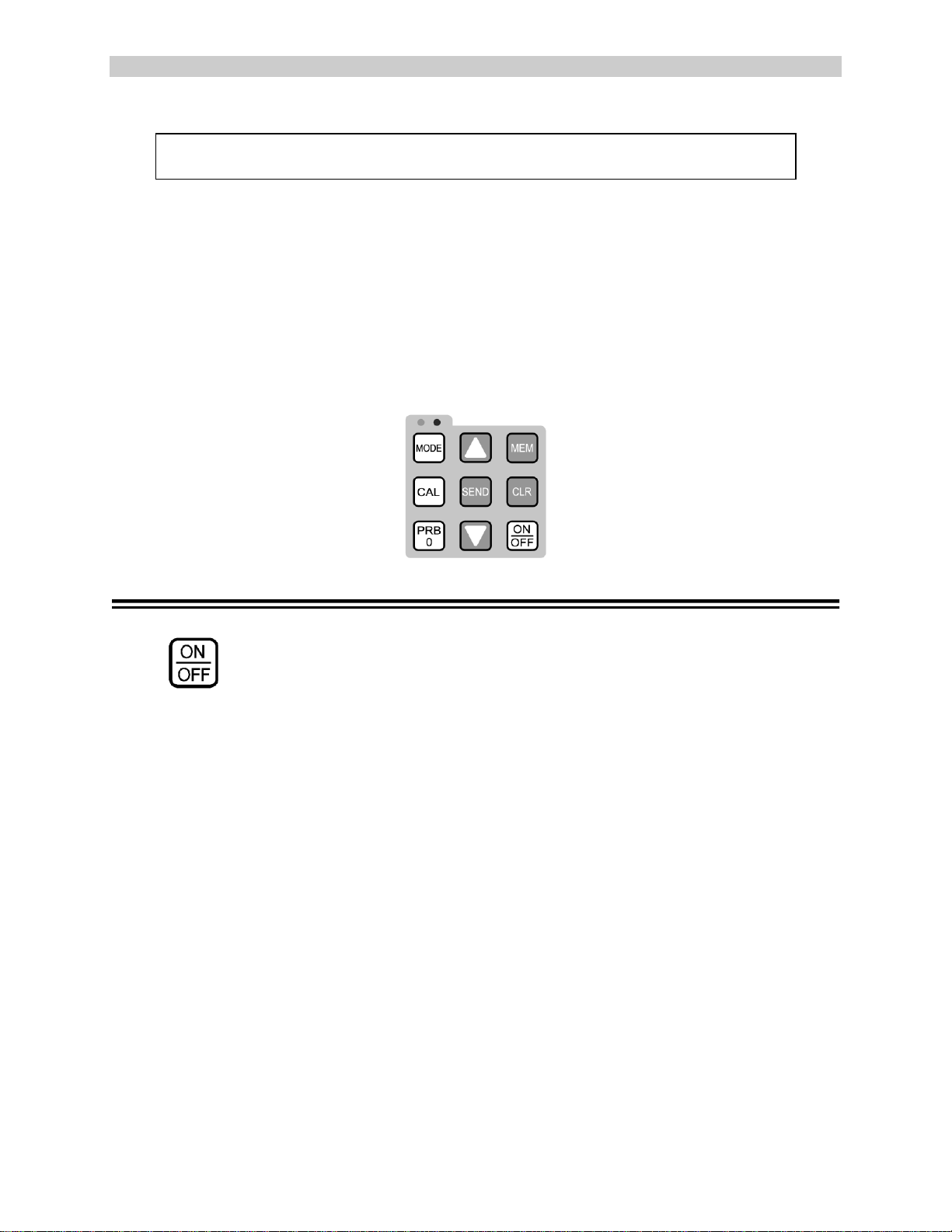

This key is used to turn the MX-5 DL on and off. When the tool is
turned ON, it will first perform a brief display test by illuminating all of the
segments in the display. After one second, the tool will display the internal
software version number and the current file location and status. After
displaying the version number, the display will show "0.000" (or "0.00" if
using metric units), indicating the tool is ready for use.
TheMX-5 DL is turned OFF by pressing the ON/OFF key. The tool has
a special memory that retains all of its settings even when the power is off.
The tool also features an auto-powerdown mode designed to conserve
battery life. If the tool is idle for 5 minutes, it will turn itself off.

Dakota Ultrasonics
4
The PRB-0key is used to "zero" theMX-5 DL in much the same way
that amechanical micrometer is zeroed. If the tool is not zeroed correctly,
all of the measurements that the tool makes may be in error by some fixed
value. Refer to page13 for an explanation of this important procedure.
The CAL key is used to enter and exit theMX-5 DL's calibration mode.
This mode is used to adjust the sound-velocity value that theMX-5 DL will
use when calculating thickness. The tool will either calculate the sound-
velocity from a sample of the material being measured, or allow a known
velocity value to be entered directly. Refer to page 14 for an explanation of
the two CAL functions available.
TheMODE key is used to toggle through the various features and
settings of theMX-5 DL ( alarm mode, beeper, back light, units, scan
mode, and differential mode ). TheMODE key is used in conjunction with
the arrow and send keys to enable/disable the features and settings.

MX-5 DL Ultrasonic Thickness Gauge
5
The UP arrow key has three functions. When theMX-5 DL is in
calibration mode, this key is used to increase numeric values on the
display. An auto-repeat function is built in, so that when the key is held
down, numeric values will increment at an increasing rate. When MODE is
activated, the UP arrow key scrolls through the various features and
settings of theMX-5 DL. When the data logging feature has been activated
by pressing theMEM key, the UP arrow is used to scroll through the
various files, storage locations, and functions of the data logger. Refer to
page 24 for further information regarding the use of theUP arrow key and
the data logger.
The DOWN arrow key has three functions. When theMX-5 DL is in the
CAL mode, this key is used to decrease numeric values on the display. An
auto-repeat function is built in, so that when the key is held down, numeric
values will decrement at an increasing rate. When MODE is activated, the
DOWN arrow scrolls through the various features and settings of theMX-5
DL. When the data logging feature hasbeen activated by pressing the
MEM key, the UP arrow is used to scroll through the various files, storage
locations, and functions of the data logger. Refer to page 24 for further
information regarding the use of the DOWN arrow key and the data logger.

Dakota Ultrasonics
6
TheMEM key enables/disables the data logging feature of the MX-5
DL. This key is used in conjunction with the UP/DOWN arrows, SEND,
AND CLR keys (hi-lighted in green). The combination of these keys
control the data logging features of theMX-5 DL. Refer to the section on
data logging page 24.
The CLR key is specifically used with the data logging feature of the
MX-5 DL. This key clears the contents of an entire file, or individual
storage locations. The CLR key is also used to send an obstruct (ObSt) to
an individual storage location. The ObSt symbol would indicate that a the
user was unable to take a reading at a particular location. Refer to the
section on data logging page 26.
The SEND key is used for sending data to internal storage locations,
and external peripheral devices ( serial printer / computer ). TheSEND key
is also used to select data logging functions in theMX-5 DL page 24.

MX-5 DL Ultrasonic Thickness Gauge
7
The Display
The numeric portion of the display consists of 4 complete digits
preceded by a leading "1", and is used to display numeric values, as well
as occasional simple words, to indicate the status of various settings.
When theMX-5 DL is displaying thickness measurements, the display will
hold the last value measured, until a new measurement is made.
Additionally, when the battery voltage is low, the entire display will begin to
flash. When this occurs, the batteries should be replaced.
These eight vertical bars form the Stability Indicator. When theMX-5
DL is idle, only the left-most bar and the underline will be on. While the
gauge is taking a measurement, six or seven of the bars should be on. If
fewer than five bars are on, theMX-5 DL is having difficulty achieving a
stable measurement, and the thickness value displayed will most likely be
erroneous.

Dakota Ultrasonics
8
When the IN symbol is on, theMX-5 DL is displaying a thickness value
in inches. The maximum thickness that can be displayed is 19.999 inches.
When the MM symbol is on, theMX-5 DL is displaying a thickness
value in millimeters. If the displayed thickness exceeds 199.99 millimeters,
the decimal point will shift automatically to the right, allowing values up to
1999.9 millimeters to be displayed.
When the IN symbol is on, in conjunction with the/µssymbol, theMX-5
DL is displayinga sound-velocity value in inches-per-microsecond.
When theMsymbol is on, in conjunction with the/s symbol, theMX-5
DL is displaying a sound-velocity value in meters-per-second.

MX-5 DL Ultrasonic Thickness Gauge
9
The Transducer
The transducer is the "business end" of theMX-5 DL. It transmits and
receives ultrasonic sound waves that theMX-5 DL uses to calculate the
thickness of the material being measured. The transducer connects to the
MX-5 DL via the attached cable, and two coaxial connectors. When using
transducersmanufactured by Dakota Ultrasonics, the orientation of the
dual coaxial connectors is not critical: either plug may be fitted to either
socket in theMX-5 DL.
The transducer must be used correctly in order for theMX-5 DL to
produce accurate, reliable measurements. Below is a short description of
the transducer, followed by instructions for its use.
This is a bottom view of a typical transducer. The two semicircles of the
wearface are visible, as is the barrier separating them. One of the
semicircles is responsible for conducting ultrasonic sound into the material
being measured, and the other semicircle is responsible for conducting the
echoed sound back into the transducer. When the transducer is placed
against the material being measured, it is the area directly beneath the
center of the wearface that is being measured.

Dakota Ultrasonics
10
This is a top view of a typical transducer. Press against the top with the
thumb or index finger to hold the transducer in place. Moderate pressure is
sufficient, as it is only necessary to keep the transducer stationary, and the
wearface seated flat against the surface of the material being measured.
Making Measurements
In order for the transducer to do its job, there must be no air gaps
between the wear-face and the surface of the material being measured.
This is accomplished with the use of a "coupling" fluid, commonly called
"couplant". This fluid serves to "couple", or transfer, the ultrasonic sound
waves from the transducer, into the material, and back again. Before
attempting to make a measurement, a small amount of couplant should be
applied to the surface of the material being measured. Typically, a single
droplet of couplant is sufficient.
After applying couplant, press the transducer (wearface down) firmly
against the area to be measured. The Stability Indicator should have six or
seven bars darkened, and a number should appear in the display. If the
MX-5 DL has been properly "zeroed" (see page 13) and set to the correct
sound velocity (see page14), the number in the display will indicate the
actual thickness of the material directly beneath the transducer.

MX-5 DL Ultrasonic Thickness Gauge
11
If the Stability Indicator has fewer than five bars darkened, or the
numbers on the display seem erratic, first check to make sure that there is
an adequate film of couplant beneath the transducer, and that the
transducer is seated flat against the material. If the condition persists, it
may be necessary to select a different transducer (size or frequency) for
the material being measured. See page 30 for information on transducer
selection.
While the transducer is in contact with the material that is being
measured, theMX-5 DL will perform four measurements every second,
updating its display as it does so. When the transducer is removed from
the surface, the display will hold the last measurement made.
IMPORTANT
Occasionally, a small film of couplant will be drawn out between the
transducer and the surface as the transducer is removed. When this
happens, theMX-5 DL may perform a measurement through this couplant
film, resulting in a measurement that is larger or smaller than it should be.
This phenomenon is obvious when one thickness value is observed while
the transducer is in place, and another value is observed after the
transducer is removed.

Dakota Ultrasonics
12
Condition and Preparation of Surfaces
In any ultrasonic measurement scenario, the shape and roughness of
the test surface are of paramount importance. Rough, uneven surfaces
may limit the penetration of ultrasound through the material, and result in
unstable, and therefore unreliable, measurements. The surface being
measured should be clean, and free of any small particulate matter, rust, or
scale. The presence of such obstructions will prevent the transducer from
seating properly against the surface. Often, a wire brush or scraper will be
helpful in cleaning surfaces. In more extreme cases, rotary sanders or
grinding wheels may be used, though care must be taken to prevent
surface gouging, which will inhibit proper transducer coupling.
Extremely rough surfaces, such as the pebble-like finish of some cast
iron, will prove most difficult to measure. These kinds of surfaces act on
the sound beam like frosted glass on light:, the beam becomes diffused
and scattered in all directions.
In addition to posing obstacles to measurement, rough surfaces
contribute to excessive wear of the transducer, particularly in situations
where the transducer is "scrubbed" along the surface. Transducers should
be inspected on a regular basis, for signs of uneven wear of the wearface.
If the wearface is worn on one side more than another, the sound beam
penetrating the test material may no longer be perpendicular to the material
surface. In this case, it will be difficult to exactly locate tiny irregularities in
the material being measured, as the focus of the soundbeam no longer lies
directly beneath the transducer.

MX-5 DL Ultrasonic Thickness Gauge
13
Probe Zero
Setting the Zero Point of theMX-5 DL is important for the same reason
that setting the zero on a mechanical micrometer is important. If the tool is
not "zeroed" correctly, all of the measurements the tool makes will be in
error by some fixed number. When theMX-5 DL is "zeroed", this fixed
error value is measured and automatically corrected for in all subsequent
measurements. TheMX-5 DL may be "zeroed" as follows:
Performing a Probe-Zero
1) Make sure theMX-5 DL is on.
2) Plug the transducer into theMX-5 DL. Make sure that the
connectors are fully engaged. Check that the wearface of the
transducer is clean and free of any debris.
3) The metal probe-disc is on the top end of theMX-5 DL. Apply a
single droplet of ultrasonic couplant to the face of this disc.
4) Press the transducer against the probe-disc, making sure that the
transducer sits flat against the surface. The display should show
some thickness value, and the Stability Indicator should have
nearly all its bars illuminated.
5) While the transducer is firmly coupled to the probe-disc, press the
PRB-0key on the keypad. TheMX-5 DL will display "Prb0" while it
is calculating its zero point.
6) Remove the transducer from the probe-disc.

Dakota Ultrasonics
14
At this point, theMX-5 DL has successfully calculated it's internal error
factor, and will compensate for this value in any subsequent
measurements. When performing a "probe-zero", theMX-5 DL will always
use the sound-velocity value of the built-in probe-disc, even if some other
velocity value has been entered for making actual measurements. Though
theMX-5 DL will remember the last "probe-zero" performed, it is generally
a good idea to perform a "probe-zero" whenever the tool is turned on, as
well as any time a different transducer is used. This will ensure that the
instrument is always correctly zeroed.
Calibration
In order for theMX-5 DL to make accurate measurements, it must be
set to the correct sound-velocity for the material being measured. Different
types of material have different inherent sound-velocities. For example, the
velocity of sound through steel is about 0.233 inches-per-microsecond,
versus that of aluminum, which is about 0.248 inches-per-microsecond. If
the tool is not set to the correct sound-velocity, all of the measurements the
tool makes will be erroneous by some fixed percentage. Theone point
calibration is the simplest and most commonly used calibration procedure-
optimizing linearity over large ranges. The two point calibration allows for
greater accuracy over small ranges by calculating the probe zero and
velocity. TheMX-5 DL provides three simple methods for setting the
sound-velocity, described in the following pages.

MX-5 DL Ultrasonic Thickness Gauge
15
Calibration to a known thickness
NOTE: This procedure requires a sample piece of the specific
material to be measured, the exact thickness of which is known,
e.g. from having been measured by someother means.
1) Make sure theMX-5 DL is on.
2) Perform a Probe-Zero (refer to page13)
3) Apply couplant to the sample piece.
4) Press the transducer against the sample piece, making sure that
the transducer sits flat against the surface of the sample. The
display should show some (probably incorrect) thickness value,
and the Stability Indicator should have nearly all its bars on.
5) Having achieved a stable reading, remove the transducer. If the
displayed thickness changes from the value shown while the
transducer was coupled, repeat step 4.
6) Press the CAL key. The IN (or MM) symbol should begin flashing.
7) Use the UP and DOWN arrow keys to adjust the displayed
thickness up or down, until it matches the thickness of the sample
piece.
8) Press the CAL key again. The IN/µs(or M/s) symbols should
begin flashing. TheMX-5 DL is now displaying the sound velocity
value it has calculated based on the thickness value that was
entered in step 7.
9) Press the CAL key once more to exit the calibration mode. The
MX-5 DL is now ready to perform measurements.

Dakota Ultrasonics
16
Calibration to a known velocity
NOTE: This procedure requires that the operator know the sound-
velocity of the material to be measured. A table of common
materials and their sound-velocities can be found in Appendix C.
1) Make sure theMX-5 DL is on.
2) Press the CAL key to enter calibration mode. If the IN (or MM)
symbol is flashing, press theCAL key again, so that the IN/µs(or
M/s) symbols are flashing.
3) Use the UP and DOWN arrow keys to adjust the displayed velocity
up or down, until it matches the sound-velocity of the material to be
measured.
4) Press the CAL key once more to exit the calibration mode. The
MX-5 DL is now ready to perform measurements.
NOTE: At any time during the calibration procedure (IN,MM,IN/µs,or
M/s flashing in the display), pressing thePRB-0key will restore the tool to
the factory default sound-velocity for steel (0.233 IN/µs).
To achieve the most accurate measurements possible, it is generally
advisable to always calibrate theMX-5 DL to a sample piece of known
thickness. Material composition (and thus, its sound-velocity) sometimes
varies from lot to lot and from manufacturer to manufacturer. Calibration to
a sample of known thickness will ensure that the tool is set as closely as
possible to the sound velocity of the material to be measured.
