INTRODUCTION
The Dakota Ultrasonics modelMX-3is a precision Ultrasonic
Micrometer. Based on the same operating principles as SONAR, theMX-3
is capable of measuring the thickness of various materials with accuracy as
high as ±0.001 inches, or ±0.01 millimeters. The principle advantage of
ultrasonic measurement over traditional methods is that ultrasonic
measurements can be performed with access to only one side of the
material being measured.
This manual is presented in three sections. The first section covers
operation of theMX-3, and explains the keypad controls and display. The
second section provides guidelines in selecting a transducer for a specific
application. The last section provides application notes and a table of
sound velocity values for various materials.
Dakota Ultrasonics maintains a customer support resource in order to
assist users with questions or difficulties not covered in this manual.
Customer support may be reached at any of the following:
•Dakota Ultrasonics,1500 Green Hills Road, #107
Scotts Valley, CA 95066 USA
•Telephone: [phone]
•Facsimile: [phone]
•http://www.dakotaultrasonics.com

Dakota Ultrasonics
2
blank page

MX-3 Ultrasonic Thickness Gauge
3
OPERATION

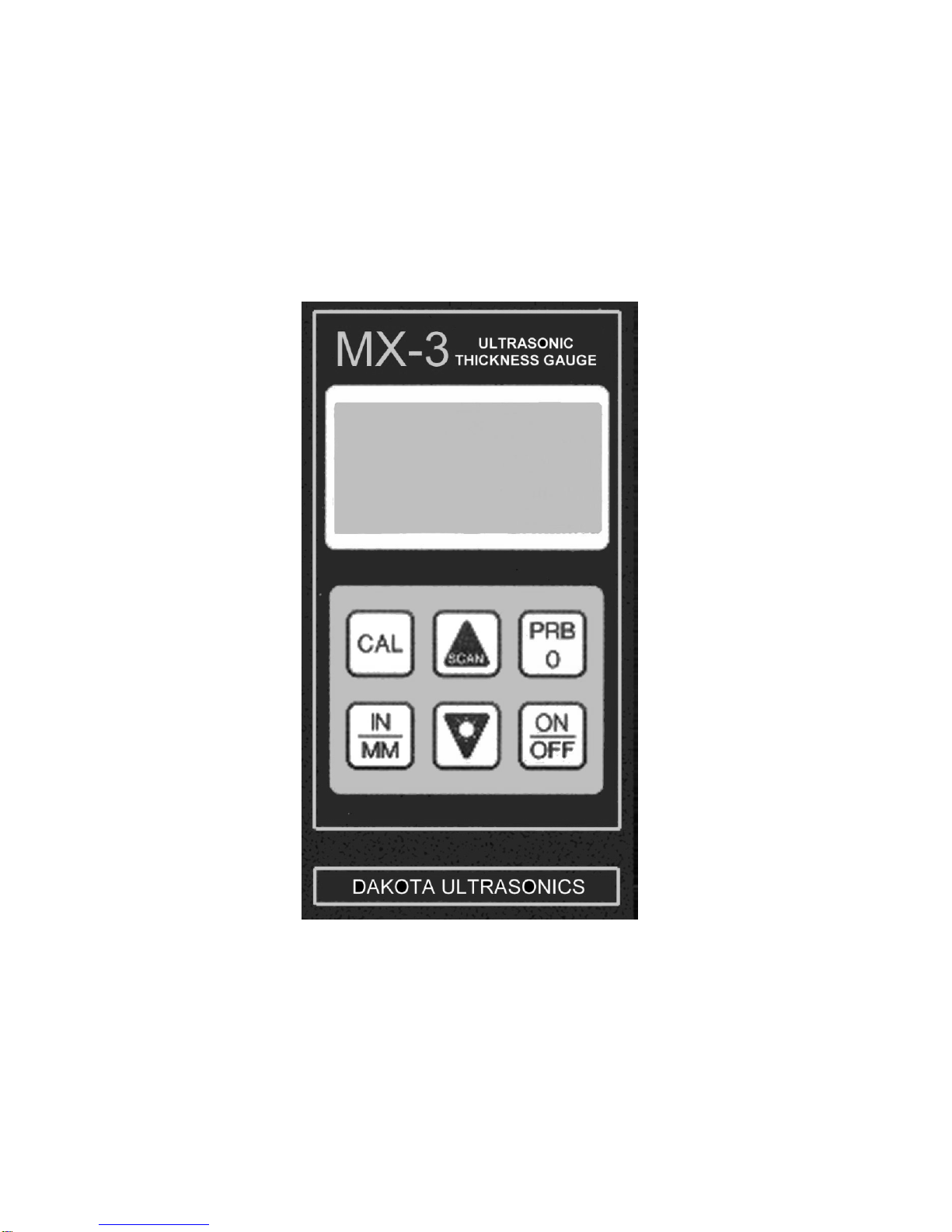

TheMX-3interacts with the operator through the membrane keypad
and the LCD display. The functions of the various keys on the keypad are
detailed below, followed by an explanation of the display and its various
symbols.
The Keypad
This key is used to turn theMX-3on and off. When the gauge is turned
ON, it will first perform a brief display test by illuminating all of the
segments in the display. After one second, the gauge will display the
internal software version number. After displaying the version number, the
display will show "0.000" (or "0.00" if using metric units), indicating the
gauge is ready for use.
TheMX-3is turned OFF by pressing the ON/OFF key. The gauge has
a special memory that retains all of its settings even when the power is off.
The gauge also features an auto-powerdown mode designed to conserve
battery life. If the gauge is idle for 5 minutes, it will turn itself off.

Dakota Ultrasonics
4
The PRB-0key is used to "zero" theMX-3in much the same way that a
mechanical micrometer is zeroed. If the gauge is not zeroed correctly, all
of the measurements that the gauge makes may be in error bysome fixed
value. Refer to page12 for an explanation of this important procedure.
The CAL key is used to enter and exit theMX-3's calibration mode.
This mode is used to adjust the sound-velocity value that theMX-3will use
when calculating thickness. The gauge will either calculate the sound-
velocity from a sample of the material being measured, or allow a known
velocity value to be entered directly. Refer to page 13 for an explanation of
the two CAL functions available.
The IN/MM key is used to switch back and forth between English and
metric units. This key may be used at any time, whether the gauge is
displaying a thickness (IN orMM) or a velocity value (IN/µsorM/s).

MX-3 Ultrasonic Thickness Gauge
5
The UP arrow key has two functions. When theMX-3is in calibration
mode, this key is used to increase numeric values on the display. An auto-
repeat function is built in, so that when the key is held down, numeric
values will increment at an increasing rate. When theMX-3is not in
calibration mode, the UP arrow key switches the SCAN measurement
mode on and off. Refer to page17 for an explanation of theSCAN
measurement mode.
The DOWN arrow key has two functions. When theMX-3is in the CAL
mode, this key is used to decrease numeric values on the display. An
auto-repeat function is built in, so that when the key is held down, numeric
values will decrement at an increasing rate. When theMX-3is not in
calibration mode, the DOWN arrow key switches the display backlight
between three available settings. OFF will be displayed when the backlight
is switched off. AUTO will be displayed when the backlight is set to
automatic mode, and ON will be displayed when the backlight is set to stay
on. In the AUTO setting, the backlight will illuminate when theMX-3is
actually making a measurement.

Dakota Ultrasonics
6
The Display
The numeric portion of the display consists of 4 complete digits
preceded by a leading "1", and is used to display numeric values, as well
as occasional simple words, to indicate the status of various settings.
When theMX-3is displaying thickness measurements, the display will hold
the last value measured, until a new measurement is made. Additionally,
when the battery voltage is low, the entire display will begin to flash.
When this occurs, the batteries should be replaced.
These eight vertical bars form the Stability Indicator. When theMX-3is
idle, only the left-most bar and the underline will be on. When the gauge is
making a measurement, six or seven of the bars should be on. If fewer
than five bars are on, theMX-3is having difficulty achieving a stable
measurement, and the thickness value displayed will most likely be
erroneous.

MX-3 Ultrasonic Thickness Gauge
7
When the IN symbol is on, theMX-3is displaying a thickness value in
inches. The maximum thickness that can be displayed is 19.999 inches.
When the MM symbol is on, theMX-3is displaying a thickness value in
millimeters. If the displayed thickness exceeds 199.99 millimeters, the
decimal point will shift automatically to the right, allowing values up to
1999.9 millimeters to be displayed.
When the IN symbol is on, in conjunction with the/µssymbol, theMX-3
is displaying a sound-velocity value in inches-per-microsecond.
When theMsymbol is on, in conjunction with the/s symbol, theMX-3
is displaying a sound-velocity value in meters-per-second.

Dakota Ultrasonics
8
The Transducer
The transducer is the "business end" of theMX-3. It transmits and
receives the ultrasonic sound waves which theMX-3uses to calculate the

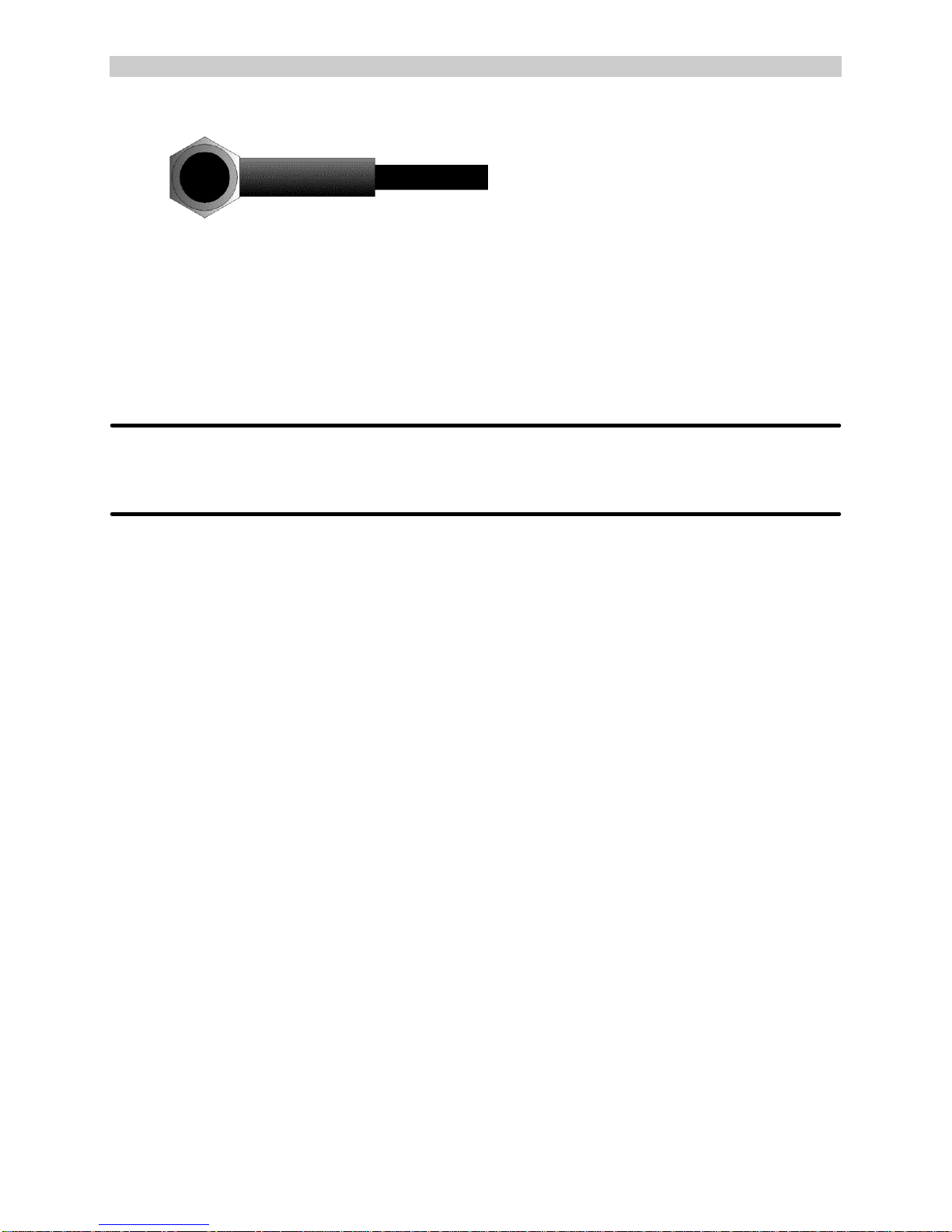

thickness of the material being measured. The transducer connects to the
MX-3via the attached cable, and two coaxial connectors. When using
transducers manufactured by Dakota Ultrasonics, the orientation of the
dual coaxial connectors is not critical: either plug may be fitted to either
socket in theMX-3.
The transducer must be used correctly in order for theMX-3to produce
accurate, reliable measurements. Below is a short description of the
transducer, followed by instructions for its use.
This is a bottom view of a typical transducer. The two semicircles of the
wearface are visible, as is the barrier separating them. One of the
semicircles is responsible for conducting ultrasonic sound into the material
being measured, and the other semicircle is responsible for conducting the
echoed sound back into the transducer. When the transducer is placed
against the material being measured, it is the area directly beneath the
center of the wearface that is being measured.

MX-3 Ultrasonic Thickness Gauge
9
This is a top view of a typical transducer. Press against the top with the
thumb or index finger to hold the transducer in place. Moderate pressure is
sufficient, as it is only necessary to keep the transducer stationary, and the
wearfaceseatedflat against the surface of the material being measured.
Making Measurements
In order for the transducer to do its job, there must be no air gaps
between the wear-face and the surface of the material being measured.
This is accomplished with the use of a "coupling" fluid, commonly called
"couplant". This fluid serves to "couple", or transmit, the ultrasonic sound
waves from the transducer, into the material, and back again. Before
attempting to make a measurement, a small amount of couplant should be
applied to the surface of the material being measured. Typically, a single
droplet of couplant is sufficient.
After applying couplant, press the transducer (wearface down) firmly
against the area to be measured. The Stability Indicator should have six or
seven bars darkened, and a number should appear in the display. If the
MX-3has been properly "zeroed" (see page12) and set to the correct
sound velocity (see page13), the number in the display will indicate the
actual thickness of the material directly beneath the transducer.

Dakota Ultrasonics
10
If the Stability Indicator has fewer than five bars darkened, or the
numbers on the display seem erratic, first check to make sure that there is
an adequate film of couplant beneath the transducer, and that the
transducer is seated flat against the material. If the condition persists, it
may be necessary to select a different transducer (size or frequency) for
the material being measured. See page 18 for information on transducer
selection.
While the transducer is in contact with the material being measured, the
MX-3will perform four measurements every second, updating its display as
it does so. When the transducer isremoved from the surface, the display
will hold the last measurement made.
IMPORTANT
Occasionally, a small film of couplant will be drawn out between the
transducer and the surface as the transducer is removed. When this
happens, theMX-3may perform a measurement through this couplant film,
resulting in a measurement that is larger or smaller than it should be. This
phenomenon is obvious when one thickness value is observed while the
transducer is in place, and another value is observed after the transducer is
removed.

MX-3 Ultrasonic Thickness Gauge
11
Condition and Preparation of Surfaces
In any ultrasonic measurement scenario, the shape and roughness of
the test surface are of paramount importance. Rough, uneven surfaces
may limit the penetration of ultrasound through the material, and result in
unstable, and therefore unreliable, measurements. The surface being
measured should be clean, and free of any small particulate matter, rust, or
scale. The presence of such obstructions will prevent the transducer from
seating properly against the surface. Often, a wire brush or scraper will be
helpful in cleaning surfaces. In more extreme cases, rotary sanders or
grinding wheels may be used, though care must be taken to prevent
surface gouging, which will inhibit proper transducer coupling.
Extremely rough surfaces, such as the pebble-like finish of some cast
irons, will prove most difficult to measure. These kinds of surfaces act on
the sound beam like frosted glass on light, the beam becomes diffused and
scattered in all directions.
In addition to posing obstacles to measurement, rough surfaces
contribute to excessive wear of the transducer, particularly in situations
where the transducer is "scrubbed" along the surface. Transducers should
be inspected on a regular basis, for signs of uneven wear of the wearface.
If the wearface is worn on one side more than another, the sound beam
penetrating the test material may no longer be perpendicular to the material
surface. In this case, it will be difficult to exactly locate tiny irregularities in
the material being measured, as the focus of the soundbeam no longer lies
directly beneath the transducer.

Dakota Ultrasonics
12
Probe Zero
Setting the Zero Point of theMX-3is important for the same reason that
setting the zero on a mechanical micrometer is important. If the gauge is
not "zeroed" correctly, all of the measurements the gauge makes will be in
error by some fixed number. When theMX-3is "zeroed", this fixed error
value is measured and automatically corrected for in all subsequent
measurements. TheMX-3may be "zeroed" by performing the following
procedure:
Performing a Probe-Zero
1) Make sure theMX-3is on.
2) Plug the transducer into theMX-3. Make sure that the connectors
are fully engaged. Check that the wearface of the transducer is
clean and free of any debris.
3) On the top of theMX-3, above the display, is the metal probe-disc.
Apply a single droplet of ultrasonic couplant to the face of this disc.
4) Press the transducer against the probe-disc, making sure that the
transducer sits flat against the surface of the probe-disc. The
display should show some thickness value, and the Stability
Indicator should have nearly all its bars illuminated.
5) While the transducer is firmly coupled to the probe-disc, press the
PRB-0key on the keypad. TheMX-3will display "Prb0" while it is
calculating its zero point.
6) Remove the transducer from the probe-disc.

MX-3 Ultrasonic Thickness Gauge
13
At this point, theMX-3has successfully calculated it's internal error
factor, and will compensate for this value in any subsequent
measurements. When performing a "probe-zero", theMX-3will always use
the sound-velocity value of the built-in probe-disc, even if some other
velocity value has been entered for making actual measurements. Though
theMX-3will remember the last "probe-zero" performed, it is generally a
good idea to perform a "probe-zero" whenever the gauge is turned on, as
well as any time a different transducer is used. This will ensure that the
instrument is always correctly zeroed.
Calibration
In order for theMX-3to make accurate measurements, it must be set to
the correct sound-velocity for the material being measured. Different types
of material have different inherent sound-velocities. For example, the
velocity of sound through steel is about 0.233 inches-per-microsecond,
versus that of aluminum, which is about 0.248 inches-per-microsecond. If
the gauge is not set to the correct sound-velocity, all of the measurements
the gauge makes will be erroneous by some fixed percentage. Theone-
point calibration is the simplest and most commonly used calibration
procedure -optimizing linearity over large ranges. The two-point
calibration allows for greater accuracy over small ranges by calculating the
probe zero and velocity. TheMX-3provides three simple methods for
setting the sound-velocity, described in the following pages.

Dakota Ultrasonics
14
Calibration to a known thickness
NOTE: This procedure requires a sample piece of the specific
material to be measured, the exact thickness of which is known,
e.g. from having been measured by someother means.
1) Make sure theMX-3is on.
2) Perform a Probe-Zero (refer to page12)
3) Apply couplant to the sample piece.
4) Press the transducer against the sample piece, making sure that
the transducer sits flat against the surface of the sample. The
display should show some (probably incorrect) thickness value,
and the Stability Indicator should have nearly all its bars on.
5) Having achieved a stable reading, remove the transducer. If the
displayed thickness changes from the value shown while the
transducer was coupled, repeat step 4.
6) Press the CAL key. The IN (or MM) symbol should begin flashing.
7) Use the UP and DOWN arrow keys to adjust the displayed
thickness up or down, until it matches the thickness of the sample
piece.
8) Press the CAL key again. The IN/µs(or M/s) symbols should
begin flashing. TheMX-3is now displaying the sound velocity
value it has calculated based on the thickness value that was
entered in step 7.
9) Press the CAL key once more to exit the calibration mode. The
MX-3is now ready to perform measurements.

MX-3 Ultrasonic Thickness Gauge
15
Calibration to a known velocity
NOTE: This procedure requires that the operator know the sound-
velocity of the material to be measured. A table of common
materials and their sound-velocities can be found in Appendix C.
1) Make sure theMX-3is on.
2) Press the CAL key to enter calibration mode. If the IN (or MM)
symbol is flashing, press theCAL key again, so that the IN/µs(or
M/s) symbols are flashing.
3) Use the UP and DOWN arrow keys to adjust the displayed velocity
up or down, until it matches the sound-velocity of the material to be
measured.
4) Press the CAL key once more to exit the calibration mode. The
MX-3is now ready to perform measurements.
NOTE: Atany time during the calibration procedure (IN,MM,IN/µs,or
M/s flashing in the display), pressing thePRB-0key will restore the gauge
to the factory default sound-velocity for steel(0.233IN/µs).
To achieve the most accurate measurements possible, it is generally
advisable to always calibrate theMX-3to a sample piece of known
thickness. Material composition (and thus, its sound-velocity) sometimes
varies from lot to lot and from manufacturer to manufacturer. Calibration to
a sample of known thickness will ensure that the gauge is set as closely as
possible to the sound velocity of the material to be measured.

Dakota Ultrasonics
16
Two Point Calibration
NOTE: This procedure requires that the operator has two known
thickness points on the test piece that are representative of the
range to be measured.
1) Make sure theMX-3is on.
2) Perform a Probe-Zero (refer to page12)
3) Apply couplant to the sample piece.
4) Press the transducer against the sample piece, at the first/second
calibration point, making sure that the transducer sits flat against
the surface of the sample. The display should show some
(probably incorrect) thickness value, and the Stability Indicator
should have nearly all its bars on.
5) Having achieved a stable reading, remove the transducer. If the
displayed thickness changes from the value shown while the
transducer was coupled, repeat step 4.
6) Press the CAL key. The IN (or MM) symbol should begin flashing.
7) Use the UP and DOWN arrow keys to adjust the displayed
thickness up or down, until it matches the thickness of the sample
piece.
8) Press the Probe key. The display will flash 1OF2. Repeat steps 3
through 8 on the second calibration point. TheMX-3will now
display the sound velocity value it has calculated based on the
thickness values that were entered in step 7.
9) TheMX-3is now ready to perform measurements.
