DANE-ELEC MUSICMEDIA TOUCH User manual

1
Note: Please recharge the player before using it!
For Your Safety
Read this user guide carefully to ensure proper use of the product and to avoid
any danger or physical damage.
Please use your player properly in case of explosion, fire, electric shock, etc.
1. Do not repair the player by yourself, or it will cause damage.
2. Do avoid getting the player wet or drop it in water.
3. Do not use the player while raining.
4. Please backup important data onto your personal computer as repair or other
causes may result in data loss.
When using your player, pay attention to your health, especially the power of
hearing.
1. Do not use the earphones while driving or riding a bicycle.
2. It may cause traffic accident if you turn up the volume of the earphones while
walkingdownthestreet.
3. Do not turn up the volume too high, doctors warn against prolonged exposure to
high volume.

2
4. Stop using the device or turn down the volume if you have ringing in your ears.
5. Always use the accessories provided by or approved by our company, also do not
spray water on the player.
6. The player (including the AC/DC adaptor) shall not be exposed to dripping or
splashing and that no objects filled with liquids, such as vases, shall be placed on
the player.
Function features
1. Support USB 2.0 capability, much faster than USB 1.1, to enable faster
communication with your PC.
2. Support various EQ mode: including Normal, Pop, Rock, Classical, Jazz, PlayFX
3D, PlayFX DBB, PlayFX Auto volume.
3. Support multiple languages.
4. You can select your favorite music by Artist, Album, Genre, also you can make
your own favorite list.
5. The player can record outside voice.
6. The player has repeat functions.
7. The player support MP3/WMA/WAV/AAC/APE/FLAC format files. Including WMA

3
files with DRM (Digital Rights Management) function.
8. The player has Video Playback, Photo Viewer, E-book, TV-out, FM transmitter,
G-sensor functions, etc.
9. The player can power off automatically after a preset time.
Accessories in the packing
NOTE: The following icons are only a guide and may differ slightly from the actual
product appearance.
Player USBCable Earphones UserGuide
Av-out Cable STAND Hop-pocket

4

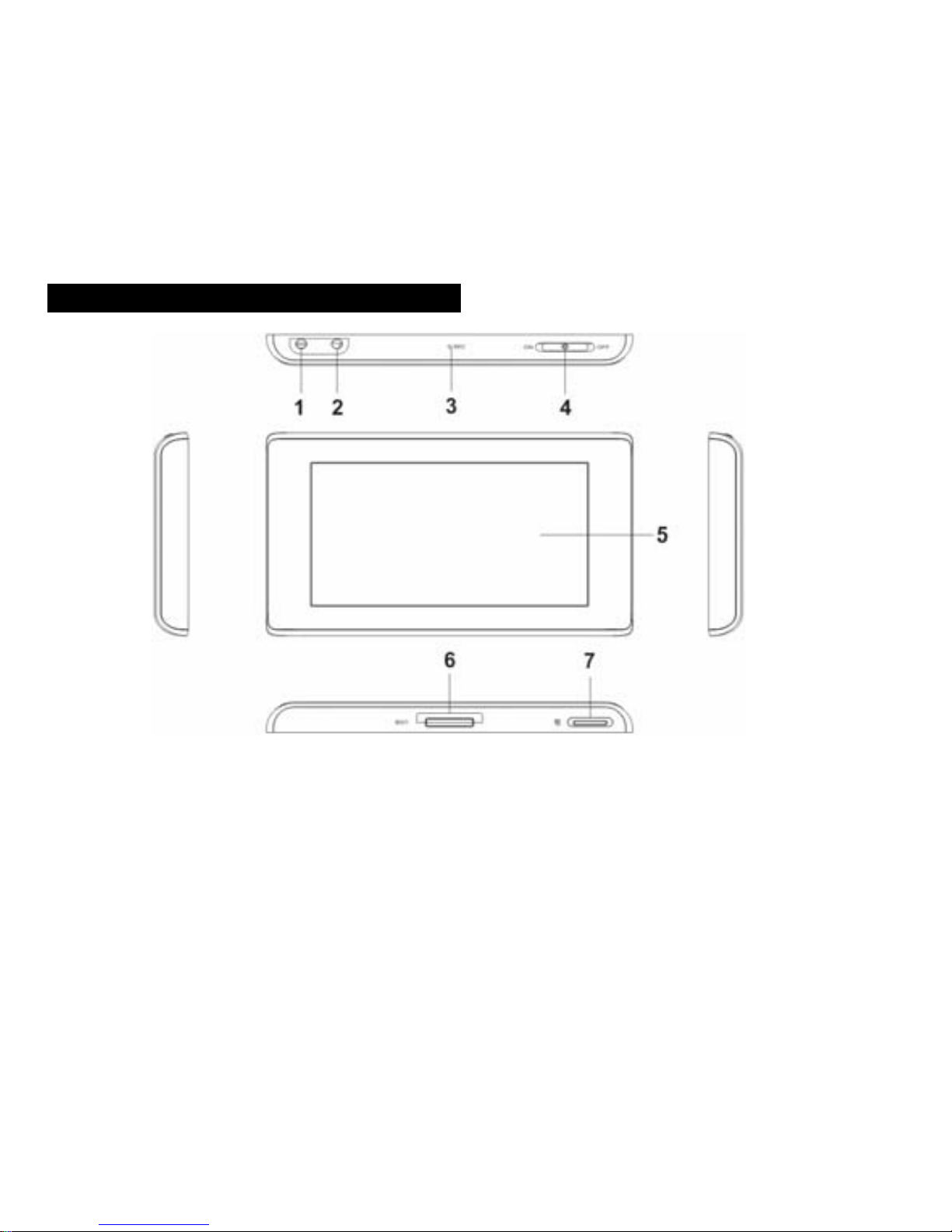

Components and Button functions
1. AV-OUTport 2. Earphonejack
3. Microphone 4. Power on/off/reset
5. LCDdisplay 6. USBport
7. Micro SD/T-flash card slot
Note: The function of the insulative packing materials in USB port is to make ESD
defense.

5
ChargingLi–polymerbatterysafely
1. Connect the PC USB port and the
player USB port with the USB cable supplied. At
this time the screen of the player will display as
the picture.
2. In MSC mode, click the left mouse button on
the icon, then click the "Safely remove
USB Mass Storage Device – Drive (G:)" column.
At this time, the power sign is shown dynamic in
the display when charging, once full charged, the power sign will stop moving, power is
full, please shut off the power.
3. The charging time is approximately 6 hours.
4. To stop recharging, disconnect the USB cable.
Charge with adapter (Please use the adapter provided by or approved by our
company):
Connect the player and power supply with the adapter, at this time the player will
enter charging state, The power sign is shown dynamic when charging, once full charged,
the power sign will stop moving, power is full, please shut off the power. The charging
time is approximately 2.5 hours.
Notes:
1. The AC/DC adaptor of the player should not be obstructed OR should be easily
accessed during intended use.
2. To be completely disconnect the power input, the AC/DC adaptor shall be
disconnected from the mains.

6
Notes
zBefore your first time use, please recharge your digital player.
zYour computer must be turned on while connected to your player for charging.
zDo not overcharge your player, or it may shorten the battery’s life.
zThe times of charge/discharge are no less than 300 cycles.
zDo not put your player in places subject to serious shakes and do not move it
while charging.
CAUTION
1. Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
2. Do not disassemble, crush, short-circuit or incinerate your battery as it may cause
fire, injury, burns, or other hazards.
3. Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
4. The li-polymer battery is consumptive material, so recharge it semiannually is
needed even if the player is not be used.
Adding/Removing MP3 files/folders
You can use the player as a removable USB storage.
1. Connect the PC USB port and the player USB port with the provided USB cable.
2. Add MP3 files/folders to the USB storage‘s folder.
Ⅰ. Open files/folders to transfer from your computer.

7
Ⅱ. Open My Computer →Removable Disk from the desktop.
Ⅲ. Select the files/folders to transfer from your computer and draw and put them to a
folder of your choice in the Removable Disk (you also can transfer files on your PC to the
player using the "Copy" and "Paste" functions).
3. Delete MP3 files from the removable USB storage (use the "Delete" command)
Remove the player from PC
Please follow the steps in case of damaging the player or data loss.
1. Click the left mouse button on the icon that is on the taskbar at the bottom
right corner of the desktop.

8
2. Click the "Safely remove USB Mass Storage Device – Drive (X:)" column.
3. Disconnect the player from your computer.
CAUTION:
Do not remove the player while files within the USB Mass Storage are being
played on your computer.
Do not disconnect the player from your computer while transferring files, or it will
cause damage to the player or data loss.
Basic operations
Turn power on
Slide and hold button in the direction of “ON”.

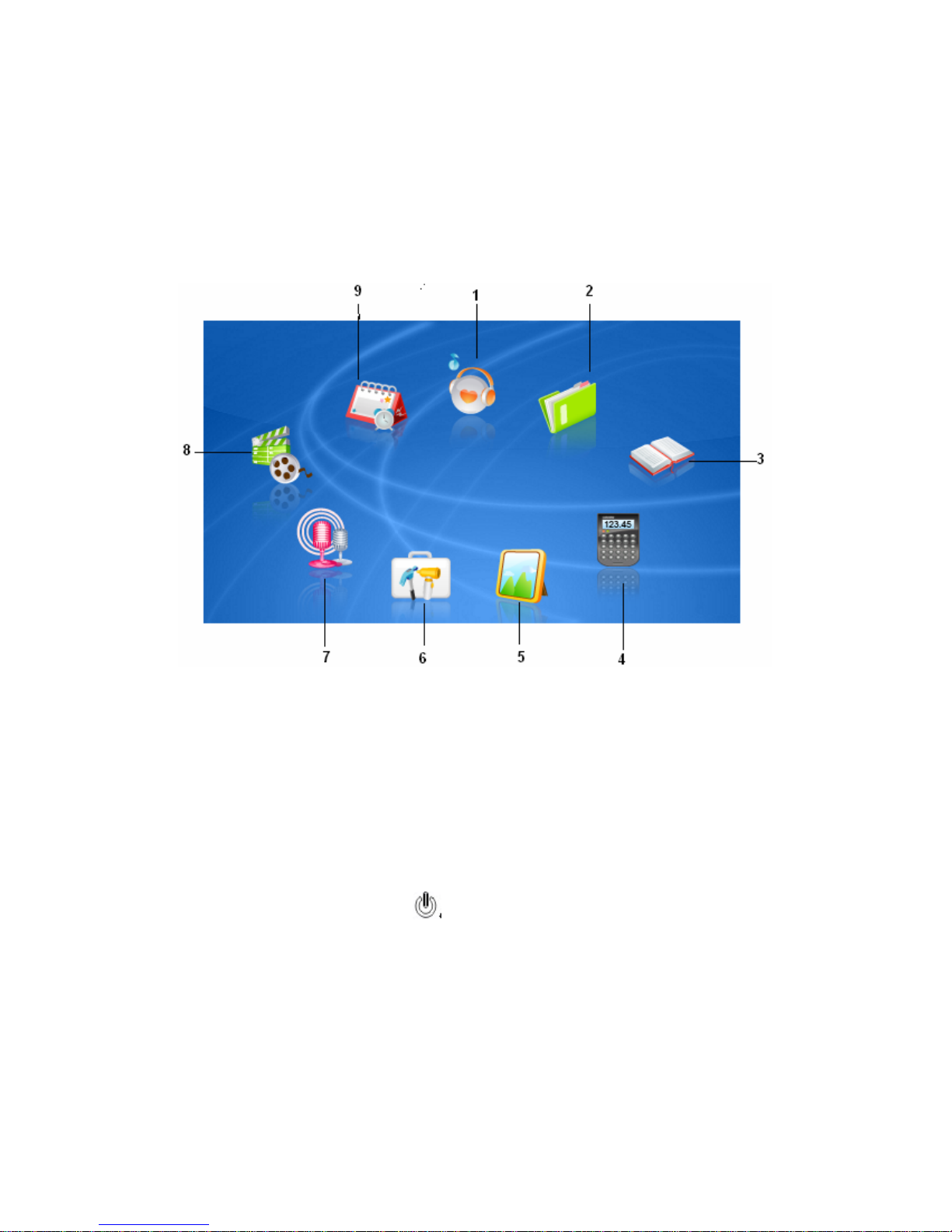

Connect earphones to earphone jack, it will display as following:

9
1. Audio Playing 2. FILE Browse
3.E-BOOK 4.Calculator
5.Album 6.Settings
7.Recording 8. Video
9. Calendar
You can also browse pictures or read EBOOK files stored in the player or setup some
parameters of your player while playing music.
Turn power off
In power on mode, slide and hold button in the direction of “ON” to power off.

10
Screen Display Contents
NOTE: The following picture is only for your reference.
1. Timedisplay 2.Volumebar
3. FM Tx.(Only for the player with FM TX. function) 4. Battery status display
5. EQmode 6.Repeatmode
7. Returntomainmenu 8.Playtimeindicator
9. Previousone 10.Play/pausedisplay
11.Nextone 12.Totaltimedisplay

11
Menu Navigation
Skip button【】: Shift menus.
Play/Pause button ( /): Play, Pause.
Return to main menu.
Add to my favourite list.
Remove all files from my favourite list.
Remove one from the list.
Touch the icons to enter into your desired option (e.g. Video, Calendar ,Audio, FILE
Browse, Settings, Album, Calculator, E-BOOK, Recording).
NOTE:
Please insert Micro SD/T-Flash card as the indicated direction, in case of happening
anything wrong, do not insert or pull out the card while power on.
Volume Adjustment
In Audio, Video playing, you can slide the volume bar to turn up /turn down the volume.
The player default speaker mode is on while power on, connect earphone to earphone
jack will turn off the speaker automatically and switch to earphone mode.
MUSIC
1. Slide button in the direction of “ON” until to turn unit on and enter main menu,
2. Press “Audio” icon and enter submenu interface: All music, Artist, Album, Genre,
My favorite, Record, Dir List, MediaLib Update. then touch the relevant icon to enter.
3. Touch to add audio file to “My favorite” folder, you can touch /to
remove one/all files from the folder.

12
4. Touch to select your desired file, then touch icon to play it.
5. In music play mode, touch the screen again and again, it will display music
information: ID3, lyric, equalizer.
Touch【】button to change music files.
Touch to set repeat mode, touch to set EQ mode.
To Pause/Play: touch /button.
To change tracks: touch【】button.
To return main menu: touch button.
EQmode: Repeatmode;
PlayFX Auto volume no repeat
Jazz intro
Rock random
PlayFX DBB repeat all
POP repeat one
Classic Normal
PlayFX 3D

13
FILE
1. In main menu, select “FILE” icon
and enter by touching it.
2. You can browse all files(including
video files, music files, photos files,
recorded files and E-book files, etc.).
3. You can touch to delete the
file.
4. Touch /icon to turn to
next/previous page, select your desired
file, touch the relevant icon to open it.
5. Touch icon to return to main
menu.
EBOOK 1. In main menu, touch “EBOOK” icon
to enter the mode.
2. Select your desired file, touch the
relevant icon to enter, so you can
scan the text file.
3. Touch /icon to turn to
previous /next page. Or you can
slide the screen with your finger tip

14
to switch the pages.
4. Touch /icon to turn to next/previous row.
5. Touch to mark, touch to turn to the marked page.
6. Touch icon and you can scan the ebook automatically, then you can click the
icon to set the interval from 10s to 60s.
7. Touch to change font color. (including: white, green, red, gray, brown, yellow,
blue.)
8. Touch icon to return to previous list, select one file stored in the player, you can
touch icon to delete it.
9. Touch icon to return to main menu.
Note: The player only supports TXT and LRC format files.
VOICE
1. In main menu, select “Voice” icon
and enter by touching it.
2. Touch icon to start
recording. It will display as the
picture.
3. Touch to stop, touch
icon to save the recorded file. The
file will saved in: “Music→record”
folder.
4. Touch to return to main
menu.

15
1. In main menu, select “Photo” icon
and enter by touching it.
2. Touch
/icon to turn to
previous/next page.
3. Select and touch the icon to open
your desired photo.
4. Touch the screen and you will see
the menu as the following picture.
5. Touch
///to turn to
previous/next one.
6. Touch
/to zoom in/out the photo. At this time you can touch // / to
remove the picture.
7. Touch
icon and you can auto-scan the photo one by one.
8. Touch
icon to return to photos list, you can select one of the photo files and
touch icon to delete it.
9. Touch icon to return to main menu.
NOTE: 1. Swing the player will change the orientation of the picture.
2. Ifthepixel ≦480x272, you will not zoom in/out the picture.
3. If the photo is zoomed in/out, you need resume the size of the picture first.
Then can touch // / to turn to previous/next one.

16
VIDEO 1. In main menu, touch “Video”
icon to enter the mode.
2 Select your desired file, and
touch the icon to play.
3 Touch the screen and the menu
will display as the picture, touch
to pause.
4 Short press
/ button to
turn to previous/next one. Long
press / to speed
up/back speed.
5 Touch
icon to turn on TV-out function, so you can transmit signal to TV, touch
to turn off the function.
6 Touch
to turn on transmitter function, touch to turn off.
7 Touch
icon to return to video files list. select one of the video files stored in
the player, touch icon to delete it.
8 Touch
icon to return to main menu.
NOTE:
1. The max frame size: 720x576
The max frame rate: 25fps
The max bit rate: 1.5Mbit/s
2. The
extreme length of video name: 26 characters

17
Calendar 1. In main menu, touch “Calendar”
icon to enter the mode.
2. You just need touch the /icon
to setup: YEAR, MONTH, click the
relevant number to setup: DATE.
3. Touch the time strip and the screen
will display as the picture, touch /
to setup: HOUR, MINUTE. touch the
time strip again to confirm.
4. Touch icon to return to main
menu.
Calculator
1. In main menu, select “Calculator”
icon and enter by touching it.
2. You can use the player as a
calculator.

18
SETTING
1. In main menu, select “Setting”
icon and enter by touching it.
2. So you can see the following
submenu: power, backlight,
brightness, locked time,
background, language,
TV-OUT, FM transmitter,
MSC/MTP.
Enter this mode, you can see some information in the left screen: like Int., firmware
Ver.
Enter the mode by touching it, then you can set the auto-off time by sliding the
scroll bar.
Enter the mode by touching it, then you can set the backlight time by sliding the
slide bar.
Enter the mode by touching it, then you can set the brightness by sliding the scroll
bar.
Enter the mode by touching it, then you can set the locked time by sliding the scroll

19
bar.
E
Enter the mode by touching it, then you can set the background by sliding the scroll
bar.
Enter the mode by touching it, then you can touch【】to set the system
language.
Enter the mode by touching it, then a icon will display, please touch it to turn on the
function, then touch【】to adjust the video output location in TV, touch again to turn
off the function.
Enter the mode by touching it, then you can set the transmitter frequency.
Enter the mode by touching it, then you can see some system information.
Enter the mode by touching it, then the screen will display: touch the
icon to switch between “ MSC mode” and “MTP (Media Transfer Protocol)
mode”.
DRM 10(Optional function)
What is DRM?
Stands for digital rights management, a technology used to protect digital products
from copyright infringement. When a customer buys a DRM-protected music download,
the download is encrypted specifically for that customer. To allow the customer to use the
file on a separate digital player they must link the DRM enabled player to Windows Media
