Danfoss TRAVELMATE-DZ User manual

TRAVELMATE-DZ
Instruction Manual
1 | P a g e
Nexberg Pty Ltd T/a Evakool
16 Enterprise St CALOUNDRA
QLD 4551
Tel : [phone]
Fax : [phone]
Please read these instructions and the Safety section carefully before using
your refrigerator.
1．Safety Instructions Page 2
2．Notes on using the product Page 2
3．Operation Page 2-4
4．WiFi Operation Page 5-13
5．Cleaning and Maintenance Page 14
6．Troubleshooting Page 14
7．Error Codes Page 15
8．Warranty Statement Page 16
NOTE:
Your fridge is preregistered with the
following user account for the APP.
User: 12345678900
Password: 123456

TRAVELMATE-DZ
Instruction Manual
2 | P a g e
Features:
•Reliable cooling system – Danfoss compressor
•Efficient electronic technology, low energy consumption
•Multi-voltage system (DC 12-24 Volt) and (AC 100-120/220-240 Volt)
•Digital Battery Protection, protect your vehicle battery effectively
1. Safety Instructions
•Warning: Do not touch exposed cables.
•Warning: Do not use fridge if you suspect any connections could be wet.
•When using the fridge in the vehicle or boat, please make sure the circuit being used is fused.
•Any installation of DC power systems should be handled by a qualified professional.
•Make sure the source voltage is correct. The technical data label has the voltage data.
•Do not place any electrical devices inside the refrigerator as moisture could harm these devices.
2. Notes on using the product
Your refrigerator requires good ventilation, especially around the vents of the refrigerator;
allow a gap of at least 200mm around the vents.
Humidity inside the appliance can form frost and impair cooling.
Do not allow frost to build up. Never clean the appliance using a hose and never submerge the
unit in any liquid.
Avoid placing your refrigerator near a heat source. This helps the refrigerator to work more
efficiently and keep the contents cool.
Place the refrigerator on a flat surface and away from any edges. When using the fridge in a
vehicle, please use a fastening device to secure it.
3. Operation
Power ：
：：
： The electronic control module controls the compressor motor and has the function of
a three stage battery protection. When the input voltage drops below the minimum, the
compressor will cut out; when the voltage comes back up to the cut-in value, the compressor
will restart automatically.
Battery Protection: The Danfoss compressor requires approximately 11.0 Volts (12 Volt
System) or 23.0 Volts (24V System) to operate. If the voltage drops below this the fridge will
stop running.
Cable Specification
The DC cables must have a suitable cross-section for their length, according to this table:
*Note: The length is from the battery to the refrigerator.
Cable Area 12V Max Cable
Length*
24V Max Cable
Length*
[mm2] AWG [m] [ft.] [m] [ft.]
2.5 13 2.5 8 5 16
4 11 4 13 8 26
6 9 6 20 12 39
10 7 10 33 20 66

TRAVELMATE-DZ
Instruction Manual
3 | P a g e
Using the Fridge
•Temperature setting range ： -18ºC ～ 10ºC, 0ºF ～ 50ºF
•Plug in the DC or AC power cable. Hold the ON/OFF switch for 4 seconds to run the fridge.
The LED display on the control panel will light up and the interior temperature will be
displayed.
•Press SET and then press the + and - buttons to adjust the temperature. Press the + button
to increase while the - button to decrease the temperature. To lock in the target temperature
press set twice or leave for 5 seconds. The display board will display the current temperature
inside the unit after the target temperature is set. After approximately 5 minutes the displayed
temperature will start to decrease.
•If the power supply is cut off, the refrigerator will switch off automatically and then
automatically switch on again when the unit receives power.
•To change the fridge between ºC and ºF. Press SET twice and then press - or + to change the
setting.
240 Volt Socket
12/24V Volt Socket
SET Button Display LCD + / - Buttons
USB Socket (0.5A)Emergency Switch
ON / OFF Switch

TRAVELMATE-DZ
Instruction Manual
4 | P a g e
•To change the battery voltage setting press the SET button until the V
L
is flashing and then
use the + or – buttons to change the setting. The three voltage settings are approximately as
follows :- (We advise to keep the setting on V
L
)
oV
L
– 11.0 Volts
oV
M
– 12.0 Volts
oV
H
– 12.5 Volts
•If dual zone unit; display panel will contain 2 Temperature Read-out’s. Press the Set button
once to set left bin temperature, twice to set right bin and thrice to set temperature mode.

TRAVELMATE-DZ
Instruction Manual
5 | P a g e
4. WiFi OPERATION
The fridge has been designed with the latest technology. You are able to easily download the
EVAKOOL APP from the Google Play store or the Apple iTunes Store.
Once the APP is installed please follow these easy instructions to be able to control and monitor your
fridge.

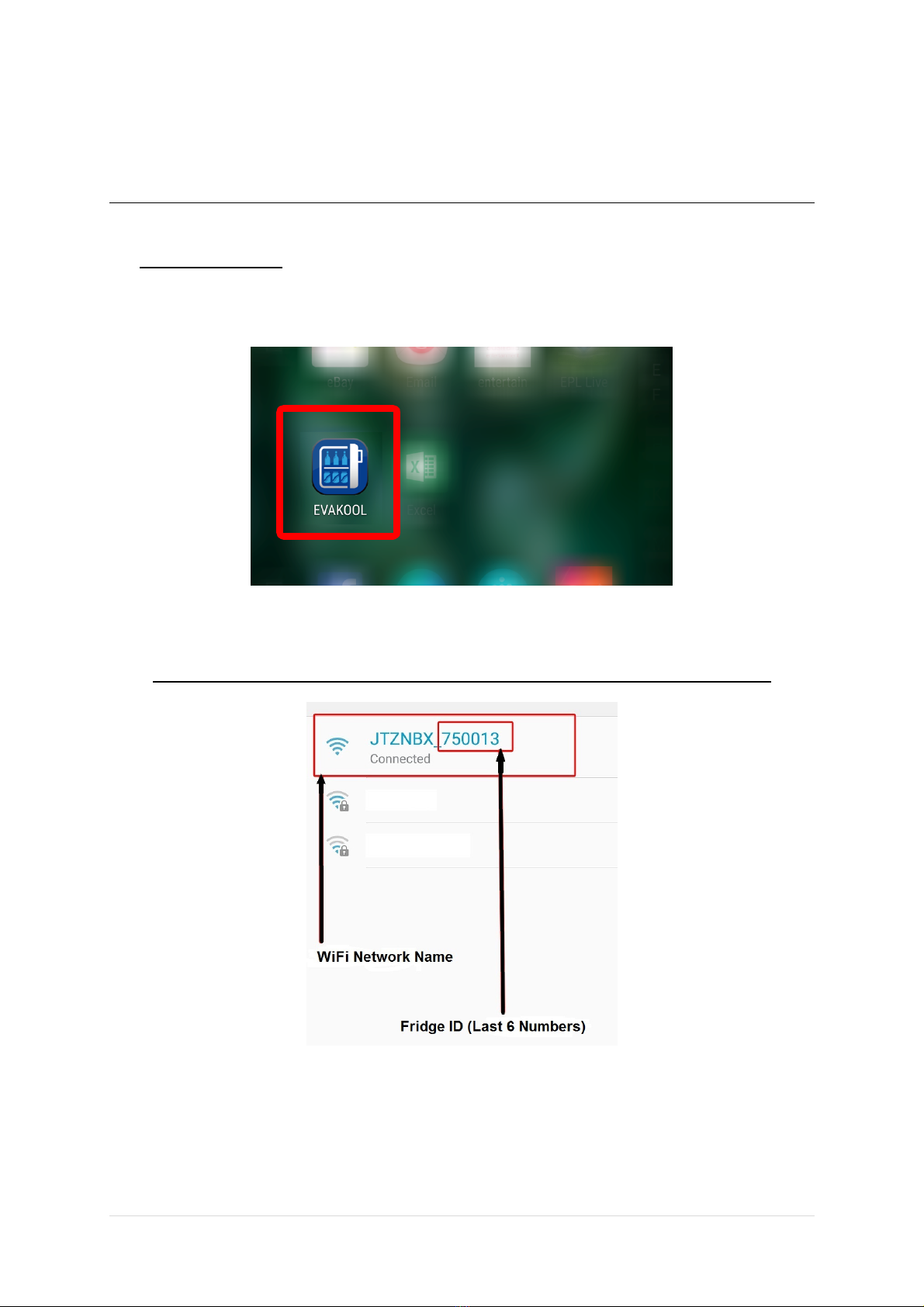

SCREENSHOT SHOWING WIRELESS NETWORK CREATED BY THE FRIDGE
To use your Smartphone with your fridge you must first be on the same Wireless Network as the
fridge. The fridge creates its own wireless network which you must connect to in the settings of your
phone.
Once you have connected to the Wireless network and it states that you are connected you can now
proceed to pair your fridge with the APP.

TRAVELMATE-DZ
Instruction Manual
6 | P a g e
PLEASE NOTE: You will not be able to use the internet while connected to the fridge.
To pair the fridge with the APP, follow these steps:-
a) Open APP
b) If the fridge is not automatically added then you will need to click the ADD button at the bottom
of the screen.
This will allow you to add your fridge and pair it with you phone/APP. The Fridge ID is the last six
numbers of the WiFi Network name so in this example the fridge ID is “750013”.
c) You will then need to register a new login.
NOTE THAT THE FRIDGE COMES STANDARD WITH AN UPGRADED DEFAULT
USER NAME AND PASSWORD.
NOTE:
Your fridge is preregistered with the
following user account for the APP.
User: 12345678900
Password: 123456

TRAVELMATE-DZ
Instruction Manual
7 | P a g e

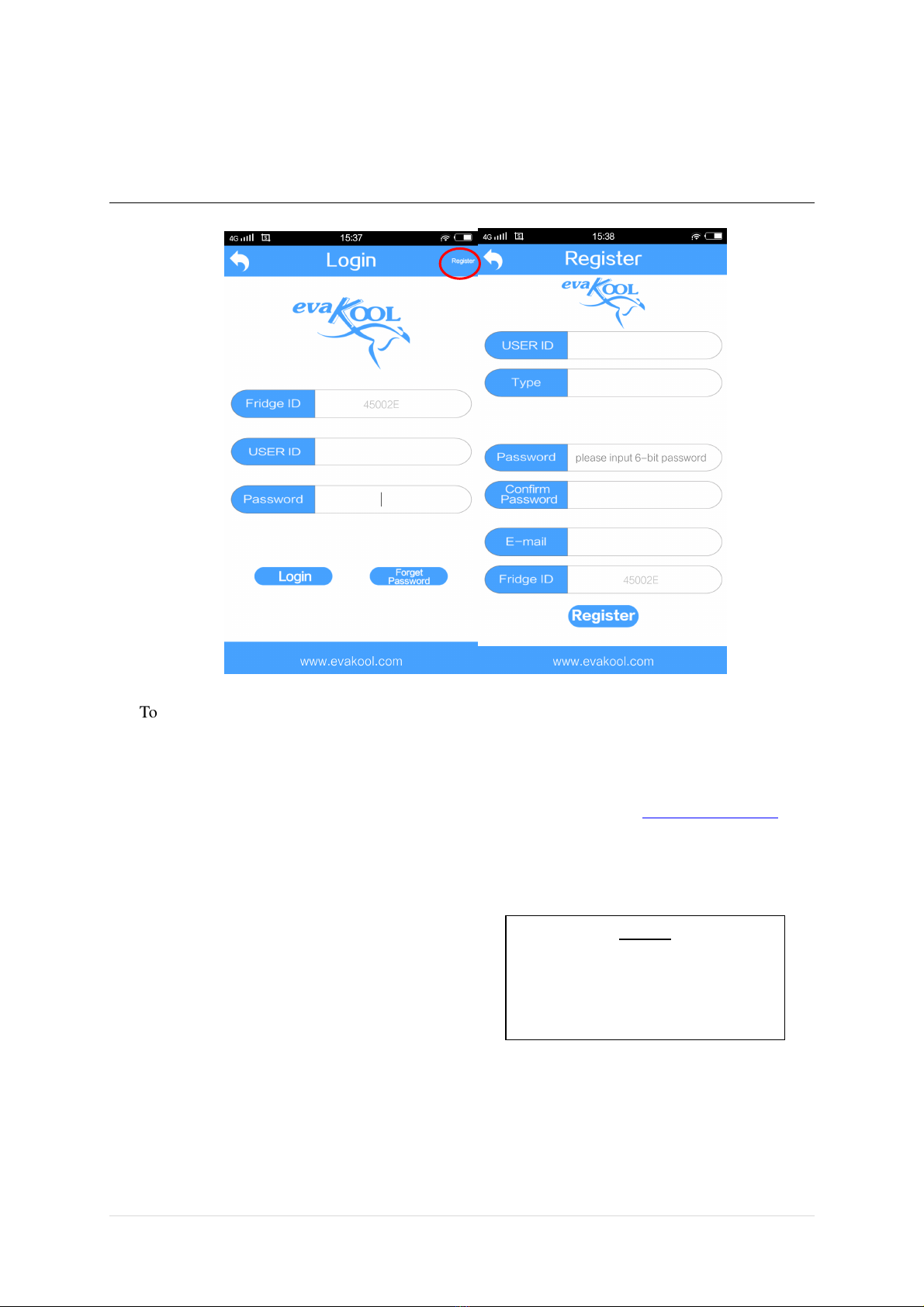

To register please fill out the fields:-
USER ID – An 11 digit number i.e. 12345678900
Type – You need to select “Average User” the upgrade registration will be provided by Evakool.
This can be obtained once your warranty is registered online by emailing [email protected] and
requesting the upgrade code.
Password – Please choose a 6 digit number. i.e. 123456
Confirm Password – Re-Confirm the Password
Email – Enter your email address,
Fridge ID should be already filled in.
Then click Register.
NOTE:
Your fridge is preregistered with the
following user account for the APP.
User: 12345678900
Password: 123456

TRAVELMATE-DZ
Instruction Manual
8 | P a g e
d) You will then need to login using your registered details.
a) USER ID : xxxxxxxxxxx (As per your registration)
b) PASS : xxxxxx (As per your registration)
NOTE – If you would like to upgrade the APP to be able to change the temperature and
view the graph of voltage and temperature please follow the next steps.

TRAVELMATE-DZ
Instruction Manual
9 | P a g e
Click Settings and then click Account Upgrade.
Then Enter in your USER ID and the registration code provided to you by Evakool and then click
SAVE.
Your Account will now be upgraded.
e) Once logged in you can view the fridge’s current running temperature and the voltage as well as
any error messages.

TRAVELMATE-DZ
Instruction Manual
10 | P a g e

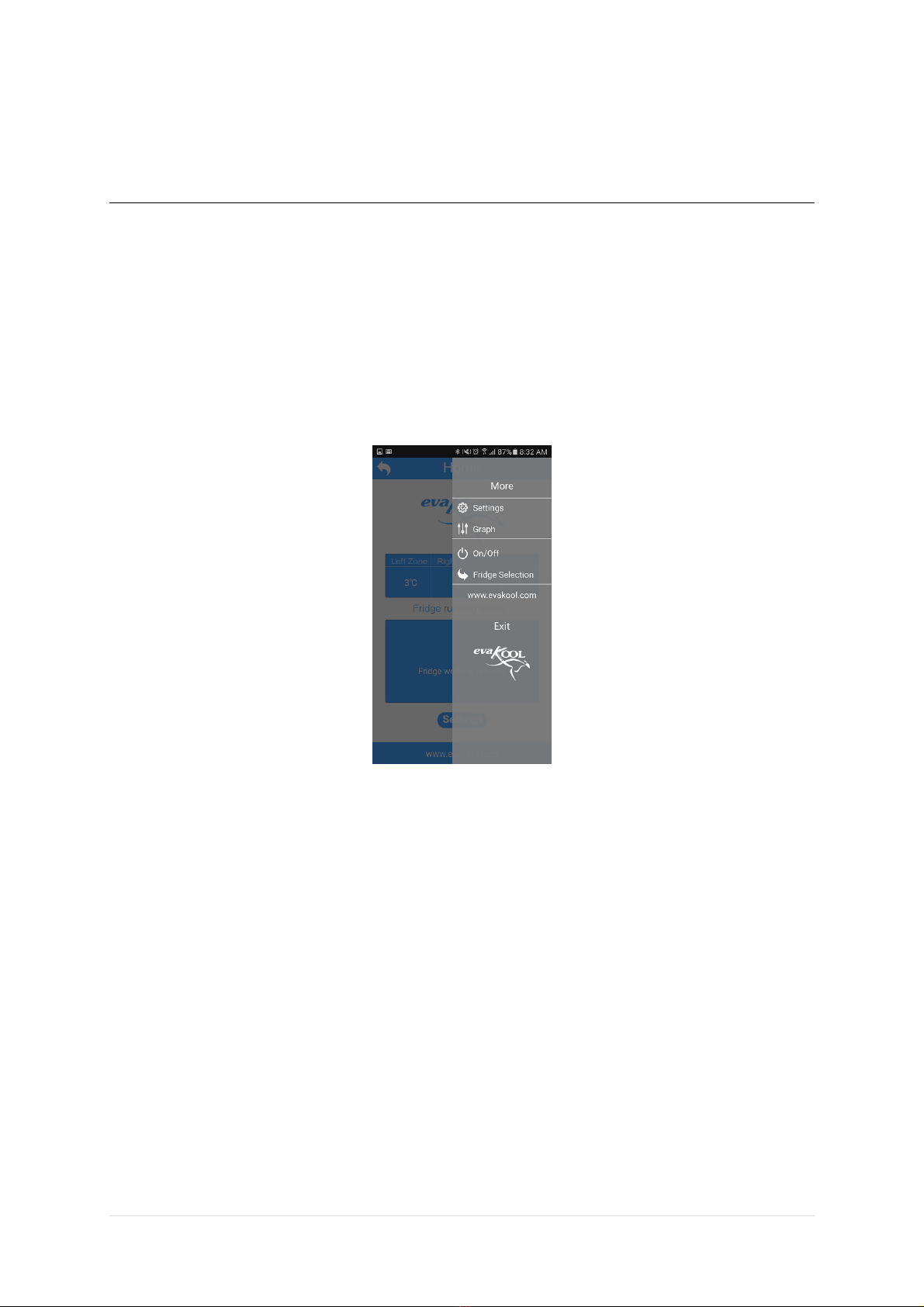

f) When you click the settings button a menu will extend out from the right hand side where
additional changes to the fridge can be made. Click the “Settings” Button.
There are various menus in this side menu each of which is detailed below:-
a) Settings – Change the temperature, ºC or ºF and also the low voltage battery cut out.
b) Graph – The fridge can log the temperature and voltage data. You can use this to make sure
your fridge is operating correctly.
c) On/Off – Switch your fridge on or off
d) Fridge Selection – ADD/DELETE current paired fridge

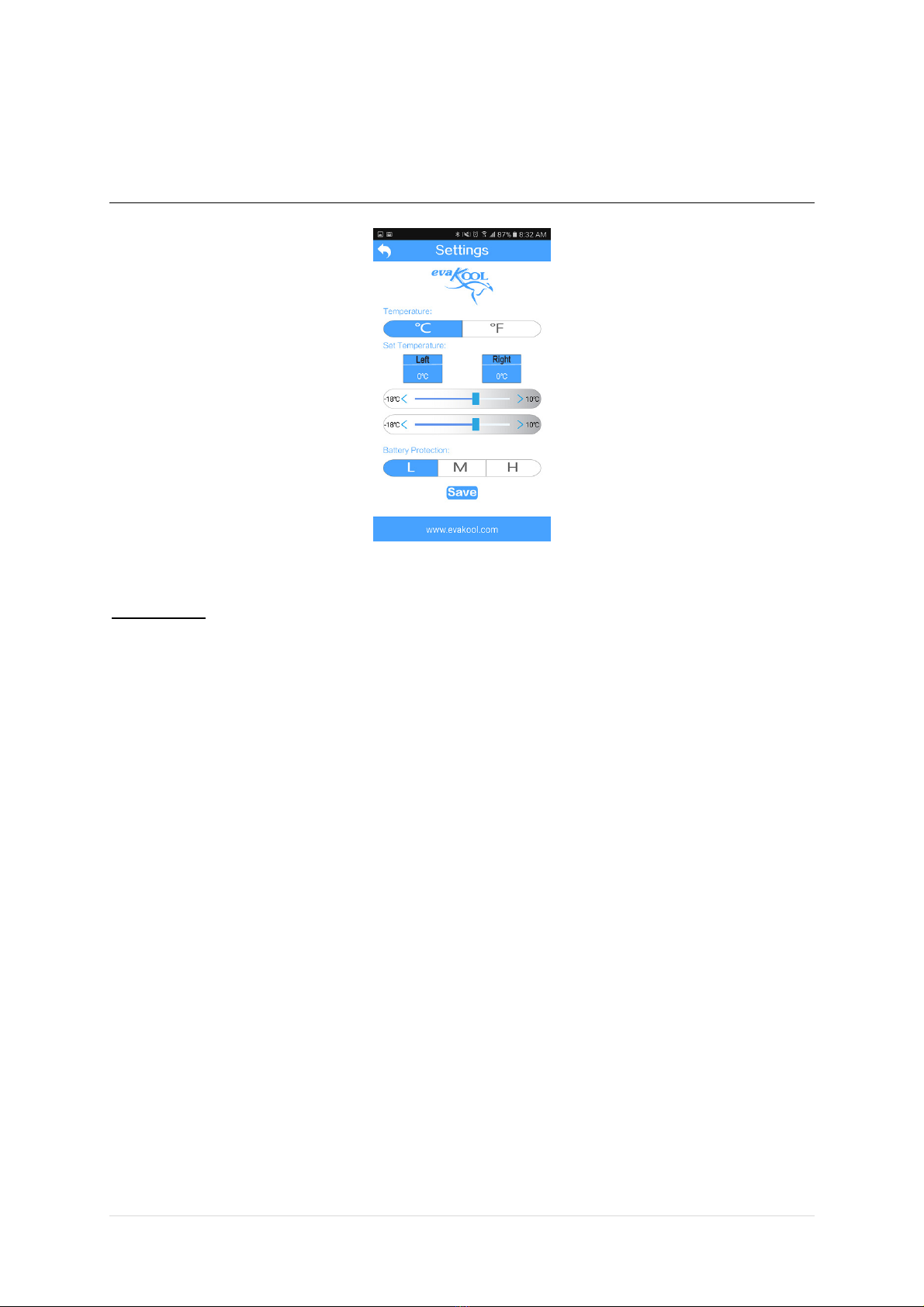

g) You can change multiple settings on the below page :-
a) To change ºC to ºF simply click the button you want.
b) To change the temperature simply move the bar left or right.. If you are using a single zone
fridge then the left zone is the default zone.
c) To change the Low Voltage Protection click the letter corresponding to the setting you
require (LOW Recommended)
d) To save any changes click the SAVE button.

TRAVELMATE-DZ
Instruction Manual
11 | P a g e
GRAPHING
h) The fridge is able to log data of the temperature and voltage recorded by the fridge. This can be
handy when trouble shooting. (E.g. If you have a problem once the fridge has been running for a
while you can review this data. Take a screenshot (Refer to Google on how to take a screenshot
with your model Smartphone) and then email it to Evakool for review, if necessary. )
The data is viewable after approximately 10 minutes of running. The maximum data recorded is
approximately 24 hours, worth.
Note: The temperatures recorded are in the walls so there may be some variation and delay
compared to air sensing thermometers.
Note: The voltages recorded are measured inside the fridge at the internal connectors so these will
be different to your battery/solar voltage readings.
Take note that you may have to zoom in or out to see the full graph. This can be done using your
fingers in a pinching motion.

TRAVELMATE-DZ
Instruction Manual
12 | P a g e

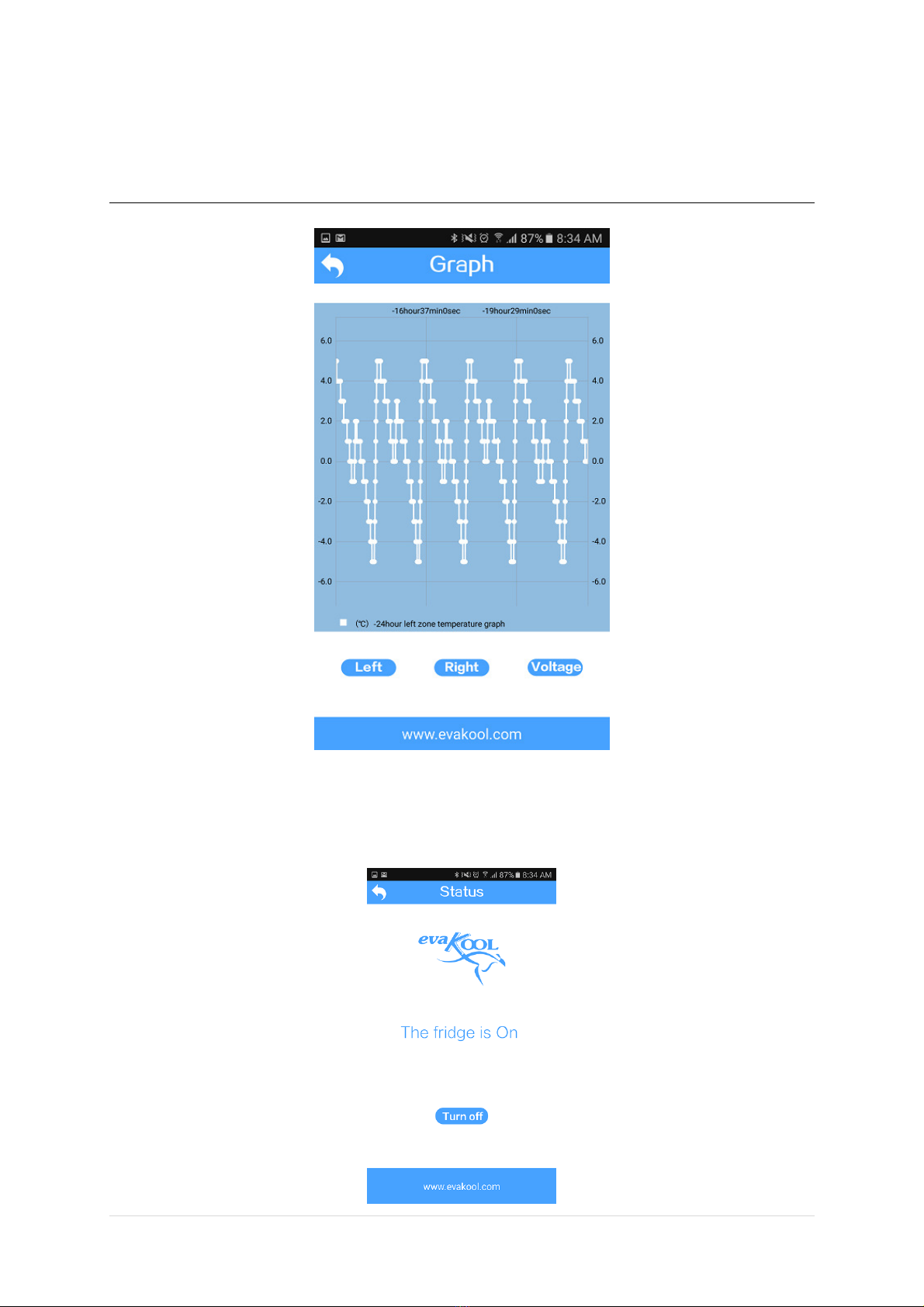

i) The fridge can be switched on or off using the following screen.

TRAVELMATE-DZ
Instruction Manual
13 | P a g e
TROUBLESHOOTING THE WiFi APP
I can’t see or connect the Wireless network
•Make sure WiFi is turned-on, on your device.
•Make sure you are in range of the fridge (normally around 10-20 meters)
•Make sure you are not connected to a different Wireless network
•Try turning the fridge and your phone on and off
I can’t pair the fridge with the APP
•If you have followed the above steps and can confirm that you have connected to the fridge’s
wireless network then proceed if not refer to above troubleshooting on connecting phone to
fridge’s wireless network.
•Make sure the Fridge ID is the same as the Wireless network as on page 5.
•Make sure you are using the correct user ID and Password as per page 7. (Note C)
oIf the above failed then follow the below steps:-
•Uninstall the APP. Close all APPs in the background.
•Turn both the fridge and the phone off.
•Turn both the fridge and the phone back on after a couple of minutes.
•Re-install the APP.
If you are still having problems please do not hesitate to contact Evakool.

TRAVELMATE-DZ
Instruction Manual
14 | P a g e
5. Cleaning and maintenance
•Clean the appliance inside and out with a damp cloth every week. If it is dirty, use
sodium bicarbonate dissolved in lukewarm water to clean the unit.
•Never use abrasive products, detergents or soap. After washing, rinse with clean water
and dry carefully. Do not leave the refrigerator off with food inside or lid closed.
•Never clean the appliance under running water. Do not use abrasive cleaning agents or
hard objects during cleaning as these can damage the refrigerator.
6. Troubleshooting
The appliance is not turning on.
•Check the power supply
•Check whether the plug and the socket have a good connection.
•Check whether the fuse requires replacement
•Check whether the appliance has been turned on
The food inside is frozen.
•The setting temperature is too low
Bad performance in refrigeration
•The temperature setting is inappropriate
•The lid is unlocked/or open
•The lid seal is broken
•Problems arising from poor ventilation
•There is no room around the fridge and vents
•Too much food been placed inside the refrigerator
•There is too much warm product inside
•There is a heat source near the unit
Hear the sound of water from inside the unit
•This is normal, due to the flow of the refrigerant.
Unusual noise when refrigerator is working
•The refrigerator is not placed on a level surface
•Some part has come loose inside the refrigeration compartment (see a service agent)

TRAVELMATE-DZ
Instruction Manual
15 | P a g e
7. Error Codes
Code Reason / Solution
ERR1 Thermistor is unplugged
-Contact Evakool
ERR2 Thermistor is short circuited
-Contact Evakool
E1 Low Voltage
-Please check the source voltage to ensure it is above
the cut out. Try lowering the voltage cut out setting to
LOW.
-The vehicle cabling may be inadequate/unsuitable,
please refer to cable specifications table for correct
cable thickness (Page 2)
-Try on a different power source
E2 Fan issue
-Fan is drawing too many Amps (Over 1 Amp) –
Contact Evakool
E3 Compressor Start Issues
-Unplug for 10 Minutes
-Try on a different power source.
-Possible Electronic Box or compressor fault – contact
Evakool
E4 The compressor speed is too low
-Unplug for 10 Minutes
-Reduce product load inside unit
-Move unit to a lower ambient temperature
-Clean vents / ensure clear air flow over compressor
E5 Ambient Temperature too high
-Clean vents / ensure clear air flow
-Fan Fault – Contact Evakool

TRAVELMATE-DZ
Instruction Manual
16 | P a g e
EVAKOOL TRAVELMATE FRIDGE FREEZER RANGE
Warranty Statement
TERMS & CONDITIONS
Nexberg Pty. Ltd. trading as EvaK l undertakes t the riginal purchaser that this pr duct is s ld free f defect in materials
and/ r w rkmanship under n rmal use f r a peri d f 60 m nths. Subject t the f ll wing: -
•The warranty peri d c mmences fr m the date f
purchase by the riginal purchaser fr m an
auth rised EvaK l dealer.
•EvaK l will h n ur this warranty n presentati n f
pr f f purchase f the unit t EvaK l r its
appr ved service agent. The service agent may be
requested t pr vide EvaK l with a ph t c py f
the pr f f purchase t btain appr val t pr ceed
pri r t warranty being h n red.
•Evak l will n t be held resp nsible f r any c sts
incurred in making a warranty claim.
•Please teleph ne [phone] f r the name f an
auth rized service agent r refer t list pr vided. It is
the purchaser’s resp nsibility t freight the unit t
and fr m the service agent.
•EvaK l will n t be held resp nsible f r any damage
r l ss suffered r c st incurred whilst fridge is in
transit.
•Warranty repairs may nly be carried ut by an
auth rised service agent. EvaK l will n t reimburse
repair claims carried ut by unauth rized service
agents. Any unauth rized tampering with any part f
the unit will aut matically v id the warranty.
•Service agents may charge a fee f r viewing r
testing the unit. This is n t c vered by EvaK l r
this warranty and is payable at the service p int
unless auth rized by EvaK l.
•Any Evak l auth rized service centre in Australia
will be able t carry ut the service f y ur unit. If a
repair needs t be undertaken and is c vered in
terms f this warranty a warranty auth rizati n
number must be btained pri r t c mmencement f
any w rk.
•EvaKool will not accept a warranty claim if:
1. M dificati ns have been carried ut t the unit
with ut EvaK l’s written auth rity.
2. Damage t r failure f the unit has been
caused in EvaK l’s pini n by inc rrect,
extreme r unreas nable use.
3. Damage t r failure f the unit has been
caused in EvaK l’s pini n by misuse,
neglect, accident, impact r similar cause.
Refer the preventative maintenance guidelines.
•EvaK l has t tal discreti n n the variati n f the
warranty terms.
•Our g ds c me with guarantees that cann t be
excluded under the Australian C nsumer Law. Y u
are entitled t a replacement r refund f r maj r
failure and f r c mpensati n f r any ther
reas nably f reseeable l ss r damage. Y u are
als entitled t have the g ds repaired r replaced if
the g ds fail t be f acceptable quality and the
failure d es n t am unt t a maj r failure.
•The ab ve warranty c nditi ns are in additi n t any
ther rights and/ r remedies as per the applicable
law.
•Failure t f ll w the guidelines/rec mmendati ns in
this manual may v id the warranty.
•This warranty cann t be varied by thers.
COMPLETE THE ENCLOSED WARRANTY CARD AND
RETURN WITHIN THIRTY (30) DAYS OF PURCHASE
POST or Register your product warranty
ONLINE at www.evakool.com
