Danfoss H1 Series Manual

MAKING MODERN LIVING POSSIBLE
Technical Information

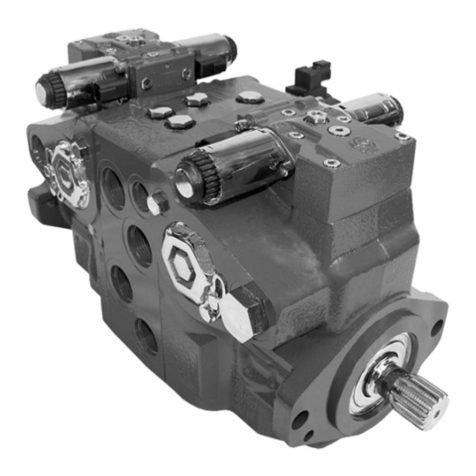

H1 Axial Piston Pump
Size 045/053, Single
powersolutions.danfoss.com

Revision History Table of Revisions
Date Changed Rev
Mar 2014 Converted to Danfoss laylout - DITA CMS HA
Apr 2013 FDC option added GA
Mar 2013 AC section updated FA
Nov 2012 AC added EA
Feb 2011 Updated drawings DA
Jun 2010 New EC directive CA
Feb 2010 14 teeth added BA
Jul 2009 First edition AA
Technical Information H1 Axial Piston Pump Size 045/053, Single
211063344 • Rev HA • Mar 2014

Technical specifications Technical specifications................................................................................................................................................................. 5
H1P general specifications............................................................................................................................................................5
Technical data H1P 045/053.........................................................................................................................................................5
Operating parameters H1P 045/053..........................................................................................................................................5
H1P fluid specifications..................................................................................................................................................................6
General technical specifications
Shaft loads H1P 045/053 Single.................................................................................................................................................. 7
External radial shaft loads........................................................................................................................................................7
Bearing life H1P 045/053............................................................................................................................................................... 7
Mounting flange loads H1P 045/053.........................................................................................................................................8
H1 single pump front flange load.........................................................................................................................................8
Model code Model code H1P 045/053.............................................................................................................................................................. 9
Control options Electrical Displacement Control (EDC) options A2 (12 V)/A3 (24 V)............................................................................ 13
EDC principle..............................................................................................................................................................................13
Control signal requirements.................................................................................................................................................14
Connector....................................................................................................................................................................................14
Control response.......................................................................................................................................................................15
Response time, EDC 045/053 S............................................................................................................................................15
Forward-Neutral-Reverse (FNR) electric control options A9 (12 V)/B1 (24 V)...........................................................15
Solenoid connector..................................................................................................................................................................16
Control response.......................................................................................................................................................................17
Response time, FNR 045/053................................................................................................................................................18
Non Feedback Proportional Electric Control (NFPE) options A8 (12 V)/B8 (24 V)...................................................18
Control signal requirements.................................................................................................................................................19
Connector....................................................................................................................................................................................19
Control response.......................................................................................................................................................................20
Respose time, NFPE 045/053................................................................................................................................................20
Automotive Control (AC).............................................................................................................................................................20
Mode types................................................................................................................................................................................. 21
Basic functions...........................................................................................................................................................................21
Performance functions........................................................................................................................................................... 22
Protection and safety functions.......................................................................................................................................... 22
Engine control and protection.............................................................................................................................................22
Installation features................................................................................................................................................................. 22
Fan Drive Control (FDC) option F1 (12V)/F2 (24V)............................................................................................................. 22
Control signal requirements.................................................................................................................................................23
Connector....................................................................................................................................................................................24
Control response.......................................................................................................................................................................25
Response time, FDC 045/053................................................................................................................................................25
Manual Over Ride (MOR).............................................................................................................................................................25
Displacement limiter.....................................................................................................................................................................26
Displacement change (approximately) H1P 045/053 S..............................................................................................27
Dimensions Input shafts.......................................................................................................................................................................................28
H1P input shaft - Option G4 (SAE B, 13 Teeth)...............................................................................................................28
H1P input shaft - Option G5 (SAE B-B, 15 Teeth)...........................................................................................................28
H1P input shaft - Option G1 (SAE B, 14 Teeth)...............................................................................................................29
H1P input shaft - Option F2, Code 25-3............................................................................................................................30
Tapered shaft customer acknowledgement...................................................................................................................30
Auxiliary mounting pads.............................................................................................................................................................31
H1P Auxiliary mounting - Option H2 (SAE A, 9 teeth).................................................................................................31
H1P Auxiliary mounting - Option H1 (SAE A, 11 Teeth) .............................................................................................32
Technical Information H1 Axial Piston Pump Size 045/053, Single
Contents
11063344 • Rev HA • Mar 2014 3

H1P Auxiliary mounting - Option H3 (SAE B, 13 Teeth)..............................................................................................32
H1P Auxiliary mounting - Option H5 (SAE B-B, 15 Teeth)..........................................................................................33
Charge pump Charge pump sizing/selection..................................................................................................................................................34
Charge pump flow and power curves 12 cm³................................................................................................................34
Installation drawings Port description H1P 045/053 Single......................................................................................................................................35
Dimensions H1P 045/053 Single.............................................................................................................................................. 37
Controls Electric Displacement Control (EDC), option A2 (12V) / A3 (24V).................................................................................40
Electric Displacement Control (EDC) with manual override, option A4 (12 V) / A5 (24 V)...................................41
Forward-Neutral-Reverse (FNR) with manual override, option A9 (12 V) B1 (24 V) ..............................................42
Non Feedback Proportional Electric Control (NFPE) with manual override, option A8 (12 V) B8 (24V).........43
Automotive control (AC I) with manual override, option A7 (12 V)/C2 (24 V)Automotive control (AC
II) with manual override, option B7 (12V)/C3 (24V)....................................................................................................44
Fan Drive Control (FDC), option F1 (12 V)/F2 (24 V).......................................................................................................... 44
Displacement limiters H1P 045/053 Single displacement limiter, option B and D ............................................................................................46
Endcap H1P 045/053, endcap, Twin Port, Code 62 Metric 4 Bold FLG, Option D6, D8, F2, and F3.................................. 47
Filtration H1P 045/053 Single, suction filtration, option L ................................................................................................................ 48
H1P 045/053 Single, remote full flow charge pressure filtration, Option P for endcap Option F ....................49
H1P 045/053 Single external full flow charge pressure filtration, Option E .............................................................50
Speed and temperature sensor
Speed and temperature sensor, Option H for mounting flange, Option K ..............................................................51
Technical Information H1 Axial Piston Pump Size 045/053, Single
Contents
411063344 • Rev HA • Mar 2014

Technical specifications
For definitions of the following specifications, see Basic Information 11062168, Operating parameters.
H1P general specifications
Design Axial piston pump of cradle swashplate design with variable displacement
Direction of
rotation
Clockwise, counterclockwise
Pipe connections Main pressure ports: ISO split flange boss
Remaining ports: SAE straight thread O-ring boss
Recommended
installation
position
Pump installation position is discretionary, however the recommended control position is on the top or at the side, with the top
position preferred. If the pump is installed with the control at the bottom, flushing flow must be provided through port M14
located on the EDC, FNR and NFPE control. Vertical input shaft installation is acceptable. If input shaft is at the top 1 bar case
pressure must be maintained during operation.
The housing must always be filled with hydraulic fluid.
Recommended mounting for a multiple pump stack is to arrange the highest power flow towards the input source.
Consult Danfoss for nonconformance to these guidelines.
Auxiliary cavity
pressure
Will be inlet pressure with internal charge pump. For reference see operating parameter on next page. Will be case pressure with
external charge supply. Please verify mating pump shaft seal capability.
Technical data H1P 045/053
Feature Unit Size 045 Size 053
Displacement* cm³ [in³] 45.0 [2.75] 53.8 [3.28]
Flow at rated (continuous) speed* l/min [US gal/min] 153 [40] 183 [48]
Torque at maximum displacement (theoretical)* N•m/bar [lbf•in/
1000psi] 0.72 [437.7] 0.86 [522.03]
Mass moment of inertia of rotating components kg•m² [slug•ft²] 0.00465 [0.00343] 0.00458 [0.00338]
Mass [weight] dry (without charge pump or auxiliary mounting flange) kg [lb] 41.0 [90.0]
Oil volume liter [US gal] 1.3 [0.34]
Mounting flange ISO 3019-1 flange 101-2 (SAE B)
Special bolt diameter. See installation drawings.
Input shaft outer diameter, splines and tapered shafts ISO 3019-1, outer dia 22 mm - 4 (SAE B, 13 teeth)
ISO 3019-1, outer dia 25 mm - 4 (SAE B-B, 15 teeth)
ISO 3019-1, outer dia 32 mm - 4 (SAE-B, 14 teeth)
Conical keyed shaft end similar to ISO 3019-1 code 25-3, taper 1:8
Auxiliary mounting flange with metric fasteners, shaft outer diameter and
splines
ISO 3019-1, flange 82 - 2, outer dia 16 mm - 4 (SAE A, 9 teeth)
ISO 3019-1, flange 82 - 2, outer dia 19 mm - 4 (SAE A, 11 teeth)
ISO 3019-1, flange 101 - 2, outer dia 22 mm - 4 (SAE B, 13 teeth)
ISO 3019-1, flange 101 - 2, outer dia 25 mm - 4 (SAE B-B, 15 teeth)
Suction port ISO 11926-1 – 1 5/16 -12 (SAE O-ring boss)
Main port configuration ∅19.0 - 450 bar split flange boss per ISO 6162, M10x1.5
ISO 11926-1 – 1 5/16 -12 (SAE O-ring boss)
Case drain ports L2, L4 (SAE O-ring boss) ISO 11926-1 – 1 1/16 -12 (SAE O-ring boss)
Other ports SAE O-ring boss. See installation drawings at the back of this manual.
Customer interface threads Metric fasteners
Operating parameters H1P 045/053
Feature Unit Size 045 Size 053
Input speed Minimum for internal charge supply at minimum charge pressure.
Performance (pressure and displacement) may be limited due to limited
control pressure
min-1 (rpm) 500
Technical Information H1 Axial Piston Pump Size 045/053, Single
Technical specifications
11063344 • Rev HA • Mar 2014 5

Feature Unit Size 045 Size 053
Minimum for external charge supply at minimum charge pressure. Full
performance (pressure and displacement) possible at minimum charge
and control pressure supply
500
Minimum for full performance (pressure and displacement) for internal
charge supply at minimum charge and control pressure 1175 1200
Rated 3400
Maximum 3500
System pressure Maximum working pressure bar [psi] 420 [6090] 380 [5510]
Maximum pressure 450 [6525] 400 [5800]
Maximum low loop 45 [650]
Minimum low loop pressure 10 [145]
Charge pressure Minimum bar [psi] 16 [232]
Maximum 35 [508]
Control pressure Minimum (at corner power for EDC and FNR) bar [psi] 21.5 [312]
Minimum (at corner power for NFPE) 24 [348]
Maximum 40 [580]
Charge pump inlet
pressure Rated bar (absolute)
[in Hg vacuum]
0.7 [9]
Minimum (cold start) 0.2 [24]
Maximum bar [psi] 4.0 [58]
Case pressure Rated bar [psi] 3.0 [44]
Maximum 5.0 [73]
Lip seal external
pressure Maximum bar [psi] 0.4 [5.8]
H1P fluid specifications
Feature Unit
Viscosity Intermittent 1) mm²/s [SUS] 5 [42]
Minimum 7 [49]
Recommended range 12-80 [66-370]
Maximum 1600 [7500]
Temperature range 2) Minimum (cold start) 3) °C [°F] -40 [-40]
Recommended range 60-85 [140-185]
Rated 104 [220]
Maximum intermittent 1) 115 [240]
Filtration
(recommended
minimum)
Cleanliness per ISO 4406 22/18/13
Efficiency (charge pressure filtration) β-ratio β15-20 = 75 (β10 ≥ 10)
Efficiency (suction and return line filtration) β35-45 = 75 (β10 ≥ 2)
Recommended inlet screen mesh size µm 100 – 125
1) Intermittent = Short term t < 1min per incident and not exceeding 2 % of duty cycle based load-life
2) At the hottest point, normally case drain port
3) Cold start = Short term t < 3min, p ≤ 50 bar [725 psi], n ≤ 1000 min-1(rpm)
Technical Information H1 Axial Piston Pump Size 045/053, Single
Technical specifications
611063344 • Rev HA • Mar 2014

Shaft loads H1P 045/053 Single
External radial shaft loads
H1 pumps are designed with bearings that can accept some external radial loads.
The external radial shaft load limits are a function of the load position and orientation, and the operating
conditions of the unit. External radial shaft loads impact lifetime.
For lifetime calculations please contact Danfoss representative.
The maximum allowable radial load (Re) is based on the maximum external moment (Me) and the distance
(L) from the mounting flange to the load. It may be determined using the following table and formula.
Re= Me/ L
Radial load position
P301 168
L
270° Re
Re
Me
180° Re
90° Re
0° Re
Me= Shaft moment
L = Flange distance
Re= External force to the shaft
Thrust loads should be avoided. Contact factory in the event thrust loads are anticipated.
Bearing life H1P 045/053
Maximum external shaft load based on shaft deflection
Unit Size 045/053
External radial moment – MeNm [lbf•in] TDB [TBD]
All external shaft loads affect bearing life. In applications with external shaft loads, minimize the impact
by positioning the load at 0° or 180° as shown in the figure.
Danfoss recommends clamp-type couplings for applications with radial shaft loads.
Contact your Danfoss representative for an evaluation of unit bearing life if you have continuously
applied external loads exceeding 25 % of the maximum allowable radial load (Re) or the pump
swashplate is positioned on one side of center all or most of the time.
Technical Information H1 Axial Piston Pump Size 045/053, Single
General technical specifications
11063344 • Rev HA • Mar 2014 7

Mounting flange loads H1P 045/053
H1 single pump front flange load
The moments shown below apply for control orientation top or side (see table and figures).
Mounting flange load
Unit Size 045/053
Control orientation
Control on top Control on side
Rated moment – MRNm [lbf•in] 2020 [17880] 1300 [11510]
Shock load moment – MS4110 [36380] 2930 [25935]
Control on top Control on side
P301 214a
P301 214b
For calculation details refer to H1 Pump Basic Information Manual 11062168, section Mounting Flange
Loads.
P301 213
MR
MS
Technical Information H1 Axial Piston Pump Size 045/053, Single
General technical specifications
811063344 • Rev HA • Mar 2014

Model code H1P 045/053
A B D F E G H J K M N S T V W X Y
H1 P A F N N N NN N
Displacement
045 45 cm³ [2.75 in³]
053 53.8 cm³ [3.28 in³]
A - Rotation
L Left hand (counter clockwise)
R Right hand (clockwise)
B - Product version
A Revision code
D - Control
A2 Electric Displacement Control (EDC) 12V, Deutsch connector
A3 Electric Displacement Control (EDC) 24V, Deutsch connector
A4 Electric Displacement Control (EDC) 12V, Deutsch connector, Manual override
A5 Electric Displacement Control (EDC) 24V, Deutsch connector, Manual override
A9 Forward-Neutral-Reverse (FNR) 12V, Deutsch connector, Manual override
B1 Forward-Neutral-Reverse (FNR) 24V, Deutsch connector, Manual override
A8 Non Feedback Proportional Electric (NFPE) 12V, Deutsch connector, Manual override (align with option E: Displacement Limiters &
option W: Special Hardware)
B8 Non Feedback Proportional Electric (NFPE) 24V, Deutsch connector, Manual override (align with option E: Displacement Limiters &
option W: Special Hardware)
A7 AC-1 (Automotive), 12V, Manual Override (align with option E: Displacement Limiters & option W: Special Hardware)
C2 AC-1 (Automotive), 24V, Manual Override (align with option E: Displacement Limiters & option W: Special Hardware)
B7 AC-2 (Automotive), 12V, with Swash Plate Angle Sensor and Manual Override (align with option E: Displacement Limiters & option W:
Special Hardware, Y: Special settings)
C3 AC-2 (Automotive), 24V, with Swash Plate Angle Sensor and Manual Override (align with option E: Displacement Limiters & option W:
Special Hardware, Y: Special settings)
F1 Fan Drive Control (FDC), 12 V, Deutsch connector align with option E: Displacement Limiters, option F: Orifices, option N+M:
Overpressure protection type and setting, & option W: Special Hardware)
F2 Fan Drive Control (FDC), 24 V, Deutsch connector (align with option E: Displacement Limiters, option F: Orifices, option N+M:
Overpressure protection type and setting, & option W: Special Hardware)
F - Orifices
C1 Orifices, 0.8 mm in servo supply 1 and 2, recommended for propel applications
C2 Orifices, 1.3 mm in servo supply 1 and 2 (Standard), recommended for propel applications
C3 No orifice, recommended for non-propel applications
Technical Information H1 Axial Piston Pump Size 045/053, Single
Model code
11063344 • Rev HA • Mar 2014 9

A B D F E G H J K M N S T V W X Y
H1 P A F N N N NN N
E - Displacement limiters
N None
C No limiters, with nested springs (required for NFPE) (align with option Y: Settings for adjustment, if applicable)
B Adjustable externally (align with option Y: Settings for adjustment, if applicable)
D Adjustable externally with nested springs, required for NFPE
G - Endcap options
Twin port
High pressure
ports
ISO 11 926 O-ring ports ISO 6162 split flange ports
Match with
below options
(M+N)
With pressure limiter Without pressure limiter
(HPRV only)
With pressure limiter Without pressure limiter
(HPRV only)
Match with
below options
(T)
Suction
filtration
Remote and
external
charge supply
for full charge
flow filtration
Suction
filtration
Remote or
external
charge supply
for full charge
flow filtration
Suction
filtration
Remote and
external
charge supply
for full charge
flow filtration
Suction
filtration
Remote or
external
charge supply
for full charge
flow filtration
D6 X
D8 X
E5 X
E6 X
E9 X
F1 X
F2 X
F3 X
H - Mounting
F ISO 3019-1, flange 101-2 (SAE B)
J ISO 3019-1, flange 101-2 (SAE B), 2 Bolt and speed sensor
J - Input shaft
G4 ISO 3019-1, outer dia 22 mm - 4 (SAE B, 13 teeth splined shaft 16/32 pitch)
G5 ISO 3019-1, outer dia 25 mm - 4 (SAE B-B, 15 teeth splined shaft 16/32 pitch)
G1 ISO 3019-1, outer dia 32 mm - 4 (SAE B, 14 teeth splined shaft 12/24 pitch)
F2 Conical keyed shaft end similar to ISO 3019-1 code 25-3, taper 1:8 (key not supplied with pump)
Technical Information H1 Axial Piston Pump Size 045/053, Single
Model code
10 11063344 • Rev HA • Mar 2014

A B D F E G H J K M N S T V W X Y
H1 P A F N N N NN N
K - Auxiliary mounting pad
NN None
H2 ISO 3019-1, flange 82 - 2, outer dia 16 mm - 4 (SAE A, 9 teeth 16/32 coupling) Shipping cover
H1 ISO 3019-1, flange 82 - 2, outer dia 19 mm - 4 (SAE A, 11 teeth 16/32 coupling)
H3 ISO 3019-1, flange 101 - 2, outer dia 22 mm - 4 (SAE B, 13 teeth 16/32 coupling)
H5 ISO 3019-1, flange 101 - 2, outer dia 25 mm - 4 (SAE B-B, 15 teeth 16/32 coupling)
MOverpressure protection type and setting side “A” **
NOverpressure protection type and setting side “B” **
** Pressure protection type must be the same for side “A” and “B”
L High pressure relief valve + pressure limiters with bypass
K High pressure relief valve with bypass (no pressure limiters)
L18 K18 180 bar [2610 psi]
L20 K20 200 bar [2900 psi]
L23 K23 230 bar [3336 psi]
L25 K25 250 bar [3630 psi]
L28 K28 280 bar [4061 psi]
L30 K30 300 bar [4350 psi]
L33 K33 330 bar [4786 psi]
L35 K35 350 bar [5080 psi]
L38 K38 380 bar [5510 psi]
L40 K40 400 bar [5800 psi] (45 cm3only)
L42 K42 420 bar [6090 psi] (45 cm3only)
Contact factory for pressures not shown or for applied pressure above maximum working pressure (see System Pressure page 5)
Overpressure protection type and setting for FDC-controls
F01 Pressure setting for FDC: PL: 150 bar [2175 psi]; HPRV; 250 bar [3630 psi]
F02 Pressure setting for FDC: PL: 150 bar [2175 psi]; HPRV; 300 bar [4350 psi]
F03 Pressure setting for FDC: PL: 150 bar [2175 psi]; HPRV; 350 bar [5080 psi]
F04 Pressure setting for FDC: PL: 150 bar [2175 psi]; HPRV; 400 bar [5800 psi]
S - Charge pump
B 12 cm³/rev [0.73 in³/rev]
N No charge pump, external charge supply, (align with Option T: Filtration Options, option E)
Technical Information H1 Axial Piston Pump Size 045/053, Single
Model code
11063344 • Rev HA • Mar 2014 11

A B D F E G H J K M N S T V W X Y
H1 P A F N N N NN N
T - Filtration options (align with option G: Endcap selection)
L Suction filtration (see basic drawings)
P Remote full charge flow filtration (see endcap drawings)
E External charge flow filtation (see endcap drawings), (align with option S: Charge pump, option N)
V - Charge pressure relief setting (contact factory for pressure not shown)
20 20 bar [290 psi]
24 24 bar [348 psi]
W - Special hardware features
PN None
P1 NFPE valve plate (align with option D: Control Selection and option E: Displacement Limiters)
X - Paint and nametag
NNN Black paint and Danfoss nametag
Y - Special settings
NNN None
D3E AC-1, control, System E: Functional basis, Motor Speed Sensor, CAN J1939 in/out, ECO Fuel Saving Mode, without
Customer Files
control option
A7 12V
D3F AC-1, control, System F: Functional basis, Motor Speed Sensor, CAN J1939 in/out without Customer Files
D3H AC-1, control, System H: Functional basis, Motor Speed Sensor, CAN J1939 out, SIL2 certifiable without Customer Files
D4E AC-1, control, System E: Functional basis, Motor Speed Sensor, CAN J1939 in/out, ECO Fuel Saving Mode, without
Customer Files
control option
C2 24V
D4F AC-1, control, System F: Functional basis, Motor Speed Sensor, CAN J1939 in/out without Customer Files
D4H AC-1, control, System H: Functional basis, Motor Speed Sensor, CAN J1939 out, SIL2 certifiable without Customer Files
D5F AC-2 control with Swash Plate Angle Sensor, System F: Functional basis, Motor Speed Sensor, CAN J1939 in/out
without Customer Files
control option
B7 12V
D5H AC-2 contol with Swash Plate Angle Sensor, System H: Functional basis, Motor Speed Sensor, CAN J1939 out, SIL2
certifiable without Customer Files
D6F AC-2 control with Swash Plate Angle Sensor, System F: Functional basis, Motor Speed Sensor, CAN J1939 in/out
without Customer Files
control option
C3 24V
D6H AC-2 control with Swash Plate Angle Sensor, System H: Functional basis, Motor Speed Sensor, CAN J1939 out, SIL2
certifiable without Customer Files
Technical Information H1 Axial Piston Pump Size 045/053, Single
Model code
12 11063344 • Rev HA • Mar 2014

Electrical Displacement Control (EDC) options A2 (12 V)/A3 (24 V)
EDC principle
The Electrical Displacement Control (EDC) consists of a pair of proportional solenoids on each side of a
three-position, four-way porting spool. The proportional solenoid applies a force input to the spool,
which ports hydraulic pressure to either side of a double acting servo piston. Differential pressure across
the servo piston rotates the swashplate, changing the pump‘s displacement from full displacement in
one direction to full displacement in the opposite direction.
Under some circumstances, such as contamination, the control spool could stick and cause the pump to
stay at some displacement.
A serviceable 125 μm screen is located in the supply line immediately before the control porting spool.
P003 191
Pump displacement vs. control current
P003 479E
"0"
-b -a
ba
100 %
100 %
Displacement
Current mA
Technical Information H1 Axial Piston Pump Size 045/053, Single
Control options
11063344 • Rev HA • Mar 2014 13

EDC-schematic diagram
Feedback from
Swash plate
PTF00B
M14
C1 C2
F00A
P003 478E
Control signal requirements
Control current
Voltage a* mA b mA Pin connections
12 V 640 1640 any order
24 V 330 820
* Factory test current, for vehicle movement or application actuation expect higher or lower value.
Connector
1 2
P003 480
Description Quantity Ordering number
Mating connector 1 Deutsch® DT06-2S
Wedge lock 1 Deutsch® W2S
Socket contact (16 and 18 AWG) 2 Deutsch® 0462-201-16141
Danfoss mating connector kit 1 K29657
Solenoid data
Voltage 12V 24V
Maximum current 1800 mA 920 mA
Coil resistance @ 20 °C [70 °F] 3.66 Ω 14.20 Ω
Coil resistance @ 80 °C [176 °F] 4.52 Ω 17.52 Ω
PWM Range 70-200 Hz
PWM Frequency (preferred)* 100 Hz
Inductance 33 mH 140 mH
IP Rating (IEC 60 529) + DIN 40 050, part 9 IP 67
IP Rating (IEC 60 529) + DIN 40 050, part 9 with mating connector IP 69K
* PWM signal required for optimum control performance.
Technical Information H1 Axial Piston Pump Size 045/053, Single
Control options
14 11063344 • Rev HA • Mar 2014

Flow table
Shaft rotation CW CCW
Coil energized* C2 C1 C2 C1
Port A in out out in
Port B out in in out
Servo port pressurized M5 M4 M5 M4
* For coil location see installation drawings.
Control response
H1 controls are available with optional control passage orifices to assist in matching the rate of
swashplate response to the application requirements (e.g. in the event of electrical failure). Software
ramp or rate limiting should be used to control vehicle response in normal operation. The time required
for the pump output flow to change from zero to full flow (acceleration) or full flow to zero (deceleration)
is a net function of spool porting, orifices, and charge pressure. A swashplate response table is available
for each frame indicating available swashplate response times. Testing should be conducted to verify the
proper software and orifice selection for the desired response.
H1 pumps are limited in mechanical orificing combinations. Software is envisioned as the means to
control the swashplate response in normal operating conditions. Mechanical servo orifices are to be used
only for fail-safe return to neutral in the event of an electrical failure.
Typical response times shown below at the following conditions:
∆p
Viscosity and temperature
Charge pressure
Speed
= 250 bar
= 30 mm²/s (50 °C)
= 20 bar
= 1800 min-1 (rpm)
[3626 psi]
[141 SUS (122 °F)]
[290 psi]
Response time, EDC 045/053 S
Stroking direction 0.8 mm [0.03 in] Orifice 1.3 mm [0.05 in] Orifice No orifice
Neutral to full flow 1.7 s 0.9 s 0.5 s
Full flow to neutral 1.1 s 0.6 s 0.3 s
Forward-Neutral-Reverse (FNR) electric control options A9 (12 V)/B1 (24 V)
The 3-Position (F-N-R) control uses an electric input signal to switch the pump to a full stroke position.
Under some circumstances, such as contamination, the control spool could stick and cause the pump to
stay at some displacement.
A serviceable 125 μm screen is located in the supply line immediately before the control porting spool.
Technical Information H1 Axial Piston Pump Size 045/053, Single
Control options
11063344 • Rev HA • Mar 2014 15

P003 193
Pump displacement vs. electrical signal
P003 190E
100 %
“0“
100 %
Voltage VDC
Displacement
3-Position electric control, hydraulic schematic
P003 189
C2C1
F00A
M14
T PF00B
Control current
Voltage Min. current to stroke pump mA Pin connections
12 V 750 any order
24 V 380
Solenoid connector
1 2
P003 480
Technical Information H1 Axial Piston Pump Size 045/053, Single
Control options
16 11063344 • Rev HA • Mar 2014

Description Quantity Ordering number
Mating connector 1 Deutsch® DT06-2S
Wedge lock 1 Deutsch® W2S
Socket contact (16 and 18 AWG) 2 Deutsch® 0462-201-16141
Danfoss mating connector kit 1 K29657
Solenoid data
Voltage 12 V 24 V
Minimum supply voltage 9.5 Vdc 19.0 Vdc
Maximum supply voltage (continuous) 14.6 Vdc 29.0 Vdc
Maximum current 1050 mA 500 mA
Nominal coil resistance @ 20 °C [70 °F] 8.4 Ω 34.5 Ω
PWM Range 70-200 Hz
PWM Frequency (preferred)* 100 Hz
IP Rating (IEC 60 529) + DIN 40 050, part 9 IP 67
IP Rating (IEC 60 529) + DIN 40 050, part 9
with mating connector
IP 69K
* PWM signal required for optimum control performance.
Pump output flow direction vs. control signal
Shaft rotation CW CCW
Coil energized* C1 C2 C1 C2
Port A in out out in
Port B out in in out
Servo port
pressurized
M5 M4 M5 M4
* For coil location see installation drawings.
Control response
H1 controls are available with optional control passage orifices to assist in matching the rate of
swashplate response to the application requirements (e.g. in the event of electrical failure). Software
ramp or rate limiting should be used to control vehicle response in normal operation. The time required
for the pump output flow to change from zero to full flow (acceleration) or full flow to zero (deceleration)
is a net function of spool porting, orifices, and charge pressure. A swashplate response table is available
for each frame indicating available swashplate response times. Testing should be conducted to verify the
proper software and orifice selection for the desired response.
H1 pumps are limited in mechanical orificing combinations. Software is envisioned as the means to
control the swashplate response in normal operating conditions. Mechanical servo orifices are to be used
only for fail-safe return to neutral in the event of an electrical failure.
Typical response times shown below at the following conditions:
∆p
Viscosity and temperature
= 250 bar
= 30 mm²/s (50 °C)
[3626 psi]
[141 SUS (122 °F)]
Technical Information H1 Axial Piston Pump Size 045/053, Single
Control options
11063344 • Rev HA • Mar 2014 17

Charge pressure
Speed
= 20 bar
= 1800 min-1 (rpm)
[290 psi]
Response time, FNR 045/053
Stroking direction 0.8 mm [0.03 in] Orifice 1.3 mm [0.05 in] Orifice No orifice
Neutral to full flow 1.8 s 0.9 s 0.5 s
Full flow to neutral 1.6 s 0.8 s 0.4 s
Non Feedback Proportional Electric Control (NFPE) options A8 (12 V)/B8 (24 V)
The Non Feedback Proportional Electric (NFPE) control is an electrical automotive control in which an
electrical input signal activates one of two proportional solenoids that port charge pressure to either side
of the pump servo cylinder. The NFPE control has no mechanical feedback mechanism.
The pump displacement is proportional to the solenoid signal current, but it also depends upon pump
input speed and system pressure. This characteristic also provides a power limiting function by reducing
the pump swashplate angle as system pressure increases. A typical response characteristic is shown in
the accompanying graph.
Under some circumstances, such as contamination, the control spool could stick and cause the pump to
stay at some displacement.
A serviceable 125 μm screen is located in the supply line immediately before the control porting spool.
P003 192
Pump displacement vs. input signal
"0"
Signal Current
mA(DC)
a b c
a
b
c
Displacement
100 %
100 %
NFPE control
∆p = 300 bar
∆p = 300 bar
∆p = 0 bar
∆p = 0 bar
P003 187E
Technical Information H1 Axial Piston Pump Size 045/053, Single
Control options
18 11063344 • Rev HA • Mar 2014

NFPE schematic
P003 188
C2C1
F00A
M14
T PF00B
Control signal requirements
Control current
Voltage a* mA b mA c mA Pin connections
12 V 870 1290 1540 any order
24 V 440 670 770
* Factory test current, for vehicle movement or application actuation expect higher or lower value.
Connector
1 2
P003 480
Description Quantity Ordering number
Mating connector 1 Deutsch® DT06-2S
Wedge lock 1 Deutsch® W2S
Socket contact (16 and 18 AWG) 2 Deutsch® 0462-201-16141
Danfoss mating connector kit 1 K29657
T000 134E
Solenoid data
Voltage 12V 24V
Maximum current 1800 mA 920 mA
Coil resistance @ 20 °C [70 °F] 3.66 Ω 14.20 Ω
Coil resistance @ 80 °C [176 °F] 4.52 Ω 17.52 Ω
PWM Range 70-200 Hz
PWM Frequency (preferred)* 100 Hz
Inductance 33 mH 140 mH
IP Rating (IEC 60 529) + DIN 40 050, part 9 IP 67
IP Rating (IEC 60 529) + DIN 40 050, part 9 with mating connector IP 69K
* PWM signal required for optimum control performance.
Technical Information H1 Axial Piston Pump Size 045/053, Single
Control options
11063344 • Rev HA • Mar 2014 19

Pump output flow direction vs. control signal
Shaft rotation CW CCW
Coil energized* C1 C2 C1 C2
Port A in out out in
Port B out in in out
Servo port
pressurized
M5 M4 M5 M4
* For coil location see installation drawings.
Control response
H1 controls are available with optional control passage orifices to assist in matching the rate of
swashplate response to the application requirements (e.g. in the event of electrical failure). Software
ramp or rate limiting should be used to control vehicle response in normal operation. The time required
for the pump output flow to change from zero to full flow (acceleration) or full flow to zero (deceleration)
is a net function of spool porting, orifices, and charge pressure. A swashplate response table is available
for each frame indicating available swashplate response times. Testing should be conducted to verify the
proper software and orifice selection for the desired response.
H1 pumps are limited in mechanical orificing combinations. Software is envisioned as the means to
control the swashplate response in normal operating conditions. Mechanical servo orifices are to be used
only for fail-safe return to neutral in the event of an electrical failure.
Typical response times shown below at the following conditions:
∆p
Viscosity and temperature
Charge pressure
Speed
= 250 bar
= 30 mm²/s (50 °C)
= 20 bar
= 1800 min-1 (rpm)
[3626 psi]
[141 SUS (122 °F)]
[290 psi]
Respose time, NFPE 045/053
Stroking direction 0.8 mm [0.03 in] Orifice 1.3 mm [0.05 in] Orifice No orifice
Neutral to full flow 2.2 s 1.1 s 0.7 s
Full flow to neutral 1.3 s 0.7 s 0.3 s
Automotive Control (AC)
The H1 Automotive Control (H1 AC) is an electric NFPE Control with an integrated Microcontroller,
installed on the pump.
The integrated Microcontroller enhanced control performance with a flexible, configurable control
scheme for an entire single path propel transmission. It can be used in combination with fixed and
variable displacement hydraulic-motors. With the pre-installed application software and easily
changeable control parameters, it is possible to tailor the vehicle’s driving behavior to the individual
requirements of the customer.
Technical Information H1 Axial Piston Pump Size 045/053, Single
Control options
20 11063344 • Rev HA • Mar 2014
