Assembly Instructions
Depending on which fountain you have purchased there will be slight
variations in how they get assembled.
The following instructions will assist you in assembling your particular fountain.
Halo Aura Pearl
STEP 1
STEP 2
STEP 3 (Halo and Aura only)
STEP 3a (Pearl only)
STEP 4
MAKE SURE THE "FLOW CONTROL" ON THE PUMP IS IN THE FULLY OPEN POSITION.
WITH THE PUMP IN THE UPRIGHT POSITION, THE SLIDING STEM ON THE FRONT OF
THE PUMP COVER SHOULD BE SLID ALL THE WAY OVER TO THE LEFT. IF NOT, DO SO
BEFORE INSTALLING. (Fig A)
ATTACH THE PLASTIC FITTING INTO PUMP OUTLET (Fig A)
SLIDE THE L.E.D. RING OVER THE SINGLE PLASTIC TUBE EXTENDING
FROM THE BASE OF THE FOUNTAIN. PUSH UNTIL SNUG (Fig C)
ATTACH THE PUMP (with plastic tting installed) INTO THE LONGER PLASTIC TUBE
EXTENDING FROM THE BASE OF THE FOUNTAIN. (Fig D)
STEP 6
STEP 7
STEP 8
STEP 9
STEP 10
STEP 11
NOTE:
STEP 5
PLACE THE PUMP INTO THE BASIN, MAKING SURE THAT THE PUMP CONNECTOR
INSERT THE L.E.D. INTO THE SHORT PLASTIC TUBE
EXTENDING FROM THE BASE OF THE FOUNTAIN. PUSH UNTIL SNUG (Fig B)
ITEM # 03802 ITEM # 03801 ITEM # 03800

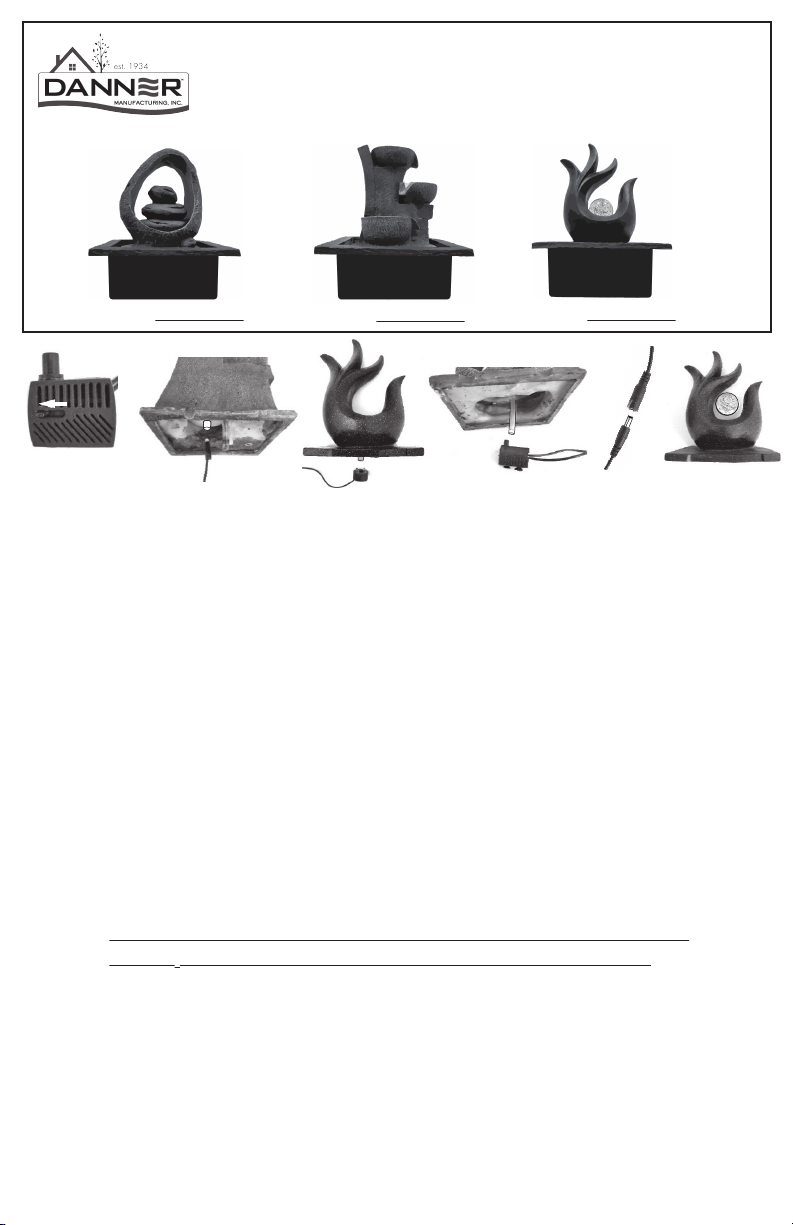

Fig. A Fig. B Fig. C Fig. D Fig. E Fig. F
REMAINS OUTSIDE THE BASIN, AND PLACE THE FOUNTAIN ON TOP OF THE BASIN. BE
SURE TO PLACE BASIN ON LEVEL SURFACE.
PLUG THE MALE L.E.D. BARREL CONNECTOR INTO THE MATING CONNECTOR COMING
OUT OF THE PUMP. (Fig E)
BE SURE THIS CONNECTION REMAINS OUTSIDE THE WATER. THE CONNECTION
SHOULD BE VISIBLE AFTER MOUNTING THE FOUNTAIN ONTO THE BASIN.
PLUG THE MALE BARREL CONNECTOR ON THE 6FT. LONG CORD INTO THE A.C. WALL
ADAPTER
FILL THE BASIN WITH WATER UNTIL IT REACHES THE BASE PLATE OF THE FOUNTAIN.
ADD DECORATIVE ROCKS INCLUDED WITH FOUNTAIN TO TOP OF BASE PLATE.
INSTALL CRYSTAL BALL INTO CENTER CAVITY OF FOUNTAIN (Fig F)
PLUG A.C. WALL ADAPTER INTO OUTLET. BE SURE TO LEAVE A "DRIP LOOP" IN THE
WIRE. (SEE FIG. 1 ON OPPOSITE PAGE)
Allow a minute for water to ow. If water ow does not start, unplug and
refer to STEP 1 and check that ow control is open position.
