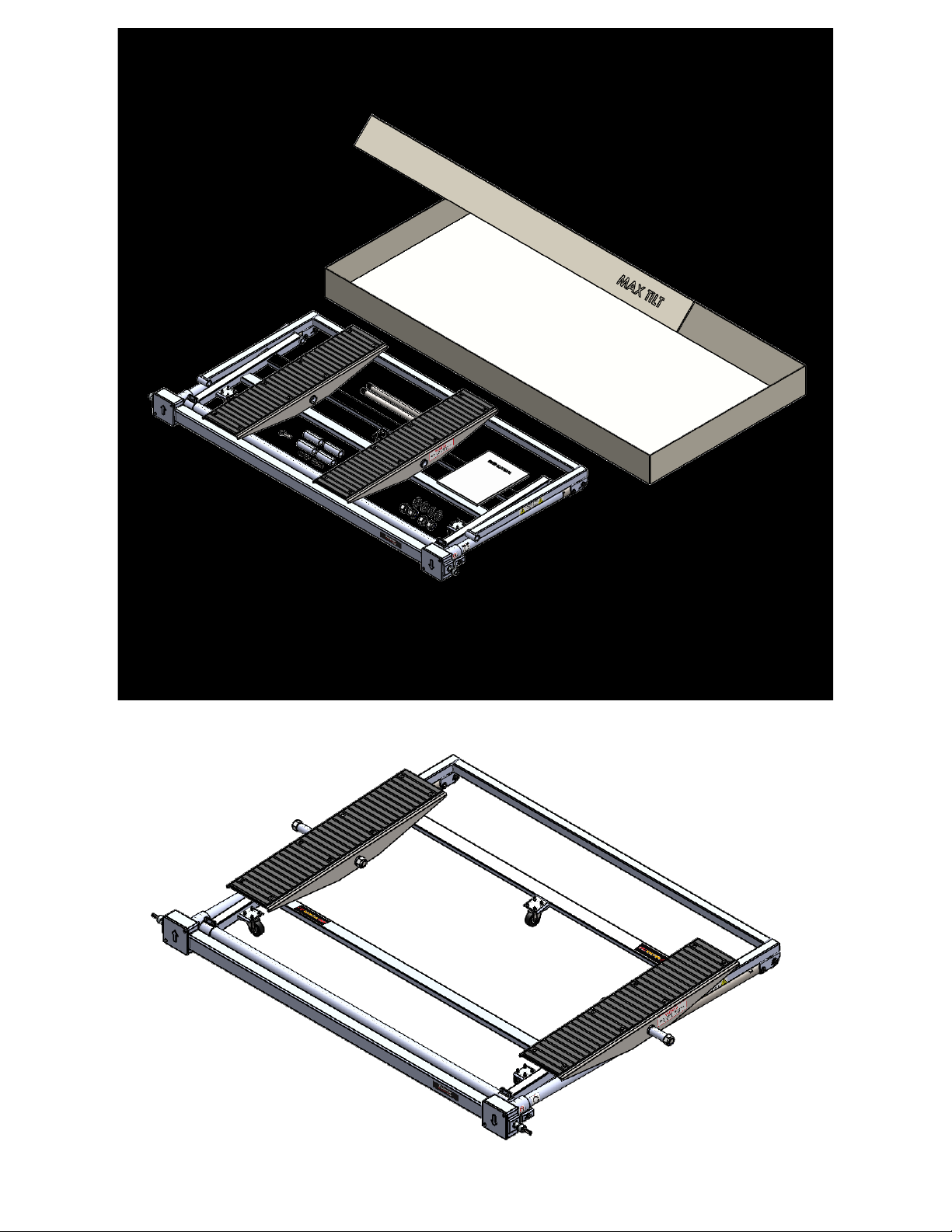

Dannmar MAXJAX TILT User manual

1
Dannmar
Dannmar Equipment
646 Flinn Avenue
Moorpark, CA 93021
Tel: [phone]
www.dannmar.com
www.maxjaxusa.com
R
EQUIPMENT
MAXJAX TILT USER MANUAL
MODEL: MAXJAX TILT
PORTABLE LOW-RISE
TILTING LIFT
6,600 MAX. POUND CAPACITY
FOR USE IN UNIBODY CONSTRUCTION VEHICLES ONLY
FRAME CHASSIS MAXIMUM WIDTH IS 61”- MINIMUM WIDTH 48”
©2019 DANNMAR EQUIPMENT. ALL RIGHTS RESERVED.
PLEASE READ THE ENTIRE CONTENTS OF THIS MANUAL PRIOR TO INSTALLATION AND OPERATION. BY PROCEEDING WITH LIFT
INSTALLATION AND OPERATION YOU AGREE THAT YOU FULLY UNDERSTAND AND COMPREHEND THE FULL CONTENTS OF THIS
MANUAL. FORWARD THIS MANUAL TO ALL OPERATORS. FAILURE TO OPERATE THIS EQUIPMENT AS DIRECTED MAY CAUSE
INJURY OR DEATH.

2
TABLE OF CONTENTS
IMPORTANT NOTICE / DEFINITIONS OF HAZARD LEVELS
3
IMPORTANT SAFETY INSTRUCTIONS
4 - 5
OWNER / EMPLOYER RESPONSIBILITIES
6 - 7
INSTALLER / OPERATOR PROTECTIVE EQUIPMENT
7
PARTS INVENTORY / ASSEMBLY DIAGRAM
8 - 10
INSTALLATION INSTRUCTIONS / SELECTING SITE / FLOOR REQUIREMENTS
11
UNPACKING OF MAXJAX TILT
13
ASSEMBLY OF MAXJAX TILT
14 - 16
USING MAXJAX TILT
15 - 16
INSTALLING MAXJAX TILT UNDER VEHICLE
19
RAISE/LOWER/TILT MAXJAX TILT
20 - 21
FAQ’S
22 - 24
GENERAL DISCLAIMER
25 - 26
WARRANTY
27 - 28

3
IMPORTANT NOTICE
1. Read this manual thoroughly before installing, operating, or maintaining this lift.
2. This lift is designed for indoor/outdoor use and should not be installed in a pit or depression.
3. When not in use, store in cool, dry interior space.
4. The floor/surface on which the lift is to be used should be smooth and flat as possible.
5. The lift has specific mechanical requirements as described in the Installation Instructions section of this
manual.
6. This lift has a minimum ground clearance requirement as described in the Installation Instructions section
of thismanual.
7. Failure by the owner to provide the recommended shelter (when not in use), mounting surface,
power drill requirement and ceiling height could result in unsatisfactory lift performance, property
damage, or personal injury.
8. Do notattempt to install this lift if you have never been trained onbasic automotive lift installation
procedures.
9. Stay clear of any moving parts that can fall and cause injury. These instructions must be followed
to insure proper installation and operation of your lift.
10. Dannmar Equipment will assume no liability for loss ordamage of anykind, expressed or implied
resulting from improper installation or use of this product.
11. This lift is rated to 6,600-lbs lifting capacity. NEVER EXCEED rated lifting capacity of lift.
12. Qualified person must be consulted for seismic loads and other local or state requirements.
BE SAFE: YOUR NEW LIFT WAS DESIGNED AND BUILT WITH SAFETY IN MIND. HOWEVER, YOUR OVERALL
SAFETY CAN BE INCREASED WITH PROPER TRAINING AND THOUGHTFUL OPERATION ON THE PART OF THE
OPERATOR. DO NOT OPERATE OR REPAIR THIS EQUIPMENT WITHOUT READING THIS MANUAL AND THE
IMPORTANT SAFETY INSTRUCTIONS SHOWN INSIDE. KEEP THIS OPERATION MANUAL NEAR THE LIFT ATALL
TIMES. MAKE SURE THAT ALL USERS READ AND UNDERSTAND THISMANUAL.

4
IMPORTANT SAFETY INSTRUCTIONS
READ THESE SAFETY INSTRUCTIONS ENTIRELY
Do not attempt to install this lift if you have never been trained on basic automotive lift installation procedures. Stay
clear of any moving parts that can fall and cause injury.
1. READ ALL INSTRUCTIONS.
2. READ AND UNDERSTAND all safety warning procedures before operating lift.
3. KEEP AREA WELLLIT.
4. KEEP HAIR, LOOSE CLOTHING, FINGERS, AND ALL PARTS OF THE BODY AWAYFROM MOVINGPARTS.
5. USE ONLY AS DESCRIBED IN THIS MANUAL. Use only manufacturer’s recommended attachments.
6. DO NOT raise vehicle on the lift until installation is completed as instructed in this manual.
7. KEEP HANDS AND FEET CLEAR. Remove hands and feet from any moving parts. Keep feet clear of lift when
lowering. Avoid pinch points.
8. KEEP WORK AREA CLEAN. Cluttered work areas inviteinjuries.
9. CONSIDER WORK AREA ENVIRONMENT. Do not expose equipment to rain. DO NOT use in damp or wet locations.
10. ONLY TRAINED OPERATORS should operate this lift. All non-trained personnel should be kept away from
work area. Never let non-trained personnel come in contact with or operate lift.
11. USE LIFT CORRECTLY. Use lift in the proper manner. Never use lifting adapters other than what is approved by the
manufacturer.
12. REMAIN CLEAR of lift when raising or lowering vehicle.
13. CLEAR AREA if vehicle is in danger offalling.
14. ALWAYS ENSURE that the safety support jack is in place before any attempt is made to work on or near vehicle.
15. DRESS PROPERLY. Nonskid steel toe footwear is recommended when operating lift.
16. ALWAYS WEAR SAFETY GLASSES. Everyday eyeglasses only have impact resistant lenses. They are not safety
glasses.
17. MAINTAIN WITH CARE. Keep lift clean for better and safe performance. Follow manual for proper lubrication and
maintenance instructions. Keep control handles and / or buttons dry,clean and free from grease andoil.
18. STAY ALERT. Watch what you are doing. Use common sense. Be aware!
19. CHECK FOR DAMAGED PARTS. Check for alignment of moving parts, breakage of parts or any condition that may
affect its operation. Do not use lift if any component is broken or damaged.
20. NEVER remove safety related components from the lift. Do not use lift if safety related components are damagedor
missing.

5
NOTE: If attachments, accessories, or configuration modifying components that are in the load path,
affect operation of the lift, affect intended vehicle accommodation are used on this lift and, if
they are not certified for use on this lift, then the certification of this lift shall become null and
void. Contact Dannmar Equipment for information pertaining to certified attachments,
accessories, or configuration modifying components.
When removing the lift from the shipping crate pay close attention as the Lift Arms can open and can cause
injury.
SHIPPING DAMAGE CLAIMS: WHEN THIS EQUIPMENT IS SHIPPED, TITLE PASSES TO THE
PURCHASER UPON RECEIPT FROM THE CARRIER. CONSEQUENTLY, CLAIMS FOR THE
MATERIAL DAMAGED IN SHIPMENT MUST BE MADE BY THE PURCHASER AGAINST THE
TRANSPORTATION COMPANY AT THE TIME SHIPMENT IS RECEIVED.

6
SAVE THESE INSTRUCTIONS
OWNER / EMPLOYER RESPONSIBILITIES
•Shall ensure that lift operators are qualified and that they are trained in the safe use and operation of the lift using the
manufacturer’s operating instructions and regional requirements.
•Shall establish procedures to periodically inspect the lift in accordance with the lift manufacturer’s instructions and
regional requirements.
•Shall establish procedures to periodically maintain the lift in accordance with the lift manufacturer’s instructions and
regional requirements, Inspection and Maintenance and The Owner Shall ensure that lift maintenancepersonnel are
qualified and that they are adequately trained in the maintenance of the lift.
•Shall maintain the periodic inspection and maintenance records recommended by the manufacturer andregional
requirements.
•Shall not modify the lift in any manner without the prior written consent of the manufacturer or regionalrequirements.
•I have visually inspected the site where the lift is to be installed and verified the concrete to be in good condition and
free of cracks or other defects. I understand that installing a lift on cracked or defective concrete could cause lift failure
resulting in personal injury or death.
•I understand that a level floor is required for proper installation and level lifting.
•I understand that I am responsible if my floor is of questionable slope (greater than 3 degrees) and that I will be
responsible for all charges related to pouring a new level concrete slab if required and any charges.
•I will assume full responsibility for the concrete floor and condition thereof, now or later, where the above equipment
model(s) are to be installed. Failure to follow danger, warning, and caution instructions may lead to serious personal
injury or death to operator or bystander or damage to property.
•I understand that Dannmar lifts are designed to be used both indoor and outdoor locations. When lift is not in use,
please store inside vehicle or garage to ensure best results when using lift. Failure to follow installation instructions
may lead to serious personal injury or death to operator or bystander or damage to property or lift.
INSTALLER / OPERATOR: PLEASE READ THE ENTIRE CONTENTS OF THIS MANUAL PRIOR TO INSTALLATION
AND OPERATION. BY PROCEEDING WITH LIFT INSTALLATION AND OPERATION YOU AGREE THAT YOU FULLY
UNDERSTAND AND COMPREHEND THE FULL CONTENTS OF THIS MANUAL. FORWARD THIS MANUAL TO ALL
OPERATORS. FAILURE TO OPERATE THIS EQUIPMENT AS DIRECTED MAY CAUSE INJURY ORDEATH.

7
Failure to follow danger, warning, and caution instructions may lead to serious personal injury or death to operator or
bystander or damage to property.
Please read entire manual prior to installation. Do not operate this machine until you read and understand all the dangers,
warnings and cautions in this manual. For additional copies or further information, contact:
Dannmar Equipment
646 Flinn Ave.
Moorpark, CA 93021
Tel: [phone]
Fax: [phone]
www.dannmar.com
INSTALLER / OPERATOR
PROTECTIVE EQUIPMENT
Personal protective equipment helps makes installation and operation safer, however, it does not take the place of safe
operating practices. Always wear durable work clothing during any installation and/or service activity. Shop aprons or shop
coats may also be worn, however loose-fitting clothing should be avoided. Tight fitting leather gloves are recommended to
protect technician hands when handling parts. Sturdy leather work shoes with steel toes and oil resistant soles should be
used by all service personnel to help prevent injury during typical installation and operation activities.
Eye protection is essential during installation and operation activities. Safety glasses with side shields, goggles, or face
shields are acceptable. Back belts provide support during lifting activities and are also helpful in providing worker protec-
tion. Consideration should also be given to the use of hearing protection if service activity is performed in an enclosed
area or if noise levels are high.
FOR TECHNICAL QUESTIONS, CALL [phone]

8

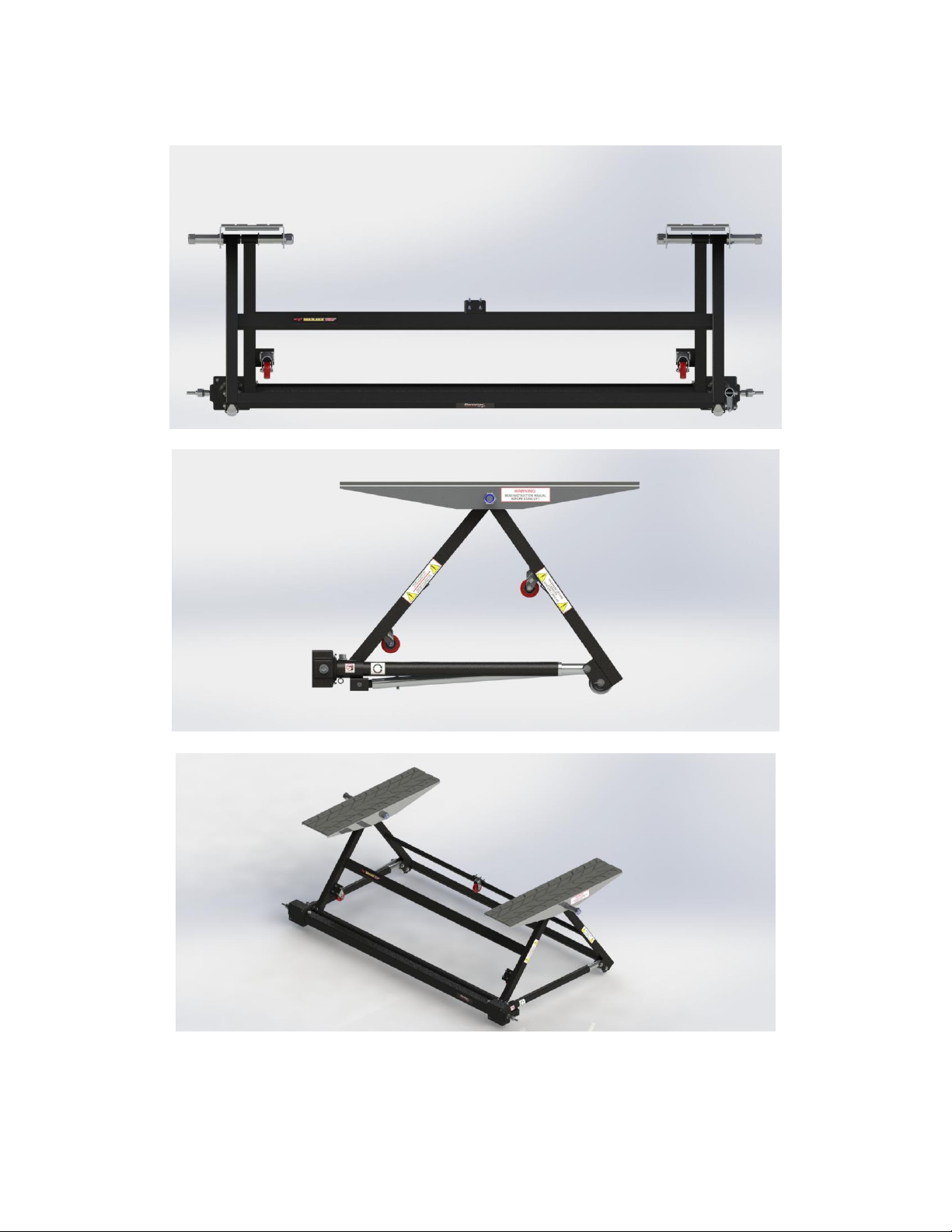

MAXJAX TILT ASSEMBLY
Component Parts Identifier
ITEM
No.
DESCRIPTION
QTY
Check
1
MaxJax Tilt Frame
1
2
Jack Support Stand
1
3
Frame Platform
2
4
Frame Platform Risers
2
5
Frame Connecting Sleeves
4
6
Frame Connecting Bolts
2
7
Frame Connecting Washers
4
8
Frame Connecting Nuts
4
9
Positioning Wheels
3
10
Drill Drive Adapter
2
11
Positioning Wheel Screws
12
12
Positioning Wheel Nuts
12
13
Positioning Wheel Washers
12
14
Wall Hanger
2
15
Safety Locking Pin
1
16
Track Rails (Optional)
2
©2019 DANNMAR EQUIPMENT. ALL RIGHTS RESERVED.

10
©2019 DANNMAR EQUIPMENT. ALL RIGHTS RESERVED.

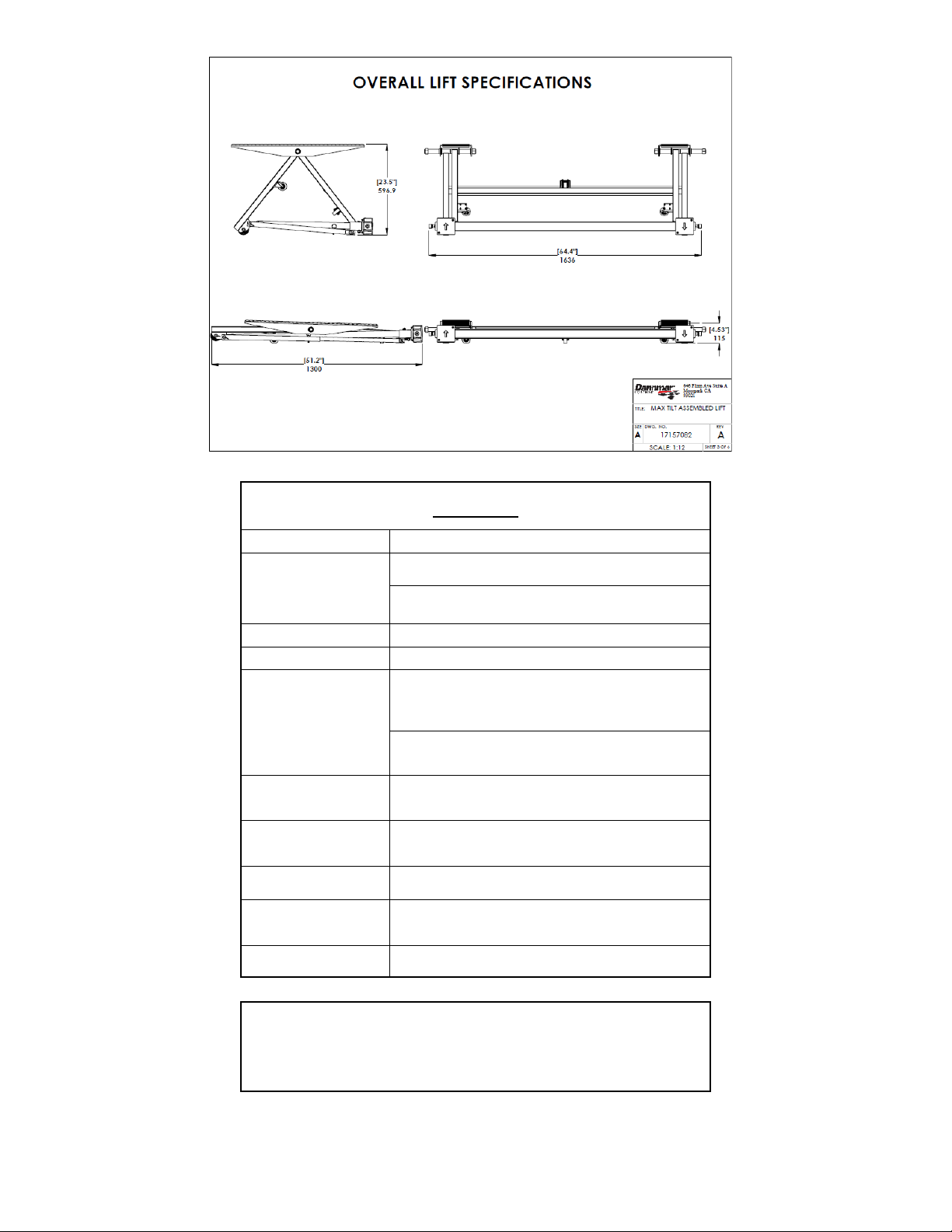

Technical
Lift Capacity
3000 kg/6614 lbs
Dimensions
1635 x 1300 x 115 mm
64-1/2” x 51-1/4” x 4-1/2”
Weight
45 kg / 99 lbs
Height capacity
60 cm / 23-1/2”
Lift speed
30 - 40 seconds (depending on drill
amperage and vehicle weight)
Impact drill IS NOT ALLOWED
Platform
Width/Length
184.15mm X 800mm / 7-1/4" X 31-1/2"
Maximum Outside
Width of Platform
1638mm / 64" (1)
Inside Dimension
1270mm / 50"
Minimum Outside
Width of Platform
1505mm / 59-1/4"
Inside Dimension
1136.65mm / 44-3/4" (2)
Note:
(1) No vehicle chassis wider than noted
(2) No vehicle chassis narrower than
noted
Not all vehicles will work with Tilt.

11
INSTALLATION INSTRUCTIONS
TOOLS REQUIRED
•10*Amp/120Volt ½” Corded or Cordless Drill - DO NOT use Impact Drill
•(*less than 10 Amps may have difficulty in raising larger vehicle)
•Open-end Wrench
•Socket Wrench
•Phillips Screwdriver
IMPORTANT NOTICE
These instructions must be followed to ensure proper installation and
operation of your lift. Failure to comply with these instructions can result
in serious bodily harm and void product warranty. Manufacturer will
assume no liability for loss or damage of any kind, expressed or implied
resulting from improper installation or use of this product.
STEP 1
SELECTING SITE
BEFORE USING YOUR NEW LIFT, CHECK THE FOLLOWING:
1. LIFT LOCATION: Check layout dimension against floor plan
requirements making sure that adequate space is available.
2. OVERHEAD OBSTRUCTIONS: The area where the lift will be
located should be free of overhead obstructions such as heaters,
building supports, electrical lines etc.
3. DEFECTIVE FLOOR: Visually inspect the site where the lift is to
be used and check for cracked or defective concrete
4. OPERATING TEMPERATURE. Operate lift only between temperatures of
41° - 104° F (5º - 40 ºC).
DO NOT use this lift on any asphalt surface or any soft or uneven
surfaces other than concrete.

12
UNPACKING OF MAXJAX TILT LIFT
1. Inspect shipping container.
2. Open shipping container by prying close tabs around crate. Verify all components are present.
See Component Parts Identifier (page 8)
3. Remove Frame Platforms (2), Sleeves, Bolts, Nuts and Wheel assemblies

13

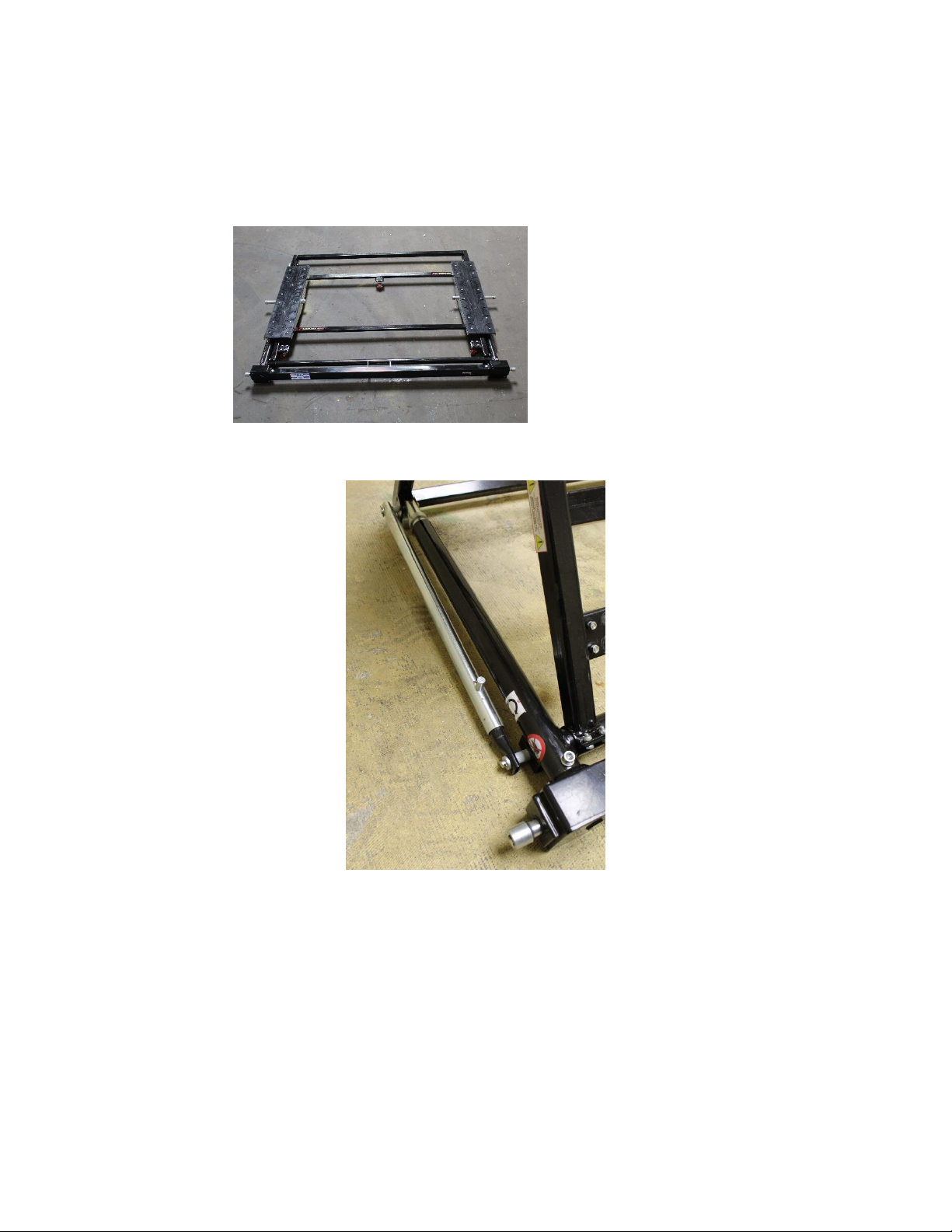

UNPACKING OF MAXJAX TILT LIFT, continued

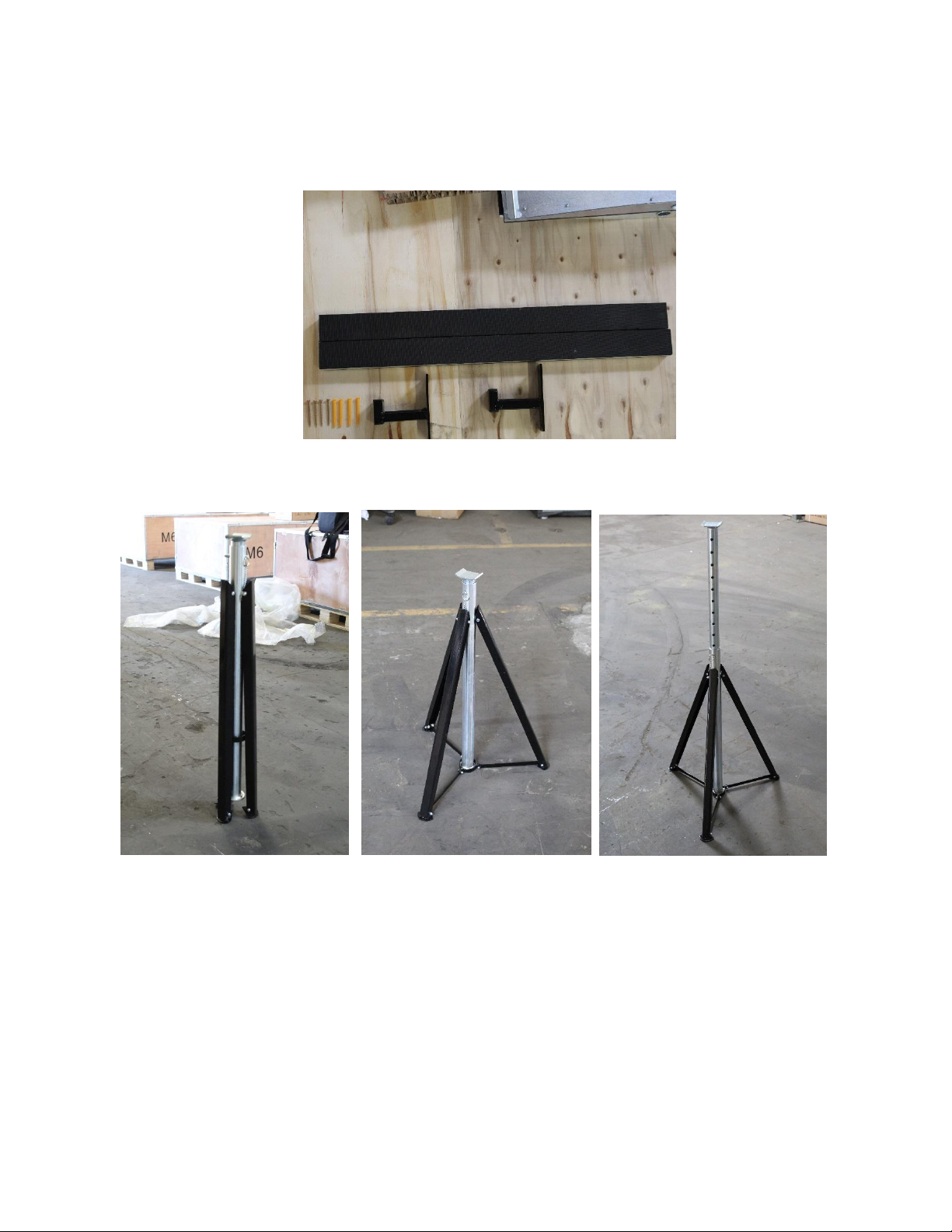

4. Remove, Risers (2), Lift Hangers (2) Screws (4) and Mollies (4)
5. Remove Safety Jack Stand (1)
6. Remove Parts Bag, cut strapping –for easier assembly, leave Tilt Mainframe in container.

14

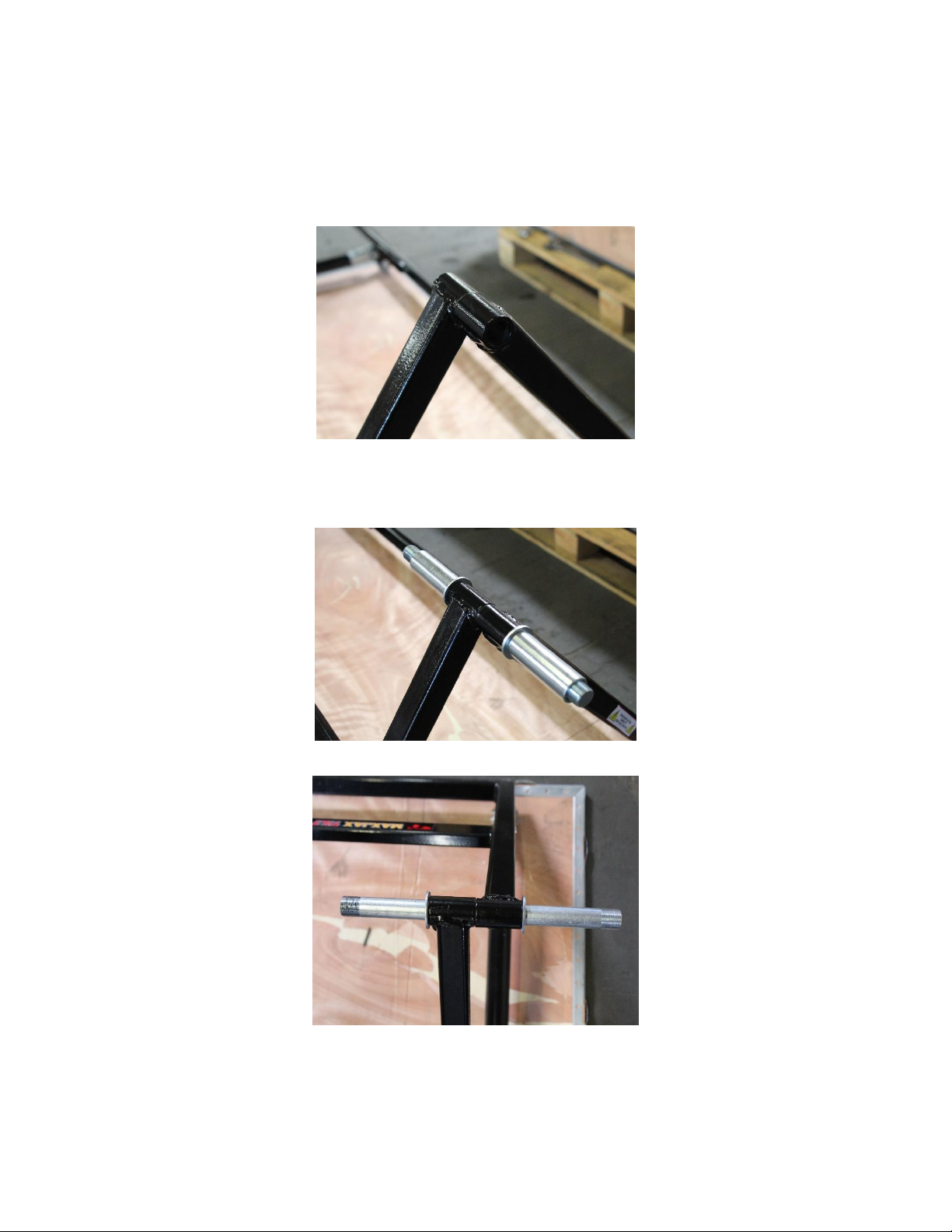

ASSEMBLY OF MAXJAX TILT
1. Raise Arms up so both holes at top line up to each other. Coat the interior of holes with lithium
grease to allow for easier components travel
2. Insert Frame Connecting Sleeves, Bolts, Washers and Nuts into Frame.

15
ASSEMBLY OF MAXJAX TILT, continued
3. Slide Platforms onto Sleeves, attach and tighten Bolts. Duplicate opposite set of Arms.
4. Flip Mainframe over and attach Positioning Wheels.
5. Assembly is complete.

16
ASSEMBLY OF MAXJAX TILT, continued
Finished Images of MaxJax Tilt

17
While the factory has pre-greased the Gear Drive Box, we recommend that you add additional grease
to Boxes (one per side) before first use. (example-Valvoline NLGI #2 GC-LB Complex Lithium EP
Grease) Grease is designed to reduce friction of the gears and screw drive internally.
NOTE: You will see grease on the side drive shaft as it opens and closes. This is normal and amount
of grease will reduce with use. Wipe down excess after each use. Depending on how often you use
the Lift, you should check Gear Drive Box periodically to ensure there is enough lubrication to keep
friction, wear and tear down to a minimum.

18
USING MAXJAX TILT
1. Insert Drill Drive Adapter into Drill and insert into Gear Box.
2. Once Drill has been inserted, lower Lift down to ground.
3. Once Lift has been lowered, you may now be able to use Lift under your vehicle.

19
INSTALLING MAXJAX TILT UNDER VEHICLE
1. Before using any lifting device, put vehicle in Park position and set Emergency Brake.
2. Roll MaxJax Tilt under vehicle closest to front wheels Slide Lift under vehicle and align
Platforms under chassis frame rails. If pinch welds or body cladding interferes with Platform
surface, place Riser Bars on Platforms before raising vehicle.
3. Raise Lift to desired height, insert Safety Pin and brace “up” side of vehicle with Safety Jack
Support

20
RAISE/LOWER/TILT MAXJAX TILT
TO RAISE VEHICLE
•Place vehicle in PARK and set parking brake
•Use on hard surfaces only
•Keep area clear around vehicle
•Measure width between chassis frame for correct arm location see manual for detail
•Roll lift under vehicle with the Drive Gearbox closest to front wheels
•Position lift arms under both the driver’s and passenger’s side of the vehicle’s frame.
•If alignment is necessary, adjust side-to-side.
NOTE: Vehicles with pinch welds may require Track Risers to ensure proper lifting without causing
damage to vehicle or lift
•Insert Drill Adapter into drill and tighten
•Insert Drill Adapter into Drive Gearbox’s Connector
Note: Clockwise to raise, counterclockwise to lower
•Before raising vehicle, verify that there is enough overhead clearance for vehicle once raised
•Raise lift until lift arms contact the frame of the vehicle.
•If not lining up properly, lower lift slightly and readjust arms
•Once reset, raise lift to desired height. Lift slowly
Note: As you raise vehicle, the front half of the vehicle will begin to drop and the rear raise.
•Once lift is at desired height and one set of wheels are touching the ground, insert Safety Locking Pin into Safety
Bar.
CAUTION
NEVER USE LIFT WITHOUT SAFETY LOCKING PIN INSERTED!
•Place Safety Support Jack under raised side of the vehicle. Must be placed on solid surface of vehicle
TO LOWER VEHICLE
•Ensure areas around and under vehicle are clear of any items that may get in the way of vehicle coming
down
•Remove Safety Support Jack from under vehicle
•Remove Safety Locking Pin
•Insert Drill Adapter into the Drive Gearbox
NOTE: Counter-clockwise to lower, See arrows on Drive Gearbox
•Slowly lower vehicle until all four wheels are touching the ground and the lift arms are clear of the
vehicles frame
•Once lift is completely lowered, roll lift out from under vehicle and store for later use.
Caution
NEVER DRIVE OVER LIFT. DAMAGE TO VEHICLE AND LIFT WILL OCCUR
