DAQ system cPCI-SBC02 User manual

cPCI-SBC02 Board User manual
-
1- http://www.daqsystem.com
cPCI-SBC02
(EMB-CPU04)
User’s Manual
Windows, Windows2000, Windows NT and Windows XP are trademarks of Microsoft. We acknowledge that the
trademarks or service names of all other organizations mentioned in this document as their own property.
Information furnished by DAQ system is believed to be accurate and reliable. However, no responsibility is assumed by DAQ
system for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is
granted by implication or otherwise under any patent or copyrights of DAQ system.
The information in this document is subject to change without notice and no part of this document may be copied or
reproduced without the prior written consent.
Copyrights 2007 DAQ system,All rights reserved.

cPCI-SBC02 Board User manual
-
2- http://www.daqsystem.com
Contents
1 . cPCI-SBC02 Introduction
2 . cPCI-SBC02 Appearance
3 . cPCI-SBC02 Assembly (Memory, Hard Disk)
4 . Peripheral Device Control through Compact PCI
Interface(Back-Plane Connection)
5 . Expansion Port through Transition Board
6 . WINDOWS & Driver Installation
6.1 Audio Driver
6.2 LAN Driver

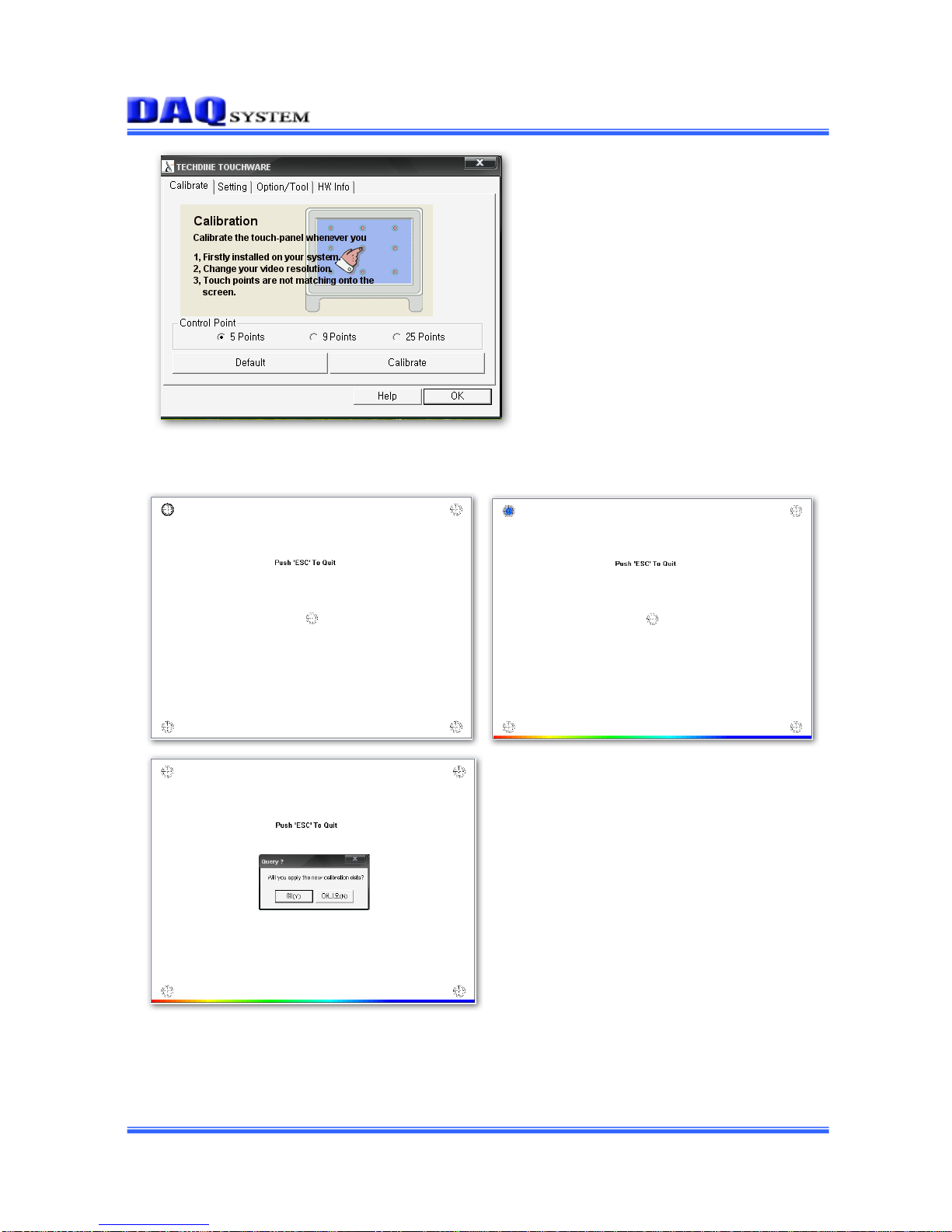

6.3 Touch Driver
6.4 Graphic driver

cPCI-SBC02 Board User manual
-
3- http://www.daqsystem.com
1 . cPCI-SBC02 Introduction
It is the low cost Single Board Computer (SBC) which equipped a low power and low
Heat Atom processor.
Features
Intel Atom Processor Z520PT(Z510PT, Z530P)
Intel system controller hub US15WPT chipset
Intel GMA500 graphics driver (VGA, LVDS)
Single Power( +9V to +15V) operation
Compact small size 160 x 100mm
Supports industrial Temperature range (-40 - +85)
Operating Systems : Windows XP
Specifications
Form Factor 160 x 100mm
Processor Intel Atom Z520PT(512K cache, 1.33GHz, 533MHz FSB)
System Chipset Intel System Controller Hub US15WPT
Bios AMI bios
Memory 1 x 200 pin DDR2-400/533 SODIMM max up to 2GB
Extension Slot
Compact Flash slots 44pin IDE to Compact Flash type-2 adaptor
PC card slots
NVRAMs
Display Support LVDS, VGA Dual Display
Ethernet one 10/100/1000 Mbps Ethernet port
EIDE 2mm pitch 44pin EIDE connector
Audio HD Codec audio with mono speaker AMP

cPCI-SBC02 Board User manual
-
4- http://www.daqsystem.com
Serial I/O Two serial ports , one can be used as touch input
Parallel Port
USB Four USB A connector, Two with 10pin header
Watch dog timer
Status LEDS Indication for Ready and operation
Power Input Single +9 to + 15V range power max current is 1.5A
Debug Connector
Operating Temperature
Rating
-40 to 50(without FAN and Heat-sink), -40 to +85 (with Heat-sink)
Power Consumption Max 15W
Regulator compliance

cPCI-SBC02 Board User manual
-
5- http://www.daqsystem.com
2 . cPCI-SBC02 Appearance
Table 2.1 Each Function Description
Name Description
POWER S/W Main Power switch of EMB-CPU04
SO-DIMMDDAR2
MEMORY 256M ~2GB memory
Intel US15WPTSCH
Intel Atom
PIC Express Slot PIC Express slot Connector.
COM1 (J17) PIN Connecter for Serial Communication
1. PIN : RX1

cPCI-SBC02 Board User manual
-
6- http://www.daqsystem.com
2. PIN : TX1
3. PIN : Touch screen
4. PIN : Touch screen
5. PIN : GND
Speaker SPK connecter
USB 1/2 USB connecter
IDE 2.0mm 44 PIN Flash memory connecter
Two USB 10pin
Header (J10)
1.PIN , 2.PIN : +5 V
3.PIN : 1D-
4.PIN : 2D-
5.PIN : 1D+
6.PIN : 2D+
7.PIN , 8.PIN : GND
9.PIN ,10.PIN : No Connect
Ethernet one 10/100/1000 Mbps Ethernet port

cPCI-SBC02 Board User manual
-
7- http://www.daqsystem.com
-The cPCI-SBC02 board can use to personal PC with the external Power +5V. In
front side of the cPCI-SBC02 has the Connector Out (VGA, Power S/W, Ethernet,
2xUSB, Power LED, Audio-Jack).
-The board connects the Back-Plane at rear side through compact PCI interface.
It can control the other devices through compact PCI interface.
Front Side
SW, VGA, Network, USB
Rear Side
Compact PCI interface

cPCI-SBC02 Board User manual
-
8- http://www.daqsystem.com
3 . cPCI-SBC02 Assembly (Memory, Hard Disk)
1. Memory(SODIMM – SDRAM) Connection
-Memory Connection with J4 connector(256M ~ 2G)
-CF card connector board
(It is necessary to change the board if it connects 1.8” hard.)

cPCI-SBC02 Board User manual
-
9- http://www.daqsystem.com
-Hard Disk Connection (This picture is CF card connection.)
Notice)It is necessary to change the board if it connects 1.8” hard. The picture shows differently
above picture

cPCI-SBC02 Board User manual
-
10-http://www.daqsystem.com
4 .Peripheral Device Control through Compact PCI Interface (Back-Plane)
The cPCI-SBC02 can control the other Compact PCI products as to connect Back-
Plane like above picture.
cPCI-SBC02
Usage
–
Our Product cPCI-EK01
Switch
Ethernet
2xUSB
Audio
VGA
