USER MANUAL
CLASS III SYMBOL
A Class III appliance is designed to be supplied from a separate/safety extra-
low voltage (SELV) power source. The voltage from a SELV supply is low
enough that under normal conditions a person can safely come into contact
with it, without the risk of electrical shock. The extra safety features built
into Class I and Class II appliances are, therefore, not required. For medical
devices, compliance with Class III is not considered sufcient protection,
and further more-stringent regulations apply to such equipment.
TECHNICAL DATA
SAFETY NOTICE
This device is only for use by trained tattoo artists and not for the use by children or persons of reduced physical,
sensory or mental capabilities.
BARRIER PROTECTING YOUR MACHINE
We strongly suggest the use of barrier products to protect your machine. For a visual demonstration
of barrier protection methods, please visit our YouTube channel FK Irons.
Operating Voltage: 5-12 V DC
Current: UP TO 1.5 A
Ambient Temperature: +10 to +35 °C
Relative Humidity: 30 to 75%
Dimensions (Ø X L): H56 x W49 X L27 mm
Weight: Approx. 58g (2oz)
Charging Port: USB-C

4
USER MANUAL
LIGHTNING INTRO
THE POWERBOLT
Unleash Your Power
The rst USB battery attachment featuring complete Bluetooth
connectivity, and a whole new sense of freedom.

5
USER MANUAL

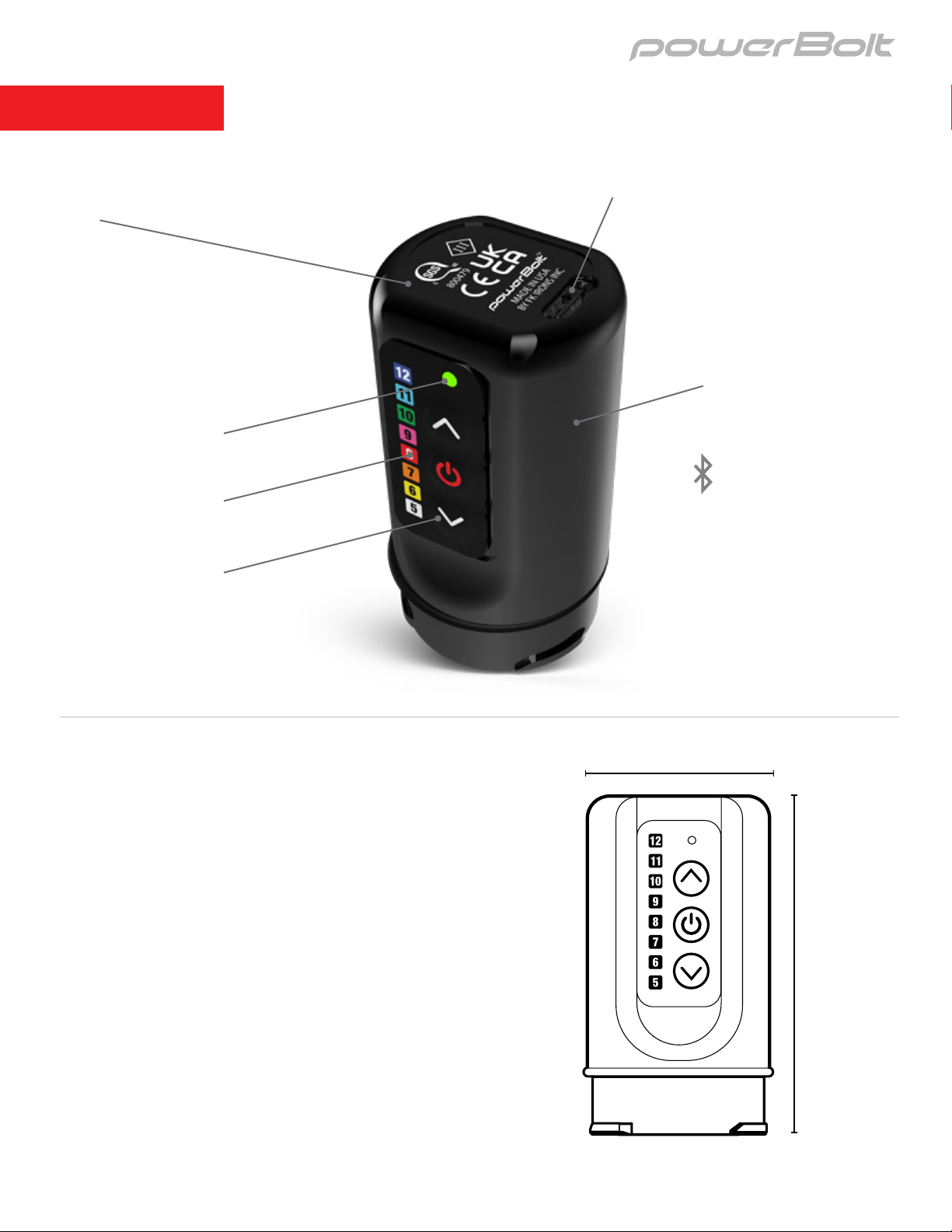

Compact Battery Housing
USB-C Port
LED Indicator
Voltage Guide
Control Buttons
SPECIFICATIONS
• Output Voltage: 5 – 12 V
• Increment/decrement voltage interval: 0.5 V
• Maximum output current: 1 A
• Charger Input: USB-C / 1.5 A
• Size: H57mm x W30mm x L27mm
• Weight: 58g (2 oz)
• Battery Life: ~ 6-10 Hours
(based on operating parameters)
Dynamic Power Path Management
USB-C Li-ion Battery
OVERVIEW
30 mm
57 mm
Bluetooth Enabled:
Pair with Darklab app

6
USER MANUAL
FEATURES
THE POWERBOLT

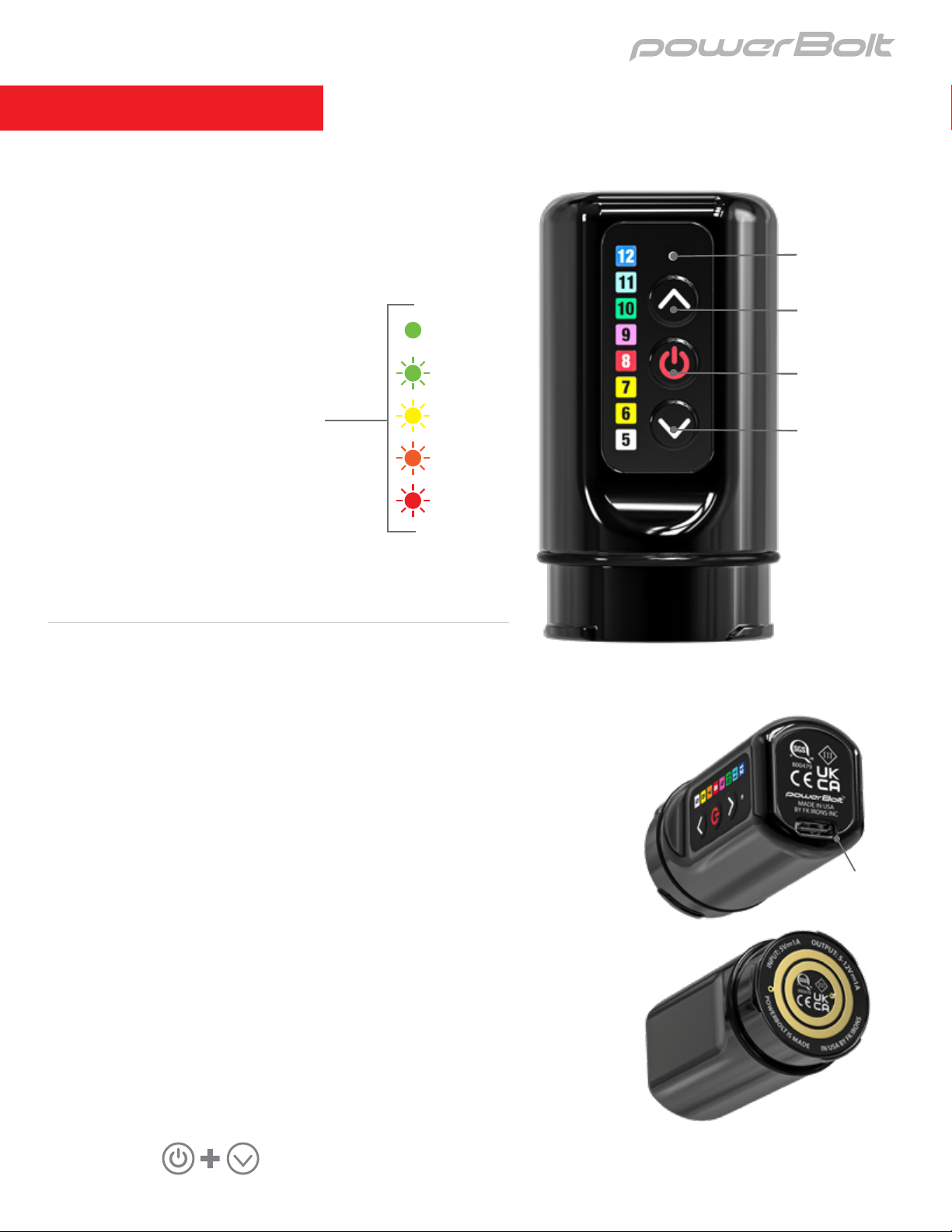

PowerBolt Top/ Bottom Views
LED indicator:
Solid Color = Whole Value
Blinking Color = Half Increment
Ex. Solid green indicates 10V
Flashing green indicates 10.5V
Working with modes: Modes work by pressing
and releasing the power button.
Bluetooth – Hold the power button until a blue light appears
and immediately release the power button. A blue blinking light
indicates pairing mode is available for 60 seconds. To deactivate
Bluetooth, hold the power button and release when the yellow
light flashes.
Travel Mode (Shutdown) – Press and hold the power button until
the red light flashes. This mode is for when you want to avoid
unnecessary discharge and / or comply with travel laws. To
reactivate, connect / disconnect to a USB-C port.
Reset (Factory Settings) – Should you experience abnormal behavior,
hold the power button and the voltage down button at the same time,
then quickly release.
LED Indicator
Voltage Up
Power Button
Voltage Down
USB-C
Battery Level Check: Press and
hold power button until white.
A blinking colored light indicates
remaining charge.
14 - 0%
97 - 60%
100 - 98%
59 - 40%
39 - 15%
Note: LED flashes while battery
charges. Once < 15% is reached, red
light will blink alternately with voltage.
Device reset:

7
USER MANUAL
DETACHING THE POWERBOLT
DETACHING THE POWERBOLT
The PowerBolt is compatible
with the Spektra Flux and the
EXO. To detach your PowerBolt,
ensure you have a rm grip on
the Body of the Flux or EXO
and Grip. Turn the PowerBolt
counter clockwise and pull out.
To attach the PowerBolt, push
in while twisting clockwise.
Ensure lock mechanism moves
freely. PowerBolt must sit
correctly to ensure power leads
align correctly. Avoid contact
with the PowerBolt leads while
recharging or servicing.
Get a rm grip and turn the body
as shown with the Grip.
Twist the PowerBolt as
shown and remove.
Flux shown in demostration image.
Compatible with the Spektra Flux and the EXO.
Flux EXO

8
USER MANUAL
eGIVE ADJUSTMENT
With this feature you’ll be able to control the amount of “give” or resistance of the needle upon
impact with the skin. This enables the artist to take advantage of the softness or hardness of hit to
achieve specic results. 0 no effect, 5 maximum amount of eGive.
eGIVE
HOW TO CHECK THE CURRENT eGIVE SETTING
• Hold down the power button until the light goes from white to solid blue.
• Release the power button.
• The following blinking color that the LED displays indicates the Give that the unit is
currently set at. For example:
- If it blinks white, that indicates the lowest Give of 0
- If it blinks yellow, it’s currently set at level 1 Give
- If it blinks orange, it’s currently set at level 2 Give
- If it blinks red, it’s currently set at level 3 Give
- If it blinks pink, it’s currently set at level 4 Give
- If it blinks green, it’s currently set at level 5 (softest eGive setting)
CHANGING eGIVE
To raise or lower the give:
- Hold down the power button until the light goes from white to solid blue.
- Release the power button and immediately use the up or down arrows to change the give.
The colors should change accordingly.
White - eGive of 0
Yellow - level 1 eGive
Orange - level 2 eGive
Red - level 3 eGive
Pink - level 4 eGive
Green - level 5 eGive (softest setting)

9
USER MANUAL
VOLTAGE PARAMETERS
While voltage is a parameter that will vary from artist to artist, the PowerBolt has been tested
to operate at a minimum voltage of around 5-Volts with a maximum voltage of 12-Volts.
Depending on the type of needle conguration, or brand you use, feel free to adjust the voltage to
obtain the desired performance. NOTE: Some machines require a minimum voltage to operate
correctly, please check your machine manufacturer’s requirements.
WARRANTY
Darklab warrants that the device will perform efciently when used as intended. Should this product
prove to be defective due to manufacturing issues, Darklab will repair/replace the device - free of
charge. This warranty will be void if the device shows signs of having been tampered, disassembled,
handled roughly, dropped, overexposed to moisture or damage resulting in compromised functionality.
HANDY TIPS
The following tips will help you get the most out of your PowerBolt and avoid potential issues:
• Do not exceed the suggested voltage.
• Use only quality cables. A good connection will ensure consistent performance.
• Use only FDA-approved cold sterilization solutions for disinfection.
• NOT AUTOCLAVABLE.
ADDITIONAL INFORMATION

10
USER MANUAL
ADDITIONAL INFORMATION
TROUBLESHOOTING
1.- Machine Manufacturer
FK Irons: 1771 NW 79th Avenue, Doral, Florida 33126
2.- Servicing Your Machine
As for any mechanical device, FK Irons strongly suggests that you service your device once a
year to ensure all working parts are working as expected. This ensures the optimal condition of
all working parts including internal machine clean up and fresh lubrication. Routine servicing will
ensure that your machine remains functioning like the very rst day. Service is subject to fees.
3.- Warning
Disconnect machine from any power before making any adjustments.
For service inquiries, please contact [email protected].
