Data Video DAC-50S User manual

2
Table of Contents
FCC COMPLIANCE STATEMENT .................................................................. 3
WARNINGS AND PRECAUTIONS................................................................. 3
WARRANTY............................................................................................... 4
STANDARD WARRANTY ....................................................................................4
TWO YEAR WARRANTY ....................................................................................5
DISPOSAL .................................................................................................. 5
1. INTRODUCTION................................................................................ 6
FEATURES ......................................................................................................6
2. CONNECTIONS & CONTROLS ............................................................ 7
REAR PANEL...................................................................................................7
FRONT PANEL.................................................................................................9
3. FIRMWARE UPDATE........................................................................11
HOST UPDATE ..............................................................................................11
FPGA UPDATE .............................................................................................12
4. FREQUENTLY-ASKED QUESTIONS.....................................................14
5. DIMENSIONS...................................................................................14
6. SPECIFICATIONS ..............................................................................15
SERVICE & SUPPORT.................................................................................16
Disclaimer of Product and Services
The information offered in this instruction manual is intended as a guide only. At all times, Datavideo
Technologies will try to give correct, complete and suitable information. However, Datavideo
Technologies cannot exclude that some information in this manual, from time to time, may not be
correct or may be incomplete. This manual may contain typing errors, omissions or incorrect
information. Datavideo Technologies always recommend that you double check the information in this
document for accuracy before making any purchase decision or using the product. Datavideo
Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage
caused by using the information contained within this manual. Further advice on the content of this
manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

3
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Warnings and Precautions
1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol
cleaners. Use a damp cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing
serious damage.
6. Slots and openings on the cabinet top, back, and bottom are provided for
ventilation. To ensure safe and reliable operation of this unit, and to protect it from
overheating, do not block or cover these openings. Do not place this unit on a bed,
sofa, rug, or similar surface, as the ventilation openings on the bottom of the
cabinet will be blocked. This unit should never be placed near or over a heat
register or radiator. This unit should not be placed in a built-in installation unless
proper ventilation is provided.
7. This product should only be operated from the type of power source indicated on
the marking label of the AC adapter. If you are not sure of the type of power
available, consult your Datavideo dealer or your local power company.
8. Do not allow anything to rest on the power cord. Do not locate this unit where the
power cord will be walked on, rolled over, or otherwise stressed.
9. If an extension cord must be used with this unit, make sure that the total of the
ampere ratings on the products plugged into the extension cord do not exceed the
extension cord’s rating.
10. Make sure that the total amperes of all the units that are plugged into a single wall
outlet do not exceed 15 amperes.
11. Never push objects of any kind into this unit through the cabinet ventilation slots,
as they may touch dangerous voltage points or short out parts that could result in
risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.

4
12. Except as specifically explained elsewhere in this manual, do not attempt to service
this product yourself. Opening or removing covers that are marked “Do Not
Remove” may expose you to dangerous voltage points or other risks, and will void
your warranty. Refer all service issues to qualified service personnel.
13. Unplug this product from the wall outlet and refer to qualified service personnel
under the following conditions:
a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal operating
conditions. Adjust only those controls that are covered by the operating
instructions in this manual; improper adjustment of other controls may result
in damage to the unit and may often require extensive work by a qualified
technician to restore the unit to normal operation;
e. When the product has been dropped or the cabinet has been damaged;
f. When the product exhibits a distinct change in performance, indicating a need
for service.
Warranty
Standard Warranty
•Datavideo equipment is guaranteed against any manufacturing defects for one year
from the date of purchase.
•The original purchase invoice or other documentary evidence should be supplied at
the time of any request for repair under warranty.
•Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not
covered by this warranty.
•All mail or transportation costs including insurance are at the expense of the owner.
•All other claims of any nature are not covered.
•Cables & batteries are not covered under warranty.
•Warranty only valid within the country or region of purchase.
•Your statutory rights are not affected.

5
Two Year Warranty
•All Datavideo products purchased after 01-Oct.-2008
qualify for a free one year extension to the standard
Warranty, providing the product is registered with
Datavideo within 30 days of purchase. For information on
how to register please visit www.datavideo.com or contact your local Datavideo
office or authorized Distributors.
•Certain parts with limited lifetime expectancy such as LCD Panels, DVD Drives and
Hard Drives are only covered for the first 10,000 hours, or 1 year (whichever comes
first).
Any second year warranty claims must be made to your local Datavideo office or one of
its authorized Distributors before the extended warranty expires.
Disposal
For EU Customers only - WEEE Marking
This symbol on the product or on its packaging indicates that this
product must not be disposed of with your other household
waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for
the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at the
time of disposal will help to conserve natural resources and
ensure that it is recycled in a manner that protects human health and the environment.
For more information about where you can drop off your waste equipment for recycling,
please contact your local city office, your household waste disposal service or the shop
where you purchased the product.
CE Marking is the symbol as shown on the left of this page. The
letters "CE" are the abbreviation of French phrase "Conformité
Européene" which literally means "European Conformity". The
term initially used was "EC Mark" and it was officially replaced by
"CE Marking" in the Directive 93/68/EEC in 1993. "CE Marking" is
now used in all EU official documents.

6
1. Introduction
The DAC-50S converts the digital HD/SD-SDI video input to one of the
following analog output combinations:
•one component (YUV) output + one composite (CV) output;
•one S-Video (Y/C) output + two composite (CV) outputs,
with both of which paired with two analog audio outputs (R and L). The
outputs can be easily connected to analog video monitor or deck devices
such as BataCAM and VHS. The DAC-50S is also able to scale down the signal
to connect analog output ports to SD analog equipment.
The DAC-50S provides an SDI Loop-thru output, which makes it suitable for
more different applications. It further outputs one pair of analog audio
channels selected from 16 de-embedded SDI audio channels (Selection is
determined by DIP switch settings).
The DAC-50S is housed in a rugged aluminum frame, making it durable
enough to endure even in the roughest conditions. It is also suitable for 2U
rack mount kit of RMK-2 on standard rack, and fits the battery holder of MB-
4.
Features
•Converts 3G/HD/SD-SDI input to analog video and 2 unbalanced analog
audio channels.
•Two available output combinations:
-one analog component (YUV) output + one composite (CV) output
-one analog S-Video (Y/C) output + two composite (CV) outputs
•Supports NTSC / PAL output.
•Define de-embedded audio channels sent to analog audio outputs via a
DIP switch.
•Solid aluminum housing that fits the 2U rack mount kit of RMK-2 and
battery holder of MB-4.

7
2. Connections & Controls

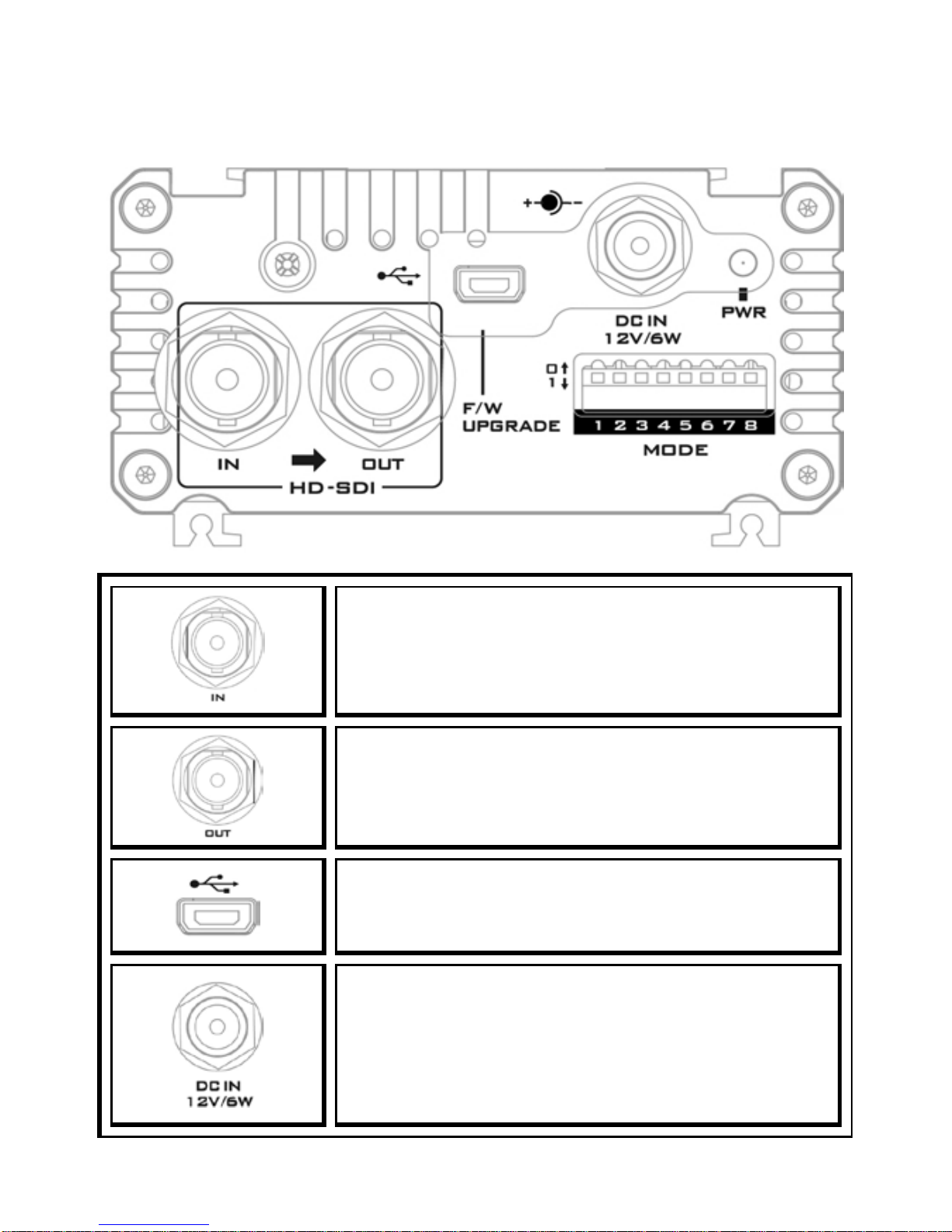

Rear Panel
HD/SD-SDI Input
Connects to an HD-SDI input source
HD/SD-SDI Output
HD-SDI loop-thru output
USB Firmware Upgrade
Connects to PC for firmware upgrade
DC In Socket
Connects the supplied 12V PSU to this socket. The
connection can be secured by screwing the outer
fastening ring of the DC In plug to the socket.

8
DIP Switch
System I/O settings
DIP Switch Setting
0 1
DIP
SW1
DIP
SW2
DIP
SW3
SDI Audio
De-Embed
1
SDI Audio De-Embed
0
0
0
CH1&CH2
2
0
0
1
CH3&CH4
3
0
1
0
CH5&CH6
4
7.5 IRE
0 IRE
0
1
1
CH7&CH8
5
16:9
4:3
1
0
0
CH9&CH10
6
YUV+CV OUT
Y/C+2xCV OUT
1
0
1
CH11&CH12
7
SMPTE
EBU
1
1
0
CH13&CH14
8
Normal
Operation
Firmware
Upgrade
1
1
1
CH15&CH16
NOTE: Given a 16:9 HD video input, if DIP SW5 is set to 16:9, the image displayed on a
4:3 TV monitor will be anamorphic, i.e. the image will be compressed laterally.
However, if DIP SW5 is set to 4:3, the image displayed on a 4:3 TV monitor will
become edge-cropped, i.e. the left and right of the image will be partially cut off. The
diagram below provides an illustration of the above.
For an SD video input, if the input resolution is 16:9, set DIP SW5 to 16:9; if the input
resolution is 4:3, set DIP SW5 to 4:3.

9
Front Panel
Y Output Port
Component video output port
U/Pb/CV Output Port
Component or Composite video output port
V/Pr/C Output Port
Component video output port

10

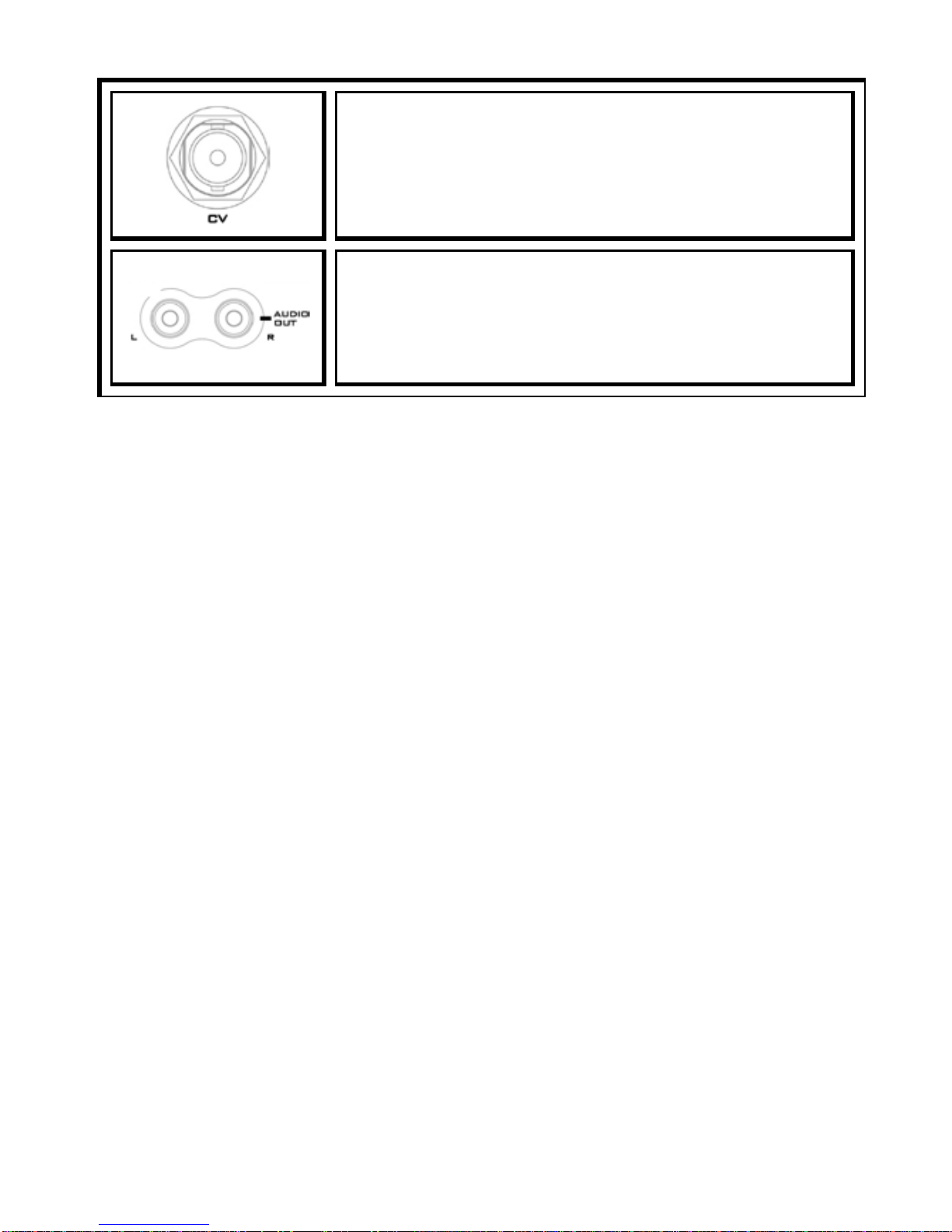

CV Output Port
Composite video output port
Audio OUT
SDI audio de-embed output via 2 unbalanced analog audio
channels.

11
3. Firmware Update
From time to time, Datavideo may release new firmware to either add new features or
to fix reported bugs in the current DAC-50S firmware. Customers can update the
firmware themselves if they wish or they can contact their local dealer or reseller for
assistance should they prefer this method.
This section describes the firmware update process. Once started, the update process
should not be interrupted in any way as this could result in a non-responsive unit.
Host Update
1. Set DIP SW8 to ON
2. Connect DAC-50S to the PC using a USB cable (DAC-50S is powered by the USB port
so external power source is not required)
3. A USB device connection prompt window will appear on the PC screen (DAC-50S
USB) and click “Open device to view files” to open the device.
4. Copy the new firmware file and paste it into the USB device to replace the existing
firmware file on the device.

12
5. After the new firmware file has been saved in the device, safely remove the USB
device VP733 Datavideo Tech USB Device as shown in the diagram below.
6. Update is complete after the device is safely removed, unplug the USB cable and set
DIP SW8 to OFF.
FPGA Update
1. Set DIP SW7 / SW8 to ON.
2. Connect the power to the device.
3. Use the mini-USB cable to connect the device to the computer, which will
automatically detect the device.
4. Open the device drive.

13
5. Delete the existing file and copy the latest FPGA firmware file into the device.
6. The firmware update will now start, which takes approximately 2 minutes.
7. After the firmware file is successfully copied into the device, safely remove the USB
device.
8. Set DIP SW7 / SW8 to OFF to complete the update.

14
4. Frequently-Asked Questions
This section describes problems that you may encounter while using DAC-50S. If you
have questions, please refer to related sections and follow all the suggested solutions. If
problem still exists, please contact your distributor or the service center.
No.
Problems
Solutions
1.
Severe color bar noise is seen on
the DAC-50S output terminal if
the SDI-IN source is a 100% color
bar.
DAC-50S does not support 100% color
bar and downgrading it to 75% will
solve this issue.
5. Dimensions
All measurements in millimeters (mm)

15
6. Specifications
Input Interface HD/SD-SDI x 1 (BNC)
Output Interface
Component YPbPr x 3 (BNC)
Composite x 2 (one is the same connector as U/Pb) (BNC)
S-Video Y/C x 2 (the same connector as Y and V/Pr) (BNC)
Audio L/R x 2 (RCA)
HD-SDI loop-through x 1 (BNC)
Input Format
1080p 50/59.94 Hz
1080i 50/59.94 Hz
720p 50/59.94 Hz
NTSC 525/29.97, PAL 625/25
Output Format 625/25 PAL, 525/29.97 NTSC
F/W Upgrade mini USB x 1
DIP Switches
8-PIN DIP Switch
1: SDI audio de-embed
2: SDI audio de-embed
3: SDI audio de-embed
4: IRE (7.5 IRE & 0 IRE)
5: Aspect Ratio (16:9 & 4:3)
6: Video Output (YUV + CV OUT or Y/C + TWO CV OUT)
7. Audio Level (SMPTE & EBU)
8. Firmware Upgrade
Power DC 12V / 0.5A (6W)
Dimensions 143.8 x 85 x 45.2 mm
Weight 461.3 g

16
Service & Support
