Davey Lighting Original BTC 0750 User manual

1. If you are in any doubt consult a qualified electrician as to the installation of the fitting. Install in accordance with current
IEE wiring regulations. It is recommended that this fitting is installed by a qualified electrician.
2. Ensure that the electrical supply is OFF. Disconnect the electrical supply at the fuse-board.
3. If removing an existing fitting first, note all wiring connections: record which of the house wires is connected to the live,
neutral and earth terminals.
4. Carefully identify where the supply cable is (and check there are no other cables in the area) to avoid damage to concealed
wiring during installation.
5. Position the light where desired ensuring that there is suitable support adjacent to where you will connect to the house
supply and mark position of fixing holes, before drilling appropriate holes as below.
6. a. Brick or masonry: Drill holes into which the wall plugs tightly fit, then insert wall plugs.
b. Wood: No hole necessary (unless small pilot hole required), screws can be screwed directly into the timber.
c. Plaster/Cavity: Special cavity wall fittings are required, rather than provided fixings. These are widely available from
good hardware or DIY store and should come with their own instructions that must be followed. It may be easier to
relocate the fitting so that you screw directly into a timber joist or beam.
7. Support the fitting so that no strain is applied to the wiring when making the electrical connections. If necessary get a
colleague to help.
8. Electrical connection: This fitting must be wired into a 12V remote transformer, which is supplied.
a. Connect the two white cables from the lampholder to one side of the connector.
b. Connect the two black cables from the transfomer to the other side of the connector.
c. Connect the wires from the transfomer to the IP44 box. Connect the brown live wire to the “L” terminal and the blue
neutral wire to the “N” terminal.
d. Connect the wires from the main supply to the IP44 box. Connect the live wire (normally brown or red) to the “L” terminal
and the neutral wire (normally blue or black) to the “N” terminal.
e. THIS FITTING IS SUPPLIED EARTHED. Connect the earth wire from the light and the earth wire from the main supply to
the supplied WAGO.
9. Check that no wires are trapped behind, or within the fitting and complete the installation, screwing the fitting to the wall.
10. Fit the correct type and wattage of lamp (or less).
11. Switch on at the fuse-board. Your light fitting is now ready for use.
Other Important Information
Switch off at mains before changing lamp(s). Never fit a lamp of greater wattage than recommended. Ensure children do not
play with the light fitting. Dispose of old lamps carefully. Never leave a fitting without a lamp in position (or someone can
accidently touch the contacts). Adjust fitting only when power to the fitting is off and has been left to cool. If the electrical flex
or electrical components become damaged at any point, power to the fitting should be disconnected immediately and not
operated until the damaged parts are fixed/replaced. If this fitting is to be installed in a damp or exterior location we advise
sealing the backbox against the wall using a thin bead of silicone to protect against possible damage caused by moisture
ingress. We advise that this fitting is only installed by a suitably qualified person.

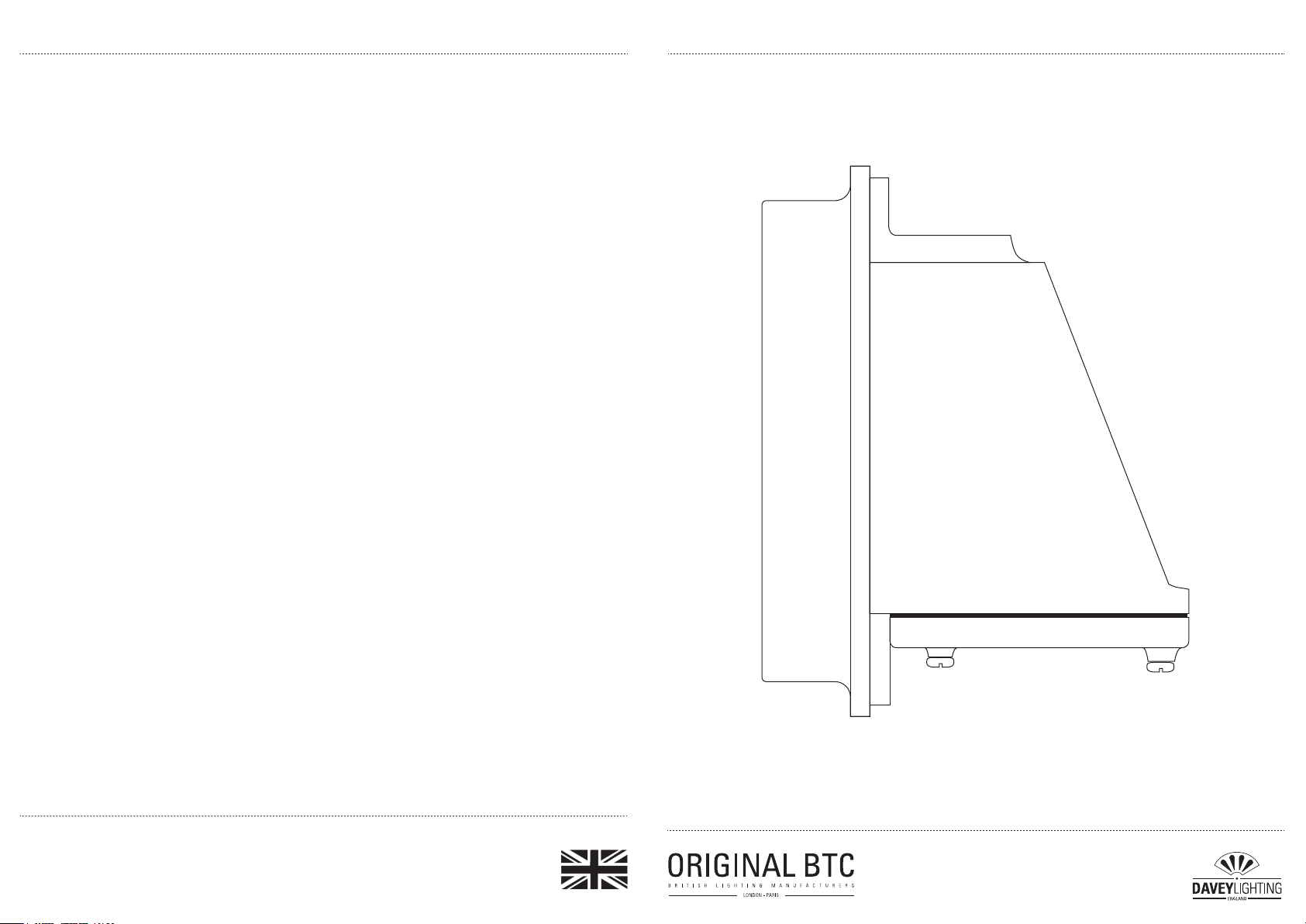

0750 Mast Light With Cast Transformer Box
Instruction Manual
Safety & Installation Instructions
These instructions are provided for your safety in order to prevent the risk of Fire, Electric shock or Injury. It is vitally
important that they are read in their entirety before installing your fitting. Please retain for future reference.
MADE IN BRITAIN
ORIGINALBTC.COM
[phone]
UNIT 21 / 22 AVENUE ONE, STATION LANE, WITNEY, OX28 4XZ, ENGLAND
Established in 1990, Original BTC manufactures relaxed, familiar lighting for traditional and contemporary homes.
All products are hand-assembled in Oxford from high quality components, produced in the UK.
Cleaning and Maintenance
Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Switch off power to the fitting
before cleaning.
v1.3-05.19

0750 Mast Light With Cast Transformer Box 12V Installation DiagramIP54
DP0750/AL/AN Anodised Aluminium
DP0750/AL/SD/AN Sandblasted Aluminium, Anodised
DP0750/GM/PO Polished Bronze
DP0750/GM/SD Sandblasted Bronze
DP0750/GM/SD/WE Sandblasted Bronze, Weathered
Contents
1 - Small Top Screw
2 - Mast Light Body
3 - GX5.3 Lampholder
4 - Mast Light Door
5 - Door Screw
6 - Connector
7 - Mast Light Body
8 - Earth Wire
9 - Long Bottom Screw
10 - Transformer Box
11 - M4 Nut
12 - WAGO
13 - IP44 Box
14 - Screw (x4)
15 - Brass Box
16 - Rawl Plug (x4)
Required for Installation
-Screwdriver, flat-head
- Small screwdriver, flat-head
- Drill (if holes are required)
Fixing Instructions
- Open light by unscrewing the mast light door screws.
- Remove the brass box from the casting to access fixing pack.
- Feed the lampholder wires and the earth wire though the castings.
- Follow the wiring instructions overleaf (see 8) to wire the fitting.
- Drill a hole though the brass box to feed the mains cable though.
- Fix the light to the wall using the fixing screws.
Apply a bead of silicone between the transformer box and the wall if installing the light in a damp or exterior
location to protect against possible damage caused by moisture ingress. We advise that this fitting is only
installed by a suitably qualified person.
A
B
C
D
E
Fixing Screw
GX5.3 Lampholder
Mast Light Body
Earth Wire
WAGO
F
G
H
I
J
Mains Supply*
Transformer Box
Connector
Transformer
IP44 Box
K
L
Brass Box
Rawl Plug
Key
GX5.3 MR16
LAMP GUIDANCE
TYPE* WATTAGE** BASE SHAPE


HALOGEN
LED
35W aluminium coated/20W Dichroic MAX
6W
* Warm white (2700k) low energy lamps recommended.
** Wattage value provided as a guide to suitable lamps. Lower wattage than stated may be used.
*Not Supplied
5
2
1
4
3
6
910 11
7
13 15
8
14 16
12
CABLE
GRIP
TOP COVER
L
N
brown
blue
red or brown
black or blue
Transformer Mains
A
B
C
GH I J K L
DE F
ENSURE
SLACK
INSIDE
FITTING
