Davey Lighting Original BTC 7680 User manual

Exterior Bracket Light
Instruction Manual
v1.1-04.19 7680
Safety & Installation Instructions
1. If you are in any doubt consult a qualified electrician as to the installation of the fitting. Install in accordance with current
IEE wiring regulations. It is recommended that this fitting is installed by a qualified electrician.
2. Ensure that the electrical supply is OFF. Disconnect the electrical supply at the fuse-board.
3. If removing an existing fitting first, note all wiring connections: record which of the house wires is connected to the live,
neutral and earth terminals.
4. Carefully identify where the supply cable is (and check there are no other cables in the area) to avoid damage to concealed
wiring during installation.
5. Position the light where desired ensuring that there is suitable support adjacent to where you will connect to the house
supply and mark position of fixing holes, before drilling appropriate holes as below.
6. a. Brick or masonry: Drill holes into which the wall plugs tightly fit, then insert wall plugs.
b. Wood: No hole necessary (unless small pilot hole required), screws can be screwed directly into the timber.
c. Plaster/Cavity: Special cavity wall fittings are required, rather than provided fixings. These are widely available from
good hardware or DIY store and should come with their own instructions that must be followed. It may be easier to
relocate the fitting so that you screw directly into a timber joist or beam.
7. Support the fitting so that no strain is applied to the wiring when making the electrical connections. If necessary get a
colleague to help.
8. Electrical connection: this light fitting must be earthed. Make connections following the diagram below using the terminal
block provided. A small flat-head screwdriver is required.
9. Double check all the connections are secure and that no loose strands of wire are left out of the connector. Ensure the lid of
the terminal block is closed securely after making the connections.
10. Check that no wires are trapped behind or within the fitting and complete the installation, referring to the installation
diagram inside.
11. Fit the correct type and wattage of lamp (or less). Be careful not to overtighten the lamp.
12. Switch on at the fuse-board. Your light fitting is now ready for use.
Other Important Information
Switch off at mains before changing lamp(s). Never fit a lamp of greater wattage than recommended. Ensure children do not
play with the light fitting. Dispose of old lamps carefully. Never leave a fitting without a lamp in position (or someone can
accidently touch the contacts). Adjust fitting only when power to the fitting is off and has been left to cool. If the electrical flex
or electrical components become damaged at any point, power to the fitting should be disconnected immediately and not
operated until the damaged parts are fixed/replaced. For use in dry, indoor environment only. Ensure the fitting does not come
into contact with any liquids.
These instructions are provided for your safety in order to prevent the risk of Fire, Electric shock or Injury. It is vitally
important that they are read in their entirety before installing your fitting. Please retain for future reference.
MADE IN BRITAIN
ORIGINALBTC.COM
[phone]
UNIT 21 / 22 AVENUE ONE, STATION LANE, WITNEY, OX28 4XZ, ENGLAND
Exterior Bracket Light
DP7680
L
N
Live
KEY
Neutral
Earth
L =
N =
=
*Mains
Supply
Fitting
*After 2004, wiring installation colours changed:
LIVE Brown replaces Red
EARTH Green/Yellow sleeving
NEUTRAL Blue replaces Black
BROWN
GRN/YEL
BLUE
BROWN
GRN/YEL
BLUE
Established in 1990, Original BTC manufactures relaxed, familiar lighting for traditional and contemporary homes.
All products are hand-assembled in Oxford from high quality components, produced in the UK.
Cleaning and Maintenance
Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Bone china can be cleaned by
hand, using a soft damp cloth with a diluted mild detergent (nonabrasive) if necessary. Switch off power to the fitting before
cleaning. Spare parts are available for this product, please contact us on the details below.

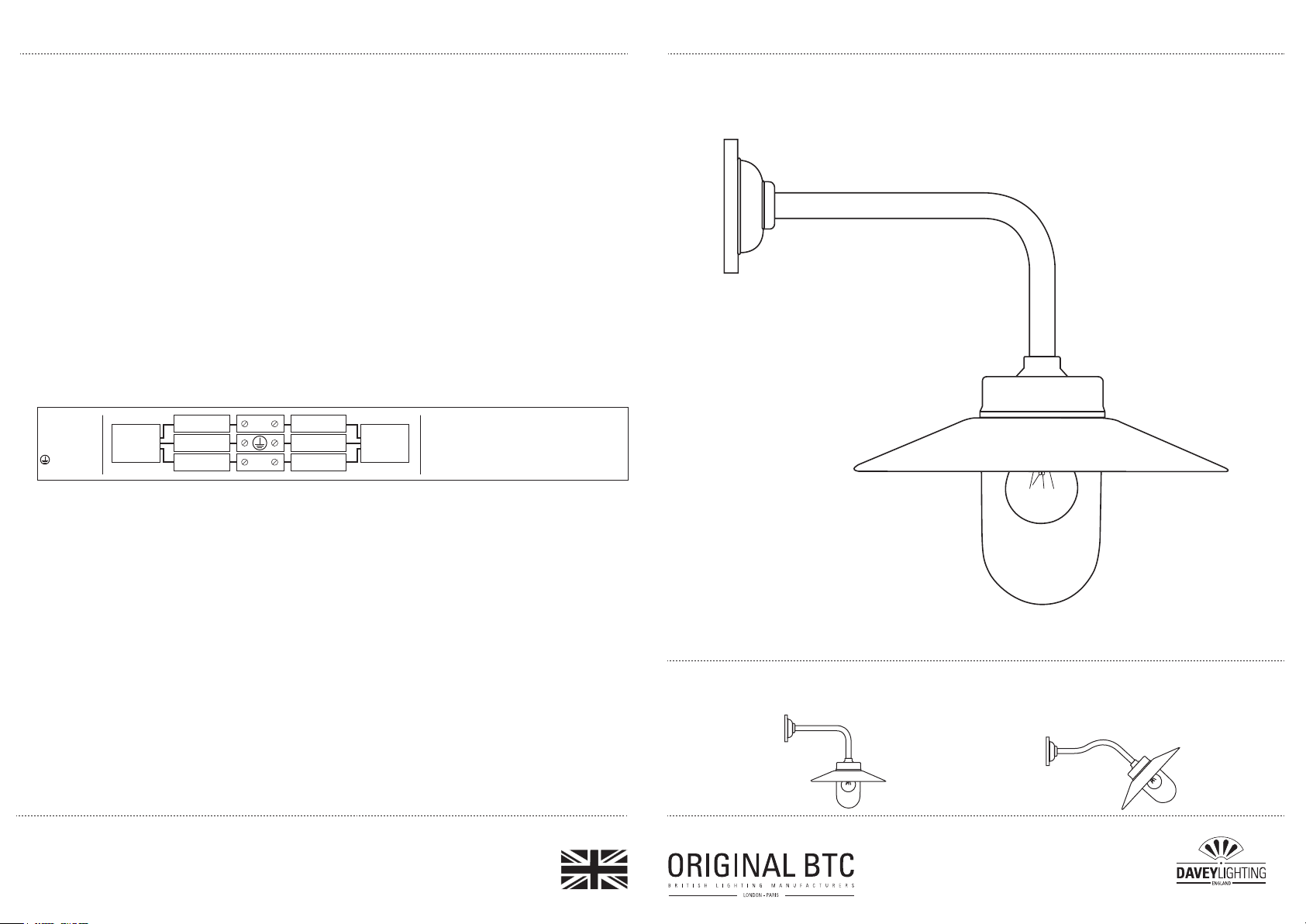

Exterior Bracket Light
Canted Arm Version
DP7680

Exterior Bracket Light 7680
PLEASE READ THE INSTRUCTIONS ON THE REVERSE BEFORE YOU BEGIN INSTALLING YOUR LIGHT
230V ac 50Hz Installation DiagramIP54
A classic, continental style well glass fitting light with screw glass. This wall or pendant light has a
clean design and suits both traditional and modern locations. Crafted out of galvanised iron or raw
sand blasted bronze, the light has a heavy cast construction. The wall light is available with a
standard right angle arm or in the classic French canted version. Mounted either on a round base
dome cover or on a corner fork.
DP7680 Exterior Bracket Light
DP7680 Exterior Bracket Light Canted Arm Version
Contents
1 - Backplate/Arm/Pan assembly
2 - Reflector
3 - Narrow Gasket
4 - Well Glass*
5 - 4 x Fixing screws
6 - 4 x Rawl plugs
7 - Connector
8 - Corner Fork
Required for Installation
-Screwdriver, flat-head
- Small screwdriver, flat-head
- Drill (if holes are required)
Installation and Assembly Instructions
1
2
3
4
Install light as described overleaf.
Assemble the rest of the light, following the diagram on the opposite page.
- Having inserted a light bulb, ensure gasket is in place around neck of glass and screw
into the pan through the opening in the reflector. Do not overtighten.
If the light is to be installed in an exterior location, it is advised that a thin bead of sealant is applied around the
back plate to prevent water damage.
*Glass screws into pan, supporting
reflector. Unscrew well glass
when re-lamping.
8
Optional Extras
5
6
A Fixing Screw B Connector Block C Main Supply
Key
E27 GLS BALL
LAMP GUIDANCE
TYPE* WATTAGE** BASE SHAPE




INCANDESCENT
CFL
ECO-HALOGEN
LED
60W MAX
15W
28W
12W
* Warm white (2700k) low energy lamps recommended.
** Wattage value provided as a guide to suitable lamps. Lower wattage than stated may be used.
A
B
C
7
