Davey Lighting Original BTC 7601 User manual

Instruction Manual
v1.2-06.20
7601
Safety & Installation Instructions
1. If you are in any doubt consult a qualified electrician as to the installation of the fitting. Install in accordance with current
IEE wiring regulations. It is recommended that this fitting is installed by a qualified electrician.
2. Ensure that the electrical supply is OFF. Disconnect the electrical supply at the fuse-board.
3. If removing an existing fitting first, note all wiring connections: record which of the house wires is connected to the live,
neutral and earth terminals.
4. Carefully identify where the supply cable is (and check there are no other cables in the area) to avoid damage to concealed
wiring during installation.
5. Position the light where desired ensuring that there is suitable support adjacent to where you will connect to the house
supply and mark position of fixing holes, before creating an appropriate recess for the fitting. The light will require a recess
of 65mm x 65mm x125mm.
6. Support the fitting so that no strain is applied to the wiring when making the electrical connections. If necessary get a
colleague to help.

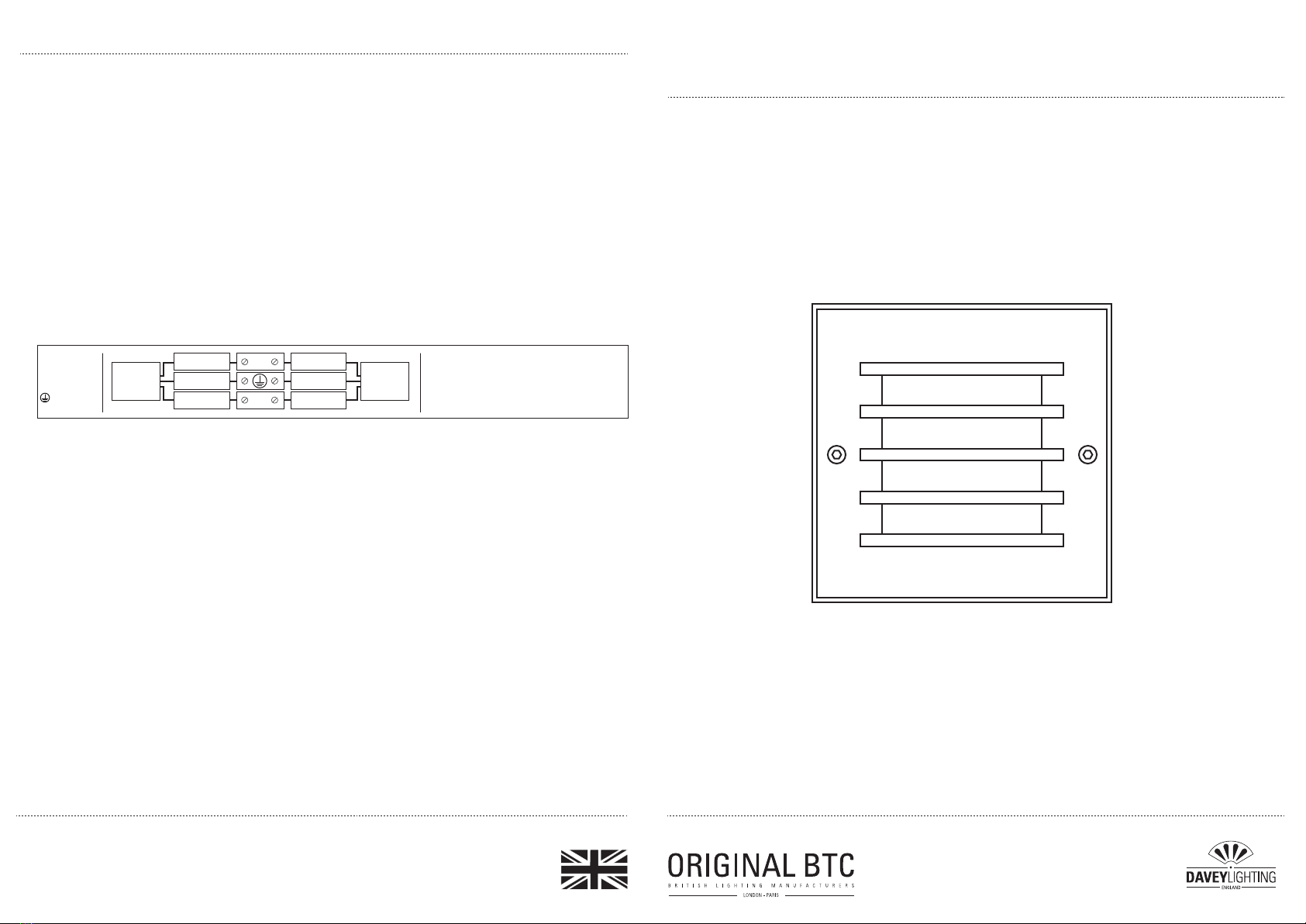

7. Electrical connection: this light fitting must be earthed. Make connections following the diagram below. A small flat-head
screwdriver is required.
8. Double check all the connections are secure and that no loose strands of wire are left out of the connector, Use a good
quality electrical insulation tape to cover the connector blocks and at least 25mm of the cables going in to either end of the
connectors.
9. Check that no wires are trapped behind or within the fitting and complete the installation, referring to the Installation
diagram inside.
10. Fit the correct type and wattage of lamp (or less).
11. Switch on at the fuse-board. Your light fitting is now ready for use.
Other Important Information
Switch off at mains before changing lamp(s). Never fit a lamp of greater wattage than recommended. Ensure children do not
play with the light fitting. Dispose of old lamps carefully. Never leave a fitting without a lamp in position (or someone can
accidentally touch the contacts). Adjust fitting only when power to the fitting is off and has been left to cool. If the electrical
flex or electrical components become damaged at any point, power to the fitting should be disconnected immediately and not
operated until the damaged parts are fixed/replaced.
These instructions are provided for your safety in order to prevent the risk of Fire, Electric shock or Injury. It is vitally
important that they are read in their entirety before installing your fitting. Please retain for future reference.
MADE IN BRITAIN
ORIGINALBTC.COM
[phone]
UNIT 21 / 22 AVENUE ONE, STATION LANE, WITNEY, OX28 4XZ, ENGLAND
L
N
Live
KEY
Neutral
Earth
L =
N =
=
*Mains
Supply
Fitting
*After 2004, wiring installation colours changed:
LIVE Brown replaces Red
EARTH Green/Yellow sleeving
NEUTRAL Blue replaces Black
BROWN
GRN/YEL
BLUE
BROWN
GRN/YEL
BLUE
Established in 1990, Original BTC manufactures relaxed, familiar lighting for traditional and contemporary homes.
All products are hand-assembled in Oxford from high quality components, produced in the UK.
Cleaning and Maintenance
Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Glass can be cleaned by hand,
using a soft damp cloth with a diluted mild detergent (nonabrasive) or suitable glass cleaner if necessary. Switch off power to
the fitting before cleaning. Spare parts are available for this product, please contact us on the details below.
Low Voltage Recessed Step Light
With Back Box

PLEASE READ THE INSTRUCTIONS ON THE REVERSE BEFORE YOU BEGIN INSTALLING YOUR LIGHT
230V ac 50Hz
Installation Diagram
Inserting & Replacing Lamp (Bulb)
IP54 Installation and Assembly Instructions
7601
Low Voltage Recessed Step Light
With Back Box
To Insert/Replace Light bulb
Ensure power is turned off and lamp is left to
cool before replacing
- Squeeze the rear reflector at the top and
bottom (A)
- Pull away from the cover/lamp assembly (B)
- To fit the lamp, ease lamp into lampholder
with a gentle rocking motion (C)
- Replace reflector by squeezing at the top and
bottom, locating the slots into the tabs (B)
Tabs
Slots
A
B
C
Refer to diagrams below.
- Using appropriate tools, make a cut out in the wall where the light is to be installed.
- When creating cut-out hole, it is essential that two notches are made to accommodate the protruding hank
bushes that accept the fixing screws (F).
- Follow diagrams A, B and C to insert bulb.
- Remove the nut from the gland on the underside of the box and slide over the supply cable (must be round
flex, diameter 6-10mm). Pass the cable up through the gland until you have enough length to reach the
connector, screw the nut back on and tighten.
- Having made the electrical connection, the fitting can be inserted into the cut out by fully squeezing the leaf
springs (D) and locating into the cut-out (E), allowing the leaf springs to hold it securely in position. Secure
step light into back box using screws (F).
DE
F
65mm x 65mm x 125mm deep hole
Gland
ConnectorHank bushes
G4 CAPSULE
LAMP GUIDANCE
TYPE* WATTAGE** BASE SHAPE


HALOGEN
LED
20W MAX
3W
* Warm white (2700k) low energy lamps recommended.
** Wattage value provided as a guide to suitable lamps. Lower wattage than stated may be used.
