Well Glass Wall Light
Instruction Manual
v1.2-01.21 7679
Safety & Installation Instructions
1. If you are in any doubt consult a qualified electrician as to the installation of the fitting. Install in accordance with current
IEE wiring regulations. It is recommended that this fitting is installed by a qualified electrician.
2. Ensure that the electrical supply is OFF. Disconnect the electrical supply at the fuse-board.
3. If removing an existing fitting first, note all wiring connections: record which of the house wires is connected to the live,
neutral and earth terminals.
4. Carefully identify where the supply cable is (and check there are no other cables in the area) to avoid damage to concealed
wiring during installation.
5. Position the light where desired ensuring that there is suitable support adjacent to where you will connect to the house
supply and mark position of fixing holes, before drilling appropriate holes as below.
6. a. Brick or masonry: Drill holes into which the wall plugs tightly fit, then insert wall plugs.
b. Wood: No hole necessary (unless small pilot hole required), screws can be screwed directly into the timber.
c. Plaster/Cavity: Special cavity wall fittings are required, rather than provided fixings. These are widely available from
good hardware or DIY store and should come with their own instructions that must be followed. It may be easier to
relocate the fitting so that you screw directly into a timber joist or beam.
7. Support the fitting so that no strain is applied to the wiring when making the electrical connections. If necessary get a
colleague to help.
8. Electrical connection: this light fitting must be earthed. Make connections following the diagram below using the connector
provided. A small flat-head screwdriver is required.
9. Double check all the connections are secure and that no loose strands of wire are left out of the connector. Ensure the lid of
the connector is closed securely after making the connections.
10. Check that no wires are trapped behind or within the fitting and complete the installation, referring to the installation
diagram inside.
11. Fit the correct type and wattage of lamp (or less). Be careful not to overtighten the lamp.
12. Switch on at the fuse-board. Your light fitting is now ready for use.
Other Important Information
Switch off at mains before changing lamp(s). Never fit a lamp of greater wattage than recommended. Ensure children do not
play with the light fitting. Dispose of old lamps carefully. Never leave a fitting without a lamp in position (or someone can
accidentally touch the contacts). Adjust fitting only when power to the fitting is off and has been left to cool. If the external
flexible cable or cord of this luminaire is damaged, it shall exclusively be replaced by the manufacturer or his service agent, or a
similar qualified person, in order to avoid a hazard.
These instructions are provided for your safety in order to prevent the risk of Fire, Electric shock or Injury. It is vitally
important that they are read in their entirety before installing your fitting. Please retain for future reference.
MADE IN BRITAIN
ORIGINALBTC.COM
[phone]
UNIT 21 / 22 AVENUE ONE, STATION LANE, WITNEY, OX28 4XZ, ENGLAND
L
N
Live
KEY
Neutral
Earth
L =
N =
=
*Mains
Supply
Fitting
*After 2004, wiring installation colours changed:
LIVE Brown replaces Red
EARTH Green/Yellow sleeving
NEUTRAL Blue replaces Black
BROWN
GRN/YEL
BLUE
BROWN
GRN/YEL
BLUE
Established in 1990, Original BTC manufactures relaxed, familiar lighting for traditional and contemporary homes.
All products are hand-assembled in Oxford from high quality components, produced in the UK.
Cleaning and Maintenance
Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Glass can be cleaned by hand,
using a soft damp cloth with a diluted mild detergent (nonabrasive) of suitable glass cleaner if necessary. Switch off power to
the fitting before cleaning. Spare parts are available for this product, please contact us on the details below.

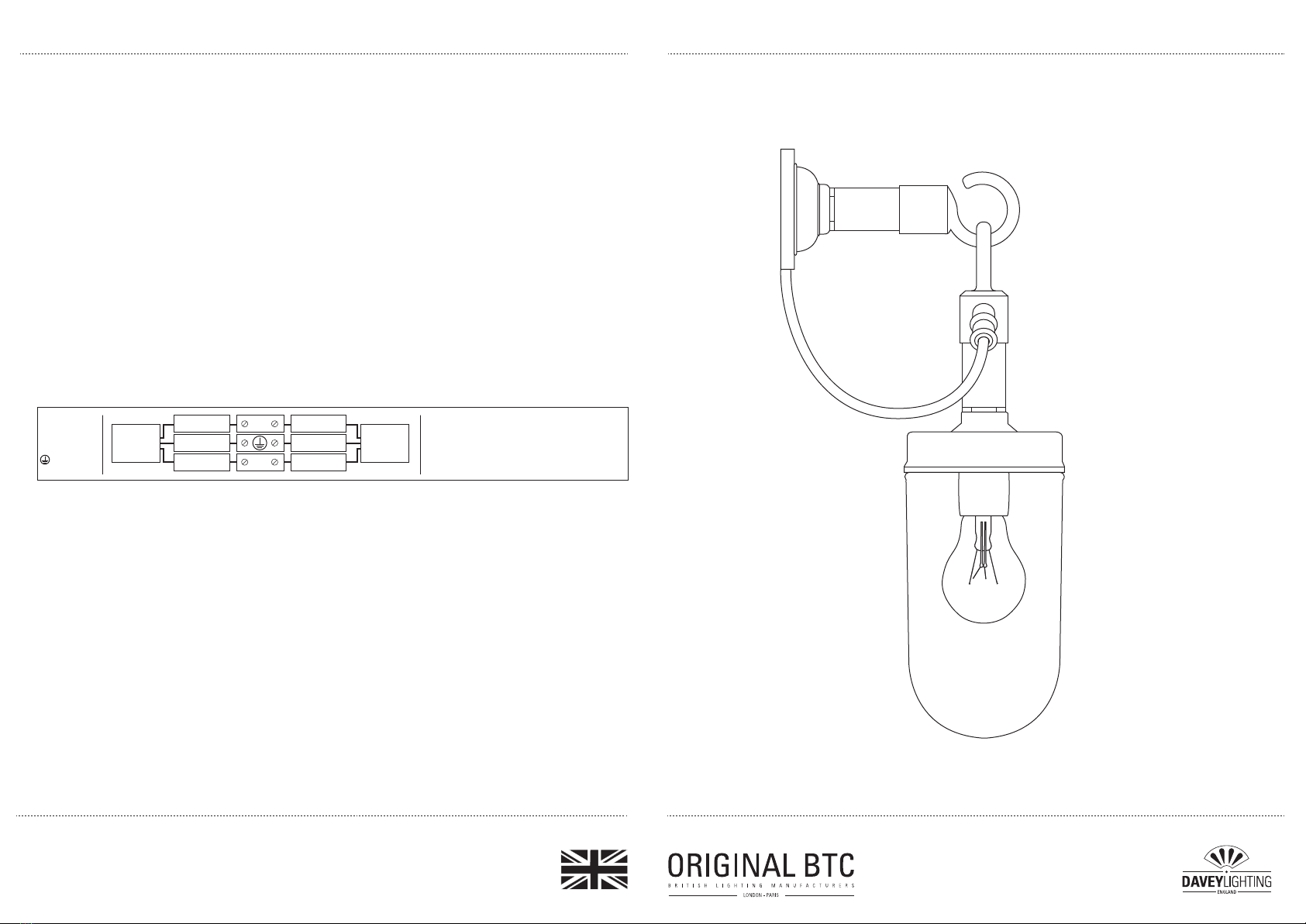

Well Glass Wall Light 7679
PLEASE READ THE INSTRUCTIONS ON THE REVERSE BEFORE YOU BEGIN INSTALLING YOUR LIGHT
230V ac 50Hz Installation Diagram
Contents
IP44
7679/BKT Well Glass Wall Light
Contents
1 - Wall Plate/Hook
2 - Cord Grip
3 - Cable
4 - Pan
5 - Gasket
6 - Well Glass
7 - 2 x Fixing Screws
8 - 2 x Rawl Plugs
9 - IP44 Terminal Block
Required for Installation
-Screwdriver, flat-head
- Small screwdriver, flat-head
- Drill (if holes are required)
A
B
C
Fixing Screws
Backplate
Cord Grip
D
E
IP44 Connector Block
Main Supply Cable
Key
1
3
2
4
5
6
78
9
Hanging Instructions
Follow the instructions overleaf to install the fitting. Ensure the cordgrip (C) is positioned on the inside of the
backplate.
A
CABLE
GRIP
TOP
COVER
IP44 Connector block
B
C
D
E
E27 GLS BALL
LAMP GUIDANCE
TYPE* WATTAGE** BASE SHAPE




INCANDESCENT
CFL
ECO-HALOGEN
LED
60W MAX
15W
28W
12W
* Warm white (2700k) low energy lamps recommended.
** Wattage value provided as a guide to suitable lamps. Lower wattage than stated may be used.
