1. DESCRIPTION

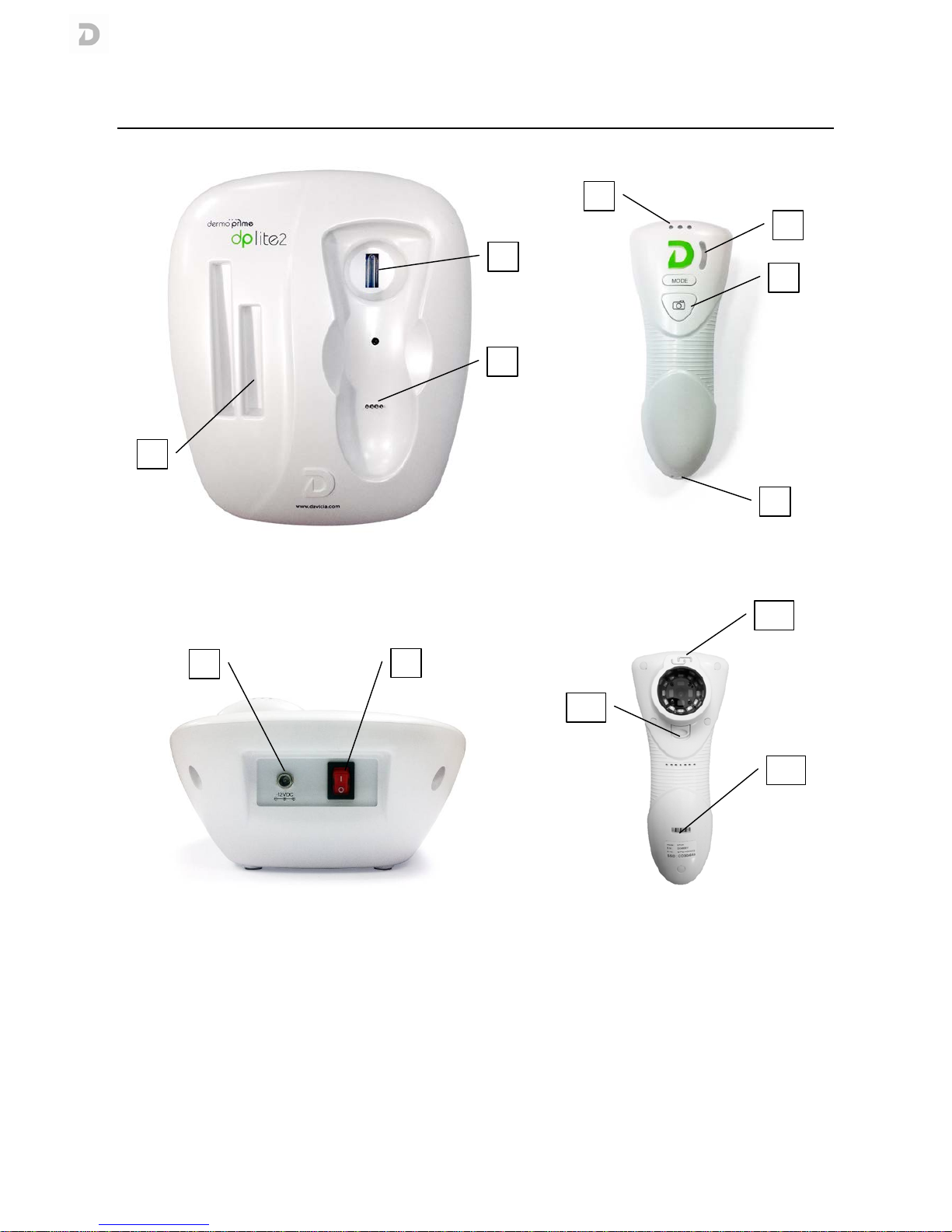

Charging dock, top view
Camera, back view
Charging dock, back view
Camera, front view
(1) Housing for sebum indicators
(2) UV Lamp
(3) Battery charging connectors
(4) Indicators of the battery status
(5) Capture mode indicator
(6) Play / Pause Button
(7) Wifi Camera Switch
(8) Power supply connection
(9) ON / OFF Switch
(10) Hydration sensors
(11) Optics fastener
(12) Battery charging connection (must make
contact to the charging dock)
4
2
3
8
9
1
5
6
11
12
7
10
4

2. PART LIST
Charging dock (x1) Camera (x1) User’s manual
Power adaptor 12VDC (x1)
Sebum indicators (x50)
Keratin indicators (x200)
USB charger (x1)
Cloth cleaner
Air blower

USER’S MANUAL
MA33-02/D
3. STARTING UP
oConnect the equipment to the power supply (8)
oSwitch ON the equipment (9)
oSwitch ON the Wifi Camera (7)
oThe battery LEDs (4) of the camera turn on automatically.
oThen, you must wait until the Capture mode indicators of the camera (5), light up in orange,
green and blue colors.
oNow the equipment is ready for operation.
oWhen the battery of the camera is low or very low, switch OFF the camera to charge.
4. LOCATION AND ENVIRONMENT
Please, follow the instructions:
•Do not use this device near water.
•Do not install near any heat sources such as radiators, heat registers, stoves, or other
devices (including amplifiers) that produce heat.
•NEVER place this device on other electrical equipment or slanted table.
•Keep this device away from direct sunlight, naked flames or heat.
5. OPERATION
Please refer to the software manual.
NOTICE
On the device’s temperature:
The device may get hot due to continuous use, but it is not a malfunction.
On the overheat protection:
Depending on the device temperature, you may be unable to take the photos. In this case,
leave the power off and wait until the device temperature goes down.
6

USER’S MANUAL
MA33-02/D
6. LIGHT INDICATORS
6.1. DOCK INDICATORS
Power LED
ON Power ON
OFF Power OFF
6.2. CAMERA INDICATORS
Battery LED
Very low battery
Half battery
Full battery
(Blinking) On charging
Capture mode
Pink Moisture and Sebum
Red Pores
Green Wrinkles
Blue Spots
Yellow UV (Acne)
7

USER’S MANUAL
MA33-02/D
7. MAINTENANCE AND CLEANING
Please, follow the instructions:
•Clean only with dry cloth.
•Only use attachments/accessories specificed by the manufacturer.
•NEVER insert any dry cloth or cleaning material into the optic, it can cause the
malfunction of the device.
•NEVER remove the casing of the device.
•NEVER lubricate any part of this device.
•Avoid rough handling, disassembling, modifying, physical shock, or impact such as
hannering, dropping, or stepping on the device. Be particularly careful of the lens.
7.1. EQUIPMENT DISPOSAL
All electrical and electronic products should be disposed of separately
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities.
This crossed-out wheeled bin symbol on the product means the
product is covered by the European Directive 2002/96/EC.
The correct disposal and separate collection of the equipment will
help prevent potential negative consequences for the environment
and human health. It is a precondition for reuse and recycling of used
electrical and electronic equipment.
8

USER’S MANUAL
MA33-02/D
8. TECHNICAL SPECIFICATIONS
Model:
DPLITE2
Manufacturer:
DAVI & CIA
C/Murcia 35 nave G
E08830 Sant Boi de Llobregat
Barcelona – SPAIN
Weight:
0.8 kg (aprox.) – including the camera
Max. external dimensions:
185 x 220 x 90 (mm)
Power supply:
12 VDC
Consumption:
1A
EC applicable Directives
LVD: Art.3.1.a)
EN60950-1: 2006+A11:2009+A1:2010+A12:2011
EMC: Art.3.1.b)
ETSI EN 301 489-1 V1.9.2
ETSI EN 301 489-17 V2.2.1
RF: Art.3.2)
ETSI EN 300 328 V1.7.1
According to the regulations in Directive 1999/5/EC
8.1. CAMERA
Image sensor
5M pixels CMOS
Magnification
20X
Lighting
White LED
UV LED
Polarized White LED (LED with polarizing film)
Battery
3.7V / 1050mAh Li-Ion Polymer
Continuous Operation time
about 60 minutes depends on user environment
Charging time
about 2 hours
Disinfection
Disinfection with UV Lamp
Dimensions
58.8 x 150.5 x 58 (mm)
8.2. WIFI COMMUNICATION
Support Protocol
Wi-Fi IEEE 802.11b/g/n
Camera operation range
about 10m from a Wifi connected device
Frequency
2.4 GHz band width
9

USER’S MANUAL
MA33-02/D
9. WARRANTY
We provide a 1-year warranty from the date of purchase. The warranty covers manufacturing
defects or defects occurring as a result of normal use and operation.
It excludes all removable parts such as batteries, wires, power supply devices, etc. Faults
falling within the warranty period shall be rectified free of charge upon presentation of the
purchase receipt for the appliance. No other rights can be taken into consideration.
Return shipment is at the customer's expense if the appliance is anywhere other than at the
customer's headquarters.
In the event of damage during shipment, warranty rights will be granted only if the appliance is
shipped in the original packaging. You are therefore recommended to keep the original
packaging.
Following expiry of the warranty period, all services requested will be dealt with by our
specialist technicians at the user's expense.
10

USER’S MANUAL
MA33-02/D
10. CE DECLARATION OF CONFORMITY
FABRICANTE PRODUCTO: DAVI & CIA S.L.
PRODUCT MANUFACTURER:
DIRECCIÓN: C/ Murcia, 35, Nave G
ADDRESS:Polígono Industrial Can Calderón
E08830 Sant Boi de Llobregat
BARCELONA - ESPAÑA
DECLARAN BAJO SU RESPONSABILIDAD QUE EL PRODUCTO:
DECLARE UNDER THEIR RESPONSIBILITY THAT THE PRODUCT
Nombre DPLITE2
Name
Tipo CÁMARA DIGITAL INHALÁMBRICA
Type Wireless digital camera
CUMPLE LOS REQUISITOS U OTROS DOCUMENTOS DE ESTANDARIZACIÓN:
CONFORMS WITH THE RELEVANT STANDARDS OR OTHER STANDARIZING DOCUMENTS:
LVD: Art. 3.1.a) EN 60950-1: 2006+A11:2009+A1:2010+A12:2011
EMC: Art.3.1.b) ETSI EN 301 489-1 V1.9.2
ETSI EN 301 489-17 V2.2.1
EMC: Art.3.1.b) ETSI EN 300 328 V1.7.1
CONFORME A LA DIRECTIVA: 1999/5/EC
ACCORDING TO THE DIRECTIVE:
Nombre:
Name
Firmado:
Signed
Cargo:
Function
J.Masana
Director
DAVI & CIA
FECHA: 21 de Marzo de 2014 DATE: 21
st
March 2014
11
