DAVID COMMERCIAL ZM-700.DV User manual

Owner’s Manual
®
®
ZM-700.DV
ZM-700.DV_0422_converted 1ZM-700.DV_0422_converted 1 6/29/22 3:37 PM6/29/22 3:37 PM

2
CONTENTS
Getting Started
Important Safety Instructions 3
Grounding Instructions 4
Description of the Vacuum 5
Assembling the Vacuum 6-7
Operation
Reclining the Handle 8
On/Off Switch 8
Edge Cleaning 8
Automatic Carpet Height Adjustment 8
Bare Floor Cleaning 8
Maintenance and Care
Power Cord Care 9
Vacuuming Under Furniture 9
Replacing the Vacuum Bag 10
Removing/Reinstalling the Bottom Plate 11
Replacing the Agitator Belt 12
Brushroll Jam Indicator 13
Resetting the Circuit Breaker 14
Replacing the Squeegee 14
Key Replacement Parts 15-16
For Best Performance 16
Warranty 17-18
ZM-700.DV_0422_converted 2ZM-700.DV_0422_converted 2 6/29/22 3:37 PM6/29/22 3:37 PM

3
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE.
IMPORTANT:The manufacturer cannot accept responsibility for
damage caused when the appliance is not used according to the instructions, or for
uses other than those for which it was intended.
WARNING:To reduce the risk of fire, electric shock, damage or injury:
• Do not leave appliance when plugged
in. Unplug from outlet when not in use
and before servicing.
• WARNING: ELECTRIC SHOCK COULD
OCCUR IF USED OUTDOORS OR ON
WET SURFACES.
• Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
• Use only as described in this manual.
• Do not use with damaged cord or plug.
If appliance is not working as it should,
has been dropped, damaged, left
outdoors, or dropped into water, return
it to the distributor where purchased
for service.
• Do not pull or carry by cord, use cord
as a handle, close a door on the cord,
or pull cord around sharp edges or
corners. Do not run appliance over
cord. Keep cord away from heated
surfaces.
• Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with
wet hands.
• Do not put any object into openings.
Do not use with any opening blocked;
keep free of dust, lint, hair and anything
that may reduce air flow.
• Keep hair, loose clothing, fingers and all
parts of body away from openings and
moving parts.
• Do not pick up anything that is burning
or smoking, such as cigarettes, matches
or hot ashes.
• Do not use without vacuum bag in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or
combustible liquids such as gasoline or
use in areas where they may be present.
• Do not attempt to service the unit while
appliance is plugged in.
• Connect to a properly grounded outlet
only. See Grounding Instructions.
• Make sure your extension cord is in
good condition and is the correct
size for your appliance, i.e. 16 AWG.
If in doubt, use the next heavier
gage. The smaller the gage number,
the heavier the cord. An undersized
extension cord will cause a drop in
line voltage resulting in loss of power
and overheating.
• Use only three-wire outdoor extension
cords that have three-prong grounding
plugs and grounding receptacles that
accept the appliance’s plug.
• Warning - To reduce the risk of
personal injury due to a loose electrical
connection between the appliance’s
plug and extension cord, firmly and
fully attach the appliance plug to the
extension cord. Periodically check the
connection while operating to ensure
it is fully attached. Do not use an
extension cord that provides a loose
connection. A loose connection may
result in overheating, fire, and increases
the risk of a burning.
• To reduce the risk of disconnection of
the appliance cord from the extension
cord during operating, secure the
extension cord to the appliance plug as
shown or described in the Operating
Instructions
ZM-700.DV_0422_converted 3ZM-700.DV_0422_converted 3 6/29/22 3:37 PM6/29/22 3:37 PM

4
GROUNDING INSTRUCTIONS
This vacuum cleaner must be grounded. If it should malfunction or break down,
grounding provides a path of least resistance for electric current to reduce the risk
of electric shock. This vacuum cleaner is equipped with a cord having an equipment-
grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances.
This vacuum cleaner is for use on a nominal 120-volt circuit and has a ground plug
(see illustration). Make sure that the vacuum is connected to an outlet having the
same configuration as the plug. No adapter should be used with this vacuum.
Grounded
Outlet
Grounding
Grounded
Outlet Box
WARNING:
Improper connection of the
equipment-grounding conductor
can result in the risk of electric
shock. Check with a qualified
electrician or service person if
you are in doubt as to whether
the outlet is properly grounded.
Do not modify the plug provided
with the vacuum – if it will not fit
the outlet, have a proper outlet
installed by a qualified electrician.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects
or other reproductive harm.
ZM-700.DV_0422_converted 4ZM-700.DV_0422_converted 4 6/29/22 3:37 PM6/29/22 3:37 PM

5
®
DESCRIPTION OF THE VACUUMDESCRIPTION OF THE VACUUM
7 8
10
11
1.
3.
4.
5
6
9
1. Ergonomic Handle
2. On/Off Power Switch, Two Speed
3. Bag Compartment
4. Vacuum Nozzle
5. Furniture Guard
6. Brushroll Jam Indicator
7. Circuit Breaker Reset Button
8. Handle Release Pedal
9. Quick Release Cord Hook
10. Upper Cord Hook
11. Cord Restraint
ZM-700.DV_0422_converted 5ZM-700.DV_0422_converted 5 6/29/22 3:37 PM6/29/22 3:37 PM

6
ASSEMBLING THE VACUUM
Fig. 2
Fig. 3 Fig. 4
Fig. 1
Attaching the Handle to the
Vacuum
NOTE: Do not plug in the vacuum until it
is completely assembled.
The vacuum cleaner and the handle are
packed separately and require assembly.
• Thread the cord through the lower and
upper cord guides on the back of the
vacuum bag (Fig. 1).
• Remove the handle bracket by
removing the two screws (Fig. 2).
• Place handle onto the back of the
vacuum, aligning holes with pegs (Fig. 3).
• Place the handle bracket back into
position (Fig. 4).
• Secure with two screws removed in
Step 2.
• Open the bag compartment to ensure a
vacuum bag is in place.
• Your vacuum is now ready for use.
• If storing the vacuum, wrap the cord
clockwise around the top and bottom
cord hooks. Fasten the plug to the
wrapped cord using the channel on
the plug.
ZM-700.DV_0422_converted 6ZM-700.DV_0422_converted 6 6/29/22 3:37 PM6/29/22 3:37 PM

7
ASSEMBLING THE VACUUM
Fig. 1
Fig. 2
®
Attaching the Cord Retainer to
the Handle
• Pull apart the rounded end of the cord
retainer to open it up enough to fit
around the carry handle (Fig. 1).
• Attach the cord retainer around the
carry handle.
• Create a loop in the power cord and
push it through the slot and over the
hook of the cord retainer.
• Pull down on the power cord to remove
any slack.
Unwinding the Power Cord
• The lower cord hook rotates to allow
for quick access to the power cord (Fig.
2). Turn the lower cord hook upward
and you can quickly drop the power
cord to the floor without unwinding it
from the cord hooks.
• When storing the vacuum cleaner, turn
the lower cord hook to the downward
position and wind the power cord
around the cord storage hooks.
ZM-700.DV_0422_converted 7ZM-700.DV_0422_converted 7 6/29/22 3:37 PM6/29/22 3:37 PM

8
OPERATION
Fig. 1
Reclining the Handle
• Press the handle release pedal located
on the back of the vacuum with your
foot to recline the handle (Fig. 1).
On/Off Switch, Two Speed
• The power switch located on the
vacuum handle, is a three-way switch
(Fig. 2). The middle position is the “Off”
setting, the rear position is the “On”
setting and the forward position is for
“Maximum Power” (Fig. 3).
• Use the “Maximum Power” setting for
carpet cleaning. Use the “On” setting
for cleaning bare floors and throw rugs.
Always turn the vacuum cleaner to the
“Off” setting before unplugging it from
the electrical outlet.
Edge Cleaning
The edge cleaning feature provides
improved cleaning near walls and
stationary furniture. For maximum edge
cleaning, place the left side of the nozzle,
from the user’s perspective, against the
wall or stationary furniture.
Automatic Carpet Height
Adjustment
Your vacuum is designed with an
automatic self-adjusting nozzle. No
manual adjustments are required. The
height of the nozzle automatically
adjusts to the flooring surface. This self-
adjusting feature allows the nozzle to
float evenly over all flooring surfaces.
Bare Floor Cleaning
Your vacuum is equipped with a squeegee
on the bottom of the vacuum to improve its
effectiveness in cleaning bare floors (Fig. 4).
When cleaning tile, hardwood, vinyl, etc.,
use the “On” setting for best results.
Fig. 2
Fig. 3
ON
OFF
MAX
POWER
Fig. 4
ZM-700.DV_0422_converted 8ZM-700.DV_0422_converted 8 6/29/22 3:37 PM6/29/22 3:37 PM

9
MAINTENANCE AND CARE
Fig. 2
Power Cord Care
• If the cord or plug has any apparent
damage, refrain from using the vacuum.
• When the vacuum is in use, hold the
cord to keep from running over it.
• Avoid obstructions and do not pull the
cord around sharp edges or corners.
• Always keep the cord away from
heated surfaces and never close doors
on it as this may cause damage to
the wiring.
• To unplug, always grasp the plug, not the
cord.
Vacuuming Under Furniture
Your vacuum will lay flat on the floor for
effective cleaning under beds and tables.
• Press the handle release pedal once for
normal vacuum cleaning (Fig. 1).
• Continue to lower the handle to enable
the vacuum to lay flat on the floor
(Fig. 2).
Fig. 1
ZM-700.DV_0422_converted 9ZM-700.DV_0422_converted 9 6/29/22 3:37 PM6/29/22 3:37 PM

10
MAINTENANCE AND CARE
Replacing the Vacuum Bag
NOTE: Unplug the vacuum cleaner from
the electrical outlet before changing
the bag.
• Unzip the bag compartment.
• Remove the used vacuum bag by
pulling the green bag collar tab away
from the vacuum (Fig. 1). Slide the
used bag out of the bag holder which
automatically seals the bag opening
(Fig. 2). Discard the used bag.
• To install a new bag, slide the bottom
of the green bag collar into the bag
holder until it “snaps” into place (Fig. 3).
• Push the top of the bag collar upward
until the collar “snaps” into place on the
vacuum (Fig. 4).
• Tuck the bag corners into the bag
compartment then zip the bag
compartment closed.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
ZM-700.DV_0422_converted 10ZM-700.DV_0422_converted 10 6/29/22 3:37 PM6/29/22 3:37 PM

11
MAINTENANCE AND CARE
Fig. 1
Fig. 2

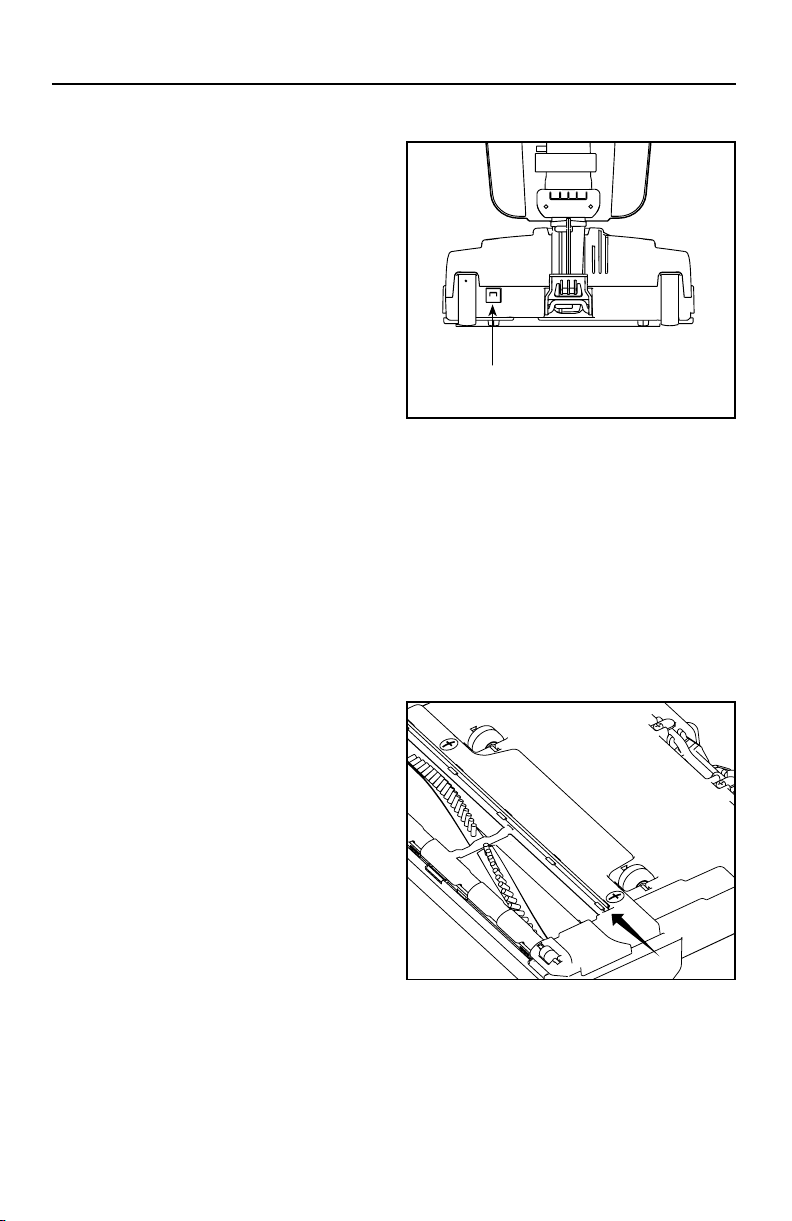

Removing and Reinstalling the
Bottom Plate
WARNING! To reduce the risk of
electrical shock or injury from moving
parts, unplug before servicing or
cleaning.
To Remove the Bottom Plate:
• Press the handle release pedal to place
the vacuum cleaner in the flat position.
• Turn the vacuum cleaner over, exposing
the bottom plate.
• Turn the two screws a quarter turn to
release the bottom plate (Fig. 1). Remove
the bottom plate.
• Reinstall the bottom plate by aligning the
front edge of the bottom plate into the
notches inside the nozzle housing (Fig. 2).
• Press the bottom plate into position until
the plate “clicks” on both sides. Tighten
the two screws a quarter turn to secure
the bottom plate.
ZM-700.DV_0422_converted 11ZM-700.DV_0422_converted 11 6/29/22 3:37 PM6/29/22 3:37 PM

12
MAINTENANCE AND CARE
Replacing the Agitator Belt
WARNING! To reduce the risk of
electrical shock or injury from moving
parts, unplug before servicing or cleaning.
NOTE: To ensure maximum cleaning
efficiency, the belt should be checked
regularly to be sure it is in good
condition. Check to see if the belt
is stretched, cracked, or if excessive
slipping is occurring. Replace if needed.
• Remove the bottom plate
(see page 11).
• Remove the brushroll and the worn or
broken belt from the brushroll pulley
and the motor drive shaft (Fig. 1).
• Loop the new belt around the motor
drive shaft and the brushroll (Fig. 2).
• Reinstall the brushroll into the housing.
Turn the brushroll by hand, making sure
the belt is not twisted and all rotating
parts move smoothly.
• Reinstall the bottom plate
(see page 11).
Fig. 1
Fig. 2
ZM-700.DV_0422_converted 12ZM-700.DV_0422_converted 12 6/29/22 3:37 PM6/29/22 3:37 PM

13
MAINTENANCE AND CARE
Brushroll Jam Indicator
If an object, such as a throw rug or
article of clothing, is ever picked up into
your vacuum, the vacuum will sense this
“jammed brushroll” condition and turn
off the brushroll. When this happens, the
Brushroll Jam Indicator light on the top
of the nozzle will flash in red.
• Turn off the vacuum and remove the
cause of the jam. Turn the vacuum
back on.
• If the brushroll is free of obstructions
and the Brushroll Jam Indicator light
is still flashing, it’s likely the clogged
condition is located in the vacuum
motor fan.
ZM-700.DV_0422_converted 13ZM-700.DV_0422_converted 13 6/29/22 3:37 PM6/29/22 3:37 PM

14
MAINTENANCE AND CARE
Resetting the Circuit Breaker
WARNING! To reduce the risk of
electrical shock or injury from moving
parts, unplug before servicing or cleaning.
Your vacuum features a circuit breaker
to protect the machine against damage
due to a surge in the electrical current.
Electrical surging can be a result
of, though not limited to, a jammed
motor fan.
Should your vacuum cleaner experience a
jammed brushroll with the circuit breaker
tripping, turn the vacuum off, and unplug
the unit. Inspect the brushroll by removing
the bottom plate (see page 11) and
remove any debris that may be causing
the jam. Reinstall the bottom plate (see
page 11) and reset the circuit breaker
by pressing the Circuit Breaker Reset
Button. Plug in the power cord, and turn
on the vacuum.
Replacing the Squeegee
If your squeegee splits or begins to look
worn, simply slide the worn squeegee
from its track and slide a new one into
the track.
Circuit Breaker
Reset Button
ZM-700.DV_0422_converted 14ZM-700.DV_0422_converted 14 6/29/22 3:37 PM6/29/22 3:37 PM

15
TROUBLESHOOTING
PROBLEM CHECK POINT POSSIBLE SOLUTION
Vacuum won’t
turn on
• Power cord not firmly
plugged in
• Plug unit in firmly
• Blown fuse or tripped
breaker
• Check house fuse or
breaker. Replace fuse / reset
breaker
• Needs service • Take to an authorized
service center
Vacuum won’t pick
up or low suction
• Vacuum bag full • Install new bag
• Hose clogged • Remove obstacle
Dust escaping
from vacuum
• Bag compartment cover
not installed properly
• Reinsert the cover and
secure latch
• Vacuum bag not installed
correctly
• Review bag installation
(page 10)
Any other service should be performed by an Authorized DAVID®Vacuum
Retailer. To locate your nearest Authorized Retailer, visit our website at
DAVIDPRODUCTS.COM or call 281-866-0027.
Key Replacement Parts
• Genuine bags and filters are available from your authorized DAVID retailer.
For Best Performance
• Keep machine and all accessories clean and in good operating condition.
• Change vacuum bag and belts as recommended to maintain optimum
cleaning efficiency.
• Always use genuine bags, filters and parts, as use of other products may result in
poor cleaning or filtration performance. David filtration products are designed for
maximum performance.
• Have machine checked periodically by the retailer where you purchased your
DAVID vacuum.
• Store machine carefully in dry area.
• For optimum cleaning performance and safety, follow your owner’s manual.
ZM-700.DV_0422_converted 15ZM-700.DV_0422_converted 15 6/29/22 3:37 PM6/29/22 3:37 PM

16
DAVID Products Household Vacuum Limited Warranty
DAVID Products warrants that, from the date of purchase by the consumer who originally
purchased the product (“you”) and until the expiration of the warranty period set forth for your
product above, the product shall be free from defects in material and workmanship when it is used
under normal household conditions and maintained according to the requirements outlined in the
Owner’s Manual, subject to the conditions and exclusions set forth below.
Who may use this limited warranty?
DAVID Products extends the limited warranty set forth below only to the consumer
who originally purchased the product. This limited warranty does not extend to any
subsequent owner or other transferee of the product.
What is covered by this limited warranty?
1. The original product, as described above, and/or non-wearable parts deemed defective, in
DAVID Products’ sole discretion, will be repaired or replaced for the duration of the warranty
period. If found to be defective within the stated warranty period, the unit will be repaired at
no charge to you (both parts and labor) by an authorized DAVID Products Service Center.
2. In the event a replacement product is issued, the warranty coverage continues from the date
of purchase of the original product. DAVID Products reserves the right to replace the original
product with one of equal or greater value.
3. Return freight and reshipment costs (ground freight only) are prepaid by DAVID Products for
warranty claims that meet the eligibility requirements.
4. Designated models include a separate lifetime warranty on the belts. This applies to model
ZM-700.DV only.
5. DAVID Products product warranties vary per model. Please see duration warranty above for
details of the time frame of your purchase.
6. To find an authorized DAVID Products sales and service center, visit DAVIDPRODUCTS.COM
How to get service and initiate a warranty claim
We encourage you to register your product online at DAVIDPRODUCTS.COM.
If your product fails to operate properly while in use under normal household conditions within the
warranty period, visit DAVIDPRODUCTS.COM to assist with product support and warranty service
options. So we may better assist you, please register your product online.
To find an authorized DAVID Products sales and service center, visit our retailer locator at
DAVIDPRODUCTS.COM.
Owner’s Warranty Information (keep this for your records.)
Store name
Store Address City State Zip
Telephone Date of purchase
Serial number Model number
WARRANTY
ZM-700.DV_0422_converted 16ZM-700.DV_0422_converted 16 6/29/22 3:37 PM6/29/22 3:37 PM

17
What is not covered by this limited warranty?
1. Normal wear and tear of wearable parts (such as foam filters, HEPA filters, belts, brush
strips etc.), which require regular maintenance and/or replacement to ensure the proper
functioning of your product, are not covered by this limited warranty. Replacement parts are
available for purchase from your local retailer or at DAVIDPRODUCTS.COM.
2. Any product that has been tampered with or used for commercial purposes.
3. Damage caused by misuse (e.g., vacuuming up water or other liquids), abuse, negligent
handling, failure to perform required maintenance (e.g., not cleaning the filters or changing
the bags), or damage due to mishandling in transit.
4. Consequential and incidental damages.
5. Defects caused by repair persons not authorized by DAVID Products. These defects include
damages caused in the process of shipping, altering, or repairing your DAVID Products
product (or any of its parts) when the repair is performed by a repair person not authorized
by DAVID Products.
6. Products purchased, used, or operated outside the USA and Canada.
7. Products that are second-hand, or products outside of the warranty period.
8. Products that have not been assembled, used, or maintained in accordance with the
operating instructions.
9. Defects or damage caused by the use of non-genuine DAVID Products parts, including
but not limited to bags, belts, filters and spare parts, or machines that have unauthorized
modifications.
10. Products in which filters have been washed and/or bags have been reused
11. Typical wear and tear, accident, other casualty, misuse, neglect, improper use or
maintenance, or any product in which the serial number has been altered or removed.
12. Normal maintenance, such as the removal of clogs or cleaning brush rollers.
**Exclusions and limitations of this limited warranty and your potential rights under State law.
TO THE EXTENT NOT PROHIBITED BY APPLICABLE LAW, THIS LIMITED WARRANTY IS
EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER WARRANTIES WHETHER WRITTEN, ORAL,
STATUTORY, EXPRESS OR IMPLIED, (INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE). THIS LIMITED WARRANTY
DISCLAIMS LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW
DISCLAIMERS OF IMPLIED WARRANTIES, SO THE FOREGOING DISCLAIMER MAY NOT APPLY
TO YOU. FURTHERMORE, SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. TO THE
EXTENT SUCH WARRANTIES CANNOT BE DISCLAIMED OR LIMITED IN DURATION UNDER
THE LAWS OF YOUR JURISDICTION, WE LIMIT THE DURATION AND REMEDIES OF SUCH
WARRANTIES TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY, AS STATED ABOVE
FOR YOUR PARTICULAR PRODUCT.
Register your warranty online at DAVIDPRODUCTS.COM
WARRANTY
ZM-700.DV_0422_converted 17ZM-700.DV_0422_converted 17 6/29/22 3:37 PM6/29/22 3:37 PM

18
NOTES
ZM-700.DV_0422_converted 18ZM-700.DV_0422_converted 18 6/29/22 3:37 PM6/29/22 3:37 PM

19
NOTES
ZM-700.DV_0422_converted 19ZM-700.DV_0422_converted 19 6/29/22 3:37 PM6/29/22 3:37 PM

DAVIDPRODUCTS.COM
®
B503-2851 04/2022
ZM-700.DV_0422_converted 20ZM-700.DV_0422_converted 20 6/29/22 3:37 PM6/29/22 3:37 PM
