DaVinci CLASSIC 2 User manual

DAVINCI GLIDERS / CLASSIC2
1
REV. 1
MAY 2022
Davinci Products Inc.
53 Sinchon-gil, Okcheon-myeon, Yangpyeong-gun, Gyeonggi-do, South Korea. (12505)
Tel. [phone] Fax. [phone]
info@ydavinci.com / [email protected]
www.ydavinci.com

DAVINCI GLIDERS / CLASSIC2
1
Congratulations!
Thank you for choosing the CLASSIC2.
The CLASSIC has been designed for who are willing to progress in
the sport safely, chasing their rst XC ights but who are also com-
fortable with the technical control of this type of glider.
The CLASSIC is an easy and fun paraglider with excellent glide and
a very ecient speed system designed as a Low EN-B class glider.
This manual will help you to get all information about your glider
. We strongly recommend that you read this manual carefully in
or-der to be aware of any general limitations , performance
character -istics , take - o and ight characteristics , landing
procedures , deal - ing with emergency situations , and general
maintenance.
This is information about the design of the CLASSIC2, advice on
how to use it best and how to care for it to ensure it has a long life,
WARNING!
THIS IS NOT A TRAINING MANUAL. ATTEMPTING TO FLY THIS OR
ANY OTHER PARAGLIDER WITHOUT PROPER INSTRUCTION FROM
A CERTIFIED PROFESSIONAL INSTRUCTOR IS EXTREMELY DANGER-
OUS TO YOURSELF AND BYSTANDERS.
DAVINCI GLIDERS are carefully manufactured and inspect-
ed at the factory. Please use the glider only as described in
this manual.
Do not make any modications to the glider.
As with any sport – without taking the necessary safety pre-
cautions, paragliding can be dangerous.
Congratulations!
-DAVINCI GLIDERS TEAM-

DAVINCI GLIDERS / CLASSIC2
2
INDEX
1. Technical DATA
2. Materials DATA
3. Introduction and
Pilot Target
12
11
10
9
7
6
5
4
3
14. Packing your CLASSIC2
15. Maintenance and
cleaning
16. Caring tips
13. Landing
17. Warrantee
18. Respecting nature
and environment
8
4. Harness
6. Lines
7. Accelerator system
5. Risers
8. Pre-ight check
9. Take-0
9.1 Tow launch
11.2 Frontal collapse
10. In ight characteristics
11. Deations
11.1 Asymmetric collapse
11.5 Asymmetrical stall
11.6 B stall
11.4 Deep stall
11.3 Full stall
12.2 Spiral dive
12. Descent Techniques
12.1 Big ears
11.7 Cravat

DAVINCI GLIDERS / CLASSIC2
3
1. Technical DATA
CLASSIC2 XS S M L
CELLS NUMBER 48 48 48 48
CLOSED 10 10 10 10
FLAT
AREA m² 22.8 24.9 26.9 29.2
SPAN m 10.8 11.3 11.7 12.2
ASPECT RATIO 5.1 5.1 5.1 5.1
PROJECTED
AREA m² 19.2 21.0 22.7 24.6
SPAN m 8.51 8.89 9.24 9.63
ASPECT RATIO 3.77 3.77 3.77 3.77
FLATTENING % 15.7 15.7 15.7 15.7
CORD MAX m 2.53 2.65 2.75 2.86
AVER m 2.1 2.2 2.3 2.4
LINES HEIGHT m 6.69 6.99 7.26 9.63
MAIN 3/4/3
RISERS
NUMBER 3 A,A’/B/C
TRIMS NO NO NO NO
ACCELERATOR 140 140 140 140
WEIGHT RANGE MIN-MAX KG 60-85 70-95 80-105 90-120
CERTIFICATION EN-926-1/2
LTF KG EN-A EN-A EN-A EN-A
GLIDER WEIGHT KG
Purple Lime Golden
5.1 5.4 5.7 6.1

DAVINCI GLIDERS / CLASSIC2
4
2. Materials DATA
CANOPY FABRIC CODE SUPPLIER
UPPER SURFACE MJ40 MF MYUNGJIN TEXTILE
BOTTOM SURFACE MJ40 MF MYUNGJIN TEXTILE
PROFILES MJ38 HF / MJ32 HF MYUNGJIN TEXTILE
DIAGONALS MJ32 HF MYUNGJIN TEXTILE
Smart Nose Plus/
Smart Double layer MJ 38 HF MYUNGJIN TEXTILE
RISERS FABRIC CODE SUPPLIER
MATERIAL WEBBING 20MM GUTH&WOLF GMBH
PULLEYS RIELY LW RILEY PTY LTD
SUSPENSION LINES FABRIC CODE SUPPLIER
UPPER CASCADES TNL 80 Daegu Braiding Co
MIDDLE CASCADES TNL180/145 Daegu Braiding Co
MAIN TNL 280/220/180 Daegu Braiding Co
UPPER STABLE TNL 80 Daegu Braiding Co
MAIN STABLE TNL 180 Daegu Braiding Co
UPPER BRAKE TNL 80 Daegu Braiding Co
MIDDLE BRAKE TNL 145 Daegu Braiding Co
MAIN BREAK TNL 400 Daegu Braiding Co

DAVINCI GLIDERS / CLASSIC2
5
3. Introduction and Pilot Target
The CLASSIC2 has been designed for who are willing to progress in the sport safely, chasing their rst XC
ights but who are also comfortable with the technical control of this type of glider.
The CLASSIC2 is an easy and fun paraglider with excellent glide and a very ecient speed system designed as a
low EN-B class glider but received EN-A grade in all conditions of manuever. Long brake travel and excellent
passive safety, as well as the good stability make the good ideal for progression.
CLASSIC2 has EN-B performance, but EN-A safety is secured by applying the Smart Double Layer System(SDL) to
ensure safety in ight, starting from Davinci’s R&D.
-LTF and EN certication
-The CLASSIC2 is certied during ocial testing as LTF /EN-A.
-The glider has been type-tested for “one-seated” use only. -
Suitability for training : The CLASSIC2 is suitable for use in
school and educational XC ying.
-For the CLASSIC2 has a maximum of 65cm symmetrical travel length at maximum total-load.
It would be dangerous to use the brake travel according to those numbers, because it is
not practicable to measure the brake travel during ight, and in turbulence, the stall might occur with less
brake travel. If you want to use the whole brake travel of your glider safely, it is necessary to do many intended
spins and full stalls to get a feeling for the stall behavior.

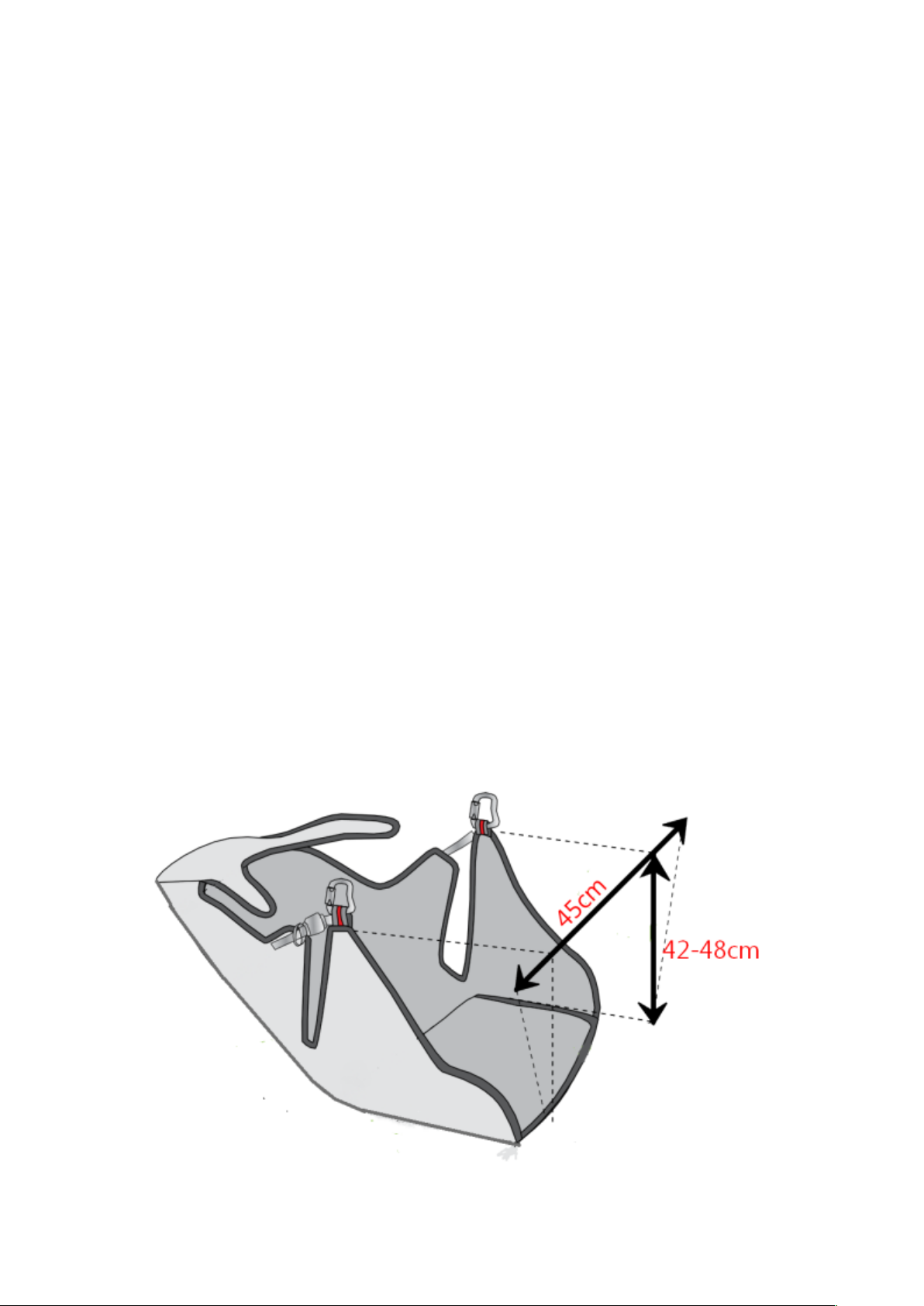

4. Harness
The CLASSIC2 is certied for harnesses in Group GH(without rigid cross-bracing). The suspension points of
the chosen harness should ideally have a carabiner distance of approximately 45cm and a height of 40 to
48cm.

DAVINCI GLIDERS / CLASSIC2
6
6. Lines
7. Accelerator system
They come in dierent diameters of Kevlar and Dyneema with sheathed cover. They must be inspected
every 150 hours or 24months maximum.
In the case of Brake lines, it was cut a little longer, so every pilot can adjust it according to his personal taste.
But you must always leave 10cm before the brakes line starts acting in order to avoid trailing edge
deformation when the wing is fully accelerated. In case the brake handle comes loose during ight or any
brake lines are cut you can use the C riser softly for directional control instead of the brake line.
The accelerator has been limited in travel up to a safety point, however, you can gain 8-12 km of extra speed.
The speed system length is 14cm.
You have to adjust the harness to the speed system so you can use all the speed travel.
To do so you have to be seated in the ground meanwhile you are in your harness and adjust the lines by
pulling up the risers with tension. Another person’s helps to do this is recommended. Make sure also that
the speed bar is not pulling down the risers when you are not using it.
Once all the gear is rigged you have to test the whole speed travel in calm air. The use of the speed system
reduces the angle of attack and the canopy may be more sensitive to collapses therefore do not use near
the ground or in turbulent air and in case you are hit by turbulence remove your feet o the speed bar as
quickly as possible. Always far away from the ground when using the speed bar.
5. Risers
CLASSIC2 has 3 risers. The A riser has a red cover to easy identi-
cation. There is another line with red mailon. There is A’ and is
for the big ears.
The Dierence of riser length should be no more than ±5 mm
S, M, L
Standard
(With biner)
[mm]
Accelerated
(With biner)
[mm]
Travel length
[mm]
A 500 (525) 500 (525) 0
B 500 (525) 430 (465) 70
C 500 (525) 360 (405) 140
XS
Standard
(With biner)
[mm]
Accelerated
(With biner)
[mm]
Travel length
[mm]
A 480 (505) 480 (505) 0
B 480 (505) 410 (435) 70
C 480 (505) 340 (365) 140

DAVINCI GLIDERS / CLASSIC2
7
8. Pre-ight check
9. Take-0
To know yourself with the glider it is a good idea to perform practice inations and ground handling in
advance. You should have no diculties ying the CLASSIC2 for the rst time in suitable conditions, but as
with all new equipment.
When you have the new glider, the below points should be inspected.
- Check the lines are clear and not twisted.
- Connection points between the glider and harness.
- All harness buckles are closed.
- The Karabianers are fully closed and not damaged.
- The sewing, condition of the lines, and connection of the lines are right
- Internal damage to ribs and diagonal ribs.
- Demage to the top and bottom panels and seams between panels
CLASSIC2 has easy ination behavior at the forward/reverse launch because of its prole system.
To get the right-wing shape for the take-o, pull the brake until the canopy shows the perfect
banana shape on the at ground. While inating the CLASSIC2, you should hold both of the A
risers in your hands. Smoothly and gradually inate the wing. It does not need excessive energy
and you feel the lift force very fast. It does not tend to over-shooting characteristics and provides
9.1 Tow launch
The CLASSIC2 is easy to launch using a winch and it has no special skills. To practice this
launching technique special training is needed and you have to know the procedures
and dangers, which are specic to winching. We do not recommend using any special
towing device which accelerates the glider during the winch launch.

DAVINCI GLIDERS / CLASSIC2
8
11.2 Frontal collapse
CLASSIC2 does not come out asymmetrical front collapse by itself. It has high internal
pressure with its well-designed prole. However asymmetric collapse may occur in
strong turbulent conditions, but It could be fast recovered if you apply the brake down
to 15 to 20cm. Release the brake lines, you may recover to the normal ight.
10. In ight characteristics
11. Deations
11.1 Asymmetric collapse
The asymmetric collapse usually happens when the pilot has not foreseen this possible
reaction of the wing.
Asymmetric collapses should be controlled by weight shifting away from
the collapse and applying enough brake to control your direction. And you
should use the brake to re-inate the glider.
CLASSIC2 has the best stable glide performance in a normal position with no any brakes. In strong thermals
and turbulence, we recommend gently pull both brakes without acceleration to increase stability. The
brakes provide feedback about the surrounding air, which is needed for active ying.
To familiarize yourself with the CLASSIC2 your rst turns should be gradual and progressive. To make
ecient and coordinated turns with the CLASSIC2 rst look in the direction you want to go and check that
the airspace is clear. Your rst input for directional change should be weight-shift, followed by the smooth
application of the brake until the desired bank angle is achieved. To regulate the speed and radius of the
turn, coordinate your weight shift and use the outer brake.
In the unlikely event that a brake line releases from the brake handle or breaks, the glider is maneuverable
using the C-risers. By pulling gently on the C-risers it is possible to steer the glider and land safely.
Alternative Steering:
In the unlikely event, that a brake line releases from the brake handle, or breaks, or the brake-lines are
tangled up, the glider is maneuverable using the rear-risers. By pulling gently on the rear-risers, it is possible
to steer the glider and land safely. Don’t pull the rear-risers too much, to avoid a deep stall!
In spite of the CLASSIC2 has great stability of the ight, strong turbulence or piloting error may cause a
portion of the wing suddenly to be deation.

DAVINCI GLIDERS / CLASSIC2
9
11.5 Asymmetrical stall
11.6 B stall
It can take place when you pull one of the brakes too hard, or while spiraling at a small
speed in turbulence you increase the angle of attack. Rotation in the asymmetrical stall
is called a negative spiral. This is one of the most dangerous ying situations. In order
to get out of the asymmetrical stall, just release the brakes. There may follow side thrust
forward with the following wing collapse.
The CLASSIC2 has a very clean stable B stall. To enter the B stall, the pilot has to pull the
rst 20cm slowly until the glider loses forward speed and starts to descend at around
6 m/s vertically. Do not release the brake handles during B stall. If you pull too much
B-line the glider may horseshoe and move around a lot. If this happens, release the B
risers.
To exit the B-stall the B-risers should be released symmetrically and in one smooth,
progressive motion. The glider will resume normal forward ight without further input.
Check you have a forward ight again before using the brakes.
11.4 Deep stall
11.3 Full stall
It is possible for gliders to enter a state of the deep stall. This can be caused by several
situations including; a very slow release from a B-line stall; ying the glider when wet; a
very old glider; or after a front/symmetric deation.
When you meet this situation you should fully raise up both brakes and push the
A-risers forwards or use the speed bar symmetrically to regain normal ight.
The full stall can occur when you fully pull both brakes enough a long time. This means
that the wing loses its forward momentum. To recover to the normal ight you must
release both brakes. After this usually comes a front dive with a possible front deation.
An asymmetric recovery (one control released faster than the other) from a full-stall can
cause a big dynamic collapse.The full-stall is a hazardous maneuver and as such outside
the scope of this manual. You should practice and learn this maneuver only on an SIV
course under a professional instructor.

DAVINCI GLIDERS / CLASSIC2
10
12.2 Spiral dive
The spiral dive is the most demanding descent technique and should be
learned at enough height, preferably during an SIV course.
When you hold one- sided brake down for a long time, the glider goes into a fast sharp
turn and loses a lot of height. The sink rate could be more than 15 m/sec. To get out of
the spiral dive you must release the inner brake and use the outside brake to manage
your sink rate. Mind that CLASSIC2 may take one more turn after releasing the brake.
12. Descent Techniques
12.1 Big ears
The sink rate can be decreased in a controlled way by folding both wingtips. While
holding the brakes you should symmetrically pull the outermost A-risers.
In order to return to the normal ight, you should release the A-risers and
pull the brake short times until wing tips regain pressure.
Spiraling is not permitted with big ears, because of the increased load on the
remaining lines so that they can be physically deformed.
11.7 Cravat
In case a cravat should occur from an asymmetric collapse or other maneuvers, it is
important to keep your ying direction by applying some brake on the opposite side
and weight shift.
You can also use strong deep pumps on the brake to the cravated side. If a pull of the
brake line is unsuccessful, pulling the stable line which is the outermost line on the
B-riser may work.
If you can not do it and the rotation is increasing, you must use the parachute.

DAVINCI GLIDERS / CLASSIC2
11
14. Packing your CLASSIC2
15. Maintenance and cleaning
Spread the CLASSIC2 completely out on the ground. Separate the lines to each side. The CLASSIC2 must be
folded cell to cell to keep the plastic reinforcement at the leading edge lie at on each other and don’t get
bent. Try to pack your CLASSIC2 as loosely as the rucksack allows because every fold weakens the fabric.
Avoid packing the glider where it is wet or abrasive conditions(sand, asphalt pavement, concrete)
Cleaning should be carried out with only pure water. If the glider comes in contact with salt
water, clean thoroughly with fresh water. Do not use solvents of any kind, as this may remove
the protective coatings and destroy the fabric.
13. Landing
We recommend landing with trimmers to the normal slow position. Don’t use sharp turns or radical
maneuvers.
When you are 1-2m over the ground, you should face into the wind and standing upright and ready to run.
Finally, you may pull the brakes smoothly for minimizing vertical speed.
Don’t hit the ground by your overtake the glider. If you in windy condition, as soon as you touch the ground
you have to turn around to face the glider and move towards it during full pulling break symmetrically.

DAVINCI GLIDERS / CLASSIC2
12
17. Warrantee
18. Respecting nature and environment
The producer guarantees the correctness of the declared characteristics and the paraglider’s
normal performance for two years after the purchase date. The producer conducts special, and
after warranty repairs and maintenance at the owners’request for an extra price.
We recommend inspecting your paraglider (including checking suspension line strength, line
geometry, riser geometry, and permeability of the canopy material) one time at two years, or
every 150 hours of ying time (whichever comes rst); that inspection must be made by the
manufacturer, importer, distributor, dealer or other authorized persons.
The checking must be proven by a stamp on the certication sticker on the glider as well in the
manual book.
There are not necessary spare items except the rubber ring to x the main lines on the riser
triangle carabiner. The rubber rings will be oered by us in the repair kit oering with the glider.
You can exchange it by yourself when it has been disappeared or wears o. After you exchange
the lubber ring, you must check again the triangle carabiner on the riser has been locked well
before you y.
Finally, we would ask each pilot to take care of nature and our environment. Respect nature and
the environment at all times but most particularly at take-o and landing places. Respect others
and paraglider in harmony with nature.
Do not leave marked tracks and do not leave rubbish behind. Do not make unnecessary noise
and respect sensitive biological areas.
The materials used on a paraglider should be recycled. Please send old Davinci gliders back to
us Davinci Gliders oces. We will undertake to recycle the glider.
16. Caring tips
- Do not expose your glider to the sun any longer than necessary
- Keep it away from water and other liquids
- Do not let the front edge hit the ground
- Keep your glider away from re
- Do not put anything heavy on your glider, do not pack it in a rucksack too tightly.
- Regularly inspect the canopy, lines, risers and harness. If you nd any defects,
contact your dealer or the manufacturer. Do not attempt to repair the paraglider by yourselves.
- If you detect a damaged line, inform the dealer or manufacturer about the line number
according to the line plan
- Keep your CLASSIC2 in a bag in a dry well-ventilated place under neutral temperature and
humidity conditions
- If you do not use the glider, then once a month you should unpack it, ventilate it well,
and then pack it back in the bag

DAVINCI GLIDERS / CLASSIC2
13
A B C D Brake
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
XS size
Checked line sheet(with riser)
The measured values at the lower surface of the tailing edge, cll depth and
spacing of the articulation points were determined under tensile load of 50N.
The length dierence is not more than ±10 mm.
DAVINCI GLIDERS / CLASSIC2
A B C D Brake
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
S size

DAVINCI GLIDERS / CLASSIC2
14
A B C D Brake
17212 7109 7197 7343 7729
27179 7070 7155 7300 7445
37169 7057 7128 7264 7247
47191 7076 7143 7272 7147
57193 7072 7147 7266 7066
67164 7043 7113 7226 6940
77148 7028 7088 7193 6900
87154 7036 7092 7188 6948
97103 6995 7051 6830
10 7053 6953 7009 6766
11 6963 6878 6932 6877
12 6890 6819 6871
13 6877 6813 6861
14 6678 6618 6709
15 6451 6477 6589
M size
Checked line sheet(with riser)
The measured values at the lower surface of the tailing edge, cll depth and
spacing of the articulation points were determined under tensile load of 50N.
The length dierence is not more than ±10 mm.
DAVINCI GLIDERS / CLASSIC2
A B C D Brake
17513 7407 7493 7645 8077
27480 7371 7450 7601 7782
37470 7354 7423 7564 7578
47494 7374 7438 7573 7474
57496 7371 7443 7566 7375
67466 7341 7407 7525 7245
77450 7325 7382 7491 7203
87457 7333 7386 7486 7252
97402 7290 7339 7130
10 7350 7247 7295 7064
11 7256 7168 7214 7165
12 7181 7107 7151
13 7165 7099 7140
14 6948 6886 6981
15 6712 6739 6855
L size

DAVINCI GLIDERS / CLASSIC2
15
Name Manufacturer Name Manufacturer Name Manufacturer Name Manufacturer Name Manufacturer
a1 TNL-80 b1 TNL-80 c1 TNL-80 d1 TNL-80 br1 TNL-80
a2 TNL-80 b2 TNL-80 c2 TNL-80 d2 TNL-80 br2 TNL-80
a3 TNL-80 b3 TNL-80 c3 TNL-80 d3 TNL-80 br3 TNL-80
a4 TNL-80 b4 TNL-80 c4 TNL-80 d4 TNL-80 br4 TNL-80
a5 TNL-80 b5 TNL-80 c5 TNL-80 d5 TNL-80 br5 TNL-80
a6 TNL-80 b6 TNL-80 c6 TNL-80 d6 TNL-80 br6 TNL-80
a7 TNL-80 b7 TNL-80 c7 TNL-80 d7 TNL-80 br7 TNL-80
a8 TNL-80 b8 TNL-80 c8 TNL-80 d8 TNL-80 br8 TNL-80
a9 TNL-80 b9 TNL-80 c9 TNL-80 br9 TNL-80
a10 TNL-80 b10 TNL-80 c10 TNL-80 br10 TNL-80
a11 TNL-80 b11 TNL-80 c11 TNL-80 br11 TNL-80
a12 TNL-80 b12 TNL-80 c12 TNL-80
a13 TNL-80 b13 TNL-80 c13 TNL-80
a14 TNL-80 b14 TNL-80 c14 TNL-80
a15 TNL-80 b15 TNL-80 c15 TNL-80
BR1 TNL-145
A1 TNL-180 B1 TNL-180 C1 TNL-145 D1 TNL-145 BR2 TNL-145
A2 TNL-180 B2 TNL-180 C2 TNL-145 D2 TNL-145 BR3 TNL-145
A3 TNL-145 B3 TNL-145 C3 TNL-145 D3 TNL-145 BR4 TNL-145
A4 TNL-145 B4 TNL-145 C4 TNL-145 D4 TNL-145
A5 TNL-145 B5 TNL-145 C5 TNL-145
A6 TNL-145 B6 TNL-145 C6 TNL-145
BRI TNL-145
BRII TNL-145
ST1 PPSL 145 BRIII TNL-145
AI TNL 280 BI TNL 280 CI TNL 220 ST2 PPSL 145
AII TNL 280 BII TNL 280 CII TNL 220
AIII TNL 220 BIII TNL 220 CIII TNL 180 Stable TNL 180 brmain TNL-400
DAVINCI GLIDERS / CLASSIC2
Line Materials

DAVINCI GLIDERS / CLASSIC2
16
Overview
Smart Double Layer System(SDL)
Smart Double Layer
(SDL)
Line Plan / Overview

DAVINCI GLIDERS / CLASSIC2
17
Serial Number
Date of Production
Dealer
Date of sales
Check and repair information
