DAXOM Naviels Operating manual

1
Electric Combi Boiler
Comfort and Confidence For Your Life
User and Installation
Manual

2
Dear Daxom User,
For the correct functioning of the device and for your safety, follow the instructions
given in this manual during the installation and use of the device.
Unqualified installation, maintenance or repair of the device will render it out of
warranty. In addition, our company will not be responsible for any malfunction or
accident that may occur in the product.
Please keep this manual in good condition for future reference.
▪The device must be installed by qualified personnel and in accordance with the
instructions given in this manual.
▪The first start-up of the device should be carried out by qualified personnel,
so please do not try to perform the first start-up of the device by yourself.
▪The water and heating system connections of the device must be made securely.
▪Depending on the model, the device can operate with the voltage specified in
this manual. It must be ensured that the mains voltage is suitable.
▪When supplying from a source other than the mains (such as a generator), it
must be ensured that the necessary conditions are met for the device to
work safely.
▪The energy supply to the device must be provided using a suitable cross-
sectioned-cable as specified in this manual. Residual current relay and
grounding connections are a must.
▪The device should not be installed in humid environments or in environments that
can get wet due to external factors.
▪Flammable, explosive or easily ignitable substances or articles should not be
next to or in proximity of the device.
▪This manual is an integral part of the product. Keep it for reference when needed.
In case of any loss or damage, please download a new copy at www.daxom.co.uk.
▪This device should only be used for its intended purpose. The manufacturer
disclaims any contractual or non-contractual liability for damage to property or
injury to persons or animals resulting from misuse, installation, adjustment, or
maintenance.
▪After removing the packaging, make sure that the contents are in good
condition and complete. Otherwise, contact the retailer where you purchased
your device.
1. SAFETY WARNINGS

3
▪The safety valve outlet must be connected to an appropriate discharge
system. All liability for damages that may occur due to any intervention to
the safety valve belongs to the user.
▪Dispose of all packaging refuse carefully, without harming the environment
or human health.
▪In case of water leakage, the water supply should be turned off and the
Installer should be informed immediately.
▪Heating circuit water pressure should be between 1 and 2 bar and should
never exceed 3 bar pressure. If necessary, reduce the heating circuit water
pressure from the discharge valve in your installation.
▪If the device will be out of use for a prolonged time, it is recommended
to perform the following actions:
▪Turn off the electrical switch of the device.
▪Close the water valves in both the heating and DHW installation.
▪Discharge the heating circuit water to prevent freezing.
▪The device must not be used by children or unattended disabled
persons.
▪In case of smoke or burning smell caused by the device, turn off the
electrical switch of the device and contact the Installer.
▪Do not touch the device with wet hands or when the outside of the device is
wet.
▪Do not use chemicals such as detergents or thinners for cleaning the
device. Do the external cleaning of the device using a slightly damp cloth
but after turning off the electrical switch of the device.
▪Before using the hot water, be sure to check its temperature.
▪Adjust the indoor temperature according to your needs.
▪Homogeneous heating provision in the areas of the heating environment
in accordance with the purpose of use increases savings.
2. SUGGESTIONS FOR ECONOMICAL USE

4
▪The fact that the required temperature value for each section can be
adjusted using thermostatic valves with radiators increases the savings.
However, using the room thermostat and thermostatic valve at the same
time can cause problems if installed in the same room.
▪In order for thermostatic valves to detect the ambient temperature correctly,
curtains or items that may disrupt the air flow in the environment should be
positioned appropriately.
▪Room thermostat should be positioned at an appropriate height and
away from windows, furniture or heat sources so that it can perceive the
real temperature of the environment it is in.
▪Prolonged ventilation of heated environments increases energy loss.
Ventilation should be done for short terms but if long-term ventilation is
required, closing the radiator valves present in the environment or lowering
the device heating setting will save energy.
▪If the temperature of the device is lowered at night or when the home
is unoccupied for a short time, while the ambient temperature can be
kept at a certain level saving can also be achieved.
▪Adjusting the operating temperature of the device according to the
outside temperatures will save money.
▪Adjusting the domestic water temperature according to your needs and in
a way that does not require use of cold water to make it tepid, saves
money.
▪Use water wisely. Use of water with care increases savings.

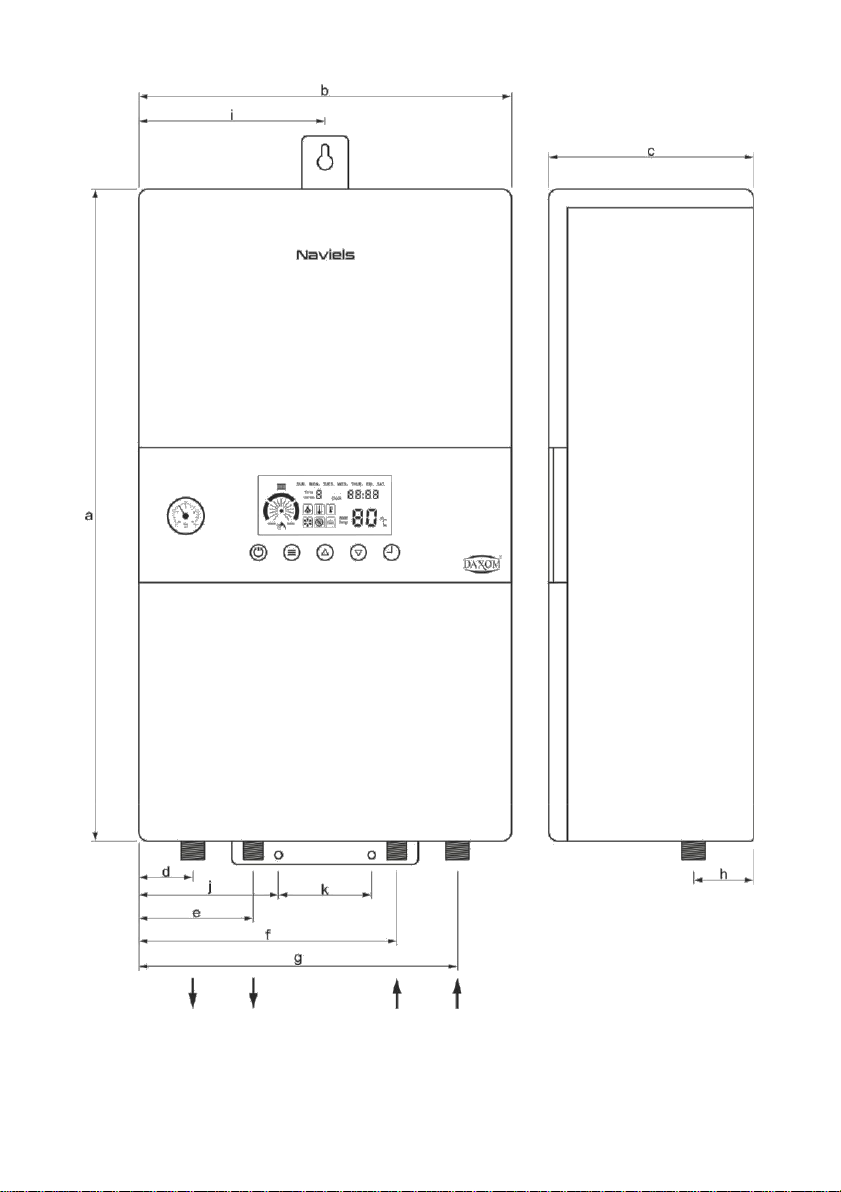

Capacity
10-24
KW
30-48
KW
72-96
KW
a
700
700
900
b
400
450
600
c
220
320
290
d
58
83
100
e
122
147
-
f
277
302
-
g
342
367
500
h
65
75
100
i
200
225
300
j
150
175
200
k
100
100
200
3. CONFIGURATION OF YOUR DEVICE

5
Heating
Out
Hot water
(Output)
Cold water
(Inlet)
Heating
Return

6
Technicial Specifications
Model
Power
Dimensions
Weight
Expansion
Hot water amount
(kW)
H*W*D (mm)
(Kg)
Tank (l)
(l/min)(Δt=25°C)
3~400 V 50 Hz Electric Heating and Hot Water
UKDAX-10EDT
10
700*400*220
23.5
7
5.8
UKDAX-12EDT
12
700*400*220
23.5
7
6.9
UKDAX-16EDT
16
700*400*220
25.0
7
9.2
UKDAX-18EDT
18
700*400*220
25.0
7
10.4
UKDAX-20EDT
20
700*400*220
25.0
7
11.5
UKDAX-24EDT
24
700*400*220
25.0
7
13.8
UKDAX-30EDT
30
700*450*320
32.2
12
17.2
UKDAX-36EDT
36
700*450*320
35.4
12
17.2
UKDAX-40EDT
40
700*450*320
35.4
12
17.2
UKDAX-48EDT
48
700*450*320
35.4
12
17.2
1~220 V 50 Hz Electric Heating and Hot Water
UKDAX-6EDM
6
700*400*220
23.5
7
3.4
UKDAX-10EDM
10
700*400*220
23.5
7
5.8
UKDAX-12EDM
12
700*400*220
23.5
7
6.9
UKDAX-16EDM
16
700*400*220
25.0
7
9.2
UKDAX-18EDM
18
700*400*220
25.0
7
10.4
3~400 V 50 Hz Electric Heating Only
UKDAX-10ETT
10
700*400*220
21.3
7
-
UKDAX-12ETT
12
700*400*220
21.3
7
-
UKDAX-16ETT
16
700*400*220
22.8
7
-
UKDAX-18ETT
18
700*400*220
22.8
7
-
UKDAX-20ETT
20
700*400*220
22.8
7
-
UKDAX-24ETT
24
700*400*220
22.8
7
-
UKDAX-30ETT
30
700*450*320
30.0
12
-
UKDAX-36ETT
36
700*450*320
33.2
12
-
UKDAX-40ETT
40
700*450*320
33.2
12
-
UKDAX-48ETT
48
700*450*320
33.2
12
-
1~220 V 50 Hz Electric Heating Only
UKDAX-6ETM
6
700*400*220
21.3
7
-
UKDAX-10ETM
10
700*400*220
21.3
7
-
UKDAX-12ETM
12
700*400*220
21.3
7
-
UKDAX-16ETM
16
700*400*220
22.8
7
-
UKDAX-18ETM
18
700*400*220
22.8
7
-
4. TECHNICAL INFORMATION

7
Technical Specifications
Heating
DHW Water
Min. Operating pressure
bar
1
0.5
Max. Operating pressure
bar
3
10
Min. Setting Temperature
°C
10
35
Max. Setting Temperature
°C
80
55
Connections
inch
¾
½
ETP Model Connections
inch
1
-
Observe the minimum distances stipulated in the installation to be able to access the
device for maintenance and repair.
For correct device assembly:
▪It should not be installed above stoves or similar cooking devices.
▪There should be no flammable products in the room where the device is installed.
▪Heat sensitive surfaces (e.g., wooden walls) must be protected with proper insulation.
The device must be installed by qualified personnel.
5.1. Installation Conditions and Safety Warnings
5. DEVICE INSTALLATION

8
▪Prior to installation, all system piping should be carefully flushed to remove any
residue that could impair the operation of the device.
▪When the pressure of the heating system rises above 3 bar, water discharge
starts from the safety valve.
▪There is no need for a safety valve in the mains hot water circuit, but make sure
that the water pressure does not exceed 6 bar.
If in doubt, have a pressure reducer installed at the mains cold water inlet to
the property.
▪The environment in which the device is installed should be away from parts and
protrusions which could block or obstruct access during maintenance or repair.
There must be sufficient space around the device for maintenance and repair.
▪The electrical connection of the device must be made with a suitable cable, fuse
and residual current relay and grounding connection must be present.
▪The wall where the boiler is to be mounted must be capable of supporting the
weight of the device.
Fix the plugs by drilling the device mounting holes in the locations selected in
accordance with the conditions stated above. Using the holes you drilled, screw your
device from the bottom to the top and check that it is stable.
The heating system should be installed using pipes of suitable diameter to ensure
adequate circulation of the heating water. Choosing heating pipes in smaller diameter
than they should be and narrowing or blockages in the installation may cause
insufficient heating circulation. Connections to the device must be easily removable
when necessary. There should be separate shut-off valves at the heating inlet and
outlet of the device, and a Magnetic filter at the heating return between the valve and
the device. There must be a valve and an inline lime scale inhibitor at the cold-water
inlet of the boiler.
It should be ensured that the wall, where the boiler is to be mounted, can carry the
full weight of the device and that the mounting material is securely fixed.

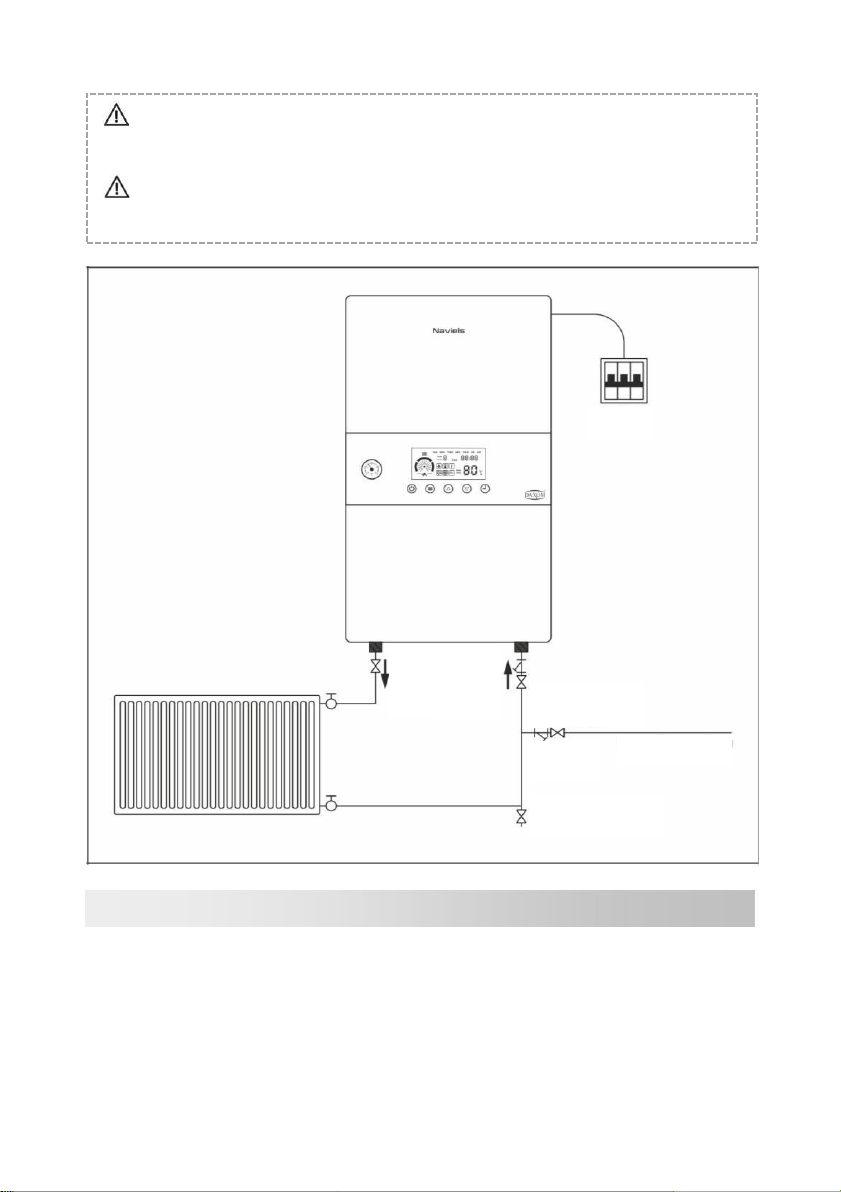

5.2.1. Making the Heating and Water System Connections
5.2. Wall Mounting of the Device

9
For UKDAX-xxEDT and UKDAX-xxEDM models, this is done with the blue filling tap
on the bottom of the device. The filling should be done by following the instructions
below.
▪Make sure that the cold-water inlet valve of the device is open.
▪Turn on the filling tap.
▪Open the air vents and discharge the air accumulated in the radiators
and shut them when water starts to flow.
▪When the air accumulated in the radiators is discharged, there may be a
decrease in the water pressure of the heating system. Make sure that the
water pressure of the heating system is between 1-1,5 bars, if there is a
decrease, fill it up by opening the filling tap.
For UKDAX-xxETT and UKDAX-xxETM models, this process is done using the filling
valve to be connected to the heating system. For this, a valve connection must be
made from the cold water system to the heating system. The filling valve should be
close to the device and in a position that sees the pressure gauge on the device.
After the filling valve, there must be a silt trap. The filling should be done by following
the instructions below.
▪Turn on the heating system water filling valve.
▪When the water pressure gauge reaches 1 - 1.5 bar, turn off the filling tap.
▪Open the air vents on the upper side of the radiators and discharge the air
accumulated in the radiators and turn them off when water starts to flow.
5.2.1.1. Filling the Heating System for EDT and EDM Models
5.2.1.2. Filling the Heating System for ETT and ETM Models
After the heating system is filled, it should be carefully checked for any water
leak.
If the filling tap is left on and the pressure of the heating system exceeds 3
bar, water discharge starts from the safety valve inside the device.

10
▪When the air accumulated in the radiators is discharged, there may be a
decrease in the water pressure of the heating system. Make sure that the
water pressure of the heating system is between 1 and 1.5 bar, and if there is
a decrease, turn on the filling tap and increase it.

Electrical installation should be carried out by qualified personnel using an
appropriate cross-sectioned-cable chosen according to the device capacity andcable
length. There should be a separate residual current relay with appropriate
specifications and a fuse with suitable amperage value, both capable of completely
cutting the electricity supply to the device off, and the fuse should be located close to
the device. The device must be grounded.
10
After the heating system is filled, it should be carefully checked for any water
leak.
If the filling tap is left on and the pressure of the heating system exceeds 3
bar, water discharge starts from the safety valve inside the device.
5.2.2. Making Electrical Connections
Heating
Flow
Line
Heating
Return
Line
Heating Installation
Water Fill Valve
Water Filling Line
Heating Installation
Water Drain Valve
Fuse

11
If there is no grounding system in the building where the device is installed, a
grounding line must be installed by qualified personnel. Periodical checks should be
carried out to ensure that the grounding installation is in working condition. The fuse
should be located sufficiently close to the device so that the cable coming out of the
device can be connected to it without tension. Connection of cables to fuses should
be done by qualified personnel.
Make sure you connect the cables to the right place.
Loose cable connections can cause accidents.
Cable sections, residual current relay, and fuse ampere values, calculated
according to device capacity and cable lengths can be seen in the table below.
The cable cross-sections in this table are calculated for a maximum of 10 m.
For cable lengths longer than 10 m, consult your electrician.

12
Model
Power (kW)
Current
Drawn (A)
Fuse &
Residual
Current Relay
(A)
cross
section
3~400 V. 50 Hz Electric Heating and Hot Water
UKDAX
10EDT
10
3*15,2
3*16
5*2,5
UKDAX
12EDT
12
3*18,2
3*20
5*2,5
UKDAX
16EDT
16
3*24,3
3*32
5*2,5
UKDAX
18EDT
18
3*27,3
3*32
5*4
UKDAX
20EDT
20
3*30,4
3*40
5*4
UKDAX
24EDT
24
3*36,4
3*50
5*6
UKDAX
30EDT
30
3*45,5
3*63
5*10
UKDAX
36EDT
36
3*54,6
3*63
5*10
UKDAX
40EDT
40
3*60,7
3*63
5*16
UKDAX
48EDT
48
3*72,8
3*80
5*16
1~220 V.50 Hz Electric Heating and Hot Water
UKDAX
10EDM
10
1*45,5
1*50
3*6
UKDAX
12EDM
12
1*54,6
1*63
3*10
UKDAX
16EDM
16
1*72,8
1*80
3*16
UKDAX
18EDM
18
1*81,9
1*100
3*16
Model
Power (kW)
Current
Drawn (A)
Fuse &
Residual
Current Relay
(A)
cross
section
3~400 V.50 Hz Electric Heating Only
UKDAX
10ETT
10
3*15,2
3*16
5*2,5
UKDAX
12ETT
12
3*18,2
3*20
5*2,5
UKDAX
16ETT
16
3*24,3
3*32
5*2,5
UKDAX
18ETT
18
3*27,3
3*32
5*4
UKDAX
20ETT
20
3*30,4
3*40
5*4
UKDAX
24ETT
24
3*36,4
3*40
5*6
UKDAX
30ETT
30
3*45,5
3*50
5*10
UKDAX
36ETT
36
3*54,6
3*63
5*10
UKDAX
40ETT
40
3*60,7
3*63
5*16
UKDAX
48ETT
48
3*72,8
3*80
5*16
1~220 V.50 Hz Electric Heating Only
UKDAX
10ETM
10
1*45,5
1*50
3*6
UKDAX
12ETM
12
1*54,6
1*63
3*10
UKDAX
16ETM
16
1*72,8
1*80
3*16
UKDAX
18ETM
18
1*81,9
1*100
3*16

13
The operating status of the device and the adjustments made can be monitored from the
control panel.
Central heating run indicator
Days of the week
Time program. 3 time programs
can be made.
Time
Capacity indicator
Ready-to-run indicator
Hot water heating indicator
Heating indicator
Over temperature indicator
Overtemperature difference value
Pump run indicator
Frost protection indicator
Room thermostat connection
indicator
Temperature indicator
6. SWITCHING ON AND OPERATING THE DEVICE
6.1. Control Screen

14
The control of the device is done with the buttons located under the display screen.
Before operating the device, it should be checked that all mechanical and electrical
connections are correct. Theheating system mustbe filled and vented. Our company
is not responsible for damages and accidents that may occur due to faulty
connections.
Follow the steps below to start-up the device:
▪Make sure that the water and heating valves of the device (only the heating
valve in UKDAX-xxETT, UKDAX-xxETM, UKDAX- xxETP models) are turned
on.
▪Turn on the residual current relay followed by the fuse.
▪After all the icons remain visible on the screen for a few seconds, it will be as
follows.
6.2. Control Keys
The first start-up of the device must be done by the qualified personnel.
Our company is not responsible for damages and accidents that may occur
because of intervention by unqualified persons.
6.3. Device Start-up
Turning On / Off
Menu entry / Changing
Temperature increase / Time and day setting
Temperature reduction / Return
Time program On / Off

15

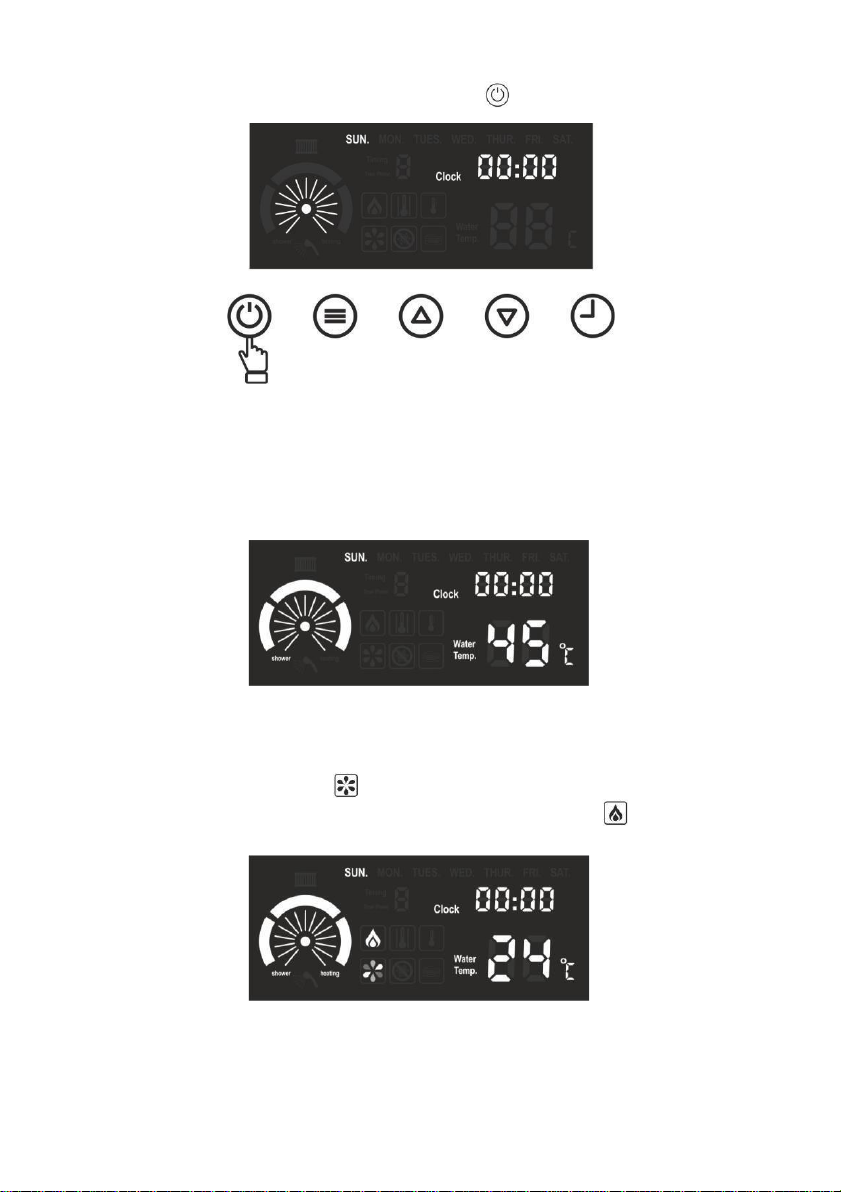

▪To turn on the device press and hold the button for 2-3 seconds.
The device keeps the last settings in its memory before it turns off. When
it is turned on again, it starts working using the same settings.
▪If the operating mode before the device is turned off is set to domestic water
heating, “shower” appears, and the device goes into standby. If the hot
water tap is turned on, the device starts to heat the domestic water.
▪If the operating mode before the device is turned off is set to domestic water
and central heating, the device operates for central heating. “heating” and
“shower”and the icon appear, after the pump operates for
approximately one minute the device starts heating, the icon appears. If
the hot water tap is turned on, the device starts to heat the domestic water.
▪If the operating mode before the device is switched off is set to central heating,
the device operates for central heating. The symbol appears with the text
“heating”,
2-3
seconds

16
6.4.1. Setting the Day and Time
symbol appears, after the pump runs for about one minute, the device
starts heating, the symbol appears.
A beep will sound for each keypress. For long-term (e.g., 2-3 seconds) key
presses, the keypress will not have registered until a beep is heard.
▪Turn the device off.
▪Press and hold the key for 5-6 seconds, the day starts to flash.
6.4. Setting Operation Parameters
5-6
seconds

17
▪The day is set by pressing the or keys at one second intervals.

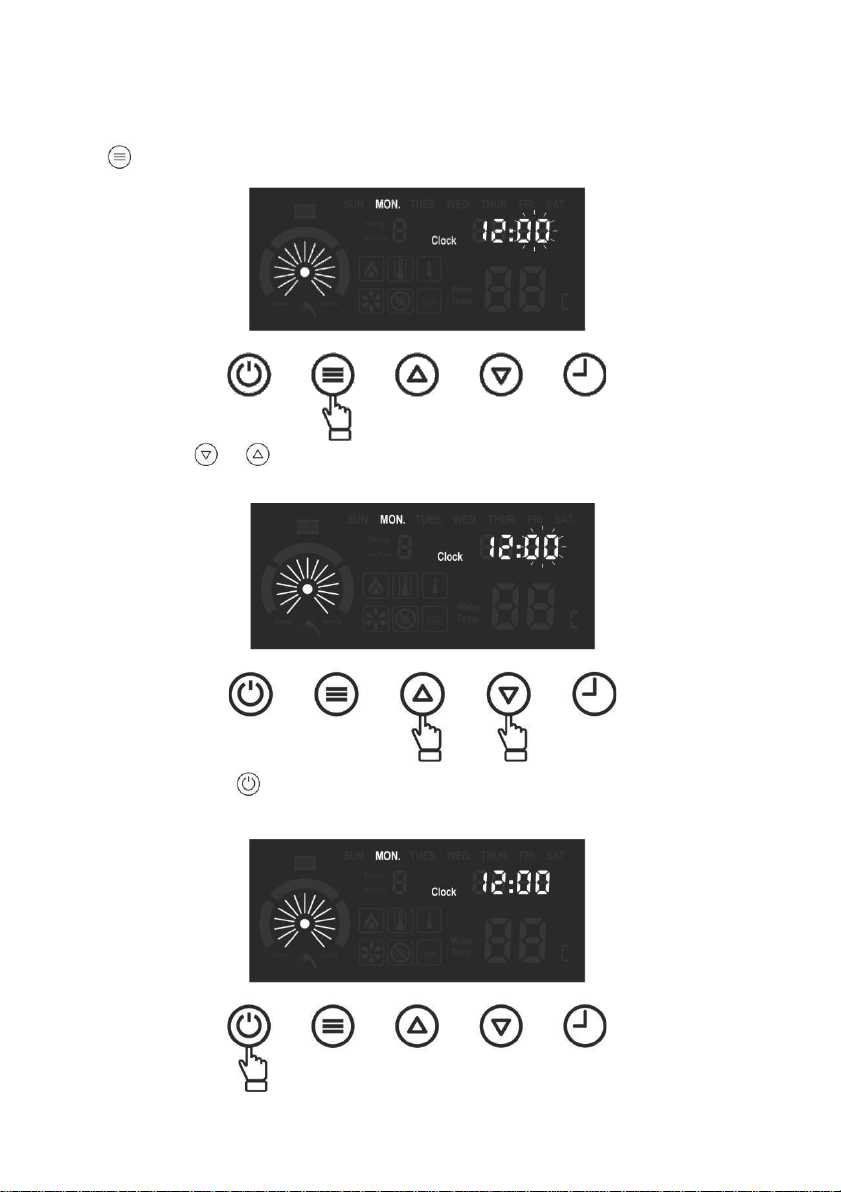

▪button is pressed, hour digit starts to flash.
▪Press the or buttons at one second intervals to set the time between 0 and 23.

18
▪button is pressed, minute digit starts to flash.
▪Press the or buttons at one second intervals to set the minute value
between 0 and 60.
▪By pressing the button once or by not pressing any buttons for 10 seconds, the
settings are saved and the setting menu is exited.

19

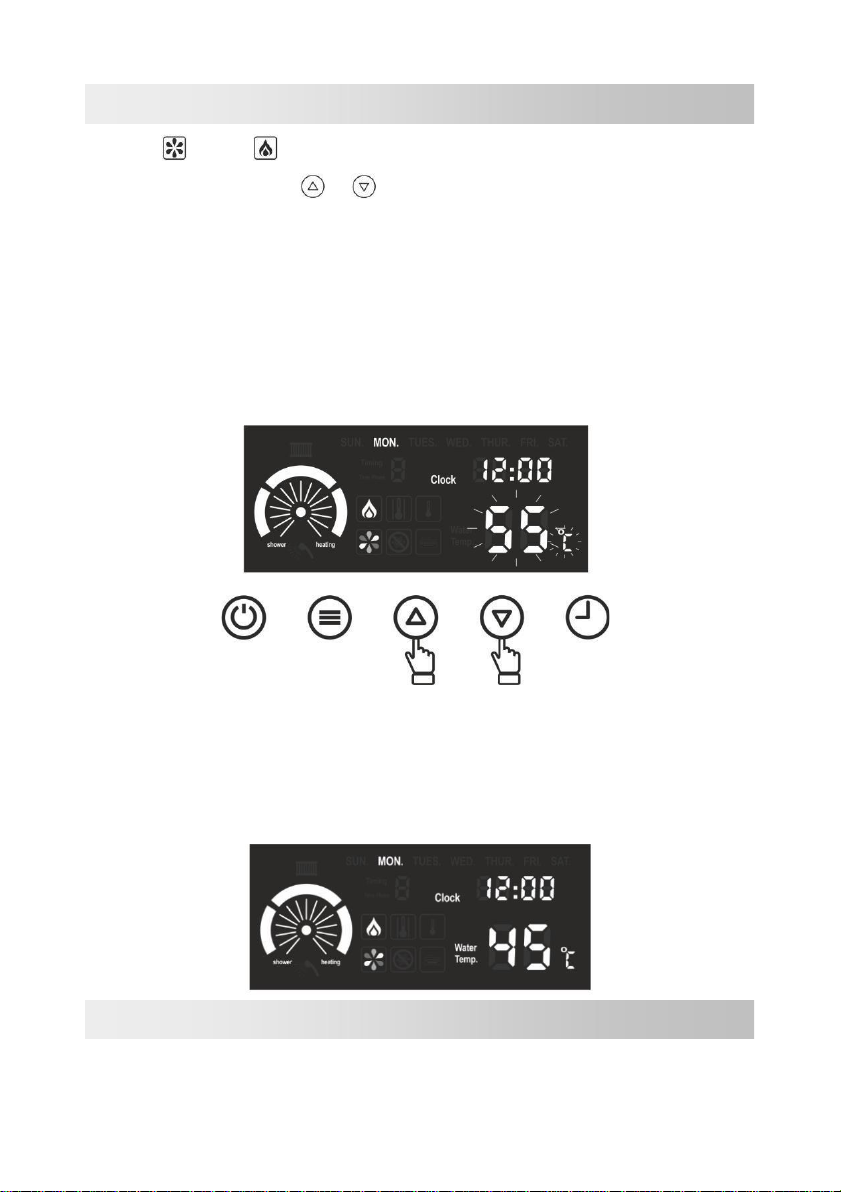

While the and the icons are visible on the screen (the device is operating for
central heating) by pressing or buttons heating temperature can be adjusted
between 35°C and 80°C. While the heater temperature is being adjusted the
“Water Temp” text turns off, and the adjusted temperature value starts to flash.
While the device is operating for domestic water heating, you must stop the hot
water flow to adjust the heating temperature. In case the operation mode is set to
domestic water heating, it is necessary to switch the operation mode to central
heating in order to change the heating temperature. At the end of the process, the
device should be returned to its previous operating position. (Please see 6.4.8)
2 seconds after the adjustment is completed, the operating temperature and the
“Water Temp” text are displayed on the screen. It may take time for the device to
reach the set temperature. Heating does not start immediately after the domestic
water heating is completed. For temperature compensation, the heating starts after
the pump has run for a while.
This setting can be made on UKDAX-xxEDT and UKDAX-xxEDM models that provide
domestic hot water. With the UKDAX-xxETT, UKDAX-xxETM and UKDAX-xxETP
models, domestic hot water can be supplied externally.
6.4.2. Adjusting the Heating Temperature
6.4.3. Domestic Hot Water Temperature Adjustment
